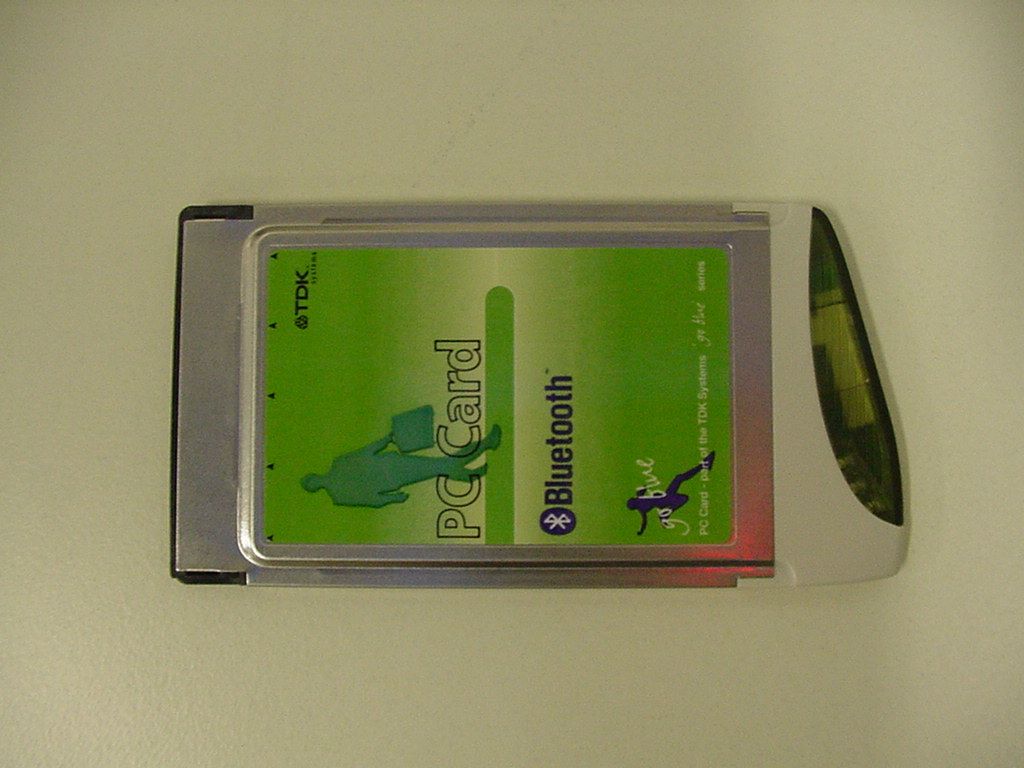

PI4-PCCARDIIBluetooth PC Card II

Bluetooth Solutions 2 Contents Introduction ................................................................................................................... ..............................................................................3 Box Content .................................................................................................................... .....................................................................3 Getting Started ................................................................................................................ ............................................................................4 Installing the Software........................................................................................................ ..................................................................4 Installing the Hardware ........................................................................................................ ................................................................5 Bluetooth Configuration........................................................................................................ .......................................................................6 My Bluetooth Places ............................................................................................................ .......................................................................8 Device Discovery ............................................................................................................... ..................................................................9 Service Discovery .............................................................................................................. ................................................................10 Bluetooth Services (Profiles).................................................................................................. ............................................................11 Pairing Guide .................................................................................................................. ..........................................................................13 Ericsson R520m................................................................................................................. ................................................................14 Ericsson T39m .................................................................................................................. .................................................................16 Ericsson T68/T68i .............................................................................................................. ................................................................18 Sony Ericsson P800............................................................................................................. ..............................................................20 Nokia 6210..................................................................................................................... ....................................................................21 Nokia 6310/6310i ............................................................................................................... ................................................................22 Nokia 7650..................................................................................................................... ....................................................................23 Nokia 8910/8910i ............................................................................................................... ................................................................24 HSCSD .......................................................................................................................... ...........................................................................25 Frequently Asked Questions ..................................................................................................... ................................................................26 Technical Support .............................................................................................................. .......................................................................27 Regulatory Information......................................................................................................... ....................... Error! Bookmark not defined. Safety Statements.............................................................................................................. .......................................................................28 Technical Information.......................................................................................................... ......................................................................29 Glossary....................................................................................................................... .............................................................................30 Warranty ....................................................................................................................... ............................................................................31 3 Introduction Bluetooth is a short range wireless communication technology. It is designed to replace the traditional cable connections curre ntly used to link compatible devices. These can be cable connections between computers and printers, computers and mobile phones and between mobile phones and headsets. Bluetooth is designed to operate in the internationally recognised ISM (Industrial Scientif ic and Medical) frequency band. Within the ISM band (2.4GHz – 2.48GHz) Bluetooth transmissions hop between 79 separate frequencies 1,600 times every second. Bluetooth is a low power radio …

Text truncated - open the document above for the full version.

Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR ‘TDK PC Card II’, FCC-ID: PI4_PCCardII To Whom It May Concern: This letter serves as an official request for confidentiality under the FCC Rule Section 0.459. We have requested that the schematic diagrams, Parts list, PCB layout, Parts placement and Block diagram required to be submitted with this application be withheld from public review. The reason for this request is that these documents are company proprietary information that should never get into the possession of competitors, which would be harmful for our business. Do not hesitate to contact me if you have any additional questions. Thank you very much.

Updated 25/03/2003 TDK Part Number CKGB-00067-03 Approved by IDA For use in Singapore. DB101279 FCC ID: PI4-PCCARDIICanada: 1931-PCCARDII LISTED I.T.E ACCESSORY 4T50 systems

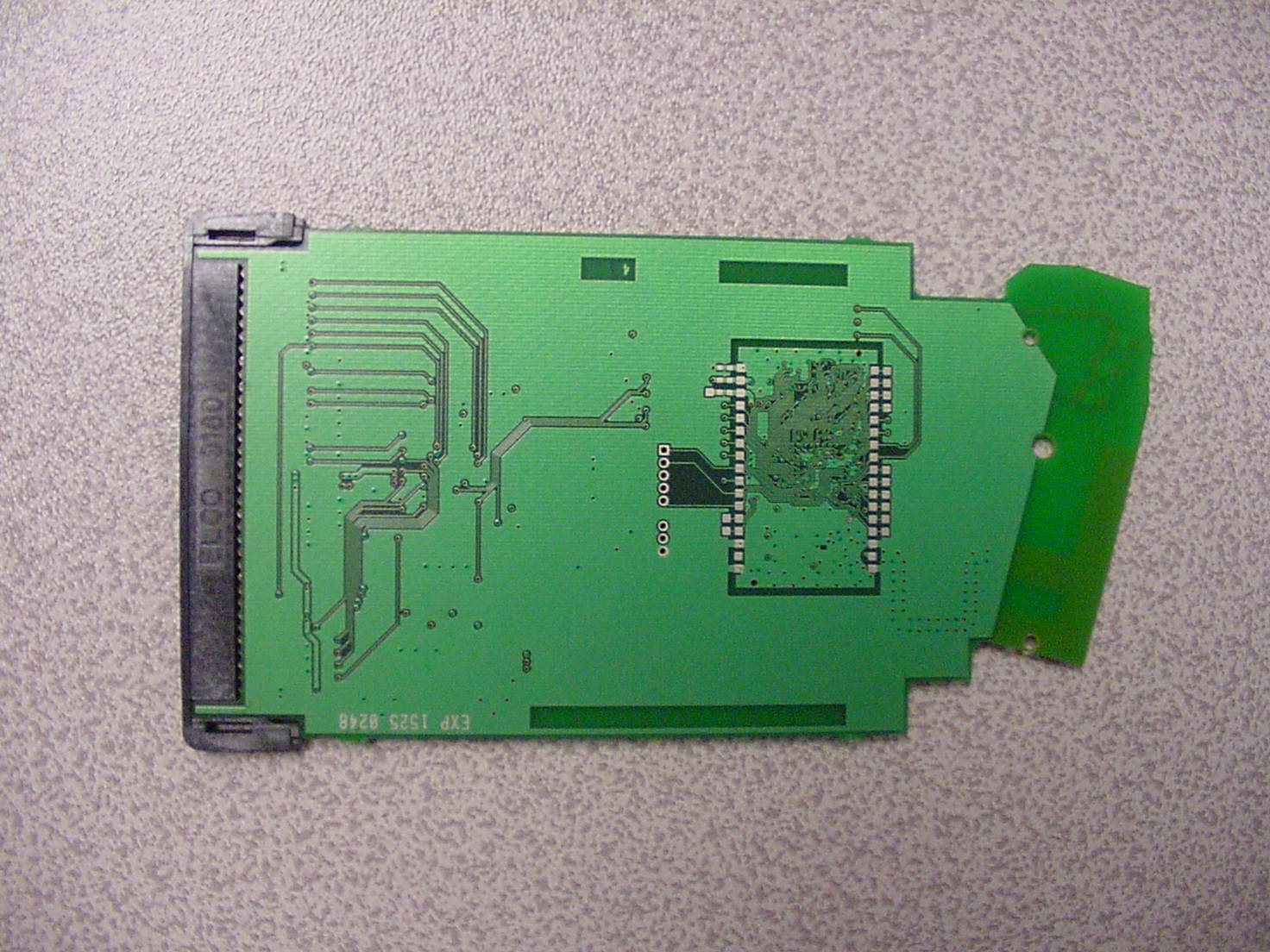

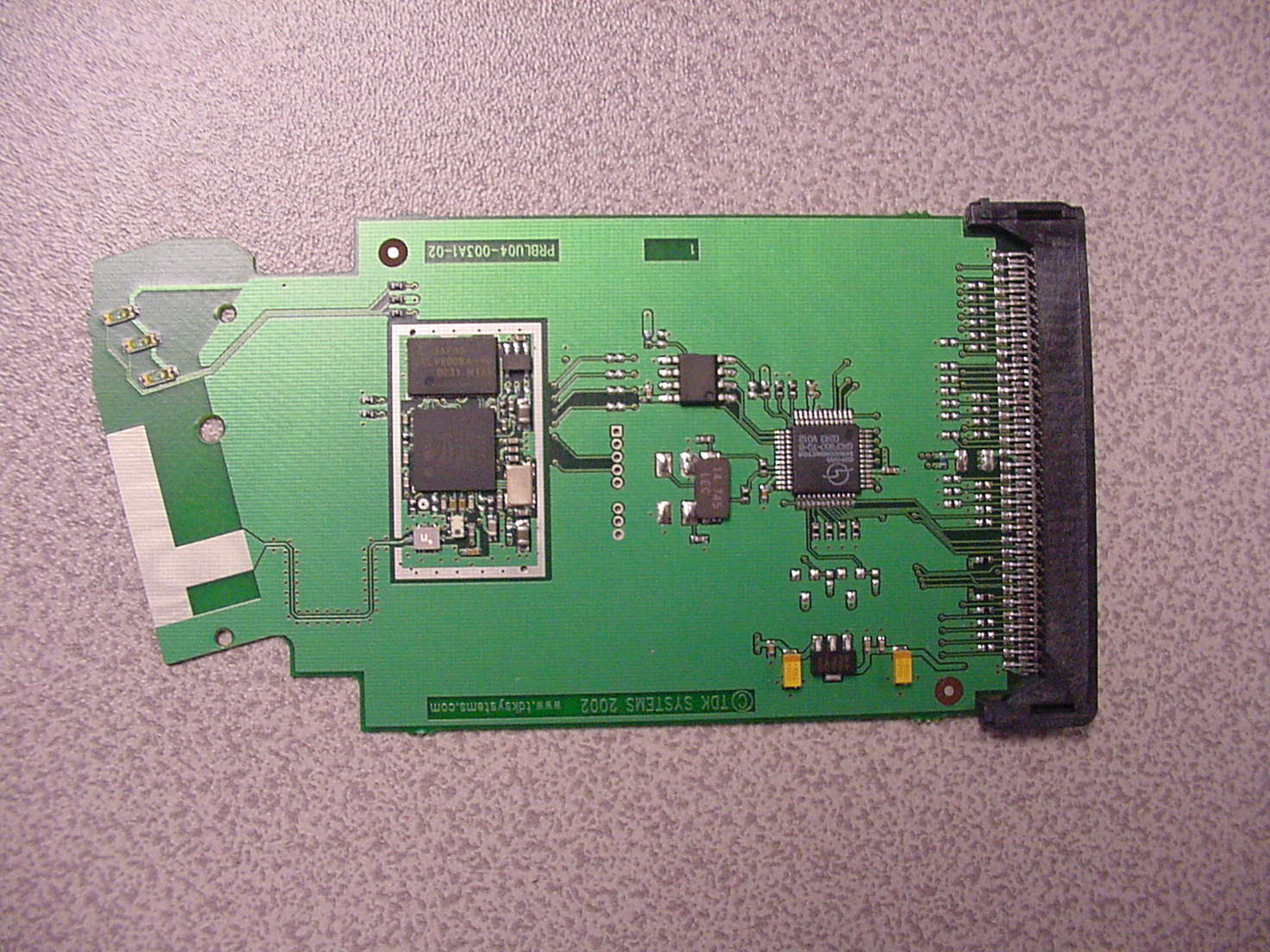

3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: PC card II Bluetooth (TM) Transceiver DC 5V Ports 3.1 General EUT Description General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is devided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. All frequencies are equally used. The average time of occupancy is 0.3797 s within a 30 second period. The symbol rate on the channel is 1 Ms/s. The EUT provides the following ports: temporary antenna connector PCMCIA Enclosure The main components of EUT are listed and described in Chapter 3.2 Page 8 of 59 Testreport Reference: 4_TDK_0802_BTT_FCCb Short Description Equipment under Test Type Designation 3.2 EUT Main components: Type, S/N, Short Descriptions etc. used in this Test Report HW StatusSW StatusSerial No.Date of Receipt 8a526-13.01.2003PC card IITransceiverEUT A EUT A is equipped with an integrated antenna. 8a526-13.01.2003 PC card IITransceiverEUT B EUT B is equipped with a temporary antenna connector. NOTE: The short description is used to simplify the identification of the EUT in this test report 3.3 Ancillary Equipment Short Description Equipment under Test Type Designation HW StatusSW StatusSerial No.FCC Id For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But never the less Ancillary Equipment can influence the test results. AE 1LaptopIBM Thinkpad---- Setup No.Combination of EUTsDescription 3.4 EUT Setups This chapter describes the combination of EUT's and ancillary equipment used for testing. setup 1EUT A + AE1used for radiated measurements setup 2EUT B + AE1used for conducted measurements Page 9 of 59Testreport Reference: 4_TDK_0802_BTT_FCCb Op. Mode Description of Operating Modes Remarks 3.5 Operating Modes This chapter describes the operating modes of the EUT's used for testing. op-mode 1TX mode, the EUT transmits continuously on 2402 MHz op-mode 2TX mode, the EUT transmits continuously on 2441 MHz op-mode 3TX mode, the EUT transmits continuously on 2480 MHz op-mode 4inquiry mode op-mode 5paging mode op-mode 610 neighbouring channelsThe EUT is set to transmit on ten neighbouring channels one after the other to see the channel separation. Page 10 of 59Testreport Reference: 4_TDK_0802_BTT_FCCb

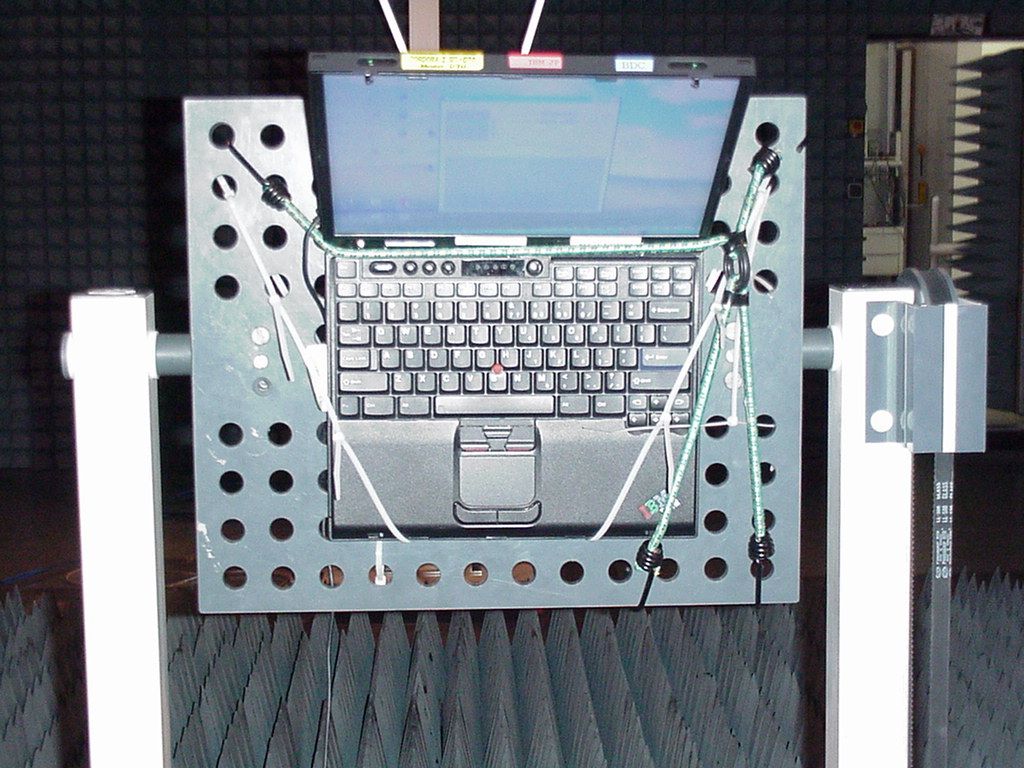

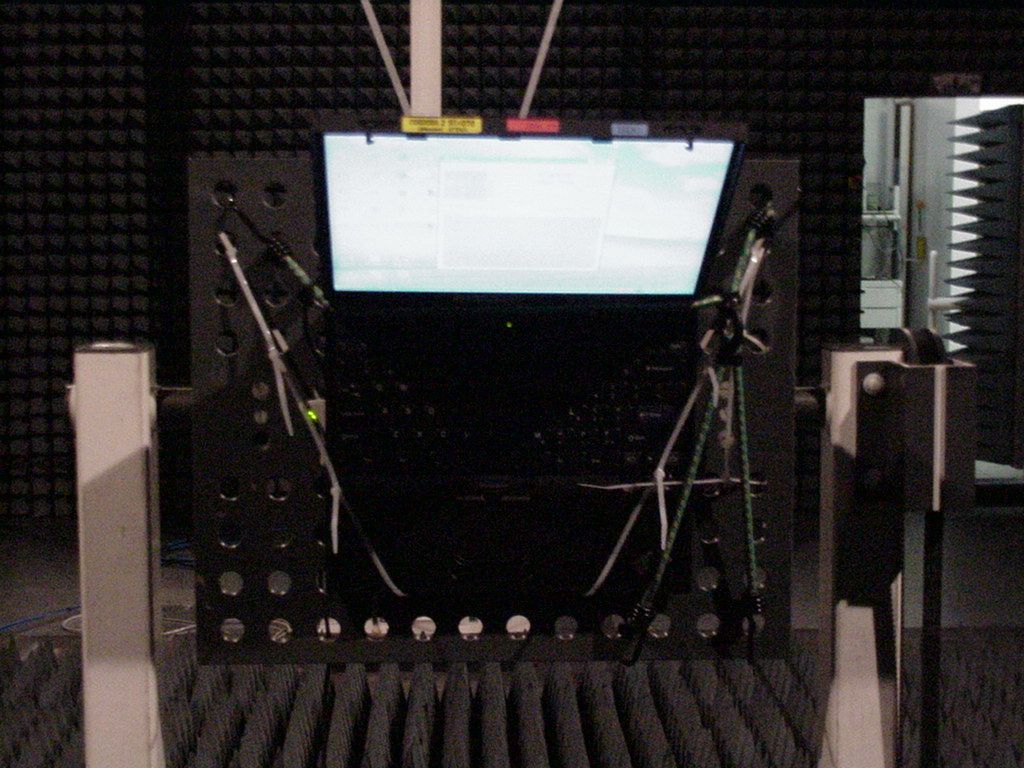

EMC Measurement/Technical Report 4_TDK_0802_BTT_FCCb on 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Bluetooth (TM) Transceiver PC card II Registergericht - registered in: Düsseldorf, HRB 44096 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99 Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Measurement Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 11 14 17 28 31 33 35 Spurious RF Radiated Emissions 19 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Dwell Time Power Density Channel Separation Processing Gain 23 25 27 4.1 4.2 4.3 4.4 4.5 4.6 4.7 8. Annex Page 2 of 59Testreport Reference: 4_TDK_0802_BTT_FCCb 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all the applicable FCC rules as listed above. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 59 Testreport Reference: 4_TDK_0802_BTT_FCCb 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result setup 2op-mode 1temporary antenna connectorpassed setup 2op-mode 2temporary antenna connectorpassed setup 2op-mode 3temporary antenna connectorpassed setup 2op-mode 4temporary antenna connectorpassed setup 2op-mode 5temporary antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power Output OP-ModeSetupPortFinal Result setup 2op-mode 1temporary antenna connectorpassed setup 2op-mode 2temporary antenna connectorpassed setup 2op-mode 3temporary antenna connectorpassed setup 2op-mode 4temporary antenna connectorpassed setup 2op-mode 5temporary antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted Emissions OP-ModeSetupPortFinal Result setup 2op-mode 1temporary antenna connectorpassed setup 2op-mode 2temporary antenna connectorpassed setup 2op-mode 3temporary antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result setup 1op-mode 1enclosurepassed setup 1op-mode 2enclosurepassed setup 1op-mode 3enclosurepassed § 15.247(f)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Dwell Time OP-ModeSetupPortFinal Result setup 2op-mode 4temporary antenna connectorpassed setup 2op-mode 5temporary antenna connectorpassed § 15.247 (d)FCC Part 15, Subpart C Page 4 of 59 Testreport Reference: 4_TDK_0802_BTT_FCCb FCC §15.3110-1-1998 The measurement was performed according to Power Density OP-ModeSetupPortFinal Result setup 2op-mode 4temporary antenna connectorpassed setup 2op-mode 5temporary antenna connectorpassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel Separation OP-ModeSetupPortFinal Result setup 2op-mode 6temporary antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 59Testreport Reference: 4_TDK_0802_BTT_FCCb 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 13.01.2003 Dipl.-Ing. Robert Machulec 27.02.2003 15.01; 17.01; 20.01.2003 Responsible for testing and report Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data TDK Systems Europe Ltd. Mike Walshe 126 Colindale Avenue Colindale, London NW9 5HD UK please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 6 of 59Testreport Reference: 4_TDK_0802_BTT_FCCb 2.0 Product Labeling 2.1 FCC ID Label: At the time of this report there was no label available. 2.2 Location of Label on the EUT: see above Page 7 of 59Testreport Reference: 4_TDK_0802_BTT_FCCb 3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: PC card…

Text truncated - open the document above for the full version.

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7layers.com Annex Additional declaration part according FCC 15.247 for Bluetooth TM Devices Version: 2002-06-01 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 2 of 5 pages 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for each Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 3 of 5 pages 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR- operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviour: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviour for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 4 of 5 pages 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = …

Text truncated - open the document above for the full version.

Torsten Lohoff 24. February 2003 Phone +49 (0) 2102 749 306 Fax +49 (0) 2102 749 350 RF exposure requirements - FCC ID: PI4_PCCardII Dear Application Examiner, The maximum measured power output is 3,05 mW (4,84 dBm), the maximum antenna gain is 2 dBi = numeric gain 1,585 (see also FCC test report) The maximum permissible exposure is defined in 47 CFR 1.1310 with 1 mW/cm². The distance from the EUT's transmitting antenna where the exposure level reaches the maximum permitted level is calculated using the general equation: S = P*G / 4πR² S max = 1mW/cm², P = 3,05 mW, linear power gain relative to the isotropic radiator = 2,0 dBi = 1,585 (numeric gain), R = distance in cm Solving for R, the 1mW/cm² limit is reached in a distance of 0,62 cm to the FCC Federal Communications Commission 2_TDK_0502_TAS
