PI407BBluetooth Intelligent Serial Module Version II

www.ezurio.com © 2005-2007 Ezurio Ltd DSH_023_1v7 BISM2 Data Sheet 1 BISM2 Bluetooth™ Version 2.0 Serial Module 1. General Description Ezurio’s BISM2 Bluetooth Serial Module is a fully integrated and qualified Class 1 Bluetooth solution designed for lowest cost of integration and ownership for designers wishing to incorporate Bluetooth functionality into their products. The module is qualified to Bluetooth Version 2.0. The BISM2 Bluetooth Serial Module is one of the most compact complete Bluetooth solutions, making it ideal to integrate into handheld devices. However a version of the BISM2 module is available that retains the same board size, mounting holes and connector as the previous Bluetooth Module from Ezurio, allowing users to access the improved radio performance and functionality without the need for any pcb modifications. The BISM2 Module is based on Cambridge Silicon Radio’s BlueCore 04 chipset. The module contain sall of the hardware and firmware for a complete Bluetooth solution, requiring no further components. The Module has an integrated, high performance antenna which is matched with the Bluetooth RF and baseband circuitry. The firmware integrated into the BC04 chipset implements the higher layer Bluetooth protocol stack, up to and including the Generic Access Profile (GAP), Service Discovery Profile (SDAP), Serial Port Profile (SPP), Dial Up Networking Profile (DUN), Headset Profile (HSP), Hands Free Profile (HFP), File Transfer Profile (FTP) and Audio Gateway. A virtual processor is used within the BC04 to implement an AT command processor. This interfaces to the host system over a straight forward serial port using an extensive range of AT commands. The AT command set abstracts the Bluetooth protocol from the host application, saving many months of programming and integration time. It provides extremely short integration times for data oriented cable replacement and voice applications. A low cost development system is available for fast product evaluation and development. An alternative version of firmware is available that provides programming support for multi-point applications. The Module can be configured so that it can be attached to a ‘dumb’ terminal or attached to a PC or PDA for cable replacement applications. In addition to the Bluetooth functionality, The BISM2 Module provides access to 9 General I/O lines and 2 analogue input and output lines. These can be configured to provide connection to simple devices such as switches or LEDs without requiring any external processing. Both the GPIO and ADC lines can be accessed either via the wired host UART connection, or remotely over the Bluetooth link. The BISM2 module is supplied in a small form factor pcb (22.0mm x 34.0mm x 7.6mm), that connects to a main pcb using a 40 way Hirose connector. The interface is compatible with the BISM1 module. The module includes a high sensitivity, high gain antenna which provides excellent range. Typical open field performance provides ranges of over 250 metres at transmit powers of 4mW. Support is provided for low power modes that make the BISM2 particularly applicable to battery powered installations. The BISM2 module is Lead-free and is RoHS compliant and supports an industrial temperature range of -40°C to +85°C. 1.1 Applications • POS Equipment • Medical Equipment • Telematics • Voice Applications • Industrial Automation • Automotive Applications Bluetooth is a trademark owned by Bluetooth SIG, Inc., USA, and is licensed to Ezurio Ltd Module shown without RF shield www.ezurio.com © 2005-2007 Ezurio Ltd DSH_023_1v7 BISM2 Data Sheet 2 2. Features Feature Implementation Bluetooth Transmission Class 1 Fully Bluetooth pre-qualified Bluetooth 2.0 Range 250 metres typical (free space) Frequency 2.400 – 2.485 GHz Max Transmit Power +6dBm Min Transmit Power -27dBm Receive Sensitivity Better than -86dB Data Transfer rate Up to 300Kbps Serial Interface RS-232 bi-directional for commands and data using AT commands Serial parameters Default 9600,n,8,1 - Configurable from 1,200bps to 961,200 bps. Support for DTR, DSR, DCD, RI, RTS, CTS Physical size 22.8 x 33.8 x 7.6 mm, 8g 24.0 x 69.0 x 7.6mm, 9g (BISM1 Form Factor) Current consumption Typically 22mA during data transfer in standard power mode. Lower powers are attainable with a configurable low power mode. Low power sniff mode 2.5mA typ Temperature Range Normal operation: -40°C to +85°C Supply Voltage 3.3V – 7.0V Brown-out Integrated brown out detection Interface Levels 3.0V Logic Audio Audio can be transferred over SCO channels through the PCM interface at 64kbps. PCM can be configured as master or slave. Profiles FTP Server, SPP, DUN, FTP, Audio Gateway, Headset, Handsfree Multipoint Max 7 slaves Field upgradeable Over UART Protocols Single point firmware is controlled and configured using AT Commands. Standard multipoint firmware uses a simple packet based protocol and requires a host to enable the module to function effectively. Single point only allows a point to point connection whereas multipoint allows more than one simultaneous connection. GPIO 9 x digital 2 x analogue (8 bit resolution) Indicators 1 x programmable LED (small form factor board only) Lead free Lead-free and RoHS compliant www.ezurio.com © 2005-2007 Ezurio Ltd DSH_023_1v7 BISM2 Data Sheet 3 3. Functional Block Diagram 3.1 Connection Diagram The Module is equipped with a 40-pin 0.5mm pitch board-to-board connector that connects to the application platform. www.ezurio.com © 2005-2007 Ezurio Ltd DSH_023_1v7 BISM2 Data Sheet 4 3.2 Pin Descriptions The Hirose DF12C board-to-board connector on the module is a 40-pin double-row receptacle. The table below defines the pin functions. Note that this pin-out is as viewed from the underside of the Module. Pin No. Signal Description Pin No. Signal Description 1 Analogue 0 1.8v Max 2 GPIO1 I/O for Host. 3 Analogue 1 1.8v Max 4 GPIO2 I/O for Host 5 SPI_MISO SPI bus serial O/P 6 UART_RI ‘Ring’ Input or Output 7 SPI_CSB SPI bus …

Text truncated - open the document above for the full version.

47173 Benicia Street, Fremont CA 94538 Tel: 510-771-1000, Fax: 510-661-0888 Federal Communication Commissions 7435 Oakland Mills Road Columbia MD 21046 Subject: Request FCC to replace previous submitted user manual Ref: Applicant: Ezurio Ltd FCC ID: PI407B TCB Assessment no.: AN08T7469 Grant date: 1/13/2008 To Whom It May Concern: CCS-TCB issued the grant on Jan 13, 2008, during the upload the process, CCS mistakenly upload previous version of confidentiality request. CCS-TCB is requesting FCC to delete the file marked in red as below from database: View Attachment Exhibit Type Date Submitted to FCCDisplay TypeDate Available Modular request letter Cover Letter(s) 01/13/2008 pdf 01/13/2008 Confidentiality request letter Cover Letter(s) 01/13/2008 pdf 01/13/2008 Authorization letter Cover Letter(s) 01/13/2008 pdf 01/13/2008 Confidentiality request letter Cover Letter(s) 01/13/2008 pdf 01/13/2008 External photos External Photos 01/13/2008 pdf 01/13/2008 Label format and location ID Label/Location Info 01/13/2008 pdf 01/13/2008 Internal photos Internal Photos 01/13/2008 pdf 01/13/2008 Antenna specification Parts List/Tune Up Info01/13/2008 pdf 01/13/2008 Test report Test Report 01/13/2008 pdf 01/13/2008 Test setup photos Test Setup Photos 01/13/2008 pdf 01/13/2008 User manual Users Manual 01/13/2008 pdf 01/13/2008 Best Regards Mike Kuo / V.P. Compliance Certification Services Jan 13, 2008

FCC ID: PI407B Sheet A1 of A1 Sheets IC ID: 1931B-BISM33 ETC Report No. : 07-09-MAS-035-01 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

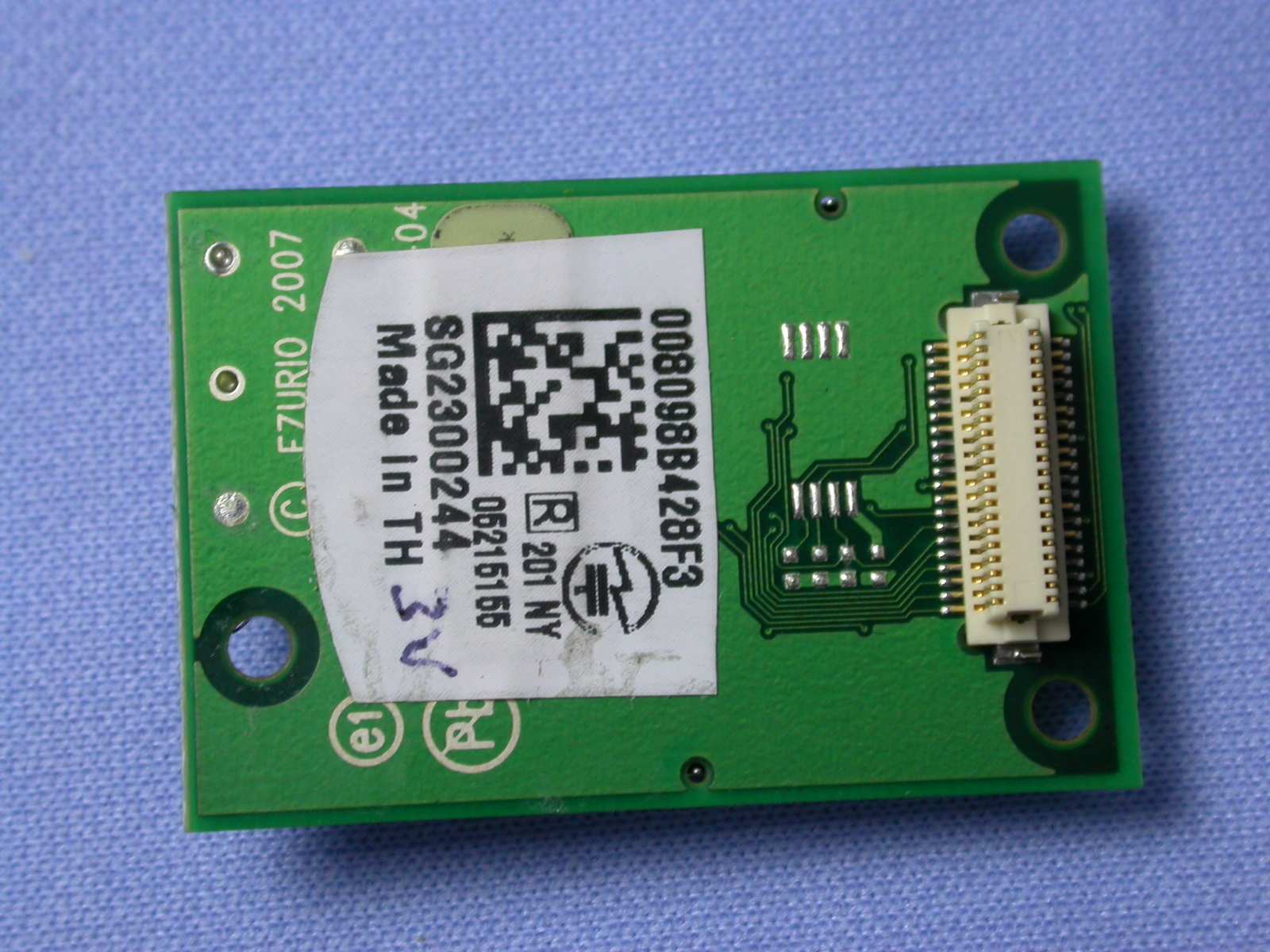

FCC ID: PI407B Sheet B1 of B1 Sheets IC ID: 1931B-BISM33 ETC Report No. : 07-09-MAS-035-01 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Front view of PCB 2. Rear view of PCB

• All specifications are subject to change without notice. (1/4) 001-04 / 20020530 / e851_cabpb1240a.fm RF Components CABPB1240A(12×12×4mm Type) Ceramic Patch Antennas For Bluetooth TM and 2.4GHz Wireless LAN FEATURES • Stable operation and simple design for mounting TDK patch antenna is of 1/2 wavelength ( λ ) operation type. An antenna itself is grounded, so the antenna is hardly affected by environment and stable operation is achievable. This antenna can be mounted substantially without any restriction and can be designed easily. Differences between 1/2 λ and 1/4 λ operation type antennas At present, there are two kinds of Bluetooth antenna, namely, 1/2 λ and 1/4 λ operation type. Compared with 1/4 λ operation type which employs its base and casing as part of the antenna, a patch type antenna, namely, 1/2 λ operation type, employs antenna element itself as a complete antenna. For this reason, the patch type antenna shows stable operation properties with- out being hardly affected by environment. • Stable transmission/reception properties not depending on the antenna direction of other communication parties In the application of Bluetooth, the antenna direction (polariza- tion) of other communication parities is not constant, so gain loss is apt to be caused by polarization mismatch between trans- mission and reception. Since this antenna utilizes two orthogonal polarizations, it is hardly affected by a dead zone due to polarization mismatch. • High gain and low-profile type antenna This antenna is high gain type with +2dBi max. It is most suitable for a notebook computer and peripheral equipment which have relative large antenna mounting space and require high gain. Compared with other makers’ antenna with the same gain, this antenna is lower in height (4mm). TEMPERATURE AND HUMIDITY RANGES ELECTRICAL CHARACTERISTICS • Evaluated with 40 × 40mm TDK STD evaluation base. SHAPES AND DIMENSIONS RECOMMENDED PC BOARD PATTERNS LAND SOLDER RESIST TYPICAL ELECTRICAL CHARACTERISTICS RETURN LOSS AND GAIN • Evaluated with 40 × 40mm TDK STD evaluation base. Operating temperature range –30 to +85°C Storage temperature range–40 to +85°C Humidity range 0 to 90(%)RH [Maximum wet-bulb temperature: 38°C] Frequency2442MHz Band width85MHz Return loss–6dB max.[2400 to 2485MHz] Antenna gain+2dBi max.[2400 to 2485MHz] Input impedance50 Ω [2400 to 2485MHz] VSWR3 max. 1/2λ 1/4λ Remaining 1/4 wavelength uses base and casing as an antenna. Polarized wave 1 Polarized wave 2 12 44-0.3C 12 Dimensions in mm 1.2 16 Dimensions in mm 16 2 8-ø0.6(through hole) 2 50Ω line Dimensions in mm 16.4 0.78-3×3 2 2 3 9 16.4 39 –15 –12 –9 –6 –3 0 Return ( dB ) –20 –15 –10 –5 0 5 Gain ( dBi ) Frequency ( GHz ) 2.32.352.42.452.52.552.6 Return Spec ( –6dB ) Gain • All specifications are subject to change without notice. (2/4) 001-04 / 20020530 / e851_cabpb1240a.fm RF Components CABPB1240A(12×12×4mm Type) Ceramic Patch Antennas For Bluetooth TM and 2.4GHz Wireless LAN RADIATION PATTERN •The radiation pattern is measured by mounting the antenna on 40 × 40mm TDK STD evaluation base. •Standard antenna: Standard dipole(Anritsu) Tx antenna: Horn(Condor Systems) Directivity angleVertical polarizationHorizontal polarization 0° 270° 90° 180° 2.4GHz 2.442GHz 2.485GHz 180° Vertical polarization 270°90° –5 –15 5 ( dBi ) –25 0° 2.4GHz 2.442GHz 2.485GHz 180° Horizontal polarization 270°90° –5 –15 5 ( dBi ) –25 0° 0° 270° 90° 180° 2.4GHz 2.442GHz 2.485GHz 180° Vertical polarization 270°90° –5 –15 5 ( dBi ) –25 0° 2.4GHz 2.442GHz 2.485GHz 180° Horizontal polarization 270°90° –5 –15 5 ( dBi ) –25 0° 0° 270° 90° 180° 2.4GHz 2.442GHz 2.485GHz 180° Vertical polarization 270°90° –5 –15 5 ( dBi ) –25 0° 2.4GHz 2.442GHz 2.485GHz 180° Horizontal polarization 270°90° –5 –15 5 ( dBi ) –25 0° • All specifications are subject to change without notice. (3/4) 001-04 / 20020530 / e851_cabpb1240a.fm RF Components CABPB1240A(12×12×4mm Type) Ceramic Patch Antennas For Bluetooth TM and 2.4GHz Wireless LAN MEASURING METHOD TDK STD evaluation base and configuration for directivity mea- surement •Material: Glass-epoxy (FR4) •Thickness: 0.5mm •Copper foil thickness: 35μm •The whole back face is covered with grounding pattern. MEASURING CIRCUITS RETURN LOSS GAIN ANTENNA MOUNTING METHOD This antenna can be mounted in any position on a main board. Other components should be mounted about 2mm apart from the antenna(Our recommended land pattern is 16 × 16mm). SURROUNDINGS AROUND MOUNTED ANTENNA The surroundings around the mounted antenna should be prefera- bly free from any metal piece, because the gain and directivity are affected by a metal piece. If the antenna is incorporated in equipment with electromagnetic shielding, open a 4 × 4cm or larger window through the shielding (h=0mm). Then its gain hardly lower(If h is high, make the window larger). IN THE CASE OF SPECIAL ANTENNA BASE A special antenna base should be larger than a size shown below for ensuring the operation of the antenna. We recommend to make a cable as short as possible to avoid gain loss due to the cable. PRECAUTIONS FOR USE The frequency band may change slightly due to TDK STD evalua- tion base, metal pieces around the antenna and plastic cover of equipment. In such a case, please consult us about custom prod- uct. APPLICATION EXAMPLE OF NOTEBOOK PC The directivity is measured using a mockup of A4-sized notebook computer with a built-in antenna. The mockup is made of copper plate which scatters electric wave from the antenna. Open a 4 × 4cm window and install the antenna mounted on TDK STD evaluation base. 40.0mm 40.0mm 50Ω feed lineλ/4 Coaxial cable 0.5mmDUT ( device under test ) DUT ( device under test ) Sperrtoph GND SMA connector Radiowave absorber Measurement board DUT DUT ( device under test ) Measurement board Network analyzer Port1 Port2 50cm min. 50Ω 50cm min. Network analyzer Port1 Port2 50Ω50Ω 1.8m min. 1m min. DUT Turn table STD gain antenna 2.5m min.1m min. Anechoic chamber 2mm min. 4cm 4cm Sh…

Text truncated - open the document above for the full version.

FCC ID: PI407B Sheet 1 of 62 Sheets IC ID: 1931B-BISM33 ETC Report No. : 07-09-MAS-035-01 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C and Canada RSS-210 Report No.: 07-09-MAS-035-01 Client: Ezurio Limited. Product: Bluetooth Intelligent Serial Module Version II, 3.3V Model: BTM403 FCC ID: PI407B IC ID: 1931B-BISM33 Manufacturer/supplier: Sanmina-SCI (Thailand) Ltd Date test item received: 2007/09/06 Date test campaign completed: 2008/01/09 Date of issue: 2008/01/11 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 62 pages Total number of pages of photos: External photos 1 pages Internal photos 1 pages Setup photos 3 pages Test Engineer Checked By Approved By David You James Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID: PI407B Sheet 2 of 62 Sheets IC ID: 1931B-BISM33 ETC Report No. : 07-09-MAS-035-01 Rev. No 1.0 Client : Ezurio Limited. Address : Saturn House, Mercury Park, Wycombe Lane, Wooburn Green HP10 0HH UK Manufacturer : Sanmina-SCI (Thailand) Ltd Address : 90 Moo 1 Tiwanon Road, Banmai Muang, Pathumthani 12000, Thailand EUT : Bluetooth Intelligent Serial Module Version II, 3.3V Trade name : EZURiO Model No. : BTM403 Power Source : DC 5V (From DC Power Supply to Test Jig) Regulations applied : FCC 47 CFR, Part 15 Subpart C (2006) Canada RSS-210 Issue 7 (2007) / RSS-Gen Issue 2 (2007) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 FCC ID: PI407B Sheet 3 of 62 Sheets IC ID: 1931B-BISM33 ETC Report No. : 07-09-MAS-035-01 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION .............................................................................................................. 5 1.1 Product Description..............................................................................................................................5 1.2 Characteristics of Device .....................................................................................................................5 1.3 Test Methodology................................................................................................................................5 1.4 Modifiction List of EUT ......................................................................................................................5 1.5 Test Facility..........................................................................................................................................5 1.6 Test Summary......................................................................................................................................5 2 PROVISIONS APPLICABLE ............................................................................................................. 6 2.1 Definition.............................................................................................................................................6 2.2 Requirement for Compliance...............................................................................................................7 2.3 Restricted Bands of Operation.............................................................................................................9 2.4 Labeling Requirement..........................................................................................................................9 2.5 User Information................................................................................................................................10 3. SYSTEM TEST CONFIGURATION ............................................................................................... 11 3.1 Justification........................................................................................................................................11 3.2 Devices for Tested System.................................................................................................................11 4 RADIATED EMISSION MEASUREMENT ................................................................................... 12 4.1 Applicable Standard...........................................................................................................................12 4.2 Measurement Procedure.....................................................................................................................12 4.3 Measuring Instrument ........................................................................................................................14 4.4 Radiated Emission Data........................................…

Text truncated - open the document above for the full version.

FCC ID: PI407B Sheet 1 of 3 Sheets IC ID: 1931B-BISM33 ETC Report No. : 07-09-MAS-035-01 Photos of Radiation Measuring Setup x-axis FCC ID: PI407B Sheet 2 of 3 Sheets IC ID: 1931B-BISM33 ETC Report No. : 07-09-MAS-035-01 y-axis z-axis FCC ID: PI407B Sheet 3 of 3 Sheets IC ID: 1931B-BISM33 ETC Report No. : 07-09-MAS-035-01 Photos of Conduction Measuring Setup
