PI4BL600TBL600 Series Bluetooth Low Energy Module

Single Mode Bluetooth Low Energy (BLE) Module Part # B L600-SA, BL600-SC, BL600-ST HARDWARE DATA SHEET AND INTEGRATION GUIDE VERSION 0.5 Americas: +1- 800-492-2320 Option 3 Euro pe: +44-1628-858-940 Hong Kong: +852-2923-0610 BL600-Sx Single Mode BLE Module www.lairdtech.com/wireless REVISION HISTORY Revision Descrip tion Versio n 0.1 07/02/2013 – first stage internal release Versio n 0.2 07/02/ 13 – includes Mt comments Versio n 0.3 15Feb13 –RK initial updates in blue colour. (need to clear it with Nordic how much of the data In their chipset specification we can copy over to our module sp ecification. . Versio n 0.4 22Mar13 –RK re-write th oro ughly. When reviewed, need to clear it with Nord ic how much of the data In their chipset specification we can copy over to our module specification. Versio n 0.5 Modify TCB Review Feedback 2 www.lairdtech.com/wireless Laird BL600-Sx Single Mode BLE Module CONTENTS Revis ion History .......................................................................................................................... 2 Con tents ..................................................................................................................................... 3 1 Ove rview and Key Features.................................................................................................... 4 2 Sp ecification summary .......................................................................................................... 5 3 Hardware Specifications ........................................................................................................ 7 4 Power Con sumption ........................................................................................................... 11 5 Fun ctional Description ........................................................................................................ 15 5.1 Power management ( includes brown-out and power on reset) ..................................... 15 5.2 Clocks .......................................................................................................................................... 15 5.3 Memory for smart BASIC application code .......................................................................... 16 5.4 RF .................................................................................................................................................. 16 5.5 UART Interface ........................................................................................................................... 16 5.6 SPI Bus .......................................................................................................................................... 17 5.7 I2C Interface .............................................................................................................................. 17 5.8 General Purpose I/O and ADC ............................................................................................... 18 6 HW integr ation guide .......................................................................................................... 20 6.1 Circuit Components Required on Host PCB ......................................................................... 20 6.2 BL600-Sx General PCB Layout on Host PCB .......................................................................... 20 6.3 BL600-SA Layout on Host PCB .................................................................................................. 20 6.4 BL600-ST Layout on Host PCB ................................................................................................... 21 7 Tools For development of applications ............................................................................... 22 8 Application Note for Surface Mount Modules ...................................................................... 23 8.1 Intro duction ................................................................................................................................ 23 8.2 Shipping ...................................................................................................................................... 23 8.3 Reflow Parameters .................................................................................................................... 24 9 FCC and IC Regulatory Statments ....................................................................................... 25 10 Japan (MIC) Regulatory ....................................................................................................... 29 11 CE Regulatory ..................................................................................................................... 29 12 EU DECLARATIONS OF CONFORMITY ................................................................................... 30 13 Mechanical Details .............................................................................................................. 32 14 ORDERING INFORMATION ................................................................................................... 33 15 Bluetooth SIG Approvals ..................................................................................................... 34 15.1 End Pr oduct Listings (EPLs) ....................................................................................................... 34 3 www.lairdtech.com/wireless Laird BL600-Sx Single Mode BLE Module 1 OVERVIEW AND KEY FEATURES Every BL600 Series module is designed to enable OEMs to add single-mode Bluetooth Low Energy (BLE) to small, port able, power –conscious devices. The BL600 modules are enabled with Laird’s smartBASIC, an event-driven programming language that enables OEMs to make their BLE product development quicker, and simpler, significantly reducing time to market. SmartBASIC enables customers to develop a complete embedded application inside the compact BL600 hardware, connecting to a wide array of external sensors via its I2C, SPI, UART, ADC…

Text truncated - open the document above for the full version.

Date: April 3, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: PI4BL600T To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2013/9/1. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter Applicant : Ezurio Ltd Address : Saturn House, Mercury Park, Wooburn Green, Bucks, HP10 0HH, UK Signature : Name and Job Title. : Daniel Waters E-mail [email protected] Tel. 44 01628-8589940

Date: 2013/4/1 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PI4BL600T Product name: BL600 Series Bluetooth Low Energy Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model BL600-ST to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Ezurio Ltd Address : Saturn House, Mercury Park, Wooburn Green, Bucks, HP10 0HH, UK Signature : Name and Job Title. : Daniel Waters E-mail [email protected] Tel. 44 01628-8589940

International Certification Corp. (全球檢 測股份 有限公 司) Tel：886-3-271-8666 Fax : 886-3-318-0155 No.3-1, Lane 6, Wen 33rd Rd., Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Subject: Modular approval request FCC ID: PI4BL600T Date: April 8, 2013 Dear reviewer: The modular would like to have authorization as a limited modular approval. The requirements of section 15.212 have been met and shown on the following statements 1) The radio elements of the modular transmitter must have their own shielding The modular has shielding. Please refer to external photo. 2) The modular transmitter must have buffered modulation/da ta inputs The buffer is integrated with IC nRF51822 3) The modular transmitter must have its own power supply regulation The part No. of regulator is nRF51822 4) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204 (c). The device does not comply with this requirement. This module is used to specific host and antenna Host information Brand name : Laird , Model name : DVK-BL600-ST, with a RSMA connector Antenna information Brand name: MAG. LAYERS, Model name: EDA-8709-2G4R2-A40-CY Antenna connector RSMA 5) The modular transmitter must be tested in a stand-alone configuration The device does not comply with this requirement This module is tested with specific host and antenna Host information Brand name : Laird , Model name : DVK-BL600-ST , with a RSMA connector Antenna information Brand name: MAG. LAYERS, Model name: EDA-8709-2G4R2-A40-CY Antenna connector RSMA 6) The modular transmitter must be equipped with either a permanently affixed label or must be cap able of electronically displaying its FCC identification number. The modular complies with the requirement. Please refer to label location and label sample exhibit. 7) The modular transmitter must comply with any specific rules or operating requirements The modular complies with the requirement. Detail information please refer to user manual 8) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Maximum power of this device is 2.55dBm ( 1.8mW) less than SAR test exclusion thresholds and MPE evaluation is 0.001 mW/cm 2. . The module complies this requirement Please contact me if you have any questions about this letter. Best regards Gary Chang , Manager Report & Certification department Tel:+886-3-271-8628 Email:[email protected]

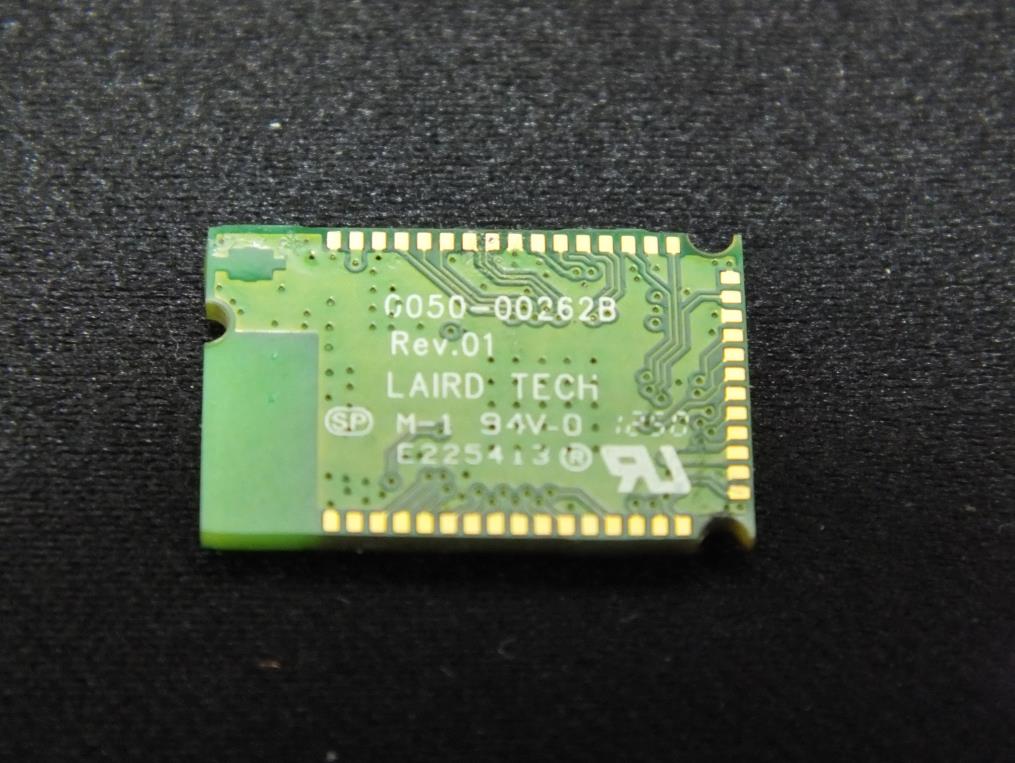

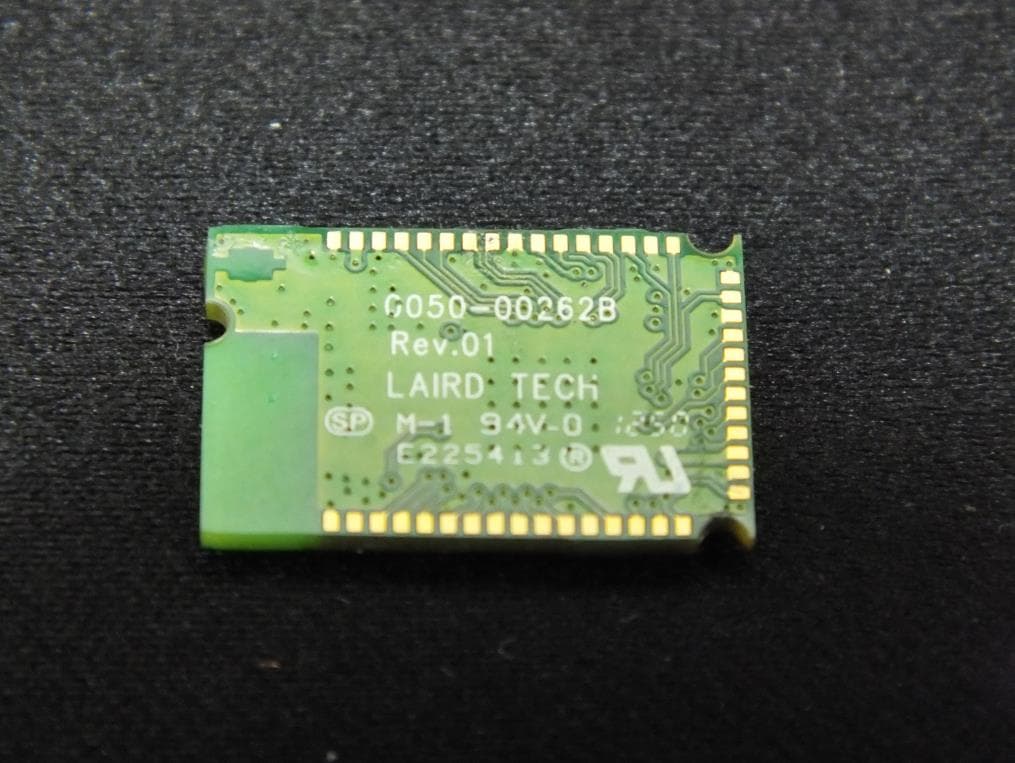

FCC Test Report Report No. : FR331334 SPORTON International Inc. Page No. : B1 of B5 TEL : 886-3-327-3456 Issued Date : Mar. 29, 2013 FAX : 886-3-327-0973 Appendix B. Photographs of EUT

Title Dwg. No. Rev Drawn by BL600-ST-01 Label Drawing 2100-00114 1 drk Sheet 1/1 Date 3-21-13 All Dimension in Inches unless otherwise shown. Tolerance;.X +/- 0.1.XX +/- 0.01.XXX +/- 0.005 Angle +/- 1 deg. 0.433 (11mm) 0.469 (11.9mm) 2 3 456 78 Notes:1) Polarity Indicator2) Model Number of Product3) Revision of Product4) FCC ID approval5) IC approval6) Japan approval (MIC)7) Serial Number - L = Location of manufacture- Y = Year of manufacture- WW = Week of manufacture (see Laird Date Code Procedure 0010-00083) 8) MIC Logo 9) CE LogoBase Material (Blank Label Material Specification)Material: Polyimide (Must withstand 260 degree’s C) Color: Glossy White Text: Black Corners: Max radius acceptable 0.0625" (1.58mm) 9 M/N: BL600-ST LYWWFCC ID: PI4BL600TIC:1931B-BL600T 204-320048 1 -01

Front side Shielding case Label location

IC Test Report Report No. : CR331334 SPORTON International Inc. Page No. : B2 of B4 TEL : 886-3-327-3456 Issued Date : Mar. 25, 2013 FAX : 886-3-327-0973 IC Test Report Report No. : CR331334 SPORTON International Inc. Page No. : B3 of B4 TEL : 886-3-327-3456 Issued Date : Mar. 25, 2013 FAX : 886-3-327-0973 DVK-BL600-ST (Brand: Laird / Model name: DVK-BL600-ST). IC Test Report Report No. : CR331334 SPORTON International Inc. Page No. : B4 of B4 TEL : 886-3-327-3456 Issued Date : Mar. 25, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : 2 of 38 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 10 2.5 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 23 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 26 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 37 APPENDIX A. TEST PHOTOS ....................................................................................................................... A1 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B1 FCC Test Report Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : 3 of 38 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:0.1590MHz 34.38 (Margin 21.14dB) - AV 40.55 (Margin 24.97dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth LE:539.13 kHz ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] LE:2.55 Power [dBm] LE:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz] LE: -12.67 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Restricted Bands [dBuV/m at 3m]:2483.51MHz 66.74 (Margin 7.26dB) - PK 36.69 (Margin 17.31dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]:209.45MHz 36.99 (Margin 6.51dB) – PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : 4 of 38 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR331334 Rev. 01 Initial issue of report Mar. 20, 2013 2500-2690 FCC Test Report Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : 5 of 38 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Bluetooth Version Ch. Frequency (MHz) Channel Number RF Output Power (dBm) Co-location 2400-2483.5 v4.0 LE 2402-2480 0-39 [40] 2.55 N/A Note 1: Bluetooth LE (Low Energy) using GFSK modulation for DTS digital modulation. Note 2: RF output power specifies that Maximum Peak Conducted Output Power. Note 3: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) 1.1.2 Type of EUT Identify EUT EUT Serial Number N/A Presentation of Equipment Production ; Pre-Production ; Prototype Type of EUT Stand-alone Combined (EUT where the radio part is fully integrated within another device) Combined Equipment - Brand Name / Model No.: ... Plug-in radio (EUT intended for a specific host systems) Host System - Brand Name / Model No.: ...Laird / DVK-BL600-ST Refer to section 1.1.3 for antenna information Other: FCC T…

Text truncated - open the document above for the full version.

Test Photos Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Test Photos Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW CLOSE VIEW Test Photos Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emission below 1GHz FRONT VIEW REAR VIEW Test Photos Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emission above 1GHz FRONT VIEW REAR VIEW Test Photos Report No. : FR331334 SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW
