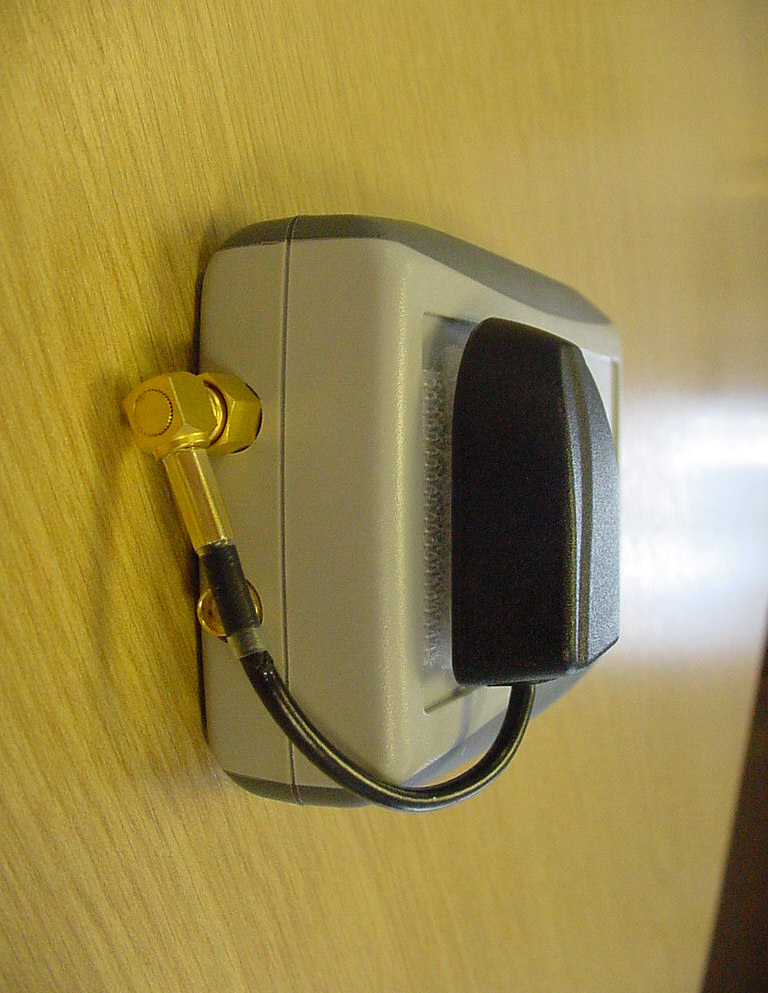

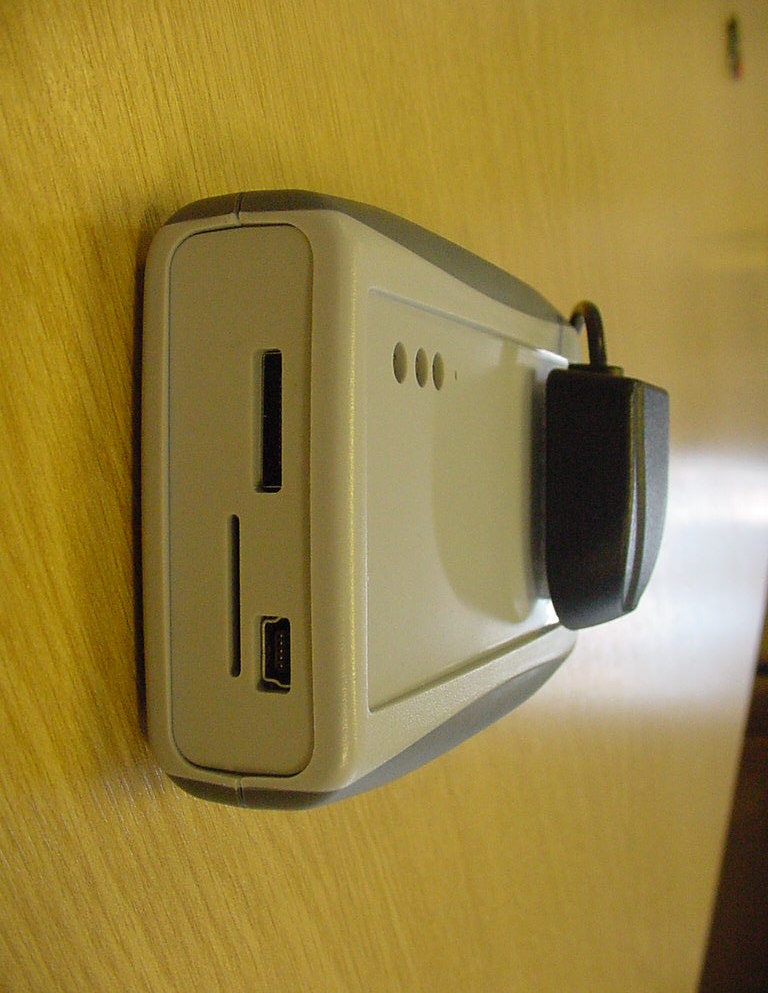

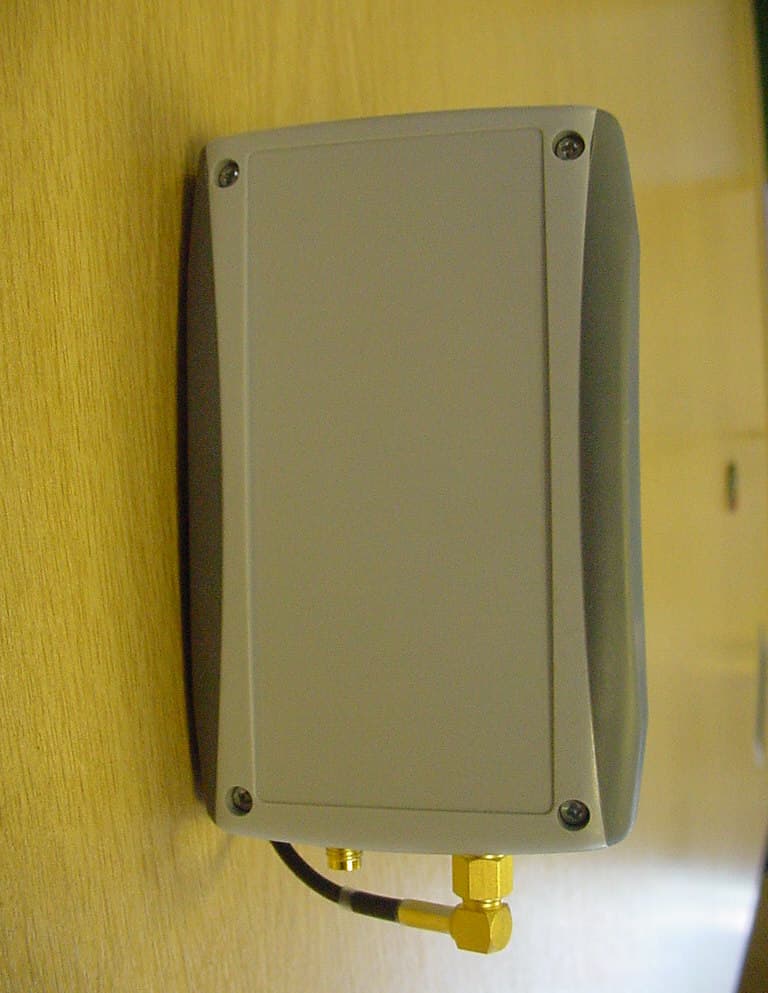

PI406WITSWireless Intelligent Telematics System (WITS)

© Ezurio Ltd 2007 WITS Installation Guide Doc No: VEHIU-R-020 Issue No : 1.3 Date : 24 August 2007 Page i Author : Tim Wheatley WITS Installation Guide Prepared by : Tim Wheatley Authorised by: Chris Shannon Signature : Signature : © 2007 COPYRIGHT Ezurio Ltd This document is issued by Ezurio Limited (hereinafter called Ezurio) in confidence, and is not to be reproduced in whole or in part without the prior written permission of Ezurio. The information contained herein is the property of Ezurio and is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of Ezurio. WITS Installation Guide Doc No : VEHIU-R-020 Page ii © Ezurio Ltd 2007 VEHIU-R-020-01 Installation Guide.doc1 2 Change History Issue Change Author Date 1.0 First version Tim Wheatley 4/04/2007 1.1 Updated for revision 1.0 hardware Julian King 11/07/2007 1.2 Clarification of external WiFi antenna Julian King 23/08/2007 1.3 Addition of FCC Radiation Statement & Bluetooth FCC ID Julian King 24/08/2007 © Ezurio Ltd 2007 WITS Installation Guide Doc No: VEHIU-R-020 Issue No : 1.3 Date : 24 August 2007 Page i WITS Installation Guide © 2007 COPYRIGHT Ezurio Ltd This document is issued by Ezurio Limited (hereinafter called Ezurio) in confidence, and is not to be reproduced in whole or in part without the prior written permission of Ezurio. The information contained herein is the property of Ezurio and is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of Ezurio. Contents WITS Installation Guide Doc No : VEHIU-R-020 Page 2 of 22 © Ezurio Ltd 2007 VEHIU-R-020-01 Installation Guide.doc1 2 1. Safety & Regulatory Statements 3 1.1 FCC Regulatory Statement ............................................................................................ 3 2. Introduction. 4 2.1 Deliverable Contents ...................................................................................................... 4 3. Configuring Units Before Use 5 4. Logging and Reporting 10 4.1 Logging .......................................................................................................................... 10 4.2 Reporting ....................................................................................................................... 10 4.3 External Wireless LAN Antenna ..................................................................................... 10 5. Accessing Logged Data 11 6. Updating the Script 14 7. Updating Firmware 16 7.1 Fault Finding .................................................................................................................. 20 WITS Installation Guide Doc No : VEHIU-R-020 Page 3 of 22 © Ezurio Ltd 2007 VEHIU-R-020-01 Installation Guide.doc1 3 1. Safety & Regulatory Statements 1.1 FCC Regulatory Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. 1.2 FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. 1.3 Included Approved Devices This equipment includes a pre-approved Bluetooth module, FCC ID PI403B. WITS Installation Guide Doc No : VEHIU-R-020 Page 4 of 22 © Ezurio Ltd 2007 VEHIU-R-020-01 Installation Guide.doc1 4 2. Introduction. This document provides an installation and user guide for the WITS vehicle data logging unit. 2.1 Deliverable Contents The WITS deliverable package consists of the following hardware items: • 1 off WITS vehicle data logger unit • 1 off USB cable, ‘A’ to ‘Mini B’ • 1 off GPS antenna, SMA connector • 1 off OBD connector cable • 1 off External WiFi antenna (Optional) The following software is provided on the included CD: • UwTerminal.exe. This is a terminal emulation program that has a number of Ezurio specific extensions. This program should be used to communicate with the modules for configuration or debug purposes. • UWLoad.exe. This utility is used to upload new firmware images into the units. • CDM 2.00.00 x64.zip. Contains the PC driver needed to interface to the prototype units. WITS Installation Guide Doc No : VEHIU-R-020 Page 5 of 22 © Ezurio Ltd 2007 VEHIU-R-020-01 Installation Guide.doc1 5 3. Configuring Units Before Use The WITS unit is supplied with the GPS antenna connected and attached to the unit and will be pre-configured with all of the essential information to allow access to the Ezurio middleware server. All that the installer needs to do is to configure the SSID (and optional WEP key) of the access point that will be used to provide wireless access to the internet. To configure the unit follow these steps: i) Load the supplied CD into a PC and copy the UWTerminal.exe and UWLoad.exe utilities to a suitable location. ii) Plug the unit into the PC using the USB cable supplied. iii) If the PC requests a driver for the hardware, then this is available on the CD. The unit communicates using a virtual COM port. iv) Once the driver is installed and the hardware is ready for use, the next step is to identify the COM port needed to communicate with the unit. This can be identified by looking at the system properties by right clicking on the ‘My Computer’ icon and selecting properties. This will display the system properties screen. Select the ‘Hardware’ tab and then select ‘Device Manager’. In that screen open the ‘Ports (COM &…

Text truncated - open the document above for the full version.

– – – WLX102 Made in TH Note: 01 Note: 03 SE5000105 Change History Add BT FCC ID Approval – 24-08-2007Add includes before FCC ID Approval – 24-08-2007 44 mm 30 mm 00809806C0EC Note: 02Note: 04 FCC ID: PI406WITS Note: 06 IC: 1931B-WITS Note: 07 Note: 05 Includes FCC ID PI403B Note: 08

ETC Report No.: ET94S-12-120-01 Page B1 of B1 FCC ID:PI403B ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Front view of PCB 2. Rear view of PCB

Page 1 of 1 MPE Calculation for WITS Vehicle Data Logging Unit The FCC requires that the calculated MPE be equal to or less than a given limit dependent on frequency at a distance of 20 cm from a device to the body of a user. The WITS WLAN transmitter operates over the 2412 – 2462MHz frequency band. The unit can operate with its internal or external antenna. This calculation is based on the maximum measured transmitter power with an antenna having +3dBi gain. The equation for the MPE calculation is given in OET Bulletin 65, page 19 as: S = EIRP/4 π R 2 Where S = Power density EIRP = Effective Isotropically Radiated Power (EIRP = P x G) R = distance to the centre of radiation of the antenna Values for the WITS Output power : +22.1dBm max from test report ie: EIRP = 162.2mW R = 20cm Calculation S = EIRP/4 π R 2 S = 162.2 /(12.56 x 20 2 ) S = 0.032 mW/cm 2 Requirement From table 1 (b) - Limits for General Population/ Uncontrolled Exposure of FCC Rule Part 1.1310 for the 2412 – 2462MHz frequency range. S = 1.0 mW/cm 2 Conclusion The MPE value of the WITS at 20 cm meets the RF exposure limits.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Ezurio Ltd Datalogger To: FCC Part 15.247: 2006 (Subpart C) Test Report Serial No: RFI/RPTE3/RP48939JD15A Supersedes Test Report Serial No: RFI/RPTE2/RP48939JD15A This Test Report Is Issued Under The Authority Of Michael Derby, Radio Performance Service Leader: Tested By: Jamie Huckerby Checked By: Michael Derby Report Copy No: PDF01 Issue Date: 23 August 2007 Test Dates: 10 June 2007 to 26 June 2007 The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP48939JD15A Page: 2 of 91 Issue Date: 23 August 2007 Test of: Ezurio Ltd Datalogger To: FCC Part 15.247: 2006 (Subpart C) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP48939JD15A Page: 3 of 91 Issue Date: 23 August 2007 Test of: Ezurio Ltd Datalogger To: FCC Part 15.247: 2006 (Subpart C) Table of Contents 1. Client Information............................................................................................................. 4 2. Equipment Under Test (EUT) .......................................................................................... 5 3. Test Results ...................................................................................................................... 7 4. Deviations from the Test Specification .......................................................................... 7 5. Operation of the EUT during Testing ............................................................................. 8 6. Summary of Test Results ................................................................................................ 9 7. Measurements, Examinations and Derived Results ................................................... 10 8. Measurement Uncertainty ............................................................................................. 79 9. Measurement Methods .................................................................................................. 80 Appendix 1. Test Equipment Used ................................................................................... 87 Appendix 2. Test Configuration Drawings ....................................................................... 89 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP48939JD15A Page: 4 of 91 Issue Date: 23 August 2007 Test of: Ezurio Ltd Datalogger To: FCC Part 15.247: 2006 (Subpart C) 1. Client Information Company Name: Ezurio Ltd Address: Saturn House Mercury Park Wycome Lane Woodburn Green Bucks HP10 0HH UK Contact Name: Mr T Wheatley RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP48939JD15A Page: 5 of 91 Issue Date: 23 August 2007 Test of: Ezurio Ltd Datalogger To: FCC Part 15.247: 2006 (Subpart C) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: WLAN Datalogger for vehicle use Brand Name: Ezurio Ltd Model Name or Number: Datalogger Serial Number: Unit 23 Hardware Version: Not stated Software Version: Not stated FCC ID Number: P1406WITS Country of Manufacture: UK Date of Receipt: 04 June 2007 2.2. Accessories The following accessories were supplied with the EUT: Description: Laptop Brand Name: Dell Model Name or Number: Latitude D160 Serial Number: PC37INT (RFI) Cable Length and Type: 1m, USB Connected to Port: Input / Output 2.3. Description of EUT The equipment under test is used to collect vehicle data and relay it back to a point, via Wireless LAN or Bluetooth technology. Wireless LAN and the Bluetooth technology will not transmit at the same time, however both technologies are in receiver mode when set to idle. The EUT also contains a GPS receiver. 2.4. Modifications Incorporated in EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP48939JD15A Page: 6 of 91 Issue Date: 23 August 2007 Test of: Ezurio Ltd Datalogger To: FCC Part 15.247: 2006 (Subpart C) 2.5. Additional Information Related to Testing Power Supply Requirement: Car Battery 12 V Intended Operating Environment: Vehicular Residential, Commercial, Light and Heavy Industry. Equipment Category: IEEE 802.11, WLAN GPS Bluetooth RLAN Modulation types: DSSS and OFDM Type of Unit: Transceiver Receiver GPS Receive Frequency Band: 1.2 GHz to 1.6 GHz Bluetooth Receiver Frequency Range: 2402 MHz to 2480 MHz RLAN Transmit Frequency Range: 2412 MHz to 2462 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 2412 Middle 6 2437 RLAN Transmit Channels Tested: Top 11 2462 RLAN Receive Frequency Range: 2412 MHz to 2462 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 1 2412 Middle 6 2437 RLAN Receive Channels Tested: Top 11 2462 Maximum Peak Power Output (EIRP) +22.1 dBm 2.6. Support Equipment No support equipment was used to exercise the EUT during testing. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE3/RP48939JD15A Page: 7 of 91 Issue Date: 23 August 2007 Test of: Ezurio Ltd Datalogger To: FCC Part 15.247: 2006 (Subpart C) 3. Test Results Reference: FCC Part 15.247: 2006 Subpart C Title: Code of Federal Regulations, Part 15.247 (47CFR22) (Intentional Radiators operating within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz) 3.1. Methods and Procedures The methods and procedures used were as detailed in: ANSI/TIA-603-B-2003 Land Mobile Comm…

Text truncated - open the document above for the full version.
