PIDASMAX1400WiMAX terminal station

UGD-D00234 Rev C SSRM Module User Guide SSRM Module User Guide Page 2 Commercial in Confidence UWB-D00234 Rev C Acknowledgements Airspan Networks Inc. acknowledges the following trademarks used within this document: © Intel Corporation http://www.intel.com/ © Microsoft Corporation http://www.microsoft.com © SEQUANS COMMUNICATIONS http://www.sequans.com Copyright © Copyright by Airspan Networks Inc., 2012. All rights reserved worldwide. The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof. Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Inc. All specifications are subject to change without prior notice. Product performance figures quoted within this document are indicative and for information purposes only. SSRM Module User Guide Page 3 Commercial in Confidence UWB-D00234 Rev C Table of Contents Acknowledgements .......................................................................................................................... 2 Copyright .......................................................................................................................................... 2 Table of Contents ............................................................................................................................. 3 Summary of Figures ......................................................................................................................... 5 Summary of Tables .......................................................................................................................... 6 Warnings and Cautions .................................................................................................................... 7 Human Exposure to Radio Frequencies ...................................................................................... 7 Radio Interference ........................................................................................................................ 7 Modifications ................................................................................................................................. 7 General ......................................................................................................................................... 7 Disclaimer Statement ................................................................................................................... 7 DECLARATION OF CONFORMITY ................................................................................................. 8 FCC Notice ....................................................................................................................................... 9 Federal Communication Commission Notice ............................................................................... 9 Maximum Output TX Power ........................................................................................................... 10 Antenna Types............................................................................................................................ 10 SSRM Antenna Usage ............................................................................................................. 10 1 About this Guide ....................................................................................................................... 12 1.1 Purpose ................................................................................................................................. 12 1.2 Conventions .......................................................................................................................... 12 2 Overview .................................................................................................................................. 13 2.1 SSRM Frequency Ranges .................................................................................................... 13 2.1.1 Main Features ............................................................................................................... 13 2.2 WiMAX Management ............................................................................................................ 13 2.3 SSRM Block Diagram ........................................................................................................... 13…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310 City: Boca Raton, Florida 33431 Country: USA. Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description: Terminal station . Type designation: SSRM 1.4GHz . Trademark: Airspan. on our behalf. Date: July 22, 2012 Name: Zion Levy Function: Compliances & Integration Engineer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Page 1 of 1 Limited single modular transmitter approval request FCC ID:PIDASMAX1400 Items to be covered Answer from applicant The modular transmitter must have its own RF shielding. The modular transmitter has its own RF shielding. The RF shielding consists of the metal shielding of the module cover. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Data from hosting PC to RF module pass thru SQN1210 chip which is used as a data buffer. The modular transmitter must have its own power supply regulation. All power rails on system are regulated and/or filtered (pi filter) on board before entering the modular transmitter. As a module is inserted into a standard Host slot the EUT is powered by the 5.4 VDC The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Antennas in use are a unique Directional Panel Antenna 10 dBi requiring professional installation only. As noted in the User manual. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The Tx module was tested in stand-alone con- figuration connected with 15 cm cable to evaluation board. The cable was decoupled with ferrite at approximately 2 cm to represent the actual in slot installation. As a module, the EUT must be inserted directly into a Mini PCIe slot. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter has its own FCC ID: PIDASMAX1400. If the FCC ID is not visible when the module is installed inside another device, user has the instructions to apply a FCC ID label on the other device (referred to in page 9 of the User manual). The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. There is no specific rule or operating requirements applicable to the transmitter with respect to user operation. The modular transmitter must comply with any applicable RF exposure requirements. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The modular transmitter complies with any applicable RF exposure requirements as specified in FCC part 27 section 27.52. The EUT is a fixed device for use in Cisco products as stated in User manual page 9. Name of authorized person: Zion Levy Position: Compliances & Integration Engineer Date: July 09, 2012

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Airspan Networks Inc. Address : 777 Yamato Rd, Suite 310 City: Boca Raton, Florida Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PIDASMAX1400 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: July 22 , 2012 Name and signature of applicant: Zion Levi Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Airspan Networks Inc. 777 Yamato Rd Suite 310, Boca Raton, Florida, United States, 33431 FCC DECLARATION LETTER FCC ID: PIDASMAX1400 Date: 2012.07.22 To whom it may concern: By SSRM 1.4GHz hardware configuration, the maximum ratio of DL: UL is 31:16. That means it can not support the higher ratio then 31:16. The ratio can not be modified to higher ratio then 31:16 by any method. The device do not support mobile station FDD mode. Sincerely, Brian Roberts Engineering Dept. Airspan Networks Inc. Tel: +1 561 893 8686 Fax: +1 561 893 8671 e-mail: [email protected]

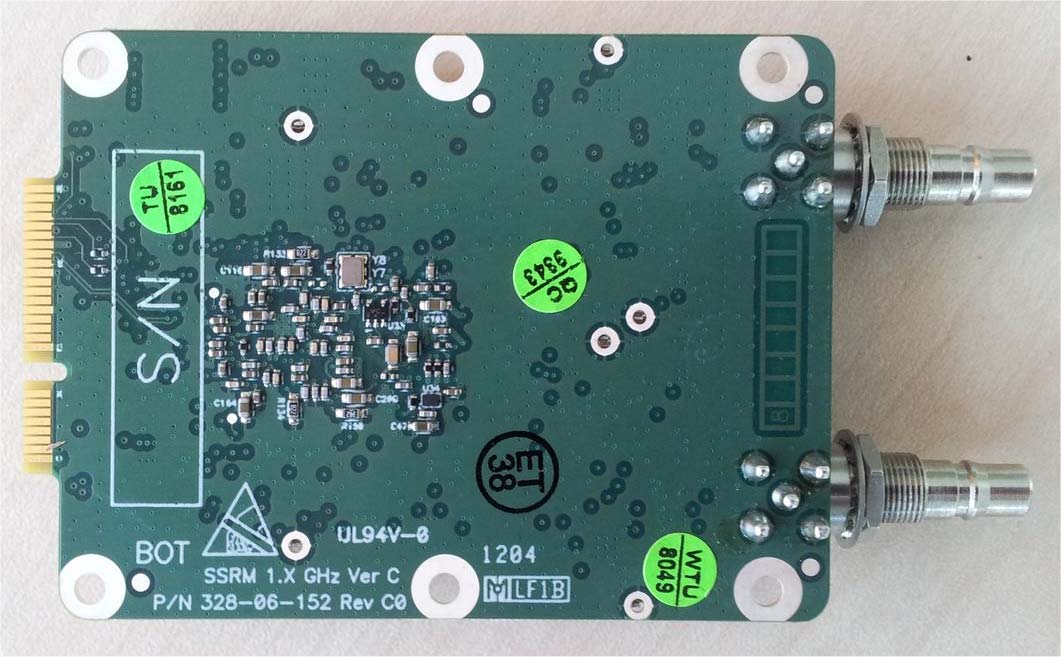

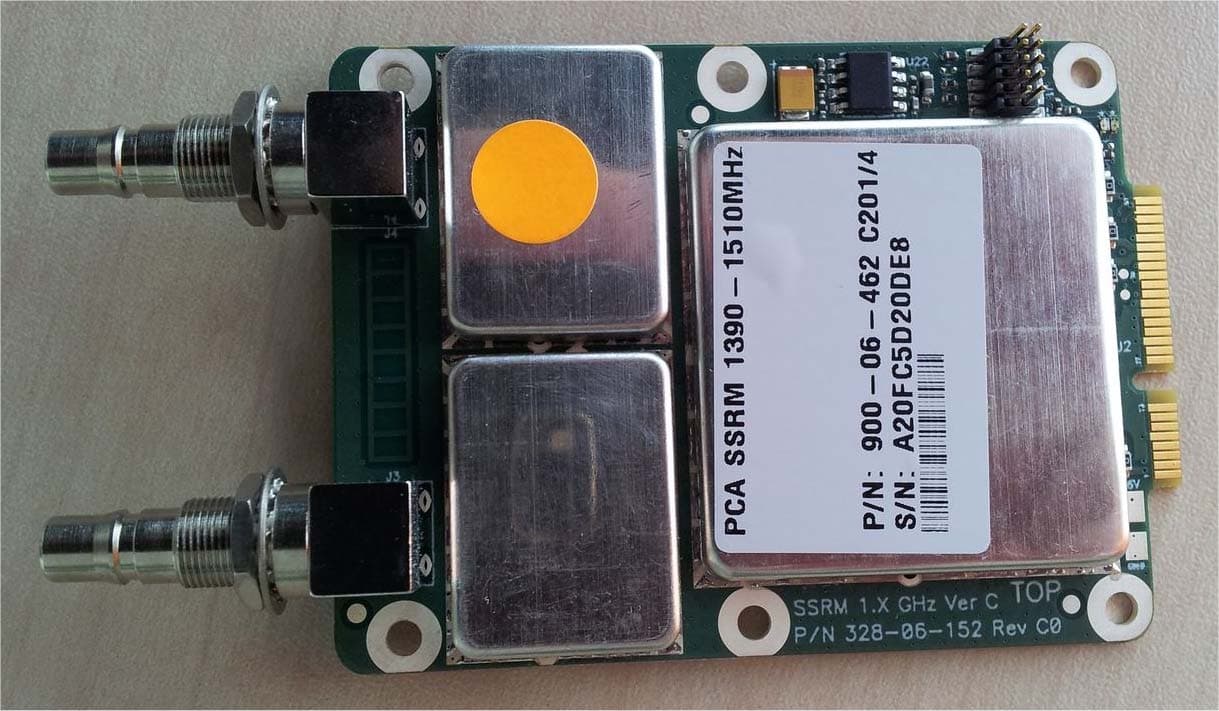

Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 2 of 3 Photograph No.1 SSRM 1.4 GHz module top view Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 3 of 3 Photograph No.2 SSRM 1.4 GHz module bottom view

Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 1 of 1 LABEL The label is affixed on the module as shown below. The label material is PVC with a permanent adhesive. Label location Label with FCC ID:PIDASMAX1400 will be located here.

Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 1 of 3 INTERNAL PHOTOGRAPHS This document contains 2 photographs Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 2 of 3 Photograph No.1 SSRM 1.4 GHz module without shielding Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 3 of 3 Photograph No.2 SSRM 1.4 GHz module bottom view

Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The transceiver is classified as fixed, the calculation was done to check a safe distance. Limit for power density for general population/uncontrolled exposure is f/1500 mW/cm 2 for 300 – 1500 MHz frequency range: P = 1392.5/1500 = 0.928 mW/cm 2 The maximum equivalent isotropically radiated power EIRP is P T = 26.18 dBm +10 dBi = 36.18 dBm = 4149.5 mW, where 26.18 dBm is the EUT maximum output power, 10 dBi – antenna gain. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {4149.5 / (0.928 x12.56)} = 18.9 cm  2 m . General public cannot be exposed to dangerous RF level.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 36 Report ID: AIRRAD_FCC.23473.doc Date of Issue: 25-Jul-12 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC part 27 FOR: Airspan Networks Inc. Terminal station Model:SSRM 1.4GHz FCC ID:PIDASMAX1400 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AIRRAD_FCC.23473.doc Date of Issue: 25-Jul-12 Page 2 of 36 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Changes made in EUT .................................................................................................................................................. 5 6.5 Test configuration .......................................................................................................................................................... 5 6.6 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 27 requirements ......................................................................................... 7 7.1 Peak output power test .................................................................................................................................................. 7 7.2 Occupied bandwidth test ............................................................................................................................................... 9 7.3 Radiated spurious emission measurements ................................................................................................................ 12 7.4 Spurious emissions at RF antenna connector test ...................................................................................................... 18 7.5 Frequency stability test ................................................................................................................................................ 24 8 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 26 9 APPENDIX A Measurement uncertainties ................................................................................................................... 27 10 APPENDIX C Test laboratory description ................................................................................................................... 28 11 APPENDIX D Specification references ....................................................................................................................... 28 12 APPENDIX E Test equipment correction factors ......................................................................................................... 29 13 APPENDIX F Abbreviations and acronyms ................................................................................................................. 36 Report ID: AIRRAD_FCC.23473.doc Date of Issue: 25-Jul-12 Page 3 of 36 1 Applicant information Client name: Airspan Networks Inc. Address: 777 Yamato, Road Suite 310 Boca Raton, FL 33431, USA Telephone: +1 561 893 8670 Fax: +1 561 893 8671 E-mail: [email protected] Contact name: Mr. Zion Levi 2 Equipment under test attributes Product name: Terminal station Product type: Transceiver Model(s): SSRM 1.4GHz Serial number: A20FC5D20DD8 Hardware version: Ver.C1 Software release: 10.3.1.23 Receipt date 7/02/2012 3 Manufacturer information Manufacturer name: Airspan Networks Inc. Address: 777 Yamato, Road Suite 310 Boca Raton, FL 33431, USA Telephone: +1 561 893 8670 Fax: +1 561 893 8671 E-Mail: [email protected] Contact name: Mr. Zion Levi 4 Test details Project ID: 23473 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 7/02/2012 Test completed: 7/04/2012 Test specification(s): FCC 47CFR part 27 Report ID: AIRRAD_FCC.23473.doc Date of Issue: 25-Jul-12 Page 4 of 36 5 Tests summary Test Status Transmitter characteristics Section 27.50(e)(1), (2), Peak output power …

Text truncated - open the document above for the full version.

Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 1 of 7 SETUP PHOTOGRAPHS This document contains 8 photographs Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 2 of 7 Photograph No.1 Peak output power measurement setup Photograph No.2 Peak output power measurement setup, EUT close view Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 3 of 7 Photograph No.3 Occupied bandwidth and conducted spurious emissions measurement setup Photograph No.4 Occupied bandwidth and conducted spurious emissions measurement setup, EUT close view Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 4 of 7 Photograph No.5 Spurious emissions measurement setup in the anechoic chamber below 30 MHz Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 5 of 7 Photograph No.6 Spurious emissions measurement setup in the anechoic chamber in 30 -1000 MHz Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 6 of 7 Photograph No.7 Spurious emissions measurement setup in the anechoic chamber above 1 GHz Airspan Networks Inc. FCC ID:PIDASMAX1400 Page 7 of 7 Photograph No.8 Frequency stability measurement setup
