PIDASMAX145Subscriber Unit

UGD-D00111 Rev K ProST Hardware Installation User Guide Software Release 7.7 ProST Hardware Installation User Guide Page 2 Commercial in Confidence UWB-D00111 Rev K Acknowledgements Airspan Networks Inc acknowledges the following trademarks used within this document: © Intel Corporation 0http://www.intel.com/ © SEQUANS COMMUNICATIONS 1http://www.sequans.com © Microsoft Corporation 2http://www.microsoft.com Copyright © Copyright by Airspan Networks Inc., 2009. All rights reserved worldwide. The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof. Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Inc. All specifications are subject to change without prior notice. Product performance figures quoted within this document are indicative and for information purposes only. ProST Hardware Installation User Guide Page 3 Commercial in Confidence UWB-D00111 Rev K Table of Contents Acknowledgements ..........................................................................................................................2 Copyright ..........................................................................................................................................2 Table of Contents .............................................................................................................................3 Summary of Figures .........................................................................................................................6 Summary of Tables ..........................................................................................................................8 Warnings and Cautions ....................................................................................................................9 Human Exposure to Radio Frequencies.......................................................................................9 Radio Interference ........................................................................................................................9 Avoiding Radio Interference .........................................................................................................9 Modifications.................................................................................................................................9 General .........................................................................................................................................9 Disclaimer Statement .................................................................................................................10 DECLARATION OF CONFORMITY...............................................................................................11 FCC Notice .....................................................................................................................................12 Federal Communication Commission Notice .............................................................................12 Maximum Output TX Power .......................................................................................................13 700MHz External Antennas ........................................................................................................ 13 1.4 GHz External Antennas ........................................................................................................ 14 1 About this Guide.......................................................................................................................15 1.1 Purpose .................................................................................................................................15 1.2 Intended Audience ................................................................................................................15 1.3 Conventions ..........................................................................................................................15 1.4 Referenced Documentation ..................................................................................................16 2 System Overview .....................................................................................................................17 2.1 ProST Frequency Ranges..........................................................................…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310 City: Boca Raton, Florida 33431 Country: USA  . Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description:  1) Base station radio operating in 1.4 GHz band; 2) subscriber unit operating in 1.4 GHz band Type designation:  1) MicroMAX 1.4G TDD; 2) ProST 1.4G TDD  . Trademark:  Airspan  . on our behalf. Date: May 5, 2011 Name: Zion Levy Function: Compliances & Integration engineer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

May 12, 2011 To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification of a terminal station radio (subscriber unit), model name ProST 1.4G TDD V-p, operating in 1.4 GHz band, FCC ID:PIDASMAX145 Dear Sir, Please find attached our application for certification of a terminal station radio (subscriber unit), operating in 1.4 GHz band, model name ProST 1.4G TDD V-p, FCC ID:PIDASMAX145, prepared in accordance with FCC Rules, parts 2 and 27. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC (Registration Numbers 90623, 90624). The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: 011 972 4626 8440, fax:011 972 4628 8277, e-mail: [email protected]. We hope this application satisfies your requirements. Please send an invoice to Hermon Labs. Sincerely, Zion Levi Compliances & Integration Engineer Airspan Networks Inc.

ProST statement, FCC ID:PIDASMAX145 DC voltages/ currents supplied to elements of the final radio frequency amplifying device for normal operation over the power range: 5 V/ 0.9 A. Name of authorized person: Zion Levy Position: Compliances & Integration Engineer Date: May 12, 2011 Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671, www.airspan.com

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Airspan Networks Inc. Address : 777 Yamato Rd, Suite 310 City: Boca Raton, Florida Country: United States To: Telefication B.V ., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PIDASMAX145 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: May 19, 2011 Name and signature of applicant: Zion Levi Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

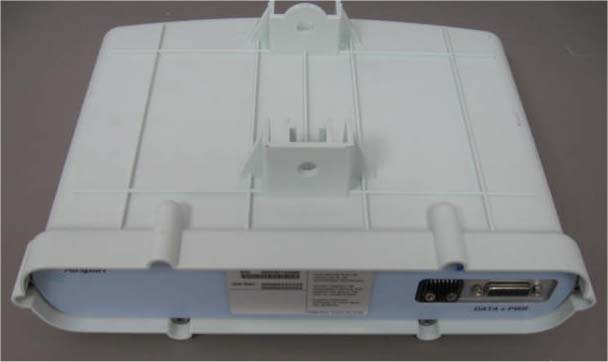

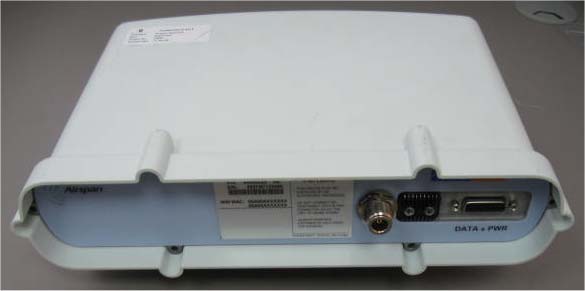

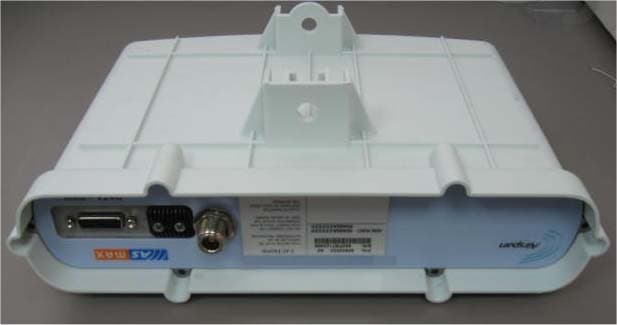

Airspan Networks Inc. FCC ID:PIDASMAX145 Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Airspan Networks Inc. FCC ID:PIDASMAX145 Page 2 of 4 Photograph No.1 “ProST 1.4G TDD V-p” general view (with external antenna) Airspan Networks Inc. FCC ID:PIDASMAX145 Page 3 of 4 Photograph No.2 “ProST 1.4G TDD V-p” general view (with internal antenna) Airspan Networks Inc. FCC ID:PIDASMAX145 Page 4 of 4 Photograph No.3 “ProST 1.4G TDD V-p” rear side view

Airspan Networks Inc. FCC ID:PIDASMAX145 Page 1 of 2 LABEL The label is affixed on the bottom of the subscriber radio unit as shown below. The label material is PVC with a permanent adhesive. “ProST 1.4G TDD V-p” bottom panel, label with FCC ID:PIDASMAX145 location FCC ID:PIDASMAX145

Airspan Networks Inc. FCC ID:PIDASMAX145 Page 1 of 8 INTERNAL PHOTOGRAPHS This document contains 7 photographs Airspan Networks Inc. FCC ID:PIDASMAX145 Page 2 of 8 Photograph No.1 “ProST 1.4G TDD V-p” internal view Airspan Networks Inc. FCC ID:PIDASMAX145 Page 3 of 8 Photograph No.2 “ProST 1.4G TDD V-p” power supply close view Airspan Networks Inc. FCC ID:PIDASMAX145 Page 4 of 8 Photograph No.3 “ProST 1.4G TDD V-p” internal view with case removed Airspan Networks Inc. FCC ID:PIDASMAX145 Page 5 of 8 Photograph No.4 “ProST 1.4G TDD V-p” main PCB front view Airspan Networks Inc. FCC ID:PIDASMAX145 Page 6 of 8 Photograph No.5 “ProST 1.4G TDD V-p” main PCB second side view Airspan Networks Inc. FCC ID:PIDASMAX145 Page 7 of 8 Photograph No.6 Main PCB front view without shields Airspan Networks Inc. FCC ID:PIDASMAX145 Page 8 of 8 Photograph No.7 Main PCB second side close view

Airspan Networks Inc. FCC ID:PIDASMAX145 Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 Limit for power density for general population/uncontrolled exposure is f/1500 mW/cm 2 for 300 – 1500 MHz frequency range: P = 1391/1500 = 0.927 mW/cm 2 The transceiver is classified as fixed, the calculation was done to confirm a safe distance. The maximum equivalent isotropically radiated power EIRP is P T = 25.15 dBm +18 dBi = 43.15 dBm = 20654 mW, where 25.15 dBm is the EUT maximum output power at 1433.5 MHz and 2.5 MHz CBW, 18 dBi – antenna gain. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {20654 / (0.927 x12.56)} = 42 cm  2 m . General public cannot be exposed to dangerous RF level.

1.427 - 1.525 GHz Integrated Antenna for Airspan MA-WA15 -AS10 Specifications: Electrical Frequency range 1.427 - 1.525 GHz GAIN, min. 10.5 dBi VSWR, max. 1.5: 1 3dB Beam Width - Azimuth, typ. 35±5° 3dB Beam Width - Elevation, typ. 55±5° Polarization Linear, Vertical Side-lobes Level, min. ETSI EN 301 525 TS1 Cross Polarization, min ETSI EN 301 525 TS1 Front to back, min ETSI EN 301 525 TS1 Power Handling 5 Watt Input Impedance 50 Ohm Mechanical and Environmental Dimensions (LXWXH) 270 x180 x 0.8 mm Connector MCX, Male Flammability UL 94V-0 Operating Temperature -40° to +85° Lightning Protection DC Grounded 1.427-1.525 GHz Antenna

Direction panel antenna TDJ-SA1500-18-65 Model TDJ-SA1500-18-65 Electrical Specifications Frequency Range 1425-1535MHz VSWR ≤1.5 Input Impedance 50Ω Gain 18dBi Polarization Vertical pattern Horizontal Beamwidth (3dB) 65°±6° Vertical Beamwidth (3dB) 7° Electrical Downtilt 0° Front to Back Ratio (F/B) ≥25dB Intermediation ≤-107dBm Max. Power 100W Lightning protection DC ground Connector type 7/16DIN or N female Mechanical Specifications Dimension (H×W×D) 1580 ㎜×180 ㎜×90 ㎜ Weight 7㎏ Rated Wind Velocity 210Km/h Radome material UV-resistant ABS Diameter of installation pole Φ45㎜-Φ75.5㎜ 180 150 120 60 30 0 330 300 270 240 210 0dB/90 -1 -3 -6 -10 -13 -20 Ve rtic a l p a tte rn 180 150 120 60 30 0 330 300 270 240 210 0dB/90 -1 -3 -6 -10 -13 -20 Horizo nta l p a ttern

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 106 Report ID: AIRRAD_FCC.19957_ProST.doc Date of Issue: 9/6/2009 Electrical 839.01 TEST REPORT ACCORDING TO: FCC part 27 FOR: Airspan Networks (Israel) Ltd. Subscriber unit Model: ProST 1.4G TDD V-p This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AIRRAD_FCC.19957_ProST.doc Date of Issue: 9/6/2009 Page 2 of 106 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Changes made in the EUT ............................................................................................................................................ 5 6.5 Transmitter characteristics ............................................................................................................................................ 6 6.6 Test configuration.......................................................................................................................................................... 7 7 Transmitter tests according to 47CFR part 27 requirements......................................................................................... 8 7.1 Peak output power test.................................................................................................................................................. 8 7.2 Occupied bandwidth test ............................................................................................................................................. 12 7.3 Radiated spurious emission measurements................................................................................................................ 28 7.4 Spurious emissions at RF antenna connector test ...................................................................................................... 45 7.5 Frequency stability test................................................................................................................................................ 88 8 APPENDIX A Test equipment and ancillaries used for tests....................................................................................... 92 9 APPENDIX B Measurement uncertainties................................................................................................................... 94 10 APPENDIX C Test laboratory description ................................................................................................................... 95 11 APPENDIX D Specification references ....................................................................................................................... 95 12 APPENDIX E Test equipment correction factors......................................................................................................... 96 13 APPENDIX F Abbreviations and acronyms ............................................................................................................... 106 Report ID: AIRRAD_FCC.19957_ProST.doc Date of Issue: 9/6/2009 Page 3 of 106 1 Applicant information Client name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310, Boca Raton 33431, Florida, USA Telephone: +1 561 893 8686 Fax: +1 561 893 8671 E-mail: [email protected] Contact name: Mr. Zion Levi 2 Equipment under test attributes Product name: Subscriber unit Product type: Transceiver Model(s): ProST 1.4G TDD V-p Serial number: 48FF88C5C948 Hardware version: A0 Software release: 23.0.18.0 Receipt date 2/8/2009 3 Manufacturer information Manufacturer name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310, Boca Raton 33431, Florida, USA Telephone: +1 561 893 8686 Fax: +1 561 893 8671 E-Mail: [email protected] Contact name: Mr. Zion Levi 4 Test details Project ID: 19957 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 2/8/2009 Test completed: 8/24/2009 Test specification(s): FCC part 27 Report ID: AIRRAD_FCC.19957_ProST.doc Date of Issue: 9/6/2009 Page 4 of 106 5 Tests summary Test Status Transmitter characteristics Section 27.50(e)(1), (2) Peak output power at R…

Text truncated - open the document above for the full version.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 48 Report ID: AIRRAD_FCC.21822_ProST.doc Date of Issue: 5/1/2011 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC part 27 FOR: Airspan Networks (Israel) Ltd. Subscriber unit Model: ProST 1.4G TDD V-p This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AIRRAD_FCC.21822_ProST.doc Date of Issue: 5/1/2011 Page 2 of 48 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Changes made in the EUT ............................................................................................................................................ 5 6.5 Test configuration.......................................................................................................................................................... 6 6.6 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 27 requirements......................................................................................... 8 7.1 Peak output power test.................................................................................................................................................. 8 7.2 Occupied bandwidth test ............................................................................................................................................. 11 7.3 Spurious emissions at RF antenna connector test ...................................................................................................... 25 8 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 44 9 APPENDIX B Measurement uncertainties................................................................................................................... 45 10 APPENDIX C Test laboratory description ................................................................................................................... 46 11 APPENDIX D Specification references ....................................................................................................................... 46 12 APPENDIX E Test equipment correction factors......................................................................................................... 47 13 APPENDIX F Abbreviations and acronyms ................................................................................................................. 48 Report ID: AIRRAD_FCC.21822_ProST.doc Date of Issue: 5/1/2011 Page 3 of 48 1 Applicant information Client name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310, Boca Raton 33431, Florida, USA Telephone: +1 561 893 8686 Fax: +1 561 893 8671 E-mail: [email protected] Contact name: Mr. Zion Levi 2 Equipment under test attributes Product name: Subscriber unit Product type: Transceiver Model(s): ProST 1.4G TDD V-p Serial number: 48FF88C5C948 Hardware version: A0 Software release: V7.9.12.0 Receipt date 4/3/2011 3 Manufacturer information Manufacturer name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310, Boca Raton 33431, Florida, USA Telephone: +1 561 893 8686 Fax: +1 561 893 8671 E-Mail: [email protected] Contact name: Mr. Zion Levi 4 Test details Project ID: 21822 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 4/3/2011 Test completed: 4/5/2011 Test specification(s): FCC part 27 Report ID: AIRRAD_FCC.21822_ProST.doc Date of Issue: 5/1/2011 Page 4 of 48 5 Tests summary Test Status Transmitter characteristics Section 27.50(e)(1), (2), Peak output power at RF antenna connector Pass Section 2.1091, 27.52, RF safety Pass, Exhibit provided in Application Section 27.53(j), Spurious emissions at RF antenna connector Pass Section 27.53(j), Band edge emissions at RF antenna connector Pass Section 27.53(j), Radiated spurious emissions Pass, refer to test report AIRRAD_FCC.19957_ProST Sec…

Text truncated - open the document above for the full version.

Airspan Networks Inc. FCC ID:PIDASMAX145 Page 1 of 7 SETUP PHOTOGRAPHS This document contains 6 photographs Airspan Networks Inc. FCC ID:PIDASMAX145 Page 2 of 7 Photograph No.1 Peak output power measurement setup Airspan Networks Inc. FCC ID:PIDASMAX145 Page 3 of 7 Photograph No.2 Occupied bandwidth and conducted spurious emissions measurement setup Airspan Networks Inc. FCC ID:PIDASMAX145 Page 4 of 7 Photograph No.3 Spurious emissions measurement setup in the anechoic chamber below 30 MHz Airspan Networks Inc. FCC ID:PIDASMAX145 Page 5 of 7 Photograph No.4 Spurious emissions measurement setup in the anechoic chamber in 30 -1000 MHz Airspan Networks Inc. FCC ID:PIDASMAX145 Page 6 of 7 Photograph No.5 Spurious emissions measurement setup in the anechoic chamber above 1000 MHz Airspan Networks Inc. FCC ID:PIDASMAX145 Page 7 of 7 Photograph No.6 Frequency stability measurement setup
