PIDMMAX0707Base station

UGD-D00181 Rev F2 MacroMAXe-4RX Installation Guide System Release 9.01 MacroMAXe-4RX Installation Guide Page 2 Commercial in Confidence UGD-D00181 Rev F2 Copyright © Copyright by Airspan Networks Inc., 2010. All rights reserved worldwide. The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof. Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Inc. All specifications are subject to change without prior notice. Product performance figures quoted within this document are indicative and for information purposes only. MacroMAXe-4RX Installation Guide Page 3 Commercial in Confidence UGD-D00181 Rev F2 Table of Contents Copyright ................................................................................................................................................. 2 Table of Contents .................................................................................................................................... 3 Summary of Figures ................................................................................................................................ 5 Summary of Tables ................................................................................................................................. 7 Warnings and Cautions ........................................................................................................................... 8 Human Exposure to Radio Frequencies ............................................................................................. 8 Radio Interference ............................................................................................................................... 8 Avoiding Radio Interference ................................................................................................................ 8 Modifications ....................................................................................................................................... 8 General ................................................................................................................................................ 8 Safety .................................................................................................................................................. 8 Warning Symbols ................................................................................................................................ 9 Service Information ............................................................................................................................. 9 UL Information ..................................................................................................................................... 9 Lightning Protection .......................................................................................................................... 10 DECLARATION OF CONFORMITY ..................................................................................................... 11 FCC Notice ............................................................................................................................................ 12 Federal Communication Commission Notice .................................................................................... 12 GPS Compliance ............................................................................................................................... 12 Maximum Output TX Power .................................................................................................................. 13 Antenna Types .................................................................................................................................. 13 MacroMAXe Antenna Usage ......................................................................................................... 14 1 About this Guide ............................................................................................................................ 17 1.1 Purpose ................................................................................................................................. 17 1.2 Intended Audience ................................................................................................................ 17 1.3 Convention…

Text truncated - open the document above for the full version.

Company name: Airspan Networks Inc. Address: 777 Yamato Road Suite 310 Boca Raton FL 33431 USA FCC ID:PIDMMAX0707 “MacroMAXe 0707 700M Ext” statement DC voltage/current supplied to elements of the final radio frequency amplifying device for normal operation over the power range: 28 V/1.5 A. Name of authorized person: Zion Levy Position: Compliances & Testing Engineer Date: August 29, 2010 Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671, www.airspan.com

RF_160, Issue 02 Declaration of Authorization We Name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310 City: Boca Raton, Florida 33431 Country: USA ........................................................................... . Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description: ... Base station ...... . Type designation: ... MacroMAXe 0707 700M Ext .................. . Trademark: ... Airspan .......................................... . on our behalf. Date: August 29, 2010 Name: Zion Levy Function: Compliance & testing engineer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Airspan Networks Inc. Address : 777 Yamato Rd, Suite 310 City: Boca Raton, Florida Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subjec t: Request for confidentiality FCC ID: PIDMMAX0707 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: September 13, 2010 Name and signature of applicant: Zion Levi Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

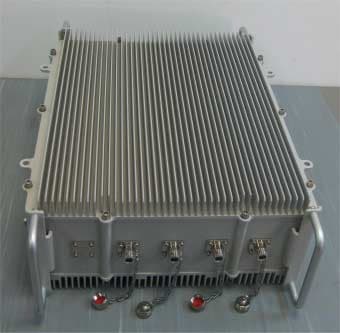

Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 2 of 4 Photograph No.1 “MacroMAXe 0707 700M Ext” general view Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 3 of 4 Photograph No.2 “MacroMAXe 0707 700M Ext” front view Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 4 of 4 Photograph No.3 “MacroMAXe 0707 700M Ext” rear side view

Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 1 of 2 LABEL The label is affixed on the side of the base radio unit as shown below. The label material is PVC with a permanent adhesive. “MacroMAXe 0707 700M Ext” side panel, label with FCC ID:PIDMMAX0707 location FCC ID:PIDMMAX0707

Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 1 of 10 INTERNAL PHOTOGRAPHS This document contains 9 photographs Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 2 of 10 Photograph No.1 “MacroMAXe 0707 700M Ext” internal view Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 3 of 10 Photograph No.2 RF cavity filters assembly Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 4 of 10 Photograph No.3 “MacroMAXe 0707 700M Ext” RF card front view Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 5 of 10 Photograph No.4 “MacroMAXe 0707 700M Ext” RF card without shielding Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 6 of 10 Photograph No.5 RF card without shielding close view Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 7 of 10 Photograph No.6 “MacroMAXe 0707 700M Ext” RF card second side view Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 8 of 10 Photograph No.7 Digital PCB front view Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 9 of 10 Photograph No.8 RF power amplifier internal view Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 10 of 10 Photograph No.9 Power amplifier PCB second side internal view

FCC ID:PIDMMAX0707 Technical Note WiMAX 700 MHz MacroMAXe 0707 700 MHz Connecting the World with Wireless Access Solutions Revision Record: WiMAX. 700 MHz Pub/ Rev Date Update Description 01 August 29 Publication No. 28080512-01  Copyright by Airspan Networks LTD., 2003. All rights reserved worldwide. The information contained in this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreement protecting Airspan Networks LTD. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks LTD. In addition, any use of this document or the information contained herein for any purposes other than those for which it was disclosed is strictly forbidden. Airspan Networks LTD. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks LTD. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks LTD. for the use thereof nor for the rights of third parties which may be effected in any way by the use thereof. Any representation(s) in this document concerning performance of Airspan Networks LTD. product(s) are for informational purposes only and are not warranties of future performance, either express or implied. Airspan Networks LTD. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks LTD. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks LTD. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks LTD. All specifications are subject to change without prior notice. MacroMAXe 700MHz Technical Note 28080511-01 Airspan Networks Ltd. 3 1. Scope This document provides a description of the WiMAX 700 MHz product. 2. MacroMAXe (Base Station) A Base station radio, MacroMAXe 0707 700 MHz Ext, is part of a WiMAX broadband fixed cellular wireless access system. The system provides a radio link between an end-user (a subscriber) and a network to give high-speed data access. The MacroMAXe’s transceiver/receiver (Up to 64 QAM modulation, data rate up to 46) uses OFDM and operating in TDD duplexing mode, equipped with a 13.5 dBi external antenna. The maximum RF output power (not including antenna gain) is 41.6 dBm and it can be reduced by software. The MacroMAXe is installed outdoors and typically is mounted on a pole. The Subscriber transmits and receives traffic to and from the base station respectively. The transceiver provides subscribers with "always-on" Internet, high speed data only, or data and voice (VoIP) services and is configured with a unique base station reference number, preventing the ProST from relocating to another subscriber premises without authorization. . 2.1. EUT (MacroMAXe) test configuration The EUT ports and lines description is given in the table below. Port type Port description Connector type QuantityCable length (m) Indoor /outdoor Connected to DC 48 VDC DC Connector 1 100 Outdoor DC P.S Data Ethernet RJ 45 1 100 Outdoor Eth. Switch

Company name: Airspan Networks Inc. Address: 777 Yamato Road Suite 310 Boca Raton FL 33431 USA FCC ID:PIDMMAX0707 MacroMAXe 0707 700MHz Tune up procedure Each MacroMAXe radio has been tested by automatic test station. As part of the test , the maximum RF output power value has been masured. In case the RF output power is higher then specified in the System Description, the MacroMAXe radio doesn’t pass the test and get Fail status. The MacroMAXe boards with Fail status can not be assembled as part of the final product. Name of authorized person: Zion Levy Position: Compliances & Testing Engineer Date: August 29, 2010 Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671 , www.airspan.com

Airspan Networks Inc. FCC ID:PIDMMAX0707 Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The transceiver is classified as fixed, the calculation was done to confirm a safe distance. Limit for power density for general population/uncontrolled exposure is f/1500 mW/cm 2 for 300 – 1500 MHz frequency range: P = 700/1500 = 0.47 mW/cm 2 The power density P (mW/cm 2 ) = P T / 4π r 2 , where P T is the transmitted power, which is equal to the peak transmitter output power plus maximum antenna gain. The maximum equivalent isotropically radiated power EIRP is P T = 41.6 dBm +13.5 dBi = 55.1 dBm = 323594 mW, where 41.6 dBm is the EUT maximum output power, 13.5 dBi – antenna gain. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4π)} = sqrt {323594 / (0.47 x12.56)} = 234 cm. A warning about a safe distance is contained in the user manual.

MTI WIRELESS EDGE LTD. MT-221024/NV REV-B SCALE: NONE DOC NO. RD42863700C SHEET 1 OF 4 Specification for MT-/221024 NV OMNI Directional Antenna 698-746 MHz, 6.0 dBi THIS DOCUMENT AND THE INFORMATION CONTAINED IN IT ARE PROPRIETARY AND CONFIDENTIAL TO MTI. NO PERSON IS ALLOWED TO COPY REPRINT REPRODUCE OR PUBLISH ANY PART OF THIS DOCUMENT NOR DISCLOSE ITS CONTENTS TO OTHERS NOR MAKE ANY USE OF IT NOR ALLOW OR ASSIST OTHERS TO MAKE ANY USE OF IT, UNLESS BY THE PRIOR WRITTEN EXPRESS AUTHORIZATION OF MTI AND THEN ONLY TO THE EXTENT AUTHORIZED. (C) COPYRIGHT –MTI WIRELESS EDGE LTD. MTI WIRELESS EDGE LTD. Specification for MT-221024/NV OMNI Directional Antenna DOC NO. RD42863700C 698-746 MHz, 6.0 dBi SCALE: NONE CLASSIFICATION: NONE REV-B SHEET 2 OF 4 REVISION RECORD REV ECO DESCRIPTION APVD DATE 01 UPDATESPEC YAEL H. 17.3.10 02 DELETE MOUNTING KIT YAEL H. 22.3.10 A DC31 RELEASED YAEL H. 26.4.10 B 4588 UPDATE HEIGHT OF ANTENNA FROM 1100 TO 1115 YAELH. 2.5.10 SHEET 43 44 45 46 47 48 49 50 51 52 53 54 55 56 REV SHEET 29 30 31 32 33 34 35 36 37 38 39 40 41 42 REV SHEET 15 16 17 18 19 20 21 22 23 24 25 26 27 28 REV SHEET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 REV B B B B PRODUCT STATUS: PROPOSAL IN DEVELOPMENT PREPRODUCTION PRODUCTION CONTRACT NO ACTION NAME SIGN DATE PREP YAEL YAEL 17.03.10 CHKD DANIEL ZERAH D.Z 26.4.10 CHKD CHKD DSGN MAURICE DADOUN M.D 21.4.10 PROJ MOTI ROSTMY M.R 19.4.10 MFG QA MOTI MOTOVICH MOTI 22.4.10 MARK. DROR REISS D.R 22.4.10 MTI WIRELESS EDGE LTD. Specification for MT-221024/NV OMNI Directional Antenna DOC NO. RD42863700C 698-746 MHz, 6.0 dBi SCALE: NONE CLASSIFICATION: NONE REV-B SHEET 3 OF 4 SPECIFICATION OMNI Directional Antenna MTI PART NUMBER MT-221024/NV Regulatory Compliance RoHS , CE 0682 ELECTRICAL. 1 Frequency Range 698 – 746 MHz VSWR <1.8 : 1 Gain at Horizon* 6.0 dBi (typ) ; 5.4dBi (min. over freq. range and azimuth ripple) Azimuth Beam width 360° Azimuth Ripple ±0.5 dB (max) Beam Squint (Elevation) ±4º ; ( 700 – 730MHz: ±2.5º ) E-Plane Beam width 19 ° ±1.5º Elevation Side-Lobes -10dB typ., -8.dB max. Cross Polarization -15dB (max) Polarization Linear Vertical Input Impedance 50 (ohms) Power 10 W (max) Lightning ProtectionDC Grounded MECHANICAL. 2 Dimensions : Diameter Height 50.0 mm (max) 1115 mm (max) Weight 0.5 kg (max) Connector N- type Female Radome Plastic Outline Drawing RD42999000C *Gain reflects impact of beam squint, Ripple and Radome. MTI WIRELESS EDGE LTD. Specification for MT-221024/NV OMNI Directional Antenna DOC NO. RD42863700C 698-746 MHz, 6.0 dBi SCALE: NONE CLASSIFICATION: NONE REV-B SHEET 4 OF 4 3. ENVIRONMENTAL TEST STANDARD DURATION TEMPERTURE NOTES Low Temperature IEC 68-2-1 72 h -55°C - High Temperature IEC 68-2-2 72 h +71°C - Temp. Cycling IEC 68-2-14 1 h -45°C +70°C 3 Cycles Vibration IEC 60721-3-4 30 min/axis - Random 4M5 Shock Mechanical IEC 60721-3-4 - - 4M5 Humidity ETSI EN300-2-4 T4.1E 144 h - 95% Water Tightness IEC 529 - - IP67 Solar Radiation ASTM G 154 1000 h - - Flammability UL 94 - - Class HB Salt Spray IEC 68-2-11 Ka 500 h - - Ice And Snow - - - 25mm Radial Wind Speed Survival Operation - - - - - - 220 Km/h 160 Km/h

MTI WIRELESS EDGE LTD. MT-221023/NV REV-B SCALE: NONE DOC NO. RD42774900C SHEET 1 OF 4 Specification for MT-221023/NV OMNI Directional Antenna 746-806 MHz, 6.5dBi THIS DOCUMENT AND THE INFORMATION CONTAINED IN IT ARE PROPRIETARY AND CONFIDENTIAL TO MTI. NO PERSON IS ALLOWED TO COPY REPRINT REPRODUCE OR PUBLISH ANY PART OF THIS DOCUMENT NOR DISCLOSE ITS CONTENTS TO OTHERS NOR MAKE ANY USE OF IT NOR ALLOW OR ASSIST OTHERS TO MAKE ANY USE OF IT, UNLESS BY THE PRIOR WRITTEN EXPRESS AUTHORIZATION OF MTI AND THEN ONLY TO THE EXTENT AUTHORIZED. (C) COPYRIGHT –MTI WIRELESS EDGE LTD. MTI WIRELESS EDGE LTD. Specification for MT-221023/NV OMNI Directional Antenna DOC NO. RD42774900C 746-806 MHz, 6.5 dBi SCALE: NONE CLASSIFICATION: NONE REV-B SHEET 2 OF 4 REVISION RECORD REV ECO DESCRIPTION APVD DATE 01 UPDATE SPEC YAEL H. 7.9.09 02 UPDATE SPEC YAEL H. 10.9.09 03 UPDATE SPEC YAEL H. 17.3.10 04 DELETE MOUNTING KIT YAEL H. 22.3.10 A DC32 RELAESED YAEL H. 26.4.10 B 4588 UPDATE HEIGHT OF ANTENNA FROM 1100 TO 1115 YAEL H. 2.5.10 SHEET 43 44 45 46 47 48 49 50 51 52 53 54 55 56 REV SHEET 29 30 31 32 33 34 35 36 37 38 39 40 41 42 REV SHEET 15 16 17 18 19 20 21 22 23 24 25 26 27 28 REV SHEET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 REV B B B B PRODUCT STATUS: PROPOSAL IN DEVELOPMENT PREPRODUCTION PRODUCTION CONTRACT NO ACTION NAME SIGN DATE PREP YAEL YAEL 6.9.09 CHKD DANIEL ZERAH D.Z 26.4.10 CHKD CHKD DSGN MAURICE DADOUN M.D 21.4.10 PROJ MOTI ROSTMY M.R 19.4.10 MFG QA MOTI MOTOVICH MOTI 22.4.10 MARK. DROR REISS D.R 22.4.10 MTI WIRELESS EDGE LTD. Specification for MT-221023/NV OMNI Directional Antenna DOC NO. RD42774900C 746-806 MHz, 6.5 dBi SCALE: NONE CLASSIFICATION: NONE REV-B SHEET 3 OF 4 SPECIFICATION OMNI Directional Antenna MTI PART NUMBER MT-221023/NV Regulatory Compliance RoHS , CE 0682 ELECTRICAL. 1 Frequency Range 746 – 806 MHz VSWR <1.8 : 1 Gain at Horizon* 6.5 dBi (typ) ; 5.8dBi (min. over freq. range and azimuth ripple) Azimuth Beam width 360° Azimuth Ripple ±0.5 dB (max) Beam Squint (Elevation) ±4º ; (750 – 790MHz: ±2.5º ) E-Plane Beam width 18 ° ±1.5º Elevation Side-Lobes -12dB typ., -9.dB max. Cross Polarization -15dB (max) Polarization Linear Vertical E - Plane Beam width 17° (typ) Input Impedance 50 (ohms) Power 10 W (max) Lightning ProtectionDC Grounded MECHANICAL. 2 Dimensions : Diameter Height 50 mm (max) 1115 mm (max) Weight 0.5 kg (max) Connector N- type Female Radome Plastic Outline Drawing RD42990500C *Gain reflects impact of beam squint, Ripple and Radome. MTI WIRELESS EDGE LTD. Specification for MT-221023/NV OMNI Directional Antenna DOC NO. RD42774900C 746-806 MHz, 6.5 dBi SCALE: NONE CLASSIFICATION: NONE REV-B SHEET 4 OF 4 3. ENVIRONMENTAL TEST STANDARD DURATION TEMPERTURE NOTES Low Temperature IEC 68-2-1 72 h -55°C - High Temperature IEC 68-2-2 72 h +71°C - Temp. Cycling IEC 68-2-14 1 h -45°C +70°C 3 Cycles Vibration IEC 60721-3-4 30 min/axis - Random 4M5 Shock Mechanical IEC 60721-3-4 - - 4M5 Humidity ETSI EN300-2-4 T4.1E 144 h - 95% Water Tightness IEC 529 - - IP67 Solar Radiation ASTM G 154 1000 h - - Flammability UL 94 - - Class HB Salt Spray IEC 68-2-11 Ka 500 h - - Ice And Snow - - - 25mm Radial Wind Speed Survival Operation - - - - - - 220 Km/h 160 Km/h

AW3054 698-806MHz, Dual Polarized 90° Sector Antennas Fixed Tilt This broadband Dual Polarized basestation antenna is designed for sectored applications offering superior Azimuth and Elevation pattern control across the entire frequency band. These antennas are aesthetically pleasing while maintaining a rugged design. Features: Excellent Radiation Patterns Stable Gain across the band Electrical Specifications: Frequency Range: 698 MHz - 806 MHz Gain: 12.5 dBi Return Loss (VSWR): > 14dB (1.5:1) Polarisation: Dual Slant (+/-45°) Isolation >30dB Front to Back Ratio: >25dB Horizontal 3dB BW: 90° Vertical 3dB BW: 17° Upper Sidelobe Suppression: >18dB Power Handling: 300W Impedance: 50 Ω Electrical Downtilt: 4° Ground: DC Grounded Mechanical Specifications: Connectors: 2 x N Female Connector Location: Bottom Dimensions (LxWxD): 1220 x 300 x 150 mm Weight: 13Kg Radome: UV Stabilised Styrosun Environmental Ratings: Rated Wind Velocity 200 km/h (125mph) Lightening Protection: DC Grounded Mounting Options: Adjustable Mounting Kit (CL-V-104)

AW3052 698-806MHz, Dual Polarized 60° Sector Antennas Fixed Tilt This broadband Dual Polarized basestation antenna is designed for sectored applications offering superior Azimuth and Elevation pattern control across the entire frequency band. These antennas are aesthetically pleasing while maintaining a rugged design. Features: Excellent Radiation Patterns Stable Gain across the band Electrical Specifications: Frequency Range: 698 MHz - 806 MHz Gain: 13.5 dBi Return Loss (VSWR): > 14dB (1.5:1) Polarisation: Dual Slant (+/-45°) Isolation >30dB Front to Back Ratio: >25dB Horizontal 3dB BW: 60° Vertical 3dB BW: 17° Upper Sidelobe Suppression: >18dB Power Handling: 300W Impedance: 50 Ω Electrical Downtilt: 4° Ground: DC Grounded Mechanical Specifications: Connectors: 2 x N Female Connector Location: Bottom Dimensions (LxWxD): 1220 x 300 x 150 mm Weight: 13Kg Radome: UV Stabilised Styrosun Environmental Ratings: Rated Wind Velocity 200 km/h (125mph) Lightening Protection: DC Grounded Mounting Options: Adjustable Mounting Kit (CL-V-104)

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 112 Report ID: AIRRAD_FCC.21117.doc Date of Issue: 9/6/2010 Electrical 839.01 TEST REPORT ACCORDING TO: FCC 47CFR part 27 FOR: Airspan Networks Inc. Base station Model:MacroMAXe 0707 700M Ext This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AIRRAD_FCC.21117.doc Date of Issue: 9/6/2010 Page 2 of 112 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details.................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Changes made in the EUT ............................................................................................................................................ 5 6.5 Test configuration.......................................................................................................................................................... 6 6.6 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 27............................................................................................................... 8 7.1 Peak output power test.................................................................................................................................................. 8 7.2 Occupied bandwidth test ............................................................................................................................................. 27 7.3 Emission mask (band edge emissions) test ................................................................................................................ 37 7.4 Radiated spurious emission measurements................................................................................................................ 73 7.5 Spurious emissions at RF antenna connector test ...................................................................................................... 81 7.6 Frequency stability test................................................................................................................................................ 99 8 APPENDIX A Test equipment and ancillaries used for tests..................................................................................... 101 9 APPENDIX B Measurement uncertainties................................................................................................................. 102 10 APPENDIX C Test laboratory description ................................................................................................................. 103 11 APPENDIX D Specification references ..................................................................................................................... 103 12 APPENDIX E Test equipment correction factors....................................................................................................... 104 13 APPENDIX F Abbreviations and acronyms............................................................................................................... 112 Report ID: AIRRAD_FCC.21117.doc Da…
