PIDMMAX2300WiMAX Base station

Airspan Networks Inc
WiMAX Base station - FCC ID PIDMMAX2300 - Airspan Networks Inc
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Oct 05, 2011
Application Purpose
Original Equipment
Date of Application
Sep 26, 2011
Equipment Note
WiMAX Base station
Frequency Range
2348.25000000 - 2348.25000000
Company
Airspan Networks Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

UGD-D00181 Rev G5 Air4G-W24 Installation Guide System Release 9.5 Air4G-W24 Installation Guide Page 2 Commercial in Confidence UGD-D00181 Rev G Copyright © Copyright by Airspan Networks Inc., 2011. All rights reserved worldwide. The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof. Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Inc. All specifications are subject to change without prior notice. Product performance figures quoted within this document are indicative and for information purposes only. Air4G-W24 Installation Guide Page 3 Commercial in Confidence UGD-D00181 Rev G Table of Contents Copyright .......................................................................................................................................... 2 Table of Contents ............................................................................................................................. 3 Summary of Figures ......................................................................................................................... 6 Summary of Tables .......................................................................................................................... 8 Warnings and Cautions .................................................................................................................... 9 Human Exposure to Radio Frequencies ...................................................................................... 9 Radio Interference ........................................................................................................................ 9 Avoiding Radio Interference ......................................................................................................... 9 Modifications ................................................................................................................................. 9 General ......................................................................................................................................... 9 Safety ............................................................................................................................................ 9 Warning Symbols........................................................................................................................ 10 Service Information ..................................................................................................................... 10 UL Information ............................................................................................................................ 10 Lightning Protection .................................................................................................................... 11 DECLARATION OF CONFORMITY ............................................................................................... 12 FCC Notice ..................................................................................................................................... 13 Federal Communication Commission Notice ............................................................................. 13 GPS Compliance ........................................................................................................................ 13 Maximum Output TX Power ........................................................................................................... 14 Power Consumption ................................................................................................................... 14 Antenna Types............................................................................................................................ 15 Air4G-W24 Antenna Usage .................................................................................................... 15 1 About this Guide ..................................................................................................................... 18 1.1 Purpose .......................................................................................................................... 18 1.2 Intended Audience .......................................................................................................... 18 1.3 Conventions ..............................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

RF_160, Issue 02 Declaration of Authorization We Name: Airspan Networks Inc. Address: 777 Yamato Rd, Suite 310 City: Boca Raton, Florida 33431 Country: USA  . Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description:  WiMAX base station  . Type designation:  uMAXe 2310L 2.35G  . Trademark:  Airspan  . on our behalf. Date: March 20, 2011 Name: Zion Levy Function: Compliances & Integration Engineer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Cover Letter(s)

Company name: Airspan Networks Inc. Address: 777 Yamato Road Suite 310 Boca Raton FL 33431 USA FCC ID:PIDMMAX2300 “uMAXe 2310L” statement DC voltages/currents supplied to elements of the final radio frequency amplifying device for normal operation over the power range: 28 V/ 1.5 A. Name of authorized person: Zion Levy Position: Compliances & Integration Engineer Date:March 1, 2011 Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671, www.airspan.com

Cover Letter(s)

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Airspan Networks Inc. Address : 777 Yamato Rd, Suite 310 City: Boca Raton, Florida Country: United States To: Telefication B.V ., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PIDMMAX2300 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: This is a trade secret of the company Planned Release Date STC: 180 days from the grant date (notes 2, 3, 4, 5) Date: March 17, 2011 Name and signature of applicant: Zion Levi Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

External Photos

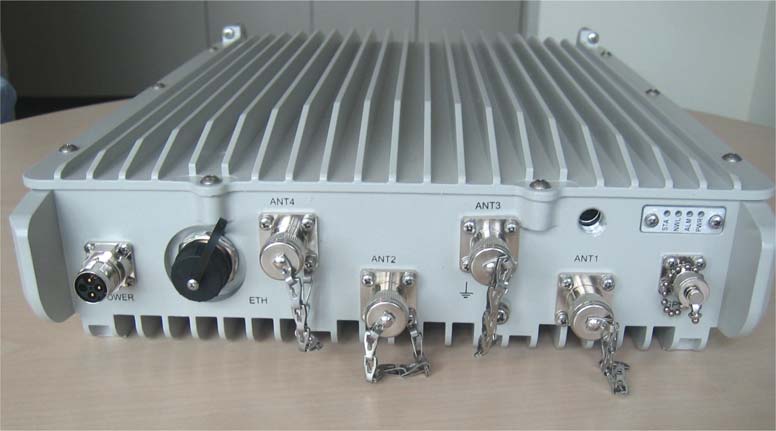

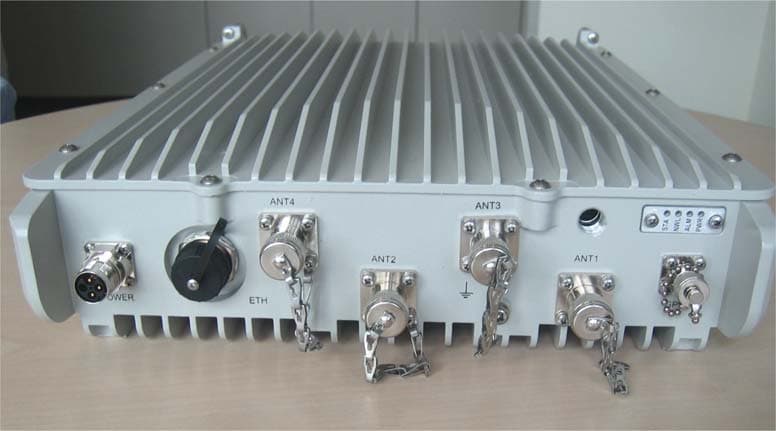

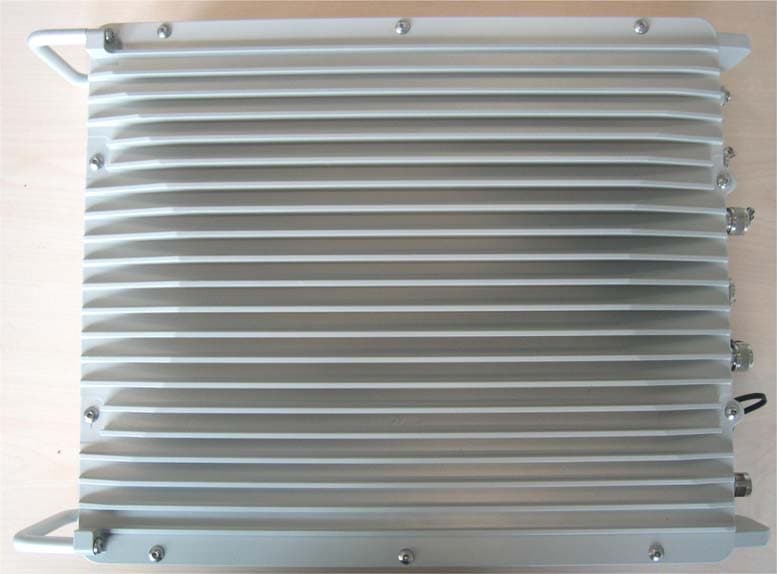

Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 2 of 5 Photograph No.1 “uMAXe 2310L” front view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 3 of 5 Photograph No.2 “uMAXe 2310L” rear panel view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 4 of 5 Photograph No.3 “uMAXe 2310L” top view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 5 of 5 Photograph No.4 “uMAXe 2310L” side panel view

ID Label/Location Info

Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 1 of 2 LABEL The label is affixed on the side of the base radio unit as shown below. The label material is PVC with a permanent adhesive. “uMAXe 2310L 2.35G” side panel, label with FCC ID:PIDMMAX2300 location

Internal Photos

Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 1 of 10 INTERNAL PHOTOGRAPHS This document contains 9 photographs Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 2 of 10 Photograph No.1 “uMAXe 2310L” internal view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 3 of 10 Photograph No.2 “uMAXe 2310L” RF card front view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 4 of 10 Photograph No.3 “uMAXe 2310L” RF card without shielding Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 5 of 10 Photograph No.4 “uMAXe 2310L” RF card second side view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 6 of 10 Photograph No.5 Digital PCB front view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 7 of 10 Photograph No.6 Digital PCB rear side view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 8 of 10 Photograph No.7 “uMAXe 2310L” RF power amplifiers Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 9 of 10 Photograph No.8 RF power amplifier internal view Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 10 of 10 Photograph No.9 Power amplifier PCB second side view

RF Exposure Info

Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The transceiver is classified as fixed, the calculation was done to confirm a safe distance. Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 for 1500 -100000 MHz frequency range. The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the transmitted power, which is equal to the peak transmitter output power plus maximum antenna gain. The maximum equivalent isotropically radiated power EIRP is P T = 36.12 dBm +18 dBi = 54.12 dBm = 258226 mW, where 36.12 dBm is the EUT maximum output power, 18 dBi – antenna gain. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {258226 / 12.56} = 143.4 cm. A warning about a safe distance is contained in the user manual.

Test Report

Alpha Wireless Ltd, Email: [email protected] Web: www.alphawireless.ie These specifications are subject to change without notice AW3007 +/-45° Polarized 65° Sector Antennas 2300-2700MHz Quad Port Fixed Tilt The AW3007 is a broadband dual polarised Quad Port Basestation Antenna which is designed for MIMO applications. Emphasis has been placed on rugged mechanical construction, styling, small dimensions plus superior electrical performance. This antenna is designed to meet the most stringent environmental conditions. Features: Excellent Radiation Patterns Low Upper Sidelobes plus Null Fill Wide Bandwidth with stable gain across the band Low PIM Design UV Stabilised Radome with Stainless steel Brackets Applications: WiMAX Sector antennas, 4x2 and 4x4 MIMO Electrical Specifications: Frequency Range: 2300 MHz - 2700 MHz //2300 MHz - 2700 MHz Gain: 18.0 dBi Return Loss: > 15dB Polarisation: +/-45° Slant Isolation >30dB Front to Back Ratio: >30dB Horizontal 3dB BW: 65° Vertical 3dB BW: 7° Upper Sidelobe Suppression: >18dB Electrical Downtilt: 4° (2° & 8° options also available) Power Handling: 150W Mechanical Specifications: Connectors: 4 x N Type Female Connector Location: Bottom Dimensions (LxWxD): 1100 x 260 x 55 mm Weight: 10Kg Radome: UV Stabilised Styrosun Environmental Ratings: Rated Wind Velocity 200 km/h (125mph) Lightening Protection: DC Grounded Temperature -40ºC to +70ºC Alpha Wireless Ltd, Email: [email protected] Web: www.alphawireless.ie These specifications are subject to change without notice AW3007 (Cont) Mounting Options: Standard (Included) Pipe Mount with 2 Stainless Steel Bands Adjustable (Optional) Mounting Kit (CL-V-103, CL-V-104 ) Typical Radiation Patterns: Azimuth Pattern Elevation Pattern Antenna Outline:

Test Setup Photos

Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 1 of 8 SETUP PHOTOGRAPHS This document contains 7 photographs Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 2 of 8 Photograph No.1 Peak output power, emission mask and conducted spurious emissions measurement setup Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 3 of 8 Photograph No.2 Occupied bandwidth measurement setup Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 4 of 8 Photograph No.3 Spurious emissions measurement setup in the anechoic chamber below 30 MHz Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 5 of 8 Photograph No.4 Spurious emissions measurement setup in the anechoic chamber in 30 -1000 MHz Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 6 of 8 Photograph No.5 Radiated emissions measurement setup in the anechoic chamber in 1-18 GHz range Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 7 of 8 Photograph No.6 Setup for substitution ERP measurements of spurious Airspan Networks Inc. FCC ID:PIDMMAX2300 Page 8 of 8 Photograph No.7 Frequency stability measurement setup

Contact Information

Applicant

Grant Pottash(Technical Services Director)
[email protected]+1-561-443-1009Fax: +1 561 893 8671

Technical Contact

Hermon Laboratories LtdMichael Nikishin
[email protected]

Haraone, PO Box 23kevet Industrial z · Binyamina · Israel

Test Firm

Hermon Laboratories Ltd.Alexander Usoskin
[email protected]972-4628-8001Fax: 972-4628-8277

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
2272.35 GHz - 2.35 GHz4.06 W3M50D7D261 Hz
Confidentiality
Long Term
Grant Notes
Only Professional Installation is allowed. Power output listed is conducted. The antennas used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 143 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
