PIDMMAX3605Base station radio

FCC RF Profile Designation Software Release 9.0 FCC RF Profile Designation Page 2 Commercial in Confidence Copyright © Copyright by Airspan Networks Inc., 2010. All rights reserved worldwide. The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof. Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Inc. All specifications are subject to change without prior notice. Product performance figures quoted within this document are indicative and for information purposes only. FCC RF Profile Designation Page 3 Commercial in Confidence Table of Contents Copyright ................................................................................................................................................. 2 Table of Contents .................................................................................................................................... 3 Summary of Figures ................................................................................................................................ 4 1 About this Guide .............................................................................................................................. 5 1.1 Conventions ............................................................................................................................ 5 2 Overview ......................................................................................................................................... 6 3 Verify FCC RF Configuration Setting .............................................................................................. 7 4 Contact Information ......................................................................................................................... 8 FCC RF Profile Designation Page 4 Commercial in Confidence Summary of Figures Figure 1 - FCC designated profile ........................................................................................................... 7 Figure 2 – FCC RF Profile ....................................................................................................................... 7 FCC RF Profile Designation Page 5 Commercial in Confidence 1 About this Guide This document discusses the specific USA-specific Netspan which will only enable the operation in the approved lower 25MHz. 1.1 Conventions This document uses the following informational conventions. Icon Description Checkpoint: Marks a point in the workflow where there may be an exit or branch to some other procedure. At each Checkpoint the reason for an exit or branch is given along with specific directions to locate the entry point in the other procedure. Reference: Gives a resource in the workflow that may be needed to complete a procedure along with specific directions to use the resource. Caution: Describes a possible risk and how to lessen or avoid the risk. Advice: Provides a recommendation based on best practice. Note: Provides useful information. FCC RF Profile Designation Page 6 Commercial in Confidence 2 Overview Netspan is a Element Software Management (EMS) comprehensive management solution that manages the network elements in the WiMAX family, which consists of WiMAX-compliant Base Stations (BS) and Subscriber Stations (SS). Netspan is a client-server application, with always-on server components implemented as windows services, and with a front end web application. Netspan uses SNMP to communicate with BS equipment, as well as third party WiMAX-compliant SS devices. It can be adjusted to meet customer requirements through its flexible configuration options. The key features associated with Netspan are as follows: ƒ Fault management with comprehensive event, active alarm and historical alarms system ƒ Configuration management with provisioning, configuration, status tracking and reporting, software upgrade and inventory management for BS TRxs, Subscriber Stations and other associated network elements ƒ Performance management with collection of wide range of historical statistical data ƒ Security management with EMS authentication and authorisation as well as with secure SNMP communication to equipment. ƒ FCC configuration limitation as per FCC CFR 47 Part 90 subpart Z. Netspan EMS adds mobile product features that include the following: ƒ Support for bot…

Text truncated - open the document above for the full version.

UGD-D00181 Rev E MacroMAXe 3x05 Installation Guide Software Release 9.0 MacroMAXe Installation Guide Page 2 Commercial in Confidence UGD-D00181 Rev E Copyright © Copyright by Airspan Networks Inc., 2010. All rights reserved worldwide. The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof. Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Inc. All specifications are subject to change without prior notice. Product performance figures quoted within this document are indicative and for information purposes only. MacroMAXe Installation Guide Page 3 Commercial in Confidence UGD-D00181 Rev E Table of Contents Copyright ................................................................................................................................................. 2 Table of Contents .................................................................................................................................... 3 Summary of Figures ................................................................................................................................ 6 Summary of Tables ................................................................................................................................. 8 Warnings and Cautions ........................................................................................................................... 9 Human Exposure to Radio Frequencies ............................................................................................. 9 Radio Interference ............................................................................................................................... 9 Avoiding Radio Interference ................................................................................................................ 9 Modifications ....................................................................................................................................... 9 General ................................................................................................................................................ 9 Safety .................................................................................................................................................. 9 Warning Symbols .............................................................................................................................. 10 Service Information ........................................................................................................................... 10 UL Information ................................................................................................................................... 11 Lightning Protection .......................................................................................................................... 11 DECLARATION OF CONFORMITY ..................................................................................................... 13 FCC Notice ............................................................................................................................................ 15 Federal Communication Commission Notice .................................................................................... 15 GPS Compliance ............................................................................................................................... 15 Maximum Output TX Power .................................................................................................................. 16 Antenna Types .................................................................................................................................. 16 1 About this Guide ............................................................................................................................ 17 1.1 Purpose ................................................................................................................................. 17 1.2 Intended Audience ................................................................................................................ 17 1.3 Conventions .......................................................................................................................... 17 1.4 Referenced Do…

Text truncated - open the document above for the full version.

Airspan Networks Inc. 777 Yamato Road Suite 310 Boca Raton FL 33431 USA Tel: +1 561 893-8670 Fax: +1 561 893-8671 Applicant: Airspan Networks Inc FCC ID: PIDMMAX3605 Dear Mr Dayhoff, Change of Frequency band from 3650-3700 MHz to 3650-3675 MHz Airspan would like to modify their application for the above certification such that the MacroMAXe may only operate in the lower half of the 3650-3700 MHz band. The new frequency bands will be: Lowest Frequency (MHz) Highest Frequency (MHz) Power (dBm) Emission Designator 3652.5 3672.5 34.05 5M0D7D 3653.5 3671.5 35.53 7M0D7D 3655 3670 36.88 10M0D7D Yours Sincerely, Zion Levi Compliances & Testing Engineer Airspan Networks Inc 31.01.2010

Company name: Airspan Networks Inc. Address: 777 Yamato Road Suite 310 Boca Raton FL 33431 USA FCC ID:PIDMMAX3605 “MacroMAXe 3605 3.7G Ext” statement DC voltage/current supplied to elements of the final radio frequency amplifying device for normal operation over the power range: 28 V/1.5 A. Name of authorized person: Zion Levy Position: Compliances & Testing Engineer Date:January 31, 2010 Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671, www.airspan.com

Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671 , www.airspan.com February 14, 2010 Federal Communication Commission Office of Engineering and Technology USA Subject: Application for certification of the base station transceiver, FCC ID:PIDMMAX3605, model name MacroMAXe 3605 3.7G Ext Dear Gentlemen, Please find attached our application for certification of the base station transceiver, FCC ID:PIDMMAX3605, model name MacroMAXe 3605 3.7G Ext, prepared in accordance with FCC Rules, parts 2 and 90, operating frequencies 3652.5-3672.5 MHz. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC (Registration Numbers 90623, 90624). Hermon Labs responsible person is Mr. Michael Nikishin, EMC and Radio group manager, tel: 011 972 4626 8440, fax:011 972 4628 8277, e-mail:[email protected]. We hope this application satisfies your requirements. Sincerely yours Zion Levi compliance & testing engineer Airspan Networks Inc.

Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671 , www.airspan.com February 14, 2010 Federal Communication Commission Office of Engineering and Technology USA Subject: Request for confidentiality, FCC ID:PIDMMAX3605 Dear Gentlemen, In regards the exhibits submitted in support of the application for FCC ID:PIDMMAX3605, please classify the following as permanent confidential under the provision of 47 CFR 0.459: 1) Schematic diagram, file “Schematics_FEM_20452”; 2) Schematic diagram, file “Schematics_QRDT_20452”; 3) Parts list, file “Parts_list_FEM_20452”; 4) Parts list, file “Parts_list_QRDT_20452”. These exhibits contain technical information which Airspan Networks Inc. deems to be sensitive and proprietary. Therefore this information cannot be published. If this information were to be made public it could be used to the disadvantage of the applicant in the marketplace. Many thanks in advance. Sincerely yours Zion Levi compliance & testing engineer Airspan Networks Inc.

Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671 , www.airspan.com March 11, 2010 Federal Communication Commission Office of Engineering and Technology USA RE: Correspondence Reference Number: 38664 Form 731 Confirmation Number: EA970554 Subject: Application for certification of the base station transceiver, FCC ID:PIDMMAX3605, model name MacroMAXe 3605 3.7G Ext Dear Gentlemen, Three files were uploaded: explanation file “FCC RF Profile”, revised Operational_description_20452_rev1, User_manual_20452_rev1. The applicant tested the all 50 MHz since he would like to certify the upper 25 MHz (3675-3700) in the near future. Sincerely yours Zion Levi compliance & testing engineer Airspan Networks Inc.

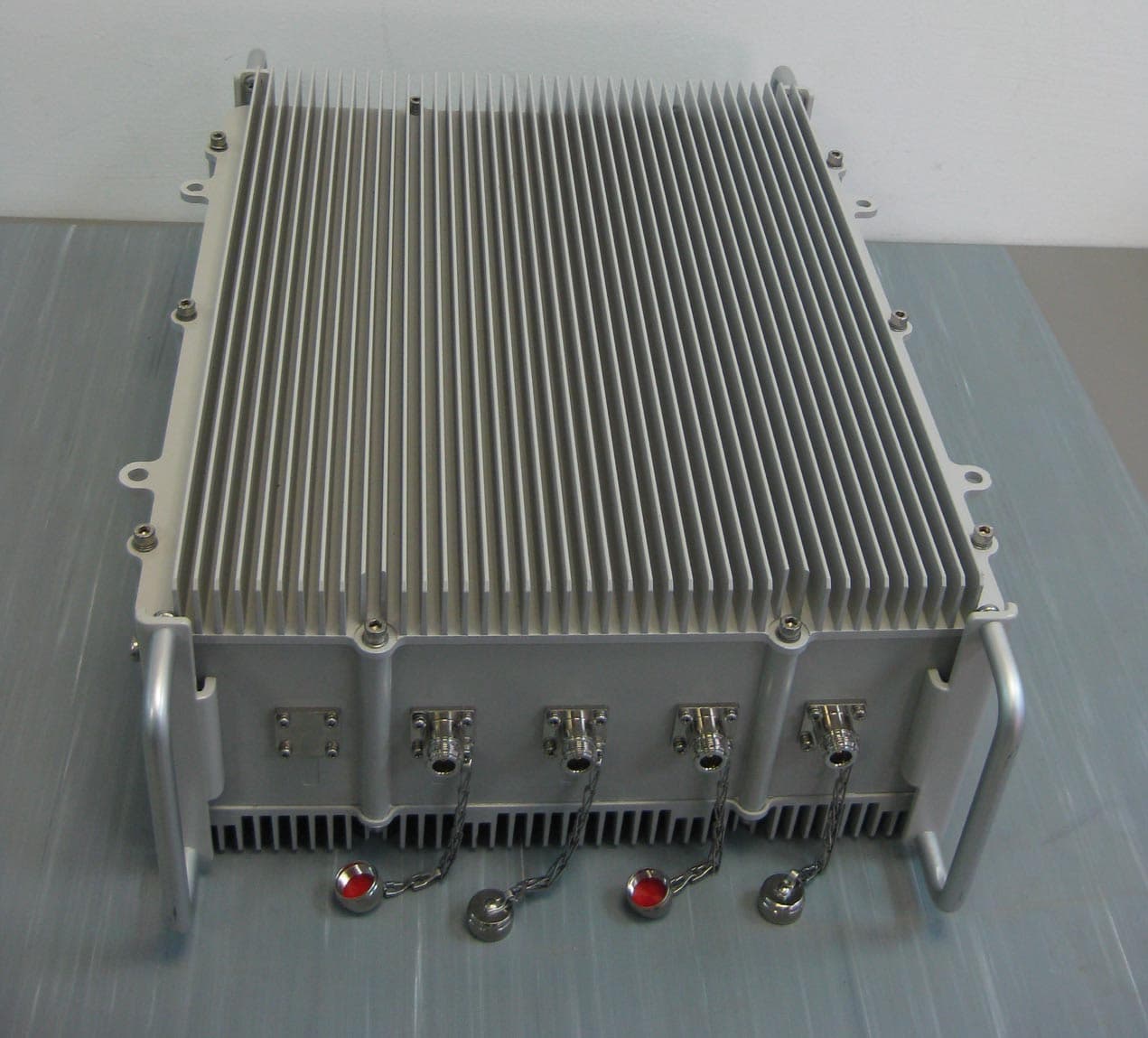

Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 2 of 5 Photograph No.1 “MicroMAXe 3605 3.7 G Ext” general view Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 3 of 5 Photograph No.2 “MicroMAXe 3605 3.7 G Ext” rear panel view Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 4 of 5 Photograph No.3 “MicroMAXe 3605 3.7 G Ext” antenna connectors view Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 5 of 5 Photograph No.4 “MicroMAXe 3605 3.7 G Ext” side panel view

Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 1 of 2 LABEL The label is affixed on the side of the base radio unit as shown below. The label material is PVC with a permanent adhesive. “MicroMAXe 3605 3.7 G Ext” side panel, label with FCC ID:PIDMMAX3605 location FCC ID:PIDMMAX3605

Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 1 of 10 INTERNAL PHOTOGRAPHS This document contains 9 photographs Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 2 of 10 Photograph No.1 “MicroMAXe 3605 3.7 G Ext” internal view Power supply RF power amplifier RF filters Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 3 of 10 Photograph No.2 “MicroMAXe 3605 3.7 G Ext” RF card front view Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 4 of 10 Photograph No.3 “MicroMAXe 3605 3.7 G Ext” RF card without shielding Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 5 of 10 Photograph No.4 “MicroMAXe 3605 3.7 G Ext” RF card second side view Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 6 of 10 Photograph No.5 Digital PCB front view Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 7 of 10 Photograph No.6 “MicroMAXe 3605 3.7 G Ext” RF power amplifiers Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 8 of 10 Photograph No.7 RF power amplifier internal view Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 9 of 10 Photograph No.8 Power amplifier PCB second side internal view Airspan Networks Inc. FCC ID:PIDMMAX3605 Page 10 of 10 Photograph No.9 “MicroMAXe 3605 3.7 G Ext” RF filters

3.3-3.8 GHz Omni Directional Base Station Antenna MA-WO36-10N MARS 3.5 GHz Base Station Antenna provides a cost effective solution for large scale WLL, WLAN, ISM, WiMAX, Point-to-Multi Point Systems and MESH Networks licensed applications. UV protected radome allowing for harsh environment installations. Antenna features stable performance with 9.5 dBi of gain. Specifications: Electrical Frequency range 3.3 - 3.8 GHz Gain,typ. 9.5 dBi @3.4-3.8, 9 [email protected] VSWR, max. 2:1 3 dB Beam-Width, H-Plane, typ. 360 ° 3 dB Beam-Width, E-Plane, typ. 10 ° PolarizationLinear Vertical Input power, max50 Watt Input Impedance50 Ohm Mechanical Dimensions (HxDiameter)470 x 66 mm (18.5― x 2. 5―) Weight350 gr. ConnectorN-Type, Female RadomeUV Protected , Plastic Mount2.5― PM (End) Attachment Environmemtal Operating Temperature Range- 40°C to + 65°C VibrationAccording to IEC 60721-3-4 Wind Load200 km/h (survival) FlammabilityUL94 Water ProofingIP-65 HumidityETS 300 019-1-4, EN 302 085 (annex A.1.1) Ice and Snow25mm radial (survival) Salt FogAccording to IEC 68-2-11 Service Life>10 years Specifications subject to change without notice

Antenna Data Sheet MT-402005/N Page 1 of 2 MT-402005/N 3.3-3.8GHz 9dBi Omni Directional Antenna Specifications MTI PART NUMBER MT – 402005/N ELECTRICAL FREQUENCY RANGE 3.3-3.8GHz PEAK GAIN 7 dBi (min) 3.3-3.4 GHz 9dBi (min) 3.4-3.8 GHz VSWR 2.5:1 (typ) @ 3.3-3.4GHz 1.7:1 (max) @ 3.4-3.8GHz AZIMUTH BEAMWIDTH Omni POLARIZATION Linear Vertical AZIMUTH RIPPLE 8.5º (typ) @ 3.3-3.7GHz 8º (typ) @ 3.7-3.8 GHz ELEVATION BEAMWIDTH 3 dB (max) @ 3.3-3.7GHz 4 dB (max) @ 3.7-3.8 GHz E - PLANE -8 dB (typ) INPUT IMPEDANCE 50 (ohm) INPUT POWER 4W (max) LIGHTNING PROTECTION DC Grounded MECHANICAL DIMENSIONS – DIAMETER X HEIGHT 75mm X 580mm (max) WEIGHT 1.5 kg (max) CONNECTOR N-Type Female RADOME Plastic, UV Resistance BASE PLATE Aluminum with chemical conversion coating OUTLINE DRAWING See page 2 MOUNTING KIT Mounted to Pole Ø 1.5" - Ø 3" by the means of 2 clamps ENVIRONMENTAL TEST STANDARD DURATION TEMPERTURE NOTES LOW TEMPERATURE IEC 68-2-1 72 h -55°C - HIGH TEMPERATURE IEC 68-2-2 72 h +71°C - TEMP. CYCLING IEC 68-2-14 1 h -45°C +70°C 3 Cycles VIBRATION IEC 60721-3-4 30 min/axis - Random 4M3 SHOCK MECHANICAL IEC 60721-3-4 - - 4M3 HUMIDITY ETSI EN300-2-4 T4.1E 144 h - 95% WATER TIGHTNESS IEC 529 - - IP67 SOLAR RADIATION ASTAM G53 1000 h - - FLAMMABILITY UL 94 - - Class HB SALT SPRAY IEC 68-2-11 Ka 500 h - - ICE AND SNOW - - - 25mm Radial WIND SPEED SURVIVAL OPERATION - - - - - 220 Km/h 160 Km/h WIND LOAD SUR. FRONT TH. SIDE THRUST - - - - - - 6.5kg 6.5 kg Antenna Data Sheet MT-402005/N Page 2 of 2 MTI Wireless Edge is certified according to ISO 9001 and ISO 14001. WAIVER! While the information contained in this document has been carefully compiled to the best of our present knowledge, it is not intended as presentation or warranty of any kind on our part regarding the fitness of the products concerned for any particular use or purpose and neither shall any statement contained herein be construed as a recommendation to infringe any industrial property rights or as a license to use any such rights. The fitness of each product for any particular purpose must be checked beforehand with our specialists. MTI Wireless Edge Ltd. 11 Hamelacha St. Afek Industrial Park Rosh Ha'ayin 48091, Israel Tel: +972-3-9008900 Fax: +972-3-9008901 www.mtiwe.com Document No: Issued: MT-402005/N 1/1/2007 Uncontrolled Copy 3.3-3.8GHz 9dBi Omni Directional Antenna Azimuth Radiation Pattern Midband Freq. 3.5 GHz Elevation Radiation Pattern Midband Freq. 3.5 GHz Dimensions [mm] Existing Antenna Versions

Antenna Data Sheet MT-403017/N Page 1 of 2 MT-403017/N 3.3-3.8GHz 10.5dBi Omni Directional Antenna Specifications MTI PART NUMBER MT – 403017/N ELECTRICAL REGULATORT COMPLIANCE RoHS, CE 0682 FREQUENCY RANGE 3.3-3.8GHz PEAK GAIN 10.5 ± 0.5 dBi VSWR 2.5:1 (typ) @ 3.3-3.4GHz 1.7:1 (max) @ 3.4-3.8GHz AZIMUTH BEAMWIDTH Omni POLARIZATION Linear Vertical AZIMUTH RIPPLE ± 1.9 dB ELEVATION BEAMWIDTH 4 º (typ) E – PLANE SIDELOBE LEVEL -9 dB (typ) INPUT IMPEDANCE 50 (ohm) INPUT POWER 4W (max) LIGHTNING PROTECTION DC Grounded MECHANICAL DIMENSIONS – DIAMETER X HEIGHT 75mm X 1150mm (max) WEIGHT 2.5 kg (max) CONNECTOR N-Type Female RADOME Plastic, UV Resistance BASE PLATE Aluminum with chemical conversion coating OUTLINE DRAWING See page 2 MOUNTING KIT Mounted to Pole Ø 1.5" - Ø 3" by the means of 2 clamps ENVIRONMENTAL TEST STANDARD DURATION TEMPERTURE NOTES LOW TEMPERATURE IEC 68-2-1 72 h -55°C - HIGH TEMPERATURE IEC 68-2-2 72 h +71°C - TEMP. CYCLING IEC 68-2-14 1 h -45°C +70°C 3 Cycles VIBRATION IEC 60721-3-4 30 min/axis - Random 4M3 SHOCK MECHANICAL IEC 60721-3-4 - - 4M3 HUMIDITY ETSI EN300-2-4 T4.1E 144 h - 95% WATER TIGHTNESS IEC 529 - - IP67 SOLAR RADIATION ASTAM G53 1000 h - - FLAMMABILITY UL 94 - - Class HB SALT SPRAY IEC 68-2-11 Ka 500 h - - ICE AND SNOW - - - 25mm Radial WIND SPEED SURVIVAL OPERATION - - - - - 220 Km/h 160 Km/h WIND LOAD SUR. FRONT TH. SIDE THRUST - - - - - - 6.5kg 6.5 kg Antenna Data Sheet MT-403017/N Page 2 of 2 MTI Wireless Edge is certified according to ISO 9001 and ISO 14001. WAIVER! While the information contained in this document has been carefully compiled to the best of our present knowledge, it is not intended as presentation or warranty of any kind on our part regarding the fitness of the products concerned for any particular use or purpose and neither shall any statement contained herein be construed as a recommendation to infringe any industrial property rights or as a license to use any such rights. The fitness of each product for any particular purpose must be checked beforehand with our specialists. MTI Wireless Edge Ltd. 11 Hamelacha St. Afek Industrial Park Rosh Ha'ayin 48091, Israel Tel: +972-3-9008900 Fax: +972-3-9008901 www.mtiwe.com Document No: Issued: MT-403017/N 1/1/2007 Uncontrolled Copy 3.3-3.8GHz 10.5dBi Omni Directional Antenna Azimuth Radiation Pattern Midband Freq. 3.5 GHz Elevation Radiation Pattern Midband Freq. 3.5 GHz Dimensions [mm] Existing Antenna Versions

MTI WIRELESS EDGE LTD. MT – 404081/ND REV- SCALE: NONE DOC NO. RD42811700C SHEET 1 OF 4 Specification for MT -404081/ND Double Dual Slant Base Station Antenna 3.3 – 3.8 GHz, 17dBi, 65º THIS DOCUMENT AND THE INFORMATION CONTAINED IN IT ARE PROPRIETARY AND CONFIDENTIAL TO MTI. NO PERSON IS ALLOWED TO COPY REPRINT REPRODUCE OR PUBLISH ANY PART OF THIS DOCUMENT NOR DISCLOSE ITS CONTENTS TO OTHERS NOR MAKE ANY USE OF IT NOR ALLOW OR ASSIST OTHERS TO MAKE ANY USE OF IT, UNLESS BY THE PRIOR WRITTEN EXPRESS AUTHORIZATION OF MTI AND THEN ONLY TO THE EXTENT AUTHORIZED. (C) COPYRIGHT –MTI WIRELESS EDGE LTD. MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 404081/ND Double Dual Slant Base Station Antenna DOC NO. RD42811700C 3.3 – 3.8 GHz, 17dBi, 65º SCALE: NONE CLASSIFICATION: NONE REV- SHEET 2 OF 4 REVISION RECORD REV ECO DESCRIPTION APVD DATE SHEET 43 44 45 46 47 48 49 50 51 52 53 54 55 56 REV SHEET 29 30 31 32 33 34 35 36 37 38 39 40 41 42 REV SHEET 15 16 17 18 19 20 21 22 23 24 25 26 27 28 REV SHEET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 REV PRODUCT STATUS: PROPOSAL IN DEVELOPMENT PREPRODUCTION PRODUCTION CONTRACT NO ACTION NAME SIGN DATE PREP YAEL HARASH YAEL 29.6.09 CHKD DANIEL ZERAH CHKD CHKD DSGN SERGEY ZEMLYAKOV S.Z 29.6.09 PROJ NISSIM FINTS N.F 29.6.09 MFG QA MOTI MOTOVICH MARK. DAVID SHANI MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 404081/ND Double Dual Slant Base Station Antenna DOC NO. RD42811700C 3.3 – 3.8 GHz, 17dBi, 65º SCALE: NONE CLASSIFICATION: NONE REV- SHEET 3 OF 4 SPECIFICATION Base Station Antenna MTI PART NUMBER MT – 404081/ND Regulatory Compliance ETSI EN 302 326 V.1.1.2 (2006-03) RoHS , CE 0682 1. ELECTRICAL Frequency Range 3.3 – 3.8 GHz Gain 17±0.5 dBi (min) VSWR 1.5 :1 (typ) , 1.8 : 1 (max) Azimuth Beamwidth @ 13.5dBi 65º (typ) Elevation Beamwidth @ -3dB 7.5º (typ) Polarization Double Dual Linear, ±45º Cross Polarization ETSI EN 302 326 V.1.1.2 (2006-03) Side Lobes Level Azimuth & Elevation Meets ETSI EN 302 326 V.1.1.2 (2006-03) Side Lobes Level for Azimuth in the range (±100 to ±180 from Boresight) -25dB (max) @ 3.3-3.5GHz -30dB (max) @ 3.5-3.8GHz Front to Back Ratio ETSI EN 302 326 V.1.1.2 (2006-03) -30dB (max) Port To Port Isolation 25 dB (min) Input Impedance 50 Ω Input Power 20W (CW) , 250W (peak) Lightning Protection DC Grounded 2 . MECHANICAL Dimensions ( L x W x D ) 600 x 270 x 63 mm (max) Weight 2.5 kg (max) Connectors 4 x N – Type female RadomePlastic UV Resistant Base PlateAluminum with chemical conversion coating Outline DrawingRD42812000C Mechanical down Tilt0º to (-10º) *TMOUNTING KI. 3 SEE RD41191800C, MT-120025 * To connected two Antennas MT-404067/ND use adapting plate MT-959567 MTI WIRELESS EDGE LTD. SPECIFICATION FOR MT – 404081/ND Double Dual Slant Base Station Antenna DOC NO. RD42811700C 3.3 – 3.8 GHz, 17dBi, 65º SCALE: NONE CLASSIFICATION: NONE REV- SHEET 4 OF 4 ENVIRONMENTAL. 4 TESTSTANDARDDURATIONTEMPERTURENOTES Low TemperatureIEC 68-2-1 72 h -55°C - High TemperatureIEC 68-2-2 72 h +71°C - Temp. CyclingIEC 68-2-14 1 h -45°C +70°C 3 Cycles VibrationIEC 60721-3-430 min/axis - Rando m 4M5 Shock MechanicalIEC 60721-3-4- - 4M5 HumidityETSI EN300- 2-4 T4.1E 144 h - 95% Water TightnessIEC 529 - - IP54 Solar RadiationASTM G53 1000 h - - Salt SprayIEC 68-2-11 Ka 500 h - - Ice And Snow- - - 25mm Radial Wind Speed: Survival Operation - - - - 220 km/h 160 km/ Wind Load (Survival): Front Thrust Side Thrust - - - - - - 51.4 kg 10.8 kg

Alpha Wireless Ltd, Email: [email protected] Web: www.alphawireless.ie These specifications are subject to change without notice AW3035 +/-45° Polarized 90° Sector Antennas 3300-3800MHz Quad Port Fixed Tilt The AW3035 is a broadband dual polarised Quad Port Basestation Antenna which is designed for MIMO applications. Emphasis has been placed on rugged mechanical construction, styling, small dimensions plus superior electrical performance. This antenna is designed to meet the most stringent environmental conditions. Features: Excellent Radiation Patterns Low Upper Sidelobes plus Null Fill Wide Bandwidth with stable gain across the band Low PIM Design UV Stabilised Radome with Stainless steel Brackets Applications: WiMAX Sector antennas, 4x2 and 4x4 MIMO Electrical Specifications: Frequency Range: 3300 MHz - 3800 MHz //3300 MHz - 3800 MHz Gain: 17.0 dBi Return Loss: > 15dB Polarisation: +/-45° Slant Isolation >30dB Front to Back Ratio: >30dB Horizontal 3dB BW: 90° Vertical 3dB BW: 7° Upper Sidelobe Suppression: >18dB Electrical Downtilt: 4° (2° & 8° options also available) Power Handling: 150W Mechanical Specifications: Connectors: 4 x N Type Female Connector Location: Bottom Dimensions (LxWxD): 720 x 260 x 55 mm Weight: 8Kg Radome: UV Stabilised Styrosun Environmental Ratings: Rated Wind Velocity 200 km/h (125mph) Lightening Protection: DC Grounded Temperature -40ºC to +70ºC Alpha Wireless Ltd, Email: [email protected] Web: www.alphawireless.ie These specifications are subject to change without notice Mounting Options: Mounting Adjustable pipe mount (included) Typical Radiation Patterns: Azimuth Pattern Elevation Pattern Antenna Outline:

Product Data SheetSSPX310M 3300-3800MHz Manual Tilt Panel Antenna Electrical Specifications Frequency Range3300 - 3800 / 3300 - 3800 MHz Gain18 dBi Return Loss> 15 dB PolarizationDual Slant ± 45° Horizontal Beamwidth65° Vertical Beamwidth6.5° with nullfill Electrical Downtilt0° - 10° independently adjustable Upper Sidelobe Level< -18 dB Front to Back Ratio> 30 dB Isolation Between Ports> 30 dB Power Rating150W Impedance50 ohm Lightning ProtectionDC grounded Connector TypeN-Type female Connector LocationBottom Mechanical Specifications Antenna Dimensions750x300x115 mm Packed Dimensions890x330x200 mm Weight10 kg Radome MaterialUV Stabilised ASA Maximum Environmental Ratings Humidity95% RH @ +30°C Lateral Loading (Front)0.32 kN @ 160 km/h Lateral Loading (Rear)0.34 kN @ 160 km/h Rain140mm per hour Rated Wind Velocity200 km/h Temperature-40°C to +70°C Mounting Options Fixed ClampsF-042-GL-E Adjustable ClampsT-095-GL-E A…
