PIDMMAX58Base Station Transceiver

IP-based Broadband Wireless Access (BWA) System 605-0000-742 Rev D MicroMAX-SOC Hardware Installation The Innovation Behind Broadband Wireless Connecting the World ii Table Of Contents Introduction ....................................................................................................................... 1 Purpose .......................................................................................................................... 1 Targeted Audience ........................................................................................................... 1 Referenced Documentation ................................................................................................ 1 Conventions ....................................................................................................................1 Warnings and Cautions ........................................................................................................ 2 Human Exposure to Radio Frequencies ................................................................................ 2 Radio Interference ........................................................................................................... 2 Avoiding Radio Interference............................................................................................... 2 Modifications ...................................................................................................................2 General .......................................................................................................................... 2 Manufacturer's Disclaimer Statement .................................................................................. 2 DECLARATION OF CONFORMITY............................................................................................ 4 European Community, Switzerland, Norway, Iceland, and Liechtenstein ................................... 4 Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC................................. 4 System Overview................................................................................................................6 MicroMAX-SOC Frequency Ranges ...................................................................................... 7 Main Features..................................................................................................................7 Customer Benefits............................................................................................................ 7 Architecture ....................................................................................................................8 Power............................................................................................................................. 8 Models ........................................................................................................................... 8 Installation Prerequisites......................................................................................................9 Package Contents............................................................................................................. 9 Required Tools.................................................................................................................9 Radio Site Planning .......................................................................................................... 9 Radio Antenna Alignment ............................................................................................. 10 Physical Description .......................................................................................................... 11 MicroMAX-SOC BSR ........................................................................................................ 11 Physical Dimensions..................................................................................................... 11 Ports ......................................................................................................................... 12 SDA-4S Type II ............................................................................................................. 13 Physical Dimensions..................................................................................................... 13 Ports ......................................................................................................................... 14 LEDs......................................................................................................................... 15 Mounting the Base Station Radio (BSR)................................................................................ 16 Mounting the MicroMAX-SOC............................................................................................ 16 Pole-Mounting the BSR ................................................................................................... 16 Table Of Contents iii Wall-Mounting the BSR (Optional) .................................................................................... 21 Installing the SDA-4S Type II .......................................................................................... 24 Wall Mounting............................................................................................................. 24 Cabling the BSR................................................................................................................26 Connecting the BSR to the SDA-4S ................................................................................... 26 SDA-4S Type II ............................................................................................................. 27 Using the SDA-4S Type II............................................................................................. 27 Connecting the sda-4s to the power supply........................................................................... 28 Conne…

Text truncated - open the document above for the full version.

Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Block Diagram WPS- 4959 22 MicroMAX5.8GHz RF board RF53 TQL5 C Temp LM50C SAW 810MHz HWS4 RF PLL 4.915-5.04GHz Maruwa Delta FD K uPC3221 P HMC4 MAX24 IR IR LMX1601 Discre Discre uPC27 uPC27 uPC27 HMC425L DIGI DP 4T DP 4T TQL50 6 A PA T TxDrv Digital Analog Modulated Common Single Single RxC RxDa RxAG TxTe TxPW RxIF RxE2 Dout E2PROM RxE2LE Shift Register x 16 L AD8312ACB8- +15db DFS/S Could be on 61 36M 36M TxDat TxCl TxSRL RxDat RxCl RxT PAP PAO C Te PATe PAID 3 PAD ata PAI 5.725-5.850GHz

Airspan Networks (Israel) Ltd. Unitronics Bldg., 1 Harava street, P.O.B. 199, Airport City, 70100, Israel tel. +972 3977 7444 FAX: +972 3977 7400 www.airspan.com August 29, 2006 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality, FCC ID:PIDMMAX58 Dear Gentlemen, In regards the exhibits submitted in support of the application for FCC ID:PIDMMAX58, please classify the following as confidential under the provision of 47 CFR 0.459: 1) Schematic diagram, file “Schematic_diagram_17233” (6pages) of this Application; 2) Schematic diagram, file “Schematic_RF_diagram_17233” (3 pages). These exhibits contain technical information which Airspan Networks (Israel) Ltd. deems to be sensitive and proprietary. Therefore this information cannot be published. If this information were to be made public it could be used to the disadvantage of the applicant in the marketplace. Many thanks in advance. Sincerely yours Zion Levi compliance & testing engineer Airspan Networks (Israel) Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 8, 2006 RE: Airspan Networks (Israel) Ltd. FCC ID: PIDMMAX58 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide a view of the back side of the amplifier board (Internal Photograph 5). 2) Please provide a view of the back side of the digital interface motherboard. 3) The label appears to use language from 15.19(a)(1). However given this is an unlicensed device, the labeling should be for 15.19(a)(3). Please review/correct. 4) The users manual does not appear to address user to antenna RF exposure conditions. Please update. 5) Test Report block diagram shows an external antenna connector, however this device does not appear to provide this. Please review. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

HERM O N LA BO RA TO RIES September 11, 2006 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. Timothy Johnson, Examining Engineer RE: your e-mail dated September 8, 2006; Airspan Networks Ltd. FCC ID: PIDMMAX58, ATCB003941 Dear Mr. Johnson, Please find below the answers to your questions. 1) The photograph 5A was added, the exhibit “Internal_photos_17233_rev1” was uploaded on September 11, 2006 . 2) The photograph 19 was added, the exhibit “Internal_photos_17233_rev1” was uploaded on September 11, 2006. 3) The label was corrected, the file “Label_location_17233_rev1” was uploaded on September 11, 2006. 4) The corrected “User_Manual_17233_rev1” was uploaded on September 11, 2006. 5) The block diagram in the test report was corrected, file “AIRRAD_FCC.17233_rev1” was uploaded on September 11, 2006 Thank you for your assistance and support. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories

Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 1 of 2 LABEL The label shown below is affixed on the bottom of the MicroMax-SOC 5.8 GHz radio unit as shown below. The label material is PVC with a permanent adhesive. Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 2 of 2 MicroMax-SOC 5.8 GHz bottom, label with FCC ID:PIDMMAX58 location FCC ID:PIDMMAX58

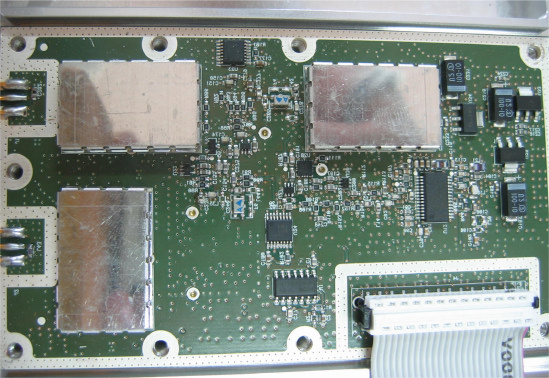

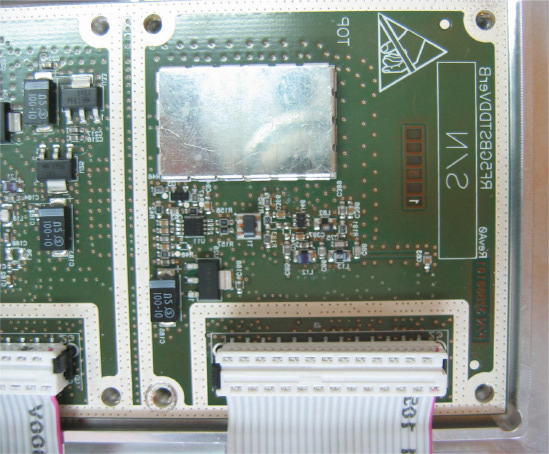

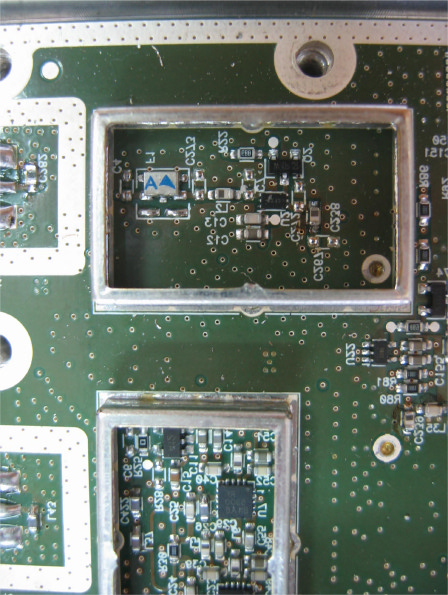

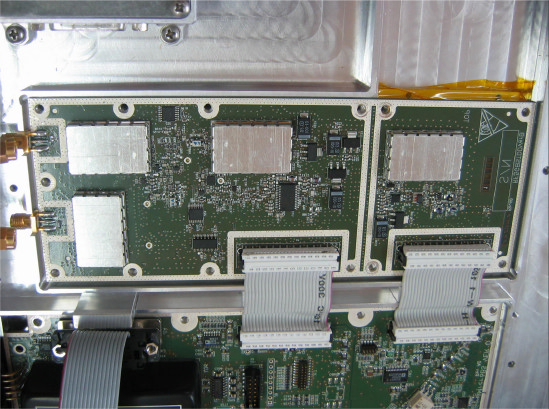

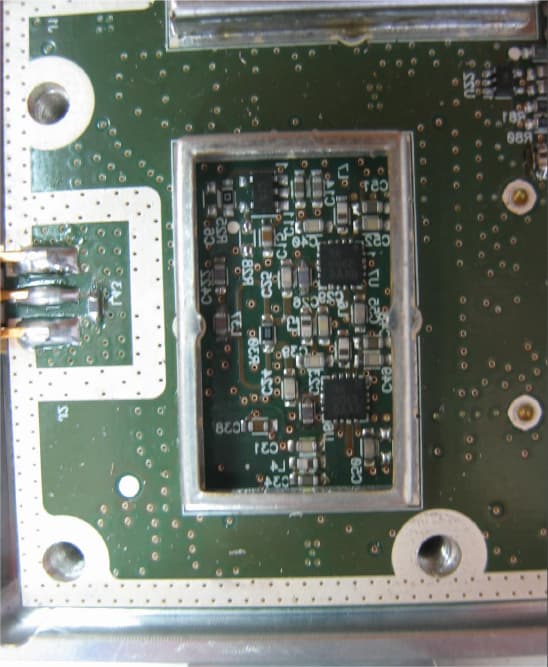

Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 1 of 21 INTERNAL PHOTOGRAPHS This document contains 20 photographs Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 2 of 21 Photograph No.1 MicroMax-SOC 5.8 GHz internal view Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 3 of 21 Photograph No.2 MicroMax-SOC 5.8 GHz internal view, antenna Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 4 of 21 Photograph No.3 MicroMax-SOC 5.8 GHz internal view without screens Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 5 of 21 Photograph No.4 MicroMax-SOC 5.8 GHz internal view without shield cover Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 6 of 21 Photograph No.5 PCB close view Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 7 of 21 Photograph No.5A PCB second side view Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 8 of 21 Photograph No.6 MicroMax-SOC 5.8 GHz RF module front view Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 9 of 21 Photograph No.7 RF module close view, right part Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 10 of 21 Photograph No.8 Close view without shield Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 11 of 21 Photograph No.9 PCB left part of front side Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 12 of 21 Photograph No.10 PCB close view without shield Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 13 of 21 Photograph No.11 PCB close view without shield Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 14 of 21 Photograph No.12 PCB close view without shield Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 15 of 21 Photograph No.13 MicroMax-SOC 5.8 GHz RF module second side view Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 16 of 21 Photograph No.14 PCB second side view, left part Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 17 of 21 Photograph No.15 PCB second side view, right part Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 18 of 21 Photograph No.16 PCB second side close view, without shields Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 19 of 21 Photograph No.17 PCB second side close view, without shields Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 20 of 21 Photograph No.18 PCB second side close view, without shields Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Internal_photos_17233_rev1.doc Page 21 of 21 Photograph No.19 Digital interface PCB second side view

Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 SPECIFICATION FLAT PANEL ANTENNA MARS-PART NUMBER MA-WC55-AS16 REGULATORY COMPLIANCE ETSI EN 302 085 V1.1.2 (2001-02) RANGE 1 ELECTRICAL. 1 FREQUENCY RANGE 4.9 – 5.875 GHz GAIN 14dBi VSWR 1. 4 : 1 (typ) 1.7:1(max) AZIMUTH BEAMWIDTH 60°(typ) POLARIZATION Linear Vertical ELEVATION BEAMWIDTH 12° (typ) SIDELOBES LEVEL EN 302 085 V1.1.2 TS2 CROSS POLARIZATION EN 302 085 V1.1.2 TS2 F/B RATIO EN 302 085 V1.1.2 TS2 INPUT IMPEDANCE 50 (ohm) INPUT POWER 5W (max) LIGHTNING PROTECTIONDC Grounded MECHANICAL. 2 DIMENSIONS (LxWxD) PCB 270X215X0.8mm (max) WEIGHT 0.1 kg (max) CONNECTOR MCX- Male RADOME Supply by customer BASE PLATE Supply by customer OUTLINE DRAWING TBD MARS-ANTENNA & RF SYSTEM LTD. SPECIFICATION FOR MA-WC55-AS16 DOC NO. RD41764000C4.9-5.875 GHz, 14dBi SCALE: NONE CLASSIFICATION: NONEREV-SHEET 1 OF 1

Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Technical Note WiMAX 5.8 GHz MicroMAX 5.8 GHz Connecting the World with Wireless Access Solutions Revision Record: WiMAX 5.8GHz Pub/ Rev Date Update Description 01 August-06 Airspan. Author: InterDoc Publication No. 28080512-01  Copyright by Airspan Networks LTD., 2003. All rights reserved worldwide. The information contained in this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreement protecting Airspan Networks LTD. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks LTD. In addition, any use of this document or the information contained herein for any purposes other than those for which it was disclosed is strictly forbidden. Airspan Networks LTD. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks LTD. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks LTD. for the use thereof nor for the rights of third parties which may be effected in any way by the use thereof. Any representation(s) in this document concerning performance of Airspan Networks LTD. product(s) are for informational purposes only and are not warranties of future performance, either express or implied. Airspan Networks LTD. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks LTD. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks LTD. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks LTD. All specifications are subject to change without prior notice. MiMAX 5.8 Technical Note 28080511-01 Airspan Networks Ltd. 3 1. Scope This document provides a description of the WiMAX 5.8 GHz product. 2. MicroMAX(Base Station) A Base station radio, MicroMAX 5.8 GHz TDD Int., is part of a WiMAX broadband fixed cellular wireless access system. The system provides a radio link between an end-user (a subscriber) and a network to give high-speed data access. The MicroMAX’s transceiver/receiver (Up to 64 QAM modulation, data rate up to 37Mbps) uses OFDM and operating in TDD duplexing mode, equipped with a 14 dBi internal antenna. The maximum RF output power (not including antenna gain) is 22 dBm and it can be reduced by software. The MicroMAX is installed outdoors and typically is mounted on a pole. The ProST transmits and receives traffic to and from the base station respectively. The transceiver provides subscribers with "always-on" Internet, high speed data only, or data and voice (VoIP) services and is configured with a unique base station reference number, preventing the ProST from relocating to another subscriber premises without authorization. . 2.1. EUT (ProST) test configuration The EUT ports and lines description is given in the table below. Port type Port description Connector type QuantityCable type Cable length (m) Indoor /outdoor Connected to Data + DC 48 VDC + Ethernet 15-pin D-type 1 Cat. 5 – 4x2 twisted pair 100 Outdoor SDA

Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 RF_evaluation_17233.doc RF exposure evaluation according to §15.247(e)(i) and §1.1307 The calculation was done for power density at 20 cm distance. Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 (for 1500 –100,000 MHz frequency range). The power density P (mW/cm 2 ) = P T / 4π ππ π r 2 P T is the transmitted power, which is equal to the peak transmitter output power 21.9 dBm plus maximum antenna gain 14 dBi, the maximum equivalent isotropically radiated power EIRP is P T = 21.9 dBm +14 dBi = 35.9 dBm = 3890.4 mW. The power density P at 20 cm (minimum safe distance, required for mobile devices), calculated as follows: P = 3890.4 mW / 4π (20 cm) 2 = 0.77 mW/cm 2 < 1 mW/cm 2 General public cannot be exposed to dangerous RF level.

Hermon Laboratories Ltd. P.O.Box 23, Binyamina 30500, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 112 Report ID: AIRRAD_FCC.17233_rev1.doc Date of Issue: 8/3/2006 Electrical TEST REPORT ACCORDING TO: FCC 47CFR part 15 subpart C § 15.247 and subpart B FOR: Airspan Networks (Israel) Ltd. Base station Model: MicroMax-SOC 5.8 GHz This report is in conformity with ISO/ IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AIRRAD_FCC.17233_rev1.doc Date of Issue: 8/3/2006 Page 2 of 112 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details.................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Operating frequencies ................................................................................................................................................... 5 6.5 Changes made in the EUT ............................................................................................................................................ 5 6.6 Test configuration.......................................................................................................................................................... 6 6.7 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 15 subpart C requirements ........................................................................ 8 7.1 Minimum 6 dB bandwidth .............................................................................................................................................. 8 7.2 Peak output power ...................................................................................................................................................... 16 7.3 Spurious emissions at RF antenna connector ............................................................................................................. 24 7.4 Field strength of spurious emissions ........................................................................................................................... 46 7.5 Peak spectral power density ....................................................................................................................................... 75 7.6 Conducted emissions .................................................................................................................................................. 83 7.7 Antenna requirements ................................................................................................................................................. 86 8 Emission tests according to 47CFR part 15 subpart B requirements .......................................................................... 87 8.1 Conducted emissions .................................................................................................................................................. 87 8.2 Radiated emission measurements .............................................................................................................................. 90 9 APPENDIX A Test equipment and ancillaries used for tests....................................................................................... 98 10 APPENDIX B Measurement uncertainties................................................................................................................. 100 11 APPENDIX C Test facility description ....................................................................................................................... 101 12 APPENDIX D Specification references ..................................................................................................................... 101 13 APPENDIX E Abbreviations and acronyms............................................................................................................... 102 14 APPENDIX F Test equipment correction factors ....................................................................................................... 103 Report ID: AIRRAD_FCC.17233_rev1.doc Date of Issue: 8/3/2006 Page 3 of 112 1 Applicant information Client name: Airspan Netw…

Text truncated - open the document above for the full version.

Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 1 of 8 SETUP PHOTOGRAPHS This document contains 7 photographs Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 2 of 8 Photograph No.1 Peak output power, power spectral density, occupied bandwidth and conducted spurious emissions measurement setup Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 3 of 8 Photograph No.2 Spurious emissions measurement setup in the anechoic chamber below 30 MHz Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 4 of 8 Photograph No.3 Spurious emissions measurement setup in the anechoic chamber in 30 -2900 MHz Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 5 of 8 Photograph No.4 Spurious emissions measurement setup in the anechoic chamber above 2900 MHz Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 6 of 8 Photograph No.5 Spurious emissions measurement setup an the OATS above 2900 MHz Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 7 of 8 Photograph No.6 Radiated emissions measurement setup at the OATS Airspan Networks (Israel) Ltd. FCC ID:PIDMMAX58 Date: August 2006 Page 8 of 8 Photograph No.7 Conducted emissions measurement setup on AC line
