PIDMRT4900WiMAX MRT CPE

Airstream 4001 F49-MRT User Guide Airstream 4001 F49-MRT User Guide Page 2 Commercial in Confidence UWB-D00211 Rev B Acknowledgements Airspan Networks Inc acknowledges the following trademarks used within this document: © Microsoft Corporation http://www.microsoft.com Copyright © Copyright by Airspan Networks Inc., 2013. All rights reserved worldwide. The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof. Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Inc. All specifications are subject to change without prior notice. Product performance figures quoted within this document are indicative and for information purposes only. Safety Notices Safety Information 1. Read this user manual and follow all operating and safety instructions. 2. Keep all product information for future reference. 3. The power requirements are indicated on the product-marking label. Do not exceed the described limits. 4. Use only a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Disconnect the power before cleaning. 5. Disconnect power when unit is stored for long periods. Airstream 4001 F49-MRT User Guide Page 3 Commercial in Confidence UWB-D00211 Rev B Table of Contents Acknowledgements .......................................................................................................................... 2 Copyright .......................................................................................................................................... 2 Safety Notices ................................................................................................................................... 2 Safety Information ......................................................................................................................... 2 Table of Contents ............................................................................................................................. 3 Summary of Figures ......................................................................................................................... 6 Summary of Tables .......................................................................................................................... 7 Warnings and Cautions .................................................................................................................... 8 Human Exposure to Radio Frequencies....................................................................................... 8 Radio Interference ........................................................................................................................ 8 Modifications ................................................................................................................................. 8 General ......................................................................................................................................... 8 Disclaimer Statement ................................................................................................................... 8 DECLARATION OF CONFORMITY ................................................................................................. 9 FCC Notice ..................................................................................................................................... 10 Federal Communication Commission Notice ............................................................................. 10 1 About this Guide ....................................................................................................................... 11 1.1 Purpose ................................................................................................................................. 11 1.2 Conventions .......................................................................................................................... 11 2 System Overview ..................................................................................................................... 12 2.1 MRTe Frequency Ranges ..................................................................................................... 12 2.1.1 Main Features ............................................................................................................... 12 2.2 WiMAX Management …

Text truncated - open the document above for the full version.

Airspan Networks Inc 777 Yamato Road, Suite 310 Boca Raton FL 33431 USA --------------------------------------------------------------------------------------------------------------------- Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: PIDMRT4900 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics PIDMRT4900_FCCID_Schematics.pdf Block Diagram PIDMRT4900_FCCID_BlockDiagram.pdf Operational Description PIDMRT4900_FCCID_OperationalDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Airspan Networks Inc (Brian Roberts) (Product Specialist)

Airspan Networks Inc 777 Yamato Road, Suite 310 Boca Raton FL 33431 USA (FCC ID：PIDMRT4900) POWER OF ATTORNEY DATE: 2013-11-22 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Airspan Networks Inc are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Airspan Networks Inc (Brian Roberts) (Product Specialist)

Airspan Networks Inc 777 Yamato Road, Suite 310 Boca Raton FL 33431 USA --------------------------------------------------------------------------------------------------------------------- Date: 2013-12-04 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 We, the undersigned hereby declare, that the following radio equipment: Applicant : Airspan Networks Inc Address : 777 Yamato Road, Suite 310 Boca Raton FL 33431 USA FCC ID : PIDMRT4900 Product Name : WiMAX MRT CPE Model : Airstream 4001 F49-MRT Trade Name : MRTe-4900 Freq Range : 4950-4980MHz is electrically equal to the original equipment: Applicant : Airspan Networks Inc Address : 777 Yamato Road, Suite 310 Boca Raton FL 33431 USA FCC ID : PIDMRT4900 Product Name : WiMAX Outdoor CPE Model : MTRe-4900 Trade Name : AirStream Date of Grant : 11/27/2013 Freq Range : 4950-4980MHz The original application information about Product Name, Model and Tade Name is wrong , So it needs to be corrected. The EUT electronically/electrically is no change. Sincerely, Airspan Networks Inc

Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Antenna Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y EUT View 3 EUT View 4 Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y EUT View 5 EUT View 6 Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y EUT View 7

Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: PIDMRT4900 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: PIDMRT4900 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

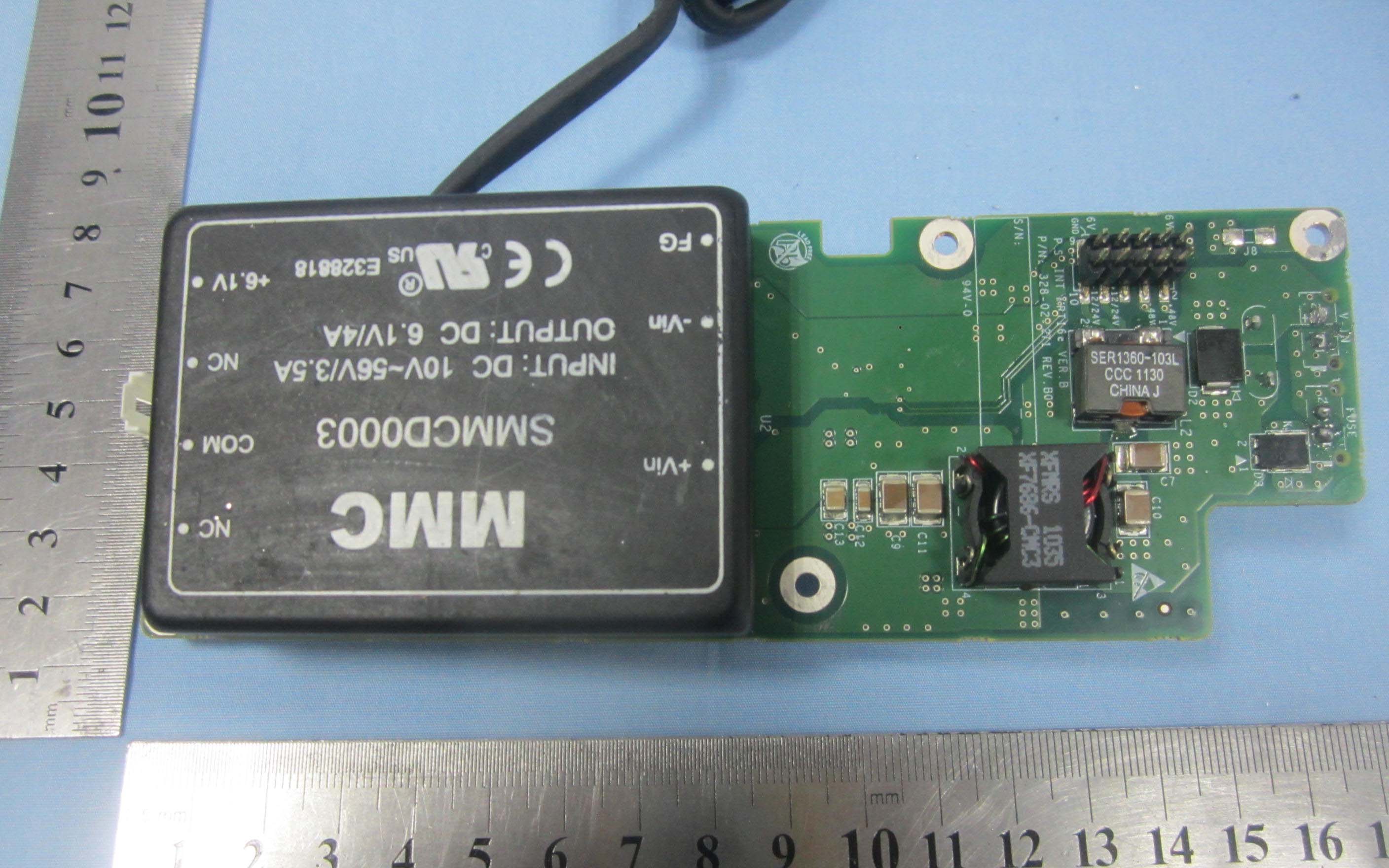

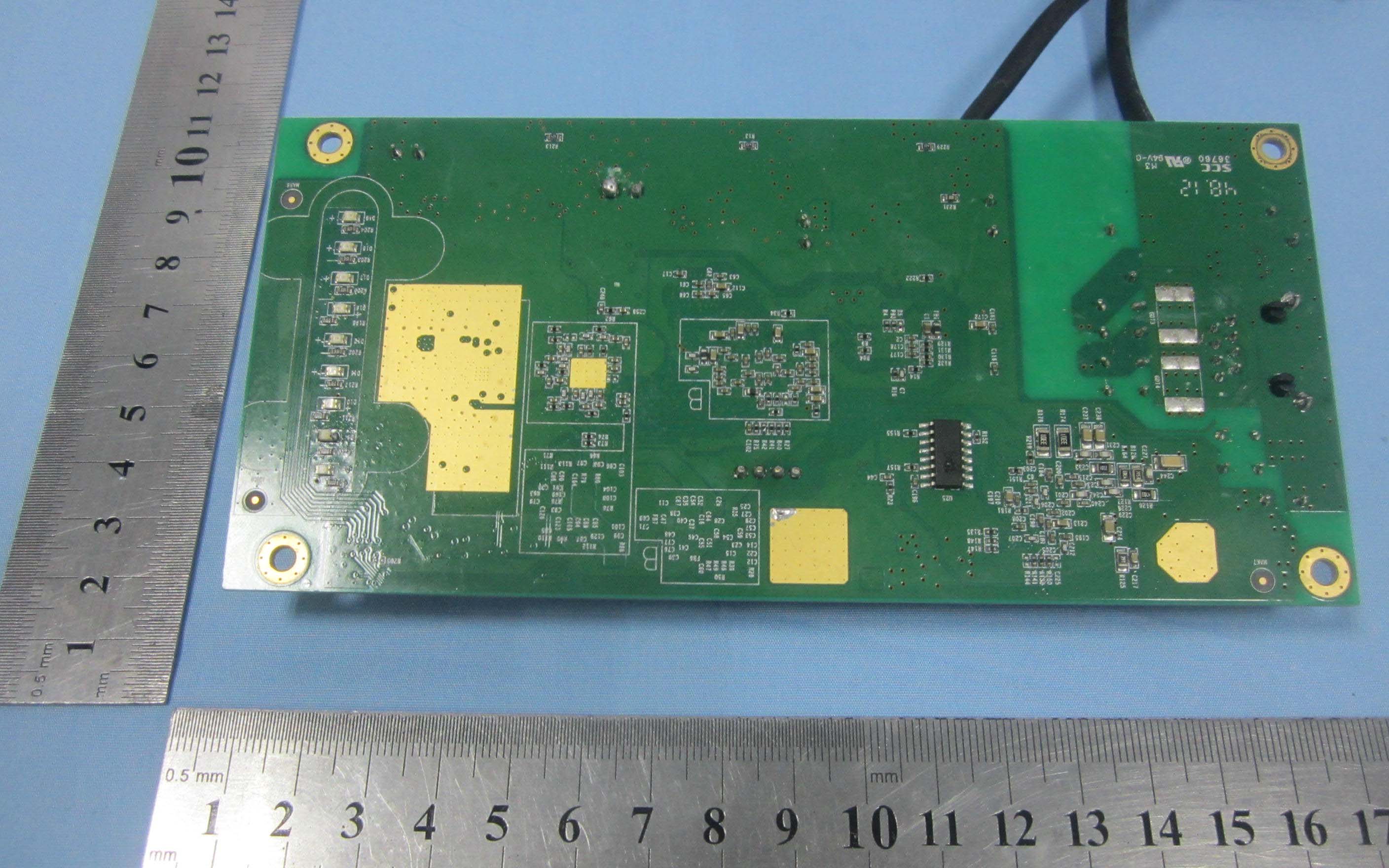

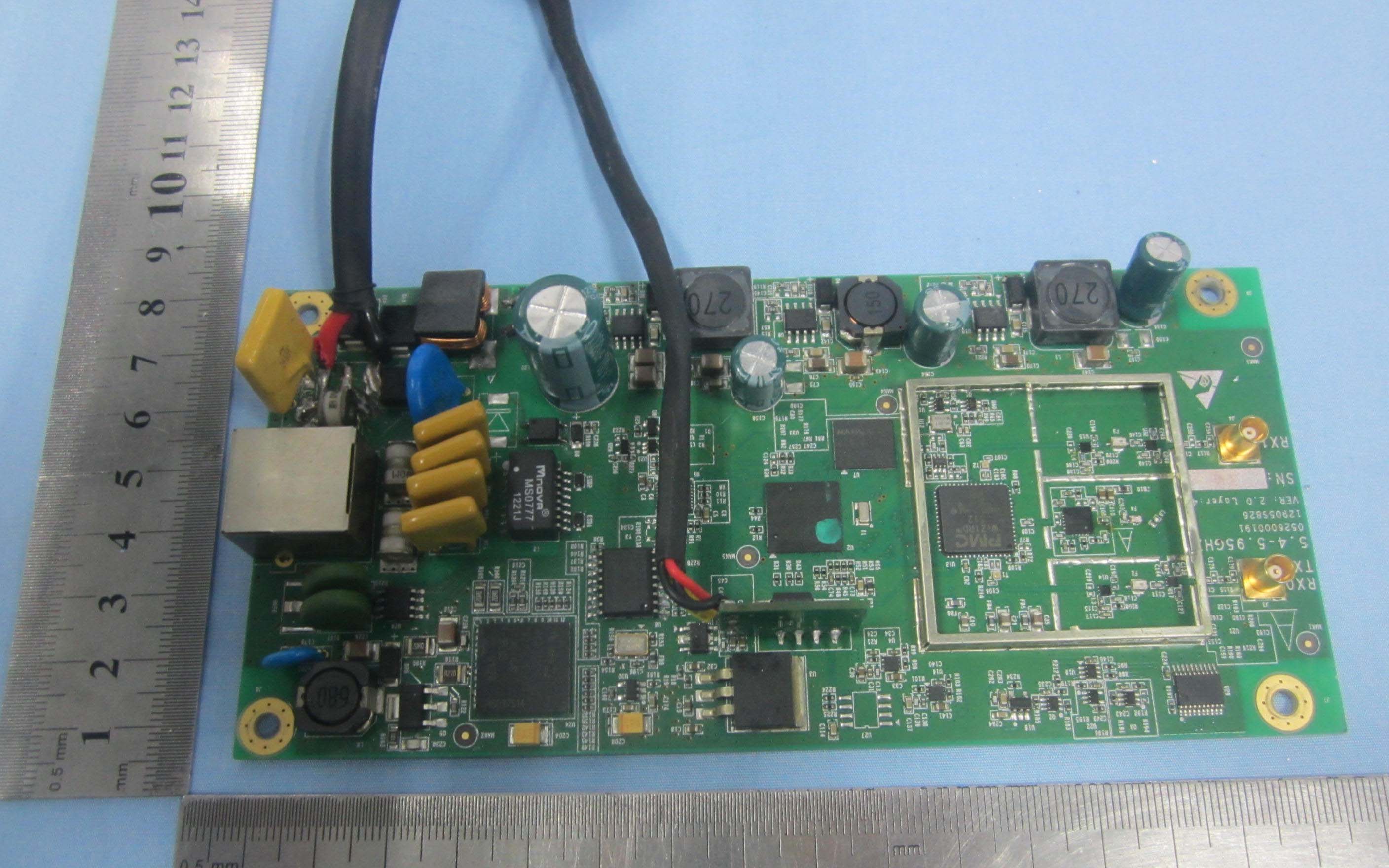

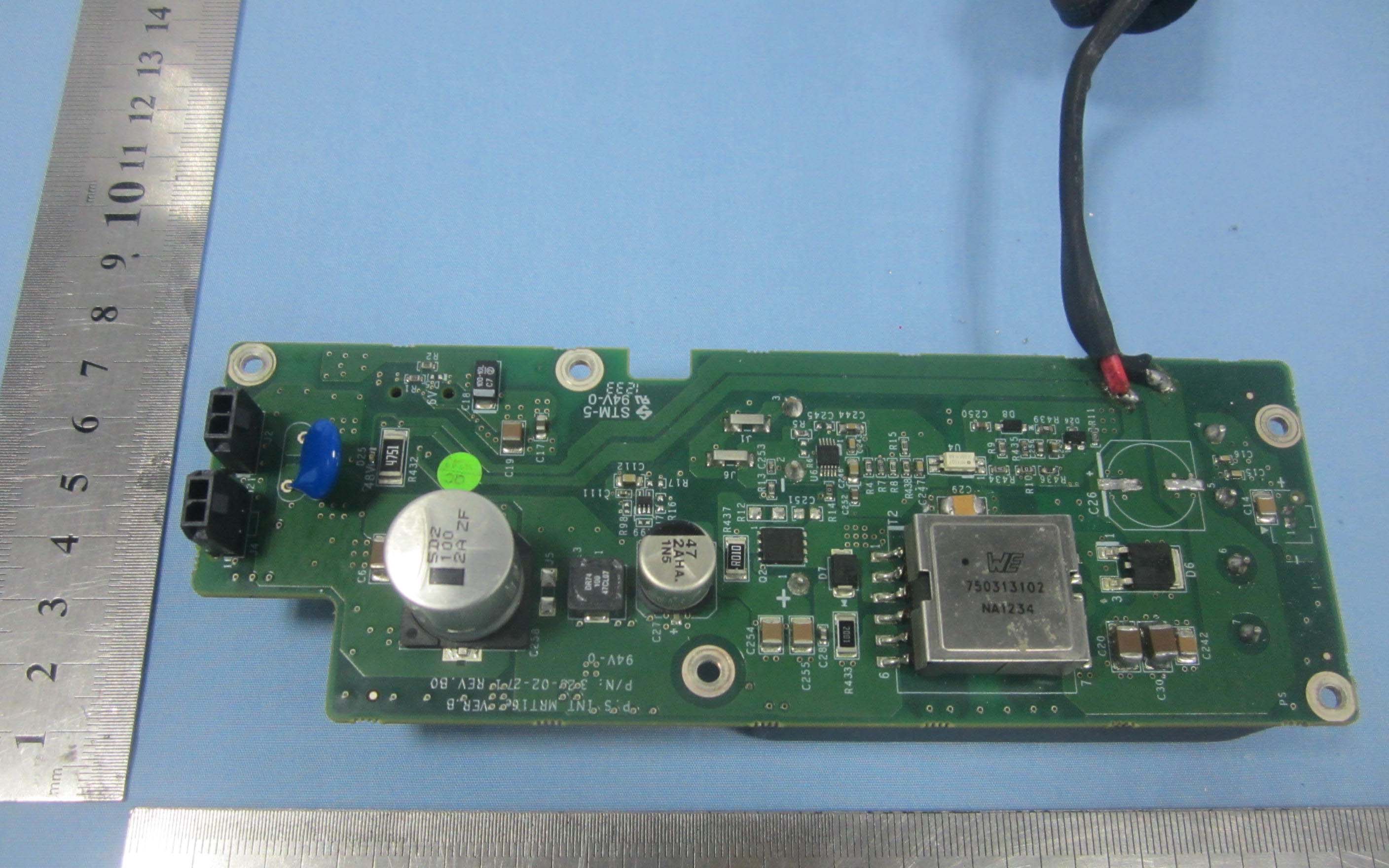

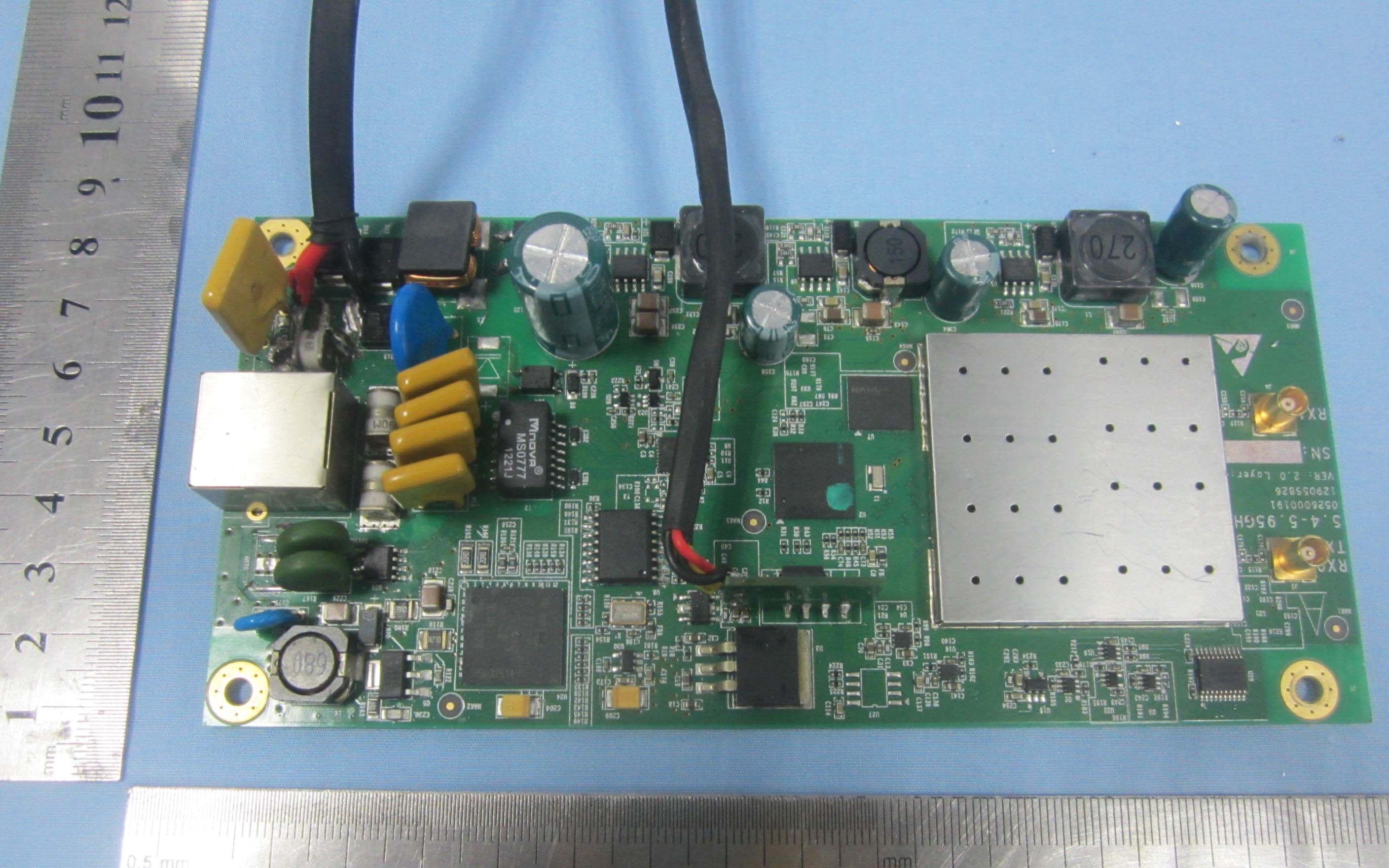

Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 RX Antenna Connector TX/RX Antenna Connector Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y Solder Board-Component View 2 Solder Board-Component View 3 Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y Solder Board-Component View 4 Solder Board-Component View 4

Feng LinWu XiaobinJu Ming NO CODE DESCRIPTION QTY REFERENCE VENDOR1 PART NO. VENDOR2 1 0526000191 PCB-AirStream4001_F58_MIMO_VER2.0-PCB- 159mmx35 mm-4Layers 1 2 0504010028 Bridge Rectifiers － DB104S-400V-1A 1 BA1 Fairchild DF04S GalaxyDB104S 3 0502030152 Ceramic Capacitor － 10uF±20% － 6.3V － X5R － 0603 14 C1,C3,C10,C18,C19,C20,C30,C32,C33,C42,C45,C108,C110,C141 YAGEO CC0603MRX5R5BB106 TDKC1608X5R0J106 4 0502030045 Ceramic Capacitor － 0.1uF±10% － 16V － X7R/X5R － 0402 89 C2,C4,C5,C9,C14,C15,C16,C17,C23,C24,C25,C28,C29,C34,C37,C39,C40,C41,C46,C48,C49,C50,C55,C56,C57,C58,C59,C60,C61,C62,C63,C64,C65,C66,C67,C68,C73,C74,C76,C81,C84,C85,C86,C87,C88,C92,C93,C95,C96,C99,C100,C101,C102,C103,C104,C116,C122,C126,C129,C140,C148,C151,C155,C157,C161,C164,C165,C166,C177,C178,C184,C187,C189,C195,C196,C198,C199,C201,C202,C203,C205,C208,C210,C224,C234,C238 , C241 , C249 , C250 YAGEO CC0402KRX7R7BB104 MuRataGRM155R71C104K 5 0502030109 Ceramic Capacitor － 4.7uF±10% － 6.3V － X7R/X5R － 0603 20 C6,C8,C11,C12,C22,C26,C27,C36,C47,C112,C113,C114,C137,C172,C173,C174,C197,C213,C283,C284 YAGEO CC0603KRX5R5BB475 MuRataGRM188R60J475K 6 0502030112 Ceramic Capacitor － 100pF±5% － 50V － COG － 0402 10 C7,C13,C43,C139,C206,C207,C211,C212,C282,C286 YAGEO CC0402JRNP09BB101 MuRataGRM1555C1H101J 7 0502030160 Ceramic Capacitor － 22uF±20% － 6.3V － X7R/X5R － 0805 2 C21,C35 YAGEO CC0805MRX5R5BB226 TDKC2012X5R0J226M 8 0502030113 Ceramic Capacitor － 1.0uF±10% － 10V － X7R/X5R － 0402 14 C31,C38,C44,C51,C52,C53,C54,C77,C138,C215,C235,C243,C248,C258 YAGEO CC0402KRX5R6BB105 9 0502030114 Ceramic Capacitor － 12pF±5% － 50V － COG － 0402 2 C69,C71 YAGEO CC0402JRNP09BB120 MuRataGRM1555C1H120 J 10 0502030272 Ceramic Capacitor － 10nF±10% － 100V － X7R － 0603 3 C72,C105,C217 YAGEO CC0603KRX7R0BB103 11 0502030164 Ceramic Capacitor － 10uF±10% － 25V － X5R － 1206 2 C75,C170 YAGEO CC1206KRX5R8BB106 TDKC3216X7R1E106KT000N 12 0502030042 Ceramic Capacitor － 0.1uF±10% － 50V － X7R － 0805 7 C78,C135,C142,C159,C162,C171,C214 YAGEO CC0805KRX7R9BB104 13 0502030217 Ceramic Capacitor － 2.0pF±0.1pF － 50V － COG － 0402 3 C79,C98,C169 MuRata GJM1555C1H2R0B 14 0502030116 Ceramic Capacitor － 1nF±5% － 50V － COG － 0402 14 C80,C89,C90,C91,C94,C97,C118,C123,C127,C128,C133,C153,C245,C246 MuRata GRM1555C1H102J 15 0502030148 Ceramic Capacitor － 10nF±10% － 50V － X7R － 0402 3 C82,C117,C188 YAGEO CC0402KRX7R9BB103 16 0502030236 Ceramic Capacitor-2.4pF±0.25pF-25V-COG-0201 2 C106,C107 MuRata GJM0335C1E2R4CB01D 17 0502030182 Ceramic Capacitor － 8.0pF±0.25pF － 50V － COG － 0402 6 C111,C131,C132,C144,C146,C149 MuRata GJM1555C1H8R0C 18 0502030209 Ceramic Capacitor － 10pF±2% － 50V － COG － 0402 5 C83,C109,C115,C186,C193 MuRata GJM1555C1H100G 19 0502060030 Radial Alu Capacitor － 120uF±20% － 100V-Low ESR-6000h- DxL=12.5mmx20mm-105 °C 1 C120 Taicon HW 100V-120uF12.5*20 Approved By: AirStream4001_F58_V2.0_Unit-BOM DOC ID ： BOM _ AirStream4001 _ F55 _ MIMO _ V20R 0 Version ： Creation Date ： 2011.12.30 Revision Date ： 2013.09.30 Draft By:Verified By: 20 0502030149 Ceramic Capacitor － 220pF±5% － 50V － NP0 － 0603 1 C121 YAGEO CC0603JRNP09BB221 21 0502030128 Ceramic Capacitor － 22uF±10% － 16V － X7R/X5R － 1210 3 C143,C147,C152 TDK C3225X5R1C226K YAGEOCC1210KKX5R7BB226 22 0502060034 Radial Alu Capacitor － 220uF±20% － 25V-Low ESR-6000h- DxL=8x11.5mm-105 °C 3 C154,C156,C158 Taicon HW 25V-220uF 8*11.5 23 0502030143 Ceramic Capacitor － 2.2pF±0.25pF － 50V － NPO － 0603 1 C160 YAGEO CC0603CRNP09BN2R2 24 0502030083 Ceramic Capacitor － 330pF±5% － 25V/50V － COG － 0603 1 C167 YAGEO CC0603JRNP09BN331 25 0502040001 R a di a l C eram i c C apac i tor － 1000 p F ± 10% － 2KV － C _ 200 _ 2 － Pi tc h 5mm5mm 3 C176,C221,C222 Songte Y5P102K2KV 26 0502030237 Ceramic Capacitor-1.1pF±0.1pF-25V-COG-0201 4 C181,C182,C183,C185 MuRata GJM0335C1E1R1BB01D 27 0502030238 Ceramic Capacitor-0.6pF±0.1pF-50V-COG-0402 2 C192,C194 MuRata GJM1555C1HR60BB01D 28 0502030132 Ceramic Capacitor － 68nF±10% － 16V － X7R － 0402 1 C200 YAGEO CC0402KRX7R7BB683 29 0502010015 Tantalum chip capacitor － 47uF±10% － 10V － SMT － 3528_B Type 2 C204,C209 Kemet T491B476K010A 30 0502030133 Ceramic Capacitor － 4.7nF±10% － 25V － X7R － 0402 1 C216 YAGEO CC0402KRX7R8BB472 31 0502030104 Ceramic Capacitor － 1uF±10% － 100V － X7R/X5R － 1210 2 C218,C226 TDK C3225X7R2A105K YAGEOCC1210KRX7R0BB105 32 0502030102 Ceramic Capacitor － 22pF±5% － 100V － COG － 0603 1 C227 YAGEO CC0603JRNP00BN220 33 0502030101 Ceramic Capacitor － 82pF±5% － 50V － COG － 0603 2 C228,C242 YAGEO CC0603JRNP09BN820 34 0502030100 Ceramic Capacitor － 120pF±5% － 50V － COG － 0603 1 C229 YAGEO CC0603JRNP09BN121 35 0502030105 Ceramic Capacitor － 330pF±5% － 100V － COG － 0805 1 C230 YAGEO CC0805JRNP00BN331 36 0502030099 Ceramic Capacitor － 100pF±5% － 100V － COG － 0603 3 C231,C233,C239 YAGEO CC0603JRNP00BN101 37 0502030037 Ceramic Capacitor － 15nF±10% － 100V － X7R/X5R － 0805 2 C236,C237 YAGEO CC0805KRX7R0BB153 38 0502030135 Ceramic Capacitor － 47nF±10% － 16V － X7R － 0402 1 C240 YAGEO CC0402KRX7R7BB473 39 0502030073 Ceramic Capacitor － 0.1uF±10% － 100V － X7R/X5R － 1206 1 C244 YAGEO CC1206KRX7R0BB104 YAGEOCC1206KKX7R0BB104 40 0502030140 Ceramic Capacitor － 2.2uF±10% － 100V － X7R/X5R － 1210 2 C251,C252 TDK C3225X7R2A225K YAGEOCC1210KRX7R0BB 41 0502030145 Ceramic Capacitor-470pF±10%-50V-X7R-0603 1 C253 YAGEO CC0603KRX7R9BB471 42 0502030178 Ceramic Capacitor － 0.3pF±0.1pF － 50V － COG － 0402 1 C263 MuRata GJM1555C1HR30B 43 0504010030 Schottky Barrier Rectifier － B280 － 80V-2A-0.7V － SMB 1 D2 Diodes B280-13-F GalaxyB280 44 0504010012 Schottky Barrier Rectifier － B230A-30V/2A-SMA 2 D3,D4 Diodes B230A GalaxyB230A 45 0516010001 Chip LED － Green － 0805 9 D5,D9,D10,D11,D12,D16,D17,D18,D19 BRT BL-HGE35A-AV-TRB 46 0504010011 Surface Mount Diode － 1N4448W － 75V/500mA － SOD-123 1 D8 Diodes 1N4448W Galaxy1N4448 W 47 0505020022 Transient Voltage Suppressor － SMCJ48CA - Bidirectional - 48V- 1 5KW SMC 3 D13,D14,D15 Galaxy SMCJ48CA 48 0504010022 Fast Rectifier － ES1C-150V/1A-SMA 1 D20 Galaxy ES1C 49 0505020034 TVS Array － 2 Channel …

Text truncated - open the document above for the full version.

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.4 ~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (Agilent 8960) measures the WiMAX device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. z For 4950-4980MHz: PWR = 27.50dBm± 2dBm Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a Agilent 8960 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.2 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.3 MPE Calculation Result Since the maximum eirp power is used as the output power to antenna, so the Gain of the antenna can be assumed as 0dBi. Maximum peak output power: 27.57 (dBm) Maximum peak output power at antenna input terminal: 566.24 (mW) Prediction distance: >20 (cm) Prediction frequency: 4950 (MHz) Antenna gain (typical): 2 (dBi) Antenna gain (typical): 1.58 (numeric) The worst case is power density at prediction frequency at 30cm: 0.180 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mw/cm 2 ) 0.180 (mw/cm 2 ) < 1 (mw/cm 2 ) Result: Pass

Airspan Networks Inc Model: Airstream 4001 F49-MRT REPORT NO.: STR13118097I-1 PAGE 1 OF 44 FCC PART 90Y FCC Part 90Y Measurement and Test Report For Airspan Networks Inc 777 Yamato Road, Suite 310 Boca Raton FL 33431 USA FCC ID: PIDMRT4900 FCC Rule(s): FCC Part 90Y Product Description: WiMAX MRT CPE Tested Model: Airstream 4001 F49-MRT Report No.: STR13108097I-1 Tested Date: 2013-10-14 to 2013-11-18 Issued Date: 2013-11-18 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Airspan Networks Inc Model: Airstream 4001 F49-MRT REPORT NO.: STR13118097I-1 PAGE 2 OF 44 FCC PART 90Y TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. ANTENNA REQUIEMENT ..................................................................................................................................... 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 TEST RESULT.......................................................................................................................................................... 9 5. POWER SPECTRAL DENSITY ........................................................................................................................... 10 5.1 STANDARD APPLICABLE ....................................................................................................................................... 10 5.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 10 5.3 TEST PROCEDURE ................................................................................................................................................. 10 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 10 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 11 6. MAXIMUM CONDUCTED OUTPUT POWER .................................................................................................. 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. EMISSION BANDWIDTH ..................................................................................................................................... 16 7.1 STANDARD APPLICABLE ....................................................................................................................................... 16 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 16 7.3 TEST PROCEDURE ................................................................................................................................................. 16 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 16 7.5 SUMMARY OF TEST RESULTS/PLOTS ..........................................................................................…

Text truncated - open the document above for the full version.

Airspan Networks Inc Model: MRTe-4900 REPORT NO.: STR13088081I-1 FCC PART 90Y EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
