PIDSYN2110Base station of LTE fixed cellular system

UGD-D01001 Rev A AirSynergy 2000 Installation Guide AirSynergy 2000 Installation Guide Page 2 Commercial in Confidence UGD-D01001 Rev Azl Copyright © Copyright by Airspan Networks Inc., 2013. All rights reserved worldwide. The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden. Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of thereof. Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks Inc. All specifications are subject to change without prior notice. Product performance figures quoted within this document are indicative and for information purposes only. AirSynergy 2000 Installation Guide Page 3 Commercial in Confidence UGD-D01001 Rev Azl Table of Contents Copyright .......................................................................................................................................... 2 Table of Contents ............................................................................................................................. 3 Summary of Figures ......................................................................................................................... 5 Summary of Tables .......................................................................................................................... 7 Warnings and Cautions .................................................................................................................... 8 Human Exposure to Radio Frequencies ...................................................................................... 8 Radio Interference ........................................................................................................................ 8 Avoiding Radio Interference ......................................................................................................... 8 Modifications ................................................................................................................................. 8 General ......................................................................................................................................... 8 Safety ............................................................................................................................................ 8 Warning of Hazardous Voltages ............................................................................................... 9 Adherence to European Directive 1999/519/EC .......................................................................... 9 Warning Symbols.......................................................................................................................... 9 Service Information ....................................................................................................................... 9 UL Information ............................................................................................................................ 10 Lightning Protection .................................................................................................................... 10 DECLARATION OF CONFORMITY ............................................................................................... 11 FCC Notice ..................................................................................................................................... 12 Federal Communication Commission Notice ............................................................................. 12 GPS Compliance ........................................................................................................................ 12 Maximum Output TX Power ........................................................................................................... 13 Power Consumption ................................................................................................................... 13 Antenna Types............................................................................................................................ 13 Switched Beam Antenna ............................................................................................................ 13 Front Mount Sector Antenna ...................................................................................................... 14 AirSynergy Antenna Usage Options ...............................................…

Text truncated - open the document above for the full version.

Airspan Networks Inc. 777 Yamato Rd Suite 310, Boca Raton, Florida, United States, 33431 REQUEST TO FCC LETTER FCC ID: PIDSYN2110 Date: 2014.02.27 To whom it may concern: Please correct the error in the grant FCC ID:PIDSYN2110 – please change a value of conducted power given in the grant to EIRP-value as required for 47CFR FCC Part 27. The corrected FCC Form731_24749_rev1 submitted. Sincerely, Brian Roberts Title: Engineering Dept Airspan Networks Inc. Tel: +1 561 893 8686 Fax: +1 561 893 8671 e-mail: [email protected]

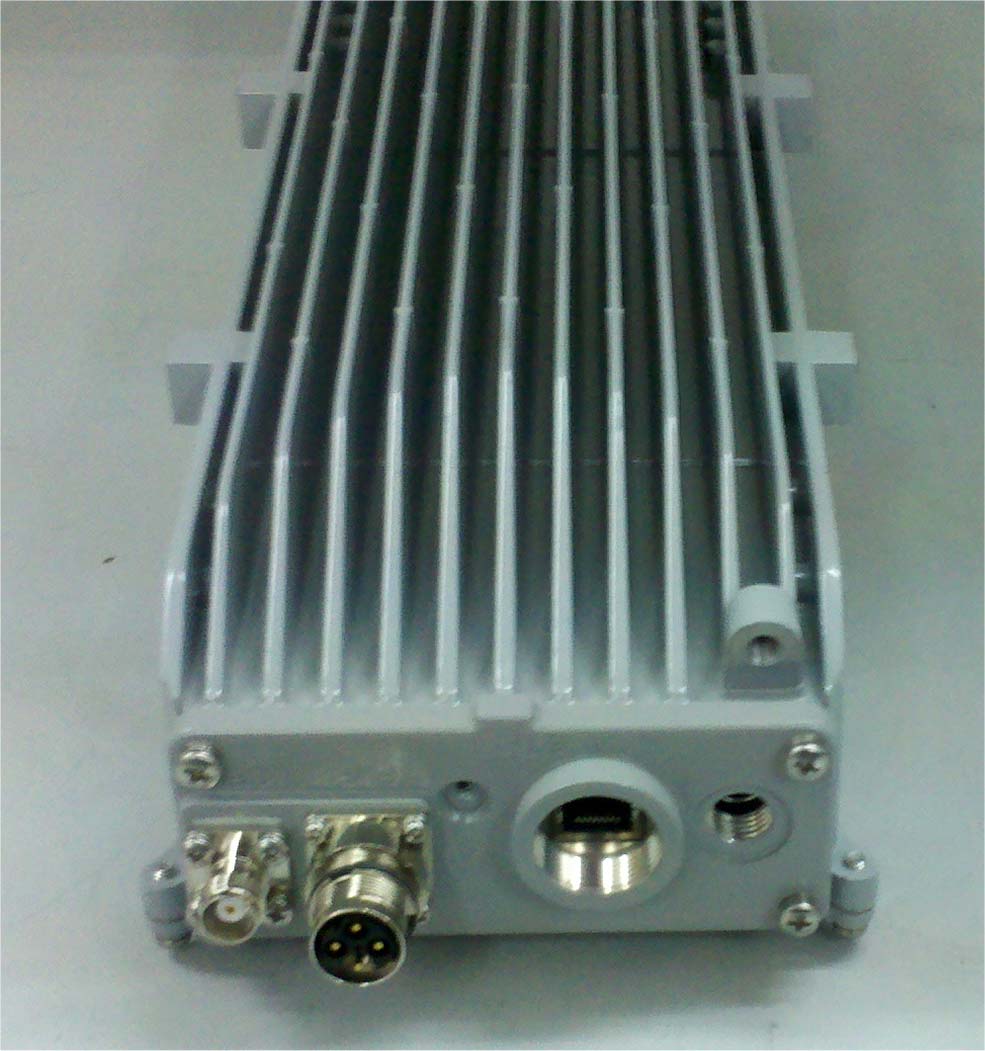

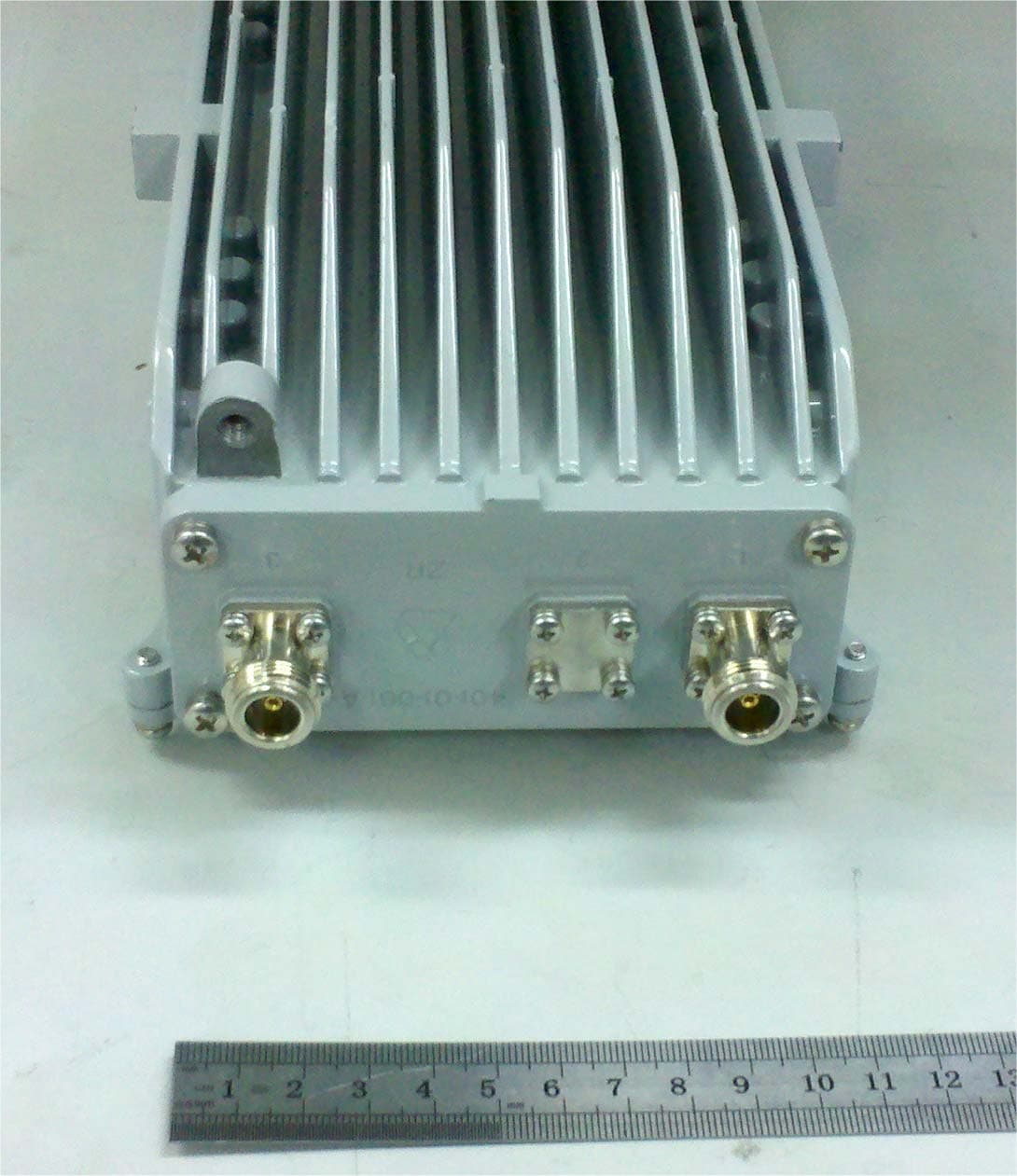

Airspan Networks Inc. FCC ID:PIDSYN2110 Page 1 of 7 EXTERNAL PHOTOGRAPHS This document contains 6 photographs Airspan Networks Inc. FCC ID:PIDSYN2110 Page 2 of 7 Photograph No.1 “Synergy 2000 2.1 GHz (B4/B10)” base station general view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 3 of 7 Photograph No.2 “Synergy 2000 2.1 GHz (B4/B10)” base station top panel view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 4 of 7 Photograph No.3 “Synergy 2000 2.1 GHz (B4/B10)” base station rear side view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 5 of 7 Photograph No.4 “Synergy 2000 2.1 GHz (B4/B10)” base station bottom panel view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 6 of 7 Photograph No.5 “Synergy 2000 2.1 GHz (B4/B10)” base station side view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 7 of 7 Photograph No.6 “Synergy 2000 2.1 GHz (B4/B10)” base station second side view

Airspan Networks Inc. FCC ID:PIDSYN2110 Page 1 of 1 LABEL The label is affixed on the side of the base radio unit as shown below. The label material is PVC with a permanent adhesive. “Synergy 2000 2.1 GHz” bottom panel, label with FCC ID:PIDSYN2110 location FCC ID:PIDSYN2110

Airspan Networks Inc. FCC ID:PIDSYN2110 Page 1 of 13 INTERNAL PHOTOGRAPHS This document contains 12 photographs Airspan Networks Inc. FCC ID:PIDSYN2110 Page 2 of 13 Photograph No.1 “Synergy 2000 2.1 GHz (B4/B10)” base station internal view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 3 of 13 Photograph No.2 “Synergy 2000 2.1 GHz (B4/B10)” base station internal view with filter and power supply removed Airspan Networks Inc. FCC ID:PIDSYN2110 Page 4 of 13 Photograph No.3 “Synergy 2000 2.1 GHz (B4/B10)” base station internal view without flat cable Airspan Networks Inc. FCC ID:PIDSYN2110 Page 5 of 13 Photograph No.4 SDR-Qc, Digital and RF card front view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 6 of 13 Photograph No.5 SDR-Qc, Digital and RF card second side view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 7 of 13 Photograph No.6 Base station assembled FEM device Airspan Networks Inc. FCC ID:PIDSYN2110 Page 8 of 13 Photograph No.7 FEM device PCA on mechanical base plate Airspan Networks Inc. FCC ID:PIDSYN2110 Page 9 of 13 Photograph No.8 FEM device PCA front view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 10 of 13 Photograph No.9 FEM device PCA second side view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 11 of 13 Photograph No.10 Base station assembled power supply module Airspan Networks Inc. FCC ID:PIDSYN2110 Page 12 of 13 Photograph No.11 Power supply PCB front view Airspan Networks Inc. FCC ID:PIDSYN2110 Page 13 of 13 Photograph No.12 Power supply PCB second side view

FCC ID: PIDSYN2110 Technical Note LTE 2110MHz Synergy 2110- Band 10 Connecting the World with Wireless Access Solutions Revision RecordSynergy 2110- Band 10 Pub/ Rev Date Update Description 01 September 30 Publication No. 28080512-01  Copyright by Airspan Networks LTD., 2003. All rights reserved worldwide. The information contained in this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreement protecting Airspan Networks LTD. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks LTD. In addition, any use of this document or the information contained herein for any purposes other than those for which it was disclosed is strictly forbidden. Airspan Networks LTD. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks LTD. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks LTD. for the use thereof nor for the rights of third parties which may be effected in any way by the use thereof. Any representation(s) in this document concerning performance of Airspan Networks LTD. product(s) are for informational purposes only and are not warranties of future performance, either express or implied. Airspan Networks LTD. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks LTD. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks LTD. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks LTD. All specifications are subject to change without prior notice. LTE Synergy Technical Note 28080511-01 Airspan Networks Ltd. 3 1. Scope This document provides a description of the LTE Synergy product. 2. Synergy (Base Station) A Base station radio, Synergy 2110, is part of a LTE broadband fixed cellular wireless access system. The system provides a radio link between an end-user (a subscriber) and a network to give high-speed data access. The Synergy’s’ transceiver/receiver (Up to 64 QAM modulation, data rate up to 150 Mbps) uses OFDM and operating in FDD mode, equipped with a 17 dBi External antenna. The maximum total RF output power (not including antenna gain) is 33.52 dBm and it can be reduced by software. The Synergy is installed outdoors and typically is mounted on a pole. The Subscriber transmits and receives traffic to and from the base station respectively. The transceiver provides subscribers with "always-on" Internet, high speed data only, or data and voice (VoIP) services and is configured with a unique base station reference number, preventing the LTE UE from relocating to another subscriber premises without authorization. . 2.1. EUT test configuration The EUT ports and lines description is given in the table below. Port type Port description Connector type QuantityCable length (m) Indoor /outdoor Connected to DC 48 VDC DC Connector 1 100 Outdoor DC P.S Data Ethernet RJ 45 1 100 Outdoor Eth. Switch

Company name: Airspan Networks Inc. Address: 777 Yamato Road Suite 310 Boca Raton FL 33431 USA FCC ID:PIDSYN2110 Synergy 2000 2.1 GHz (B4/B10) tune up procedure Each Synergy radio has been tested by an automatic testing station (which is calibrated weekly for accuracy), which calibrates the unit prior to testing. Each Synergy contains 2 transmitters therefore each in turn is calibrated by the station for RF output power accuracy. The calibration is then verified by transmitting on the RF output power approved for each frequency checking that it does not exceed the maximum allowed by the FCC. For each frequency there is an internal software limit value that prevents the User from exceeding that RF output power setting. In the event the RF output power is higher than specified in the System Description, the Synergy radio doesn’t pass and acquires a Fail status. The Synergy boards with Fail statuses are rejected for final assembly of the product. The NMS management program also has internal specific FCC output limits that further checks and verifies maximum RF power output and prevents transmition above the FCC limits. Name of authorized person: Zion Levy Position: Compliances & Integration Engineer Date: September 30, 2013 Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671, www.airspan.com

Airspan Networks Inc. FCC ID:PIDSYN2110 Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The transceiver is classified as fixed, the calculation was done to confirm a safe distance. Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 for 1500 -100000 MHz frequency range. The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the transmitted power, which is equal to the peak transmitter output power plus maximum antenna gain. The maximum equivalent isotropically radiated power EIRP is P T = 33.52 dBm +17 dBi = 50.52 dBm = 112720 mW, where 33.52 dBm is the EUT maximum output power, 17 dBi – antenna gain. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {112720 / 12.56} = 94.7 cm ≈ 95 cm. A warning about a safe distance is contained in the user manual.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 86 Report ID: AIRRAD_FCC.24749.docx Date of Issue: 2-Oct-13 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47CFR part 27 FOR: Airspan Networks Inc. LTE Base Station Model: Synergy 2000 2.1GHz (B4/B10) FCC ID:PIDSYN2110 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AIRRAD_FCC.24749.docx Date of Issue: 2-Oct-13 Page 2 of 86 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Support and test equipment .......................................................................................................................................... 5 6.4 Changes made in the EUT ............................................................................................................................................ 5 6.5 Test configuration .......................................................................................................................................................... 6 6.6 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 27 ............................................................................................................... 8 7.1 Occupied bandwidth test ............................................................................................................................................... 8 7.2 Peak output power test ................................................................................................................................................ 16 7.3 Band edge emissions at RF connector test ................................................................................................................. 25 7.4 Spurious emissions at RF antenna connector test ...................................................................................................... 36 7.5 Radiated spurious emission measurements ................................................................................................................ 52 7.6 Frequency stability test ................................................................................................................................................ 66 8 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 76 9 APPENDIX B Measurement uncertainties ................................................................................................................... 77 10 APPENDIX C Test facility description ......................................................................................................................... 78 11 APPENDIX D Specification references ....................................................................................................................... 78 12 APPENDIX E Test equipment correction factors ......................................................................................................... 79 13 APPENDIX F Abbreviations and acronyms ................................................................................................................. 86 Report ID: AIRRAD_FCC.24749.docx Date of Issue: 2-Oct-13 Page 3 of 86 1 Applicant information Client name: Airspan Networks Inc. Address: 777 Yamato, Road Suite 310 Boca Raton, FL 33431, USA Telephone: +1 561 893 8670 Fax: +1 561 893 8671 E-mail: [email protected] Contact name: Mr. Zion Levi 2 Equipment under test attributes Product name: LTE Base Station Product type: Transceiver Model(s): Synergy 2000 2.1 GHz (B4/B10) Serial number: 70E1D7193080 Hardware version: C2 Software release: 14.12.10.041 Receipt date 9/12/2013 3 Manufacturer information Manufacturer name: Airspan Networks Inc. Address: 777 Yamato, Road Suite 310 Boca Raton, FL 33431, USA Telephone: +1 561 893 8670 Fax: +1 561 893 8671 E-Mail: [email protected] Contact name: Mr. Zion Levi 4 Test details Project ID: 24749 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 9/12/2013 Test completed: 9/30/2013 …

Text truncated - open the document above for the full version.

Airspan Networks Inc. FCC ID:PIDSYN2110 Page 1 of 7 SETUP PHOTOGRAPHS This document contains 6 photographs Airspan Networks Inc. FCC ID:PIDSYN2110 Page 2 of 7 Photograph No.1 Peak output power, OBW, band edge emissions measurement setup Airspan Networks Inc. FCC ID:PIDSYN2110 Page 3 of 7 Photograph No.2 Conducted spurious emissions measurement setup Airspan Networks Inc. FCC ID:PIDSYN2110 Page 4 of 7 Photograph No.3 Spurious emissions measurement setup in the anechoic chamber below 30 MHz Airspan Networks Inc. FCC ID:PIDSYN2110 Page 5 of 7 Photograph No.4 Spurious emissions measurement setup in the anechoic chamber in 30 -1000 MHz Airspan Networks Inc. FCC ID:PIDSYN2110 Page 6 of 7 Photograph No.5 Spurious emissions measurement setup in the anechoic chamber above 1 GHz Airspan Networks Inc. FCC ID:PIDSYN2110 Page 7 of 7 Photograph No.6 Frequency stability measurement setup
