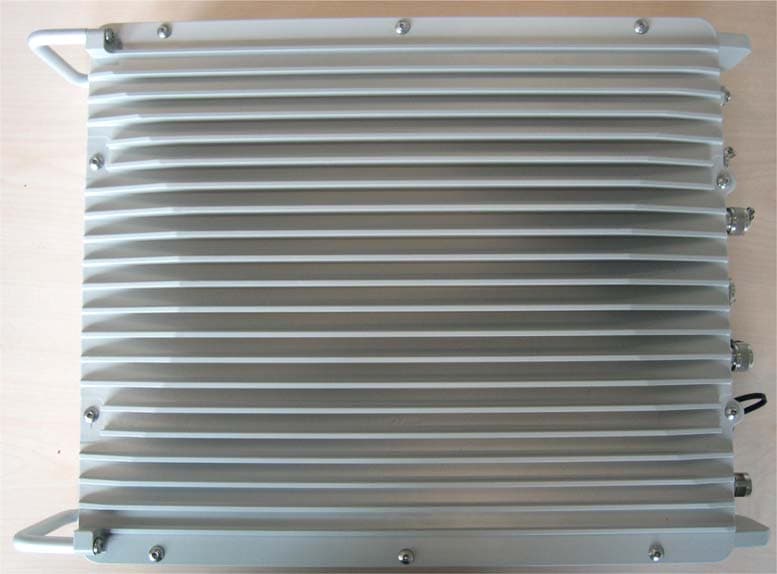

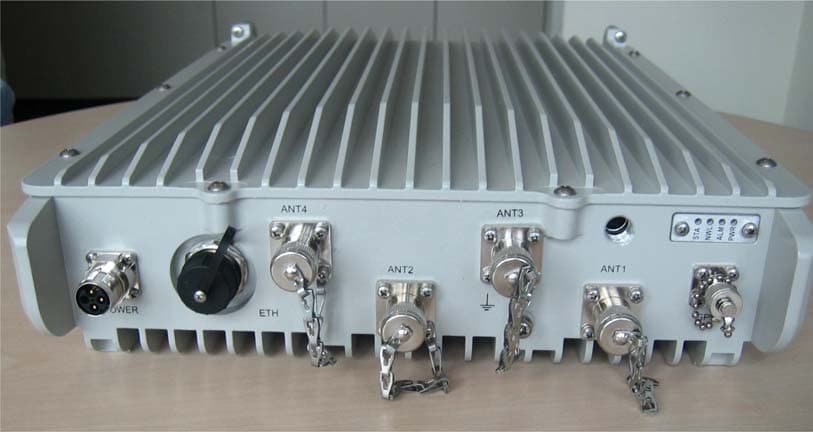

Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 2 of 5 Photograph No.1 “uMAXe/AirGrid 3.65 GHz” base station front view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 3 of 5 Photograph No.2 “uMAXe/AirGrid 3.65 GHz” base station rear panel view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 4 of 5 Photograph No.3 “uMAXe/AirGrid 3.65 GHz” base station top view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 5 of 5 Photograph No.4 “uMAXe/AirGrid 3.65 GHz” base station side panel view

Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 1 of 2 LABEL The label is affixed on the side of the base radio unit as shown below. The label material is PVC with a permanent adhesive. “uMAXe/AirGrid 3.65 GHz” side panel, label with FCC ID:PIDUMAX3600 location

Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 1 of 10 INTERNAL PHOTOGRAPHS This document contains 9 photographs Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 2 of 10 Photograph No.1 “uMAXe/AirGrid 3.65 GHz” internal view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 3 of 10 Photograph No.2 “uMAXe/AirGrid 3.65 GHz” RF card front view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 4 of 10 Photograph No.3 “uMAXe/AirGrid 3.65 GHz” RF card without shielding Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 5 of 10 Photograph No.4 RF card second side view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 6 of 10 Photograph No.5 “uMAXe/AirGrid 3.65 GHz” digital PCB front view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 7 of 10 Photograph No.6 “uMAXe/AirGrid 3.65 GHz” digital PCB rear side view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 8 of 10 Photograph No.7 “uMAXe/AirGrid 3.65 GHz” RF power amplifiers Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 9 of 10 Photograph No.8 RF power amplifier internal view Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 10 of 10 Photograph No.9 Power amplifier PCB second side view

Airspan Networks Inc. 777, Yamato Road, Suite 310, Boca Raton, FL 33431, USA Answers to FCC Technical questions for devices operating in the 3 1 Restricted Certification under Part In order to ensure that a device complies with the requirements of restricted contention based protocol, the following information should be provided in the application. The product that we will seek approva therefore only addressed items 2.x. 1.1 Restricted Protocol Description 1.1.1 Although the restricted protocol does not have the extended requirement to recognize all other systems it is still mandatory to incorporate a contention based p sharing of spectrum with similar systems. 1.1.2 Address the key requirements for operation using restricted contention based protocol opportunities for other transmitters to operate. Please note that this requires recognizing l yours) that permit operation on a co 1.1.3 Provide any additional manuals and operational descriptions to allow the reviewer to understand the product and its operation. 1.2 Describe the method to permit occupancy 1.3 Describe the action taken if two or more transmitters simultaneously access the same channel by the master and the client devices. 1.4 Describe opportunities for other similar systems to operate Address how or if a different system operator using the same tec same band. 2 Unrestricted Certification under Part 90Z (3650 In order to ensure that a device complies with the requirements of unrestricted contention based protocol, the following information should be provided in the 1 Answers to FCC Technical questions for devices operating in the 3650-3700MHz Band under Part 90Z Restricted Certification under Part 90Z (3650-3675 Band) In order to ensure that a device complies with the requirements of restricted contention based protocol, the following information should be provided in the application. The product that we will seek approval for is already certified for restricted use. We have items 2.x. Restricted Protocol Description Although the restricted protocol does not have the extended requirement to recognize all other systems it is still mandatory to incorporate a contention based protocol that provides satisfactory sharing of spectrum with similar systems. Address the key requirements for operation using restricted contention based protocol opportunities for other transmitters to operate. Please note that this requires recognizing l yours) that permit operation on a co-channel. Provide any additional manuals and operational descriptions to allow the reviewer to understand the Describe the method to permit occupancy Describe the action taken if two or more transmitters simultaneously access the same channel by the master and the client devices. Describe opportunities for other similar systems to operate Address how or if a different system operator using the same technology can operate in the Unrestricted Certification under Part 90Z (3650-3700 Band) In order to ensure that a device complies with the requirements of unrestricted contention based protocol, the following information should be provided in the application. 3700MHz Band under Part 90Z 3675 Band) In order to ensure that a device complies with the requirements of restricted contention based protocol, the estricted use. We have Although the restricted protocol does not have the extended requirement to recognize all other rotocol that provides satisfactory Address the key requirements for operation using restricted contention based protocol opportunities for other transmitters to operate. Please note that this requires recognizing like systems (similar to Provide any additional manuals and operational descriptions to allow the reviewer to understand the Describe the action taken if two or more transmitters simultaneously access the same channel hnology can operate in the 3700 Band) In order to ensure that a device complies with the requirements of unrestricted contention based protocol, the 2 2.1 Unrestricted Protocol Description Address the key requirements for operation using unrestricted contention based protocol. Please note that this requires recognizing other systems (both similar to yours and different from yours) that operate on a co-channel. Indicate the strategy for sharing the spectrum in terms of: Does the system use spectrum sensing to determine if the other devices are transmitting and then find ways to share the bandwidth, or have some other strategy? The base station employs a “listen before transmit” function whose purpose is to detect co-channel transmissions above a configurable detection threshold. The detection circuitry measures power level irrespective of the transmitting system’s air interface type (ie. technology agnostic). Detection is made at the start of each WiMAX frame (typically every 5 or 10ms). Upon detection of a transmission above the configured threshold, the base station creates a “contention allocation slot” that allows other systems access by creating gaps in it’s transmission (both the BS and associated CPE which is scheduled by the BS). Note that the number of frames over which transmission is stopped is operator configurable (Netspan “carrier Sense backoff Frames”) from a minimum value of 2 frames and the default value is typically 4-5frames (20-25ms), but can be much longer. Transmissions continue after the channel is clear (i.e. the other system’s transmissions stop), as the Base Station repeats the detection measurement at regular intervals and adjusts the contention slots accordingly. 2.2 Threshold detection to determine occupancy 2.2.1 Describe how your system determines if another system is using the spectrum. At what detection level – relative to 0 dBi receive antenna gain (busy channel threshold) does the device determine if another system is operating on the spectrum? The base stations transceiver design includes additional circuitry for performing an in-band interference measurement. This makes measurements of the co-channe…

Text truncated - open the document above for the full version.

FCC ID:PIDUMAX3600 Technical Note WiMAX 3650 MHz uMAXe / AirGrid 3.65GHz Connecting the World with Wireless Access Solutions Revision Record: WiMAX 3650MHz Pub/ Rev Date Update Description 01 May 15 2011 Publication No. 28080512-01  Copyright by Airspan Networks LTD., 2003. All rights reserved worldwide. The information contained in this document is proprietary and is subject to all relevant copyright, patent and other laws protecting intellectual property, as well as any specific agreement protecting Airspan Networks LTD. rights in the aforesaid information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third parties, in whole or in part, without the express, prior, written permission of Airspan Networks LTD. In addition, any use of this document or the information contained herein for any purposes other than those for which it was disclosed is strictly forbidden. Airspan Networks LTD. reserves the right, without prior notice or liability, to make changes in equipment design or specifications. Information supplied by Airspan Networks LTD. is believed to be accurate and reliable. However, no responsibility is assumed by Airspan Networks LTD. for the use thereof nor for the rights of third parties which may be effected in any way by the use thereof. Any representation(s) in this document concerning performance of Airspan Networks LTD. product(s) are for informational purposes only and are not warranties of future performance, either express or implied. Airspan Networks LTD. standard limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks LTD. in relation thereto. This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation thereto unless specifically undertaken in Airspan Networks LTD. sales contract or order confirmation. Information contained herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error, please notify Airspan Networks LTD. All specifications are subject to change without prior notice. uMAX 3.65GHz Technical Note 28080511-01 Airspan Networks Ltd. 3 1. Scope This document provides a description of the WiMAX 3650 MHz product. 2. uMAXe (Base Station) A Base station radio, uMAXe / AirGrid 3.65GHz TDD Ext, is part of a WiMAX broadband fixed cellular wireless access system. The system provides a radio link between an end-user (a subscriber) and a network to give high-speed data access. The uMAXe’s transceiver/receiver (up to 64 QAM modulation, data rate up to 46) uses OFDMA and operating in TDD duplexing mode, equipped with a 2 dBi external antenna. The maximum RF output power (not including antenna gain) is 36.08 dBm and it can be reduced by software. The uMAXe / AirGrid is installed outdoors and typically is mounted on a pole. The Subscriber transmits and receives traffic to and from the base station respectively. The transceiver provides subscribers with "always-on" Internet, high speed data only, or data and voice (VoIP) services and is configured with a unique base station reference number, preventing the ProST from relocating to another subscriber premises without authorization. . 2.1. EUT (uMAXe) test configuration The EUT ports and lines description is given in the table below. Port type Port description Connector type QuantityCable length (m) Indoor /outdoor Connected to DC 48 VDC DC Connector 1 100 Outdoor DC P.S Data Ethernet RJ 45 1 100 Outdoor Eth. Switch

5 4 . 5 ( 2 . 1 5 ) 25 (0.98) 26.5 (1.04) SMA(F) CONNECTOR 1 2 . 2 ( 0 . 4 8 ) 1 2 . 4 ( 0 . 4 9 ) 14.55 (0.57) MOUNTING VIA 2 HOLES 3.2 THRO', C'BORE 6 X 3.15 DEEP 2 PLACES 2.4 (0.09) 1.9 (0.07) 1.2 X 1.2 CHAMFER BOTH SIDES EUROPEAN ANTENNAS LTD. LAMBDA HOUSE, CHEVELEY NEWMARKET, SUFFOLK, CB8 9RG, UNITED KINGDOM Tel: +44 (0)1638 731888 Fax: +44 (0)1638 731999 E-Mail: [email protected] Website: www.european-antennas.co.uk European Antennas Ltd. has a policy of continuous developement and therefore stress that the data contained on this sheet should be used for guidance only. BLADE ANTENNA DIMENSIONS: mm (inches) GA:Issued: TOP VIEW ISOMETRIC VIEW 1040-1 190203 M FRONT VIEW SIDE VIEW FREQUENCY: 3.6 - 4.0 GHz2 dBi POLARISATION: Linear (Vertical) BEAMW IDTH: 360° (Az.) x 70 (El.) Approx. CROSS POLAR: 20 dB Approx.1.5:1 Typ, 2:1 Band Edges POW ER RATING: 4 W FRONT TO BACK: N/A TEMPERATURE: –20° to +50°C20g / 0.7 oz Matt Black (Blade and top face only) W IND LOADING: 0.22 Kg / 0.49 lbs @ 100 mph MODEL: SBA-3800-D1/1040 FINISH: VSWR: MASS: GAIN:

Antenna Data Sheet MT-403017/N Page 1 of 2 MT-403017/N 3.3-3.8GHz 10.5dBi Omni Directional Antenna Specifications MTI PART NUMBER MT – 403017/N ELECTRICAL REGULATORT COMPLIANCE RoHS, CE 0682 FREQUENCY RANGE 3.3-3.8GHz PEAK GAIN 10.5 ± 0.5 dBi VSWR 2.5:1 (typ) @ 3.3-3.4GHz 1.7:1 (max) @ 3.4-3.8GHz AZIMUTH BEAMWIDTH Omni POLARIZATION Linear Vertical AZIMUTH RIPPLE ± 1.9 dB ELEVATION BEAMWIDTH 4 º (typ) E – PLANE SIDELOBE LEVEL -9 dB (typ) INPUT IMPEDANCE 50 (ohm) INPUT POWER 4W (max) LIGHTNING PROTECTION DC Grounded MECHANICAL DIMENSIONS – DIAMETER X HEIGHT 75mm X 1150mm (max) WEIGHT 2.5 kg (max) CONNECTOR N-Type Female RADOME Plastic, UV Resistance BASE PLATE Aluminum with chemical conversion coating OUTLINE DRAWING See page 2 MOUNTING KIT Mounted to Pole Ø 1.5" - Ø 3" by the means of 2 clamps ENVIRONMENTAL TEST STANDARD DURATION TEMPERTURE NOTES LOW TEMPERATURE IEC 68-2-1 72 h -55°C - HIGH TEMPERATURE IEC 68-2-2 72 h +71°C - TEMP. CYCLING IEC 68-2-14 1 h -45°C +70°C 3 Cycles VIBRATION IEC 60721-3-4 30 min/axis - Random 4M3 SHOCK MECHANICAL IEC 60721-3-4 - - 4M3 HUMIDITY ETSI EN300-2-4 T4.1E 144 h - 95% WATER TIGHTNESS IEC 529 - - IP67 SOLAR RADIATION ASTAM G53 1000 h - - FLAMMABILITY UL 94 - - Class HB SALT SPRAY IEC 68-2-11 Ka 500 h - - ICE AND SNOW - - - 25mm Radial WIND SPEED SURVIVAL OPERATION - - - - - 220 Km/h 160 Km/h WIND LOAD SUR. FRONT TH. SIDE THRUST - - - - - - 6.5kg 6.5 kg Antenna Data Sheet MT-403017/N Page 2 of 2 MTI Wireless Edge is certified according to ISO 9001 and ISO 14001. WAIVER! While the information contained in this document has been carefully compiled to the best of our present knowledge, it is not intended as presentation or warranty of any kind on our part regarding the fitness of the products concerned for any particular use or purpose and neither shall any statement contained herein be construed as a recommendation to infringe any industrial property rights or as a license to use any such rights. The fitness of each product for any particular purpose must be checked beforehand with our specialists. MTI Wireless Edge Ltd. 11 Hamelacha St. Afek Industrial Park Rosh Ha'ayin 48091, Israel Tel: +972-3-9008900 Fax: +972-3-9008901 www.mtiwe.com Document No: Issued: MT-403017/N 1/1/2007 Uncontrolled Copy 3.3-3.8GHz 10.5dBi Omni Directional Antenna Azimuth Radiation Pattern Midband Freq. 3.5 GHz Elevation Radiation Pattern Midband Freq. 3.5 GHz Dimensions [mm] Existing Antenna Versions

Product Data SheetSSPX310M 3300-3800MHz Manual Tilt Panel Antenna Electrical Specifications Frequency Range3300 - 3800 / 3300 - 3800 MHz Gain18 dBi Return Loss> 15 dB PolarizationDual Slant ± 45° Horizontal Beamwidth65° Vertical Beamwidth6.5° with nullfill Electrical Downtilt0° - 10° independently adjustable Upper Sidelobe Level< -18 dB Front to Back Ratio> 30 dB Isolation Between Ports> 30 dB Power Rating150W Impedance50 ohm Lightning ProtectionDC grounded Connector TypeN-Type female Connector LocationBottom Mechanical Specifications Antenna Dimensions750x300x115 mm Packed Dimensions890x330x200 mm Weight10 kg Radome MaterialUV Stabilised ASA Maximum Environmental Ratings Humidity95% RH @ +30°C Lateral Loading (Front)0.32 kN @ 160 km/h Lateral Loading (Rear)0.34 kN @ 160 km/h Rain140mm per hour Rated Wind Velocity200 km/h Temperature-40°C to +70°C Mounting Options Fixed ClampsF-042-GL-E Adjustable ClampsT-095-GL-E AzimuthElevation Last Updated: 27-03-2009

Company name: Airspan Networks Inc. Address: 777 Yamato Road Suite 310 Boca Raton FL 33431 USA FCC ID:PIDUMAX3600 “uMAXe/AirGrid 3.65 GHz” statement DC voltages/currents supplied to elements of the final radio frequency amplifying device for normal operation over the power range: 28 V/ 1.5 A. Name of authorized person: Zion Levy Position: Compliances & Integration Engineer Date:May 29, 2011 Airspan Networks Inc. Tel: +1 561 893-8670; Fax: +1 561 893-8671, www.airspan.com

Airspan Networks Inc. FCC ID:PIDUMAX3600 Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The transceiver is classified as fixed, the calculation was done to confirm a safe distance. Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 for 1500 -100000 MHz frequency range. The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the transmitted power, which is equal to the peak transmitter output power plus maximum antenna gain. The maximum equivalent isotropically radiated power EIRP is P T = 36.08 dBm +2 dBi = 38.08 dBm = 6427 mW, where 38.08 dBm is the EUT maximum output power, 2 dBi – antenna gain. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {6427 / 12.56}  23 cm.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 103 Report ID: AIRRAD_FCC.21823.doc Date of Issue: 5/2/2011 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 PART 90 subpart Z FOR: Airspan Networks Inc. WiMAX base station Model: uMAXe/AirGrid 3.65 GHz TDD Ext This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: AIRRAD_FCC.21823.doc Date of Issue: 5/2/2011 Page 2 of 103 Table of contents 1 Applicant information .........................................................................................................................................................3 2 Equipment under test attributes ........................................................................................................................................3 3 Manufacturer information ..................................................................................................................................................3 4 Test details ........................................................................................................................................................................3 5 Tests summary ..................................................................................................................................................................4 6 EUT description .................................................................................................................................................................5 6.1 General information ...........................................................................................................................................................5 6.2 Ports and lines ...................................................................................................................................................................5 6.3 Support and test equipment ..............................................................................................................................................5 6.4 Operating frequencies .......................................................................................................................................................5 6.5 Changes made in EUT ......................................................................................................................................................5 6.6 Test configuration ..............................................................................................................................................................6 6.7 Transmitter characteristics ................................................................................................................................................7 7 Transmitter tests according to 47CFR part 90 requirements............................................................................................8 7.1 Peak output power and EIRP power density test .............................................................................................................8 7.2 Occupied bandwidth test .......................................................................................................................................…
