PINHA-T001Remote Keyless Entry System

HYUNDAI AUTONET Co., Ltd. San 136-1, Ami-ri, Bubal-eub, Ichon-si, Kyounki-do, 467-701, KOREA Remote Keyless Entry (HA-T001, HA-B001) - INDEX - - Description of Transmitter and BCM - Block diagram from Transmitter and BCM - An outline - Circuit diagram from Transmitter and BCM 1. How to use HA-T001, HA-B001 - HA-T001 & HA-B001 is Remote Keyless System. - This unit controll door lock/unlock with wireless. - This unit consist of Transmitter(HA-T001) and Receiver(HA-B001) - Every press the button, door lock and unlock is repeated. 2. Introduction of Transmitter(HA-T001) - Transmitter has one button - Transmitter use the battery - Freqency is 433.92MHz - Modulation item is SAW Resonator - Transmitter use Rolling code algorithm 3. Introduction of BCM(HA-B001) - Receiver control car door - Receiver has RF module(433.92MHz) - RF module use super-heterodyne circuit - Receiver control door relay ,hazard relay - Receiver has eeprom that save code 4. Regulatory Information - THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES - Operation is subject to the following two conditions; (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Chan ges and modifications not expressly approved by the party respo for compliance could void the user's authority to operate the equipmen An outline of Transmitter and BCM 1. PRIMARY FUNTION - Remote door lock/unlock - LED turn on ( When button is pushed ) - Operating distance : 30 m over - Id input(setting mode) 2. ELECTRICAL CHARACTERISTICS 3. DESCRIPTION MODE 1) Mode B+ KEYLESS ACC IG SETTING 2) Id input(Setting Mode) When Setting Mode, once the button push, Operating frequency Power10mW under- 433.92㎒ Max 10mA Sensitivity--117dBm(typical) model nameHA-T001HA-B001 ETCAM modulationSuper-heterodyne Operating temperature -20 ~ +55 °C-20 ~ +55 °C Consumption current OFF Normal Mode ON Description of Transmitter and BCM Operating voltage3 VDC10 ~ 16 VDC TRANSMITTERBCM use equipment ID INPUT (Setting Mode) ON - - OFF OFF Mode -OFF Product ; Front ViewBottom View PCB Top ViewPCB Bottom View A Picture of Transmitter Product ; TOP PATTERN BOTTOM PATTERN PCB Pattern of a Transmitter

A. TRANSMITTER(HA-T001) B. BCM(HA-B001) Block diagram from Transmitter and BCM CPU EEPROM (MEMORY) DOOR LOCK DOOR UNLOCK

(Contact Person/Title) HYUNDAI AUTONET Co., Ltd. San 136-1, Ami-ri, Bubal-eup, Ichon-si, Kyoungki-do, 467-701, Korea Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, HYUNDAI AUTONET Co., Ltd. requests confidentiality for the following products: FCC ID Number ProductTitle / Model PINHA-T001 Remote Keyless Entry System/HA-T001 For the product stated above, we request that the following information be held confidential: 1) Schematic diagrams 2) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain HYUNDAI AUTONET Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Kelvin Nam / Senior Research Enginee

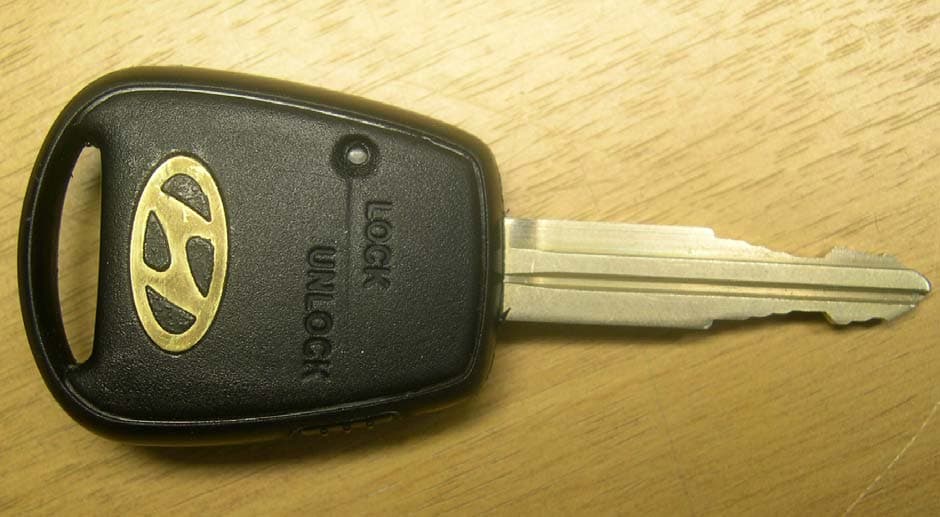

SK TECH CO., LTD. Page 1 of 1 SKTTRT-061201-0026 FCC ID: PINHA-T001 External Photographs of EUT <Photograph 1: Front View> <Photograph 2: Rear View>

ID Label Location & Sample LABEL LOCATION: Label will be printed on the REAR of the product LABEL Drawing: TRANSMITTER DC 3 V FCC ID : PINHA-T001 S/N HYUNDAI AUTONET CO., LTD. MADE IN KOREA

SK TECH CO., LTD. Page 1 of 3 SKTTRT-061201-026 FCC ID: PINHA-T001 Internal Photographs of EUT <Photograph 1: Cover removed> <Photograph 2: RF MODULE Front View> SK TECH CO., LTD. Page 2 of 3 SKTTRT-061201-026 FCC ID: PINHA-T001 <Photograph 3: RF MODULE Rear View > <Photograph 4: RF MODULE Internal View > SK TECH CO., LTD. Page 3 of 3 SKTTRT-061201-026 FCC ID: PINHA-T001 <Photograph 5:Board Front View > <Photograph 6: Board Rear View >

Operational Description The product, HA-T001, is a remote transmitter. When the user presses a button on it, the transmitter transmits activation codes just once. The transmission time is about 385 ms. The product is powered from a 3V Lithium battery. 1) FUNCTIONS - Remote door lock/unlock - LED turn on (When button is pushed) - Operating distance: 30 m over - Id input (setting mode) 2) DATA FRAME 3) TRANSMISSION SPECIFICATION - BAUD RATE: 1kbps - CODING METHOD: MANCHESTER - TRANSMISSION BIT COUNT: 2 FRAME = 380BIT - TRANSMISSION TIME: 380ms±15%

SK TECH CO., LTD. Page 1 of 13 0 Report No. : SKTTRT-061201-026 FCC ID: PINHA-T001 Certificate of Compliance Test Report No.: SKTTRT-061201-026 KOLAS NO.: KT191 Applicant: HYUNDAI AUTONET Co., Ltd Applicant Address: San 136-1, Ami-ri, Bubal-eup, Ichon-si, Kyoungki-do, 467-701, Korea Manufacturer: ALPS ELECTRIC KOREA CO., LTD. Manufacturer Address: 970-1, JANGDUK-DONG, GWANGSAN-GU, GWANGJU, KOREA Device Under Test: Remote Keyless Entry System FCC ID: PINHA-T001 Model No.: HA-T001 Receipt No.: SKTEU06-0716 Date of receipt: November 21, 2006 Date of Issue: December 01, 2006 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4 / 2003 Test Specification: 47CFR, Part 15 Subpart C Equipment Class: DSC - Part 15 Security/Remote Control Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by : Seong-Baek, Ko 2006. 12. 01 Approved by : Jong-Soo, Yoon 2006. 12. 01 Signature Date Signature Date Other Aspects: Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ z The above test certificate is the accredited test results by Korea Laboratory Accreditation Scheme, which signed the ILAC-MRA. z This test report is not permitted to copy partly without our permission. z This test result is dependent on only equipment to be used. z This test result is based on a single evaluation of one sample of the above mentioned. z We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. SK TECH CO., LTD. Page 2 of 13 0 Report No. : SKTTRT-061201-026 FCC ID: PINHA-T001 >> CONTENTS << 1. GENERAL .................................................................................................3 2. TEST SITE ................................................................................................3 2.1 Location ................................................................................................. 3 2.2 List of Test and Measurement Instruments ............................................... 4 2.3 Test Date ................................................................................................ 4 2.4 Test Environment .................................................................................... 4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST ...................................5 3.1 Rating and Physical Characteristics ........................................................... 5 3.2 Equipment Modifications ······························································ 5 3.3 Submitted Documents ································································· 5 4. MEASUREMENT CONDITIONS .................................................................6 4.1 Description of test configuration .............................................................. 6 4.2 List of Peripherals .................................................................................... 6 4.3 Uncertainty ............................................................................................. 6 5. TEST AND MEASUREMENTS ....................................................................7 5.1 ANTENNA REQUIREMENT ................................................................7 5.1.1 Regulation ........................................................................................ 7 5.1.2 Result .............................................................................................. 7 5.2 OCCUPIED BANDWIDTH / Dwell Time ..............................................8 5.2.1 Regulation ........................................................................................ 8 5.2.2 Test Procedure .................................................................................. 8 5.2.3 Test Results ...................................................................................... 9 5.3 RADIATED EMISSIONS ....................................................................11 5.3.1 Regulation ...................................................................................... 11 5.3.2 Test Procedure ................................................................................ 11 5.3.3 Calculation of Average Correction Factor ............................................ 12 5.3.4 Test Results...................................................................................... 13 SK TECH CO., LTD. Page 3 of 13 0 Report No. : SKTTRT-061201-026 FCC ID: PINHA-T001 1. GENERAL These tests were performed using the test procedure outlined in ANSI C63.4, 2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.231 for Remote Control / Security Device Transceiver. The EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards. We attest to the accuracy of data. All measurements reported herein were performed by SK TECH CO., LTD. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. TEST SITE SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea This test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is recognized as a Conformity Assessment Body(CAB) for CAB's Designation Number: KR0007 by FCC, is accredited by NVLAP for NVLAP Lab. Code: 200220-0, DATech for DAR-Registration No.: DAT-P-076/97-01 and KOLAS for Accreditation No. : KT191. SK TECH CO., LTD. Page 4 of 13 0 Report No. : SKTTRT-061201-026 FCC ID: PINHA-T001 2.2 List of Test and Measurement Instruments Description Manufacturer Model # Serial # Spectrum Analyzer Agilent E4405B US40520856 EMC Spectrum Analyzer Agilent E7405A US40240203 EMI Test Receiver Rohde&Schwarz ESIB40 100277 Pre-amplifier HP 8447F 31…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 1 SKTTRT-061201-026 FCC ID: PINHA-T001 Test set up photos <Radiated Emissions - Front View> <Radiated Emissions - Rear View>
