PINPA715AMAB1Car Audio Bluetooth

Hyundai MOBIS Co., Ltd.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jun 08, 2009
Application Purpose: Original Equipment
Date of Application: Jun 08, 2009
Equipment Note: Car Audio Bluetooth
Frequency Range: 2402.00000000 - 2480.00000000
Company: Hyundai MOBIS Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

External Photos

↗

ID Label/Location Info

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC ID: PINPA715AMAB1 / IC: 4018A-PA715M1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 1/1 ATTACHMENT E. - User Manual - 31 Knowing your vehicle 1. FM/AM Selection Button 2. CD/AUX Selection Button 3. Power ON/OFF Button & Volume Control Knob 4. Automatic Channel Selection Button 5. SCAN Button 6. SETUP Button & Clock Control Button 7. TUNE Knob & Sound Quality Control Knob 8. Preset Button RADIO, SET UP, VOLUME CONTROL(PA710/PA715 AMAB, USA) ❈ There will be no logo if the Bluetooth feature is not supported. Knowing your vehicle 23 1. FM/AM Selection Button Turns to FM or AM mode, and toggles in the order of FM1 ➟ FM2 ➟ AM ➟ FM1... when the button is pressed each time. 2. CD/AUX Selection Button If there is a CD in the CDP DECK it turns to CD mode. If a device is connected to AUX, then it toggles in the order of CD ➟ AUX ➟CD... when the button is pressed each time. (It will not turn to AUX if there is no auxiliary device connected.) 3. Power ON/OFF Button & Volume Control Knob Turns on/off the set when the IGNITION SWITCH is on ACC or ON. If the button is turned to the right, it increases the vol- ume and left, decreases the volume. 4. Automatic Channel Selection Button • When the [SEEK] button is pressed, it reduces the band frequency by 200kHz to automatically select a chan- nel. Stops at the previous frequency if no channel is found. • When the [SEEK] button is pressed, it increases the band frequency by 200kHz to automatically select a chan- nel. Stops at the previous frequency if no channel is found. 5. SCAN Button If this button is pressed, the frequencies will become increased and receive the corresponding broadcasts. This function will play the frequencies for 5 seconds (SIRIUS MODE:10 seconds) each and find other broadcasts as the frequency increases. Press the button again when desiring to continue listening to the cur- rently playing broadcast. 6. SETUP Button & Clock Control Button Press this button to turn to the SIRIUS option and the other adjustment mode. If no action is taken for 5 seconds after pressing the button, it will return to the play mode. (After entering SETUP mode, move between items using the left, right and PUSH functions of the [TUNE] knob.) ■ PA710 AMAB is an internal AMP MODEL with Bluetooth feature. The setup changes in the order of CLOCK ↔ SAT↔ SCROLL↔ P.BASS ↔ RETURN ↔ TEMP↔PHONE ↔ SDVC ↔ CLOCK... ■ PA710 AMA is an internal AMP MODEL without Bluetooth feature. The setup changes in the order of CLOCK ↔ SAT↔ SCROLL↔ P.BASS ↔ TEMP↔ SDVC ↔ CLOCK... ■ PA715 AMAB is an external AMP MODEL with Bluetooth feature. The setup changes in the order of CLOCK ↔ SAT↔ SCROLL↔ TEMP↔ PHONE ↔ SDVC ↔ CLOCK... ■ PA715 AMA is an external AMP MODEL without Bluetooth feature. The setup changes in the order of CLOCK ↔ SAT↔ SCROLL↔ RETURN ↔ TEMP↔ SDVC ↔ CLOCK... 33 Knowing your vehicle • Adjusting the Clock Press the [SETUP] button. Use the vol- ume controller to adjust the clock in the following order: CLOCK ➟ENTER ➟ hour or minute. Adjust the hour and press the [ENTER] button to set. Use the same method to adjust the minute and press the [ENTER] button to complete and exit from clock adjustment mode. Pressing the [SETUP] button while in POWER OFF screen will allow the user to make immediately adjustments to the clock. • SCROLL This function is used to display charac- ters longer than the LCD text display and can be turned ON/OFF through the vol- ume controller. • RETURN This function displays the previous MODE screen. • TEMP This function is used to change the tem- perature display setting. • SDVC This function automatically adjusts the volume level according to the speed of the vehicle and can be turned ON/OFF through the volume controller. • POWER BASS(P.BASS) Based on psychoacoustic technology, this technology overcomes BASS limitations which may occur due to the limited num- ber and size of speakers to offer dynamic BASS sound quality. It is possible to adjust in 3 levels of LOW/MID/HIGH. OFF ➟LOW ➟MID ➟HIGH Modes: CD/FM/AUX/IPOD/USB (exclud- ing AM Mode) 7. TUNE Knob & Sound Quality Control Knob Rotate the knob clockwise by one notch to increase frequency by 200kHz from current frequency. Rotate the knob counterclockwise by one notch to decrease frequency by 200kHz from current frequency. • Pressing the button changes the BASS, MIDDLE, TREBLE, FADER and BAL- ANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise. (Sound Quality Control will operate in FM, AM, CD, AUX, USB, iPod and SAT modes.) • BASS Control To increase the BASS, rotate the knob clockwise, while to decrease the BASS, rotate the knob counterclockwise. • MIDDLE Control To increase the MIDDLE, rotate the knob clockwise, while to decrease the MID- DLE, rotate the knob counterclockwise. • TREBLE Control To increase the TREBLE, rotate the knob clockwise, while to decrease the TRE- BLE, rotate the knob counterclockwise. • FADER Control Turn the control knob clockwise to emphasize rear speaker sound(front speaker sound will be attenuated). When the control knob is turned counterclock- wise, front speaker sound will be empha- sized(rear speaker sound will be attenu- ated). Knowing your vehicle 43 • BALANCE Control Rotate the knob clockwise to emphasize right speaker sound(left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will be emphasized(right speaker sound will be attenuated). 8. Preset Button Push [1]~[6] buttons less than 0.8 second to play the channel saved in each button. Push Preset button for 0.8 second or longer to save current channel to the respective button with a beep. 35 Knowing your vehicle 1. CD Loading Slot 2. CD Eject Button 3. CD/AUX Selection Button 4. Automatic Track Selection Button 5. REPEAT Button 6. RANDOM Play Button 7. CD …

Text truncated - open the document above for the full version.

Attestation Statements

Hyundai Autonet Co., Ltd. Date: MAY 21 , 2009 ATTESTATION STATEMENT FCC ID : PINPA715AMAB1 This device contains an embedded Bluetooth device that Hyundai Autonet Co., Ltd. confirms compliance with the following Part 15 regulations. 15.247(a)(1) the hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Yong-Bin Kim Hyundai Autonet Co., Ltd.

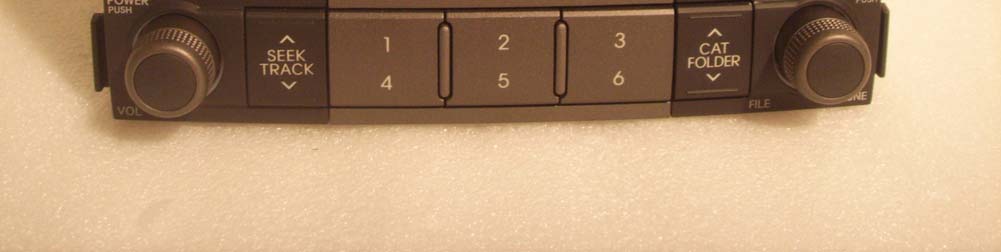

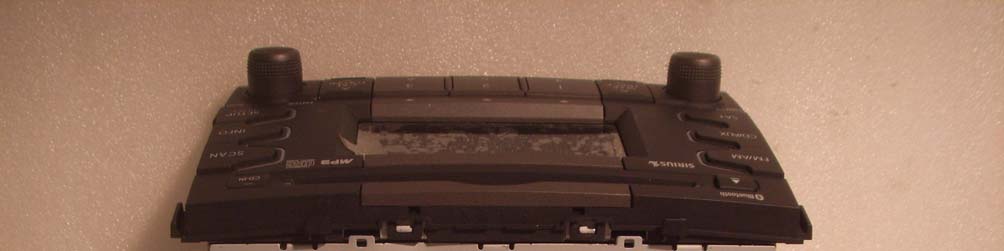

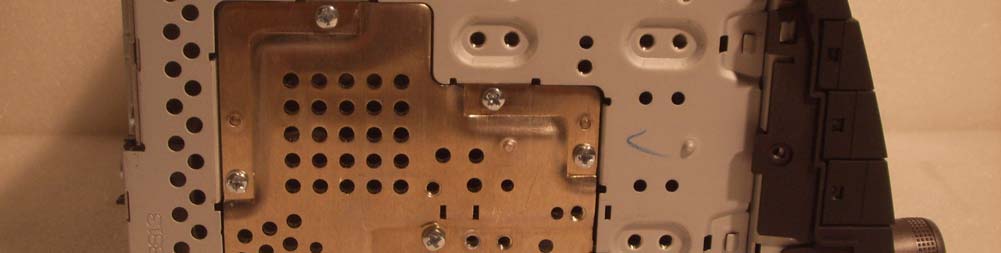

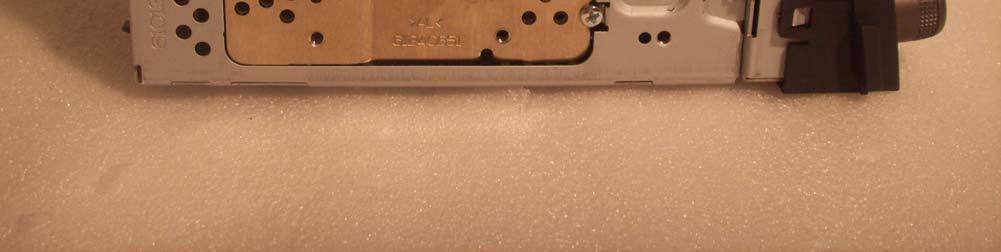

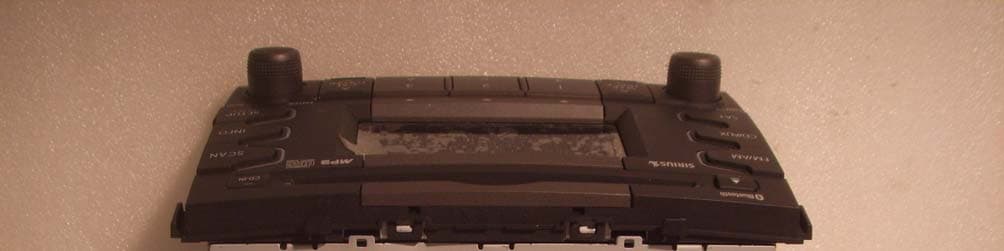

External Photos

Internal Photos

FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 1/17 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 2/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 3/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 4/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 5/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 6/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 7/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 8/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 9/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 10/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 11/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 12/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 13/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 14/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 15/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 16/17 FCC ID: PINPA715AMAB1 / IC: 4018A-PA715AM1 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-RF09-0522 17/17

RF Exposure Info

MPE CALCULATION For HYUNDAI AUTONET Co., Ltd – ; Model: PA715AMAB FCC ID: PINPA 715AMAB1 RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 / 47 CFR §2.1091 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100,000 MHz Power Density Limit: 1.0mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2402 MHz): Power = 0. 31 dBm, Antenna Gain = -6.65 dBi, Prediction distance 20 cm S = 0.00 005 mW/cm 2 Result The Above Result had shown that Device complied with 1.0 mW/cm 2 Power density requirement for distance of 20 cm. Completed By : Hyo Sun Kwak Date : May 21, 2009

Test Report

HCT PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-RF09-0522 Test Dates: May 21, 2009 EUT Type: CAR AUDIO FCC ID: PINPA715AMAB1 IC: 4018A-PA715AM1 Page 2 of 37 Table of Contents 1. GENERAL INFORMATION..................................................................................................................3 2. EUT DESCRIPTION.............................................................................................................................3 3. TEST METHODOLOGY.......................................................................................................................4 3.1 EUT CONFIGURATION................................................................................................................4 3.2 EUT EXERCISE............................................................................................................................4 3.3 GENERAL TEST PROCEDURES..................................................................................................4 3.4 DESCRIPTION OF TEST MODES.................................................................................................4 3.5 STANDARD..................................................................................................................................5 4. INSTRUMENT CALIBRATION............................................................................................................6 5. FACILITIES AND ACCREDITATIONS................................................................................................6 5.1 FACILITIES...................................................................................................................................6 5.2 EQUIPMENT.................................................................................................................................6 6. ANTENNA REQUIREMENTS..............................................................................................................6 7. FCC PART 15.247 REQUIREMENTS..................................................................................................7 7.1 PEAK POWER..............................................................................................................................7 7.2 BAND EDGES MEASUREMENT................................................................................................ 11 7.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW)........................................... 13 7.4 NUMBER OF HOPPING FREQUENCY...................................................................................... 18 7.5 TIME OF OCCUPANCY (DWELL TIME)..................................................................................... 20 7.6 SPURIOUS EMISSIONS............................................................................................................ 23 7.6.1 Conducted Spurious Measurement.................................................................................... 23 7.6.2 Radiated Spurious Emissions............................................................................................ 27 7.6.3 Receiver Spurious Emissions............................................................................................ 35 7.6.4 Radiated Restricted Band Edge Measurements................................................................. 36 8. LIST OF TEST EQUIPMENT........................................................................................................... 37 HCT PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-RF09-0522 Test Dates: May 21, 2009 EUT Type: CAR AUDIO FCC ID: PINPA715AMAB1 IC: 4018A-PA715AM1 Page 3 of 37 1. GENERAL INFORMATION Applicant: Hyundai Autonet Co., Ltd. 723, MUNDEOK-RI, MUNBAEK-MYEON, JINCHEON-GUN, CHUNGCHEONGBUK-DO, 365-862, KOREA FCC ID: PINPA715AMAB1 IC: 4018A-PA715AM1 EUT: CAR AUDIO Model: FCC: PA715AMAB, 961402K300XX0Z, 961502K300XX0Z, 961402K305, 961502K305 IC: PA715AM Date of Test: May 21, 2009 Contact person: Name: Yong Bin Kim Phone #: +82-31-639-1589 Fax #: +82-31-636-4138 Place of Tests: HCT Co., Ltd. Icheon, Kyounki-Do, Korea (IC Recognition No. : 5944A-1) 2. EUT DESCRIPTION Product CAR AUDIO FCC PA715AMAB, 961402K300XX0Z, 961502K300XX0Z, 961402K305, 961502K305 Model Name IC PA715AM Power Supply DC 12 V Frequency Range 2402 ~ 2480 MHz Transmit Power 0.31 dBm(1.07 mW) Modulation Type GFSK(Normal) Modulation Technique FHSS Number of Channels 79 Channels Antenna Specification Manufacturer: Auto-Electronic Antenna type: CHIP Antenna Peak Gain : -6.65 dBi HCT PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-RF09-0522 Test Dates: May 21, 2009 EUT Type: CAR AUDIO FCC ID: PINPA715AMAB1 IC: 4018A-PA715AM1 Page 4 of 37 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz(ANSI C63.4-2003) and FCC Public Notice DA 00-705 dated March 30, 2000 entitled “Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems” were used in the measurement of the Hyundai Autonet Co., Ltd. CAR AUDIO FCC ID: PINPA715AMAB1, IC: 4018A-PA715AM1 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Sect…

Text truncated - open the document above for the full version.

Test Setup Photos
