Quick Start Guide P10000250 Device overview 1 Microphone 2 Power Key 3 Volume Key 4 SIM / SD Card Slot 5 Light Sensor 6 LED Indicator 7 Front Camera 8 Screen 9 Speaker 10 Rear Camera 11 USB Type C 12 Headset Connector 123 8 9 10 9 5 6 7 12 11 4 Insert/Remove the Nano SIM and microSD Card 1. Using ejector tool to open the SIM slot.2. Insert/remove the SIM and microSD card. Notes: 1. Your device only supports Nano SIM card (included). To avoid damage to your device, do not attempt to insert any other SIM types. 2. The microSD Cards are sold separately. Charging Before first use, the battery should be charged completely. 1.Insert the USB Type C charging cable into the USB charger port. 2. Plug the charging head into the power outlet. 3.Remove charging cable from the charger port when charging is complete. Note: Please use the charging cable that came with the device. Using other charging cables may damage the battery or cause other hazards. Battery Device back cover and battery are non-removable. Attempting to remove either one it will invalidate the device warranty. Power on your device Long press the Power key until the device powers on. Unlock device screen by using Swipe, PIN, Password or Pattern if necessary. After unlocking the device, the Home screen will be displayed. Power off your device Long press the Power key until options popup and select Power off. Home Screen You can view and find all Apps, folders, and widgets on the Home screen. Status Bar Check status icon, notification icon, and time and battery level on the status bar. Airplane mode Alarm is set Battery saver on Charging battery Battery full New message Status icons Bluetooth enabled Wi-Fi connected Full network signal Roaming Connected to 4G LTE Connected to 3G Editing Home screen You can replace any installed app on your Home screen for easy access. Add an App shortcut: 1. From the App list, choose the App that you want to move and hold it, drag the icon to the top of the screen then the Home screen should open. 2. Drag the icon to the location you want to place the App and drop it. Remove an App shortcut: Tap and hold the App icon you want to remove, drag the app to the X Remove on the top of the screen. App List To display App list, swipe up from the Home screen. Screen Lock There are several options to help you protect your device privacy: Swipe up from the Home screen, tap Settings > Security > Screen lock to enter the options list to choose: • None: Select to disable screen lock. • Swipe: Select to enable slide unlock screen. • Pattern: Select to draw a pattern to unlock screen. • PIN: Select to set up numeric PIN to unlock screen. • Password: Select to setup a password to unlock screen. Browsing the Internet Chrome is a simple and secure tool to browse the Internet. Tap Chrome on the Home screen, and enter a term in the search bar or web address in the address field, then tap search icon. Set Up Sound 1. Swipe up from the Home screen, tap Settings > Sound. 2. Position the slider to adjust volume for Media, Alarm, or Notification separately. 3. Set sound for Notification and Alarm separately. Wi-Fi Connection 1. Access the Internet through Wi-Fi network, go to Settings > Network & Internet > Wi-Fi. 2. Tap switch on / off to activate it, available network list will display. 3. Select the network that you want to connect to. Some networks are secure, you may need to enter the password to be able to connect. Bluetooth Connect your device with a Bluetooth headset or other Bluetooth device. 1. Go to Settings > Connected devices > Connection preferences > Bluetooth. 2. Tap to turn on Bluetooth. View files on microSD card/internal storage Manage and view files that are saved on your device, swipe up from Home screen to open the applications list, tap Files . Note: MicroSD card is sold separately. Camera Using Camera app to take photos, selfies and video. Taking pictures 1. Tap Camera on the Home screen, tap screen to adjust focus for the different subject. 2. When ready to take picture, tap . L egal Approved firmware versions This device will only operate with firmware versions that have been approved for use by operator and the device manufacturer. If unauthorized firmware is placed on the device it will not function. Information about safeguarding handsets The o perator encourages customers to take appropri ate measures to secure their handsets and invites them to take advantage of the features available on this handset to help secure it from theft and/or other unauthorized access and use. This handset has a locking function (e.g., user-defined codes or patterns) that can serve as a first line of defense against unauthorized use or access to stored information. Preloaded security applications that allow customers to track or locate misplaced devices can be found on several operator devices. Lost or stolen devices should be immediately reported to your operator so that proper measures can be taken to protect accounts. Taking video 1.Tap Camera on the Home screen, tap Video icon to enter video mode and start recording. 2. Tap Pause to temporarily stop and Resume to continue recording. 3.When finished recording, tap to exit video mode. Additional information Use may require quali fying service, or access to a Wi-Fi connection. Device and screen images simulated. Cov erage not available in some areas. See Terms and Conditions (including arbitra tion provision) at operator web link, for rate plan information, charges for features and services, and restrictions and details. Safety General Guidelines •Electrical equipment may be susceptible to electromagnetic interference. Position the device away from electronic equipment to avoid potential interference. •Consult a medical physician prior to using the device near any medical devices which may be affected, such as hearing aids and pacemakers. •Do not use your device where there are explosive gases or explosive products being processed. •Aftermarket accessories may affect dev…

Text truncated - open the document above for the full version.

Scanned with CamScanner

Scanned with CamScanner

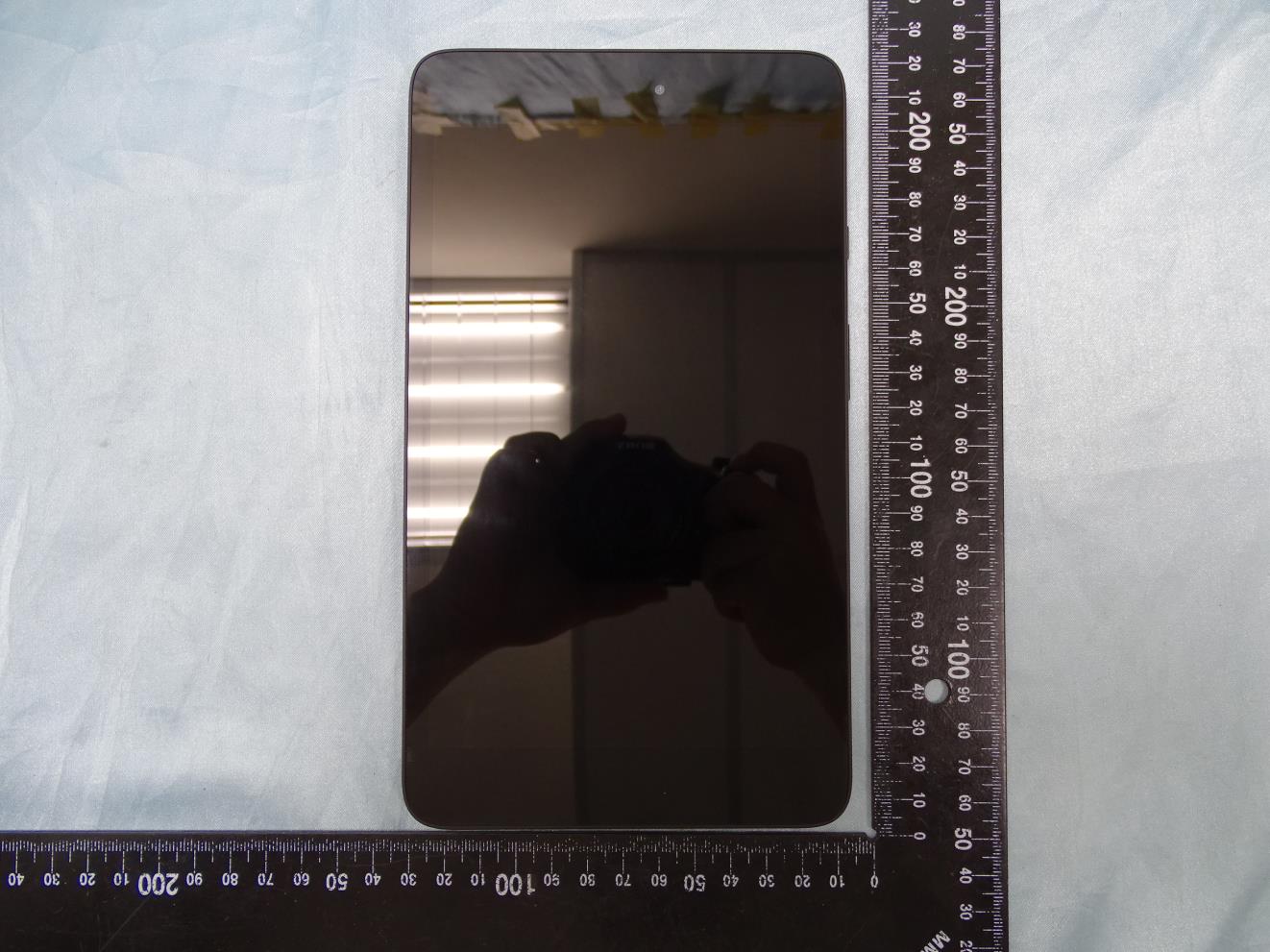

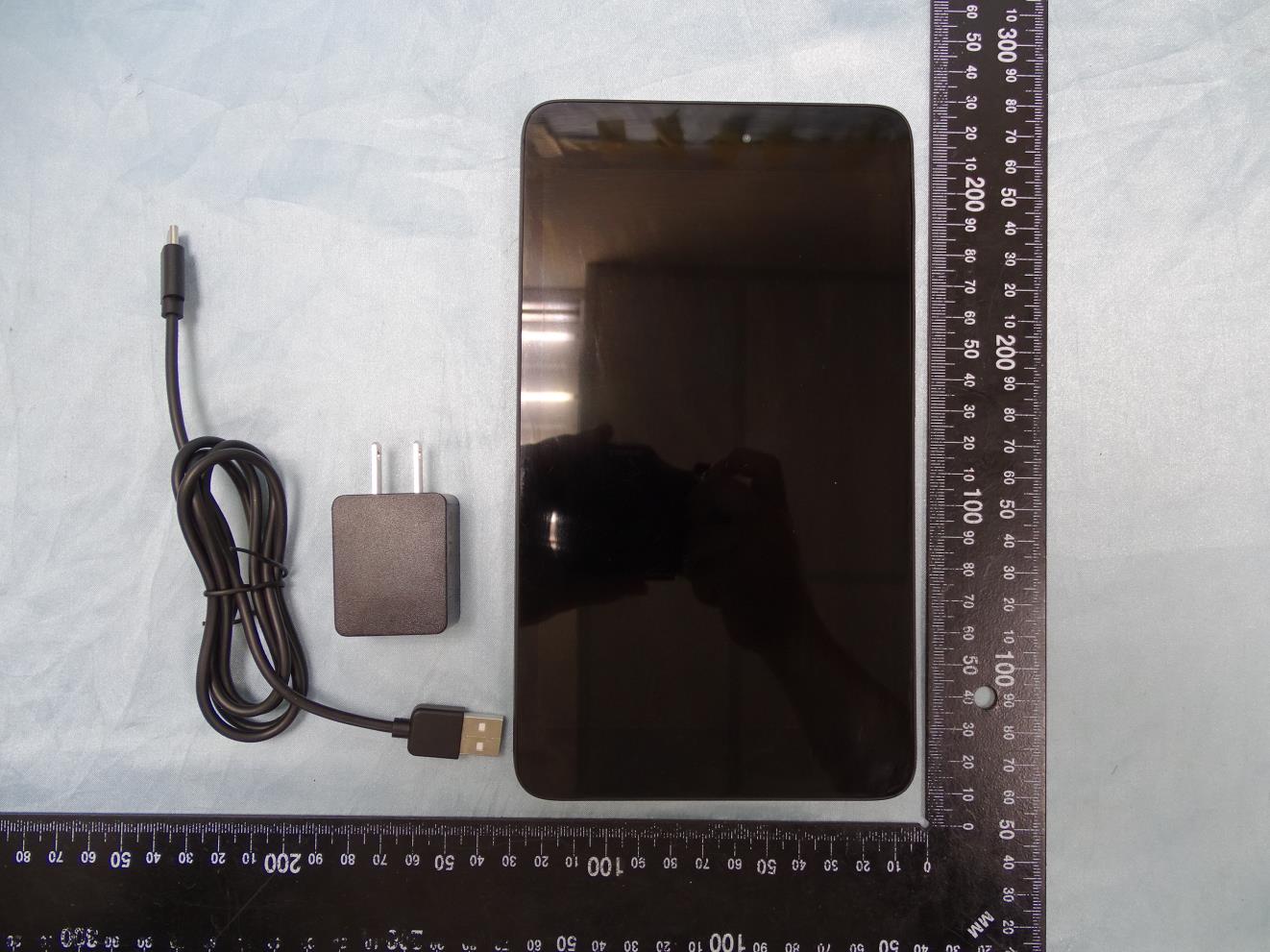

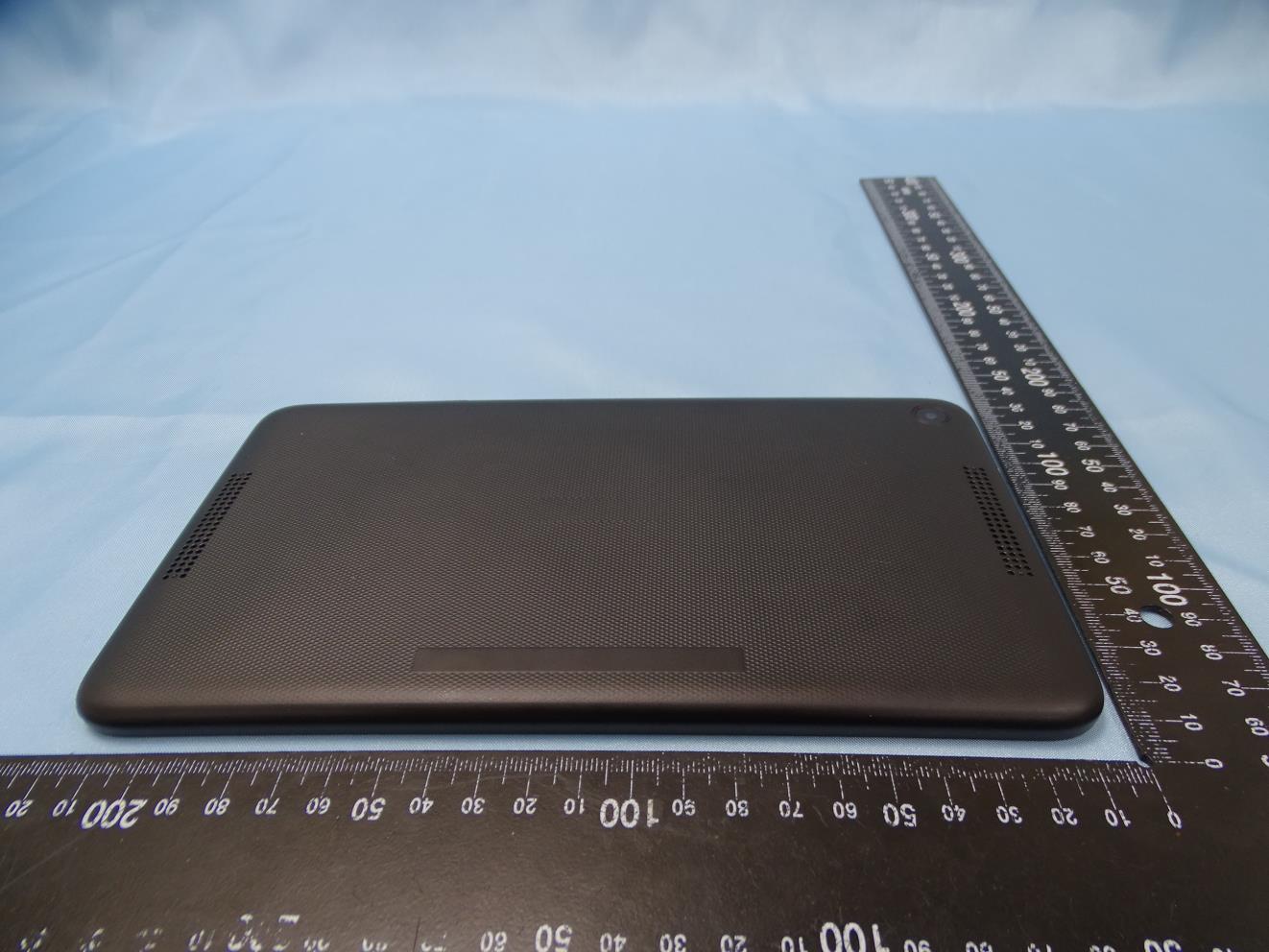

PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 1 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 1. External Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 2 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 3 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 4 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 5 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 6 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 720510 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 7 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 Specification of Accessory AC Adapter Brand Name ABP Model Name NA010050020 Battery Brand Name moxee Model Name MT-T800 USB Cable Brand Name RTT Model Name RT24U2002R Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 8 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 720510 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 9 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 AC Adapter PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 10 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 17, 2020 Report Version : 02 Battery

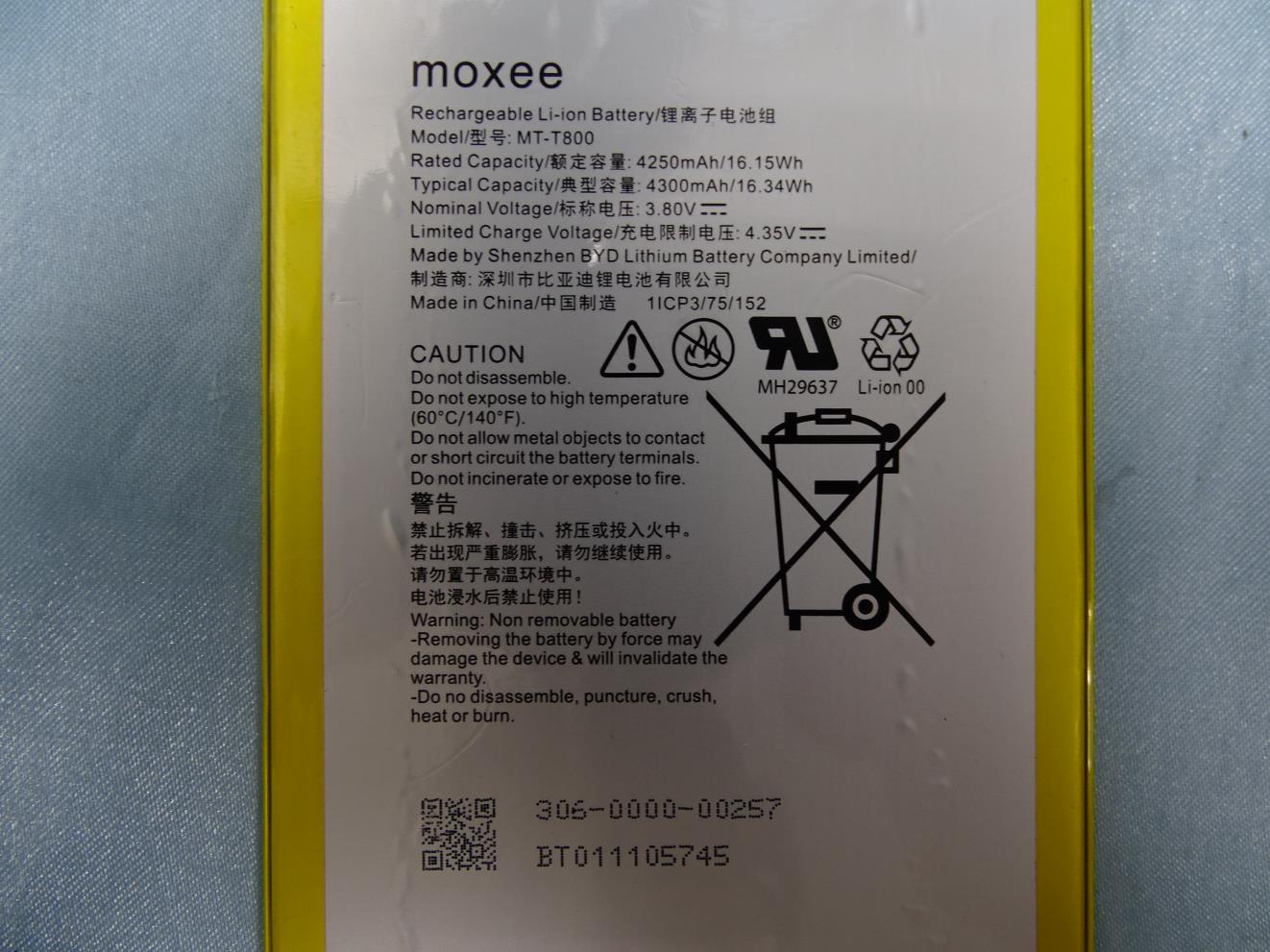

Label Location Back of the device

PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 11 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 720510 3.Internal Photograph of EUT PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 12 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 13 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 14 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 15 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 16 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 17 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 18 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 19 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 20 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 21 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 22 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 23 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 24 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 25 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 26 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 27 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 28 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 29 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 30 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 31 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 32 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 33 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 34 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 35 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Number : 36 of 39 FAX : 886-3-328-4978 Issued Date : Jun. 16, 2020 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP012248 Brand Name: Arima / Model Name: MT-T800 / Marketing Name: Arima tablet TEL : 886-3-327-3456 Page Num…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page 1 of 100 FAX : 886-3-328-4978 Issued Date : Jun. 11, 2020 Template version: 200217 FCC SAR TEST REPORT Report No. : FA012248 FCC SAR TEST REPORT FCC ID : PJO6901 Equipment : MT-T800 Brand Name : Arima Model Name : MT-T800 Marketing Name : Arima tablet Applicant : Arima Communication Corporation No. 16, Lane 658, Ying Tao Road, Yingge Dist.,New Taipei City 23943, Taiwan (ROC) Manufacturer : Arima Communication Corporation No. 16, Lane 658, Ying Tao Road, Yingge Dist.,New Taipei City 23943, Taiwan (ROC) Standard : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Mar 12, 2020 and testing was started from Mar 25, 2020 and completed on Apr. 06, 2020. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 100 FAX : 886-3-328-4978 Issued Date : Jun. 11, 2020 Template version: 200217 FCC SAR TEST REPORT Report No. : FA012248 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 3.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 6 4. Proximity Sensor Triggering Test ................................................................................................................................ 9 5. RF Exposure Limits......................................................................................................................................................14 5.1 Uncontrolled Environment .....................................................................................................................................14 5.2 Controlled Environment .........................................................................................................................................14 6. Specific Absorption Rate (SAR) ..................................................................................................................................15 6.1 Introduction ...........................................................................................................................................................15 6.2 SAR Definition .......................................................................................................................................................15 7. System Description and Setup ...................................................................................................................................16 7.1 E-Field Probe ........................................................................................................................................................17 7.2 Data Acquisition Electronics (DAE) .......................................................................................................................17 7.3 Phantom ................................................................................................................................................................18 7.4 Device Holder........................................................................................................................................................19 8. Measurement Procedures ...........................................................................................................................................20 8.1 Spatial Peak SAR Evaluation ................................................................................................................................20 8.2 Power Reference Measurement............................................................................................................................21 8.3 Area Scan .............................................................................................................................................................21 8.4 Zoom Scan ............................................................................................................................................................22 8.5 Volume Scan Procedures ......................................................................................................................................22 8.6 Power Drift Monitoring ...........................................................................................................................................22 9. Test Equipment List .....................................................................................................................................................23 10. System Verification ....................................................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/26 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200326 Medium parameters used: f = 750 MHz; σ = 0.895 S/m; ε r = 43.476; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3728;ConvF(9.67, 9.67, 9.67) @ 750 MHz;Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.86 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 60.83 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.11 W/kg; SAR(10 g) = 1.35 W/kg Maximum value of SAR (measured) = 3.01 W/kg 0 dB = 3.01 W/kg = 4.79 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/26 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200326 Medium parameters used: f = 750 MHz; σ = 0.895 S/m; ε r = 43.476; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931;ConvF(9.99, 9.99, 9.99) @ 750 MHz;Calibrated: 2019/9/26 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.92 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 61.01 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 3.29 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.53 W/kg Maximum value of SAR (measured) = 2.97 W/kg 0 dB = 2.97 W/kg = 4.73 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/2 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200402 Medium parameters used: f = 750 MHz; σ = 0.899 S/m; ε r = 43.706; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3925; ConvF(10.33, 10.33, 10.33) @ 750 MHz; Calibrated: 2019/9/20 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: 1131 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.79 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.48 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 3.21 W/kg SAR(1 g) = 2.13 W/kg; SAR(10 g) = 1.42 W/kg Maximum value of SAR (measured) = 2.83 W/kg 0 dB = 2.79 W/kg = 4.46 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/2 System Check_Head_750MHz DUT: D750V3-1107 Communication System:CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200402 Medium parameters used: f = 750 MHz; σ = 0.900 S/m; ε r = 41.95; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3728;ConvF(9.67, 9.67, 9.67) @ 750 MHz;Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn854; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.87 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 60.81 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.12 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 3.01 W/kg 0 dB = 3.01 W/kg = 4.79 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/26 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200326 Medium parameters used: f = 835 MHz; σ = 0.908 S/m; ε r = 43.289; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3728;ConvF(9.51, 9.51, 9.51) @ 835 MHz;Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.24 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.65 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 4.16 W/kg SAR(1 g) = 2.39 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 3.48 W/kg 0 dB = 3.48 W/kg = 5.42 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/25 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200325 Medium parameters used: f = 1750 MHz; σ = 1.358 S/m; ε r = 41.604; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3728;ConvF(8.06, 8.06, 8.06) @ 1750 MHz;Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2019/5/21 - Pha…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/25 #01_WCDMA II_RMC12.2Kbps_Edge 2_0mm_Ch9400 Communication System: WCDMA ; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200325 Medium parameters used: f = 1880 MHz; σ = 1.409 S/m; ε r = 38.567; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3728;ConvF(7.82, 7.82, 7.82) @ 1880 MHz;Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.50 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.95 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 2.15 W/kg SAR(1 g) = 1.06 W/kg; SAR(10 g) = 0.513 W/kg Maximum value of SAR (measured) = 1.80 W/kg 0 dB = 1.50 W/kg = 1.76 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/2 #02_WCDMA IV_RMC12.2Kbps_Bottom Face_0mm_Ch1413 Communication System: WCDMA; Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL1750_200402 Medium parameters used: f = 1733 MHz; σ = 1.347 S/m; ε r = 40.587; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3728;ConvF(8.06, 8.06, 8.06) @ 1732.6 MHz;Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn854; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (101x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.36 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.11 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.75 W/kg SAR(1 g) = 0.804 W/kg; SAR(10 g) = 0.368 W/kg Maximum value of SAR (measured) = 1.26 W/kg 0 dB = 1.26 W/kg = 1.00 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/3/26 #03_WCDMA V_RMC12.2Kbps_Bottom Face_0mm_Ch4132 Communication System: WCDMA ; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: HSL_850_200326 Medium parameters used : f = 826.4 MHz; σ = 0.9 S/m; ε r = 43.393; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3728;ConvF(9.51, 9.51, 9.51) @ 826.4 MHz;Calibrated: 2020/2/4 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2019/5/21 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (81x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.714 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.18 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.935 W/kg SAR(1 g) = 0.496 W/kg; SAR(10 g) = 0.272 W/kg Maximum value of SAR (measured) = 0.784 W/kg 0 dB = 0.714 W/kg = -1.46 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/4/2 #04_LTE Band 12_10M…
