PJO7902GPRS 850/1900 module

Arima Communications Faro3 User Manual 1 of 12 Faro3 User Manual (FCC application Model: 7902) (CE application model: 7901) Arima Communications Faro3 User Manual 2 of 12 1 Scope This document describes the electrical and mechanical of the Faro3 GSM/GPRS modem in a module format. 2 Introduction Faro3 is next version of Faro2 GPRS socket-type module. It follows the design of Faro2 but does not include the board-to-board connector which is replaced by two rails of stamp holes on the edges of the PCB. The interface of Faro3 includes: z System power z External reset input z System on control z 1.8V/3.0V SIM interface z 2.85V output power source z UART interface z SSC interface (SPI interface for debug message) z Differential micro-phone in z Differential speaker out z ANT interface SSC interface, differential micro-phone in and differential speaker out are new in GPRS module. They are not included in Faro2. 2.1 General Communication Features z GSM/GPRS protocol stack R.99 z GPRS multi-slot class 10 z CS-1, CS-2, CS-3, CS-4 z GSM850/PCS1900 Dual Band & GSM900/DCS1800 Dual Band options z Subset of 3GPP 27.005, 3GPP 27.007 and customized proprietary AT commands z Voice supports HR/FR/EFR/AMR, Echo Cancellation and Noise Reduction. Arima Communications Faro3 User Manual 3 of 12 3 Physical As Faro3 is a SMT-type module, it will be mounted on TomTom PND products in the process of SMT line. All I/O pins located on the edge of PCB are coated with gold. All of the components are on the top side of the PCB and inside a shielding can. 3.1 Mechanical Drawing Top View and Side View 2.70 25X 14 Arima Communications Faro3 User Manual 4 of 12 Bottom View 3.2 Dimensions Length 17.5+/- 0.1mm Width 30.0 +/- 0.1mm Height 2.70+/- 0.1mm Flatness 0.1mm 3.3 IMEI Label Arima Communications Faro3 User Manual 5 of 12 4 Approvals 4.1 EU z EN 301 511 z 3GPP TS 51.010-1 z GCF-CC z EN 301 489-1,-7 z EN 60950 4.2 North American z CFR Title 47 – part 22, 24 z UL 60 950 z NAPRD.03 4.2.1 ROHS (2002/95/EC) Faro3 comply with ROHS (2002/95/EC) 4.2.2 WEEE (2002/96/EC) Faro3 designed to facilitate recycling at end-of-life, in accordance with the WEEE Directive (2002/96/EC) 5 Ordering Information 5.1 Description of P/N Part Number: 9-ABCD-EFGHI-J ABCD: Model Number EFGHI: Sequent Number J: Stage Arima Communications Faro3 User Manual 6 of 12 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Arima Communications Faro3 User Manual 7 of 12 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end- product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 6 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID:PJO7902”. 7 Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Arima Communications Faro3 User Manual 8 of 12 Canadian Regulatory Wireless Notice This device complies with RSS-132/133 …

Text truncated - open the document above for the full version.

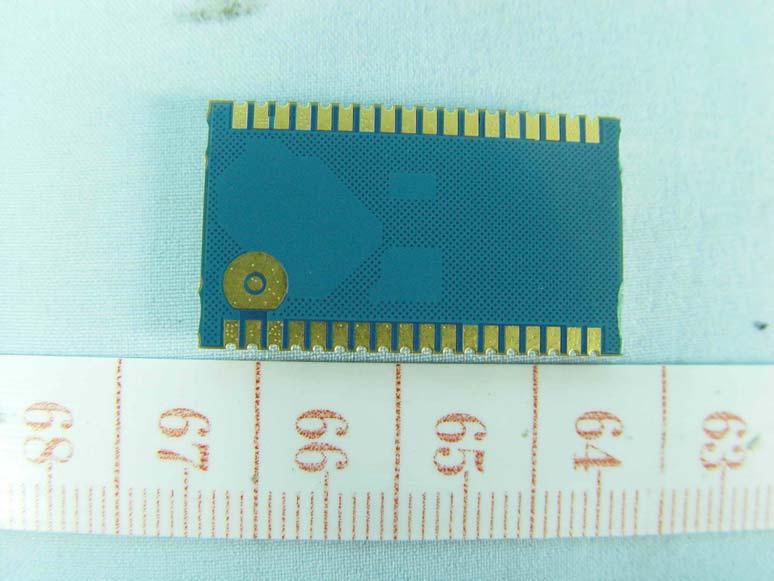

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

22/21/90 1 . 9 2 0 . 2 2 t e s dn aHl e b al eH nalA eH n a lA uoH yarroM moT m o T 3 - 1 00 00 -209 7 -9 mm5 2 14m m mm5 2 14m m FCC ID: PJO7902 IC: 3932C-7902 3 - 1 00 00 -209 7 -9 mm5 2 14m m mm5 2 14m m FCC ID: PJO7902 IC: 3932C-7902

Label Location FCC ID:PJO7902

Page 2 Page 3

Report No.: SA990329C12 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990329C12 MODEL NO.: 7902 FCC ID: PJO7902 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Arima Communications Corp. ADDRESS: No.16, Aly. 658, Yingtao Rd., Yingge Township, Taipei County 23943, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA990329C12 Report Format Version 3.0.1 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA990329C12 Report Format Version 3.0.1 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER 850MHz Frequency Band: MODE MAX CONDUCTED POWER (dBm) MAX CONDUCTED POWER (mW) DUTY CYCLE (%) EQUIVALENT CONDUCTED OUTPUT POWER (mW) GPRS 32.3 1698.24 25 424.56 P Maximum power input to the antenna: 424.56 mW R Distance: 20 cm S MPE limit for uncontrolled exposure: 0.55 mW/cm G 1 Antenna gain ( numerical ) to comply with MPE limit: 6.50 G 1 Antenna gain ( dBi ) to comply with MPE limit: 8.13 dBi ERP limit to comply with categorically exclusion of 2.1091( c ) 1.5 W G 2 Antenna gain ( numerical ) to comply with ERP limit: 5.79 G 2 Antenna gain ( dBi ) to comply with ERP limit: 7.63 dBi ERP power limit according to 22.913( a ): 7 W G 3 Antenna gain ( numerical ) to comply with ERP limit: 6.76 G 3 Antenna gain ( dBi ) to comply with ERP limit: 8.30 dBi G 850 MHz band Min (G 1 , G 2 , G 3 ): 7.63 dBi Report No.: SA990329C12 Report Format Version 3.0.1 4 1900MHz Frequency Band: MODE MAX CONDUCTED POWER (dBm) MAX CONDUCTED POWER (mW) DUTY CYCLE (%) EQUIVALENT CONDUCTED OUTPUT POWER (mW) GPRS 29.6 912.01 25 228.00 P Maximum power input to the antenna: 228.00 mW R Distance: 20 cm S MPE limit for uncontrolled exposure: 1.00 mW/cm G 4 Antenna gain ( numerical ) to comply with MPE limit: 22.03 G 4 Antenna gain ( dBi ) to comply with MPE limit: 13.43 dBi ERP limit to comply with categorically exclusion of 2.1091( c ) 4.92 W G 5 Antenna gain ( numerical ) to comply with ERP limit: 21.58 G 5 Antenna gain ( dBi ) to comply with ERP limit: 13.34 dBi ERP power limit according to 22.913( a ): 2 W G 6 Antenna gain ( numerical ) to comply with ERP limit: 2.19 G 6 Antenna gain ( dBi ) to comply with ERP limit: 3.41 dBi G 1900 MHz band Min (G 4 , G 5 , G 6 ): 3.41 dBi

Report No.: RF990329C12 1 Report Format Version 3.0.1 FCC TEST REPORT (PART 22) REPORT NO.: RF990329C12 MODEL NO.: 7902 RECEIVED: Mar. 29, 2010 TESTED: Apr. 01 ~ Apr. 06, 2010 ISSUED: Apr. 08, 2010 APPLICANT: Arima Communications Corp. ADDRESS: No.16, Aly. 658, Yingtao Rd., Yingge Township, Taipei County 23943, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 45 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990329C12 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1 CERTIFICATION ........................................................................................................4 2 SUMMARY OF TEST RESULTS ................................................................................5 2.1 MEASUREMENT UNCERTAINTY .............................................................................5 3 GENERAL INFORMATION.........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT...........................................................................6 3.2 DESCRIPTION OF TEST MODES.............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ..........................................10 3.4 DESCRIPTION OF SUPPORT UNITS .....................................................................10 4 TEST TYPES AND RESULTS .................................................................................. 11 4.1 OUTPUT POWER MEASUREMENT ....................................................................... 11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT..................................................... 11 4.1.2 TEST INSTRUMENTS .............................................................................................12 4.1.3 TEST PROCEDURES ..............................................................................................13 4.1.4 TEST SETUP ...........................................................................................................14 4.1.5 EUT OPERATING CONDITIONS .............................................................................14 4.1.6 TEST RESULTS .......................................................................................................15 4.2 FREQUENCY STABILITY MEASUREMENT ...........................................................16 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT ........................................16 4.2.2 TEST INSTRUMENTS .............................................................................................16 4.2.3 TEST PROCEDURE ................................................................................................17 4.2.4 TEST SETUP ...........................................................................................................17 4.2.5 TEST RESULTS .......................................................................................................18 4.3 OCCUPIED BANDWIDTH MEASUREMENT...........................................................19 4.3.1 LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT ........................................19 4.3.2 TEST INSTRUMENTS .............................................................................................19 4.3.3 TEST SETUP ...........................................................................................................19 4.3.4 TEST PROCEDURES ..............................................................................................20 4.3.5 EUT OPERATING CONDITION ...............................................................................20 4.3.6 TEST RESULTS .......................................................................................................21 4.4 BAND EDGE MEASUREMENT ...............................................................................22 4.4.1 LIMITS OF BAND EDGE MEASUREMENT.............................................................22 4.4.2 TEST INSTRUMENTS .............................................................................................22 4.4.3 TEST SETUP ...........................................................................................................22 4.4.4 TEST PROCEDURES ..............................................................................................23 4.4.5 EUT OPERATING CONDITION ...............................................................................23 4.4.6 TEST RESULTS .......................................................................................................24 4.5 CONDUCTED SPURIOUS EMISSIONS..................................................................25 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT ..................25 4.5.2 TEST INSTRUMENTS .............................................................................................25 4.5.3 TEST PROCEDURE ................................................................................................26 Report No.: RF990329C12 3 Report Format Version 3.0.1 4.5.4 TEST SETUP ...........................................................................................................26 4.5.5 EUT OPERATING CONDITIONS ......................................................................…

Text truncated - open the document above for the full version.

Report No.: RF990329C12-1 1 Report Format Version 3.0.1 FCC TEST REPORT (Part 24) REPORT NO.: RF990329C12-1 MODEL NO.: 7902 RECEIVED: Mar. 29, 2010 TESTED: Apr. 01 ~ Apr. 06, 2010 ISSUED: Apr. 08, 2010 APPLICANT: Arima Communications Corp. ADDRESS: No.16, Aly. 658, Yingtao Rd., Yingge Township, Taipei County 23943, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990329C12-1 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1 CERTIFICATION .......................................................................................................4 2 SUMMARY OF TEST RESULTS ...............................................................................5 2.1 MEASUREMENT UNCERTAINTY ............................................................................5 3 GENERAL INFORMATION........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2 DESCRIPTION OF TEST MODES ............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .........................................10 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................10 4 TEST TYPES AND RESULTS ................................................................................. 11 4.1 OUTPUT POWER MEASUREMENT ...................................................................... 11 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT.................................................... 11 4.1.2 TEST INSTRUMENTS.............................................................................................12 4.1.3 TEST PROCEDURES .............................................................................................13 4.1.4 TEST SETUP...........................................................................................................14 4.1.5 EUT OPERATING CONDITIONS ............................................................................14 4.1.6 TEST RESULTS ......................................................................................................15 4.2 FREQUENCY STABILITY MEASUREMENT...........................................................16 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT .......................................16 4.2.2 TEST INSTRUMENTS.............................................................................................16 4.2.3 TEST PROCEDURE................................................................................................17 4.2.4 TEST SETUP...........................................................................................................17 4.2.5 TEST RESULTS ......................................................................................................18 4.3 OCCUPIED BANDWIDTH MEASUREMENT ..........................................................19 4.3.1 LIMITS OF OCCUPIED BANDWIDTH MEASUREMENT .......................................19 4.3.2 TEST INSTRUMENTS.............................................................................................19 4.3.3 TEST SETUP...........................................................................................................19 4.3.4 TEST PROCEDURES .............................................................................................20 4.3.5 EUT OPERATING CONDITION ..............................................................................20 4.3.6 TEST RESULTS ......................................................................................................21 4.4 BAND EDGE MEASUREMENT...............................................................................22 4.4.1 LIMITS OF BAND EDGE MEASUREMENT ............................................................22 4.4.2 TEST INSTRUMENTS.............................................................................................22 4.4.3 TEST SETUP...........................................................................................................22 4.4.4 TEST PROCEDURES .............................................................................................23 4.4.5 EUT OPERATING CONDITION ..............................................................................23 4.4.6 TEST RESULTS ......................................................................................................24 4.5 CONDUCTED SPURIOUS EMISSIONS .................................................................25 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT .................25 4.5.2 TEST INSTRUMENTS.............................................................................................25 4.5.3 TEST PROCEDURE................................................................................................26 4.5.4 TEST SETUP...........................................................................................................26 4.5.5 EUT OPERATING CONDITIONS ............................................................................26 4.5.6 TEST RESULTS .........................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION (For PART 22 & 24) 2
