PJUHK250Cordless Telephone Base and Handset

1 IMPORTANT SAFETY PRECAUTIONS WARNING INSTALLATION INSTRUCTION PRECAUTIONS: •Never install telephone wiring during a lightning storm. •Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. •Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. •Use caution when installing or modifying telephone lines. Before using your telephone equipment, basic safety precautions must always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on this product. 3. Unplug this product from the wall telephone jack and power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water- for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. 5. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury and serious damage to the product. 6. Slots and openings in the cabinet and in the back or bottom are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of elec- tric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN HK250.O/M.QXD 8/30/02 1:19 PM Page 1 source. This product should not be placed in an enclosed environment unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. Do not attach power cord to building surfaces. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified serviceman when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re-assembly can cause electric shock when the appliance is subsequently used. 12. Unplug the product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged or frayed. b. If liquid has been spilled into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e. If the product has been dropped or the cabinet has been damaged. f. If the product exhibits a distinct change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the telephone to report a gas leak in the vicinity of the leak. SAVE THESE INSTRUCTIONS BATTERY PRECAUTIONS To reduce the risk of fire or injury to persons, read and follow these instructions. 1. Use only a 3.6V, 600MaH Ni-MH rechargeable battery in this unit. 2. Do not dispose of the battery in a fire, the cells may explode. Check with local codes for possible special disposal instructions. 3. Do not open or mutilate the battery as released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 4. Exercise care in handling the batteries in order not to short the battery with conducting material such as rings, bracelets and keys. The battery or conductors may overheat and cause burns. 2 IMPORTANT SAFETY PRECAUTIONS (CONTINUED) HK250.O/M.QXD 8/30/02 1:19 PM Page 2 FCC wants you to know This equipment complied with part 68 of the FCC rules ACTA technical requirements. On the bottom of the base of this equipment is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company. The USOC number of the registration jack for the equipment is RJ11C. The FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed …

Text truncated - open the document above for the full version.

8 INSTALLATION INSTRUCTIONS (CONTINUED) Remove the battery cover located on the rear of the handset by pressing on the top cover and sliding it downward. 1 Plug the new battery into the recharge- able battery plug and insert the rechargeable battery into the battery compartment. NOTE: The plug will fit only one way. If you have difficulty, be sure the plug and socket are aligned properly. 2 Put the battery cover back on by sliding it upward until it clicks into place. 3 Installation of the Rechargeable Battery Charging the Rechargeable Battery Be sure the rechargeable battery be fully charged 12 hours prior to initial use.The handset’s rechargeable battery will be charged when it’s on the base’s charge contacts; the CHARGE indicator will light when it is placed in the base. NOTES: • LOW BATTERY will appear in the display and the handset will beep every 30 seconds when the battery power is low and needs recharging. If the battery becomes weak while you are on a call, the TALK indicator will blink and the handset will beep once; end the call immediately and return to the base for recharging. • Every few months, or when charging becomes abnormal, clean the contacts of the handset and the base with a standard pencil eraser. • To maximize battery life, fully discharge the battery every month or two. To do this, simply unplug the telephone line cord and press the TALK button until the battery is discharged, and then recharge it. HK250.O/M.QXD 8/30/02 1:19 PM Page 8 9 SET-UP INSTRUCTIONS SETTING THE LANGUAGE Set the language (ENGLISH, SPANISH, FRENCH) as follows: Press and hold the ERASE button ❶ for more than two seconds or press the TALK button ❷ twice to clear any displayed number and return to the Standby mode. 2 1 1 While in the Standby mode, press the PROG button. 2 Press the REVIEW/VOLUME › button ❶ once or the REVIEW/ VOLUME❷button ❷ three times to enter the Language menu. 1 2 3 Press the ➛or ❿button ❶ to select the desired language (ENGLISH, SPANISH, FRENCH). 4 Press the PROG button again to store the language; “Save ok” will appear in the display for three seconds and a confirmation tone will be heard. 5 HK250.O/M.QXD 8/30/02 1:19 PM Page 9 10 SET-UP INSTRUCTIONS (CONTINUED) SETTING THE AREA CODE In order for the Caller ID redial feature to work properly, you must set the phone to your local area code as described below. If you live in a town with more than one area code, do not enter an area code for this option. Press and hold the ERASE button ❶ for more than two seconds or press the TALK button ❷ twice to clear any displayed number and return to the Standby mode. 2 1 1 While in the Standby mode, press the PROG button. 2 Press the REVIEW/VOLUME › button ❶ twice or the REVIEW/ VOLUME❷button ❷ twice to enter the Area Code menu. 1 2 3 Use the Key buttons to enter in the area code. 4 Press the PROG button again to store the area code; “Save ok” will appear in the display for three seconds and a confirmation tone will be heard. 5 HK250.O/M.QXD 8/30/02 1:19 PM Page 10 11 SETTING THE LCD CONTRAST If you find the LCD screen difficult to read, set the contrast level as follows: Press and hold the ERASE button ❶ for more than two seconds or press the TALK button ❷ twice to clear any displayed number and return to the Standby mode. 2 1 1 While in the Standby mode, press the PROG button. 2 Press the REVIEW/VOLUME › button ❶ three times or the REVIEW/ VOLUME❷button ❷ once to enter the Contrast menu. 1 2 3 Press the ➛or ❿button to select one of the three contrast levels (3 being the darkest, 1 being the lightest). 4 Press the PROG button again to store the contrast level; “Save ok” will appear in the display for three seconds and a confirmation tone will be heard. 5 SET-UP INSTRUCTIONS (CONTINUED) HK250.O/M.QXD 8/30/02 1:19 PM Page 11 12 BASIC OPERATION PLACING A CALL After the battery has been fully charged, press the TALK button and listen for a dial tone; the timer will appear in the display. 1 Press the Key buttons (0-9) to dial the phone number you wish to call. Ten seconds after dialing, the display will show the amount of time you have been on the phone. 2 RINGER SWITCH AUTO TALK AND AUTO STANDBY The Auto Talk feature will allow you to answer a call by simply removing it from the base, there is no need to press the TALK button. The Auto Standby feature allows you to hang up the phone by simply returning it to the base. Slide the RINGER ON/OFF switch on the side of the handset to the ON position to turn the ringer on. Slide the RINGER switch to the OFF position to turn the ringer off. 1 TONE/PULSE SWITCH Slide the TONE/PULSE switch on the side of the base to TONE or PULSE to match the service provided on your telephone line. If you are not sure of your service, please contact your telephone company. 1 CONNECTING THE HEADSET For hands-free conversation, a headset (not included) can be connected to the 2.5mm headset jack on the side of the handset unit. The handset receiver and microphone are disabled when a headset is connected. When the headset is connected, press the TALK button to answer or place a call. Refer to the headset manufacturer’s manual for more details. HK250.O/M.QXD 8/30/02 1:19 PM Page 12 13 RECEIVING A CALL The last 99 incoming calls are saved in the Caller ID log. Make sure that the Caller ID service is turned on by your phone company. When you receive a call, the display will show the name of the caller and number of the call. To answer the call if the handset is out of the base, press the TALK button. If the handset is in the base, simply remove it from the base. The display will show the amount of time you have been on the phone. 1 NOTES: • The incoming call indicator will blink on the base unit, even if the RINGER switch is off and a call is received. • If you subscribe to Caller ID, the time and date are automatically set when the first call is received. • If a call is received from an area which does not provide caller ID service, the display will show, “UNKNOWN”. I…

Text truncated - open the document above for the full version.

15 BASIC OPERATION (CONTINUED) PAGING THE HANDSET Press the PAGE button on the base to locate the handset when not in use; the handset will ring with three short beeps and the TALK button will blink. “Page” will blink in the display on the LCD during paging. 1 FINDING THE HANDSET Press and hold the PAGE button on the base for more than three seconds to locate the handset when not in use; the handset will ring for 30 seconds repeating sequences of three short beeps. Press the TALK button to end the page function. 1 USING THE TONE BUTTON If you are in a Pulse dialing area you may still take advantage of touch-tone services after dialing to respond to touch-tone prompts. To do this, press the */TONE/➛button to temporarily change the dialing mode from Pulse to Tone after dialing in the Pulse mode. This will enable Pulse users to access touch-tone services. It will revert back to Pulse after hanging up. 1 CALL WAITING If you subscribe to Call Waiting through your local phone company, and you receive another phone call, the phone will alert you with a beep and the display will show the name and number. Simply press the FLASH button to answer the new call. Press the FLASH button again to return to the original call. Call Waiting Caller ID also needs to be subscribed to in order to see the new caller’s name/number on the display if you are already on the phone. 1 NOTE: When an incoming call is received while paging and the RINGER switch is set to the ON position, the Page mode will be terminated and the incoming ringer will start. HK250.O/M.QXD 8/30/02 1:19 PM Page 15 16 BASIC OPERATION (CONTINUED) MESSAGE WAITING FUNCTION When a caller has recorded a message on a personal message service, “” will appear in the display and will disappear when you retrieve your message. This feature is only for subscribers of a voice mail message waiting service. DIGITAL SECURITY SYSTEM The security code prevents your cordless telephone conversation from being accessed by a phone on a different line. Once the handset battery is fully charged, the handset will automatically select the code from a total of over 65,000 combinations. The code is changed every time the handset is placed in the cradle. If you experience difficulty with placing or receiving calls, a lost security code may be the cause of the problem. When this occurs, the handset can no longer communicate with the base. Reset by placing the handset on the base for 5-10 seconds. If that does not work, unplug the AC adaptor from the wall outlet. Disconnect the handset battery for 5-10 seconds, then reconnect. Place the handset back on the base and then replug the AC adaptor. HK250.O/M.QXD 8/30/02 1:19 PM Page 16 17 BASIC OPERATION (CONTINUED) CHECKING THE CALLER ID LOG To scroll through the calls, press the CID button ❶; the New Calls and the Total Calls will appear in the display. Press the REVIEW/VOLUME ›button ❷ to go through the calls from the first call received to the last. Press the REVIEW/ VOLUME ❷button ❸ to go through the calls from the last call received to the first. Press the CID button ❶ again when done. 2 1 3 1 NOTES: • The NEW indicator will blink until all new caller ID information has been reviewed. • The REP indicator will appear in the display if you have received multiple new calls from the same number. VIEWING LONG TELEPHONE NUMBERS/NAMES AND CHECKING THE DATE AND TIME Due to display size limitations, a telephone number longer than 10 digits or a name more than 12 characters long cannot be viewed at one time. For the same reason, the received date and time cannot be displayed with the name and number. View long names/numbers as follows: Press the ❿button ❶ once or the ➛ button ❷ three times to display the full number of the call received. Press the ❿button ❶ twice or the ➛ button ❷ twice to display the full name of the call received. Press the ❿button ❶ three times or the ➛button ❷ once to display the date and time of the call received. 1 2 HK250.O/M.QXD 8/30/02 1:19 PM Page 17 18 BASIC OPERATION (CONTINUED) DIALING A NUMBER IN THE CALLER ID DISPLAY You can automatically call a number from the caller ID log as follows: Scroll through the calls to select a number to dial by pressing the CID button ❶and then scroll by pressing the REVIEW/VOLUME ›/❷buttons ❷. 2 1 2 1 Press the CID button again to dial the number. 2 DELETING ONE NAME/NUMBER FROM THE CALLER ID LOG Scroll through the calls to select a number to delete by pressing the CID button ❶and then scroll by pressing the REVIEW/VOLUME ›/❷buttons ❷. 2 1 2 1 Press the PROG button ❶ then press the ERASE button ❷ ; “DELETED” will appear in the display and a confirmation tone will be heard. 1 2 2 DELETING ALL NAME(S)/NUMBER(S) FROM THE CALLER ID LOG Press the CID button. 1 Press the PROG button ❶ then press the ERASE button ❷; “DELETED” will appear in the display and a confirmation tone will be heard. 1 2 2 HK250.O/M.QXD 8/30/02 1:19 PM Page 18 19 BASIC OPERATION (CONTINUED) EDITING TELEPHONE NUMBERS You can edit a phone number in the caller ID as follows: Scroll through the calls to select a number to edit by pressing the CID button ❶and then scroll by pressing the REVIEW/VOLUME ›/❷buttons ❷. 2 1 2 1 Press the PROG button to select the menu. 2 Press the REVIEW/VOLUME ❷ button to go to the number; the first “1” will start blinking. 3 Press the PROG button again to store the new number; “Save ok” will appear in the display for three seconds and a confirmation tone will be heard. 5 Press the ERASE button; the “1” will be deleted and the second digit will start blinking. Press a desired number to insert and it will be inserted before the first digit. 4 HK250.O/M.QXD 8/30/02 1:19 PM Page 19 20 BASIC OPERATION (CONTINUED) EDITING CALLER NAMES You can edit a name in the caller ID as follows: Scroll through the calls to select a name to edit by pressing the CID button ❶and then scroll by pressing the REVIEW/VOLUME ›/❷buttons ❷. 2 1 2 1 Press the PROG button to select the menu. 2 Press the REV…

Text truncated - open the document above for the full version.

22 BASIC OPERATION (CONTINUED) SAVING CALLER ID INFORMATION TO THE MEMORY The memory can save the information directly from the caller ID. Scroll through the calls to select a number as previously described on page 21. Press the MEMO button. 1 Enter two digits (01-20) using the key buttons to assign the desired memory location to store the data. One second after completing this step, “Save ok” will appear in the display. 2 CHARACTER MAP CHART Key1 press 2 press 3 press 4 press 5 press 6 press 7 press 8 press 1blank&‘()*.1 2 ABC2 ABC2 3DEF3DEF3 4GHI 4GHI 4 5JKL5JKL5 6MNO6MNO6 7 PQRS7 PQR 8TUV8TUV8 9 WXYZ9 WXY 0Space0Null0NullSpace0Null DIALING A NUMBER FROM THE MEMORY To select and dial a number from the memory, follow the steps below: Press the MEMO button while in the Standby mode. 1 Press the key buttons to enter the memory location or the REVIEW/ VOLUME ›/❷buttons ❶ to locate the number you would like to call, then press the CID button ❷. The phone number will automatically be dialed. 1 2 1 2 HK250.O/M.QXD 8/30/02 1:19 PM Page 22 23 BASIC OPERATION (CONTINUED) DELETING A NUMBER FROM THE MEMORY Delete a number from the memory as follows: Press the PROG button ❶while in the Standby mode, followed by the MEMO button ❷. 2 1 1 Enter the two digits (01-20) of the memory location you want to delete. One second after completing this step, “Deleted” will appear in the display for three seconds and a confirmation tone will be heard. 2 Press the MEMO button while in the Standby mode. 1 When finished, press the PROG button. The VIP indicator in the display will light and the handset will beep. 25 seconds after pressing the PROG button, the display will clear, a beep will sound and the unit will return to the Standby mode. 3 Press the key buttons ❶ to enter the memory location or the REVIEW/ VOLUME ›/❷buttons ❷ to locate the number you would like to assign a priority VIP ringer to. 2 2 1 2 PREFERRED CALLS (VIP) This function allows you to recognize an incoming caller from the ringing sound by assigning a priority VIP ring to the designated number from the memory as follows: HK250.O/M.QXD 8/30/02 1:19 PM Page 23 SYMPTOMSOLUTION No dial tone.• Make sure the telephone line cord is connected properly to the modular wall jack. No power on the• Make sure the battery pack is properly connected handset.inside the handset. • The handset may need recharging; recharge handset. Handset does not• Make sure the charging contacts on both the base and charge.handset are in contact during charging. • The charging contacts may be dirty; clean with alcohol- moistened cloth. • The battery may need to be replaced. Range is limited.• Move the base so it is centrally located in your residence and make sure the base is not located near an appliance. Call received• The handset may need recharging; recharge handset. flutters or fades. Cannot hear ringer.•Make sure the telephone line cord is connected properly to the modular wall jack. • Make sure RINGER ON/OFF switch is set to the ON position. Caller ID information• You must subscribe to Caller ID service. does not appear. • You must let the phone ring twice before answering. Time does not • If you subscribe to Caller ID service, the time and date automatically set.will automatically set during the first call. 24 TROUBLESHOOTING GUIDE If there was a power failure or if the unit was unplugged, replace the handset to the base for two to five seconds to reset the system. HK250.O/M.QXD 8/30/02 1:19 PM Page 24 25 CARE AND MAINTENANCE 1. Clean your phone with a damp (never wet) cloth. Solvent or detergent should never be used. 2. Avoid operating your unit under direct sunlight or in hot, humid or dusty places. 3. Keep your unit away from heating appliances. ̈ AUTHORIZEDSERVICE CALLTOLLFREE:1-800-695-0098 FORCUSTOMERSERVICE,PLEASEWRITETO: EmersonRadioCorp. ConsumerAffairsDept. 1901DiplomatDrive FarmersBranch,TX75234 FORADDITIONALSET-UPOROPERATINGASSISTANCE PLEASECALL: 1-800-898-9020 TOFINDTHELOCATIONAND PHONENUMBEROFYOUR NEARESTAUTHORIZED SERVICECENTER... HK250.O/M.QXD 8/30/02 1:19 PM Page 25 26 LIMITED WARRANTY Emerson Radio Corp. warrants manufacturing defects in original material, including original parts and workmanship, under normal use and conditions, for a period of one year from the date of original purchase in the U.S. With your dated proof of purchase, we will provide repair service at no charge for labor and parts at an authorized Depot Repair Facility, or replace the product in our discretion. For repair or replacement, pack your unit in a padded box, enclose your check or money order payable to Emerson Radio Corp. in the amount of $9.00 (not required by California residents) to cover shipping and handling costs, and enclose a copy of your proof of purchase. Send your unit to: Emerson Radio Corp. 1901 Diplomat Drive Farmers Branch, TX 75234 This warranty does not cover damage from negligence, misuse, abuse, accident, failure to follow operating instructions, commercial use, rental, repairs by an unauthorized facility, or products purchased, used, serviced or damaged outside of the United States. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. AU898N HK250.O/M.QXD 8/30/02 1:19 PM Page 26 EMERSON PART NO.: 21-2041 209-01Printed in China ® HK250.O/M.QXD 8/30/02 1:19 PM Page 27 1976,2002 Sanrio Co. Ltd. CORDLESS TELEPHONE WITH CALLER ID AND 20 MEMORY DIALING OWNER’S MANUAL HK250 HK250.O/M.QXD 8/30/02 1:19 PM Page 28

2420BD_H.sch-1 - Mon Sep 16 15:50:12 2002

230 Commercial St., Sunnyvale, CA. 94085 Tel # (408) 732-9162 Fax # (408) 732-9164 ---------------------------------------------------------------------------------------------------------------------- Date: October 25, 2002 RE: Shenzhen Jingneng Telecom Technology Co., Ltd. FCCID: PJUHK250 Dear Tim, Here are the responses to your comments on the above-submitted application: (1) It is a FCC part 15.249 application, please refer to the revised 731 form. (2) The applicant does not request for confidentiality on this application. (3) The RF module is designed by the manufacturer, and there are two different modules used in the device. Please see Headset and Base RF circuit diagram. (4) We re-provide clear block diagram, both the Handset and Base units contain all oscillators of the TX as specified by CFR2.1033(a) (5). (5) We re-provide clear schematics for both Handset and Base units, and all the circuitry are readable. (6) We have updated the label exhibits, please refer to the FCC label and location. The complete label will be placed on base unit and only FCCID label will be placed on handset unit. (7) Please see uploaded user manual. (8) We re-test the E.U.T. in the idle/pnhook/charging mode of operation. Please refer to the setup photos and test data. The test data is same as before which is compliance with 15.107 & 15.109. (9) This handset was tested and positioned in 3 orthogonal axis, but the test photos show only one position. (10)This device uses over 65,000 combinations of digital security codes and they can be automatically selected once the handset battery is fully recharged. Please refer to the user manual page 16. (11)Thanks for your information, we will ensure the future submittals meet the spacing requirements by ANSI C63.4. Sincerely, BACL

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 25, 2002 RE: Shenzhen Jingneng Telecom Technology Co., Ltd.. FCC ID: PJUHK250 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The 731 form section III 4(b) shows Part 95 approval, however we believe based on the test report this is to be evaluated to Part 15.249. Please confirm. 2) This application did not include a request for confidentiality. Please confirm that confidentiality is not requested on any exhibits within this application. 3) The EUT base and handset appear to use a RF TX module. Please confirm if this component is designed by the applicant or considered an OEM module that is purchased by the applicant from another company. Also, please confirm if this component is identical within both the handset and base (i.e. are there 2 different RF modules used in the device, or are they the same part). 4) The block diagrams provided are not clear enough to distinguish. Please provide better copies. Also, please be sure that the RF portion of the block diagram contains all oscillators of the TX as specified by CFR 2.1033(a)(5) (NOTE: if this is an OEM part, detailed block diagram of the TX board is not necessary). 5) The schematics provided are confusing. There appears to be 6 pages of what may be the same TX board, as well as unreadable schematics for the base/handset circuitry and a block diagram. Please remove the block diagram, provide only the necessary copies of the transmitter circuitry and be sure all provided schematics are clear enough to be easily readable. 6) Since this is a cordless telephone device and a single FCC ID is being provided for both portions of the system (handset and base), please explain if the labeling on the handset is the complete label given in the exhibit. If not (i.e., only the FCC ID is being placed on the handset), please update the label exhibit to properly reflecting the intended labeling. 7) Please provide a users manual as specified by 2.1033(b)(3). 8) The EUT should also be tested in an idle/onhook/charging mode of operation to show compliance with 15.107 & 15.109. It does not appear that the unit was tested for these mode(s). Please note that testing the TX mode does not automatically cover these requirements, as characteristics can change due to the charging conditions and with the handset placed on the base will cause some products to have different radiation characteristics. Please provide additional data that shows compliance with these requirements. 9) Please confirm if the handset was positioned and tested in 3 orthogonal axis. Please note that the test photographs only show one position. 10) Although the operational description mentions the devices uses digital security codes, detailed information showing compliance with 15.214(d) has not been provided. 11) FYI, Please take care in future submittals to ensure that the devices meet the spacing specified by ANSI C63.4 and also as given within the test report. Typical spacing is 10 cm between the cabinet of devices. The test photographs show that the spacing used was 20 - 25 cm. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

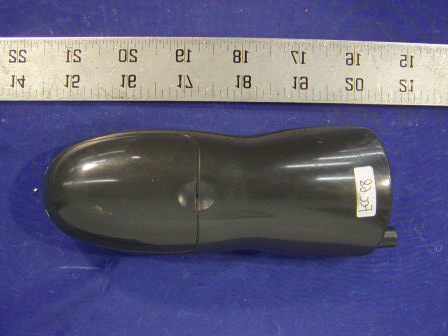

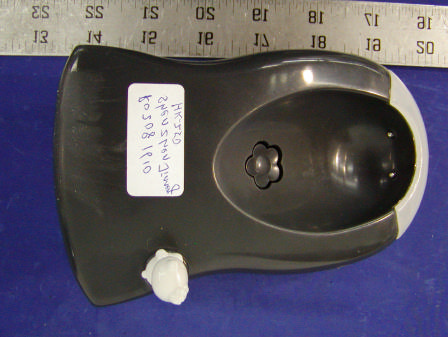

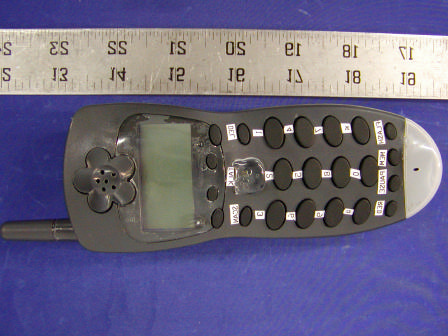

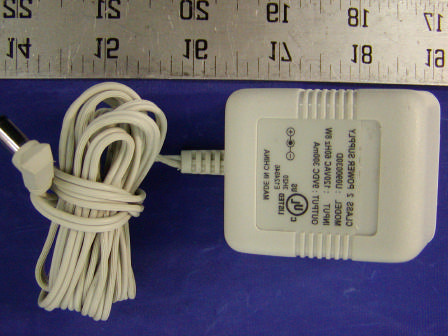

Shenzhen Jingneng Telecom Technology Co., Ltd. FCC ID: PJUHK250 Report # R02081610FCC Part 15 Subpart C Test Report EUT EXTERNAL PHOTOGRAPHS Base – Top View Base – Front View Shenzhen Jingneng Telecom Technology Co., Ltd. FCC ID: PJUHK250 Report # R02081610FCC Part 15 Subpart C Test Report Base – Bottom View Base – Port View Shenzhen Jingneng Telecom Technology Co., Ltd. FCC ID: PJUHK250 Report # R02081610FCC Part 15 Subpart C Test Report Handset – Top View Handset – Bottom View Shenzhen Jingneng Telecom Technology Co., Ltd. FCC ID: PJUHK250 Report # R02081610FCC Part 15 Subpart C Test Report Setup View Adapter – Top View Shenzhen Jingneng Telecom Technology Co., Ltd. FCC I…
