PKCLS0303ENERGY SAVING LAMP

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1 Use only on 120V/60Hz. 2 Never disassemble or modify-any changes could void the user’ authority to operate this device. 3 Not for use in totally enclosed recessed fixtures. 4 Risk of electric shock-do not use with where directly exposed to water. 5 This device is not intended for use with emergency exit fixtures or emergency exit lights. 6 This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. 7 To prevent burns, do not touch the bulb during operation or immediately after switching off. 8 Not for use with electronic timer or photocell devices or occupancy sensor.

Block Diagram

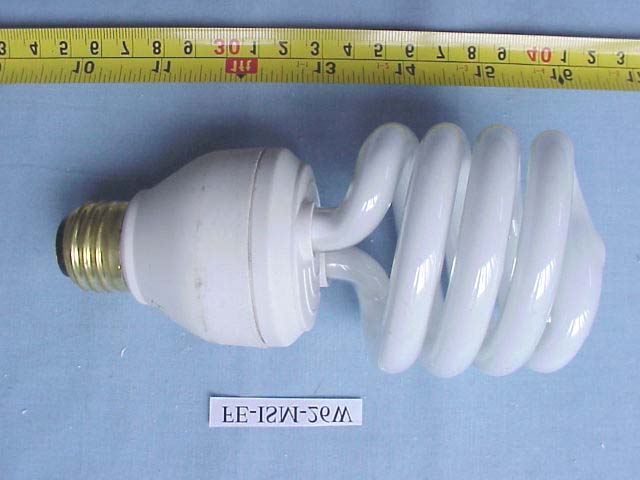

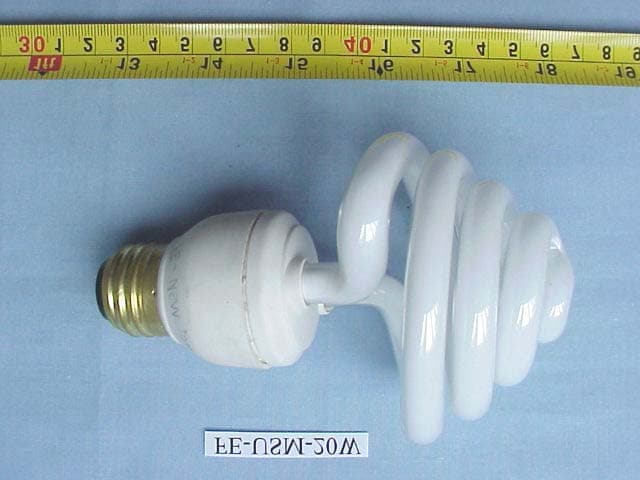

F IGURE 1 E NERGY S AVING L AMP (M/N:FE- Π SM-13W) G ENERAL A PPEARANCE F IGURE 2 E NERGY S AVING L AMP (M/N: FE- Π SM-15W) G ENERAL A PPEARANCE F IGURE 3 E NERGY S AVING L AMP (M/N: FE- Π SM-18W) G ENERAL A PPEARANCE F IGURE 4 E NERGY S AVING L AMP (M/N: FE- Π SM-20W) G ENERAL A PPEARANCE F IGURE 5 E NERGY S AVING L AMP (M/N: FE-USM-15W) G ENERAL A PPEARANCE F IGURE 6 E NERGY S AVING L AMP (M/N: FE-USM-18W) G ENERAL A PPEARANCE F IGURE 7 E NERGY S AVING L AMP (M/N: FE-USM-20W) G ENERAL A PPEARANCE F IGURE 8 E NERGY S AVING L AMP (M/N: FE-USM-23W) G ENERAL A PPEARANCE F IGURE 9 E NERGY S AVING L AMP (M/N: FE-USM-26W) G ENERAL A PPEARANCE F IGURE 10 E NERGY S AVING L AMP (M/N: FE-USM-30W) G ENERAL A PPEARANCE F IGURE 11 E NERGY S AVING L AMP (M/N: FE- Ι SM-20W) G ENERAL A PPEARANCE F IGURE 12 E NERGY S AVING L AMP (M/N: FE- Ι SM-23W) G ENERAL A PPEARANCE F IGURE 13 E NERGY S AVING L AMP (M/N: FE- Ι SM-26W) G ENERAL A PPEARANCE F IGURE 14 E NERGY S AVING L AMP (M/N: FE- Ι SM-30W) G ENERAL A PPEARANCE F IGURE 15 E NERGY S AVING L AMP (M/N: FE-T9M-22W) G ENERAL A PPEARANCE F IGURE 16 E NERGY S AVING L AMP (M/N: FE-T9M-32W) G ENERAL A PPEARANCE

Label Location Information Refer to the below red arrow: (For example)

Label Drawing 1. For example: Note:The blue words will be replaced as follows for each model. Model Label Model Label FE- II SM-13W FE- II SM-13W 120V 60Hz 240mA FE- II SM-15W FE- II SM-15W 120V 60Hz 275mA FE- II SM-18W FE- II SM-18W 120V 60Hz 330mA FE- II SM-20W FE- II SM-20W 120V 60Hz 370mA FE-USM-15W FE-USM-15W 120V 60Hz 275mA FE-USM-18W FE-USM-18W 120V 60Hz 330mA FE-USM-20W FE-USM-20W 120V 60Hz 370mA FE-USM-23W FE-USM-23W 120V 60Hz 420mA FE-USM-26W FE-USM-26W 120V 60Hz 480mA FE-USM-30W FE-USM-30W 120V 60Hz 550mA FE-ISM-20W FE-ISM-20W 120V 60Hz 370mA FE-ISM-23W FE-ISM-23W 120V 60Hz 420mA FE-ISM-26W FE-ISM-26W 120V 60Hz 480mA FE-ISM-30W FE-ISM-30W 120V 60Hz 550mA FE-T9M-22W FE-T9M-22W 120V 60Hz 400mA FE-T9M-32W FE-T9M-32W 120V 60Hz 580mA LISTED Energy Saving Lamp FCC ID: PKCLS0303 FE-IISM-13W 13W 120V 60Hz 240mA

F IGURE 1 E NERGY S AVING L AMP (M/N: FE-ΠSM-13W) C OVER REMOVED F IGURE 2 E NERGY S AVING L AMP (M/N: FE-ΠSM-13W) M AIN BOARD (COMPONENT SIDE) F IGURE 3 E NERGY SAVING LAMP (M/N: FE-ΠSM-13W) M AIN B OARD (S OLDERED S IDE ) F IGURE 4 E NERGY S AVING L AMP (M/N: FE-ΠSM-15W) C OVER REMOVED F IGURE 5 E NERGY S AVING L AMP (M/N: FE-ΠSM-15W) M AIN BOARD (COMPONENT SIDE) F IGURE 6 E NERGY SAVING LAMP (M/N: FE-ΠSM-15W) M AIN B OARD (S OLDERED S IDE ) F IGURE 7 E NERGY S AVING L AMP (M/N: FE-ΠSM-18W) C OVER REMOVED F IGURE 8 E NERGY S AVING L AMP (M/N: FE-ΠSM-18W) M AIN BOARD (COMPONENT SIDE) F IGURE 9 E NERGY SAVING LAMP (M/N: FE-ΠSM-18W) M AIN B OARD (S OLDERED S IDE ) F IGURE 10 E NERGY S AVING L AMP (M/N: FE-ΠSM-20W) C OVER REMOVED F IGURE 11 E NERGY S AVING L AMP (M/N: FE-ΠSM-20W) M AIN BOARD (COMPONENT SIDE) F IGURE 12 E NERGY SAVING LAMP (M/N: FE-ΠSM-20W) M AIN B OARD (S OLDERED S IDE ) F IGURE 13 E NERGY S AVING L AMP (M/N: FE-USM-15W) C OVER R EMOVED F IGURE 14 E NERGY S AVING L AMP (M/N: FE-USM-15W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 15 E NERGY S AVING L AMP (M/N: FE-USM-15W) M AIN BOARD (SOLDERED SIDE) F IGURE 16 E NERGY S AVING L AMP (M/N: FE-USM-18W) C OVER R EMOVED F IGURE 17 E NERGY S AVING L AMP (M/N: FE-USM-18W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 18 E NERGY S AVING L AMP (M/N: FE-USM-18W) M AIN BOARD (SOLDERED SIDE) F IGURE 19 E NERGY S AVING L AMP (M/N: FE-USM-20W) C OVER R EMOVED F IGURE 20 E NERGY S AVING L AMP (M/N: FE-USM-20W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 21 E NERGY S AVING L AMP (M/N: FE-USM-20W) M AIN BOARD (SOLDERED SIDE) F IGURE 22 E NERGY S AVING L AMP (M/N: FE-USM-23W) C OVER R EMOVED F IGURE 23 E NERGY S AVING L AMP (M/N: FE-USM-23W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 24 E NERGY S AVING L AMP (M/N: FE-USM-23W) M AIN BOARD (SOLDERED SIDE) F IGURE 25 E NERGY S AVING L AMP (M/N: FE-USM-26W) C OVER R EMOVED F IGURE 26 E NERGY S AVING L AMP (M/N: FE-USM-26W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 27 E NERGY S AVING L AMP (M/N: FE-USM-26W) M AIN BOARD (SOLDERED SIDE) F IGURE 28 E NERGY S AVING L AMP (M/N: FE-USM-30W) C OVER R EMOVED F IGURE 29 E NERGY S AVING L AMP (M/N: FE-USM-30W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 30 E NERGY S AVING L AMP (M/N: FE-USM-30W) M AIN BOARD (SOLDERED SIDE) F IGURE 31 E NERGY S AVING L AMP (M/N: FE-ΙSM-20W) C OVER REMOVED F IGURE 32 E NERGY S AVING L AMP (M/N: FE-ΙSM-20W) M AIN BOARD (COMPONENT SIDE) F IGURE 33 E NERGY SAVING LAMP (M/N: FE-ΙSM-20W) M AIN B OARD (S OLDERED S IDE ) F IGURE 34 E NERGY S AVING L AMP (M/N: FE-ΙSM-23W) C OVER REMOVED F IGURE 35 E NERGY S AVING L AMP (M/N: FE-ΙSM-23W) M AIN BOARD (COMPONENT SIDE) F IGURE 36 E NERGY SAVING LAMP (M/N: FE-ΙSM-23W) M AIN B OARD (S OLDERED S IDE ) F IGURE 37 E NERGY S AVING L AMP (M/N: FE-ΙSM-26W) C OVER REMOVED F IGURE 38 E NERGY S AVING L AMP (M/N: FE-ΙSM-26W) M AIN BOARD (COMPONENT SIDE) F IGURE 39 E NERGY SAVING LAMP (M/N: FE-ΙSM-26W) M AIN B OARD (S OLDERED S IDE ) F IGURE 40 E NERGY S AVING L AMP (M/N: FE-ΙSM-30W) C OVER REMOVED F IGURE 41 E NERGY S AVING L AMP (M/N: FE-ΙSM-30W) M AIN BOARD (COMPONENT SIDE) F IGURE 42 E NERGY SAVING LAMP (M/N: FE-ΙSM-30W) M AIN B OARD (S OLDERED S IDE ) F IGURE 43 E NERGY S AVING L AMP (M/N: FE-T9M-22W) C OVER R EMOVED F IGURE 44 E NERGY S AVING L AMP (M/N: FE-T9M-22W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 45 E NERGY S AVING L AMP (M/N: FE-T9M-22W) M AIN BOARD (SOLDERED SIDE) F IGURE 46 E NERGY S AVING L AMP (M/N: FE-T9M-32W) C OVER R EMOVED F IGURE 47 E NERGY S AVING L AMP (M/N: FE-T9M-32W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 48 E NERGY S AVING L AMP (M/N: FE-T9M-32W) M AIN BOARD (SOLDERED SIDE)

Schematics

XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 1 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 Application for FCC Certificate On Behalf of XIAMEN LONGSTAR LIGHTING CO., LTD. Energy Saving Lamp Model No.: FE-IISM-13W FE-IISM-15W FE-IISM-18W FE-IISM-20W FE-USM-15W FE-USM-18W FE-USM-20W FE-USM-23W FE-USM-26W FE-USM-30W FE-ISM-20W FE-ISM-23W FE-ISM-26W FE-ISM-30W FE-T9M-22W FE-T9M-32W FCC ID: PKCLS0303 Prepared For : XIAMEN LONGSTAR LIGHTING CO., LTD. CHENGNAN INDUSTRIAL ZONE, TONGAN, XIAMEN, CHINA Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233. Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F03036 Date of Test : April 3~May 11, 2003 Date of Report : Jun 12, 2003 XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 2 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 5 1.3 Measurement Uncertainty .......................................................................................................... 5 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 6 2.1 Test Equipment........................................................................................................................... 6 2.2 Block Diagram of Test Setup ..................................................................................................... 6 2.3 Conducted Emission Limits ....................................................................................................... 6 2.4 Test Configuration...................................................................................................................... 7 2.5 Operating Condition of EUT ...................................................................................................... 7 2.6 Test Procedures .......................................................................................................................... 7 2.7 Test Results ................................................................................................................................ 7 3 MAGNETIC FIELD EMISSION TEST ...................................................................................... 46 3.1 Test Equipment......................................................................................................................... 46 3.2 Block Diagram of Test Setup ................................................................................................... 46 3.3 Magnetic Field Emission Limit ................................................................................................ 46 3.4 EUT Configuration on Test ...................................................................................................... 47 3.5 Operating Condition of EUT .................................................................................................... 47 3.6 Test Procedures ........................................................................................................................ 47 3.7 Test Results .............................................................................................................................. 47 XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 3 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 TEST REPORT FOR FCC CERTIFICATE Applicant : XIAMEN LONGSTAR LIGHTING CO., LTD. Manufacturer : XIAMEN LONGSTAR LIGHTING CO., LTD. EUT Description : Energy Saving Lamp (A) Model No.: FE-IISM-13W FE-IISM-15W FE-IISM-18W FE-IISM-20W FE-USM-15W FE-USM-18W FE-USM-20W FE-USM-23W FE-USM-26W FE-USM-30W FE-ISM-20W FE-ISM-23W FE-ISM-26W FE-ISM-30W FE-T9M-22W FE-T9M-32W (B) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : April 3~May 11, 2003 Prepared by : Test Engineer : JEAN LIU (Assistant) SOLON GONG (Engineer) Reviewer : Approved Signatory : SAMMY CHEN (Engineer) BYRON KWO (Assistant Manager) XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 4 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Energy Saving Lamp Type of EUT : ; Production … Pre-product … Pro-type Model Number : FE-IISM-13W FE-IISM-15W FE-IISM-18W FE-IISM-20W FE-USM-15W FE-USM-18W FE-USM-20W FE-USM-23W FE-USM-26W FE-USM-30W FE-ISM-20W FE-ISM-23W FE-ISM-26W FE-ISM-30W FE-T9M-22W FE-T9M-32W The Circuit Card Copper Traces are in agreement with the schematic. Applicant : XIAMEN LONGSTAR LIGHTING CO., LTD. CHENGNAN INDUSTRIAL ZONE TONGAN, XIAMEN, CHINA Manufacturer : XIAMEN LONGSTAR LIGHTING CO., LTD. CHENGNAN INDUSTRIA…

Text truncated - open the document above for the full version.

XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 34 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 35 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 NOTE - The worst emission is detected at 0.227 MHz with corrected signal level of 47.57 (μV) (limit is 62.57μV)), when the VB of the EUT is connected to LISN. 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 36 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 37 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 NOTE - The worst emission is detected at 0.153 MHz with corrected signal level of 50.22 (μV) (limit is 65.82μV)), when the VB of the EUT is connected to LISN. 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 38 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 39 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 NOTE - The worst emission is detected at 0.413 MHz with corrected signal level of 43.71 (μV) (limit is 57.59μV)), when the VB of the EUT is connected to LISN. 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 40 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 NOTE - The worst emission is detected at 0.156 MHz with corrected signal level of 53.25 (μV) (limit is 65.69μV)), when the VA of the EUT is connected to LISN. 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 41 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 42 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 43 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 NOTE - The worst emission is detected at 0.302 MHz with corrected signal level of 47.01 (μV) (limit is 60.19μV)), when the VB of the EUT is connected to LISN. 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 44 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 45 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 NOTE - The worst emission is detected at 0.668 MHz with corrected signal level of 44.97 (μV) (limit is 56.00μV)), when the VB of the EUT is connected to LISN. 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 46 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 3 MAGNETIC FIELD EMISSION TEST 3.1 Test Equipment The following test equipment are used during the field strength test in a shielded room: Item Type Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Loop Antenna CHASE HLA6120 1062 Jun 02, 03 1 Year 2. Test Receiver Rohde & Schwarz ESVS10 844594/001 Apr 22, 03 1 Year 3.2 Block Diagram of Test Setup 3.3 Magnetic Field Emission Limit All emanations from Non-ISM frequency devices or system, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified below: Frequency (MHz) Quasi-peak Electric Field Test Distance 3m dB( μ V/m) 0.009~30 63.5 NOTE – Distance refers to the distance in meters between the test antenna and the closed point of any part of the EUT. 3.0 m TURN TABLE EUT 1.0 m ANTENNA ELEVATION 2M GROUND PLANE XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 47 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 3.4 EUT Configuration on Test The FCC part 18 regulations test method must be used to find the maximum emission during Radiated Emission test. The configuration of the EUT is same as used in conducted emission test. Please Refer to Section 2.4. 3.5 Operating Condition of EUT 3.5.1 Setup the EUT as shown on Section 3.2. 3.5.2 Turn on the power of all equipments. 3.5.3 Let the EUT work in test mode (Lighting) and test it. 3.6 Test Procedures The EUT is placed on a table, which is 1.0 meter above ground. Measurements are performed at 3.0m distance with a 0.6m loop antenna as described in 2.2.4 of MP-5 . The antenna shall be with the lower edge of the loop at 2m height above the floor. The bandwidth setting on the test receiver (R&S Test Receiver ESHS10) is 200Hz from 9kHz to 150kHz and 10kHz from 150kHz to 30MHz. The EUT is tested in a semi-anechoic chamber. All the scanning waveforms are attached within Sec. 3.7. 3.7 Test Results <PASS> Refer to the following pages. XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 48 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 49 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 50 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 51 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 52 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 53 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 54 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 55 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 56 of 63 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03036 120V/60Hz XIAMEN LONGSTAR LIGHTING CO., LTD. FCC ID: PKCLS0303 Page 57 of 63 Audix Technology (Sha…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test (FE-ΠSM SERIES) (FE-USM SERIES) (FE-ΙSM SERIES) (FE-T9M SERIES) 2. Field strength Test (FE-ΠSM SERIES) (FE-USM SERIES) (FE-ΙSM SERIES) (FE-T9M SERIES)
