PKCLS0305Energy Saving Lamp

Xiamen Longstar Lighting Co., Ltd.

Click to zoom

Application Details

Equipment Class: 8CC - Part 18 Consumer Device
Date of Grant: Aug 13, 2003
Application Purpose: Original Equipment
Date of Application: Aug 13, 2003
Equipment Note: Energy Saving Lamp
Frequency Range: 0.04000000 - 0.05000000
Company: Xiamen Longstar Lighting Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1 Use only on 120V/60Hz. 2 Never disassemble or modify-any changes could void the user’ authority to operate this device. 3 Not for use in totally enclosed recessed fixtures. 4 Risk of electric shock-do not use with where directly exposed to water. 5 This device is not intended for use with emergency exit fixtures or emergency exit lights. 6 This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. 7 To prevent burns, do not touch the bulb during operation or immediately after switching off. 8 Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

Block Diagram

External Photos

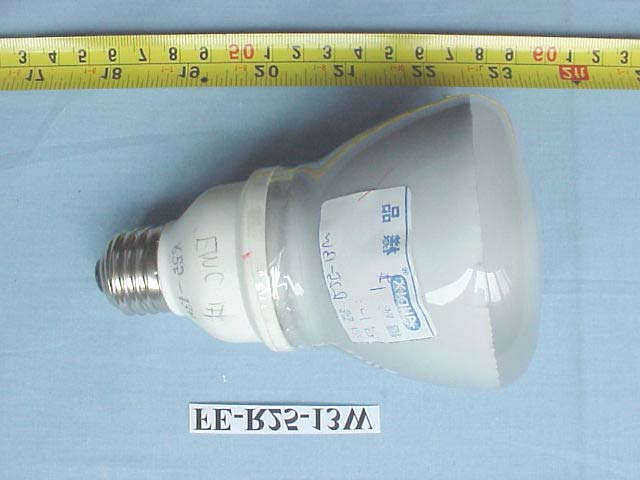

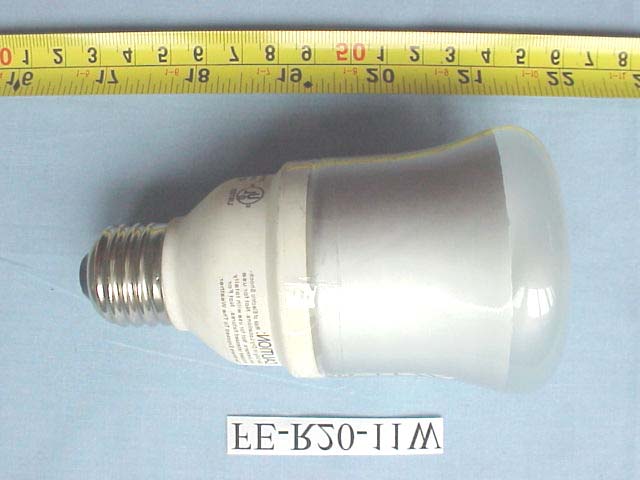

F IGURE 1 E NERGY S AVING L AMP (M/N: FE-R20-9W) G ENERAL A PPEARANCE F IGURE 2 E NERGY S AVING L AMP (M/N: FE-R20-11W) G ENERAL A PPEARANCE F IGURE 3 E NERGY S AVING L AMP (M/N: FE-R25-11W) G ENERAL A PPEARANCE F IGURE 4 E NERGY S AVING L AMP (M/N: FE-R25-13W) G ENERAL A PPEARANCE F IGURE 5 E NERGY S AVING L AMP (M/N: FE-R30-13W) G ENERAL A PPEARANCE F IGURE 6 E NERGY S AVING L AMP (M/N: FE-R30-15W) G ENERAL A PPEARANCE F IGURE 7 E NERGY S AVING L AMP (M/N: FE-R38-16W) G ENERAL A PPEARANCE F IGURE 8 E NERGY S AVING L AMP (M/N: FE-R38-20W) G ENERAL A PPEARANCE FE-R38-16W FE-R38-20W F IGURE 9 E NERGY S AVING L AMP (M/N: FE-R40-16W) G ENERAL A PPEARANCE F IGURE 10 E NERGY S AVING L AMP (M/N: FE-R40-20W) G ENERAL A PPEARANCE F IGURE 11 E NERGY S AVING L AMP (M/N: FE-G25A-9W) G ENERAL A PPEARANCE F IGURE 12 E NERGY S AVING L AMP (M/N: FE-G25A-11W) G ENERAL A PPEARANCE F IGURE 13 E NERGY S AVING L AMP (M/N: FE-G25B-13W) G ENERAL A PPEARANCE F IGURE 14 E NERGY S AVING L AMP (M/N: FE-G25B-16W) G ENERAL A PPEARANCE F IGURE 15 E NERGY S AVING L AMP (M/N: FE-G30A-15W) G ENERAL A PPEARANCE F IGURE 16 E NERGY S AVING L AMP (M/N: FE-G30A-18W) G ENERAL A PPEARANCE F IGURE 17 E NERGY S AVING L AMP (M/N: FE-G30B-20W) G ENERAL A PPEARANCE F IGURE 18 E NERGY S AVING L AMP (M/N: FE-G30B-23W) G ENERAL A PPEARANCE F IGURE 19 E NERGY S AVING L AMP (M/N: FE-G40-20W) G ENERAL A PPEARANCE F IGURE 20 E NERGY S AVING L AMP (M/N: FE-G40-23W) G ENERAL A PPEARANCE F IGURE 21 E NERGY S AVING L AMP (M/N: FE-G40-26W) G ENERAL A PPEARANCE F IGURE 22 E NERGY S AVING L AMP (M/N: FE-G40-32W) G ENERAL A PPEARANCE F IGURE 23 E NERGY S AVING L AMP (M/N: FE-AL-20W) G ENERAL A PPEARANCE F IGURE 24 E NERGY S AVING L AMP (M/N: FE-AL-24W) G ENERAL A PPEARANCE F IGURE 25 E NERGY S AVING L AMP (M/N: FE-T9-22W) G ENERAL A PPEARANCE F IGURE 26 E NERGY S AVING L AMP (M/N: FE-T9-32W) G ENERAL A PPEARANCE

ID Label/Location Info

Label Location Information Refer to the below red arrow: (For example)

ID Label/Location Info

Label Drawing 1. For example: Note:The blue words will be replaced as follows for each model. Model (A) Label Model Label FE-R20-9W FE-R20-9W 120V 60Hz 160mA FE-R20-11W FE-R20-11W 120V 60Hz 200mA FE-R25-11W FE-R25-11W 120V 60Hz 200mA FE-R25-13W FE-R25-13W 120V 60Hz 230mA FE-R30-13W FE-R30-13W 120V 60Hz 230mA FE-R30-15W FE-R30-15W 120V 60Hz 270mA FE-R38-16W FE-R38-16W 120V 60Hz 290mA FE-R38-20W FE-R38-20W 120V 60Hz 360mA FE-R40-16W FE-R40-16W 120V 60Hz 290mA FE-R40-20W FE-R40-20W 120V 60Hz 360mA FE-G25A-9W FE-G25A-9W 120V 60Hz 160mA FE-G25A-11W FE-G25A-11W 120V 60Hz 200mA FE-G25B-13W FE-G25B-13W 120V 60Hz 230mA FE-G25B-16W FE-G25B-16W 120V 60Hz 290mA FE-G30A-15W FE-G30A-15W 120V 60Hz 270mA FE-G30A-18W FE-G30A-18W 120V 60Hz 330mA FE-G30B-20W FE-G30B-20W 120V 60Hz 360mA FE-G30B-23W FE-G30B-23W 120V 60Hz 420mA FE-G40-20W FE-G40-20W 120V 60Hz 360mA FE-G40-23W FE-G40-23W 120V 60Hz 420mA FE-G40-26W FE-G40-26W 120V 60Hz 470mA FE-G40-32W FE-G40-32W 120V 60Hz 580mA FE-AL-20W FE-AL-20W 120V 60Hz 360mA FE-AL-24W FE-AL-24W 120V 60Hz 440mA FE-T9-22W FE-T9-22W 120V 60Hz 400mA FE-T9-32W FE-T9-32W 120V 60Hz 580mA LISTED Energy Saving Lamp FCC ID: PKCLS0305 FE-R20-9W 9W 120V 60Hz 160mA

Internal Photos

Interpretation Common ground Different M/N FE-R20-9W FE-R20-11W FE-R25-11W FE-R25-13W FE-R30-13W FE-R30-15W FE-R38-16W FE-R38-20W FE-R40-16W FE-R40-20W FE-G25A-9W FE-G25A-11W FE-G25B-13W FE-G25B-16W FE-G30A-15W FE-G30A-18W FE-G30B-20W FE-G30B-23W FE-G40-20W FE-G40-23W FE-G40-26W FE-G40-32W FE-AL-20W FE-AL-24W FE-T9-22W FE-T9-32W They’re all tested. Only the blue script part is recorded. F IGURE 1 E NERGY S AVING L AMP (M/N: FE-R20-11W) C OVER R EMOVED 1 F IGURE 2 E NERGY S AVING L AMP (M/N: FE-R20-11W) C OVER REMOVED 2 F IGURE 3 E NERGY S AVING L AMP (M/N: FE-R20-11W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 4 E NERGY S AVING L AMP (M/N: FE-R20-11W) M AIN BOARD (SOLDERED SIDE) F IGURE 5 E NERGY S AVING L AMP (M/N: FE-R25-13W) C OVER R EMOVED 1 F IGURE 6 ENERGY SAVING LAMP (M/N: FE-R25-13W) COVER REMOVED 2 F IGURE 7 E NERGY S AVING L AMP (M/N: FE-R25-13W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 8 ENERGY SAVING LAMP (M/N: FE-R25-13W) MAIN BOARD (SOLDERED SIDE) F IGURE 9 E NERGY S AVING L AMP (M/N: FE-R30-15W) C OVER R EMOVED 1 F IGURE 10 ENERGY SAVING LAMP (M/N: FE-R30-15W) COVER REMOVED 2 F IGURE 11 E NERGY S AVING L AMP (M/N: FE-R30-15W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 12 ENERGY SAVING LAMP (M/N: FE-R30-15W) MAIN BOARD (SOLDERED SIDE) F IGURE 13 E NERGY S AVING L AMP (M/N: FE-R38-20W) C OVER R EMOVED 1 F IGURE 14 ENERGY SAVING LAMP (M/N: FE-R38-20W) COVER REMOVED 2 FE-R38-20W FE-R38-20W F IGURE 15 E NERGY S AVING L AMP (M/N: FE-R38-20W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 16 ENERGY SAVING LAMP (M/N: FE-R38-20W) MAIN BOARD (SOLDERED SIDE) FE-R38-20W FE-R38-20W F IGURE 17 E NERGY S AVING L AMP (M/N: FE-R40-20W) C OVER R EMOVED 1 F IGURE 18 ENERGY SAVING LAMP (M/N: FE-R40-20W) COVER REMOVED 2 F IGURE 19 E NERGY S AVING L AMP (M/N: FE-R40-20W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 20 ENERGY SAVING LAMP (M/N: FE-R40-20W) MAIN BOARD (SOLDERED SIDE) F IGURE 21 E NERGY S AVING L AMP (M/N: FE-G25A-11W) C OVER R EMOVED 1 F IGURE 22 ENERGY SAVING LAMP (M/N: FE-G25A-11W) COVER REMOVED 2 F IGURE 23 E NERGY S AVING L AMP (M/N: FE-G25A-11W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 24 ENERGY SAVING LAMP (M/N: FE-G25A-11W) MAIN BOARD (SOLDERED SIDE) F IGURE 25 E NERGY S AVING L AMP (M/N: FE-G25B-16W) C OVER R EMOVED 1 F IGURE 26 ENERGY SAVING LAMP (M/N: FE-G25B-16W) COVER REMOVED 2 F IGURE 27 E NERGY S AVING L AMP (M/N: FE-G25B-16W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 28 ENERGY SAVING LAMP (M/N: FE-G25B-16W) MAIN BOARD (SOLDERED SIDE) F IGURE 29 E NERGY S AVING L AMP (M/N: FE-G30A-18W) C OVER R EMOVED 1 F IGURE 30 ENERGY SAVING LAMP (M/N: FE-G30A-18W) COVER REMOVED 2 F IGURE 31 E NERGY S AVING L AMP (M/N: FE-G30A-18W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 32 ENERGY SAVING LAMP (M/N: FE-G30A-18W) MAIN BOARD (SOLDERED SIDE) F IGURE 33 E NERGY S AVING L AMP (M/N: FE-G30B-23W) C OVER R EMOVED 1 F IGURE 34 ENERGY SAVING LAMP (M/N: FE-G30B-23W) COVER REMOVED 2 F IGURE 35 E NERGY S AVING L AMP (M/N: FE-G30B-23W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 36 ENERGY SAVING LAMP (M/N: FE-G30B-23W) MAIN BOARD (SOLDERED SIDE) F IGURE 37 E NERGY S AVING L AMP (M/N: FE-G40-32W) C OVER R EMOVED 1 F IGURE 38 ENERGY SAVING LAMP (M/N: FE-G40-32W) COVER REMOVED 2 F IGURE 39 E NERGY S AVING L AMP (M/N: FE-G40-32W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 40 ENERGY SAVING LAMP (M/N: FE-G40-32W) MAIN BOARD (SOLDERED SIDE) F IGURE 41 E NERGY S AVING L AMP (M/N: FE-AL-24W) C OVER R EMOVED 1 F IGURE 42 E NERGY S AVING L AMP (M/N: FE-AL-24W) C OVER REMOVED 2 F IGURE 43 E NERGY S AVING L AMP (M/N: FE-AL-24W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 44 E NERGY S AVING L AMP (M/N: FE-AL-24W) M AIN BOARD (SOLDERED SIDE) F IGURE 45 E NERGY S AVING L AMP (M/N: FE-T9-32W) C OVER R EMOVED F IGURE 46 E NERGY S AVING L AMP (M/N: FE-T9-32W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 47 ENERGY SAVING LAMP (M/N: FE-T9-32W) MAIN BOARD (SOLDERED SIDE)

Schematics

Schematics APPENDIX F ORM OF C OMPONENTS RATINGS COMPONENTS MODEL FE-R20-9W FE-R20-11W FE-R25-11W FE-R25-13W FE-R30-13W FE-R30-1 5 W 1 LAMP CAP E26 E26 E26 E26 E26 E26 E26 2 ELECTRICAL WIRE UL1569 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 3 PLASTIC PIECE PBT /GE 420SEO Ø52mm Ø52mm Ø52mm Ø52mm Ø52mm Ø52mm 4 CRYSTAL REVERBERATOR REVERBERATOR H=64.5 Ø63.5mm H=64.5 Ø63.5mm H=70.0 Ø80.0mm H=70.0 Ø80.0mm H=85.0 Ø93.5mm H=85.0 Ø93.5mm 5 LAMP TUBE SPIRAL 9W/Ø10.5 11W/Ø10. 5 11W/Ø10.5 13W/Ø10.5 13W/Ø10.5 15W/Ø10.5 Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm 6 FILAMENT CASING PIPE 7 FUSE CASING PIPE Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm 8 FU FUSE 1A/250VAC 1A/250VAC 1A/ 250VAC 1A/250VAC 1A/250VAC 2A/250VAC 9 PCB PCB BOARD PCB LST-RS03 LST-RS03 LST-RS03 LST-RS03 LST-RS03 LST-RS03 10 B RING MAGNET FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 11 D1-D4 DIODE IN4007 1A/1000V 1A/1000V 1A/1000V 1A/1000V 1A/1000V 1A/1000V 12 D5 DIODE IN4007 1A/1000V 1A/1000V 1A /1000V 1A/1000V 1A /1000V 1A/1000V 13 D6, DIODE －－－－－－－－－－－－－－－－－－－－－－－－ 14 D7 DIODE －－－－－－－－－－－－－－－－－－－－－－－－ 15 D8, D9 DIODE －－－－－－－－－－－－－－－－－－－－－－－－ RATINGS COMPONENTS MODEL FE-R20-9W FE-R20-11W FE-R25-11W FE-R25-13W FE-R30-13W FE-R30-1 5 W 16 DB3 TYIGGER DIODE DB3 DB3 DB3 DB3 DB3 DB3 DB3 17 R1, R2 RESISTOR 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 18 R3, R5 RESISTOR 10 Ω 1/4W 10 Ω 1/4W 10 Ω 1/4W 10 Ω 1/4W 10 Ω 1/4W 15 Ω 1/4W 19 R4, R6 RESISTOR 1 Ω 1/4W 1 Ω 1/4W 1 Ω 1/4W 1 Ω 1/4W 1 Ω 1/4W 1.5 Ω 1/4W 20 C0 CAPACITOR CL21 47nF/400V 47nF/400V 47nF/400V 47nF/400V 47nF/400V 47nF/400V 21 C1 CAPACITOR CD11 10uF/200V 10uF/200V 10uF/200V 10uF/200V 10uF/200V 22uF/200V 22 C2 CAPACITOR CBB11 0.47nF/1200V 0.47nF/1200V 0.47nF/ 1200V 0.47nF/1200V 0.47nF /1200V 0.68nF/1200V 23 C3 CAPACITOR CL11 22nF/100V 22nF/100V 22nF/100V 22nF/100V 22nF/100V 22nF/100V 24 C4 CAPACITOR CL11 47nF/250V 47nF/250V 47nF/250V 47nF/250V 47nF/250V 47nF/250V 25 C5 CAPACITOR CBB11 2.7nF/1200V 2.7nF/1200V 2.7nF/ 1200V 2.7nF/1200V 2.7nF /1200V 3.3nF/1200V 26 C6 CAPACITOR CBB11 2.2nF/1200V 2.2nF/1200V 2.2nF/ 1200V 2.7nF/1200V 2.7nF /1200V 2.7nF/1200V 27 L MAGNETIC EE16 EE16 EE16 EE16 EE16 EE16 INDUCTANCE 28 L0, 01 INDUCTANCE Ø6*8mm Ø6*8mm Ø6*8mm Ø8*10mm Ø8*10mm Ø8*10mm 29 T1, T2 TRANSISTOR DK42 DK42 DK42 DK42 DK42 13003 RATINGS COMPONENTS MODEL FE-R38-16W FE-R38-20W FE-R40-16W FE -R40-20W FE-G25A-9W FE-G25A-11W 1 LAMP CAP E26 E26 E26 E26 E26 E26 E26 2 ELECTRICAL WIRE UL1569 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 3 PLASTIC PIECE PBT /GE 420SEO Ø52mm Ø52mm Ø52mm Ø52mm Ø65mm Ø65mm 4 CRYSTAL REVERBERATOR REVERBERATOR H=97.0 Ø119.0mm H=97.0 Ø119.0mm H=96.0 Ø120.0mm H=96.0 Ø120.0mm H=67.82 Ø80mm H=67.82 Ø80mm 5 LAMP TUBE SPIRAL 16W/Ø10.5 20W/Ø10. 5 16W/Ø10.5 20W/Ø10.5 9W/Ø10.5 11W/Ø10.5 Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm 6 FILAMENT CASING PIPE 7 FUSE CASING PIPE Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm 8 FU FUSE 2A/250VAC 2A/250VAC 2A/ 250VAC 2A/250VAC 1A/250VAC 1A/250VAC 9 PCB PCB BOARD PCB LST-RS03 LST-RS03 LST-RS03 LST-RS03 LST-G01 LST-G01 10 B RING MAGNET FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 11 D1-D4 DIODE IN4007 1A/1000V 1A/1000V 1A/1000V 1A/1000V 1A/1000V 1A/1000V 12 D5 DIODE IN4007 1A/1000V 1A/1000V 1A /1000V 1A/1000V 1A /1000V 1A/1000V 13 D6 DIODE －－－－ 1A/1000V －－－－ 1A/1000V －－－－－－－－ 14 D7 DIODE －－－－ 1A/1000V －－－－ 1A/1000V －－－－－－－－ 15 D8, D9 DIODE －－－－－－－－－－－－－－－－－－－－－－－－ RATINGS COMPONENTS MODEL FE-R38-16W FE-R38-20W FE-R40-16W FE -R40-20W FE-G25A-9W FE-G25A-11W 16 DB3 TYIGGER DIODE DB3 DB3 DB3 DB3 DB3 DB3 DB3 17 R1,R2 RESISTOR 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 18 R3,R5 RESISTOR 15 Ω 1/4W 15 Ω 1/4W 15 Ω 1/4W 15 Ω 1/4W 10 Ω 1/4W 10 Ω 1/4W 19 R4,R6 RESISTOR 1.5 Ω 1/4W 1 Ω 1/4W 1.5 Ω 1/4W 1 Ω 1/4W 1 Ω 1/4W 1 Ω 1/4W 20 C0 CAPACITOR CL21 47nF/400V 47nF/400V 47nF/400V 47nF/400V 47nF/400V 47nF/400V 21 C1 CAPACITOR CD11 22uF/200V 22uF/200V 22uF/200V 22uF/200V 10uF/200V 10uF/200V 22 C2 CAPACITOR CBB11 0.68nF/1200V 0.68nF/1200V 0.68nF/ 1200V 0.68nF/1200V 0.47nF /1200V 0.47nF/1200V 23 C3 CAPACITOR CL11 22nF/100V 22nF/100V 22nF/100V 22nF/100V 22nF/100V 22nF/100V 24 C4 CAPACITOR CL11 47nF/250V 47nF/250V 47nF/250V 47nF/250V 47nF/250V 47nF/250V 25 C5 CAPACITOR CBB11 3.3nF/1200V 3.3nF/1200V 3.3nF/ 1200V 3.3nF/1200V 2.7nF /1200V 2.7nF/1200V 26 C6 CAPACITOR CBB11 2.7nF/1200V 3.3nF/1200V 2.7nF/ 1200V 3.3nF/1200V 2.2nF /1200V 2.2nF/1200V 27 L MAGNETIC EE16 EE19 EE16 EE19 EE16 EE16 INDUCTANCE 28 L0 INDUCTANCE Ø8*10mm Ø8*10mm Ø8*10mm Ø8*10mm Ø6*8mm Ø6*8mm 29 T1, T2 TRANSISTOR 13003 13003 13003 13003 DK42 DK42 RATINGS COMPONENTS MODEL FE-G25B-13W FE-G25B-16W FE-G30A-15W FE-G30A-18W FE-G30B-20W FE-G30B-23W 1 LAMP CAP E26 E26 E26 E26 E26 E26 E26 2 ELECTRICAL WIRE UL1569 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 1C*22AWG 3 PLASTIC PIECE PBT /GE 420SEO Ø65mm Ø65mm Ø65mm Ø65mm Ø65mm Ø65mm 4 CRYSTAL REVERBERATOR REVERBERATOR H=67.82 Ø80mm H=67.82 Ø80mm H=86.6 Ø95mm H=86.6 Ø95mm H=86.6 Ø95mm H=86.6 Ø95mm 5 LAMP TUBE SPIRAL 13W/Ø10.5 16W/Ø10. 5 15W/Ø10.5 18W/Ø10.5 20W/Ø10.5 23W/Ø10.5 Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm Ø1.0mm 6 FILAMENT CASING PIPE 7 FUSE CASING PIPE Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm Ø4.0mm 8 FU FUSE 1A/250VAC 2A/250VAC 1A/ 250VAC 2A/250VAC 2A/250VAC 2A/250VAC 9 PCB PCB BOARD PCB LST-G01 LST-G01 LST-G01 LST-G01 LST-G01 LST-G01 10 B RING MAGNET FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 FR-9*5*4 11 D1-D4 DIODE IN4007 1A/1000V 1A/1000V 1A/1000V 1A/1000V 1A/1000V 1A/1000V 12 D5 DIODE IN4007 1A/1000V 1A/1000V 1A /1000V 1A/1000V 1A /1000V 1A/1000V 13 D6 DIODE －－－－－－－－－－－－－－－－－－－－－－－－ 14 D7 DIODE －－－－－－－－－－－－－－－－－－－－－－－－ 15 D8, D9 DIODE －－－－－－－－－－－－－－－－－－－－－－－－ RATINGS COMPONENTS MODEL FE-G25B-13W FE-G25B-16W FE-G30A-15W FE-G30A-18W FE-G30B-20W FE-G30B-23W 16 DB3 TYIGGER DIODE DB3 DB3 DB3 DB3 DB3 DB3 DB3 17 R1, R2 RESISTOR 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 220K Ω 1/4W 18 R3, R5 RESISTOR…

Text truncated - open the document above for the full version.

Test Report

Xiamen Longstar Lighting Co., Ltd. FCC ID: PKCLS0305 Page 1 of 27 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03045 Application for FCC Certificate On Behalf of Xiamen Longstar Lighting Co., Ltd. Energy Saving Lamp FCC ID: PKCLS0305 Prepared For : Xiamen Longstar Lighting Co., Ltd. Chengnan Industrial Zone, Tongan, Xiamen, China 361100 Prepared By : Audix Technology (Shanghai) Co., Ltd. 3 F, 34 Bldg, 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F03033 Date of Test : Mar 23-Jun 09, 2003 Date of Report : Jun 20, 2003 Model No.: FE-R20-9W FE-R20-11W FE-R25-11W FE-R25-13W FE-R30-13W FE-R30-15W FE-R38-16W FE-R38-20W FE-R40-16W FE-R40-20W FE-G25A-9W FE-G25A-11W FE-G25B-13W FE-G25B-16W FE-G30A-15W FE-G30A-18W FE-G30B-20W FE-G30B-23W FE-G40-20W FE-G40-23W FE-G40-26W FE-G40-32W FE-AL-20W FE-AL-24W FE-T9-22W FE-T9-32W Xiamen Longstar Lighting Co., Ltd. FCC ID: PKCLS0305 Page 2 of 27 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03045 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 5 1.3 Measurement Uncertainty .......................................................................................................... 5 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 6 2.1 Test Equipment........................................................................................................................... 6 2.2 Block Diagram of Test Setup ..................................................................................................... 6 2.3 Conducted Emission Limits ....................................................................................................... 6 2.4 EUT Configuration on Test ........................................................................................................ 7 2.5 Operating Condition of EUT ...................................................................................................... 7 2.6 Test Procedures .......................................................................................................................... 7 2.7 Test Results ................................................................................................................................ 7 3 MAGNETIC FIELD EMISSION TEST ...................................................................................... 14 3.1 Test Equipment......................................................................................................................... 14 3.2 Block Diagram of Test Setup ................................................................................................... 14 3.3 Magnetic Field Emission Limit ................................................................................................ 14 3.4 EUT Configuration on Test ...................................................................................................... 14 3.5 Operating Condition of EUT .................................................................................................... 15 3.6 Test Procedures ........................................................................................................................ 15 3.7 Test Results .............................................................................................................................. 15 Xiamen Longstar Lighting Co., Ltd. FCC ID: PKCLS0305 Page 3 of 27 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03045 TEST REPORT FOR FCC CERTIFICATE Applicant : Xiamen Longstar Lighting Co., Ltd. Manufacturer : Xiamen Longstar Lighting Co., Ltd. EUT Description : Energy Saving Lamp (A) Model No.: FE-R20-9W, FE-R20-11W, FE-R25-11W, FE-R25-13W, FE-R30-13W, FE-R30-15W, FE-R38-16W, FE-R38-20W, FE-R40-16W, FE-R40-20W, FE-G25A-9W, FE-G25A-11W, FE-G25B-13W, FE-G25B-16W, FE-G30A-15W, FE-G30A-18W, FE-G30B-20W, FE-G30B-23W, FE-G40-20W, FE-G40-23W, FE-G40-26W, FE-G40-32W, FE-AL-20W, FE-AL-24W, FE-T9-22W, FE-T9-32W, (B) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2002.10) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Mar 23-Jun 09, 2003 Prepared by : Test Engineer : CATHRIN YIN (Assistant) SOLON GONG (Engineer) Reviewer : Approved Signatory : SAMMY CHEN (Engineer) BYRON KWO (Assistant Manager) Xiamen Longstar Lighting Co., Ltd. FCC ID: PKCLS0305 Page 4 of 27 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F03045 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Energy Saving Lamp Type of EUT : ; Production Pre-product Pro-type Model Number : FE-R20-9W, FE-R20-11W, FE-R25-11W, FE-R25-13W, FE-R30-13W, FE-R30-15W, FE-R38-16W, FE-R38-20W, FE-R40-16W, FE-R40-20W, FE-G25A-9W, FE-G25A-11W, FE-G25B-13W, FE-…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Set-Up Photos 1. Conducted Emission Test (M/N: FE-R SERIES) (M/N: FE-R38 SERIES) (M/N: FE-G SERIES) (M/N: FE-AL SERIES) (M/N: FE-T9 SERIES) 2. Field strength Test (M/N: FE-R SERIES) (M/N: FE-R38 SERIES) (M/N: FE-G SERIES) (M/N: FE-AL SERIES) (M/N: FE-T9 SERIES)
