PKH-604XXIndoor Remote Control LNS

Crystal 32.768

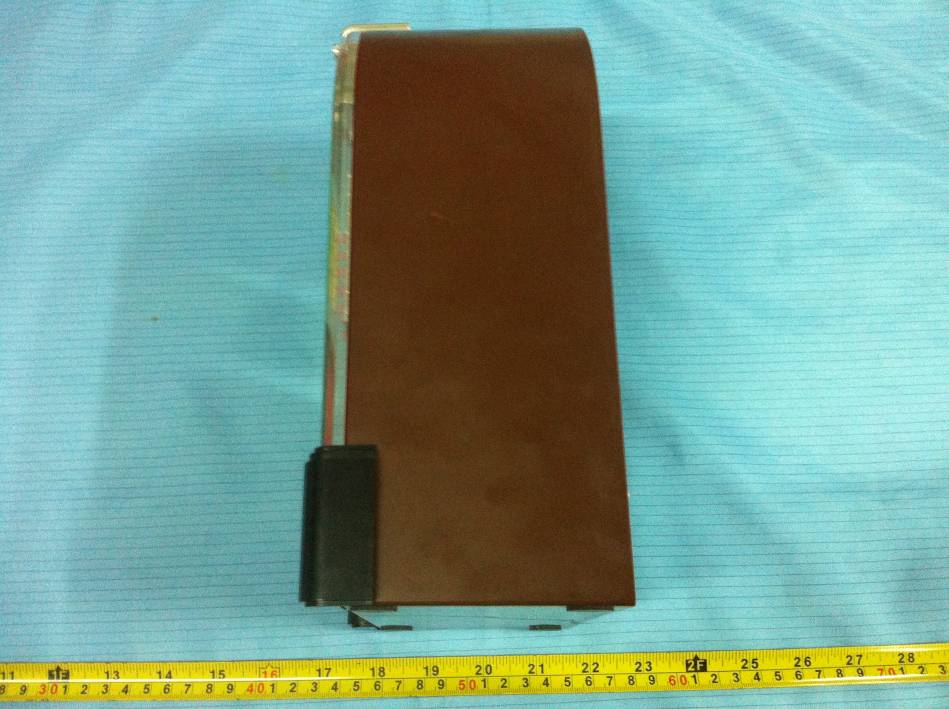

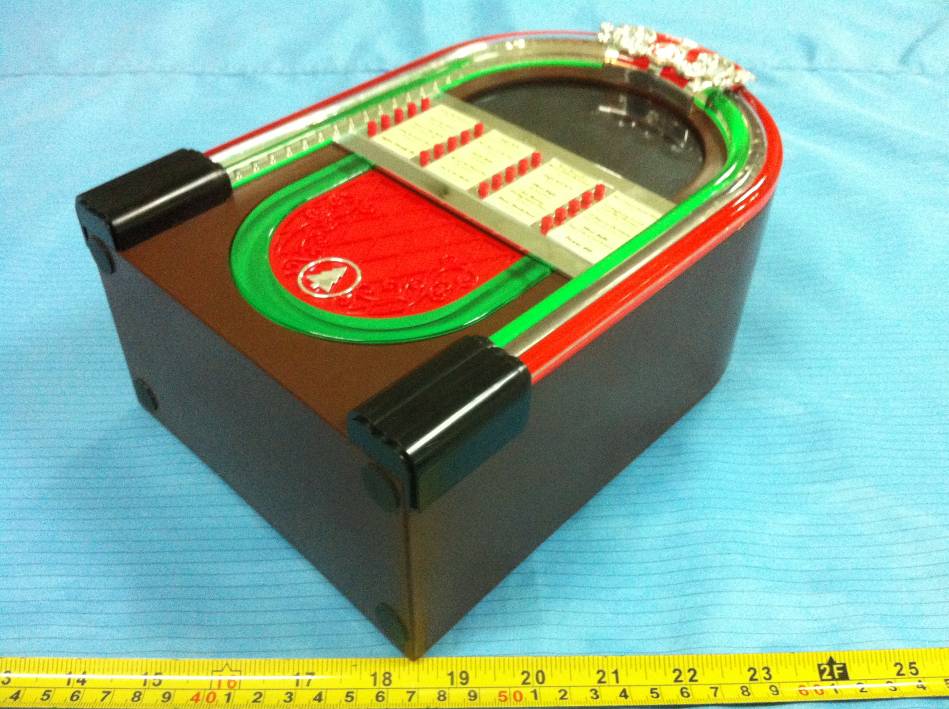

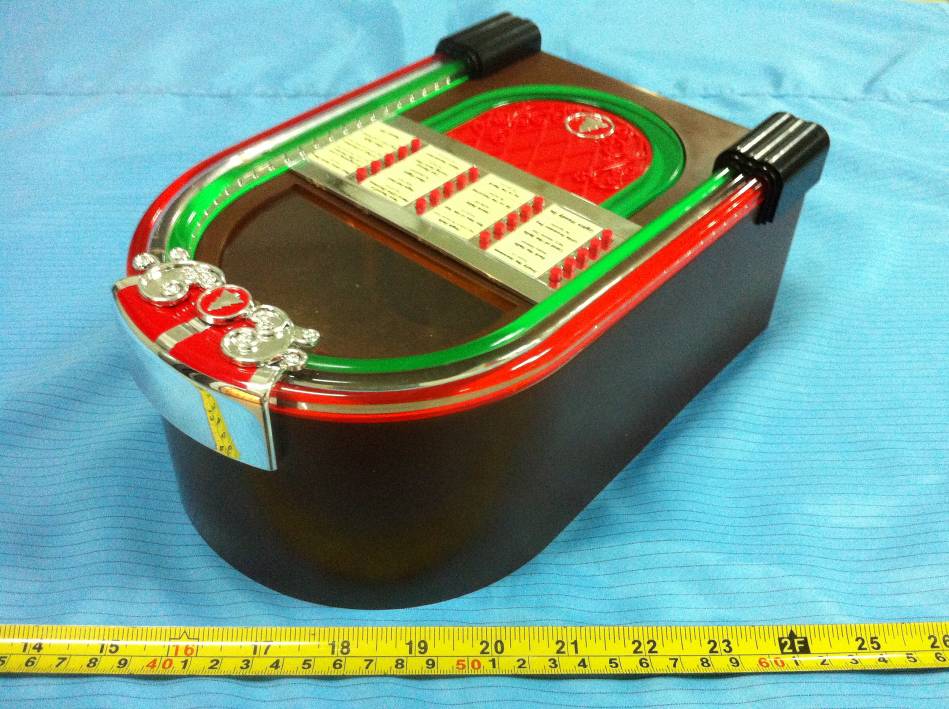

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Side View 1 EUT – Side View 2 EUT – Side View 3

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Full View EUT – Main Board Top View EUT – Main Board Bottom View EUT – RF Board Top View PCB Antenna EUT – RF Board Bottom View EUT – TU2 Board Top View EUT – TU2 Board Bottom View

Jukebox LNS Circuit Description Transmitter : Power “C” cell x3 . provide 4.5 V DC voltage keyscan IC TR1212S19 , RF transmitter module board and IC PT2262 and PT4450, also using When unit power up. Waiting key in form the penal If key is press , TR1212S19 will send 5 bits control data code to encoder IC PT2262 D0 to D4 , and then PADB2 pin of TR1212S19 will go low HIGH voltage 300ms, PT2262 encode data to serial coded waveform though resistor RR17 pass to PT4450, PT4450 will modular data to ASK/OOK and then transmit .433MHz is a SAW oscillator for PT 4450. Receiver : Power input is 120V AC. Using Transformer provide 9v ac voltage, D1, D2,D3 and D4 Diodes 1n4001 provide DC voltage. Using U1 LM7805 regulator provide 5v DC to IC PT 2272 decoder and IC PT4317 receiver IC. TR1301S80 music received control code from PT2272 . Music start to play or change light string pattern . The PT4317 is a very low power consumption single chip OOK/ASK super heterodyne receiver. PT2272 will received data from PT4316 through RS25.PT2272 will compare data, which is received, is match the address as PT2272 hardware setting (PT2272 address pin A0 to A5 ). When PT2272 Identified the valid control code. Pin 17 (VT pin) of PT2272 will give high voltage to GPCE048A pin IOB11. Then GPCE048A will read 6 bits control code data from PT2272 ( D0 to D5). The GPCE048A had a pre-set program to control light flashing (receptacle). When GPCE048A received a valid Control code. IOB55 On the IC GPCE048A will give High /Low signal to U4 MOC3020 Optoisolator to control T1 Triac BTA16 on and off, when Triac is “ON” AC current can pass though X7 receptacle when music is singing a song .

KEY CONTROL & RF TRANSIMTTER (TX) TITLE: MODEL: SHEET: 3 OF 3 ECO NO: APPROVED: DATE: REVISION RECORD DRAWING NO: DRAWN: CHECKED: APRROVED: DATED: DATED: DATED: 1 2 3 4 5 6 A B C D A B C D REV: 0 25-JAN-2013 LIGHTS AND SOUNDS ROCK-O-RAMO SCHEMATIC DIAGRAM 0805 0805 GPB8 GPB7 GPB6 GPB5 GPB4 GPB3 GPB2 GPB1 GPB0 SUPER YELLOW LD1 LD2-LD7 SUPER YELLOW ROOM DISPLAY PIPE 1.5V X 3 BATTERY C SIZE PROGRAMMING PIN 25-JAN-2013 3 GND 2 VDD 1 DIN TR1 4.7 TC2 10uF 16V TD3 1N4148 TC1 10uF 16V TL1 3.3uH TC6 0.1u 1 A0 2 A1 3 A2 4 A3 5 A4 6 A5 7 D5 8 D4 9 VSS 18 VCC 17 DOUT 16 OSC1 15 OSC2 14 TE 13 D0 12 D1 11 D2 10 D3 TU1 PT2262 TC4 0.1u TR9 1M2 +/-1% TR4 10K TR5 10K TR6 10K TR7 10K TR13 4.7 S1 S2 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S3 TQ2 8050D TR2 1K2 TR10 150 LD1 TR12 100 LD2 TR11 100 LD3 TR14 100 LD4 TR15 100 LD5 MR16 100 LD6 TR17 100 LD7 TQ1 8050D TR3 1K2 12 E1 11 E2 10 E3 18 B3 14 D3 15 D2 6 VPP 5 OSC 25 A0 24 A1 23 A2 22 A3 21 B0 7 VSS 1 VPS 8 VCC 2 PWMP 3 VPD3 4 PWMN 13 E0 17 D0 16 D1 9 TEST 20 B1 19 B2 26 NIL U3 TRSP085A1 TQ3 8050D TR18 1K TR8 10K TC3 0.1u TD1 1N4148 TD2 1N4148 PWMP A0 PWMN VPP VCC VPS SW1 +3.1V +4.5V +4.5V +4.5V +4.5V +3.1V

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.231 TEST REPORT For Kenyazi Investment LTD. Flat A-1, 8/F, Yip Fung Ind. BLDG, 28-36 Kwai Fung Crescent Kwai Fong, N.T. Hong Kong FCC ID: PKH-604XX Report Type: Original Report Product Type: Indoor Remote Control LNS (Transmitter Unit) Test Engineer: Jimmy Xiao Report Number: RSZ130521006-00A Report Date: 2013-07-05 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130521006-00A FCC Part 15.231 Page 2 of 19 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................4 SUMMARY OF TEST RESULTS...............................................................................................................................5 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................6 APPLICABLE STANDARD..............................................................................................................................................6 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................6 FCC §15.205, §15.209, §15.231 (B) - RADIATED EMISSIONS ...............................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 FCC §15.231(C) – 20 DB EMISSION BANDWIDTH TESTING ...........................................................................15 APPLICABLE STANDARD............................................................................................................................................15 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................15 TEST PROCEDURE......................................................................................................................................................15 TEST DATA................................................................................................................................................................15 FCC §15.231(A)(2) - DEACTIVATION TESTING..................................................................................................17 APPLICABLE STANDARD............................................................................................................................................17 TE…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission View (Below 1 GHz) Radiated Emission View (Above 1 GHz)
