PKH-678XX-RXOutdoor Remote Control LNS

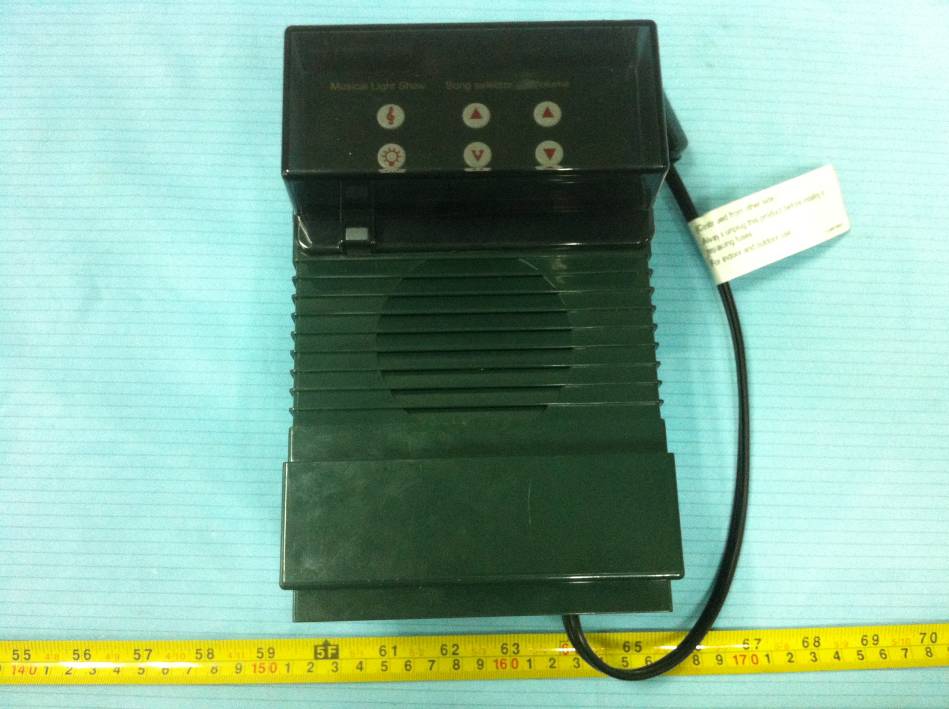

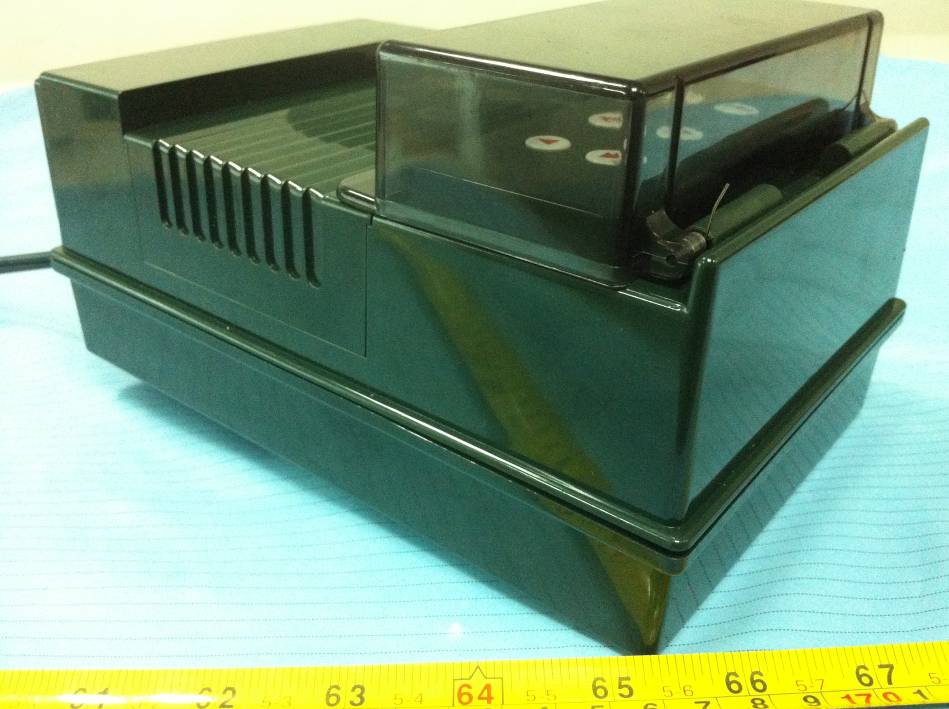

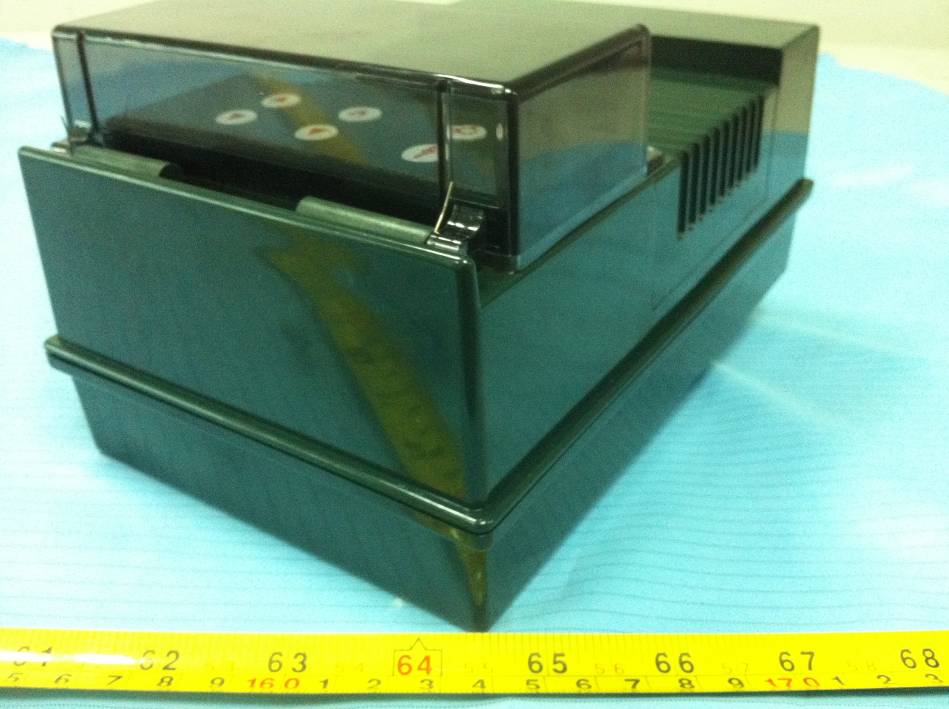

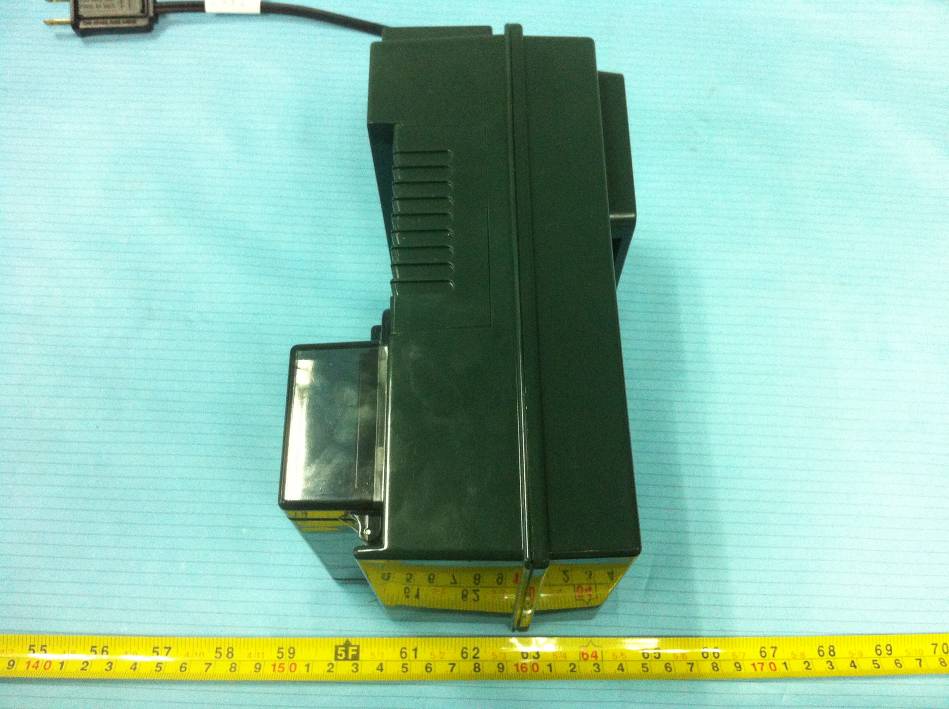

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Side View 1 EUT – Side View 2 EUT – Side View 3 EUT – Side View 4

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – RF Board Top View EUT – RF Board Bottom View Antenna EUT – Keyboard Top View EUT – Keyboard Bottom View EUT – Transformer View

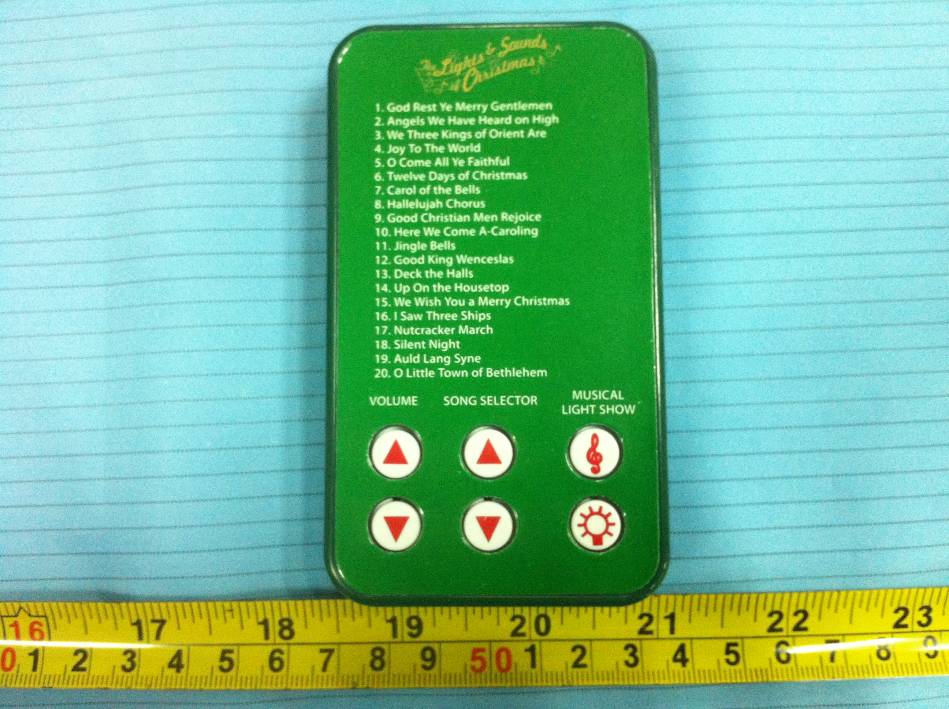

Remote control LNS Circuit Description Transmitter : Power “AA” cell x3 . provide 4.5 V DC voltage 6 button keys , RF transmitter module board and IC PT2262 and PT4450, also using When unit power up. Waiting key in form the penal If key is press , encoder IC PT2262 read D0 to D5 data pin , PT2262 encode data to serial coded waveform though resistor RR17 pass to PT4450, PT4450 will modular data to ASK/OOK and then transmit .433MHz is a SAW oscillator for PT 4450. Receiver : Power input is 120V AC. Using Transformer provide 9v ac voltage, D1, D2,D3 and D4 Diodes 1n4001 provide DC voltage. Using U1 LM7805 regulator provide 5v DC to IC PT 2272 decoder and IC PT4317 receiver IC. TR1301S80 music received control code from PT2272 . Music start to play or change light string pattern . The PT4317 is a very low power consumption single chip OOK/ASK super heterodyne receiver. PT2272 will received data from PT4316 through RS25.PT2272 will compare data, which is received, is match the address as PT2272 hardware setting (PT2272 address pin A0 to A5 ). When PT2272 Identified the valid control code. Pin 17 (VT pin) of PT2272 will give high voltage to TR1301S80 pin BP0.6. Then TR1301S80 will read 6 bits control code data from PT2272 ( D0 to D5). The TR1301S80 had a pre-set program to control light flashing (receptacle). When TR1301S80 received a valid Control code. BP1.5 to BP1.7 On the IC TR1301S80 will give High /Low signal to U4 MOC3020 Optoisolator to control T1 Triac BTA16 on and off, when Triac is “ON” AC current can pass though X7 receptacle when music is playing .

55 44 33 22 11 D D C C B B A A 白白白 黑黑黑 (C4)(D4)(E4)(F4)(G4)(A4) ANT RX module KEY BOARD MAIN KEY MAP SONG_NEXTSONG_LAST MUSICALLIGHT VOL- VOL+ AC-N AC-L AC-N4AC-L4 AC-N3 AC-L3 AC-N2 AC-L2 AC-N1 AC-L1 PRI SEC AC1AC2 3.3V 5V_AMP 9V 4.3V 3.3V 4.3V 4.3V 5V 5V_AMP TitleSize Document Number Rev Date: Sheet of 67816 Remote Control Lights and Sounds of Christmas.DSN 0 67816 Remote Control Lights and Sounds of Christmas A3 12 Monday, January 28, 2013 TitleSize Document Number Rev Date: Sheet of 67816 Remote Control Lights and Sounds of Christmas.DSN 0 67816 Remote Control Lights and Sounds of Christmas A3 12 Monday, January 28, 2013 TitleSize Document Number Rev Date: Sheet of 67816 Remote Control Lights and Sounds of Christmas.DSN 0 67816 Remote Control Lights and Sounds of Christmas A3 12 Monday, January 28, 2013 CN1CN1 1234567 C90.1uC90.1u 1234567 C15 0.01u C15 0.01u D4 4001 D4 4001 C8 C8 D10D10 R3 R3 LASTLAST J6J6 1234 R44 DNP R44 DNP R1468R1468 D12D12D11D11D8D8 Q113904Q113904 LIGHTLIGHT C11000PC11000P Q123904Q123904 C240.47U 275VAC X2C240.47U 275VAC X2 C7 C7 C200.1uC200.1u R13270R13270 C41 0.01u C41 0.01u C TU-004 C TU-004 L N R40 10M R40 10M C20.1uC20.1u D7D7R17180K_1%R17180K_1% R301KR301K U6PT4317U6PT4317 CE 1 REXT 2 RFIN 3 VSSLLNA 4 NC 5 VREG 6 DFFB 7 DSP 8 VDD5 9 OPP 10 PDOUT 11 DSN 12 DATA 13 VSS 14 OSCI 15 OSCO 16 C80.1uC80.1u R49390R49390 C22100uC22100u C12 0.01u C12 0.01u R311KR311K C170.1uC170.1u R42 DNP R42 DNP Q83904Q83904 U1L7805CVU1L7805CV IN 1 G 2 O 3 Q103904Q103904 C51000PC51000P R351KR351K JP30R 1206JP30R 1206 C4 C4 MOC1 MOC3023 MOC1 MOC3023 1 2 34 5 6 Q73904Q73904 R392.2KR392.2K R43 DNP R43 DNP UL PLUG (120VAC)SPT-2W 18/2C, YL-17KUL PLUG (120VAC)SPT-2W 18/2C, YL-17K JP40R 1206JP40R 1206 MUSICMUSIC R47 DNP R47 DNP R321KR321K MOC3 MOC3023 MOC3 MOC3023 1 2 34 5 6 C7 5600 C7 5600 SPSP 12 R234R7R234R7MOC2 MOC3023 MOC2 MOC3023 1 2 34 5 6 C11 0.01u C11 0.01u R41 DNP R41 DNP C5 C5 C19470 UF 25VC19470 UF 25V TR3BTA12-600BTR3BTA12-600B +- U2-2TDA2822M +- U2-2TDA2822M 78 1 24 U3PT2272U3PT2272 D3 10 D2 11 D1 12 D0 13 A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 D5 7 D4 8 VSS 9 DIN 14 OSC2 15 OSC1 16 VT 17 VCC 18 C41000PC41000P C380.1uC380.1u C6 C6 TR1BTA12-600BTR1BTA12-600B T1T1 1 3 2 4 D9D9 C23470U 25VC23470U 25V D2 4001 D2 4001 R244R7R244R7 C210.1uC210.1u S1 S1 Q93904Q93904 +- U2-1TDA2822M +- U2-1TDA2822M 65 3 R201.5KR201.5KR38270R38270 B TU-004 B TU-004 L N TR2BTA12-600BTR2BTA12-600B NEXTNEXT R181.5KR181.5KR36270R36270 D34148D34148 A TU-004 A TU-004 L N C500.1uC500.1uR191.5KR191.5KR37270R37270 C60.1uC60.1u R282.2KR282.2K C30.1uC30.1u R27510R27510 D5 4001 D5 4001 VOL+VOL+ C13 1000U 25V C13 1000U 25V C37 10u C37 10u R4 R4 R1010KR1010K C510.1uC510.1u R48 DNP R48 DNP R331KR331K U5LY6206AU5LY6206A O 1 G 2 I 3 C5210uC5210u L1L1 1 2 C3 C3 C1 C1 SPKR1 3" 8 OHM 0.5W w/Woofer SPKR1 3" 8 OHM 0.5W w/Woofer R46 DNP R46 DNP L1 L1 R2 R2 D1 4001 D1 4001 VOL-VOL- U4U4 VSS VSS_SPKVDD_SIM VDD BP1.0BP1.1BP1.2BP1.3BP1.4BP1.5BP1.6BP0.0BP0.1BP0.2BP0.3BP0.4BP0.5BP0.6BP0.7 BP2.0BP2.1BP2.2BP2.3BP2.4BP2.5BP2.6BP2.7 RST PWN+/DAC C2 C2 R45 0R R45 0R R341KR341K

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15 B, CLASS B TEST REPORT For Kenyazi Investment Limited Flat A-1, 8/F, Yip Fung Ind.BLDG, 28-36 Kwai Fung Crescent Kwai Fong, N.T.Hong Kong FCC ID: PKH-678XX-RX Report Type: Original Report Product Type: Outdoor Remote Control LNS (Receiver Unit) Test Engineer: Jimmy Xiao Report Number: RSZ130521007-00B Report Date: 2013-06-14 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130521007-00B FCC Part 15 B, Class B Page 2 of 15 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................4 EXTERNAL I/O CABLE..................................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC §15.107 – AC LINE CONDUCTED EMISSIONS .............................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 CORRECTED FACTOR & MARGIN CALCULATION.........................................................................................................8 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §15.109 - RADIATED SPURIOUS EMISSIONS ............................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................14 TEST RESULTS SUMMARY...............................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions – Front View Radiated Emissions – Rear View
