PKH-678XXOutdoor Remote Control LNS

Crystal 32.768 KHz

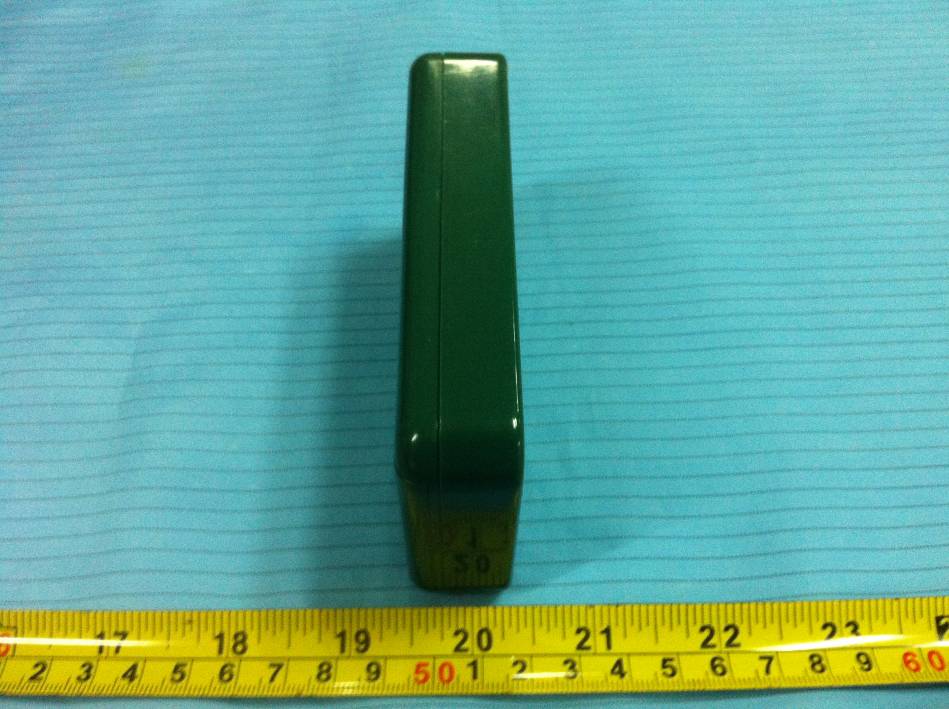

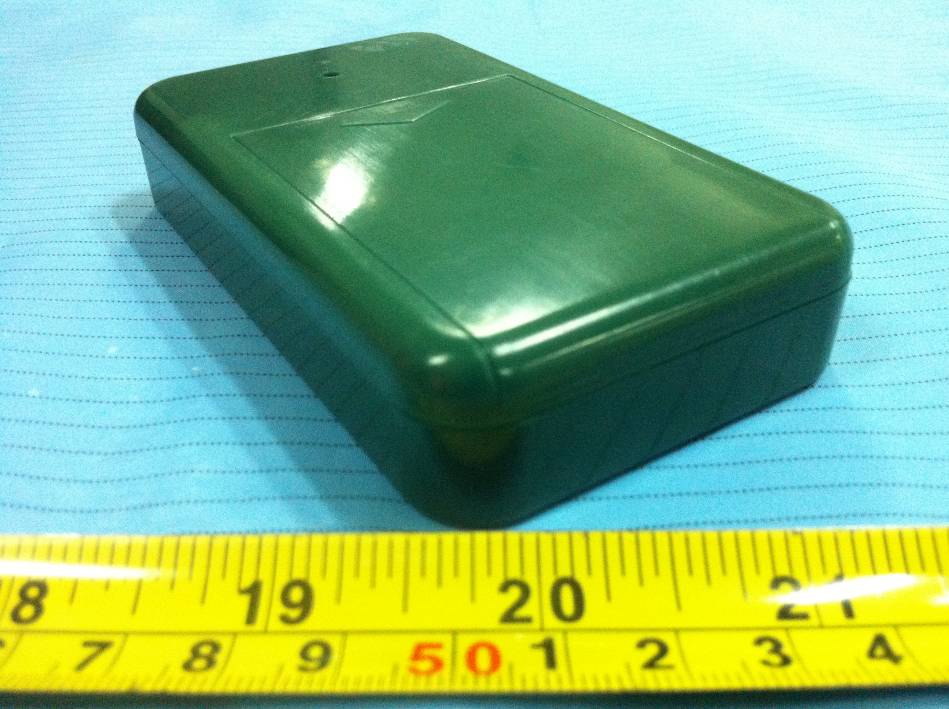

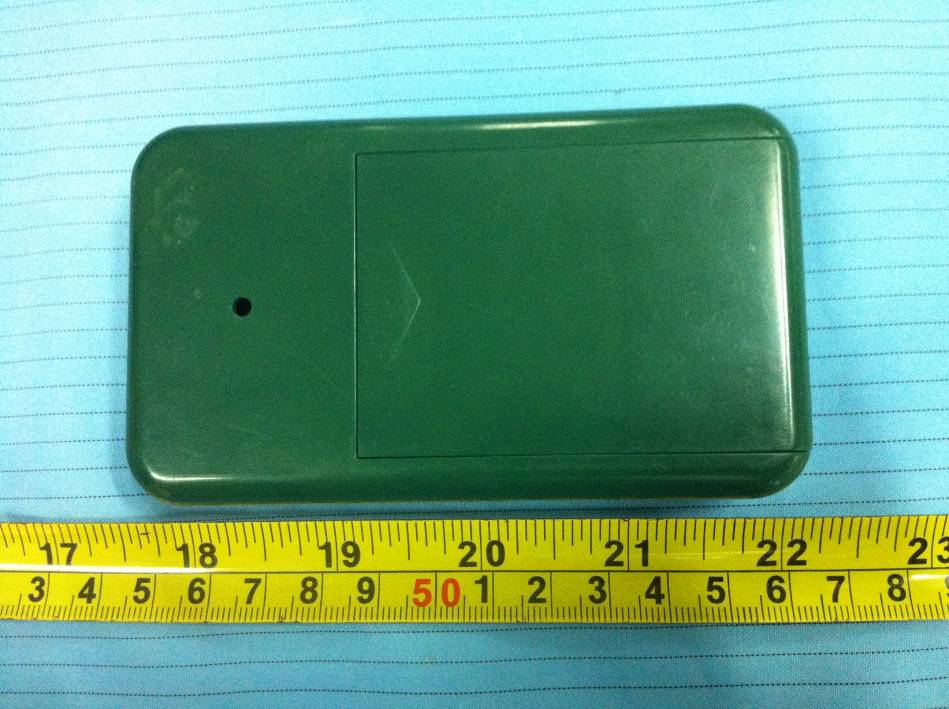

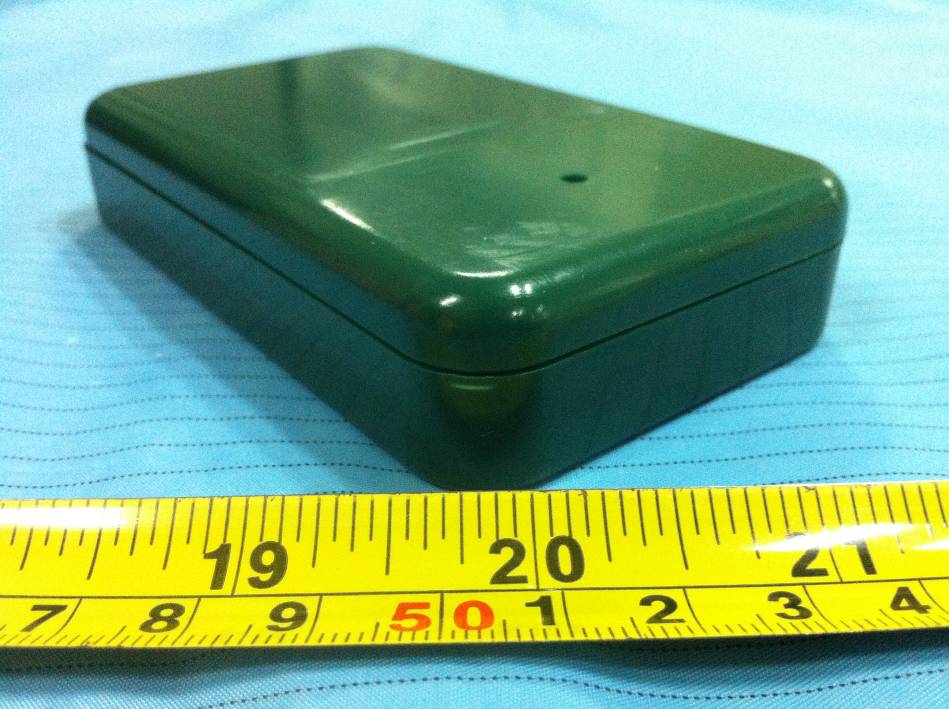

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Side View 1 EUT – Side View 2 EUT – Side View 3

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – RF Board Top View EUT – RF Board Bottom View PCB Antenna

Remote control LNS Circuit Description Transmitter : Power “AA” cell x3 . provide 4.5 V DC voltage 6 button keys , RF transmitter module board and IC PT2262 and PT4450, also using When unit power up. Waiting key in form the penal If key is press , encoder IC PT2262 read D0 to D5 data pin , PT2262 encode data to serial coded waveform though resistor RR17 pass to PT4450, PT4450 will modular data to ASK/OOK and then transmit .433MHz is a SAW oscillator for PT 4450. Receiver : Power input is 120V AC. Using Transformer provide 9v ac voltage, D1, D2,D3 and D4 Diodes 1n4001 provide DC voltage. Using U1 LM7805 regulator provide 5v DC to IC PT 2272 decoder and IC PT4317 receiver IC. TR1301S80 music received control code from PT2272 . Music start to play or change light string pattern . The PT4317 is a very low power consumption single chip OOK/ASK super heterodyne receiver. PT2272 will received data from PT4316 through RS25.PT2272 will compare data, which is received, is match the address as PT2272 hardware setting (PT2272 address pin A0 to A5 ). When PT2272 Identified the valid control code. Pin 17 (VT pin) of PT2272 will give high voltage to TR1301S80 pin BP0.6. Then TR1301S80 will read 6 bits control code data from PT2272 ( D0 to D5). The TR1301S80 had a pre-set program to control light flashing (receptacle). When TR1301S80 received a valid Control code. BP1.5 to BP1.7 On the IC TR1301S80 will give High /Low signal to U4 MOC3020 Optoisolator to control T1 Triac BTA16 on and off, when Triac is “ON” AC current can pass though X7 receptacle when music is playing .

55 44 33 22 11 D D C C B B A A TX module ANT VOL+VOL- SONG_NEXT SONG_LAST MUSICAL LIGHT D0 D1 D2 D3 D4 D5 REMOTE KEY MAP 4.5V TitleSize Document Number Rev Date: Sheet of 67816 Remote Control Lights and Sounds of Christmas.DSN 0 67816 Remote Control Lights and Sounds of Christmas A4 22 Monday, January 28, 2013 TitleSize Document Number Rev Date: Sheet of 67816 Remote Control Lights and Sounds of Christmas.DSN 0 67816 Remote Control Lights and Sounds of Christmas A4 22 Monday, January 28, 2013 TitleSize Document Number Rev Date: Sheet of 67816 Remote Control Lights and Sounds of Christmas.DSN 0 67816 Remote Control Lights and Sounds of Christmas A4 22 Monday, January 28, 2013 R7010KR7010K SW8_LIGHTSW8_LIGHT R3 R3 D26D26 R2 R2 SW2_VOL-SW2_VOL- ICT2ICT2 OSCO 1 VSS 2 PAOUT 3 DIN 4 VDD 5 OSCI 6 U6PT2262U6PT2262 A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6/D5 7 A7/D4 8 VSS 9 A8/D3 12 A9/D2 13 A10/D1 14 A11/D0 15 TE 16 OSC1 17 OSC2 18 DOUT 19 VCC 20 NC 10 NC 11 AA*3 4.5VDCAA*3 4.5VDC 12 SW9_LASTSW9_LAST R6810KR6810K R511.2M_1%R511.2M_1% D21D21 J1J1 123 R7110KR7110K D27D27 D23D23 C4 C4 D25D25 R62 0R R62 0R R6710KR6710K L3 L3 R4 R4 L2 L2 SW10_NEXTSW10_NEXT R64 0R R64 0R D22D22 R65 0R R65 0R C3 C3 D24D24 R6910KR6910K R63 0R R63 0R R1R1 R61 0R R61 0R L1 L1 C610.1uC610.1u R66 0R R66 0R C9 C9 SW11_VOL+SW11_VOL+ C8C8 XV1 XV1 R7210KR7210K SW7_MUSICSW7_MUSIC

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.231 TEST REPORT For Kenyazi Investment LTD. Flat A-1, 8/F, Yip Fung Ind. BLDG, 28-36 Kwai Fung Crescent Kwai Fong, N.T. Hong Kong FCC ID: PKH-678XX Report Type: Original Report Product Type: Outdoor Remote Control LNS (Transmitter Unit) Test Engineer: Jimmy Xiao Report Number: RSZ130521007-00A Report Date: 2013-06-14 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130521007-00A FCC Part 15.231 Page 2 of 19 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................4 SUMMARY OF TEST RESULTS...............................................................................................................................5 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................6 APPLICABLE STANDARD..............................................................................................................................................6 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................6 FCC §15.205, §15.209, §15.231 (B) - RADIATED EMISSIONS ...............................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 FCC §15.231(C) – 20 DB EMISSION BANDWIDTH TESTING ...........................................................................15 APPLICABLE STANDARD............................................................................................................................................15 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................15 TEST PROCEDURE......................................................................................................................................................15 TEST DATA................................................................................................................................................................15 FCC §15.231(A)(2) - DEACTIVATION TESTING..................................................................................................17 APPLICABLE STANDARD............................................................................................................................................17 T…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission View (Below 1 GHz) Radiated Emission View (Above 1 GHz)
