PKH-604XX-RXIndoor Remote Control LNS

Crystal 32.768 KHz

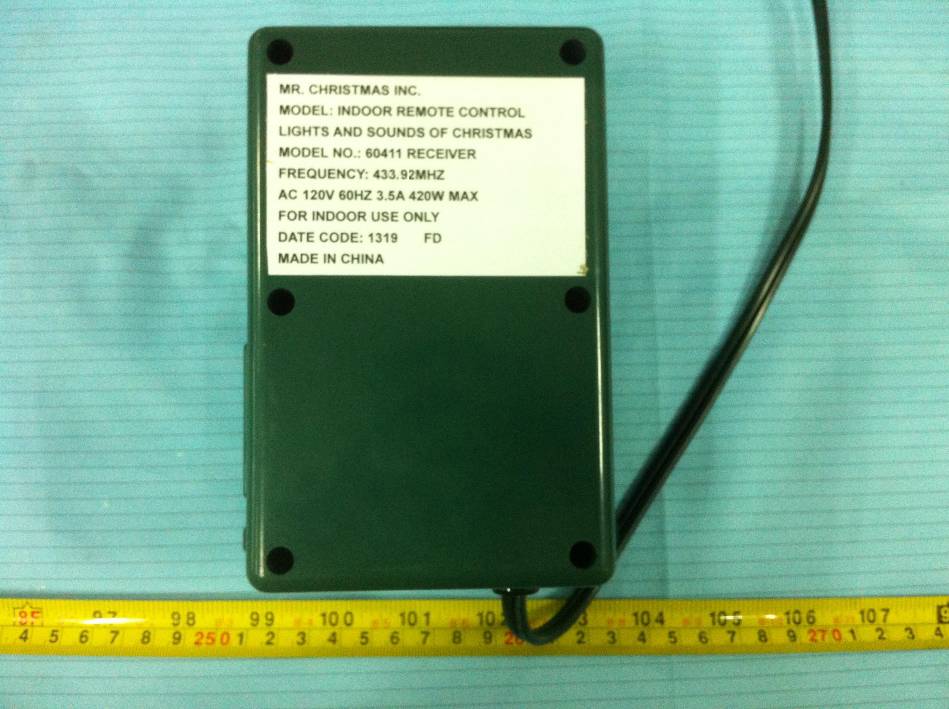

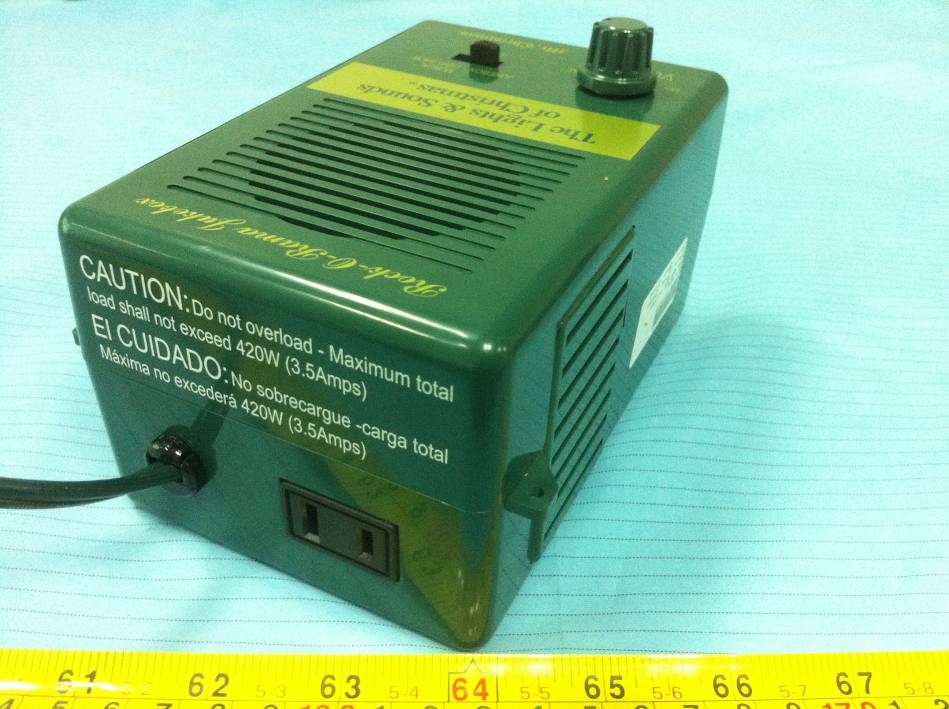

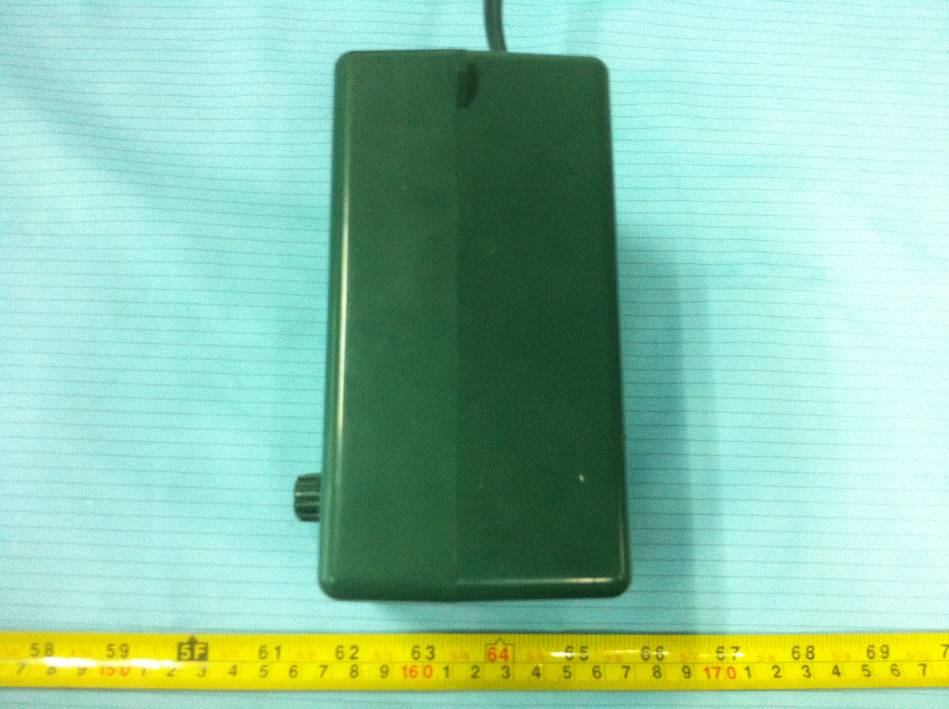

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Side View 1 EUT – Side View 2 EUT – Side View 3

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Power Supply Board Top View EUT – Power Supply Board Bottom View EUT – RF Board Top View EUT – RF Board Bottom View Antenna

Jukebox LNS Circuit Description Transmitter : Power “C” cell x3 . provide 4.5 V DC voltage keyscan IC TR1212S19 , RF transmitter module board and IC PT2262 and PT4450, also using When unit power up. Waiting key in form the penal If key is press , TR1212S19 will send 5 bits control data code to encoder IC PT2262 D0 to D4 , and then PADB2 pin of TR1212S19 will go low HIGH voltage 300ms, PT2262 encode data to serial coded waveform though resistor RR17 pass to PT4450, PT4450 will modular data to ASK/OOK and then transmit .433MHz is a SAW oscillator for PT 4450. Receiver : Power input is 120V AC. Using Transformer provide 9v ac voltage, D1, D2,D3 and D4 Diodes 1n4001 provide DC voltage. Using U1 LM7805 regulator provide 5v DC to IC PT 2272 decoder and IC PT4317 receiver IC. TR1301S80 music received control code from PT2272 . Music start to play or change light string pattern . The PT4317 is a very low power consumption single chip OOK/ASK super heterodyne receiver. PT2272 will received data from PT4316 through RS25.PT2272 will compare data, which is received, is match the address as PT2272 hardware setting (PT2272 address pin A0 to A5 ). When PT2272 Identified the valid control code. Pin 17 (VT pin) of PT2272 will give high voltage to GPCE048A pin IOB11. Then GPCE048A will read 6 bits control code data from PT2272 ( D0 to D5). The GPCE048A had a pre-set program to control light flashing (receptacle). When GPCE048A received a valid Control code. IOB55 On the IC GPCE048A will give High /Low signal to U4 MOC3020 Optoisolator to control T1 Triac BTA16 on and off, when Triac is “ON” AC current can pass though X7 receptacle when music is singing a song .

AC POWER BOARD (RX) SHEET: 1 OF 3 TITLE: MODEL: REV: 0 D C B A 6 5 A B C D 4 3 2 1 DATED: DATED: DATED: APRROVED: CHECKED: DRAWN: DRAWING NO: REVISION RECORD DATE: APPROVED: ECO NO: 25-JAN-2013 AC OUTLET L C1 C2 C3 C4 D1-D4 IN4004 C1-C4 0.01u D1-D4 INPUT UL POWER CORD YL-17B WITH FUSE UL TRANSFORMER TU-004 TORIOD COIL L N IN GND OUT EI-35 TP3513-001 LIGHTS AND SOUNDS ROCK-O-RAMO SCHEMATIC DIAGRAM N AC120V 25-JAN-2013 C5 16V 1000uF U2 7805 C6 16V 470uF R2 1.5K 5A FUSE 3 2 1 6 5 4 U1 MOC3023M T2 BTA12 C7 0.01u T1 L1 L2 22uH L3 22uH 275VAC 0.47uF R1 510 +5V CTL_IN SHEET: 2 OF 3 MUSIC & CONTROL & RF RECEIVE (RX) TITLE: MODEL: REV: 0 D C B A D C B A 6 5 4 3 2 1 DATED: DATED: DATED: APRROVED: CHECKED: DRAWN: DRAWING NO: REVISION RECORD DATE: APPROVED: ECO NO: MODEL SELECT JUKE BOX APPS HOLIDAY GRAMOPHONE MODEL 0603R FOR JR1 JR2 GPB14 GPB15 ON ON ON OFF ON OFF 25-JAN-2013 0805 LIGHTS AND SOUNDS ROCK-O-RAMO SCHEMATIC DIAGRAM IN GND OUT 433MHz RX +/-1% MODEL SELECT DEBUG VDD CLK DAT RST GND 3V 3V (POWER BOARD) VOICE CONTROL OFF MUSICAL LIGHT SHOW 1P3T 1P3T 1P3T 1P3T GPA5 W25Q128FV GPA4 GPA2 GPA3 GPA1 25-JAN-2013 MC3 0.01u MVR B10K MR2 560 SPEAKER 8 OHM MC9 0.1u MC8 220uF 10V MC2 0.1uF MR1 390 MD1 1N4001 MR4 10 MC6 0.1u MC5 10uF 16V MC4 10uF 16V MC7 470uF 16V 3 2 5 4 7 6 1 8 MU1 LM386 MR3 1K8 MU5 78DL33 MC23 100uF 10V MC24 0.1uF MC25 100uF 10V 1 A0 2 A1 3 A2 4 A3 5 A4 6 A5 7 D5 8 D4 9 VSS 18 VCC 17 VT 16 OSC1 15 OSC2 14 DIN 13 D0 12 D1 11 D2 10 D3 MU4 PT2272 1 GND 2 DATA 3 VDD 4 VDD MU6 RF MODULE MR8 180K 1 ICE_CLK 2 ICE_DAT 4 GPA4 3 VSS 7 GPA1 8 GPA0 6 GPA2 5 GPA3 13 GPB1 14 GPB2 16 GPB4 15 GPB3 11 VDD 12 GPB0 10 VSS 9 VDD_1 17 VOUTX 18 VDD 19 VSS 20 GPB5 21 LDO18 22 GPB6 23 GBP7 24 GPB8 27 GPB11 26 GPB10 25 GPB9 30 GPB14 31 GBP15 32 SPK_G 29 GPB13 28 GPB12 33 SPK+/DAC 34 SPK_V 36 SPK_G 35 SPK- 39 ADCVREF 40 GPA15 38 AVSS 37 VMID 45 GPA10 46 GPA9 48 AVDD 47 GPA8 43 GPA12 44 GPA11 42 GPA13 41 GPA14 49 PGCVREF 50 AVDDC 51 AVSS 52 REGVRE 53 MIC 54 PLLC 56 VSS 55 RSTB 57 X32I 59 NC 58 X32O 60 NC 62 GPA6 61 GPA7 63 GPA5 64 VDD MU2 N572F072 MC1 0.1u MC10 0.1u MC21 4.7uF 10V MC20 4.7uF 10V MC18 0.1u MC19 10uF 10V JR2 JR1 MC12 0.1u MC15 0.1u MC16 0.1u MC22 10uF 10V MC11 0.1u 1 2 3 4 5 ICE 1 /HOLD 2 VCC 4 NC 3 /RESET 7 /CS 8 DO 6 NC 5 NC 9 /WP 10 GND 11 NC 12 NC 14 NC 13 NC 15 DI 16 CLK MU3 MR5 1M MR7 1M MR6 1M MC13 0.1u SW1C SW1D SW1A SW1B MC14 0.1u MC17 0.1u +3.3V +4.2V +3.3V +3.3V +3.3V +3.3V CTL_OUT +5V +4.2V +4.2V +3V +5V

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15 B, CLASS B TEST REPORT For Kenyazi Investment LTD. Flat A-1, 8/F, Yip Fung Ind. BLDG, 28-36 Kwai Fung Crescent Kwai Fong, N.T. Hong Kong FCC ID: PKH-604XX-RX Report Type: Original Report Product Type: Indoor Remote Control LNS (Receiver Unit) Test Engineer: Jimmy Xiao Report Number: RSZ130521006-00B Report Date: 2013-07-05 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ130521006-00B FCC Part 15 B, Class B Page 2 of 15 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................4 EXTERNAL I/O CABLE..................................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC §15.107 – AC LINE CONDUCTED EMISSIONS .............................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 CORRECTED FACTOR & MARGIN CALCULATION.........................................................................................................8 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §15.109 - RADIATED SPURIOUS EMISSIONS ............................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 EUT SETUP................................................................................................................................................................12 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................14 TEST RESULTS SUMMARY.................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions – Front View Radiated Emissions – Rear View
