PKNCM-190Optical Wireless Mouse

PID #: 110935-109283 Rev. 121105 Optical Wireless Mouse Model: OM4000W User’s Manual 2 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3 All brand name and trademarks are the property of their respective owners USER’S RECORD: To provide quality customer service and technical support, it is suggested that you keep the following information as well as your store receipt and this user’s manual. Date of Purchase Model Number Product Rev Number (located below the UPC on the package) 4 PACKAGE CONTENTS: Your new Wireless Optical Mouse will ship with the following items. - Optical Wireless Mouse - Nano Receiver - User’s Manual - Warranty Information SYSTEM REQUIREMENTS: Please be sure that you meet all of the system requirements below to avoid difficulties during installation - Windows ® XP, Vista, 7 and 8 - Mac ® OS 10.3 or Above - Available USB Port - 2 AAA Batteries(not included) SPECIFICATIONS: Your new Wireless Optical Mouse complies with the following specifications. - Interface: USB 5 INSTALLING BATTERIES: To properly install batteries into your Mouse, please follow the instructions below: 1. Remove the Battery Compartment Cover of your Mouse. 2. Install two AAA Batteries into your Mouse following the battery orientation guide in the battery bay and then replace the Battery Compartment Cover back onto your Mouse until it securely locks. 3. After two AAA Batteries have been installed into your Mouse properly, the sensor LED inside your Mouse will light up. Your mouse is now ready to be used. 6 INSTALLATION: For All Operating Systems 1. Make sure you have successfully installed the AAA Batteries into your Mouse, refer to the Installing Batteries section in this manual if necessary. 2. Turn on your computer, plug the enclosed USB Receiver into an available USB port on your computer. The LED indicator of the USB Receiver will flash slowly. (TIP: If you are not able to find an available USB port on your computer, please refer to the user’s manual of your computer for more help.) 3. Your mouse is now ready to be used. 7 CHANGING THE SPEED OF YOUR MOUSE: To adjust the speed of the cursor or the scroll button features on your computer, please follow the instructions below: NOTE: The screenshots show in this section are for demonstration only and your screen may look slightly different but with similar options. For Windows ® Open the “Control Panel”, and double-click the “Mouse” icon to open the mouse properties screen, and then select the “Pointer Options”. After you have made your changes; select “Apply”, and then “OK”. For Mac ® Open the “System Preferences”. At the System Preferences screen, click the “Keyboard & Mouse” icon to open the Keyboard & Mouse screen, and then select the “Mouse” tab and make your changes. Windows ® Mac ® 8 WARRANTY INFORMATION: Gear Head, LLC warrants that this product shall be free from defects in materials and workmanship for the reasonable lifetime of the product. If the product is defective, Gear Head, LLC’s sole obligation under this warranty shall be at its election, subject to the terms of this warranty, to repair or replace any parts deemed defective. This warranty is for the exclusive benefit of the original purchaser and is not assignable or transferable. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE TERMS OF THIS WARRANTY, UNLESS OTHERWISE PROHIBITED BY LAW. Exclusions To the fullest extent permitted by law, Gear Head, LLC expressly disclaims and excludes from this warranty any liability for damages, including but not limited to general, special, indirect, incidental, consequential, aggravated, punitive or exemplary damages, and economic loss (even if Gear Head™ is informed of their possibility), third party claims against you, including for any loss or damages, and claims or damages related to loss of, or, damage to, your records or data. This warranty does not apply to any product the exterior of which has been damaged or defaced. This warranty will be voided by misuse, improper physical environment, improper repair, acts of God, war or terror, commercial use, and improper service, operation or handling. Technical Support Please access Technical Support on the web or contact our technicians at [email protected] for help. www…

Text truncated - open the document above for the full version.

Declaration Letter November 21, 2012 Product Certification Department Königswinkel 10 D-32825 Blomberg , Germany To whom it may concern: We hereby declare that the device of Optical Wireless Mouse meets following FCC requirements of the Section 15.247(a) (1): 1. The hopping sequence is pseudorandom. There are total 79 channels and hop 16 channels randomly everytime. 2. All channels are used equally on average. 3. The receiver input bandwidth approximately equal the transmit bandwidth. 4. The receiver hop in sequence with the transmit signal. Sincerely, NAME (Please print or type): Cathy Wang, DOC Dept. Supervisor Signature:

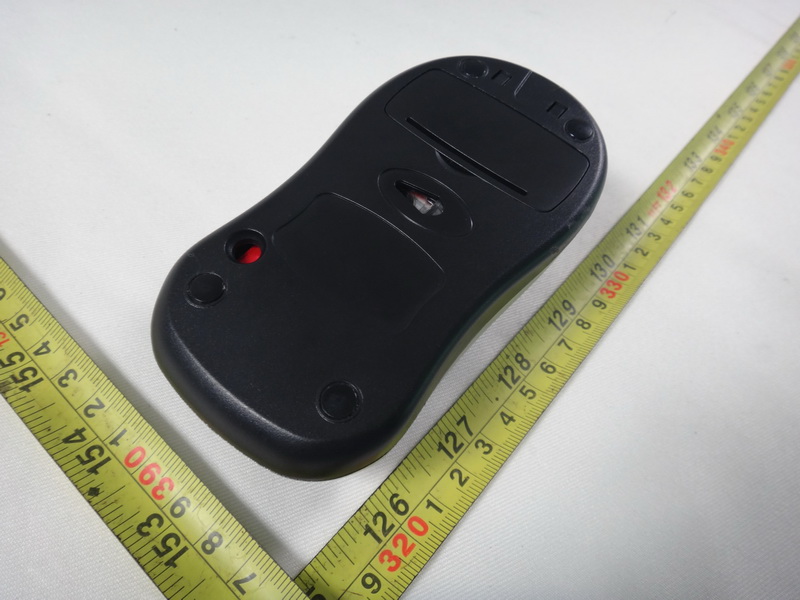

Neutron Engineering Inc. Project No.: 1211C022 Page 2 of 7

Neutron Engineering Inc. Project No.: 1211C022 Page 3 of 7 Neutron Engineering Inc. Project No.: 1211C022 Page 4 of 7 Neutron Engineering Inc. Project No.: 1211C022 Page 5 of 7 Neutron Engineering Inc. Project No.: 1211C022 Page 6 of 7 Neutron Engineering Inc. Project No.: 1211C022 Page 7 of 7

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: PKNCM-190 Project No. : 1211C022 Equipment : Optical Wireless Mouse Model : OM4000W; CM-190; CM-168; CM-193; CM-170; CM-183; CM-184; CM-186; CM-192 Applicant : Zhuoheng Electronics Co., Limited Address : No.8. Lane5. ShangNan Road, the 5Th Industrial Area, NanCe, HuMen Town, DongGuan City, China. According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. GENERAL CONCULUSION: No evaluation required if power is below this threshold: F(GHz) P(mW) Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Out Power (dBm) Out Power (mW) Conducted Power-9.44 0.114 EIRP Power -7.44 0.180 Note: Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/AN/A Printed N/A 2 Threshold for no SAR evaluation is 24.58mW. Transmitter power is 0.180mW. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 1 of 61 FCC Radio Test Report FCC ID: PKNCM-190 This report concerns (check one) : Original Grant Class II Change Issued Date : Nov. 16, 2012 Project No. : 1211C022 Equipment : Optical Wireless Mouse Model Name : OM4000W; CM-190; CM-168; CM-193; CM-170; CM-183; CM-184; CM-186; CM-192 Applicant : Zhuoheng Electronics Co.,Limited Address : No.8. Lane5. ShangNan Road, the 5 Th Industrial Area, NanCe, HuMen Town, DongGuan City, China. Manufacturer : Zhuoheng Electronics Co.,Limited Address : No.8. Lane5. ShangNan Road, the 5 Th Industrial Area, NanCe, HuMen Town, DongGuan City, China. Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 01, 2012 Date of Test: Nov. 01, 2012 ~ Nov. 15, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 2 of 61 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 3 of 61 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 18 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BELOW 30MHZ) 22 4.2.8 TEST RESULTS (BETWEEN30 – 1000 MHZ) 23 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 26 5 . NUMBER OF HOPPING CHANNEL 38 5.1 APPLIED PROCEDURES / LIMIT 38 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 38 5.1.2 TEST PROCEDURE 38 5.1.3 DEVIATION FROM STANDARD 38 5.1.4 TEST SETUP 38 5.1.5 EUT OPERATION CONDITIONS 38 5.1.6 TEST RESULTS 39 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 4 of 61 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 40 6.1 APPLIED PROCEDURES / LIMIT 40 6.1.1 MEASUREMENT INSTRUMENTS LIST 40 6.1.2 TEST PROCEDURE 40 6.1.3 DEVIATION FROM STANDARD 40 6.1.4 TEST SETUP 41 6.1.5 EUT OPERATION CONDITIONS 41 6.1.6 TEST RESULTS 42 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 44 7.1 APPLIED PROCEDURES / LIMIT 44 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 44 7.1.2 TEST PROCEDURE 44 7.1.3 DEVIATION FROM STANDARD 44 7.1.4 TEST SETUP 44 7.1.5 EUT OPERATION CONDITIONS 44 7.1.6 TEST RESULTS 45 8 . BANDWIDTH TEST 46 8.1 APPLIED PROCEDURES / LIMIT 46 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 46 8.1.2 TEST PROCEDURE 46 8.1.3 DEVIATION FROM STANDARD 46 8.1.4 TEST SETUP 46 8.1.5 EUT OPERATION CONDITIONS 46 8.1.6 TEST RESULTS 47 9 . PEAK OUTPUT POWER TEST 49 9.1 APPLIED PROCEDURES / LIMIT 49 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 49 9.1.2 TEST PROCEDURE 49 9.1.3 DEVIATION FROM STANDARD 49 9.1.4 TEST SETUP 49 9.1.5 EUT OPERATION CONDITIONS 49 9.1.6 TEST RESULTS 50 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 52 10.1 APPLIED PROCEDURES / LIMIT 52 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 52 10.1.2 TEST PROCEDURE 52 10.1.3 DEVIATION FROM STANDARD 52 10.1.4 TEST SETUP 52 10.1.5 EUT OPERATION CONDITIONS 52 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 5 of 61 Table of Contents Page 10.1.6 TEST RESULTS 53 11 . EUT TEST PHOTO 59 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 6 of 61 1. CERTIFICATION Equipment : Optical Wireless Mouse Brand Name : N/A Model Name : OM4000W; CM-190; CM-168; CM-193; CM-170; CM-183; CM-184; CM-186; CM-192 Applicant : Zhuoheng Electronics Co.,Limited Factory : Dongguan Yibang Electronic Technology Co.,Ltd. Address : No.8. Lane5. ShangNan Road, the 5 Th Industrial Area, NanCe, HuMen Town, DongGuan City, China. Date of Test : Nov. 01, 2012 ~ Nov. 15, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 FCC Public Notice DA 00-705, March 30, 2000. The above equipment has b…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 59 of 61 11. EUT TEST PHOTO Radiated Measurement Photos 9K-30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 60 of 61 Radiated Measurement Photos 30MHz-1GHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1211C022 Page 61 of 61 Radiated Measurement Photos Above 1GHz
