PKNREC-001wireless mouse Receiver

PID #: 111579/80/81/84-109283 Rev. 140214 Optical 2.4GHz Wireless Nano Mouse Model #: MP2120BLK, MP2120RED, MP2120WHT,MP2120BLU，CM-163 User’s Manual 2 All brand name and trademarks are the property of their respective companies Mac and Mac OS X are registered trademarks of Apple Inc； Windows, Windows XP, Windows Vista, Windows 7 and Windows 8 are registered trademarks of Microsoft Corporation in the United States and /or other countries. USER’S RECORD: To provide quality customer service and technical support, it is suggested that you keep the following information as well as your store receipt and this user’s manual. Date of Purchase: ________________________________ Model Number: ________________________________ Product Rev Number (located below the UPC on the package): ____________________ FCC RADIATION NORM: FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3 CAUTION! The Federal Communications Commission warns the user that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 4 PACKAGE CONTENTS: Your new Wireless Optical Nano Mouse will ship with the following items. - Wireless Optical Nano Mouse - Nano Receiver - 2 AAA Batteries - User’s Manual - Warranty Information SYSTEM REQUIREMENTS: Please be sure that you meet all of the system requirements below to avoid difficulties during installation Compatible with：PCs, Mac ® computers, and Chromebook™ notebook computers Works with： - Windows ® XP, Windows ® Vista , Windows ® 7 and Windows ® 8 operating systems - Mac OS X ® 10.3 and Above - An Available USB Port SPECIFICATIONS: Your new Wireless Optical Nano Mouse complies with the following specifications. - USB Interface 5 INSTALLING BATTERIES: To properly install batteries into your Mouse, please follow the instructions below: 1. Press the Battery Compartment Cover Release Latch at the bottom of your Mouse and remove the Battery Compartment Cover from your Mouse. 2. Install two AAA Batteries into your Mouse following the battery orientation guide in the battery bay and then replace the Battery Compartment Cover back onto your Mouse until it securely locks. 6 INSTALLATION: For All Operating Systems 1. Make sure you have successfully installed the Batteries into your Mouse, refer to the Installing Batteries section in this manual if necessary. 2. Draw out the Nano Receiver stowed in the bottom of your mouse. 3. Turn on your computer, plug the enclosed Nano Receiver into an available USB port on your computer. (TIP: If you are not able to find an available USB port on your computer, please refer to the user’s manual of your computer for more help.) 4. Turn on the bottom switch and your wireless optical mouse is now ready to be used. 7 CHANGING THE SPEED OF YOUR MOUSE: To adjust the speed of the cursor or the scroll button features on your computer, please follow the instructions below: NOTE: The screenshots show in this section are for demonstration only and your screen may look slightly different but with similar options. For Windows ® operating systems Open the “Control Panel”, and double-click the “Mouse” icon to open the mouse properties screen, and then select the “Pointer Options”. After you have made your changes; select “Apply”, and then “OK”. For Mac OS X ® 10.3 and Above Open the “System Preferences”. At the System Preferences screen, click the “Keyboard & Mouse” icon to open the Keyboard & Mouse screen, and then select the “Mouse” tab and make your changes. Windows ® operating systems Mac OS X ® 10.3 and Above 8 WARRANTY INFORMATION: Gear Head, LLC warrants that this product shall be free from defects in materials and workmanship for the reasonable lifetime of the product. If the product is defective, Gear Head, LLC’s sole obligation under this warranty shall be at its election, subject to the terms of this warranty, to repair or replace any parts deemed defective. This warranty is for the exclusive benefit of the original purchaser and is not assignable or transferable. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE TERMS OF THIS WARRANTY, UNLESS OTHERWISE PROHIBITED BY LAW. Exclusions To the fullest extent permitted by law, Gear Head, LLC expressly disclaims and…

Text truncated - open the document above for the full version.

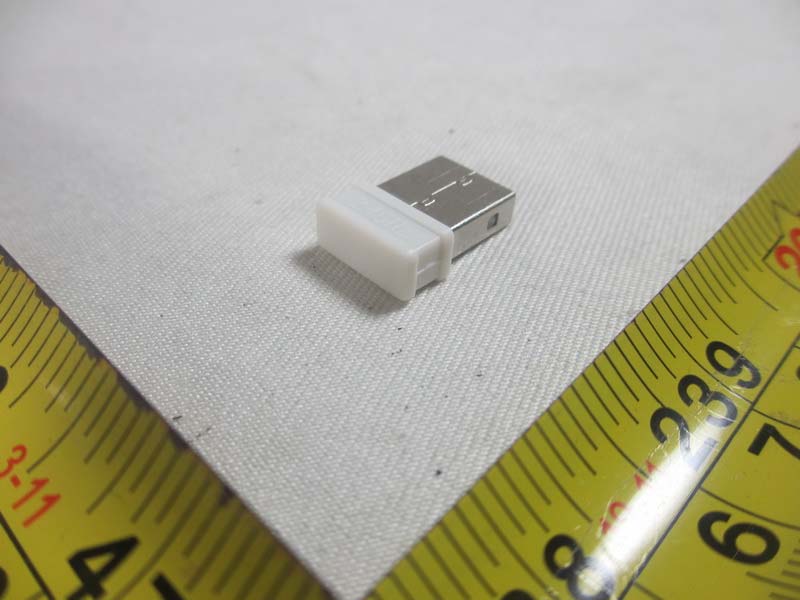

RV-0000000 Project No.: 1405C197 Page 1 of 6 Neutron Engineering Inc. ATTACHMENT PHOTOGRAPHS OF EUT RV-0000000 Project No.: 1405C197 Page 2 of 6 Neutron Engineering Inc. RV-0000000 Project No.: 1405C197 Page 3 of 6 Neutron Engineering Inc.

RV-0000000 Project No.: 1405C197 Page 4 of 6 Neutron Engineering Inc. RV-0000000 Project No.: 1405C197 Page 5 of 6 Neutron Engineering Inc. RV-0000000 Project No.: 1405C197 Page 6 of 6 Neutron Engineering Inc.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 1 of 59 FCC Radio Test Report FCC ID: PKNREC-001 This report concerns (check one): Original Grant Class II Change Project No. : 1405C197 Equipment : wireless mouse Receiver Model Name : REC-001;CM-163;CM-198;CM-190; MP2120RED; MP2120BLU;MP2120WHT; MP2120BLK; M4750;OM6750;OM4000W Applicant : ZHUOHENG ELECTRONICS CO., LIMITED Address : No.8.Lane5.ShangNan Road, the 5 Th Industrial Area, NanCe, HuMen Town, DongGuan City, China. Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: May. 15, 2014 Date of Test: May. 15, 2014 ~ May. 27, 2014 Issued Date: May. 28, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 2 of 59 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 3 of 59 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 10 3.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.4 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION 12 4.1.2 TEST PROCEDURE 12 4.1.3 DEVIATION FROM TEST STANDARD 12 4.1.4 TEST SETUP 13 4.1.5 EUT OPERATING CONDITIONS 13 4.1.6 EUT TEST CONDITIONS 13 4.1.7 TEST RESULTS 13 4.2 RADIATED EMISSION MEASUREMENT 14 4.2.1 RADIATED EMISSION LIMITS 14 4.2.2 TEST PROCEDURE 15 4.2.3 DEVIATION FROM TEST STANDARD 15 4.2.4 TEST SETUP 16 4.2.5 EUT OPERATING CONDITIONS 17 4.2.6 EUT TEST CONDITIONS 17 4.2.7 TEST RESULTS (BELOW 30MHz) 17 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHz) 17 4.2.9 TEST RESULTS (ABOVE 1000 MHz) 18 5 . BANDWIDTH TEST 19 5.1 TEST PROCEDURE 19 5.2 DEVIATION FROM STANDARD 19 5.3 TEST SETUP 19 5.4 EUT OPERATION CONDITIONS 19 5.5 EUT TEST CONDITIONS 19 5.6 TEST RESULTS 19 6 . ANTENNA CONDUCTED SPURIOUS EMISSION 20 6.1 APPLIED PROCEDURES / LIMIT 20 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 4 of 59 Table of Contents Page 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATION CONDITIONS 21 6.6 EUT TEST CONDITIONS 21 6.7 TEST RESULTS 21 7 . MEASUREMENT INSTRUMENTS LIST AND SETTING 22 8 . EUT TEST PHOTO 23 ATTACHMENT A - CONDUCTED EMISSION 27 ATTACHMENT B - RADIATED EMISSION (9KHZ to 30MHZ) 30 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 32 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 39 ATTACHMENT E - BANDWIDTH 52 ATTACHMENT F - ANTENNA CONDUCTED SPURIOUS EMISSION 55 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 5 of 59 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1405C197 Original Issue. May. 28, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 6 of 59 1. CERTIFICATION Equipment : wireless mouse Receiver Brand Name : N/A Model Name : REC-001;CM-163;CM-198;CM-190;MP2120RED; P2120BLU;MP2120WH T; MP2120BLK; M4750;OM6750;OM4000W Applicant : ZHUOHENG ELECTRONICS CO., LIMITED Manufacturer : Dongguan Yibang Electronic Technology Co., Ltd. Address : No.8.Lane5.ShangNan Road, the 5 Th Industrial Area, NanCe, HuMen Town, DongGuan City, China. Factory : Dongguan Yibang Electronic Technology Co., Ltd. Address : No.8.Lane5.ShangNan Road, the 5 Th Industrial Area, NanCe, HuMen Town, DongGuan City, China. Date of Test : May. 15, 2014 ~ May. 27, 2014 Test Sample : Engineering Sample Standard(s) : FCC Part15, Subpart C(15.249)/ ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1405C197) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 7 of 59 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.249) StandardSection Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.209 15.249 Radiated Spurious Emission PASS NOTE: (1)”N/A” denotes test is not …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 23 of 60 8. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 24 of 60 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 25 of 60 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1405C197 Page 26 of 60 Radiated Measurement Photos Above 1GHz
