PKTNODEBAQQ3GPP Band 12 LTE Base Station

Customer Query We are in the process of making an application for FCC certification of a base station via a TCB, we would like to keep the installation manual as a confidential exhibit on the FCC equipment authorisation page as we consider this to be a confidential document, the document is marked as Proprietary and Confidential. The equipment we are making the application for is non consumer equipment that is installed in restricted access locations to which the general public will have no access. In addition as part of the agreement to purchase a Non Disclosure Agreement (NDA) will be signed between ourselves and our customer. We have reviewed KDB 726920 D02 and discussed with the TCB, the guidance requires that a signed NDA that documents the item in question is submitted as part of the justification for requesting confidentiality of the installation manual. The NDA’s we use are general documents that cover a large remit and do not specifically cover the installation manual but do cover all ‘Proprietary and Confidential’ items and other terms of business. Due to nature of the additional information contained in the NDA’s we use, we do not wish to submit such extensive information and ask if a formal attestation letter stating that all proprietary and confidential information we provide to our customers is covered by an NDA would suffice in lieu of providing a full Non Disclosure Agreement. FCC response on 09/12/2012 Submit your confidentiality request letter first; I can further guide you after reading the confidentiality request and the justification in accordance with FCC Publication No. 726920 D02, dated 12/21/2011... ---Reply from Customer on 09/19/2012--- Please find attached our request for permanent confidentiality of our installation manual and attestation letter regarding non disclosure agreements. FCC response on 09/19/2012 Attestation statements and confidentiality request acceptable.

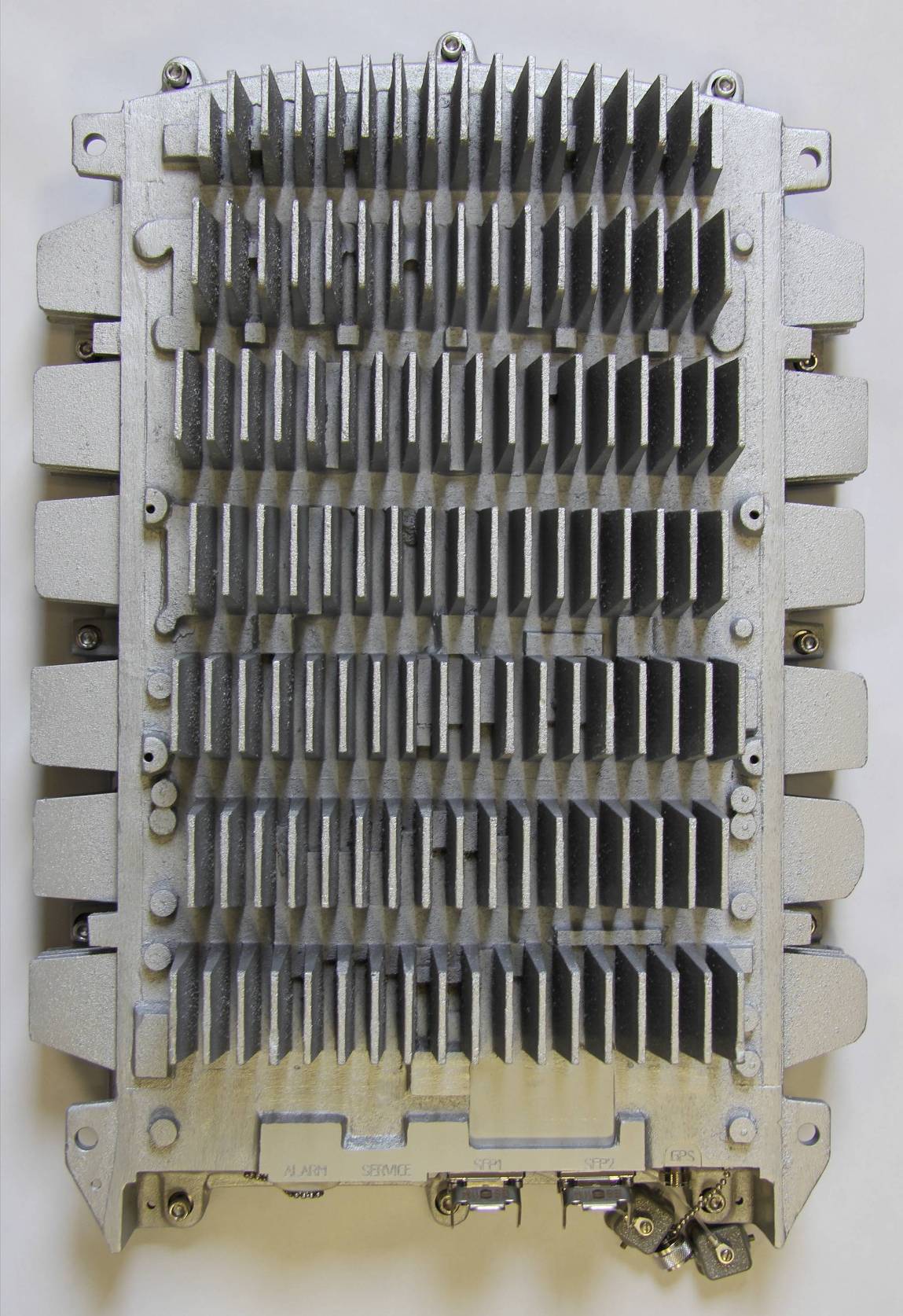

Figure 1: V6 eNodeB Front View Figure 2: V6 eNodeB Rear View Figure 3: Front Casting Connectors Figure 4: Rear Casting Connectors

Label fitted here

Figure 1: Front Casting Internal View Figure 2: Rear Casting Internal View Figure 3: Main Board Front View Figure 4: Main Board Rear View Figure 5: Power Amplifier and Filter Assembly Top View Figure 6: Power Amplifier Board Fitted in Filter Figure 7: Power Supply Top View Figure 8: Power Supply Bottom View

To : This Test R Authority O Manager: Checked B Signature: Date of Iss This report it is being v Selecting te This report Services Lt d : FCC Parts Report Is Iss Of John New By: ue: is issued in A viewed in P ext and graph may not be d. The result RFI G s 2.1046, 2. Versio sued Under well, Group Adobe Acrob DF format w hics, Adding e reproduced ts in this repo TES GLOBA T FCC ID 1049, 2.105 Test R RFI-RPT- on 2.0 supe The Quality bat portable with the follo or changing d other than ort apply only ST REP FROM AL SER Test of: AQ D: PKTNOD 51, 2.1053, Report Ser -RP84246J ersedes all pp Sarah Willia 03 August 2 document fo owing securit notes and fo in full, exce y to the sam PORT M RVICES QQ DEBAQQ 2.1055, 2 7 ial No.: D01A V2.0 previous v ams 2012 ormat (PDF). ty options n orm fields. ept with the ple(s) tested S LTD 7.50(c)(3), 2 versions . It is only a ot allowed: prior writte n . 27.53(g) & 2 valid copy o Changing th n approval o 27.54 of the report he document of RFI Globa if t, al TEST REPORT SERIAL NO: RFI-RPT-RP84246JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 03 AUGUST 2012 Page 2 of 53 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP84246JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 03 AUGUST 2012 RFI Global Services Ltd Page 3 of 53 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) ....................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ................................................................ 10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter Carrier Output Power and Effective Radiated Power (ERP) 11 5.2.2. Transmitter Occupied Bandwidth 21 5.2.3. Transmitter Conducted Spurious Emissions 29 5.2.4. Transmitter Conducted Emissions at Band Edges 32 5.2.5. Transmitter Radiated Spurious Emissions 39 5.2.6. Transmitter Radiated Emissions at Band Edges 42 5.2.7. Transmitter Frequency Stability (Temperature Variation) 46 5.2.8. Transmitter Frequency Stability (Voltage Variation) 50 6. Measurement Uncertainty .......................................................................................................... 52 7. Report Revision History ............................................................................................................. 53 TEST REPORT SERIAL NO: RFI-RPT-RP84246JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 03 AUGUST 2012 Page 4 of 53 RFI Global Services Ltd 1. Customer Information Company Name: General Dynamics Broadband Address: Unit 7 Greenways Business Park Bellinger Close Chippenham Wilts SN15 1BN United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP84246JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 03 AUGUST 2012 RFI Global Services Ltd Page 5 of 53 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR27 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 27 Subpart C (Miscellaneous Wireless Communication Services) Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 12 July 2012 to 31 July 2012 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result 27.50(c)(3) / 2.1046 Transmitter Carrier Output Power and Effective Radiated Power (ERP) 2.1049 Transmitter Occupied Bandwidth 27.53(g) / 2.1051 Transmitter Conducted Spurious Emissions 27.53(g) / 2.1051 Transmitter Conducted Emissions at Band Edges 27.53(g) / 2.1053 Transmitter Radiated Spurious Emissions 27.53(g) / 2.1053 Transmitter Radiated Emissions at Band Edges 27.54 / 2.1055 Transmitter Frequency Stability Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI-RPT-RP84246JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 03 AUGUST 2012 Page 6 of 53 RFI Global Services Ltd 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: FCC KDB 662911 D01 v01r01 10/25/2011 Title: Emissions Testing of Transmitters with Multiple Outputs in the Same Band Reference: FCC Response To Inquiry Title: Tracking Number 644682 Date: 09 July 2012 Reference: FCC Response To Inquiry Title: Tracking Number 720706 Date: 10 July 2012 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP84246JD01A V2.0 VERSION NO. 2.0 ISSUE DATE: 03 AUGUST 2012 RFI Global Services Ltd Page 7 of 53 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: General Dynamics Broadband Model Name or Number: AQQ Serial Number: AQQAC27003212 Hardware Version Number: 1 Software Version Number: 8.0.4 FCC ID: PKTNODEBAQQ 3.2. Description of EUT The equipment under test was a LTE eNodeB. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT dur…

Text truncated - open the document above for the full version.
