PKTNODEBBBKBand 14 LTE Base Station

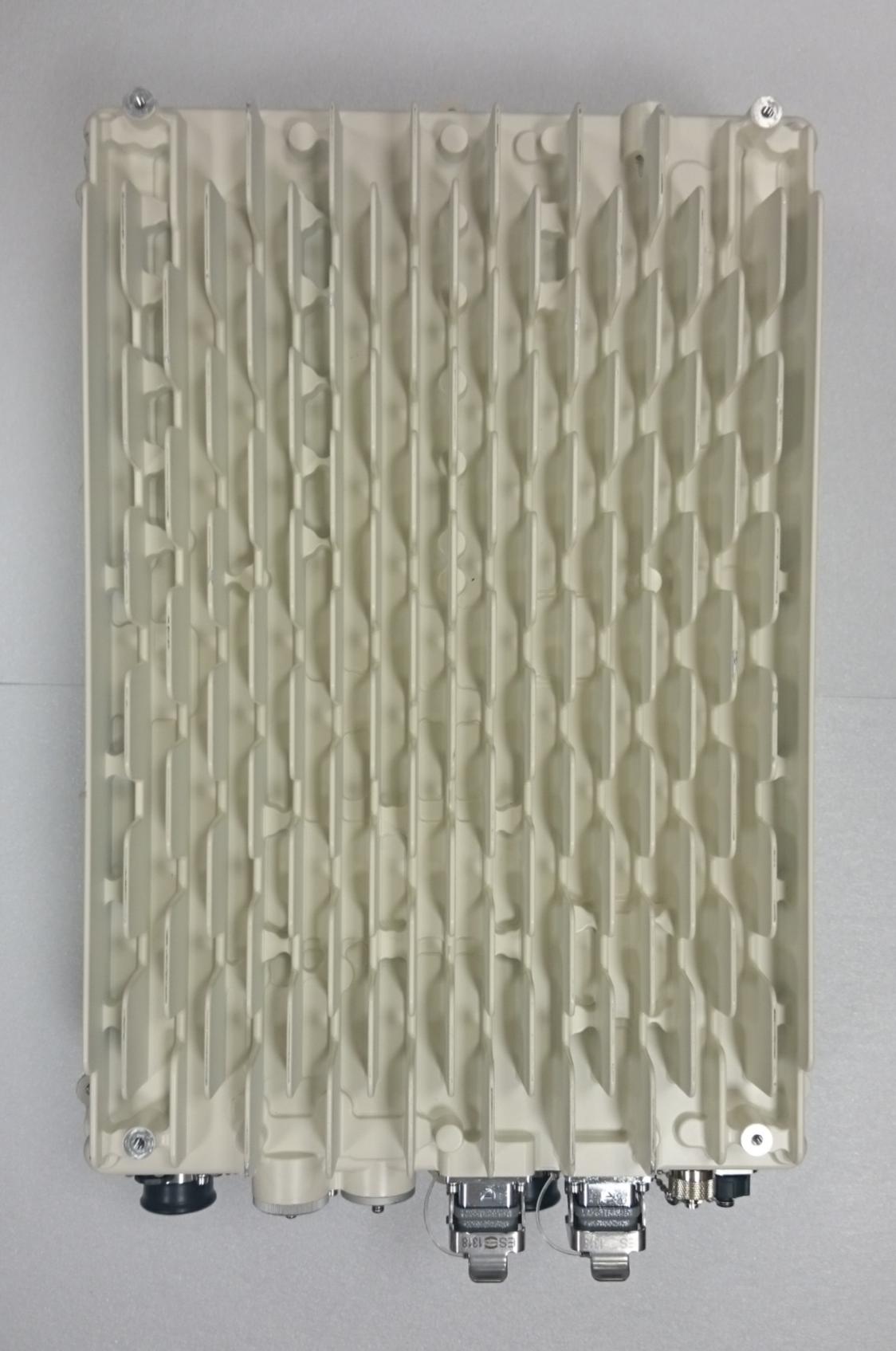

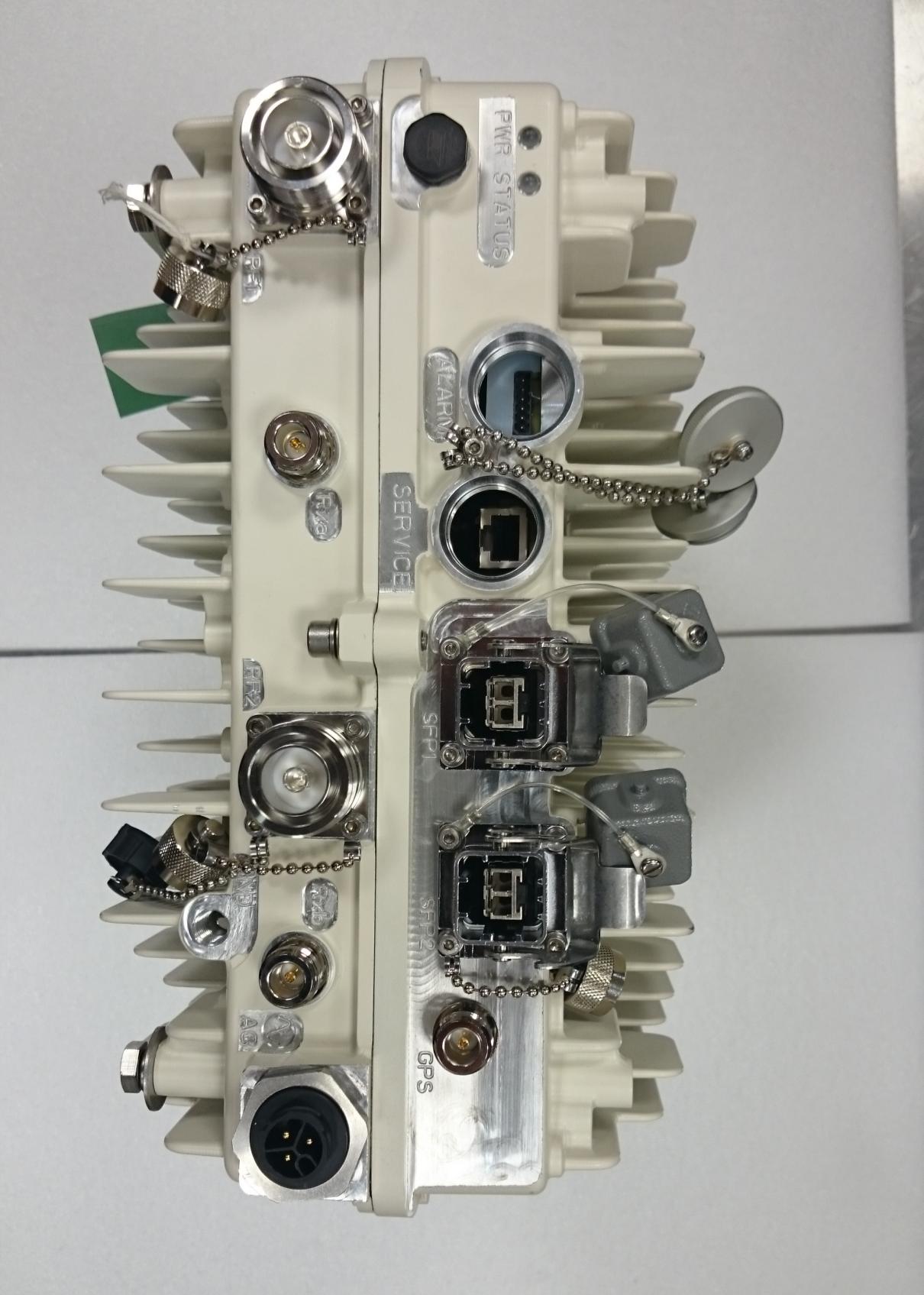

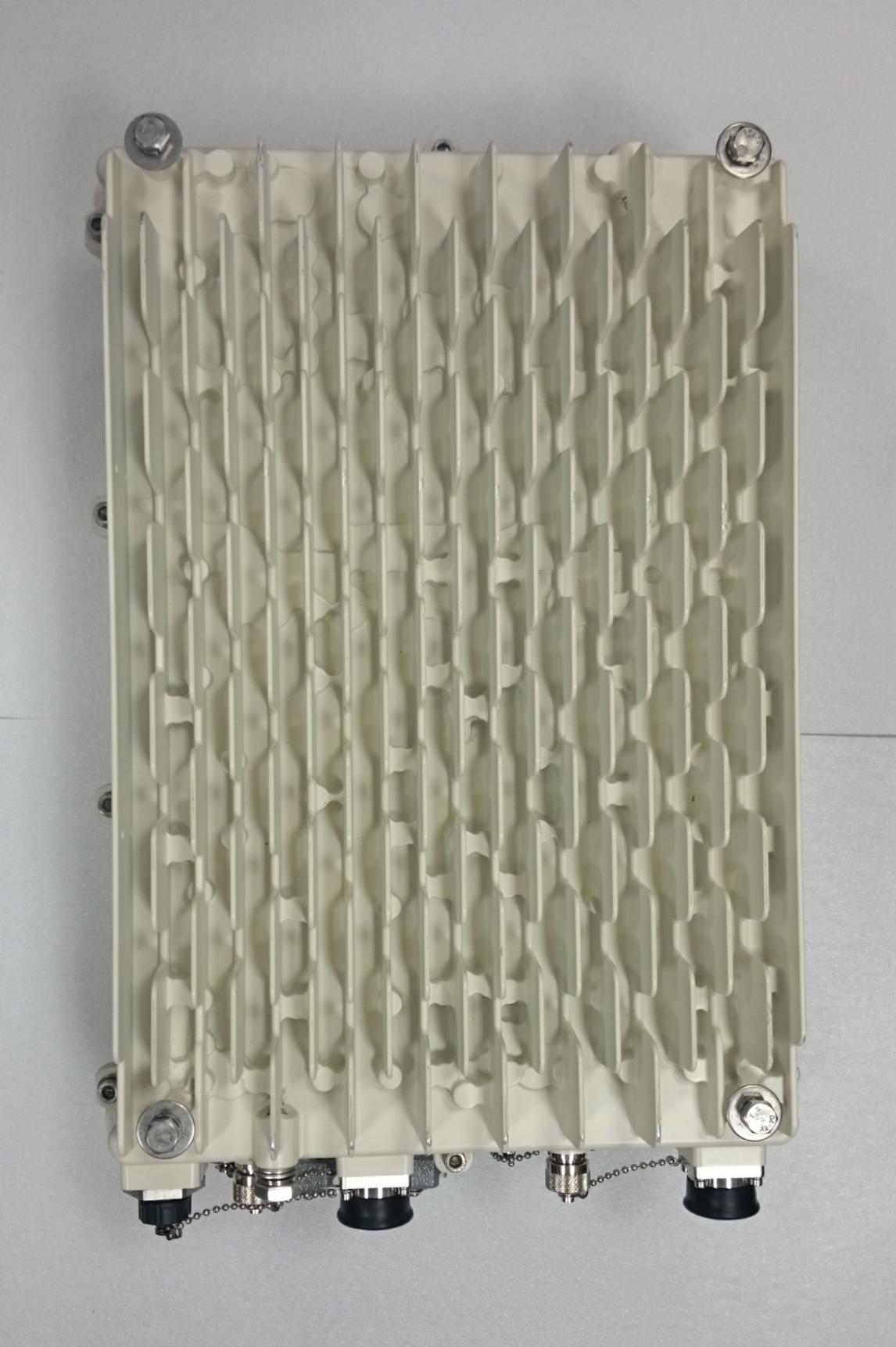

Proprietary Information RN2420 eNode B External Photographs Model: BBK FCC ID: PKTNODEBBBK Proprietary Information Figure 1: RN2420 eNodeB Front View Proprietary Information Figure 2: RN2420 eNodeB Rear View Proprietary Information Figure 3: RN2420 External Connectors Proprietary Information Figure 4: Side View

RN2420 eNode B Label Position Model: BBK FCC ID: PKTNODEBBBK Figure 1: General Label Position Figure 2: Detailed Label Position Label fitted here Label

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10492503JD01A V2.0 Manufacturer : General Dynamics Broadband UK Ltd Model No. : BBK FCC ID : PKTNODEBBBK Technology : LTE Band 14, 5 MHz & 10 MHz Channel Bandwidth Test Standard(s) : FCC Parts 90.210(n), 90.539(d), 90.542(a)(3), 90.543(c), 90.543(e)(1) & 90.543(f) 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 2.0 supersedes all previous versions. Date of Issue: 20 February 2015 Checked by: Sarah Williams Engineer, Radio Laboratory Issued by : pp John Newell Quality Manager, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP10492503JD01A VERSION 2.0 ISSUE DATE: 20 FEBRUARY 2015 Page 2 of 84 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10492503JD01A VERSION 2.0 ISSUE DATE: 20 FEBRUARY 2015 UL VS LTD Page 3 of 84 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) .................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter Carrier Output Power and Effective Radiated Power (ERP) 11 5.2.2. Transmitter Occupied Bandwidth 22 5.2.3. Transmitter Conducted Emission Mask 29 5.2.4. Transmitter Conducted Emissions 35 5.2.5. Transmitter Conducted Emissions Limitations 38 5.2.6. Transmitter Conducted Emissions at Band Edge 52 5.2.7. Transmitter Radiated Emissions 59 5.2.8. Transmitter Radiated Emissions Limitations 63 5.2.9. Transmitter Radiated Emissions at Band Edges 74 5.2.10. Transmitter Frequency Stability (Temperature Variation) 79 5.2.11. Transmitter Frequency Stability (Voltage Variation) 82 6. Measurement Uncertainty ........................................................................................................83 7. Report Revision History ...........................................................................................................84 TEST REPORT SERIAL NO: UL-RPT-RP10492503JD01A VERSION 2.0 ISSUE DATE: 20 FEBRUARY 2015 Page 4 of 84 UL VS LTD 1. Customer Information Company Name: General Dynamics Broadband UK Ltd Address: Unit 7 Greenways Business Park Bellinger Close Chippenham Wilts SN15 1BN United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP10492503JD01A VERSION 2.0 ISSUE DATE: 20 FEBRUARY 2015 UL VS LTD Page 5 of 84 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR90 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 90 Private Land Mobile Radio Services. Subpart R Regulations Governing the licensing And Use of Frequencies in the 763-775 and 793-805 MHz Bands Site Registration: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 02 February 2015 to 20 February 2015 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result 90.542(a)(3) / 2.1046 Transmitter Carrier Output Power and Effective Radiated Power (ERP) 2.1049 Transmitter Occupied Bandwidth 90.210(n) / 2.1051 Transmitter Conducted Emission Mask 90.543(c) / 2.1051 Transmitter Conducted Emissions 90.543(e)(1) / 2.1051 Transmitter Conducted Emissions Limitations 90.543(c) / 2.1051 Transmitter Conducted Band Edge Emissions 90.543(c) / 2.1053 Transmitter Radiated Emissions 90.543(e)(1) / 90.543(f) / 2.1053 Transmitter Radiated Emissions Limitations 90.543(c) / 2.1053 Transmitter Radiated Band Edge Emissions 90.539(d) / 2.1055 Transmitter Frequency Stability Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: UL-RPT-RP10492503JD01A VERSION 2.0 ISSUE DATE: 20 FEBRUARY 2015 Page 6 of 84 UL VS LTD 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile FM or PM – Communications Equipment – Measurement and Performance Standards. Reference: KDB 971168 D01 v02r02 October 17, 2014 Title: Measurement Guidance for Certification of Licensed Digital Transmitters Reference: KDB 662911 D01 v02r01 October 31, 2013 Title: Emissions Testing of Transmitters with Multiple Outputs in the Same Band 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10492503JD01A VERSION 2.0 ISSUE DATE: 20 FEBRUARY 2015 UL VS LTD Page 7 of 84 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: General Dynamics Broadband Model Name or Number: BBK Test Sample Serial Number: BBKBE46000511 Hardware Version Numbe…

Text truncated - open the document above for the full version.

General Dynamics Broadband FCC ID: PKTNODEBBBK UL-RPT-10492503JD01 UL VS LTD 1 Test Setup Photographs for the BBK 1. Radiated Emissions 1.1 Configuration 1: Photo 1 Photo 2 General Dynamics Broadband FCC ID: PKTNODEBBBK UL-RPT-10492503JD01 UL VS LTD 3 Photo 3
