RN2480 Band 12 Regulatory Information GDB-3581 Iss-0.1 Page 1 of 1 General Dynamics Broadband FCC Regulatory Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. No changes shall be made to the equipment without the manufacturer’s permission as this may void the user’s authority to operate the equipment. The FCC Grant of Certification can be found using the FCC ID Search feature and entering the FCC ID marked on the eNodeB. http://transition.fcc.gov/oet/ea/fccid/ RF Exposure Antenna installations for the General Dynamics Broadband RN2480 LTE eNode B shall be performed in accordance with the manufacturer’s recommendations and all national laws and regulations. To ensure correct antenna installation, the installer shall evaluate compliance with applicable national laws and regulations regarding exposure to electromagnetic fields and define the required exclusion zones for RF workers and the General Public. Any changes to the antenna installation or radio transmission equipment require a re- evaluation of the exposures to electromagnetic fields. Pursuant to 47 CFR Part 1, Subpart 1, subject to the provisions of section 1.1307, all installations must be evaluated for requirements contained in Table 1, “Limits for maximum permissible exposure,” in section 1.1310. Band 12 The Band 12 eNode B has been assessed for compliance with FCC requirements for antennas with gains upto 18dBi, the minimum exclusion distance required to meet the Un- Controlled/General Public limit of 0.485mW/cm 2 is 11.43m.

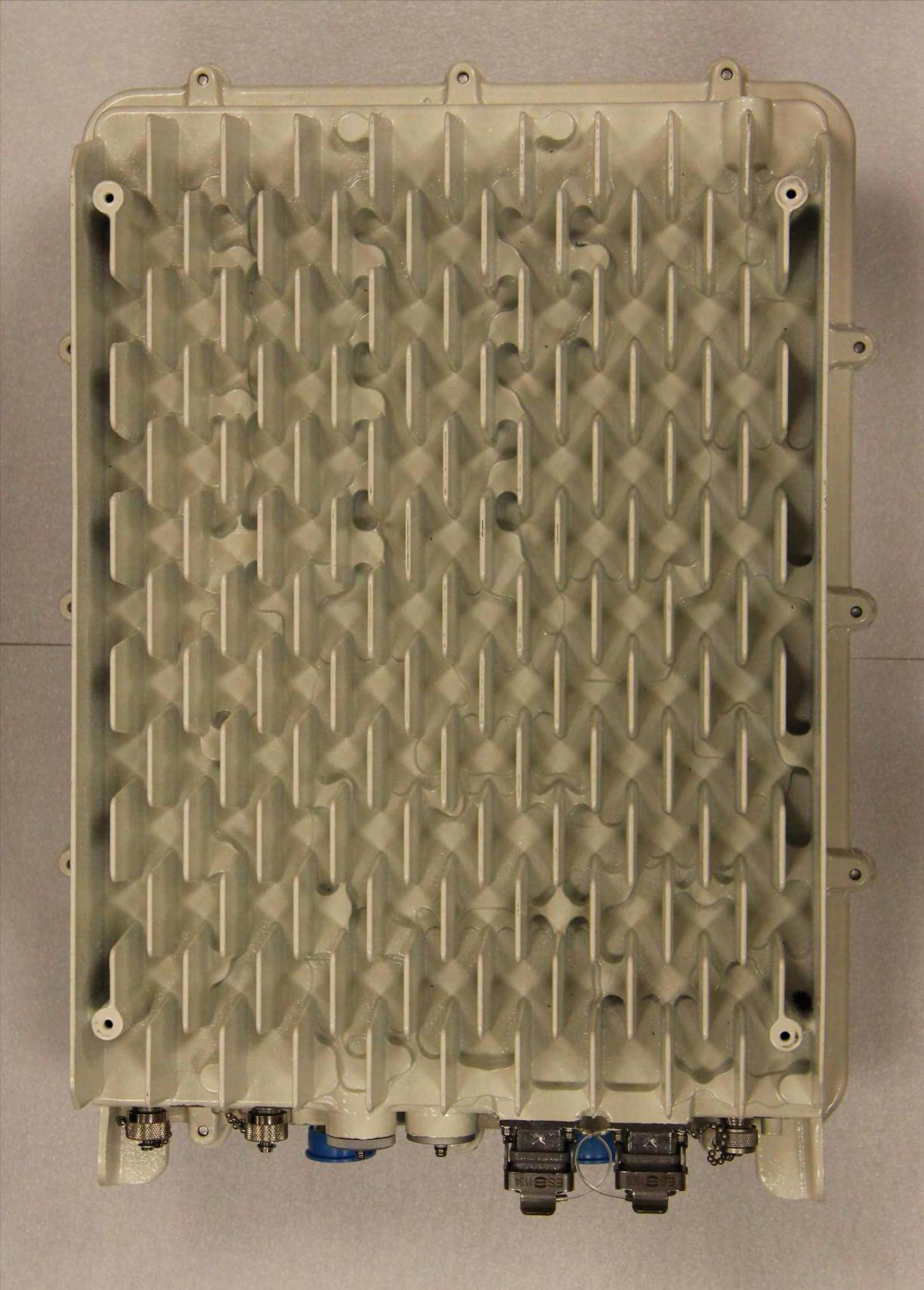

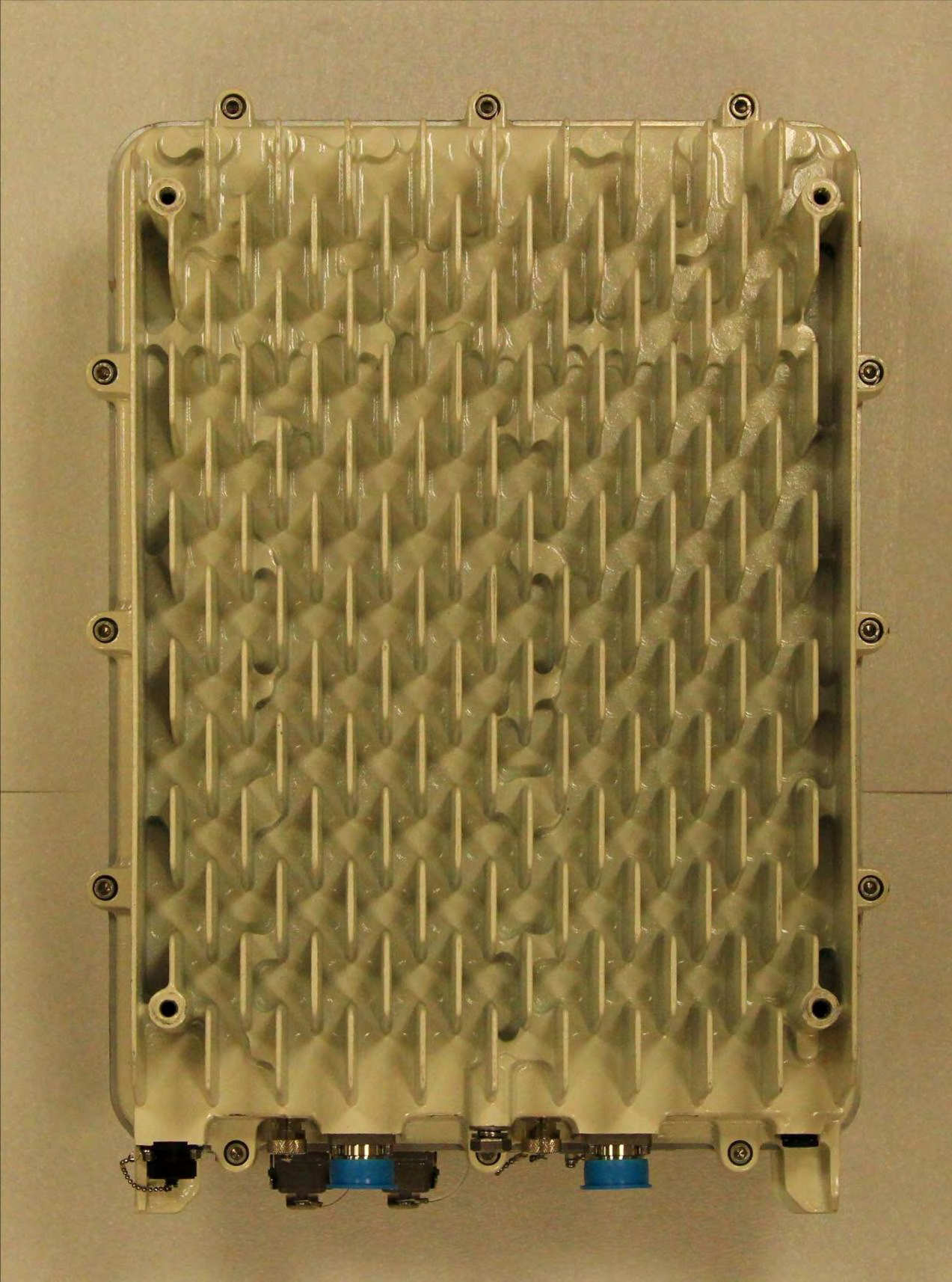

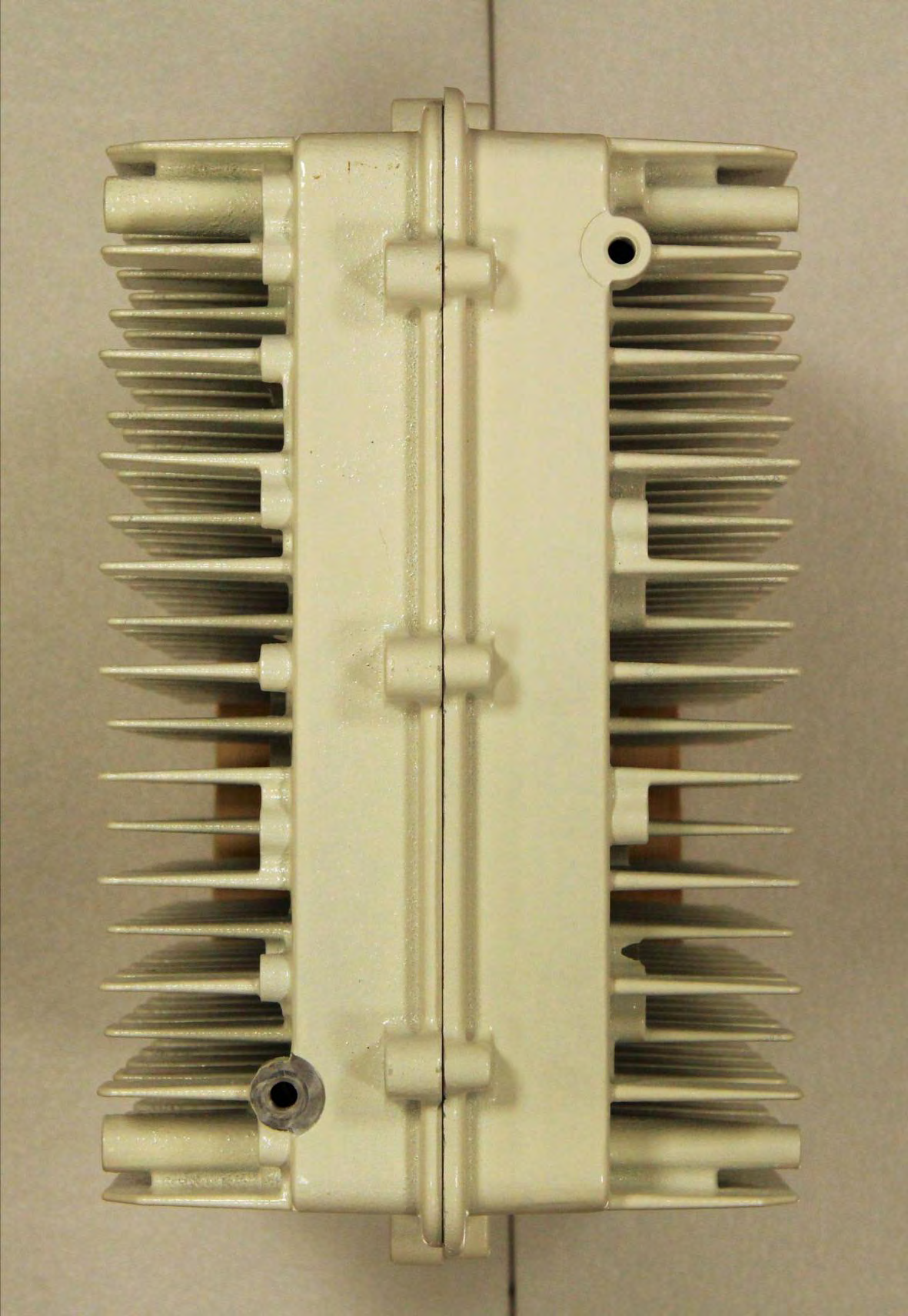

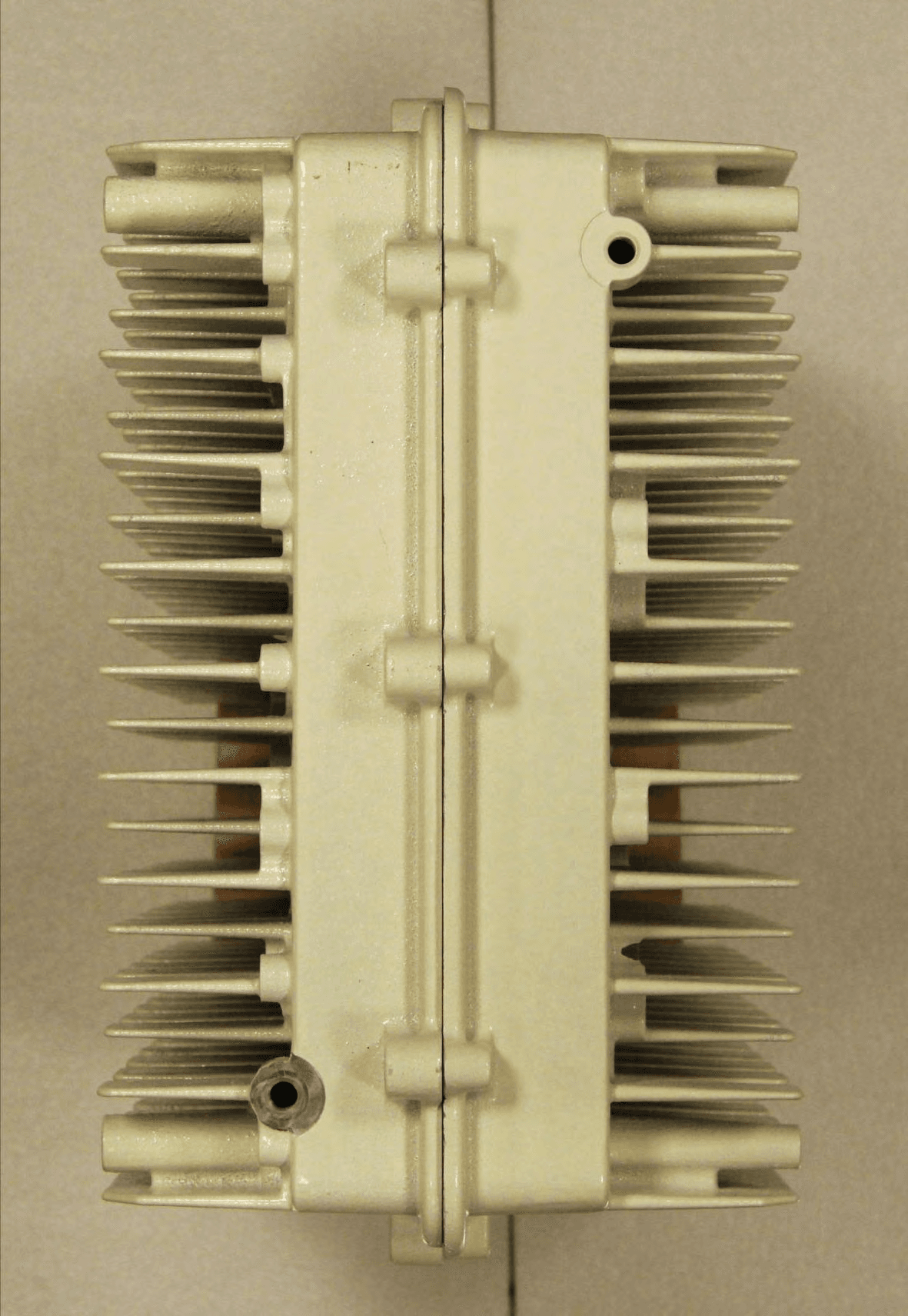

Proprietary Information RN2480 eNode B External Photographs Model: AZY FCC ID: PKTNODEBAZY Proprietary Information Figure 1: RN2480 eNodeB Front View Proprietary Information Figure 2: RN2480 eNodeB Rear View Proprietary Information Figure 3: RN2420 External Connectors Proprietary Information Figure 4: RN2480 eNode B Side View Proprietary Information Figure 5: RN2480 eNode B Top View

Proprietary Information RN2480 eNode B Label Position Exhibit Model: AZY FCC ID: PKTNODEBAZY Proprietary Information Figure 1: RN2480 eNode B Label Position Figure 2: RN2480 eNode B Label Position Detail

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10839739JD01A Manufacturer : General Dynamics Broadband UK Ltd Model No. : AZY Product Generation : RN2480 eNode B FCC ID : PKTNODEBAZY Technology : LTE Band 12, 5 MHz and 10 MHz Channel Bandwidth Test Standard(s) : FCC Parts 27.50(c)(3), 27.53(g) & 27.54 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 1.0. Date of Issue: 30 September 2015 Checked by: Sarah Williams Engineer, Radio Laboratory Issued by : pp John Newell Group Quality Manager, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP10839739JD01A VERSION NO. 1.0 ISSUE DATE: 30 SEPTEMBER 2015 Page 2 of 70 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10839739JD01A VERSION NO. 1.0 ISSUE DATE: 30 SEPTEMBER 2015 UL VS LTD Page 3 of 70 Table of Contents 1. Customer Information ................................................................................................................. 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) ..................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 6 3.3. Modifications Incorporated in the EUT 6 3.4. Additional Information Related to Testing 6 3.5. Support Equipment 7 4. Operation and Monitoring of the EUT during Testing .............................................................. 8 4.1. Operating Modes 8 4.2. Configuration and Peripherals 8 5. Measurements, Examinations and Derived Results ................................................................. 9 5.1. General Comments 9 5.2. Test Results 10 5.2.1. Transmitter Carrier Output Power and Effective Radiated Power (ERP) 10 5.2.2. Transmitter Occupied Bandwidth 30 5.2.3. Transmitter Conducted Emissions 44 5.2.4. Transmitter Conducted Emissions at Band Edges 47 5.2.5. Transmitter Radiated Spurious Emissions 55 5.2.6. Transmitter Radiated Emissions at Band Edges 58 5.2.7. Transmitter Frequency Stability (Temperature Variation) 64 5.2.8. Transmitter Frequency Stability (Voltage Variation) 67 6. Measurement Uncertainty ........................................................................................................ 69 7. Report Revision History ........................................................................................................... 70 TEST REPORT SERIAL NO: UL-RPT-RP10839739JD01A VERSION NO. 1.0 ISSUE DATE: 30 SEPTEMBER 2015 Page 4 of 70 UL VS LTD 1. Customer Information Company Name: General Dynamics Broadband UK Ltd Address: Unit 7 Greenways Business Park Bellinger Close Chippenham Wilts SN15 1BN TEST REPORT SERIAL NO: UL-RPT-RP10839739JD01A VERSION NO. 1.0 ISSUE DATE: 30 SEPTEMBER 2015 UL VS LTD Page 5 of 70 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR27 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 27 Subpart J (Miscellaneous Wireless Communication Services) Site Registration: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 05 August 2015 to 16 September 2015 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result 27.50(c)(3) / 2.1046 Transmitter Carrier Output Power and Effective Radiated Power (ERP) 2.1049 Transmitter Occupied Bandwidth 27.53(g) / 2.1051 Transmitter Conducted Emissions 27.53(g) / 2.1051 Transmitter Conducted Emissions at Band Edges 27.53(g) / 2.1053 Transmitter Radiated Spurious Emissions 27.53(g) / 2.1053 Transmitter Radiated Emissions at Band Edges 27.54 / 2.1055 Transmitter Frequency Stability (Temperature and Voltage Variation) Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: FCC KDB 971168 D01 v02r02, October 17 2014 Title: Measurement Guidance for Certification of Licensed Digital Transmitters Reference: FCC KDB 662911 D01 v02r01 October 31, 2013 Title: Emissions Testing of Transmitters with Multiple Outputs in the Same Band 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10839739JD01A VERSION NO. 1.0 ISSUE DATE: 30 SEPTEMBER 2015 Page 6 of 70 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: General Dynamics Broadband Model Name or Number: AZY Product Generation: RN2480 eNode B Test Sample Serial Number: AZYBF29000110 Hardware Version Number: Pass 1 Software Version Number: 9.2.4 FCC ID: PKTNODEBAZY 3.2. Description of EUT The equipment under test was a wireless LTE Band 12 base station. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Tested Technology: LTE Type of Equipment eNodeB Channel Bandwidth: 5 MHz & 10 MHz Modulation Types: QPSK, 16QAM & 64QAM Duty Cycle: 100% Antenna Gain: 18.0 dBi Power Supply Requirement: Nominal -48.0 VDC Minimum -40.8 VDC Maximum -55.2 VDC Transmit Frequency Range: Band 12 (729 MHz to 746 MHz) Part …

Text truncated - open the document above for the full version.

General Dynamics Broadband UK Ltd FCC ID: PKTNODEBAZY UL-RPT-10839739JD01 UL VS LTD 1 Test Setup Photographs for the AZY 1. Radiated Emissions Photo 1 Photo 2 General Dynamics Broadband UK Ltd FCC ID: PKTNODEBAZY UL-RPT-10839739JD01 Radiated Emissions (continued) Photo 3 General Dynamics Broadband UK Ltd FCC ID: PKTNODEBAZY UL-RPT-10839739JD01 UL VS LTD 3 2. AC Conducted Emissions Photo 1

General Dynamics Broadband UK Ltd FCC ID: PKTNODEBAZY UL-RPT-10839739JD01 AC Conducted Emissions (continued) Photo 2 General Dynamics Broadband UK Ltd FCC ID: PKTNODEBAZY UL-RPT-10839739JD01 UL VS LTD 5 AC Conducted Emissions (continued) Photo 3 General Dynamics Broadband UK Ltd FCC ID: PKTNODEBAZY UL-RPT-10839739JD01 3. Conducted Test Setup Photo 1
