PLE-KM-8500Karaoke Microphone

Gigastone Corp.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jan 19, 2021
Application Purpose: Original Equipment
Date of Application: Jan 19, 2021
Equipment Note: Karaoke Microphone
Frequency Range: 2402.00000000 - 2480.00000000
Company: Gigastone Corp.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Statement： T his device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. T his equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: -R eorient the receiving antenna. -I ncrease the separation between the equipment and receiver. -C onnect the equipment into and outlet on a circuit different from that to which the receiver is connected. -C onsult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. The distance between user and products should be no less than 20cm

Cover Letter(s)

DATE 2021/01/19 Equ1pn1ent Autonsat1on Division Federal Con1m unications Commission 7 435 Oakland Mills Road Columbia, MD 21046 FCC ID· PLE-KM-8500 Product Name: Karaoke Microphone Request for Confidentiality • Pursuant _ to Sections 0.457 and 0.459 of the commission's rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality - for example ... ) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary Information and are not customarily released to the public. The public disclosure of this Information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name Chang Kristie Title Manager Company Gigastone Corp.

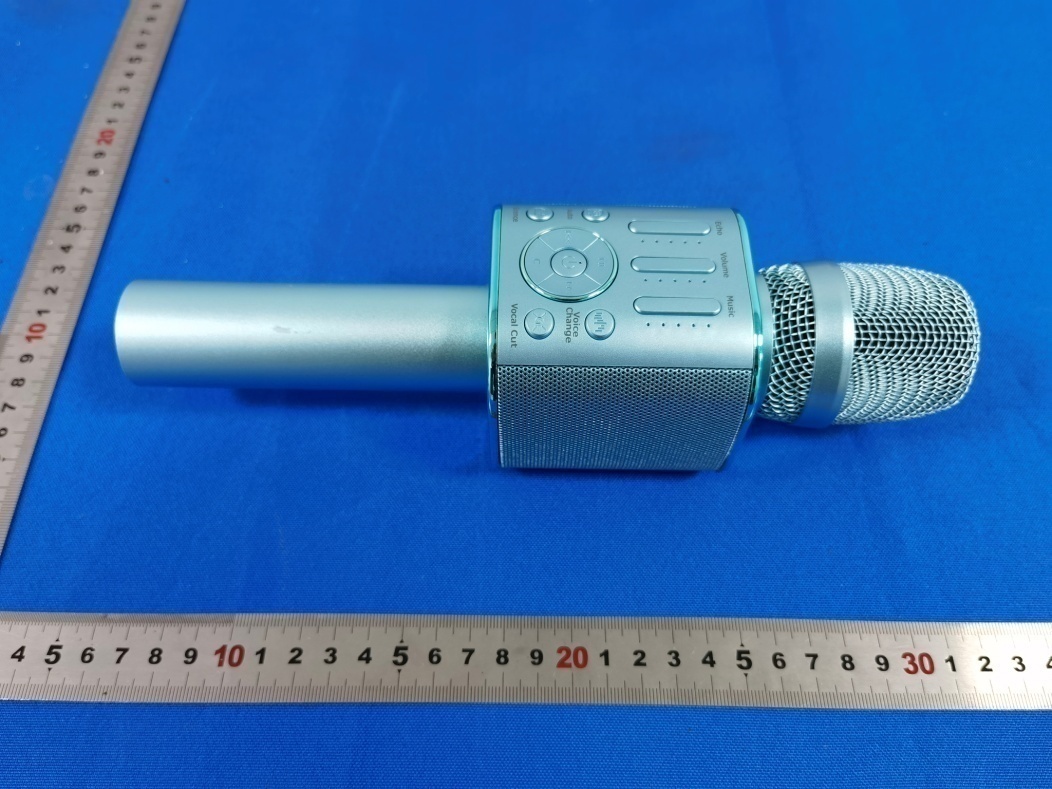

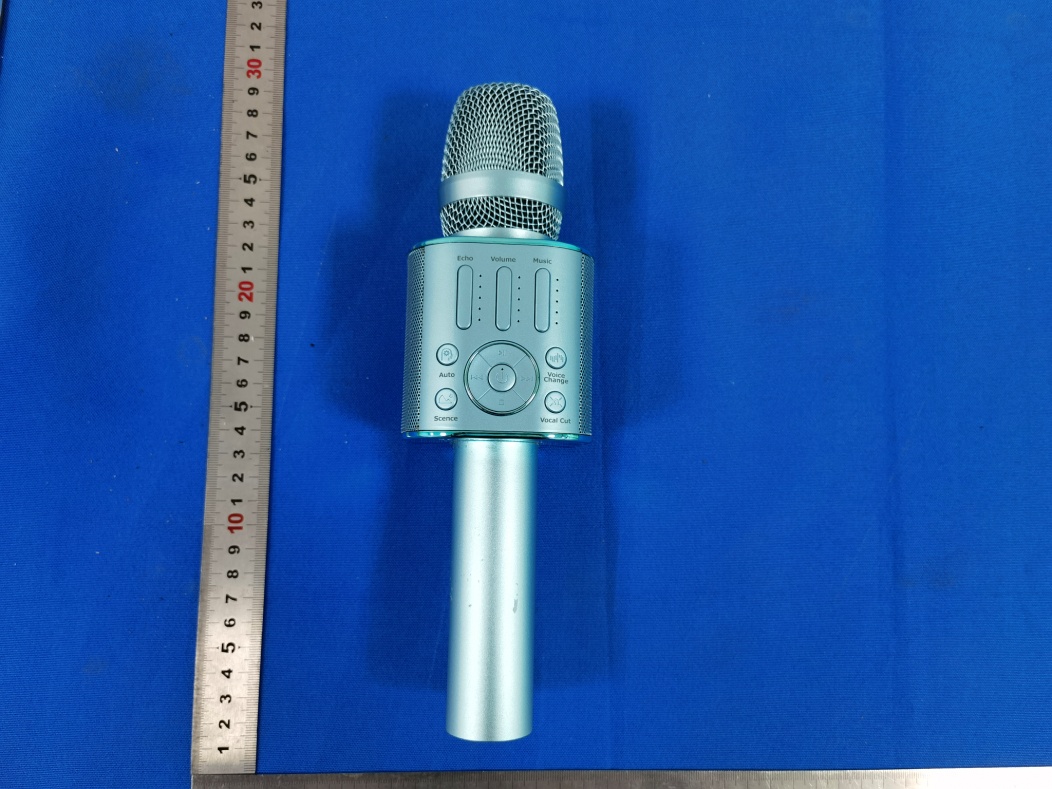

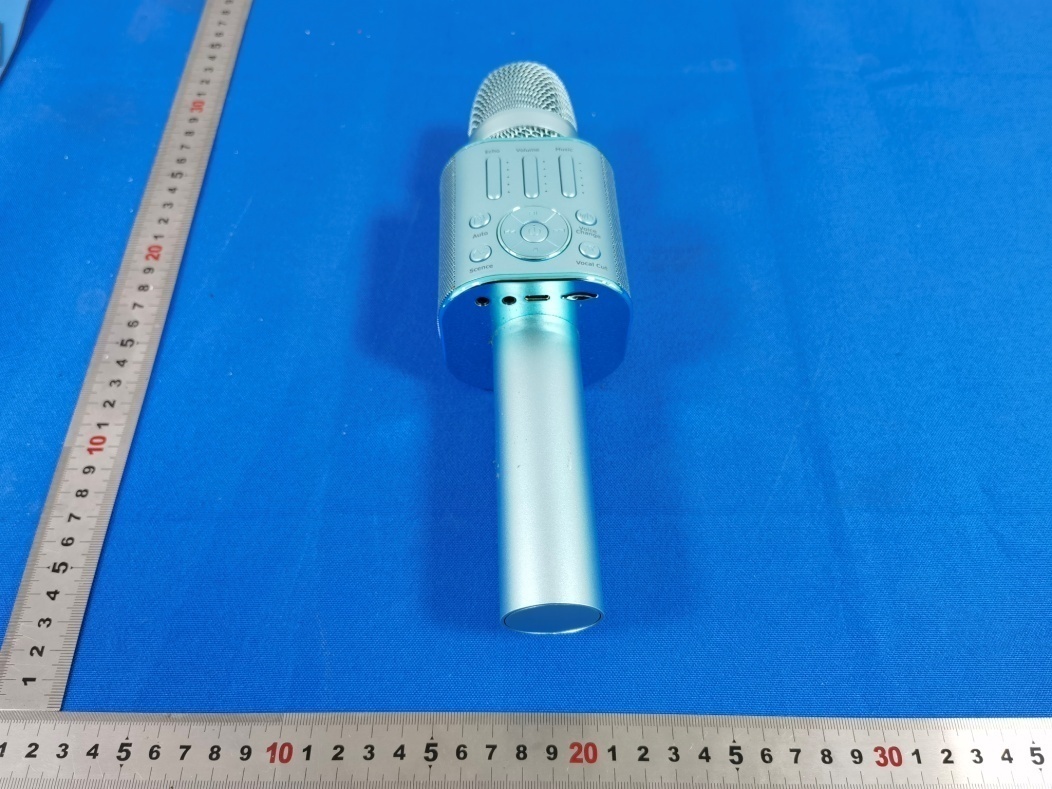

External Photos

Model No.: KM-8500

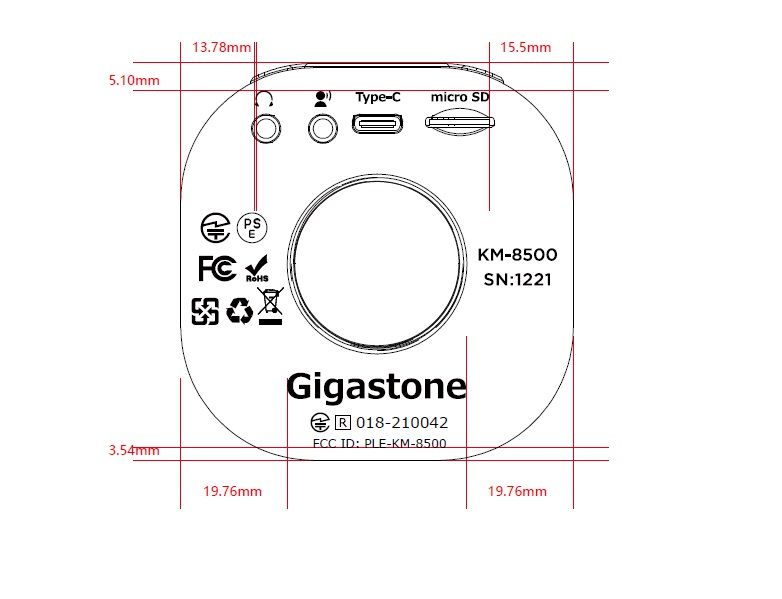

ID Label/Location Info

Echo Auto Volume SceneVocal Cut Voice Change Music 67.49mm 66.13mm 10.92mm12.97mm 19.60mm 18.80mm 5.80mm 7.50mm 48.57mm 59.82mm 5.10mm 3.54mm 13.78mm 19.76mm 15.5mm 19.76mm PO. Number: x Version: 1 Date: 2021-01-14 018-210042 FCC ID: PLE-KM-8500

Internal Photos

Model No.: KM-8500

RF Exposure Info

Page 1 of 2 RF Exposure Evaluation Report 1 RF EXPOSURE Product Name Karaoke Microphone Model No. KM-8500 Test Mode TX FCC ID PLE-KM-8500 1.1 LIMITS The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Page 2 of 2 1.2 EUT RF EXPOSURE EVALUATION Operational Mode: EDR （8-DPSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power(dB m) Maximum tune-up Power(mW ) Calculated value Exclusion threshold 2402MHz -6.92 ±1 -5.92 0.26 0.08 3 2441MHz -6.43 ±1 -5.43 0.29 0.09 3 2480MHz -5.85 ±1 -4.85 0.33 0.10 3 Conclusion: the calculated value ≤3.0, SAR is exempted.

Test Report

Report No.: BLA-EMC-202011-A4601 Page 75 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX A: PHOTOGRAPHS OF TEST SETUP Antenna Requirement Radiated Spurious Emissions Report No.: BLA-EMC-202011-A4601 Page 76 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Conducted Emissions at AC Power Line (150kHz-30MHz) Report No.: BLA-EMC-202011-A4601 Page 77 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202011-A4601 Page 78 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202011-A4601 Page 79 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202011-A4601 Page 80 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202011-A4601 Page 81 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202011-A4601 Page 82 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com ----END OF REPORT---- Report No.: BLA-EMC-202011-A4601 Page 83 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of BlueAsia, this report can’t be reproduced except in full.

Test Report

Report No.: BLA-EMC-202011-A4601 Page 50 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10 APPENDIX Appendix1 10.1 APPENDIXA: 20DBEMISSION BANDWIDTH Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 1.080 2401.439 2402.519 --- PASS 2441 1.077 2440.439 2441.516 --- PASS 2480 1.086 2479.436 2480.522 --- PASS 2DH1 Ant1 2402 1.362 2401.292 2402.654 --- PASS 2441 1.365 2440.286 2441.651 --- PASS 2480 1.368 2479.286 2480.654 --- PASS Report No.: BLA-EMC-202011-A4601 Page 51 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 Report No.: BLA-EMC-202011-A4601 Page 52 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2441 2DH1_Ant1_2480 Report No.: BLA-EMC-202011-A4601 Page 53 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.2 APPENDIXC: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 -7.5 <=30 PASS 2441 -7.05 <=30 PASS 2480 -6.38 <=30 PASS 2DH1 Ant1 2402 -6.92 <=30 PASS 2441 -6.43 <=30 PASS 2480 -5.85 <=30 PASS Report No.: BLA-EMC-202011-A4601 Page 54 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Report No.: BLA-EMC-202011-A4601 Page 55 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Report No.: BLA-EMC-202011-A4601 Page 56 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202011-A4601 Page 57 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.3 APPENDIXD: CARRIER FREQUENCY SEPARATION Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 0.996 >=0.724 PASS 2DH1 Ant1 Hop 0.994 >=0.912 PASS Report No.: BLA-EMC-202011-A4601 Page 58 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop Report No.: BLA-EMC-202011-A4601 Page 59 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.4 APPENDIXE: TIME OF OCCUPANCY Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.38 330 0.124 <=0.4 PASS DH3 Ant1 Hop 1.63 150 0.244 <=0.4 PASS DH5 Ant1 Hop 2.88 100 0.288 <=0.4 PASS Report No.: BLA-EMC-202011-A4601 Page 60 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Report No.: BLA-EMC-202011-A4601 Page 61 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com DH5_Ant1_Hop Report No.: BLA-EMC-202011-A4601 Page 62 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.5 APPENDIXF: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS Report No.: BLA-EMC-202011-A4601 Page 63 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop Report No.: BLA-EMC-202011-A4601 Page 64 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.6 APPENDIXG:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 -8.03 -56.36 <=-28.03 PASS High 2480 -6.82 -55.26 <=-26.82 PASS Low Hop_2402 -8.13 -55.72 -28.13 PASS High Hop_2480 -6.81 -55.14 -26.81 PASS 2DH1 Ant1 Low 2402 -8.02 -56.26 <=-28.02 PASS High 2480 -6.80 -54.71 <=-26.8 PASS Low Hop_2402 -8.05 -54.93 -28.05 PASS High Hop_2480 -6.72 -55.13 -26.72 PASS Report No.: BLA-EMC-202011-A4601 Page 65 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202011-A4601 Page 66 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 Report No.: BLA-EMC-202011-A4601 Page 67 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202011-A4601 Page 68 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.7 APPENDIXH:CONDUCTED SPURIOUSEMISSION Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference -8.31 -8.31 --- PASS 30~1000 30~1000 -68.56 <=-28.31 PASS 1000~26500 1000~26500 -47.168 <=-28.31 PASS 2441 Reference -7.60 -7.60 --- PASS 30~1000 30~1000 -68.619 <=-27.601 PASS 1000~26500 1000~26500 -48.023 <=-27.601 PASS 2480 Reference -6.88 -6.88 --- PASS 30~1000 30~1000 -68.458 <=-26.88 PASS 1000~26500 1000~26500 -49.76 <=-26.88 PASS 2DH1 Ant1 2402 Reference -8.15 -8.15 --- PASS 30~1000 30~1000 -68.327 <=-28.155 PASS 1000~26500 1000~2650…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add:No. 448, Bulong Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Karaoke Microphone Brand Mark : Gigastone Model No. : KM-8500 FCC ID : PLE-KM-8500 Report Number : BLA-EMC-202011-A4601 Date of Sample Receipt : 2020/11/24 Date of Test : 2020/11/25 to 2020/12/7 Date of Issue : 2020/12/7 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Gigastone Corp. 4F., No.166, Xinhu 2nd Rd., Neihu Dist., Taipei City 114, Taiwan Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2020/12/7 Report No.: BLA-EMC-202011-A4601 Page 2 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2020/12/7 Original Report No.: BLA-EMC-202011-A4601 Page 3 of83 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 ANTENNA REQUIREMENT .............................................................................................................................. 14 CONCLUSION ...................................................................................................................................................................... 14 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 15 LIMITS ............................................................................................................................................................................. 15 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 16 PROCEDURE ................................................................................................................................................................... 16 TEST DATA ........................................................................................................................................................................ 18 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ......................................................... 26 LIMITS ............................................................................................................................................................................. 26 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 27 PROCEDURE ................................................................................................................................................................... 27 TEST DATA ........................................................................................................................................................................ 29 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 35 LIMITS ............................................................................................................................................................................. 35 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 35 TEST DATA ........................................................................................................................................................................ 36 CONDUCTED BAND EDGES MEASUREMENT ............................................................................................. 37 LIMITS ............................................................................................................................................................................. 37 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 37 TEST DATA ........................................................................................................................................................................ 38 Report No.: BLA-EMC-202011-A4601 Page 4 of83 BlueAsia of Technic…

Text truncated - open the document above for the full version.

Test Setup Photos

Model No.: KM-8500 Radiated Spurious Emissions Conducted Emissions at AC Power Line (150kHz-30MHz)
