PLE-QP-10200Qi Travel Power Bank

Gigastone Corp.

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Jan 24, 2021
Application Purpose: Original Equipment
Date of Application: Jan 24, 2021
Equipment Note: Qi Travel Power Bank
Frequency Range: 0.11000000 - 0.20500000
Company: Gigastone Corp.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Thi s equ i pment s h ou ld b e i nsta ll e d an d operate d w i t h a m i numum distance o f 20 cm between the radiator and your bod y

Cover Letter(s)

GigastoneCorp. Declarationonmodeldifference Wetheundersignedherebyconfirmthatthesemodelsareidentical,andallmodelshavethe sameRFmoduleandantenna,PCBlayout,schematicsandcomponent.Onlythemodelnamesand appearancecoloraredifferent. ProductionnameTrademarkFCCIDModelno. QiTravelPower Bank GigastonePLE-QP-10200QP-10200,QP-10200W, QP-10200B Sincerely, ShifanChang EngineerVicePresident GigastoneCorp. 4F.,No.166,Xinhu2ndRd.,NeihuDist.,TaipeiCity114,Taiwan

Cover Letter(s)

GigastoneCorp. 2021-01-08 METLaboratories,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(EUTName:QiTravelPowerBank /Model:QP-10200,QP-10200W,QP-10200B/FCCID:PLE-QP-10200) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe( BlockDiagram,OperationalDescription,Schematics ) requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Sincerely, ShifanChang EngineerVicePresident GigastoneCorp. 4F.,No.166,Xinhu2ndRd.,NeihuDist.,TaipeiCity114,Taiwan

Cover Letter(s)

GigastoneCorp. 2021-01-08 EurofinsMETLabs 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeDongGuanAnciElectronicTechnologyCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Sincerely, ShifanChang EngineerVicePresident GigastoneCorp. 4F.,No.166,Xinhu2ndRd.,NeihuDist.,TaipeiCity114,Taiwan

Cover Letter(s)

GigastoneCorp. 2021/01/08 To:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD FCCID:PLE-QP-10200 ToWhomItMayConcern: Thisletteristoascertainthat,Product:QiTravelPowerBankM/N:QP-10200, QP-10200W,QP-10200BhasbeentheunitsusedforconductingFCC compliancetesting,anditmeets680106D01RFExposureWirelessCharging Appv03Clause5(b)all6conditions. 1Powertransferfrequencyislessthat1MHz Reply ： Yes,Powertransferfrequencyislessthat1MHz;Ans:EUToperating frequencyrangeis0.11~0.205MHz. 2Outputpowerfromeachprimarycoilislessthanorequalto15watts. Reply： Yes,Outputpowerfromeachprimarycoilis15watts.Themaxoutputpower is15W. 3Thetransfersystemincludesonlysingleprimaryandsecondarycoils.This includeschargingsystemsthatmayhavemultipleprimarycoilsandclients thatareabletodetectandallowcouplingonlybetweenindividualpairsof coils. Reply： Yes,Yes,TheEUThasonlyoneprimarycoil. 4Clientdeviceisplaceddirectlyincontactwiththetransmitter. Reply： Yes,Theclientdeviceneedstobeincontactwiththetransmitterbase,and thecontactdistanceislessthan10mm. 5 Mobileexposureconditionsonly(portableexposureconditionsarenot coveredbythisexclusion). Reply： No,EUTismobile/protabledevice 6TheaggregateH-fieldstrengthsat15cmsurroundingthedeviceand20cm abovethetopsurfacefromallsimultaneoustransmittingcoilsare demonstratedtobelessthan50%oftheMPElimit. Reply： Yes,RFExposureEvaluationreporttestresultmeetsthisLimt.Pleaserefer totheRFexposureEvaluationreport. Ifyouhaveanyquestionorconcerns,pls.contactus. Sincerely, ShifanChang EngineerVicePresident GigastoneCorp. 4F.,No.166,Xinhu2ndRd.,NeihuDist.,TaipeiCity114,Taiwan

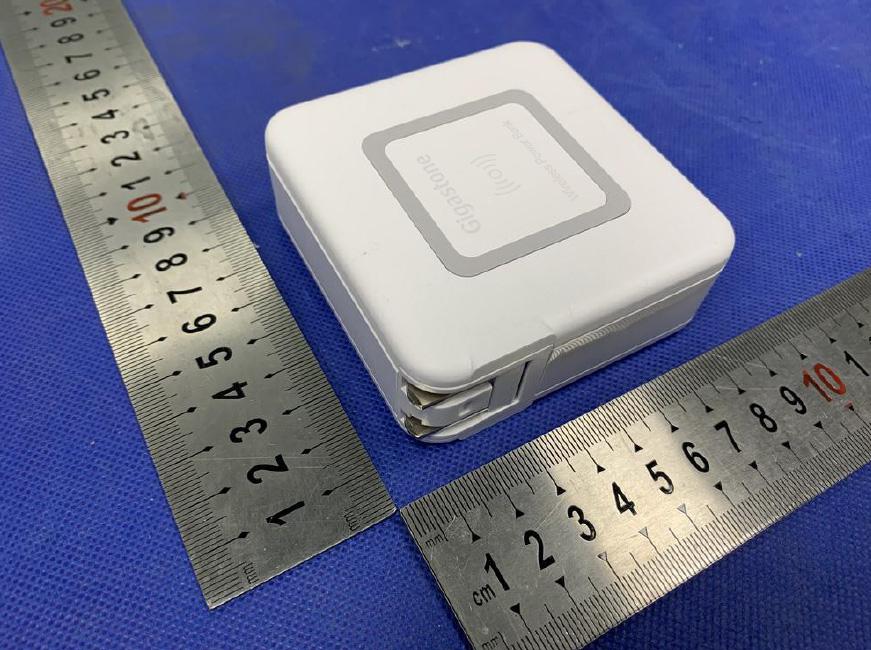

External Photos

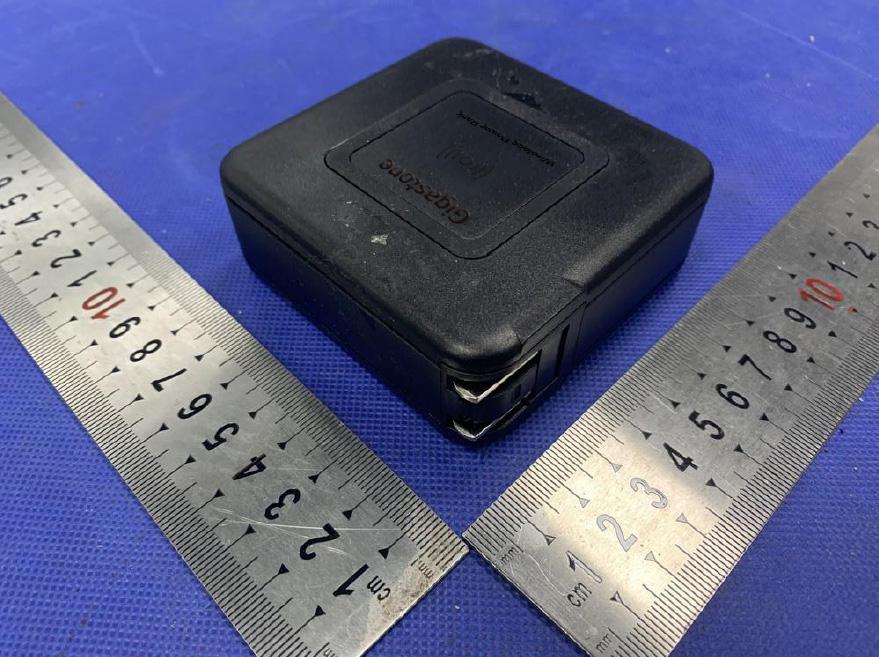

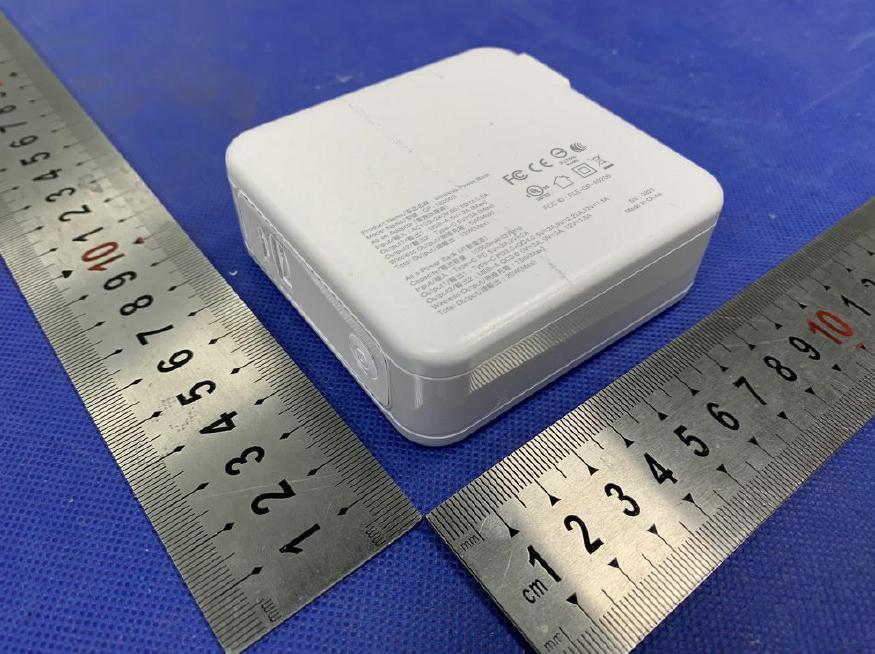

Model:QP-10200W Model:QP-10200B

ID Label/Location Info

55.4mm 26.4 mm 23.7mm 26.7mm 27.6mm 28.3mm28.3mm 26.8mm 23.3mm 10mm 12.2mm12.2mm 40mm 28.3mm28.3mm 正面雕刻稿背面絲印稿 Gigastone QP-10200B Silk Pantone Cool Gray ４C 3 in 1 Travel Charger PD Power Bank Qi Wireless Charger Product Name/產品名稱 : Wireless Power Bank Model Name/型號 : QP-10200B As an Adapter (電源供應器) Input/輸入 : AC100-240V,50/60Hz,0.5A Output1/輸出1 : USB-A 5V 3A (Max) Output2/輸出2 : Type-C 5V 3A (Max) Wireless Output/無線充電 : 5W(Max) Total Output/總輸出 : 15W(Max) As a Power Bank (行動電源) Capacity/電池容量 : 10000mAh(37Wh) Input/輸入 : Type-C PD 5V 3A,9V 2A Output1/輸出1 : Type-C PD3.0+QC4.0 5V 3A,9V 2.22A,12V 1.5A Output2/輸出2 : USB-A QC3.0 5V 3A, 9V 2A, 12V 1.5A Wireless Output/無線充電 : 15W(Max) Total Output/總輸出 : 20W(Max) SN : 0821 Made in China FCC ID : PLE-QP-10200 Product Name/產品名稱 : Wireless Power Bank Model Name/型號 : QP-10200B As an Adapter (電源供應器) Input/輸入 : AC100-240V,50/60Hz,0.5A Output1/輸出1 : USB-A 5V 3A (Max) Output2/輸出2 : Type-C 5V 3A (Max) Wireless Output/無線充電 : 5W(Max) Total Output/總輸出 : 15W(Max) As a Power Bank (行動電源) Capacity/電池容量 : 10000mAh(37Wh) Input/輸入 : Type-C PD 5V 3A,9V 2A Output1/輸出1 : Type-C PD3.0+QC4.0 5V 3A,9V 2.22A,12V 1.5A Output2/輸出2 : USB-A QC3.0 5V 3A, 9V 2A, 12V 1.5A Wireless Output/無線充電 : 15W(Max) Total Output/總輸出 : 20W(Max) SN : 0821 Made in China FCC ID : PLE-QP-10200 3 in 1 Travel Charger PD Power Bank Qi Wireless Charger

RF Exposure Info

1 / 18 EUTSpecification FCCID:PLE-QP-10200 CharacteristicsDescription ProductNameQiTravelPowerBank ModelnumberQP-10200B PowerSupply AsanAdapter:AC220V AsaPowerBankInput:Type-CPD5V/3A,9V/2A OperatingFrequency Range 110-205KHz Modulation Technique ASK AntennaTypeInductioncoil DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ Exposure classification Occupational/Controlledexposure(S=5mW/cm2) GeneralPopulation/Uncontrolledexposure (S=1mW/cm2) AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity EvaluationappliedMPEEvaluation SAREvaluation ApplicableStandard: FCCPart1(1.1310),Part2(2.1091)andKDB680106D01RFExposure WirelessChargingAppsv03 ApplicableRequirement: ThreedifferentcategoriesoftransmittersaredefinedbytheFCCinOET Bulletin65. 2 / 18 Thesecategoriesarefixedinstallation,mobile,andportableandare definedasfollows: FixedInstallations:fixedlocationmeansthatthedevice,includingits antenna,isphysicallysecuredatapermanentlocationandisnotabletobe easilymovedtoanotherlocation.Additionally,distancetohumansfromthe antennaismaintainedtoatleast2meters. MobileDevices:amobiledeviceisdefinedasatransmittingdevice designedtobeusedinotherthanfixedlocationsandtobegenerallyusedin suchawaythataseparationdistanceofatleast20centimetersisnormally maintainedbetweenthetransmitter'sradiatingstructuresandthebodyofthe userornearbypersons.Transmittersdesignedtobeusedbyconsumersor workersthatcanbeeasilyre-located,suchasawirelessmodemoperatingina laptopcomputer,areconsideredmobiledevicesiftheymeetthe20centimeter separationrequirement.TheFCCrulesforevaluatingmobiledevicesforRF compliancearefoundin47CFR§2.1091. PortableDevices:aportabledeviceisdefinedasatransmittingdevice designedtobeusedsothattheradiatingstructure(s)ofthedeviceis/arewithin 20centimetersofthebodyoftheuser.Portabledevicerequirementsarefound inSection2.1093oftheFCC'sRules(47CFR§2.1093). TheFCCalsocategorizestheuseofthedeviceasbasedupontheuser’s awarenessandabilitytoexercisecontroloverhisorherexposure.Thetwo categoriesdefinedareOccupational/ControlledExposureandGeneral Population/UncontrolledExposure. Thesetwocategoriesaredefinedasfollows: Occupational/controlledexposurelimitsapplyinsituationsinwhich personsareexposedasaconsequenceoftheiremploymentprovidedthose personsarefullyawareofthepotentialforexposureandcanexercisecontrol overtheirexposure.Limitsforoccupational/controlledexposurealsoapplyin situationswhenapersonistransientthroughalocationwhere occupational/controlledlimitsapplyprovidedheorsheismadeawareofthe potentialforexposure.Thephrasefullyawareinthecontextofapplyingthese exposurelimitsmeansthatanexposedpersonhasreceivedwrittenand/or verbalinformationfullyexplainingthepotentialforRFexposureresultingfrom hisorheremployment.Withtheexceptionoftransientpersons,thisphrase alsomeansthatanexposedpersonhasreceivedappropriatetraining regardingworkpracticesrelatingtocontrollingormitigatinghisorher exposure.Suchtrainingisnotrequiredfortransientpersons,buttheymust receivewrittenand/orverbalinformationandnotification(forexample,using signs)concerningtheirexposurepotentialandappropriatemeansavailableto mitigatetheirexposure.Thephraseexercisecontrolmeansthatanexposed personisallowedtoandknowshowtoreduceoravoidexposureby administrativeorengineeringcontrolsandworkpractices,suchasuseof personalprotectiveequipmentortimeaveragingofexposure. Generalpopulation/uncontrolledexposurelimitsapplyinsituationsin 3 / 18 whichthegeneralpublicmaybeexposed,orinwhichpersonswhoare exposedasaconsequenceoftheiremploymentmaynotbefullyawareofthe potentialforexposureorcannotexercisecontrolovertheirexposure. Licenseesandapplicantsareresponsibleforcompliancewithboththe occupational/controlledexposurelimitsandthegeneral population/uncontrolledexposurelimitsastheyapplytotransmittersunder theirjurisdiction.Licenseesandapplicantsshouldbeawarethatthe occupational/controlledexposurelimitsapplyespeciallyinsituationswhere workersmayhaveaccesstoareasinverycloseproximitytoantennasand accesstothegeneralpublicmayberestricted. Inlieuofevaluationwiththegeneralpopulation/uncontrolledexposure limits,amateurlicenseesauthorizedunderpart97ofthischapterand membersofhisorherimmediatehouseholdmaybeevaluatedwithrespectto theoccupational/controlledexposurelimitsinthissection,provided appropriatetrainingandinformationhasbeenprovidedtotheamateur licenseeandmembersofhis/herhousehold.Othernearbypersonswhoare notmembersoftheamateurlicensee'shouseholdmustbeevaluatedwith respecttothegeneralpopulation/uncontrolledexposurelimits. TestSetupBlock 4 / 18 TestProcedureformobiledevice 1.ConnecttheEUTandequipmentasabovediagramoftestconfiguration. 2.EUTwasplacedonatable,andthemeasureprobewasplacedata measurementdistanceof15cmfromtheEUTtothecenteroftheprobe. 3.Poweronthemeasuringprobe,theEUTwassetatthemaximumfield strengthemissionstate. 4.TheEUTwasputindifferentdirections(Left,Right,Front,Rear,Topand Bottom)towardtothemeasureprobe.ThedistancefromthetopoftheEUTto theprobeis20CM,andthedistancefromotherdirectionsis15cm.Measure thevalueoffieldstrength. 5.Recordtheworstdataofthedifferentdirections. TestProcedureforprotabledevice 1.EUTwasplacedonatable,andthemeasureprobewasplacedata measurementdistanceof0~10cmfromtheEUTtothecenteroftheprobe. 2.Poweronthemeasuringprobe,theEUTwassetatthemaximumfield strengthemissionstate. 3.TheEUTwasputindifferentdirections(Left,Right,Front,Rear,Topand Bottom)towardtothemeasureprobe.ThedistancefromtheEUTtotheprobe startsfrom0cm,andmeasuresevery2cmuntilthedistanceis10cm. 4.Recordtheworstdataofthedifferentdirections. MeasuringDeviceAndTestEquipment UsedEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval  E-Field Probe(100kHz-3 GHz) NardaEP601611WX70311 November16, 2020 1Year  H-Field Probe(300KHz-3 0MHz) NardaELT-400M-0174August04,20201Year  BroadbandField Meter NardaELT-400M-0173August04,20201Year 5 / 18 DescriptionofSupportDevice iPhone ： Manufacturer:AppleInc. M/N:A1524 S/N:N/A WirelessChargerReceiver Module ： Manufacturer:Universal M/N:N/A…
