PLNBONTEC-006Transmitter Keyless

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

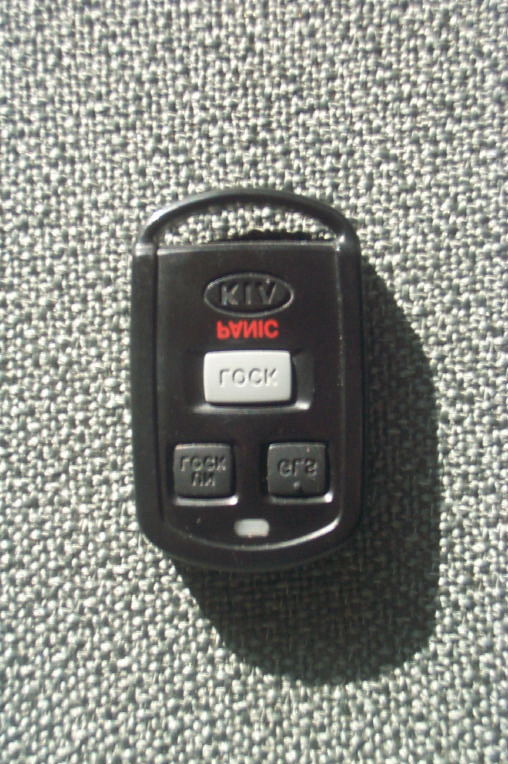

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01141 FCC ID : PLNBONTEC-006

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01141 FCC ID :PLNBONTEC-006 FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER 2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PLNBONTEC-006

SK TECH CO., LTD. Page 1 of 3 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 3 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 SK TECH CO., LTD. Page 3 of 3 SKT SKTOS-01141 FCC ID : PLNBONTEC-006

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 Operational Description This product is a remote key to control (lock & unlock) the door of a car. The using of this product is very easy and simply. SectionI II I. Primary Function - Remote door lock/unlock - LED turn on (When the lock/unlock button is pushed) - Operating distance : 7 ~ 10m SectionII IIII II. The Using Of this Wireless Key When the lock / unlock Button is pushed, LED of this key turns on. And then the remote door is locked or unlocked.

SK TECH CO., LTD. Page 1 of 9 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 Certificate of Compliance Test Report No.: SKTOS-01141 NVLAP CODE : 200220-0 Applicant: BONTECH CO., LTD Applicant Address: #27-31, Hanchun-Ri, Ducksan-Myun, Jinchun-Gun, Chungbuk, Korea Product: Transmitter keyless FCC ID: PLNBONTEC-006 Model No.: BONTEC-006 Receipt No.: SKE20011022-753 Date of receipt: Oct. 22, 2001 Date of Issue: Dec. 06, 2001 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart C Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:K.W.Song/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 9 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 Contents Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 6 4.4 Test Setup 6 4.5 Uncertainty 6 5. Emission Test 7 5.1 Radiated Emissions 7 List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Radiated Emissions 8 SK TECH CO., LTD. Page 3 of 9 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 9 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment l Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2002 EMI Receiver ESVS 10 834468/008 10.2002 Spectrum Analyzer R3361A 11730187 10.2002 Amplifier 8447F 3113A05153 05.2002 Log Periodic Antenna UHALP9107 1819 02.2002 Biconical Antenna BBA9106 91031626 02.2002 Open Site Cable N/A N/A N/A Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cable N/A N/A N/A 50 Switcher MP59B M93083 N/A 2.3 Test Date Date of Application : Oct. 22, 2001 Date of Test : Nov. 29, 2001 ~ Nov. 30, 2001 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 9 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 3. Description of the tested samples The EUT is Transmitter Keyless. 3.1 Rating and Physical Characteristics TRANSMITTER RECEIVER Operating Voltage 3 VDC 10 ~ 16 VDC Consumption Current Max 20mA Max 5mA Operating frequency 315MHz Power 10mW under - Sensitivity - -95dBm(typical) Operating temperature -20 ~ +60 -30 ~ +80 Etc AM modulation LC superregenerative rx 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 9 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 4. Measurement Conditions Testing Input Voltage : DC 3V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; The EUT is in the mode of pushing the Lock / Unlock key button. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Receiver Bontec N/A N/A N/A 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark N/A 4.4 Test Setup The test setup photographs showed the external supply connections and interfaces. 4.5 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = 1.9dB Expanded uncertainty U = KUc K = 2 U = 3.8dB 2) Conducted disturbance Uc = 0.88dB U = KUc = 2xUc = 1.8dB SK TECH CO., LTD. Page 7 of 9 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 5. EMISSION Test 5.1 Radiated Emissions Result : Pass Preliminary measurements were made indoors at 1 meter using broadband antennas, broadband amplifier, and spectrum analyzer to determine the frequency producing the maximum EME. Appropriate precaution was taken to ensure that all EME from the EUT were maximized and investigated. The system configuration, clock speed, mode of operation or video resolution, turntable azimuth with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 to 300 MHz using biconical antenna and from 300 to 1000 MHz using log-periodic antenna. Above 1GHz, linearly polarized double ridge horn antennas were used. Final measurements were made outdoors at 3-meter test range using SCHWARZBECK dipole antennas. The test equipment was placed on a wooden table situated on a 4x4 meter area adjacent to the measurement area. Turntable was to protect from weather in the dome that made with FRP. Sufficient time for the EUT, support equipment, and test equipment…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01141 FCC ID : PLNBONTEC-006 Test set up photos Photograph 1: Setup for Radiated Emissions
