PLNHM-T011Remote Keyless Entry System

MOBIS Co., Ltd. #80-9,MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI,449-910,KOREA Remote Keyless Entry (HM-T011) - INDEX - - Description of Transmitter - Regulatory Information - An outline 1. How to use HM-T011 - HM-T011 is Remote Keyless System. - This unit controll door lock, unlock, panic, tail gate unlock/glass open with wireless. - This unit consist of Transmitter(HM-T011) - Lock button push , then door lock. - Unlock button push, then door unlock. - Tail Gate Unlock/Glass Open button push, then tail gate or tail gate glass unlock. - Panic button push, then Panic 2. Introduction of Transmitter(HM-T011) - Transmitter has four button - Button marking are LOCK, UNLOCK, TAIL GATE UNLOCK/GLASS OPEN, PANIC - Transmitter use thee voltage battery - Freqency is 315Mhz - Modulation item is SAW Resonator - Transmitter use Rolling code algorithm An outline of Transmitter 1. PRIMARY FUNTION - Remote door lock/unlock - Remote tail gate unlock/glass open, panic - LED turn on ( When button is pushed ) - Operating distance :10 m over - Id input(setting mode) 2. ELECTRICAL CHARACTERISTICS 3. DESCRIPTION MODE 1) Mode B+ KEYLESS ACC IG SETTING 2) Id input(Setting Mode) When Setting Mode, lock button push, Operating frequency Power10mW under Consumption currentMax 15mA 315㎒ Sensitivity- ETCFM modulation Operating temperature -20 ~ +60°C Description of Transmitter Operating voltage3 V DC TRANSMITTER model name -OFF use equipment ID INPUT (Setting Mode) ON - - OFF Normal Mode ON OFF OFF Mode . OPERATING DIAGRAM 1) TRANSMITTER A) DATA FRAME B) DATA FORMAT C) TRANSMISSION SPECIFICATION - BAUD RATE : 625bps - CODING METHOD : MANCHESTER - TRANSMISSION BIT COUNT : 1 FRAME = 234BIT - TRANSMISSION TIME : 377.4msec LOGIC "1"LOGIC "0" THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Regulatory Information

Block Diagram Transmitter (HM-T011) Microcontroller Oscillation SAW Resonator (315.04 MHz) MATCHING PCB Pattern Antenna Switch × 4 Battery DC 3V 4

Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, Bontec Co., Ltd. requests confidentiality for the following products: FCC ID Number Product Title / Model PLNHM-T011 Remote Keyless Entry System (Transmitter & Receiver) / HM-T011 For the product stated above, we request that the following information be held confidential: 1) Schematic diagrams 2) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Bontec Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Kelvin Nam / Senior Engineer email: [email protected] Bontec Co., Ltd. 27-31, Hanchun-Ri, Ducksan-Myun, Jinchun-Gun, Chungbuk, 365-843 Korea TEL: +82-43-539-6671, FAX: +82-43-536-6765

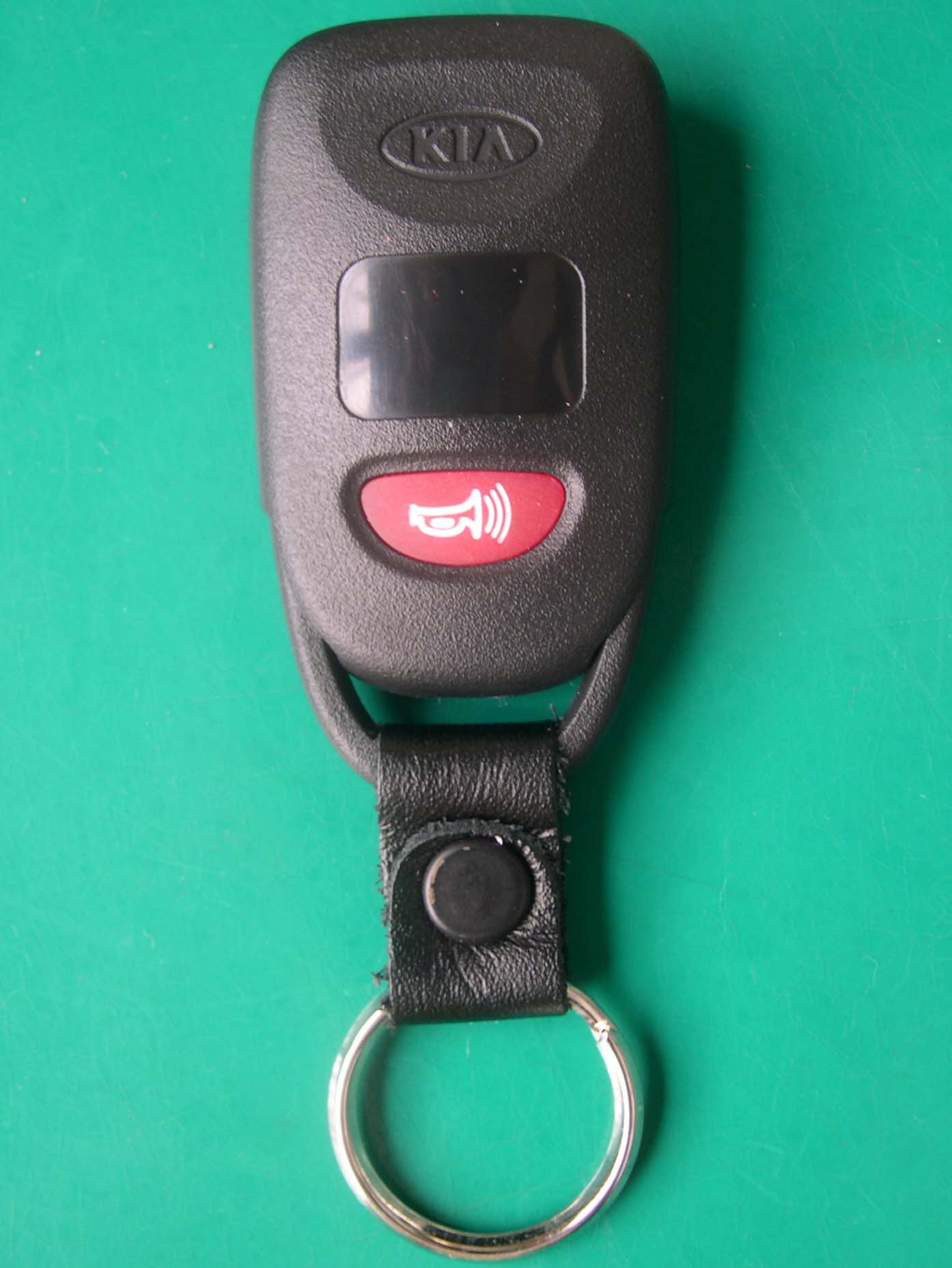

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-051031-029 FCC ID: PLNHM-T011, IC: 5648A-HMT011 External Photographs of EUT <Photograph 1: FRONT View> SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-051031-029 FCC ID: PLNHM-T011, IC: 5648A-HMT011 <Photograph 2: REAR View>

FCC ID Label Location & Sample LABEL LOCATION: Label is attached on the REAR of the product LABEL Drawing: TRANSMITTER DC 3V FCC ID : PLNHM-T011 IC : 5648A-HMT011 S/N BONTEC CO., LTD. / MADE IN KOREA LABEL LOCATION

SK TECH CO., LTD. Page 1 of 3 SKT SKTTRT-051031-029 FCC ID: PLNHM-T011, IC: 5648A-HMT011 Internal Photographs of EUT <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 3 SKT SKTTRT-051031-029 FCC ID: PLNHM-T011, IC: 5648A-HMT011 <Photograph 2: Front View> SK TECH CO., LTD. Page 3 of 3 SKT SKTTRT-051031-029 FCC ID: PLNHM-T011, IC: 5648A-HMT011 <Photograph 3: Rear View>

Operational Description The product, HM-T011, is a remote transmitter. When the user presses a button on it, the transmitter transmits activation codes just once. The transmission time is about 375 msec. The product is powered from a 3V Lithium battery. FUNCTIONS - Lock button push, and then door lock - Unlock button push, then door unlock - Tail Gate Unlock/Glass Open button push, then tailgate or tailgate glass unlock - Panic button push, then Panic DATA FRAME BIT NO H1 – H178 D1 – D8 D9 – D32 D33 – D40 D41 – D52 D53 – D56 DATA HEADER User Code ID Code Function Code Rolling Code Parity Code BITS (234) 178 bit 8 bit 24 bit 8 bit 12 bit 4 bit TRANSMISSION SPECIFICATION - Baud Rate: 625 bps - Coding Method: MANCHESTER - Transmission Bit Count: 1 FRAME = 234 bits - Transmission Time: about 375 msec

SK TECH CO., LTD. Page 1 of 15 SKT SKTTRT-051031-029 FCC ID: PLNHM-T011, IC: 5648A-HMT011 Certificate of Compliance Test Report No.: SKTTRT-051031-029 NVLAP CODE: 200220-0 Applicant: BONTEC CO., LTD. Applicant Address: 27-31, Hanchun-ri, Ducksan-myun Jinchun-gun, Chungbuk, 365-843 Korea Manufacturer: BONTEC CO., LTD. Manufacturer Address: 27-31, Hanchun-ri, Ducksan-myun Jinchun-gun, Chungbuk, 365-843 Korea Device Under Test: Remote Keyless Entry System (Transmitter & Receiver) FCC ID: IC: PLNHM-T011 5648A-HMT011 Model Name: HM-T011 Receipt No.: SKTEU05-0695 Date of receipt: October 27, 2005 Date of Issue: October 31, 2005 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Specification: FCC Part 15 Rules, RSS-210 Issue 6 FCC Equipment Class: IC Equipment Category: DSC - Part 15 Security/Remote Control Transmitter RSS-210 Issue 6: Category I Equipment, Annex 1 Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Jong-Soo, Yoon 2005. 10. 31 Approved by: Jae-Kyung, Bae 2005. 10. 31 Signature Date Signature Date Other Aspects: - Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 15 SKT SKTTRT-051031-029 FCC ID: PLNHM-T011, IC: 5648A-HMT011 >> CONTENTS << 1. GENERAL ············································································································· 3 2. TEST SITE ············································································································ 3 2.1 Location ········································································································· 3 2.2 List of Test and Measurement Instruments ···················································· 4 2.3 Test Date ········································································································ 4 2.4 Test Environment ··························································································· 4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST ·········································· 5 3.1 Rating and Physical Characteristics ······························································ 5 3.2 Equipment Modifications ················································································ 5 3.3 Submitted Documents ···················································································· 5 4. MEASUREMENT CONDITIONS ··········································································· 6 4.1 Description of test configuration ···································································· 6 4.2 List of Peripherals ·························································································· 6 4.3 Type of used Cables ······················································································ 6 4.4 Uncertainty ····································································································· 6 5. TEST AND MEASUREMENTS ············································································· 7 5.1 ANTENNA REQUIREMENT ·········································································· 8 5.1.1 Regulation ······························································································· 8 5.1.2 Result ······································································································ 8 5.2 PERIODIC OPERATION CHARACTERISTICS ············································ 9 5.2.1 Regulation ······························································································· 9 5.2.2 Result ···································································································· 10 Figure 1: Measured value of the transmission duration ··································10 5.3 RADIATED EMISSIONS ·············································································· 11 5.3.1 Regulation ····························································································· 11 5.3.2 Measurement Procedure ······································································· 12 5.3.3 Calculation of the filed strength limits by linear interpolation ················· 12 5.3.4 Calculation of Average Correction Factor ·············································· 12 5.3.5 Test Results ··························································································· 13 Table 1: Measured values of the Field strength ·············································13 5.4 OCCUPIED BANDWIDTH ··········································································· 14 5.4.1 Regulation ····························································································· 14 5.4.2 Calculation of 20dB Bandwidth Limit ····················································· 14 5.4.3 Test Procedure ······················································································ 14 5.4.4 Test Results ··························································································· 14 Figure 2: Measured value of the Occupied bandwidth ····································15 SK TECH CO., LTD. Page 3 of 15 SKT SKTTRT-051031-029 FCC ID: PLNHM-T011, IC: 5648A-HMT011 1. GENERAL These tests were performed using the test procedure outlined in ANSI C63.4, 2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.231 for periodic transmitter. The EUT (E…
