PLNBONTEC-T016Remote Keyless Entry

FCC COMPLIANCE STATEMENT THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION; (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. CAUTION:Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

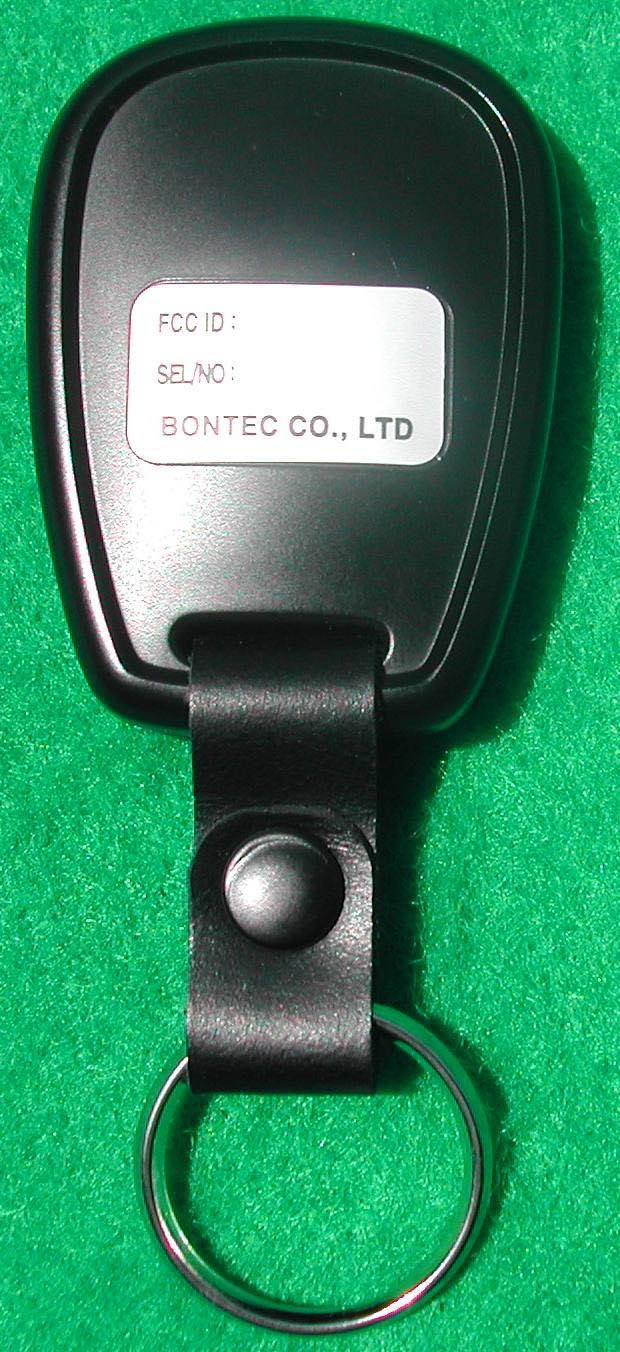

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-030602-001 FCC ID: PLNBONTEC-T016 External Photographs of EUT <Front View> SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-030602-001 FCC ID: PLNBONTEC-T016 <Rear View>

SK TECH CO., LTD. Page 1 of 1 SKT SKTTRT-030602-001 FCC ID: PLNBONTEC-T016 FCC ID Label Sample & Location Label is attached on the rear panel The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. 12 mm 22 mm LABEL LOCATION LABEL SAMPLE FCC ID: PLNBONTEC-T016 SEL/NO: BONTEC CO., LTD

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-030602-001 FCC ID: PNLBONTEC-T016 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-030602-001 FCC ID: PNLBONTEC-T016

SK TECH CO., LTD. Page 1 of 1 SKT SKTSKTTRT-030602-001 FCC ID: PLNBONTEC-T016 Operational Description The transmitter is a low powered, hand held unit for remote controlling the car door/warning horn. See the function descriptions in attached. The transmitter is powered by a 3-volt battery. It is designed to be operated on a single fixed frequency at 315MHz. See the attached block diagram and schematic. There are 4 buttons to trigger the integrated circuit (U3) that produces the digital control signals. U3 is a code hopping encoder designed for secure Remote Keyless Entry (RKE) that combines a hopping code generated by a nonlinear encryption algorithm, a serial number, and status bits to create a secure transmission code that are stored in EEPROM array. The transmitter uses ASK technique that is achieved by on/off of internal power amplifier in U2. U2 consists of a fully integrated voltage-controlled oscillator (VCO), a divide-by-32 divider (div32), a phase-frequency detector (PFD) and a charge pump. An external loop filter at LF (Pin 1 & 16) determines the dynamic behavior of the PLL and suppresses reference spurious signals. The VCO’s output signal feeds the power amplifier (PA). RF signal power is ASK-modulated by applying activation code generated from U3 (Pin 12) to U2 (Pin 9). The open-collector differential output (Pin 12 & 13) is used to directly drive a loop antenna (integral pattern antenna) through C3 and C4. The transmitter is manually operated by the buttons pushed and will automatically deactivate within one second after the button pushed. This feature is incorporated by the signal at U2 (Pin 6, Enable Tx) generated from U3 (Pin 10). All tuning and verification are performed by the manufacture and there are no adjustments required by the user. No external ground is required or used with this transmitter.

R2 0 Y1 X1 9.8437M R1 470 SW1 Lock R6 4.3K C6 1n R4 4.3k D2 LED R5 2k SW1 Trunk R7 470k C4 39p C7 12P C3 6P U1 TH7107 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 C5 1.5n C9 68p C10 0.22u C1 330p R8 0 BT1 BATTERY 1 2 C2 330P C11 0.1u C8 10n R3 15k L2 270n U3 HCS1370 1 2 3 4 5 6 78 9 10 11 12 13 14 RC0 RC1 RC2 RC3 RC4 RC5 RC6RB4 RB3 RB2 VSS RB1 RB0/MCLR VDD U2 SW1 Panic SW1 Unlock L1 270n HCS370I

SK TECH CO., LTD. Page 1 of 14 SKT SKTTRT-030602-001 FCC ID: PLNBONTEC-T016 Certificate of Compliance Test Report No.: SKTTRT-030602-001 NVLAP CODE: 200220-0 Applicant: BONTEC Co., Ltd. Applicant Address: #27-31, Hanchun-Ri, Duck-San-Myun, Jinchun-Gun, Chungbuk, Korea Device Under Test: Remote Keyless Entry FCC ID: PLNBONTEC-T016 Model No.: BONTEC-T016 Receipt No.: SKTEU03-0318 Date of receipt: May 26, 2003 Date of Issue: June 02, 2003 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4 / 1992 Test Specification: FCC Title 47, Part 15 Subpart C Equipment Class: Part 15 Security/Remote Control Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Jong-Soo, Yoon 2003. 06. 02 Approved by: Jae-Kyung, Bae 2003. 06. 02 Signature Date Signature Date Other Aspects: Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 14 SKT SKTTRT-030602-001 FCC ID: PLNBONTEC-T016 >> CONTENTS << 1. GENERAL ............................................................................................... 3 2. TEST SITE .............................................................................................. 3 2.1 Location ................................................................................................3 2.2 List of Test and Measurement Instruments ...............................................4 2.3 Test Date ...............................................................................................4 2.4 Test Environment ...................................................................................4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST .................................. 5 3.1 Rating and Physical Characteristics ..........................................................5 3.2 Equipment Modifications .........................................................................5 3.3 Submitted Documents ............................................................................5 4. MEASUREMENT CONDITIONS ............................................................... 6 4.1 Description of test configuration ..............................................................6 4.2 List of Peripherals ...................................................................................6 4.3 Type of used Cables ...............................................................................6 4.4 Uncertainty ............................................................................................6 5. TEST AND MEASUREMENTS ................................................................... 7 5.1 ANTENNA REQUIREMENT ............................................................... 7 5.1.1 Regulation .......................................................................................7 5.1.2 Result .............................................................................................7 5.2 RADIATED EMISSIONS ................................................................... 8 5.2.1 Regulation .......................................................................................8 5.2.2 Measurement Procedure ...................................................................8 5.2.3 Calculation of the filed strength limits by linear interpolation ................9 5.2.4 Calculation of Average Correction Factor ............................................9 5.2.5 Test Results .....................................................................................9 Table 1: Measured values of the Field strength................................................. 10 5.3 PERIODIC OPERATION CHARACTERISTICS ................................. 11 5.3.1 Periodic Operation ..........................................................................11 5.3.2 Manually Operated Transmitter Deactivation .....................................11 5.3.3 Result ...........................................................................................11 Figure 1: Measured value of the transmission duration ..................................... 12 5.4 OCCUPIED BANDWIDTH ............................................................... 13 5.4.1 Regulation .....................................................................................13 5.4.2 Calculation of 20dB Bandwidth Limit ................................................13 5.4.3 Test Procedure ...............................................................................13 5.4.4 Test Results ...................................................................................13 Figure 2: Measured value of the Occupied bandwidth ....................................... 14 SK TECH CO., LTD. Page 3 of 14 SKT SKTTRT-030602-001 FCC ID: PLNBONTEC-T016 1. GENERAL These tests were performed using the test procedure outlined in ANSI C64.4, 1992 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.231 for periodic transmitter. The EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineerís supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. TEST SITE SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wab…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-030602-001 FCC ID: PLNBONTEC-T016 Test set up photos <Front View> SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-030602-001 FCC ID: PLNBONTEC-T016 <Rear View>
