PLNBONTEC-T009Transmitter Keyless

Remote Keyless Entry (BONTEC-T009) BONTEC Co., Ltd. #27-31, HANCHUN-RI, DUCK-SAN -MYUN,, JINCHUN-GUN,CHUNG-BUK,KOREA - INDEX - - An outline - Description of Transmitter and ETACS FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. An outline of Transmitter and ETACS 1. How to use BONTEC-T009 - BONTEC-T009 is Remote Keyless. - This unit controll door lock/unlock with wireless. - This unit consist of Transmitter(BONTEC-T009) and ETACS(BONTEC-E009) - Lock button push , then door lock. - Unlock button push, then door unlock. - GLS button push, then rear glass open - Lock button push more than 2 sec then PANIC alarm 2. Introduction of Transmitter - Transmitter has three button - Button marking are LOCK, UNLOCK, GLS - Transmitter use thee voltage battery - Freqency is 315Mhz - Modulation item is SAW Resonator - Transmitter use Rolling code algorithm 3. Introduction of ETACS - ETACS control car door - ETACS has RF module(315) - RF module use super-heterodyne circuit - ETACS control door relay ,hazard relay and rear glass relay - ETACS has eeprom that save code 1. PRIMARY FUNTION - Remote door lock/unlock - Remote Back Glass Open/panic - LED turn on ( When button is pushed ) - Operating distance : 7~ 10 m - Id input(setting mode) 2. ELECTRICAL CHARACTERISTICS TRANSMITTER ETACS model name BONTEC-T009 BONTEC-E009 Operating voltage 3 VDC 10 ~ 16 VDC Consumption current Max 20mA Max 5mA Operating frequency 315㎒ Power 10mW under - Sensitivity - -95dBm(typical) Operating temperature -20 ~ +60°C -30 ~ +80°C etc AM modulation Super-heterodyne 3. DESCRIPTION MODE 1) Mode Mode ID INPUT (Setting Mode) Normal Mode B+ ON ON KEYLESS ON OFF ACC ON OFF IG ON OFF SETTING ON OFF 2) Id input(Setting Mode) When Setting Mode, lock button push, 3. OPERATING DIAGRAM 1) TRANSMITTER A) B) C)

Block diagram from Transmitter A. TRANSMITTER PATTERN ANTENNA RF OUT SAW RESONATO AMP ENCODER (CPU) FILTER (LC)

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02057 FCC ID :PLNBONTEC-T009 FCC ID Label Sample

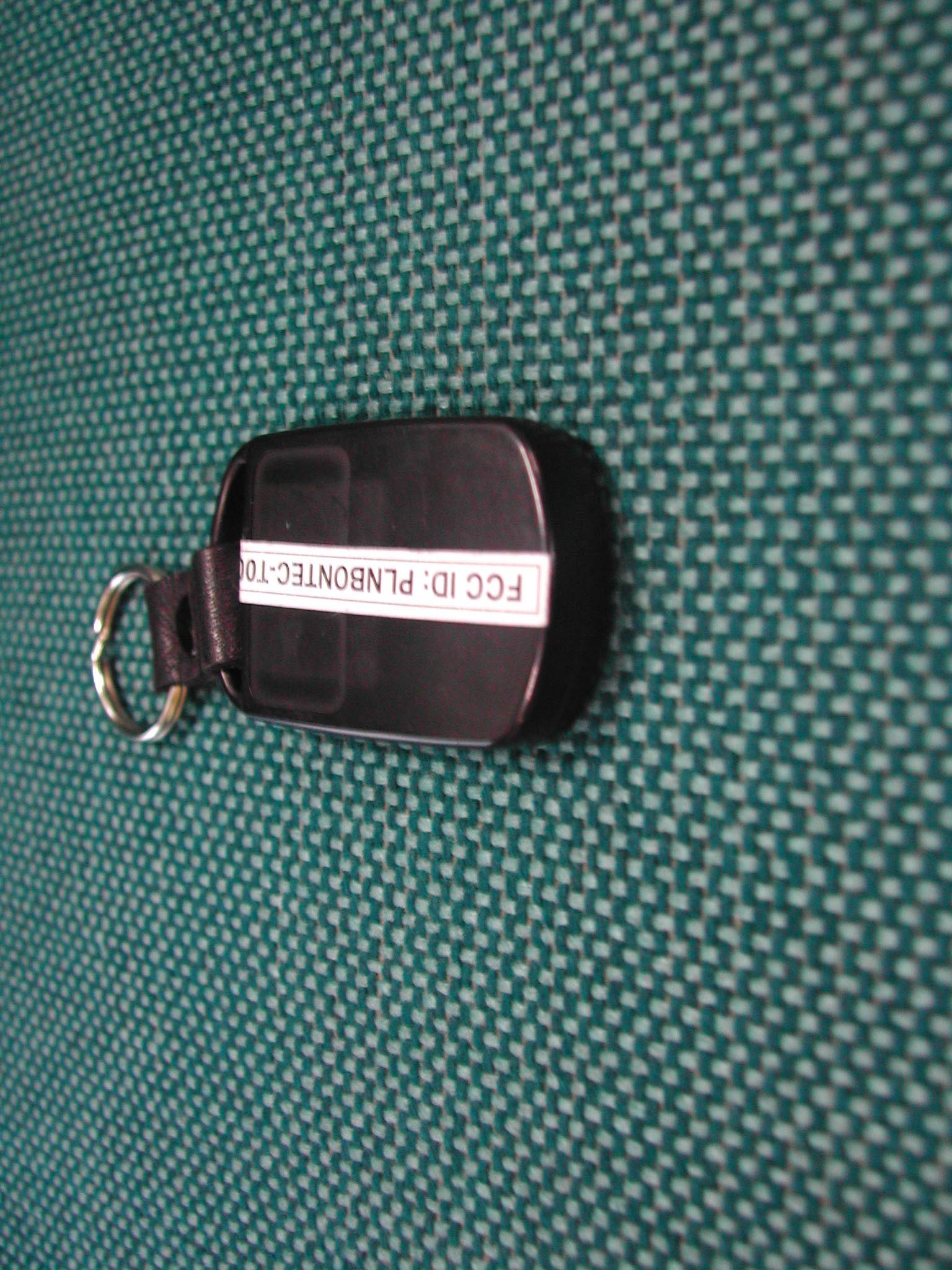

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PLNBONTEC-T009

SK TECH CO., LTD. Page 1 of 3 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 3 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 SK TECH CO., LTD. Page 3 of 3 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 Operational Description This product is a remote key to control (lock & unlock) the door of a car. The using of this product is very easy and simply. SectionI II I. Primary Function - Remote door lock/unlock - LED turn on (When the lock/unlock button is pushed) - Operating distance : 7 ~ 10m SectionII IIII II. The Using Of this Wireless Key When the lock / unlock Button is pushed, LED of this key turns on. And then the remote door is locked or unlocked.

A. TRANSMITTER(BONTEC-T009) LED C2 ANTENNA HCS300 PANIC SW1 LOCK R1 LED BATTER Y DC 3V SW2 X- TA L S4 CR2016 S1VCC C1 C6 PWM R2 U1 Q1 UNLOCK S2 C3 R3 S3 GND SW3 B) MAIN PART R1 D1 D2 D3 C1CC1C2CC2 R6 0 CC5 R3 3 R2 R6 R7 R8 R5 R3 2 R49 CC4 CC3 TR 1 Q4 Q3 R3 4 CC9 Q6 C4 D4 M4 CC1 1 R3 7 R3 CC8 CC7 CC6 R38 R39 R40 R43 R41 R44R42R45 R47 R46 R9 R1 0 R1 1 R1 5 R1 4 R1 3 R1 6 R1 8 R1 7 R2 0 R1 9 R2 1 R2 2 R2 5 R2 3 R2 6 R2 4 R2 7 R2 8 R1 2 R48 R50 R51 R54 R52 R55 R53 R5 7 Q5 R5 9R5 8 R2 9 R3 0 R6 5 Q9 R7 0 Q1 0 Q7 R6 9 R6 1 R6 2 R6 4 R6 3 Q1 Q2 U1 VC C 1 GND 2 VOUT 3 R3 1 ZD1 R6 6 R3 6 R4 R5 6 R3 5 U2 VCC 1 GND 2 VOUT 3 TVS D5 M4 Q8 R6 7 R6 8 DA 1 XTAL BD IGD BD VC C BD IGD BD VC C VC C VC C VC C VC C VC C VC C VC C BD 1b VCC VCC GND GND 7 28 RC 1 /C C P 2 18 6 29 42 RC4/SDI 19 RA0/ANO U6 35 8 RB0/INT U3 14 12 10 2 3 11 4 5 13 7 15 1 D C F B A E H G 8 GND QH CLK SH / LD SER 9 CLR INH 6 U4 11 12 13 7 15 1 E F G A C H B D 8 SH / L D QH SER CLK GN D CLR 9 INH 6 14 2 10 3 5 4 U5 12 14 11 10 4 2 5 3 A B C D E F G H SH / L D QH SER CLK GN D CLR INH 8 13 7 15 1 9 6 17 RB7 16 RB6 2 3 4 5 6 7 116 15 14 13 12 11 10 RB2 RB1 RA3 37 RC3/SCK 44 RC6 RD7 5 10 2 1 9 3 4 RA2 RB3 RD6 RA1 RB4 20 11 15 14 22 21 8 U7 2 3 4 5 6 7 1 16 15 14 13 12 11 10 8 RC7 RD4 RD5 RE1 26 2-T URN R E LAY RE2 27 RC032 RD240 RD341 OS C1 OS C2 3130 RF 36 RC 2 /C C P 1 MCLR 1d 1c 1e 1f 1a 1j 1l 1m 1n 3h 1o 1p 1q 1r 2d 2b 2c 2a 2e 2g 2h 2i 2j 2f 2w 2x 2v 1h 2z 3f 2u 3d 3c 2q RE0 25 2s 2y 2t 3n 2r 2p 3m 3k 2n 2l 3a 3e 3b 3o 3p 3j 2f 3l R7 2 CC1 0 RD4 24 IGD R7 5 R 7 4 R 7 3 SR2SR3 SR4SR1 VC C 43 38 D6 Q1 2 R7 7 R7 6 BD 39 Q1 1 RDO RC5/SDO RD1 RB5 3E100 : SR1,SR4 (국내) 3E 20 0,3 E7 00 : S R2 , S R 3(북미) 3E4 00 : S R 1,S R 3(중동) 3E 00 0, 3E 300 : SR 2,S R 4(유럽) R7 1 BDVC CVC C VC CVCCBDBD RF

SK TECH CO., LTD. Page 1 of 14 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 Certificate of Compliance Test Report No.: SKTOS-02057 NVLAP CODE : 200220-0 Applicant: BONTEC CO., LTD. Applicant Address: #27-31, Hanchun-Ri, Ducksan-Myun, Jinchun-Gun, Chungbuk, Korea Product: Transmitter keyless FCC ID: PLNBONTEC-T009 Model No.: BONTEC-T009 Receipt No.: SKE20020528-346 Date of receipt: May 28, 2002 Date of Issue: June 10, 2002 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2000 Rule Parts: FCC part 15 Subpart C Equipment Class : Part 15 Security/Remote Control Transmitter Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:J.S.Hyun/Engineer Approved by: K.S.Kim/Manager & Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 14 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 6 4.4 Test Setup 6 4.5 Uncertainty 6 5. Test and Measurements 7 5.1 Transmission Requirement according to 15.231(a) 7 5.2 Field strength of emissions according to 15.231(b) 8 5.3 Occupied bandwidth according to 15.231(c) 10 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 》 》》 》Appendix: Measured data Appendix 1: Figure of the measured Transmission Duration 11-12 Appendix 2: Table of the measured Field strength 13 Appendix 3: Figure of the measured Occupied bandwidth 15 SK TECH CO., LTD. Page 3 of 14 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:TTI-P-G155/97-10 SK TECH CO., LTD. Page 4 of 14 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2003 EMI Receiver ESVS 10 834468/008 11.2002 Spectrum Analyzer R3361A 11730187 06.2002 Amplifier 8447F 3113A05153 06.2003 Log Periodic Antenna UHALP9107 1819 02.2003 Horn Antenna SAS-200/571 304 04.2003 Biconical Antenna BBA9106 91031626 02.2003 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cables N/A N/A N/A 50Ω Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : May 28, 2002 Date of Test : June 05, 2002 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 14 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 3. Description of the tested samples The EUT is Transmitter Keyless. 3.1 Rating and Physical Characteristics TRANSMITTER RECEIVER Operating Voltage 3 VDC 10 ~ 16 VDC Consumption Current Max 20mA Max 5mA Operating frequency 315MHz Power 10mW under - Sensitivity - -95dBm(typical) Operating temperature -20 ~ +60°C -30 ~ +80°C Etc AM modulation Super-heterodyne 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 14 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 4. Measurement Conditions Testing Input Voltage : DC 3V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; The EUT is in the mode of pushing the Lock / Unlock key button. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Receiver Bontec BONTEC-E900 N/A N/A 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark N/A 4.4 Test Setup The test setup photographs showed the external supply connections and interfaces. 4.5 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = ±1.9dB Expanded uncertainty U = KUc K = 2 ∴ U = ±3.8dB 2) Conducted disturbance Uc = ±0.88dB U = KUc = 2xUc = ±1.8dB SK TECH CO., LTD. Page 7 of 14 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 5. Test and Measurements 5.1 Transmission Requirement according to § 15.231(a)(1) Results: PASS The results of the transmission duration and duty cycle are shown in Appendix 1. The duty cycle correction factor was computed to be –6.97 dB. The intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc. Continuous transmissions, such as voice or video, and data transmissions are not permitted. According to §15.231(a)(1), a manually operated transmitter shall emplo…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02057 FCC ID : PLNBONTEC-T009 Test set up photos Photograph 1: Setup for Radiated Emissions
