PM3GCT-4302.4 GHz Cordless Telephone Equipment

5.14 User’s Manual Refer to Appendix 11. AirMagic Owner’s manual Model GCT-430 2.4 GHz DSST Cordless Headset mini-phone. Customer Service NO 1 888 667 - 5559 FCC RF EXPOSURE INFORMATION Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. PRECAUTION √√ IMPORTANT Read this manual before attempting to setup or use this instrument. If contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. √√ WARNING 1. To prevent fire or shock hazard, do not expose this product to rain or any type of moisture. If accidentally dropped into water, this product should immediately unplug from the A/C outlet and telephone wall jack. 2. Never install telephone jacks in wet locations unless the jack is specially designed for wet locations. 3. Never touch insulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of live electric shock, and injury to persons, including the following. 1. Read and understand all instructions. 2. Unplug this product from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 3. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, or Laundry tub in a wet Basement or near a swimming pool. 4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 5. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer. 6. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor. Some service or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 7. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instruction. Adjust only those controls that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CUASE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT AND INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CUASE UNDERSIED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer of an experienced radio/TV technician for help. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modifications could void the user’s authority to operate the equipment. GCT-430 CHECKLIST 1.CT-D430 Base-set and Headset. 2. Necklace 3.AC Adaptor (AC 120V / DC9V, 300mA) 4.Telephone Line Cord 5.User's Manual GCT-430 Set Wall A/C Adapter Necklace Tell line User manual DIGITAL SPREAD SPECTRUM TECHNOLOGY The GCT-430 features digital Spread Spectrum Technology (DSST), which virtually eliminates noise and other interference while greatly increasing operating range. DSST uniformly spreads the signal over one of 40 in…

Text truncated - open the document above for the full version.

5.10 Block Diagram Refer to Appendix 7. GCT-D430 Spread Spectrum Telephone System Architecture GCT-D430 ASIC Block Diagram GCT-D430 CODEC Block Diagram GCT-D430 RF Block Diagram .

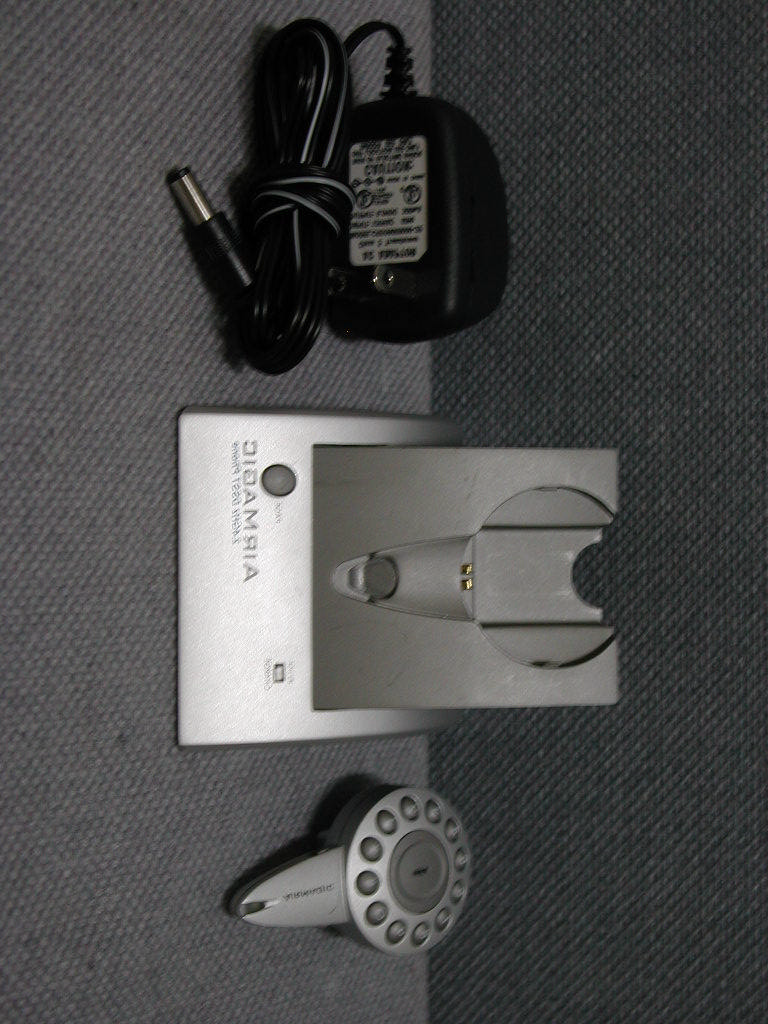

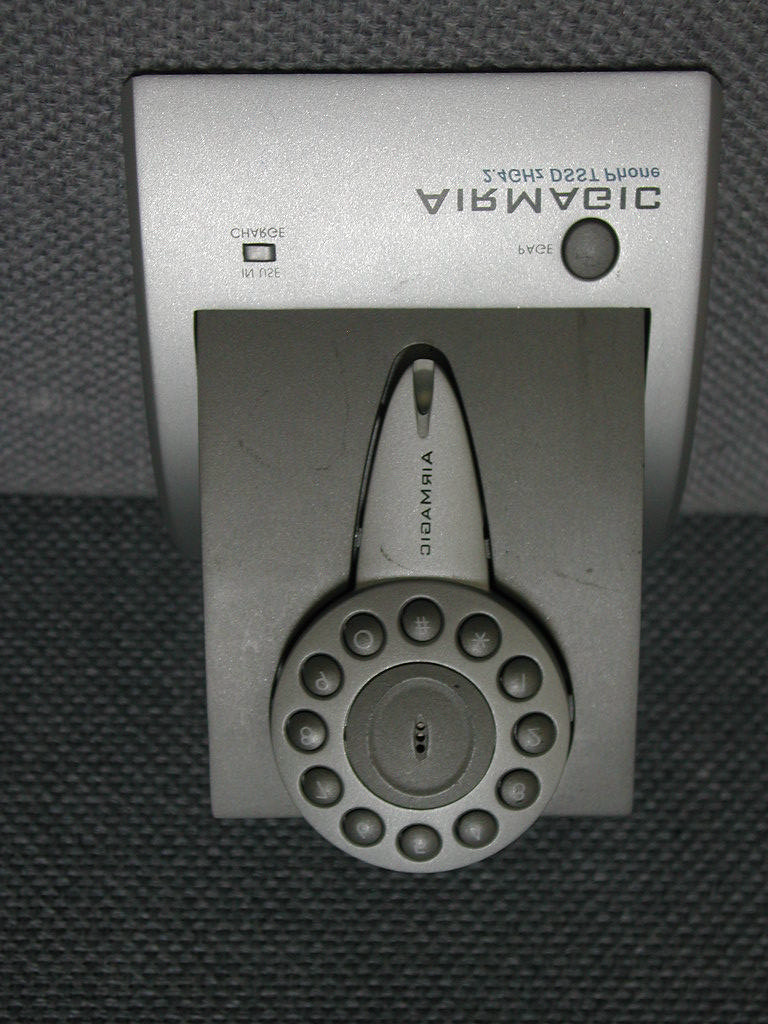

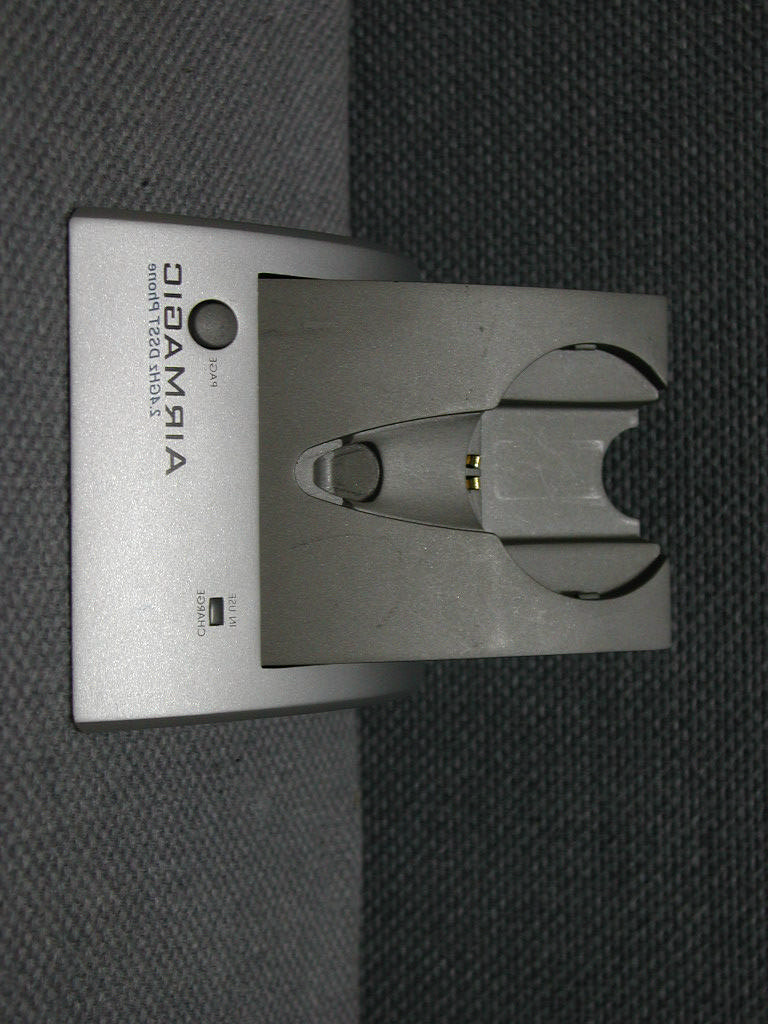

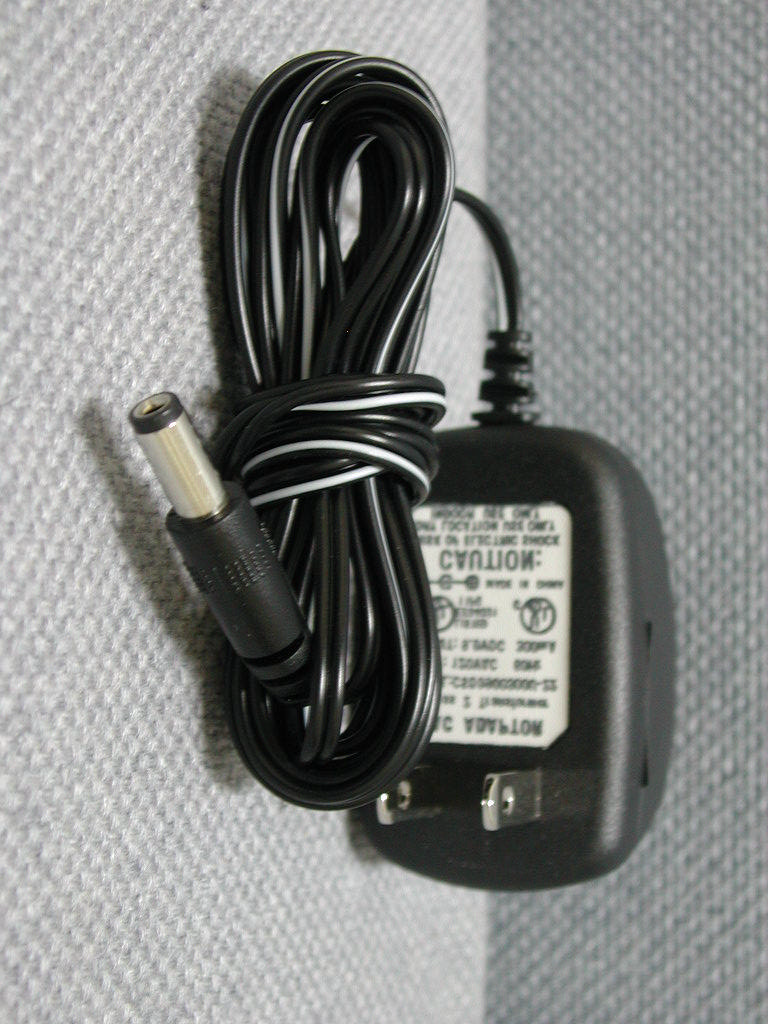

Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 5.8 External Photographs Refer to Appendix 5. Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr EXTERNAL PHOTO

Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 5.6 FCC Label & Location Refer to Appendix 3. Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 5.9 Internal Photographs Refer to Appendix 6. Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr INTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr INTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr INTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr INTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr INTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr INTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr INTERNAL PHOTO Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr INTERNAL PHOTO

2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom 5.13 Operational Description Refer to Appendix 10. GENEX Telecom Co., LTD 2.4GHz DSSS Digital Cordless Telephone Unit ( FOR FCC APPROVAL ) 2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom General Description 40 40 CHANNEL POSSIBLE IN THE CHANNEL POSSIBLE IN THE 24022402~~24752475 MHz BAND WIDTH. MHz BAND WIDTH. 2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom Basic Feature List ∫ BETTER VOICE QUALITY ∫ 40 CHANNEL OPERATION ∫ 1-WAY PAGE (base to hand) ∫ 2^24 SECURITY CODES AUTO-SECURITY CODE COMBINATION ∫ HIGH PERFORMANCE MERLIN CHIPSET ( ( HandHand Unit ) Unit ) INNER ANTENNA AUTO ANSWER ( When pick up the handy during incoming ring ) AUTO STAND-BY 2 USER SELECTABLE VOLUME AUDIBLE AND LED INDICATOR OUT OF RANGE WARNING LOW BATTERY INDICATOR ANYKEY ANSWER POWER S/W TALK ON/OFF 12 DIAL KEY ( Ba( Base Unit )se Unit ) INNER Antenna. In use/CHG indicator. Page button. - Used to page the handset party and to stop paging. - charging contacts. T/P USER SELECTABLE switch Specification 2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom 1.1. REFERENCE SPECIFITION REFERENCE SPECIFITION Designed to conform to RF regulations Designed to conform to SAFETY regulations POWER : 9V DC 300mA CLASS 2 TRANSFORMER WALL ADAPTOR PROVIDED INTERCONNECTION : RJ-11 JACK 2 CORD PROVIDED FCC PART 68 HEARING AID COMPLIANCE (12 dB spread ) HAND SET VOLUME CONTROL RANGE : 13dB 2. GENERAL SPECIFICATION 2. GENERAL SPECIFICATION FREQUNCY BANDWIDTH : 2402 ~2475MHz BAND WIDTH NUMBER OF CHANNEL : 40 CHANNELS CHANNEL SPACE : 1.8MHzKHz SPEECH CODER : 32Kbps ADPCM with parity TYPE OF MODULATION : DBPSK SS MODULATION / DEMODULATION PROCESSING GAIN : 11dB DATA RATE : 80Kbps Time Division Duplex FRAME TIME : 1ms Transmit / 1ms Receive SAMPLE RATE : 1.92M SAMPLES/S ( 2 SAMPLES / CHIP ) TX POWER LEVELS : base 13dBm, 3dBm, -7dBm, hand 2dBm RECEIVER SENSITIVITY : -104dBm, -84dBm ADDTIONAL SECURITY : 2^24 SECURITY CODES STANBY TIME : 5 .5 days TALK TIME : 2 hours BATTERY CAPACITY : 3.6 V DC 230mAh 2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom 3. TELEPHONE SPECIFICATION3. TELEPHONE SPECIFICATION OFF - HOOK RESISTANCE : Max 300ohm ( ON 20mA LOOP Condition ) ON - HOOK IMPEDANCE : Min 15Kohm ( FREQ. 16Hz ~ 68Hz ) RETURN LOSS : Min 7 dB DTMF LEVEL : High -5.5 2dB : Low -7.5 2dB TRANSMISSION : TX - 40 dB ≤ TOLR ≤ -53 dB RX 41 dB ≤ ROLR ≤ 51 dB ST 3dB ≤ SOLR BREAK RADIO : 2 : 3 PULSE SPEED : 10pps 4. RF SPECIFICATION4. RF SPECIFICATION a POWER LINE CONDUCTED EMISSIONS : SECTION 15.207 PASSED (CLASS B REQUIREMENT) a BANDWIDTH : SECTION 15.247( a ) PASSED ( 700KHz > 500KHz ) a POWER OUTPUT : SECTION 15.247( b ) PASSED ( MAX 13dBm < 30dBm ) a SPURIOUS EMISSIONS(CONDUCTED) : SECTION 15.247( c ) PASSED AT BAND EDGES : 25.3dBc < 20dBc a SPURIOUS EMISSIONS(RADIATED) : SECTION 15.247( c ) PASSED PER SEC 15.209(30 - 960MHz) UP TO 10 th HARMONICS a POWER SPECTRAL DENSITY : SECTION 15.247( d ) PASSED (5.47dBm < 8dBm ) a PROCESSING GAIN SECTION 15.247( e ) PASSED (11.2dB > 10dB ) 2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom Processing Gain Measurement 2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom Processing Gain Measurements for GCT-D430 1. Scope This document details the results of measurement of the processing gain of a DCT CT-D201 phone with reference to the Code of Federal Regulations, Title 47, Chapter 1, Part 15 Radio Frequency Devices (FCC). FCC Federal Communications Commission SNR Signal to Noise Ratio JSR Jammer to Signal Ratio CW Continuous wave (jammer) HS Handset BS Base station DBPSK Differential Binary Phase Shift Keying Table 1. Abbreviations 2. An Overview of the Processing Gain Processing Gain Calculation Theoretical processing gain limit for the 12bit Spreading BPSK system is 10.8dB. Processing Gain Measurement Method Following method is specified by the FCC to measure processing gain. The detailed are in FCC documents 15.247 (e)(1). This involves transmitting a CW jammer in the RF passband of the system and measuring the jammer to signal ratio (JSR) required to achieve a certain bit error rate. The choice of the actual value of the bit error rate is left up to the tester. The jammer is stepped in 50 kHz increments across the entire passband and in each case the JSR to achieve the desired bit error rate is measured. The JSR is measured at the RF input to the system under test. The lowest 20% of the JSR data (in dB) are discarded. The processing gain can then be calculated as follows: - system measuredtheory p L S J N S G+       +       = where Gp is the processing gain, the SNR is that theoretically predicted for the system under the test to achieve the desired bit error rate, the JSR is the lowest value (in dB) in the remaining data set and L sys adjusts for non- ideal system losses. Lsys can not be greater than 2 dB. 2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom 3. Processing Gain Measurement Test Setup The following parameters were used in the test setup. HS Tx power (dBm) -1.9 BS LNA gain (dB) 0 Channel attenuation (dB) -50 Test system losses (signal) (dB) -11.75 -4.05 dB (system), -6 dB (signal combiner), -1.7 dB (2 cables) Test system losses (jammer) (dB) -12.85 -12 dB (signal combiner), -0.85 dB (cable) Table 2. Test Setup Parameters Signal Combiner -6 dB cable (-0.85 dB) RF Attenuator (-50 dB) cable (-0.85 dB) RF Signal generator (HP8663A) -12 dB cable (-0.85 dB) additional system loss (-4.05 dB) (voice signal only) 2.4GHz DIGITAL CORDLESS TELEPHONE UNIT MODEL : GCT-430 USA VERSION GENEX Telecom 4. Results & Calculation The following measurement results were taken at the base station. The desired bit error rate was set at 10 -3 . Jammer Frequency (MHz) BER (BS) Received jammer power (dBm) Received signal pow…

Text truncated - open the document above for the full version.

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CERTIFICATE OF COMPLIANCE FCC Part 15C Certification EUT Type: Cordless Telephone Equipment Tx Frequency: 2408.8 MHz — 2475.0 MHz Rx Frequency: 2408.8 MHz — 2475.0 MHz Max. RF Output Power: Base : 10.06 mW (10.03 dBm) (Conducted) Handy: 2.03 mW (3.08 dBm) Trade Name: GENEX Model No.: GCT-430 (Base / Handy) FCC Classification: Part 15 Spread Spectrum Transmitter Application Type: Certification FCC Rule Part(s): FCC Part 15 Subpart C Section 15.247 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in 2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results in this report apply only to the sample tested. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. Genex Telecom Co., Ltd. 6F Farmax B/D 796-27 Bangbae-Dong, Seocho-Gu Seoul, Korea (137-830) FRN: 0008-8745-05 Date of Issue : May 2, 2003 Test Report No.: HCT-RF03-0501 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21 FCC ID : APPLICANT : PM3GCT-430 Genex Telecom Co., Ltd. Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr of 14 Table of Contents SECTION 1: Client information ---------------------------------------------------------------------------- SECTION 2: Equipment under test (E.U.T.) ----------------------------------------------------------- SECTION 3: Test specification, methods & procedures--------------------------------------------- SECTION 4: Operation of E.U.T. during testing------------------------------------------------------- SECTION 5: Summary of test results--------------------------------------------------------------------- SECTION 6: Conducted Emissions (AC Mains), Section 15.207 --------------------------------- SECTION 7: 6dB Bandwidth (Conducted), Section 15.247(a)(2) --------------------------------- SECTION 8: Maximum Peak Output Power (Conducted), Section 15.247(b) ----------------- SECTION 9: Out of Band Emissions (Radiated), Section 15.247(c)------------------------------ SECTION 10: Out of Band Emissions (Conducted), Section 15.247(c) ------------------------- SECTION 11: Power Density (Conducted), Section 15.247(d)------------------------------------ SECTION 12: Processing Gain(Conducted), Section 15.247(e)----------------------------------- APPENDIX 1: Test instruments----------------------------------------------------------------- APPENDIX 2: Data of EMI test------------------------------------------------------------------ APPENDIX 3: FCC Label & Location APPENDIX 4: Test Setup Photographs APPENDIX 5: External Photographs APPENDIX 6: Internal Photographs APPENDIX 7: Block Diagram APPENDIX 8: Circuit Diagram APPENDIX 9: Part list APPENDIX 10: Operational Description APPENDIX 11: User’s Manual 3 3 4 5-6 7-8 9 10 10 11 12 12 12 13 14 Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr of 14 SECTION 1: Client information Company name : Genex Telecom Co., Ltd. Trade name : Genex Address : 6F Farmax B/D 796-27 Bangbae-Dong, Seocho-Gu Seoul, Korea (137-830) Telephone Number : +82-2-803-9002(115) Facsimile Number : +82-2-591-1801 Contact Person : John Ryu ,Overseas Department SECTION 2: Equipment under test (E.U.T.) Type of Equipment : Cordless Telephone Equipment Model No. : GCT-430 (Cordless Telephone Equipment) GCT-430 (Cordless Handset) Serial No. : 200304001 (Cordless Telephone Equipment) 200304002 (Cordless Handset) Rating : DC 3.6V DC 230mAh Battery (Cordless Handset) AC120V/60Hz (AC Adaptor with Cordless Telephone Equipment) Other Clock Frequency : 9.6MHz (Cordless Telephone Equipment, Cordless Handset) Country of Manufacture : Rui hua Electronics Factory (China) Tel: +86-769-530-9048 , Fax: +86-769-530-1649 Receipt Date of Sample : April 25, 2003 2.2 Product Description Model: GCT-430 are a Cordless Telephone Equipment / Cordless Handset. They are referred to as the EUT in this report. Frequency Characteristics : 2404.8MHz-2475.0MHz (Cordless Telephone Equipment and Cordless Handset) Channel Characteristics : 40channels selectable by 1.8MHz spacing. Modulation : DBPSK (Differential Binary Phase Shift Keyed) Spread Method : DSSS (Direct Sequence Spread Spectrum) Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr of 14 SECTION 3: Test specification, methods & procedures 3.1 Test Specification Test Specification : FCC Part 15 Subpart C Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz and 5725-5850MHz 3.2 Methods & Procedures No.…

Text truncated - open the document above for the full version.

Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Conducted emission (AC Mains) During Preliminary Tests, the following operating mode were investigated Channel / Frequency Mode State The worst operating condition - Charging 1 (2.4048GHz) Transmitting 20 (2.439GHz) Transmitting X 40 (2.475GHz) Transmitting Power Line Conducted Emissions FCC Class B Frequency (MHz) Amplitude (dBuV) Transd (dB) Conductor Result Limit (dBuv) Margin (dB) 0.465 10.6 0.1 HOTQuasi-Peak48.0 37.3 1.330 6.9 0.2 HOTQuasi-Peak48.0 41.0 2.080 6.3 0.3 HOTQuasi-Peak48.0 41.6 6.520 8.3 0.3 HOTQuasi-Peak48.0 39.6 7.505 8.9 0.4 HOTQuasi-Peak48.0 39.0 24.910 5.9 0.6 HOTQuasi-Peak48.0 42.0 0.525 9.2 0.1 NEUTRALQuasi-Peak48.0 38.7 1.295 6.9 0.2 NEUTRALQuasi-Peak48.0 41.0 2.765 7.0 0.2 NEUTRAL Quasi-Peak 48.0 40.9 6.665 8.3 0.3 NEUTRALQuasi-Peak48.0 39.6 7.990 8.9 0.4 NEUTRALQuasi-Peak48.0 39.0 23.735 5.9 0.6 NEUTRALQuasi-Peak48.0 42.0 Line Conducted Emissions Tabulated Data Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Radiated emission (30MHz~1000MHz) Mode (Channel) State The worst operating condition - Charging 1 (2.4048GHz) Transmitting X 20 (2.439GHz) Transmitting 40 (2.475GHz) Transmitting BASE Frequency Reading Ant. Factor Cable Loss ANT POL Total Limit Margin MHz dBuV dB dB (H/V) dBuV/m dBuV/m dB 46.5 12.26 12.64 1.5 V 26.4 40 -13.6 75.4 20.40 6.60 1.9 V 28.9 40 -11.1 89.6 22.71 8.70 2.1 V 33.5 43.5 -10.0 115.6 17.97 12.26 2.4 V 32.6 43.5 -10.9 128.8 13.69 13.51 2.6 V 29.8 43.5 -13.7 146.6 15.08 14.76 2.7 V 32.5 43.5 -11.0 364.2 12.83 16.58 4.4 H 33.8 46 -12.2 549.2 9.55 20.21 5.3 V 35.1 46 -10.9 640.2 6.29 22.41 5.8 H 34.5 46 -11.5 660.3 5.32 22.68 5.9 H 33.9 46 -12.1 HANDY Frequency Reading Ant. Factor Cable Loss ANT POL Total Limit Margin MHz dBuV dB dB (H/V) dBuV/m dBuV/m dB 66.5 18.67 6.73 1.8 V 27.2 40 -12.8 86.4 19.27 8.17 2.1 V 29.5 40 -10.5 98.3 20.77 9.77 2.3 V 32.8 43.5 -10.7 112.5 17.30 11.94 2.4 V 31.6 43.5 -11.9 260.4 12.24 17.68 3.7 V 33.6 46 -12.4 284.6 13.44 18.69 3.9 V 36.0 46 -10.0 348.0 16.08 16.43 4.3 H 36.8 46 -9.2 485.1 12.17 18.90 5.0 H 36.1 46 -9.9 485.6 11.27 18.90 5.0 V 35.2 46 -10.8 581.3 8.02 20.78 5.5 H 34.3 46 -11.7 Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A 6dB Bandwidth (Conducted) Frequency (GHz) Base / Handset 6dB Band width (MHz) Limit (kHz) Result Base 1.202 >500 Pass Ch1 2.4048 Handset 1.372 >500Pass Base 1.413 >500Pass Ch20 2.4390 Handset 1.413 >500Pass Base 1.413 >500Pass Ch40 2.4750 Handset 1.323 >500Pass Base Ch. 1: 2.4048GHz Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Base Ch. 20: 2.439GHz Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Base Ch. 40: 2.475GHz Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Handy Ch. 1: 2.4048GHz Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Handy Ch. 20: 2.439GHz Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr A Handy Ch. 40: 2.475GHz Report No.: HCT-RF03-0501 FCC ID : PM3GCT-430 DATE : May 2, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 …

Text truncated - open the document above for the full version.
