PM3GR3000GMRS/ FRS UHF Transceiver

GMRS-1904BLT Basic Operation 03-03-28 1 of 9 1. General Specification - Power On/Off Volume - PTT Key : Side [ Tact SW ] - Monitor Key : Side [ Tact SW ] - UP Key : Top - Down Key : Top - SCAN Key : Top - CALL Key : Top - Function Key : Top - EXT Mic/Charge Jack[ 2.5? ] - EXT Speaker Jack[ 3.5? ] 2. FUNCTION Flow Chart 1) GMRS ? FUNCTION ? CHANNEL ? CTCSS ? PWR Hi/Low ? DW ? VOX ? BEEP ? Roger Beep ? Ringer Tone ? Vibration ? FUNCTION 2) Weather ? FUNCTION ? Alert ? BEEP ? FUNCTION 3. LCD Display GMRS-1904BLT Basic Operation 03-03-28 2 of 9 4. FRONT, SIDE, TOP OVERVIEW GMRS-1904BLT Basic Operation 03-03-28 3 of 9 5. Operating Instruction 1) On/Off & Volume control Switch - Radio ON : Press and hold down the Power[] button for over 2seconds. All indicators will appear momentarily on the LCD and you will hear short beep sound. - Radio Off : Press and hold down the Power[ ] button for over 2seconds until all indicators Disappear on the LCD. - Volume setting : Press up[?] or down[?] button to choose the adjust level that is most - Comfortable for you. 2) Setting the Channel GMRS-1904BLT has 22 main channels. ? To select the channel - Turn the radio on - Press Function[F] button once, Press up[?] or down[?] button to choose the channel. 3) Setting the Tone Code(CTCSS) GMRS-1904BLT has 38 CTCSS Codes ? To set the Tone Codes(CTCSS) - Press Function[F] button once more,[XX -00 up to 38] will appear and tone code digit will blink on the LCD. " 00 " means no CTCSS code. - Press up[?] or down[?] button to choose the desired sub-channel to use. - Press the PTT button or Function[F] button to confirm. 4) Setting the Transmit Power HI/LO - HI : 1.6W TX power (ERP) - LO : 500mW TX power ? To set the TX output power - Press the Function[F] button until the [ Po LO or HI ] appears. - Press the up[?] button or down [?] button to set the TX power - Press the PTT button or Function[F] button to confirm. - HI or LO will appear on the LCD. GMRS-1904BLT Basic Operation 03-03-28 4 of 9 - If the battery is in low condition, the TX Power will be switched to LO automatically. Even though the TX power is set to HI. 5) Setting the DW(dual watch) and CTCSS in DW Function. ? To active the DW Function - Press the Function[F] button until the [ oF or 1 up to 15] and DW icon blink on the LCD. - Press the up[?] button or down [?] button to choose the channel. - " oF " means no DW Function. - Press the PTT button or Function[F] button to confirm. - DW icon will appear on the LCD. ? To stop the dual watch(DW) - Press the "S" Scan button, the unit will stop the dual watch and will return to normal operation and DW icon will be disappeared from the LCD. 6) VOX (Voice Operated Transmission) This option enables you to have hands-free conversation. You do not have to operate the PTT button each time when you want to transmit. You can also choose the VOX sensitivity to suit your environment of operation. (Ex ; noisy road, motor bike, factory etc.) ? To set the VOX Function. - Press the Function[F] button until the [ Uo oF or x ] appears. x is a VOX level - VOX icon will be appeared on the LCD. ? To set the VOX level - Press the up[?] button or down [?] button to set the VOX level from 1 to 5. "oF" is disable the VOX function. " 3 " is most sensitive. " 1 " is least sensitive. - Press the PTT button or Function[F] button to confirm. 7) Beep tone ? To activate or disable the beep tone - Press the Function[F] button until [bP on or oF] and the BELL[ ] icon blink on the LCD. - Press the up[?] button or down [?] button. - Press the PTT button or Function[F] button to confirm. GMRS-1904BLT Basic Operation 03-03-28 5 of 9 8) Roger tone This feature will give the tone signal to other parties when transmitting finished (when PTT button is released.) ? To activate or disable the Roger tone - Press the Function[F] button until [rb on or oF] and the Roger [ ] icon blink on the LCD. - Press the up[?] button or down [?] button. - Press the PTT button or Function[F] button to confirm. 9) Setting the Ringer This feature provides 3 user selectable call ringer signal and vibration. ? To set your favorite call ringer signal. - Press the Function[F] button until the [ CA 1 or up to 3 ] appears on the LCD. - Press the up[?] button or down [?] button to select the call melody type. - Press the PTT button to confirm. - To activate the call , click the "PTT" button twice quickly. 10) Setting the Vibration Functions ? To set for Vibration - Press the Function[M] button until the [ Ub on or oF ] and Vibrator[ ] icon blink on the LCD - Press the up[?] button or down [?] button. - Press the PTT button or Function[F] button to confirm. 11) Transmitting - Press and hold the PTT button (The "TX" LED will light with red color) - Speak slowly and clearly - To stop the transmission, release the PTT button - If there are no more receiving signal for 5 seconds, the unit will go into power save Function 12) Receiving The coding feature reduces the possibility of interference and provides enhanced communication. You can only listen to a call that has correct matching code. ? Important ; Before transmitting or receiving to the other parties ; GMRS-1904BLT Basic Operation 03-03-28 6 of 9 - Correct channel is selected ( 1 to 22 ) and - Correct code is set ( 00 to 38 ) 13) Channel Scanning This feature allows you to monitor all activated channels while scanning. ? To activate the Scan - Press the Scan[S] button - Radio will begin scanning. - When in scan Function, the display will show each scanning channel. - After an activated channel is scanned and received signal and then if there is no more signal, the scan will resume automatically. ? To disable the Scan - Press the Scan[S] button, the unit will stop the scanning. - SCAN icon indicator will disappear from the LCD - The unit will return to home channel. 14) Call - Press the Call[C] button.(The "TX" LED will light with red color.) 15) Monitoring the channel It is used for listening the week signal or to hear all acti…

Text truncated - open the document above for the full version.

March 25, 2003 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Telephone 888.472.2424 Fax 352.472.2030 Applicant: Genex Telecom Co. LTD 6FL Farmax Building 796-27 Bandbae-Dong, Seocho-Gu SEOUL 137-830 SOUTH KOREA FRN 0006-1433-33 Re: Confidentiality of schematics Equipment: GMRS Transceiver FCC ID: PM3 GR3000 Gentlemen: It is requested that the information contained in the block diagrams, operational description, parts list, and schematics of the application be held confidential per Section 0.459. Please use this information in obtaining a grant of certification for the transceiver, for use in the general mobile radio service, model number GMRS1904BL. In support of this request, we submit the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, Block Diagram, Parts List, Internal PCB layout exhibit, and Schematics, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: PM3 GR3000 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation and circuit diagrams, (schematics, part list, PCB layout diagrams, and Block diagrams). As such this material is treated as highly confidential business information and is not subject to public view. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

March 25, 2003 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Telephone 888.472.2424 Fax 352.472.2030 Applicant: Genex Telecom Co. LTD 6FL Farmax Building 796-27 Bandbae-Dong, Seocho-Gu SEOUL 137-830 SOUTH KOREA FRN 0006-1433-33 Equipment: FCC ID: PM3 GR3000 FCC Rules: Part 95 (GMRS Transceiver) Gentlemen: The Application for Certification for this GMRS transceiver operated under rule of part 95 (General Mobile Radio Service) has been completed. The 731 form and certification application have been electronically submitted and any attachments will be up loaded to your web site. Please use this information in obtaining a grant of certification for the transceiver the receiver portion of which shall be authorized under the verification procedure. Please keep the information in confidence, as this applicant has requested confidentiality for the submittal. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

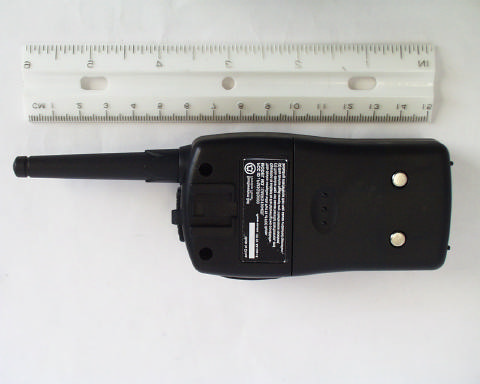

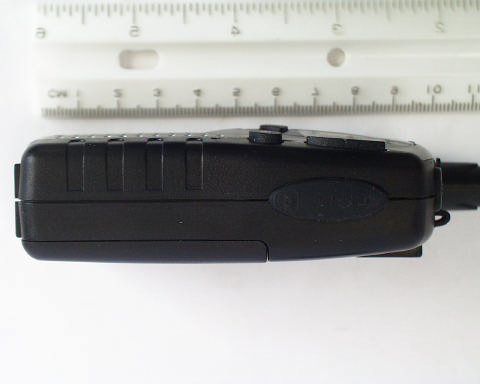

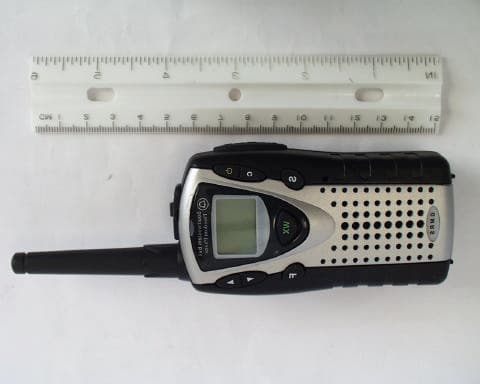

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GMRS 1904BL Louisburg, KS 66053 Test #: 030210 FCCID#: PM3 GR3000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 2 GMRS1904BLPhotos.doc 2/26/2003 Equipment photographs for GMRS 1904BL. ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GMRS 1904BL Louisburg, KS 66053 Test #: 030210 FCCID#: PM3 GR3000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 2 of 2 GMRS1904BLPhotos.doc 2/26/2003

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GMRS1904BL Louisburg, KS 66053 Test #: 030210 FCCID#: PM3 GR3000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 GMRS1904BLLabel.doc 3/25/2003 FCC ID label and location photographs for GMRS 1904BL.

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GMRS 1904BL Louisburg, KS 66053 Test #: 030210 FCCID#: PM3 GR3000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 GMRS190BLIntPho.doc 3/25/2003 Internal photographs of Printed circuit boards for GMRS 1904BL, please refer to GMRS1904BLIntPCB file for layout below covers.

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GMRS 1904BL Louisburg, KS 66053 Test #: 030210 FCCID#: PM3 GR3000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 GMRS1904BLTunProc.doc 3/28/2003 2. ALIGNMENT INSTRUCTIONS WARNING Any repairs or adjustment should be made under the supervision of a qualified radio-telephone technician. 2-1. VCO 2-1-1. Power Supply Voltage The power supply voltage should be set for 6.0V DC. 2-1-1. VCO Adjustment A. Connect high impedance voltmeter between R183 and C160 B. Adjust L15 for 2.0V. 2-2. TRANSMITTER 2-2-1. Power Supply Voltage The power supply voltage should be set for 6.0V DC measured at the radio during transmit. Periodically check the supply voltage during the alignment procedure. 2-2-2. Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the antenna connector through an RF power attenuates (5 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the TCXO such that output frequency is equal to the channel. Frequency with a maximum error of ?300 Hz. D. Adjust CT1 for ?300 Hz. E. Release the PTT switch. 2-2-3. Output Power Alignment A. Set the power supply voltage for 6.0 V DC. B. Connect a communications Service Monitor or a wattmeter and dummy load to the antenna connector. C. Depress the PTT switch. D. To be convinced for 1.6 watt output power with a maximum error of ?0.2 watt. E. Release the PTT switch. 2-2-4. Deviation Adjustment A. Connect an audio generator to the microphone jack JIG. The audio frequency should be set at 1 KHz B. Connect an FM deviation meter or communication Service Monitor to the antenna connector Through an RF power attenuates (5 watt minimum rating, 20 dB minimum attenuates ). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust RV1 for 2.3 KHz maximum deviation. F. Release the PTT switch.

TEST REPORT For APPLICATION of CERTIFICATION For Genex Telecom Co. LTD 6FL Farmax Building 796-27 Bandbae-Dong, Seocho-Gu SEOUL 137-830 SOUTH KOREA Clark Cheon Manager MODEL: GMRS 1904BL General Mobile Radio Services (GMRS/FRS) UHF TRANSCEIVER FREQUENCY: 462 - 467 MHz FCC ID: PM3 GR3000 Test Date: February 10, 2003 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Genex Telecom Co. LTD 4405 West 259 th Terrace MODEL: GMRS 1904BL GMRS/FRS UHF Transceiver Louisburg, KS 66053 Test #:030210 FCC ID#: PM3 GR3000 SN: Set 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 2 of 22 CERTIFICATION\GMRS1904BLTstRpt 03/26/2003 TABLE OF CONTENTS FORWARD: 3 LIST OF TEST EQUIPMENT 3 2.1033(C) APPLICATION FOR CERTIFICATION 4 2.1046 RF POWER OUTPUT 5 Measurements Required: 5 Test Arrangement: 5 Results: 5 2.1047 MODULATION CHARACTERISTICS 6 Measurements Required: 6 Test Arrangement: 7 Results: 7 2.1049 OCCUPIED BANDWIDTH 9 Measurements Required: 9 Test Arrangement: 9 Results: 9 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 11 Measurements Required: 11 Test Arrangement: 11 Results: 13 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 13 Measurements Required: 13 Test Arrangement: 13 Results: 15 2.1055 FREQUENCY STABILITY 16 Measurements Required: 16 Test Arrangement: 16 Results: 18 APPENDIX 19 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Genex Telecom Co. LTD 4405 West 259 th Terrace MODEL: GMRS 1904BL GMRS/FRS UHF Transceiver Louisburg, KS 66053 Test #:030210 FCC ID#: PM3 GR3000 SN: Set 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 3 of 22 CERTIFICATION\GMRS1904BLTstRpt 03/26/2003 FORWARD: In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2001, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Parts 15, and 95, the following is submitted: List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz): RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz): RBW AVG. BW DETECTOR FUNCTION 1 MHz 1 MHz Peak/Average ANTENNA CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Genex Telecom Co. LTD 4405 West 259 th Terrace MODEL: GMRS 1904BL GMRS/FRS UHF Transceiver Louisburg, KS 66053 Test #:030210 FCC ID#: PM3 GR3000 SN: Set 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 4 of 22 CERTIFICATION\GMRS1904BLTstRpt 03/26/2003 2.1033(c) Application for Certification (1) Manufacturer: Genex Telecom Co. LTD 6FL Farmax Building 796-27 Bandbae-Dong, Seocho-Gu SEOUL 137-830 SOUTH KOREA (2) Identification: Model: GMRS 1904BL S/N: Set 1 FCC I.D.: PM3 GR3000 (3) Instruction Book: Refer to exhibit for Draft Instruction Manual. (4) Emission Type: 10K0F3E (5) Frequency Range: 462 and 467 MHz (6) Operating Power Level: 1.6 Watts (High Power) 0.5 Watts (Low Power) (7) Max P o : 1.6 Watts (8) Power into final amplifier: 1.6 Watt Unit: 4.80 Watts (6.0V @ 0.8A) (9) Tune Up Procedure for Output Power: Refer to Exhibit for Transceiver Alignment Procedure. (10) Circuit Diagrams; description of circuits, frequency stability, spurious suppression, and power and modulation limiting: Refer to Exhibit for Circuit Diagrams. Refer to Exhibit for Theory of Operation. (11) Photograph or drawing of the Identification Plate: Refer to Exhibit for Photograph or Drawing. (12) Drawings of Construction and Layout: Refer to Exhibit for Drawings of Components Layout and Chassis Drawings. (13) Detail Description of Digital Modulation: Not applicable. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Genex Telecom Co. LTD 4405 West 259 th Terrace MODEL: GMRS 1904BL GMRS/FRS UHF Transceiver Louisburg, KS 66053 Test #:030210 FCC ID#: PM3 GR3000 SN: Set 1 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 5 of 22 CERTIFICATION\GMRS1904BLTstRpt 03/26/2003 2.1046 RF Power Output Measurements Required: Measurements shall be made to establish the radio frequency power delivered by the transmitter into the standard output termination. The power output shall be monitored and recorded and no adjustment shall be made to the transmitter after the test has begun, except as noted below: If the power output is adjustable, measurements shall be made for the highest and lowest power levels. Test Arrangement: The radio frequency power output was measured at the antenna terminal by replacing the antenna with a spectrum analyzer and appropriate attenuation. The spectrum analyzer had an impedance of 50W to match the impedance of the standard antenna. A HP 8591EM Spectrum Analyzer was used to measure the radio frequency power at the antenna port. The data was taken in dBm and converted to watts as shown in the following Table. Data was taken per Paragraph 2.1046(a) and applicable parts of Parts 2 and 95. Power in dBm was converted to power in Watts using the following formula. Power (dBm) = power in dB above 1 milliwatt Milliwatts = 10 (Power dBm/10) Watts = Power in milliwatts times 0.001 32…

Text truncated - open the document above for the full version.

Test Report S/N: 030303-344PM3 Test Date(s): March 14, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.1 of 20 Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information GENEX TELECOM CO., LTD. 6Fl., Farmax Building 796-27 Bangbae-Dong, Seocho-Gu Seoul, Korea 137-830 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Type:Portable UHF GMRS PTT Radio Transceiver FCC ID:PM3GR3000 Model(s):GMRS1904BL Modulation:FM (UHF) Tx Frequency Range:462.5625 - 467.7125 MHz RF Output Power Tested:1.6 Watts (ERP) No. of Channels:22 Antenna Type(s):Fixed Battery Type(s):1.5V AAA Alkaline (x4) 1.2V AAA NiMH (x4) Body-Worn Accessories:Belt-Clip, Ear-Microphone Max. SAR Measured:0.700 W/kg - Face-held (50% Duty Cycle) 0.670 W/kg - Body-worn (50% Duty Cycle) Test Report S/N: 030303-344PM3 Test Date(s): March 14, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.2 of 20 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................ 7 8.0SIMULATED TISSUES............................................................. 8 9.0SAR LIMITS........................................................................... 8 10.0SYSTEM SPECIFICATIONS......................................................9 11.0PROBE SPECIFICATION.........................................................10 12.0SAM PHANTOM......................................................................10 13.0VALIDATION PHANTOM...........................................................10 14.0DEVICE HOLDER....................................................................10 15.0TEST EQUIPMENT LIST...........................................................11 16.0MEASUREMENT UNCERTAINTIES............................................12 17.0REFERENCES.......................................................................13 APPENDIX A - SAR MEASUREMENT DATA.............................................14 APPENDIX B - SYSTEM CHECK DATA....................................................15 APPENDIX C – SYSTEM VALIDATION....................................................16 APPENDIX D - PROBE CALIBRATION....................................................17 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................18 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY..............19 APPENDIX G - SAR TEST SETUP & EUT PHOTOGRAPHS........................20 Test Report S/N: 030303-344PM3 Test Date(s): March 14, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.Genex Telecom Co., Ltd. FCC ID: PM3GR3000 (Model: GMRS1904BL)3 of 20 Portable UHF GMRS PTT Radio Transceiver (462.5625-467.7125MHz) 1.0 INTRODUCTION This measurement report demonstrates compliance of the Genex Telecom Co., Ltd. Model: GMRS1904BL Portable UHF GMRS PTT Radio Transceiver FCC ID: PMGR3000 with the RF exposure requirements of FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (01-01) Device Type Portable UHF GMRS PTT Radio Transceiver FCC ID PM3GR3000 Model(s) GMRS1904BL Serial No. Pre-production Modulation FM (UHF) No. of Channels 22 Tx Frequency Range 462.5625 - 462.7125 MHz RF Output Power Tested 1.6 Watts (ERP) Battery Type(s) 1.5V AAA Alkaline (x4) 1.2V AAA NiMH (x4) Antenna Type(s) Fixed Body-Worn Accessories Tested Belt-Clip, Ear-Microphone Test Report S/N: 030303-344PM3 Test Date(s): March 14, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.Genex Telecom Co., Ltd. FCC ID: PM3GR3000 (Model: GMRS1904BL)4 of 20 Portable UHF GMRS PTT Radio Transceiver (462.5625-467.7…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GMRS 1904BL Louisburg, KS 66053 Test #: 030210 FCCID#: PM3 GR3000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 GMRS1904BLTstPhot.doc 2/26/2003 Test setup photographs for GMRS 1904BL.
