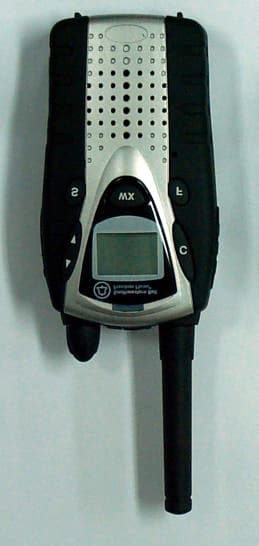

PM3GR5000FRS/ GMRS UHF Transceiver

1 of 9 2 of 9 3 of 9 Max 2.0 W TX power 4 of 9 5 of 9 6 of 9 7 of 9 FCC Information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. Safety Information For GMRS UNIT “Important: FCC RF Exposure Requirements: - Operation must not exceed a maximum transmitting duty factor of 50% for satisfying RF exposure compliance. - For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with GENEX accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. “ 8 of 9 Normal Position: Hold the transmitter approximately 1” from your face and speak in a normal voice, with the antenna pointed up and away. GMRS Licensing requirements: The Code of Federal Regulations requires the owner/operator of this equipment to hold a FCC license when operating in the GMRS mode. Operation on the GMRS frequencies is subject to additional rules as specified in 47 CFR Part 95. GMRS / FRS Frequency Chart Channel Frequency (MHz) Use Power Channel Frequency (MHz) Use Power 1 462.5625 FRS/GMRS High/low 12 467.6625 FRS/GMRS Low 2 462.5875 FRS/GMRS High/low 13 467.6875 FRS/GMRS Low 3 462.6125 FRS/GMRS High/low 14 467.7125 FRS/GMRS Low 4 462.6375 FRS/GMRS High/low 15 462.5500 GMRS High/low 5 462.6625 FRS/GMRS High/low 16 462.5750 GMRS High/low 6 462.6875 FRS/GMRS High/low 17 462.6000 GMRS High/low 7 462.7125 FRS/GMRS High/low 18 462.6250 GMRS High/low 8 467.5625 FRS/GMRS Low 19 462.6500 GMRS High/low 9 467.5875 FRS/GMRS Low 20 462.6750 GMRS High/low 10 467.6125 FRS/GMRS Low 21 462.7000 GMRS High/low 11 467.6375 FRS/GMRS Low 22 462.7250 GMRS High/low Note: Channels 1 through 14 are shared with FRS radio service. Operations in the FRS band without a FCC license is restricted to low power transmit (0.5 watts). The GMRS radios require the user to place the unit in low power mode for FRS operation. The GMRS unit will automatically select low transmit power (0.5 watts) when FRS channels 8-14 are selected. 9 of 9

March 25, 2003 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Telephone 888.472.2424 Fax 352.472.2030 Applicant: Genex Telecom Co. LTD 6FL Farmax Building 796-27 Bandbae-Dong, Seocho-Gu SEOUL 137-830 SOUTH KOREA FRN 0006-1433-33 Re: Confidentiality of schematics Equipment: GMRS Transceiver FCC ID: PM3 GR5000 Gentlemen: It is requested that the information contained in the block diagrams, operational description, parts list, and schematics of the application be held confidential per Section 0.459. Please use this information in obtaining a grant of certification for the transceiver, for use in the general mobile radio service, model number GR1907BL. In support of this request, we submit the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, Block Diagram, Parts List, Internal PCB layout exhibit, and Schematics, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: PM3 GR5000 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation and circuit diagrams, (schematics, part list, PCB layout diagrams, and Block diagrams). As such this material is treated as highly confidential business information and is not subject to public view. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

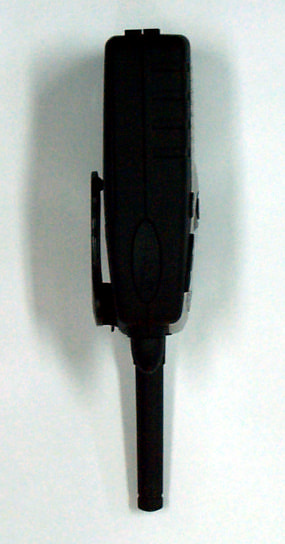

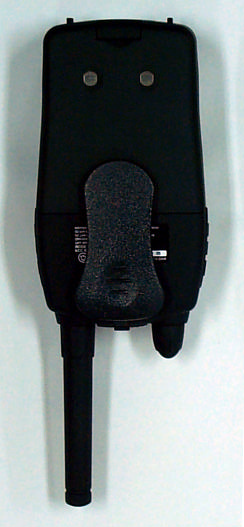

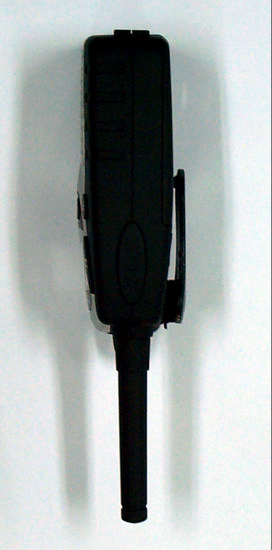

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GR1907BL Louisburg, KS 66053 Test #: 030303 FCCID#: PM3 GR5000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 2 PM3GR5000Photos.doc 3/25/2003 Equipment photographs for GR1907BL. ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GR1907BL Louisburg, KS 66053 Test #: 030303 FCCID#: PM3 GR5000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 2 of 2 PM3GR5000Photos.doc 3/25/2003

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GR1907BL Louisburg, KS 66053 Test #: 030303 FCCID#: PM3 GR5000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 PM3GR5000IdLabel.doc 3/25/2003 FCC ID label and location photographs for GR1907BL.

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GR1907BL Louisburg, KS 66053 Test #: 030303 FCCID#: PM3 GR5000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 PM3GR5000IntPho.doc 3/25/2003 Internal photographs of Printed circuit boards for GR1907BL.

Test Report S/N: 031803-353PM3 Test Date(s): April 15, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.1 of 20 Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone:250-448-7047 Fax:250-448-7046 e-mail:[email protected] web site:www.celltechlabs.com Applicant Information GENEX TELECOM CO., LTD. 6Fl., Farmax Building 796-27 Bangbae-Dong, Seocho-Gu Seoul, Korea 137-830 Rule Part(s):FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s):FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Type:Portable UHF GMRS PTT Radio Transceiver FCC ID:PM3GR5000 Model(s):GR1907BL Modulation:FM (UHF) Tx Frequency Range:462.5625 - 467.7125 MHz RF Output Power Tested:2.0 Watts (ERP) No. of Channels:22 Antenna Type(s):Fixed Battery Type(s):1.5V AA Alkaline (x4) 1.2V AA NiMH (x4) Body-Worn Accessories:Belt-Clip, Ear-Microphone Max. SAR Measured:0.740 W/kg - Face-held (50% Duty Cycle) 1.09 W/kg - Body-worn (50% Duty Cycle) Test Report S/N: 031803-353PM3 Test Date(s): April 15, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc.2 of 20 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF EUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................ 7 8.0SIMULATED TISSUES............................................................. 8 9.0SAR LIMITS........................................................................... 8 10.0SYSTEM SPECIFICATIONS...................................................... 9 11.0PROBE SPECIFICATION.........................................................10 12.0SAM PHANTOM......................................................................10 13.0VALIDATION PHANTOM...........................................................10 14.0DEVICE HOLDER....................................................................10 15.0TEST EQUIPMENT LIST...........................................................11 16.0MEASUREMENT UNCERTAINTIES............................................12 17.0REFERENCES.......................................................................13 APPENDIX A - SAR MEASUREMENT DATA.............................................14 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................15 APPENDIX C - SYSTEM VALIDATION.....................................................16 APPENDIX D - PROBE CALIBRATION....................................................17 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................18 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY..............19 APPENDIX G - SAR TEST SETUP & EUT PHOTOGRAPHS........................20 Test Report S/N: 031803-353PM3 Test Date(s): April 15, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc. Genex Telecom Co., Ltd. FCC ID: PM3GR5000 (Model: GR1907BL)3 of 20 Portable UHF GMRS PTT Radio Transceiver (462.5625-467.7125MHz) 1.0 INTRODUCTION This measurement report demonstrates compliance of the Genex Telecom Co., Ltd. Model: GR1907BL Portable UHF GMRS PTT Radio Transceiver FCC ID: PMGR5000 with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01- 01 (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (01-01) Device Type Portable UHF GMRS PTT Radio Transceiver FCC ID PM3GR5000 Model(s) GR1907BL Serial No. Pre-production Modulation FM (UHF) No. of Channels 22 Tx Frequency Range 462.5625 - 462.7125 MHz RF Output Power Tested 2.0 Watts (ERP) Battery Type(s) 1.5V AA Alkaline (x4) 1.2V AA NiMH (x4) Antenna Type(s) Fixed Body-Worn Accessories Tested Belt-Clip, Ear-Microphone Test Report S/N: 031803-353PM3 Test Date(s): April 15, 2003 FCC/IC SAR Evaluation © 2003 Celltech Labs Inc. Genex Telecom Co., Ltd. FCC ID: PM3GR5000 (Model: GR1907BL)4 of 20 Portable UHF GMRS PTT Radio Transceiver (462.5625-467.7125MHz) 3.0 SAR …

Text truncated - open the document above for the full version.

TEST REPORT For APPLICATION of CERTIFICATION For Genex Telecom Co. LTD 6FL Farmax Building 796-27 Bandbae-Dong, Seocho-Gu SEOUL 137-830 SOUTH KOREA Clark Cheon Manager MODEL: GMRS 1907BL General Mobile (/Family) Radio Services (GMRS/FRS) UHF TRANSCEIVER FREQUENCY: 462 - 467 MHz FCC ID: PM3 GR5000 Test Date: March 3, 2003 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Genex Telecom Co. LTD 4405 West 259 th Terrace MODEL: GMRS 1907BL GMRS/FRS UHF Transceiver Louisburg, KS 66053 Test #:030303 FCC ID#: PM3 GR5000 SN: GX 0302 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 2 of 22 CERTIFICATION\GMRS1904BLTstRpt 03/26/2003 TABLE OF CONTENTS FORWARD: 3 LIST OF TEST EQUIPMENT 3 2.1033(C) APPLICATION FOR CERTIFICATION 4 2.1046 RF POWER OUTPUT 5 Measurements Required: 5 Test Arrangement: 5 Results: 6 2.1047 MODULATION CHARACTERISTICS 7 Measurements Required: 7 Test Arrangement: 7 Results: 7 2.1049 OCCUPIED BANDWIDTH 9 Measurements Required: 9 Test Arrangement: 9 Results: 9 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS 11 Measurements Required: 11 Test Arrangement: 11 Results: 13 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION 13 Measurements Required: 13 Test Arrangement: 13 Results: 15 2.1055 FREQUENCY STABILITY 16 Measurements Required: 16 Test Arrangement: 16 Results: 18 APPENDIX 19 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Genex Telecom Co. LTD 4405 West 259 th Terrace MODEL: GMRS 1907BL GMRS/FRS UHF Transceiver Louisburg, KS 66053 Test #:030303 FCC ID#: PM3 GR5000 SN: GX 0302 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 3 of 22 CERTIFICATION\GMRS1904BLTstRpt 03/26/2003 FORWARD: In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2001, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Parts 15, and 95, the following is submitted: List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 9 kHz 30 kHz Peak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz): RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz): RBW AVG. BW DETECTOR FUNCTION 1 MHz 1 MHz Peak/Average ANTENNA CONDUCTED EMISSIONS: RBW AVG. BW DETECTOR FUNCTION 120 kHz 300 kHz Peak NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Genex Telecom Co. LTD 4405 West 259 th Terrace MODEL: GMRS 1907BL GMRS/FRS UHF Transceiver Louisburg, KS 66053 Test #:030303 FCC ID#: PM3 GR5000 SN: GX 0302 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 4 of 22 CERTIFICATION\GMRS1904BLTstRpt 03/26/2003 2.1033(c) Application for Certification (1) Manufacturer: Genex Telecom Co. LTD 6FL Farmax Building 796-27 Bandbae-Dong, Seocho-Gu SEOUL 137-830 SOUTH KOREA (2) Identification: Model: GMRS 1907BL S/N: GX 0302 FCC I.D.: PM3 GR5000 (3) Instruction Book: Refer to exhibit for Draft Instruction Manual. (4) Emission Type: 11K0F3E (5) Frequency Range: 462 and 467 MHz (6) Operating Power Level: 2.0 Watts or 0.5 Watts (Selectable High or Low Power setting with applicable FRS channels restricted to low power output only.) (7) Max P o : No more than 50 Watts allowed by any station and 5 watts for same base station per 95.135. (8) Power into final amplifier: 2.0 Watt Unit: 6.0 Watts (6.0V @ 1.0A) (9) Tune Up Procedure for Output Power: Refer to Exhibit for Transceiver Alignment Procedure. (10) Circuit Diagrams; description of circuits, frequency stability, spurious suppression, and power and modulation limiting: Refer to Exhibits for Circuit Diagrams and Theory of Operation. (11) Photograph or drawing of the Identification Plate: Refer to Exhibit for Photograph or Drawing. (12) Drawings of Construction and Layout: Refer to Exhibit for Drawings of Components Layout and Chassis Drawings. (13) Detail Description of Digital Modulation: Not applicable. (14) Data required by 2.1046 through 2.1057 is reported in this document. NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Genex Telecom Co. LTD 4405 West 259 th Terrace MODEL: GMRS 1907BL GMRS/FRS UHF Transceiver Louisburg, KS 66053 Test #:030303 FCC ID#: PM3 GR5000 SN: GX 0302 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2, 15, and 95 Page 5 of 22 CERTIFICATION\GMRS1904BLTstRpt 03/26/2003 (15) Application for certification of an external radio power amplifier operating under part 97of this chapter. Not applicable. (16) Application for certification of AM broadcast transmitter. Not applicable. (17) A single application may be filed for a composite system that incorporates devices subject to certification under multiple rule parts, however, the appropriate fee must be included for each device. The device is governed by CFR rule Part 95 subpart A (GMRS) and 95 subpart B (FRS). 2.1046 RF Power Output Measurements Required: Measurements shall be made to establish the radio frequency power delivered by the transmitter into the standard output termination. The power output shall be monitored and recorded and no adjustment shall be made to the transmitter after the test has begun, except as noted below: If the power output is adjustable, measurements shall be made for the highest and …

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Genex Telecom Co. LTD 4405 W. 259th Terrace MODEL: GR1907BL Louisburg, KS 66053 Test #: 030303 FCCID#: PM3 GR5000 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 95 Page 1 of 1 PM3GR5000TstPhot.doc 3/25/2003 Test setup photographs for GR1907BL.
