PM3MT800VHF FM Transceiver

MT-800 PC PROGRAMMER USER’S GUIDE The main function and frequency of MT-800 is supposed to work for PC PROGRAMMER. The usage of this program is SOFTWARE INSTALLATION of WINDOWS OS to WINDOWS 98(FIRST, SECOND EDITION), WINDOW SERIES, AND WINDOWS XP for PERSONAL COMPUTER only. . 1. INSIDE OF MT-800 PC PROGRAMMER KIT PROGRAMMING KIT contains following. 1) PROGRAM CD THE SOFRWARE VERSION SHOWS UP IN THE HELP INFO. 2)MT-800 PROGRAMMING LEAD 2. HARDWARE INSTALLATION Connect MT-800 programming lead to personal computer com1 or com 2 and connect the other side to mic connector for finishing hardware installation. 3. SOFTWARE INSTALLATION There’s a CD include in the programming kit and inside of CD, there’s program called MT-800.EXE FILE, click that file, then it appears to be like below, and that would be end of the software installation. ※Importance of PC PROGRAM 1) Before start PC PROGRAM, make sure for read or write program, to follow steps below. 1-1) for write MONITOR BUTTON + POWER ON WRITE → DISPLAY AT THE LCD MODE BUTTON WRITE NOW → DISPLAY AT THE LCD 1-2) for read MONITOR BUTTON + POWER ON CHANNEL UP OR DOWN BUTTON READ → DISPLAY AT THE LCD MODE BUTTON READ NOW → DISPLAY AT THE LCD 4. Model selection If install MJT-800.EXE file in the computer, it appears model selection block window and will blank, but right now the program is set for only MT-800, so no need to select the extra and get to programming right away. 5. Setting up for system option 1) com port set up This is for hardware setting of port set up only. There are port 1 to port 4. 1) PROGRAM READ AND WRITE Read the data from set or write the one. 2) SCAN OPTION SET UP 3-1) SCAN SPEED : 50 ~ 500msec range. Primary stage is 50msec. 3-2) ATTACK TIME : 0 ~ 4 sec range. Primary stage is 0sec. 3-3) RESUME TIME : 1 ~ 10 sec range. Primary stage is 4sec. 3-4) HOME CHANNEL : 1 ~ 32CHANNEL range. Primary stage is 1 CHANNEL. 3) DISPLAY SET UP Can be select set display. CHANNEL, NAME AND FREQUENCY are possible. 4) MODE OPTION You can change and select what you want. 5) SCAN MODE You can change and select what you want. 7) T-O-T SETUP You can change and select what you want. If you need. Primary stage is DISABLE. ENABLE : 10 ~ 990sec range, STEP is 10 sec. PENALTY ENABLE : 1 ~ 60sec range, STEP is 1 sec. 6. Setting up for Tool OPTION 1) NEW CREATE : Can be change the original setting or you can make a your own setting. 2) OPEN FILE : Can be see the old data or can find you one. 3) SAVE : Save the new Data 1 2 3 4 5 67 4) UP LOAD :Up load the new data from PC to Set 5) DOWN LOAD : Down load from the set. 6) PRINT : Can be print. 7) EXIT : Use this for quit from PROGRAM. 7. Setting up for Frequency 1) You can input the frequency form 148MHz to 174MHz every 5KHz – 6.25KHz STEP. 2) NAME section has originally set up CH, every CHANNEL can be input the own name that is possible 8 number or alphabet. 3) TONE OPTION is composed of NO TONE, CTCSS, DCS, IDCS, CTCSS 49 TONE CODE ( STANDARD CTCSS 38 , NON STANDARD CTCSS 11 ), DCS/IDCS 83 NORMAL CODE AND 83 INVERT CODE. 4) If you want to input the TONE, you have to accept and then you can go to next step. NOTICE There are no user-serviceable points inside this transceiver. All service jobs must be referred to your Authorization Service Center or Network Administrator Safety/ Warning Information WARNING – DO NOT operate the MT-800 radio when someone (bystanders) outside the vehicle are within following range. Safety Training Information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio must be in vehicle-mount configurations with a maximum operating duty factor not exceeding 50%, in typical Push-to- Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum separation distance of following range. Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the following range away from rear seat passengers and bystander in order to comply with the FCC RF exposure requirements. For roof top installation, the antenna must be placed in the center of the roof. Radiated frequency and Distance MT-800 1.97 Feet (0.6 m) Sample Part 15 Rule Label This device complies with part 15 of FCC Rules. Operation subject to that this device does not cause harmful interference. ! CAUTION ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirement.

GENEX Telecom Co., Ltd 6F Farmax B/D 796-27 Bangbae-Dong, Seocho-Gu, Seoul, 137-830, Korea Date : Aug 6, 2003 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A In re : GENEX Telecom Co., Ltd FCC ID : PM3MT800 Land Mobile radio Part 90 Certification Request for Confidentiality Gentlemen : In accordance with 0.459 of CFR 47,GENEX Telecom Co., Ltd hereby requests Confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, and Operational Description attachment for the above referenced Certification application. These documents contain detailed system and equipment description and related information about the product which GENEX Telecom Co., Ltd considers to be proprietary, confidential, and custom design and, otherwise, would not release to the general public since this design is a basis from which future technological products will evolve, GENEX Telecom Co., Ltd feels this information would be of benefit to its competitors, and that the disclose of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, John Ryu Overseas Sales Dept GENEX Telecom Co., Ltd

GENEX Telecom Co., Ltd 6F Farmax B/D 796-27 Bangbae-Dong, Seocho-Gu, Seoul, 137-830, Korea Date : Aug 6 , 2003 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A In re : GENEX Telecom Co., Ltd FCC ID : PM3MT800 Mobile Radio Part 90 Certification Authorization Letter Subject : Authorization Letter To whom it may concern : We, the undersigned. hereby authorized PCTEST Engineering Laboratory, Inc. act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. This authorization is valid until December 31, 2003. Sincerely Yours, John Ryu Overseas Sales Dept GENEX Telecom Co., Ltd

September 5, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: GENEX Telecom Co., Ltd. FCC ID: PM3MT800 Part 90 Certification Gentlemen: Submitted herewith, on behalf of GENEX Telecom Co., Ltd., is an application for Part 90 Certification of the following VHF FM Transceiver: Attached is the letter of authorization, measurement report data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagrams, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: GENEX Telecom Co., Ltd.

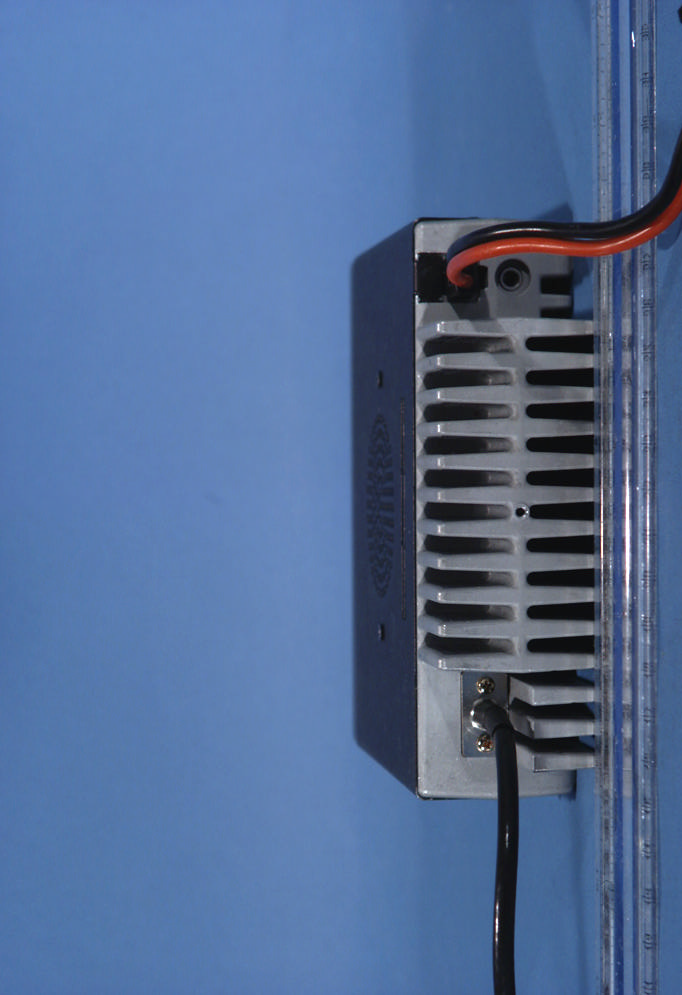

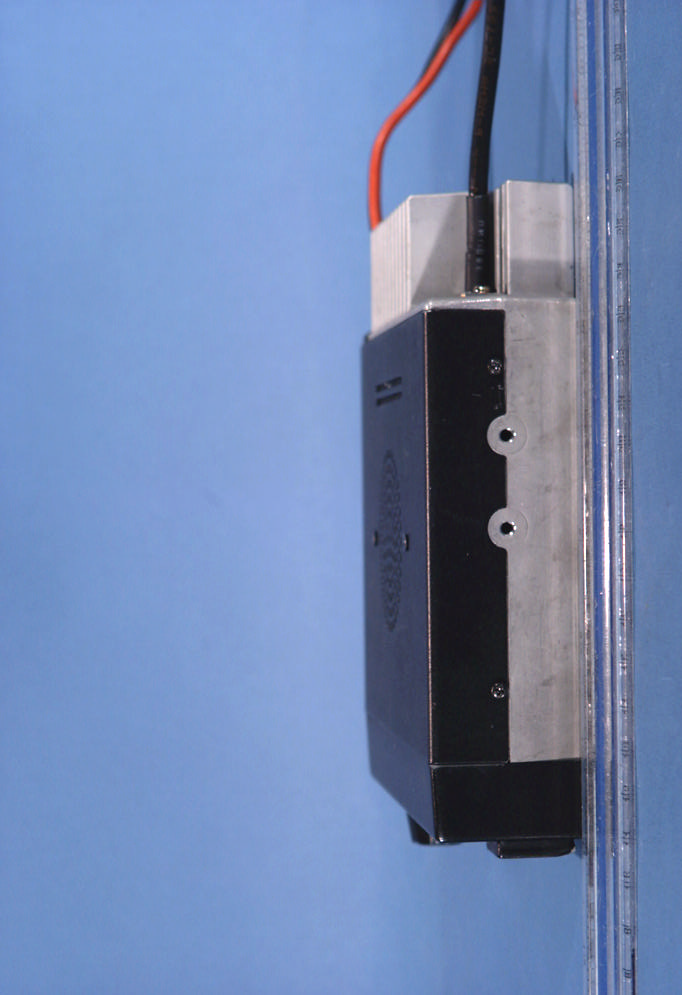

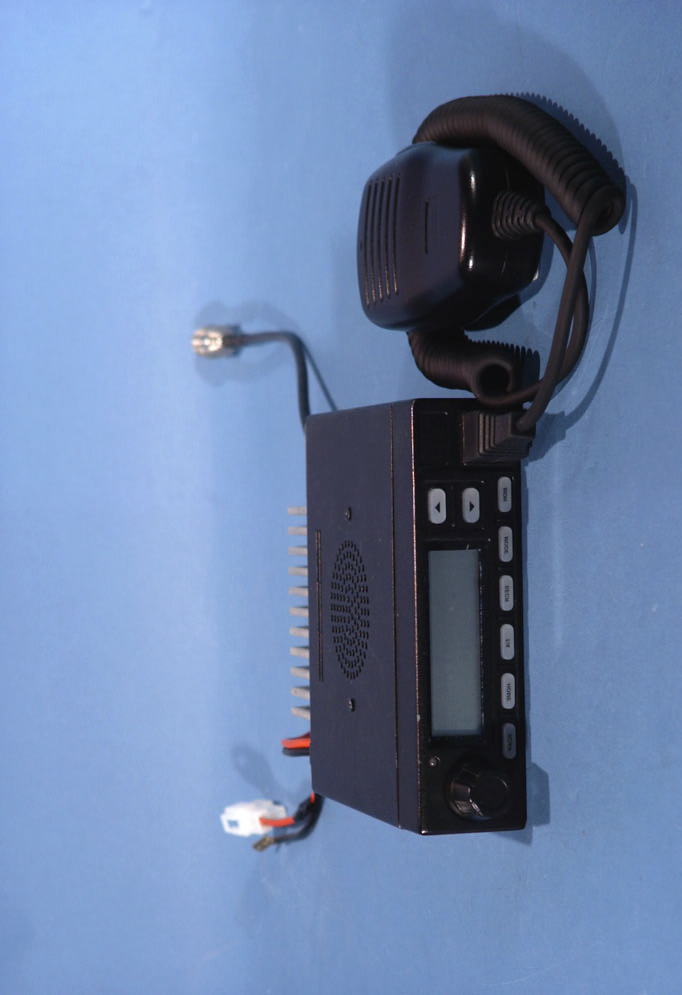

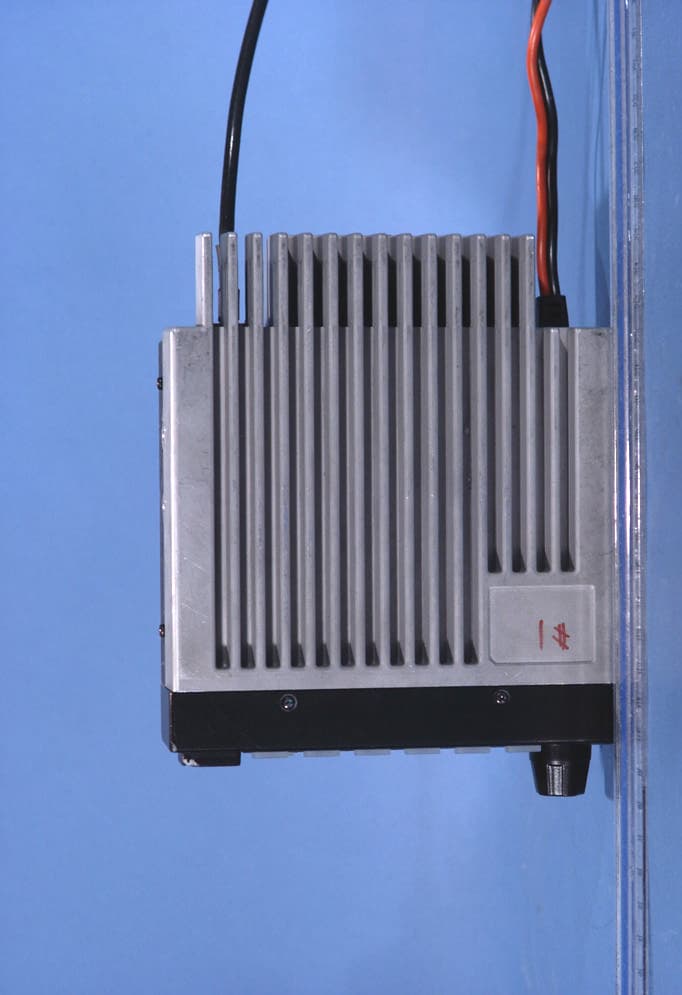

GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LAND MOBILE RADIO FCC ID: PM3MT800 MODEL NO.: MT-800 S.N : 0310000001 GENEX Telecom Co.,Ltd MADE IN KOREA

GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800

MT-800 03-06-30 Page 22 6 PARTS LIST Transistor IC NO ITEM DESCRIPTION REFERENCE 1 REGULATOR IC TK11233 U409 2 REGULATOR IC KIA78L05F U2 3 SCRAMBLE IC CMX264D5 U408 4 IF IC TA31136FN U3 5 EEROM IC 24LC16 U407 6 OP AMP IC KIA324 U402, U404, U405 7 OP AMP IC KIA358 U4, U7, U401, U406 8 MCU IC TMP87CS68DF U403 9 PLL IC MB15E03SL U6 10 AUDIO AMP IC TDA2003 U5 11 REGULATOR IC KIA7808AP U1 12 REGULATOR IC TK11250 U702 13 LCD DRIVER IC NJU6433 U701 NO ITEM DESCRIPTION REFERENCE 1 CHIP TR KTA1504S Q401, Q406 2 CHIP TR KTA2014 Q12, Q14, Q15 3 CHIP TR KTC3875 Q27, Q702 4 CHIP TR MMBR951LT1 Q19 5 CHIP TR KRA104S Q18, Q410, Q411 6 CHIP TR KRA105S Q25, Q26, Q31, Q32, Q404, Q413 7 CHIP TR KRC104S Q3, Q4, Q5, Q23, Q24, Q35, Q402, Q403, Q405, Q408, Q409, Q412,Q703, Q704 8 CHIP TR 2SC4901 Q1, Q2, Q10, Q16, Q17, Q29 9 CHIP TR KTA1666 Q407 10 CHIP TR KTC4075 Q6, Q7, Q8, Q11, Q13 11 CHIP TR 2SK3075 Q21 12 CHIP TR 2SK3075 Q20 13 CHIP TR KTB1367 Q28 14 CHIP TR MS1490 Q22 15 CHIP TR KRA226S Q701

PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15.230808390.PM3 TEST DATES: Aug. 19-20, 2003 EUT TYPE: Genex VHF FM Transceiver FCC ID: PM3MT800 PAGE 1 OF 2 © 2003 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of this product. In this document, we try to prove the safety of radiation harmfulness to the human body. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1210 is followed. The Gain of the antenna used in this product is measured by power meter. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4pr 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm2. If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15.230808390.PM3 TEST DATES: Aug. 19-20, 2003 EUT TYPE: Genex VHF FM Transceiver FCC ID: PM3MT800 PAGE 2 OF 2 © 2003 PCTEST Engineering Laboratory, Inc. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channel individually. 5. Climate Condition The temperature and related humidity: 22°C and 78% RH 6. Test Results (Antenna Configuration) 6.1 Output Power into Antenna & RF Exposure Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) 17 152.03 40,000 0.8846 7. Conclusion The device meets the mobile 60cm. separation distance as specified in Section 2.1091 of the FCC Rules and an appropriate RF exposure compliance statement will be placed in the users manual.

PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: Quality Manager TEST REPORT S/N: 90.230808390-R1.PM3 TEST DATES: Aug. 19-20, 2003 EUT TYPE: Genex VHF FM Transceiver FCC ID: PM3MT800 Page 1 of 2 © 2003 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1210 is followed. The Gain of the antenna used in this product is measured by power meter. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 .163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 30-300 27.5 .073 .2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4pr 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm2. If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: Quality Manager TEST REPORT S/N: 90.230808390-R1.PM3 TEST DATES: Aug. 19-20, 2003 EUT TYPE: Genex VHF FM Transceiver FCC ID: PM3MT800 Page 2 of 2 © 2003 PCTEST Engineering Laboratory, Inc. 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channel individually. 5. Climate Condition The temperature and related humidity: 22°C and 78% RH 6. Test Results (Antenna Configuration) 6.1 Output Power into Antenna & RF Exposure Distance: With 0 dBi antenna Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) 17 153.03 24,000 .0865 7. Conclusion The device meets the mobile 60cm. separation distance as specified in Section 2.1091 of the FCC Rules and an appropriate RF exposure compliance statement will be placed in the users manual.

PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 90.230808390.PM3 Test Dates: August 19-20, 2003 Phone Type: VHF FM Transceiver FCC ID: PM3MT800 Page 1 of 18 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 90 Certification GENEX Telecom Co., Ltd. Dates of Tests: August 19-20, 2003 6F Farmax B/D 796-27 Bangbae-Dong, Test Report S/N: 90.230808390.PM3 Seocho-Gu, Seoul 137-830, Korea Test Site: PCTEST Lab, MD U.S.A. FCC ID PM3MT800 APPLICANT GENEX Telecom Co., Ltd. Classification: Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): § 90 EUT Type: VHF FM Transceiver Trade Name(s): GENEX Model(s): MT-800 Tx/Rx Frequency Range: 148 ~ 174 MHz Max. RF Output Power: 40 W (Conducted) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 16K0F3E, 11K0F3E This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230808390.PM3 PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 90.230808390.PM3 Test Dates: August 19-20, 2003 EUT Type: VHF FM Transceiver FCC ID: PM3MT800 Page 2 of 22 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 3 INTRODUCTION 4 INSERTS 5 DESCRIPTION OF TESTS 6-9 RADIATED MEASUREMENTS 10-16 FREQUENCY STABILITY 17-18 PLOTS OF EMISSIONS 19 LIST OF TEST EQUIPMENT 20 SAMPLE CALCULATIONS 21 CONCLUSION 22 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST & TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 90.230808390.PM3 Test Dates: August 19-20, 2003 EUT Type: VHF FM Transceiver FCC ID: PM3MT800 Page 3 of 22 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: GENEX Telecom Co., Ltd. Address: 6F Farmax B/D 796-27 Bangbae-Dong, Seocho-Gu, Seoul 137-830, Korea • FCC ID: PM3MT800 • Model(s): MT-800 • Quantity: Quantity production is planned • Emission Designator: 16K0F3E, 11K0F3E • Tx/Rx Freq. Range: 148 -174 MHz • Equipment Class: Licensed Non-Broadcast Station Transmitter (TNB) • Equipment Type: VHF FM Transceiver • Modulation: FM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. Power: 40 W (Conducted) • FCC Rule Part(s): § 90 • Power Supply: 13.6 V DC • Dates of Tests: August 19-20, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 90.230808390.PM3 PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 90.230808390.PM3 Test Dates: August 19-20, 2003 EUT Type: VHF FM Transceiver FCC ID: PM3MT800 Page 4 of 22 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level was recorded. For readings above 1 GHZ, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Figure 2. 3-meter outdoor test site PCTEST PART 90 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 90.230808390.PM3 Test Dates: August 19-20, 2003 EUT Type: VHF FM Transceiver FCC ID: PM3MT800 Page 5 of 22 © 2003 PCTEST ENGINEERING LABORATORY, INC. 3.1 INSERTS Block Diagram(s) & Circuit Dia…

Text truncated - open the document above for the full version.

Modulation Limiting 12.5 kHz Channel Spacing 0 500 1000 1500 2000 2500 3000 -35.00-25.00-15.00 -5.00 Audio input Deviation 300 Hz 1000 Hz 3000 Hz Modulation Limiting 25 kHz Channel Spacing 0 1000 2000 3000 4000 5000 6000 -35.00-25.00-15.00 -5.00 Audio input Deviation 300 Hz 1000 Hz 3000 Hz

GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800 GENEX FCC ID: PM3MT800 EUT Photographs © 2003 PCTEST Lab. VHF FM Transceiver Model: MT-800
