PM8-MG35HDD0127MPEG4 Player

FCC NOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. Contents Introduction......................................................................................3 Specifications................................................................................................................3 Precautions....................................................................................................................4 System Requirements..................................................................................................4 Package Content..........................................................................................................4 Product Overview.........................................................................................................5 1. Use as External USB HDD........................................................7 1.1 Insert Hard Disk..........................................................................................7 1.2 Format Built-in HDD via USB..................................................................8 1.2.1 Windows 98SE, ME............................................................................................8 1.2.2 Windows 2000...................................................................................................10 1.2.3 Windows XP......................................................................................................12 1.3 Copy Data via USB..................................................................................14 1.3.1 Windows 98SE..................................................................................................14 1.3.2 Windows ME......................................................................................................15 1.3.3 Windows 2000, XP...........................................................................................16 1.3.4 Linux...................................................................................................................17 1.3.5 Mac.....................................................................................................................17 2. Access PC via Network...........................................................18 2.1 Connect LAN Cable.................................................................................18 2.2 Set Network Configurations..................................................................18 2.2.1 Windows 98SE, ME..........................................................................................19 2.2.2 Windows 2000...................................................................................................21 2.2.3 Windows XP......................................................................................................24 3. Use as Multimedia Player...........................................................28 3.1 Connect to External AV Device............................................................28 3.1.1 Connect Video Cable.......................................................................................28 1 3.1.2 Connect Audio Cable........................................................................................29 3.2 Basic Setup................................................................................................30 3.2.1 Video Setup........................................................................................................30 3.2.2 Audio Setup........................................................................................................32 3.2.3 Network Setup...................................................................................................33 3.2.4 Screen Setup.....................................................................................................35 3.2.5 Preview Setup....................................................................................................35 3.2.6 LED Setup..........................................................................................................36 3.3 Basic Screen Menu..................................................................................37 3.3.1 Mode Selection, Media Type Selection..........................................................37 3.3.2 File Selection......................................................................................................39 3.4 Play Video Files....................................................................…

Text truncated - open the document above for the full version.

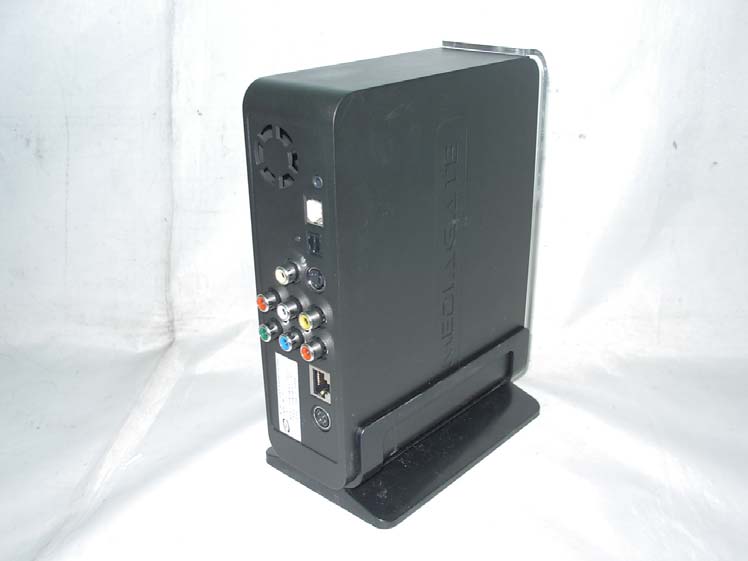

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 14of 20 Jan 29, 2005 EUT Front Rear

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 20of 20 Jan 29, 2005 Appendix – Sample Label & Location

AL Tech, Inc. Product : MPEG4 Player Model : MG-35 Power : DC 12V / 5V 1 A S/N : - FCC ID : PM8-MG35HDD0127 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION Made in KOREA

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 15of 20 Jan 29, 2005 Inside Ac/dc Adaptor E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 16of 20 Jan 29, 2005 Main board (component side) Main board (solder side) E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 17of 20 Jan 29, 2005 HDD Remote controller E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 18of 20 Jan 29, 2005 Keypad Front Keypad Rear E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 19of 20 Jan 29, 2005 LED Board Front LED Board Rear

$1=₩1,050 NO규 격Part NO.TYPE Q'TY Ref ( 2월 3K양산분 ) MAIN B/D PART 1 CPU + CODEC ( DIVX+MPEG4 ) EM8511 328BGA 1U46 2 FLASH ( 1MBit X 16 ) K8D1616UTA-TI0948TBGA 2U39(L) U51(H) 3 1MX16BITX4 BANKS SDRAM K4S641632H-TC60TSOP562 U35 U49 4 512MX32BITX4 BANKS SDRAM K4S643232H-TC50TSOP861U64 5 ISA BUS ETHERNET Controller DM9000ELQFP100 1 U9 6 USB TO IDE Bridge Controller PL-2507ATQFP641U36 7 AUDIO CODEC WF872814SOIC1U6 8 DUAL FET OPERATIONAL AMPLIFIERSMS6308SO81U3 9USB POWER S/WG525A2SO82U20 U68 10USB POWER S/WG525A1SO11U66 10Highperformance EPLDEPM3032A-10TQFP441U17 11 RESET ICG690H263T71SOT231 U61 12 RESET ICG691L263T71SOT231U62 13N channel Power FETAF2301PLASOT23-5 1Q17 14 DUAL SILICON SWTICHING DIODEBAV99 LT1SOT234D4 D5 D6 D7 15 COMPLEMENTARY TRANSISTOR(NPN)MMBT3904SOT237 Q1 Q4 Q10 Q11 Q12 Q13 Q14 16 COMPLEMENTARY TRANSISTOR(PNP)MMBT3906SOT235 Q5 Q8 Q9 Q15 Q16 17 SINGLE 100BASE-T TRANS HS2213SOP161U1 18OR GATE ( TTL )74LCX32SOP141U21 19NOT GATESN74LVC1G04DBVRSOT23-5 2U23 U29 20AND GATESN74LVC1G08DBVRSOT23-5 1U59 211A POSITIVE LDO L1117L-ADJ / AME1117_ACGT SOT2231U10 221A POSITIVE LDO L1117L-3.3 / AME1117_CCGT SOT2232U7 U58 24 OPTICAL TRANCIVERWT5S2 ANGLE1 J5 25 RCA CONNECTOR ( 6구 )RCA-617ANGLE 1J8 26 RCA 1PIN + SVIDEORW-D02ANGLE 1J3 27 RJ45 (1PORT)YH-3047AANGLE 1J6 283Point_3.5Phy ST-3516SSMD1J2 29USB CONNECTORUSB B R/ADIP1CN1 30POWER JACK-4PINDIN-422ANGLE 1CON2 31 HEADER ( 2 X 5 ) 2.54mm (SERIAL)STRAIGHT 1J9 32H.D.D (1X4) connector3.96 Pitch 60mmSTRAIGHT 1CON3 33 FPC connector ( 10 pin ) STRAIGHT 2J4 J11 34FLAT CABLE (2X20)_2.54mm 40pin FEMAIL TO MAIL BOARD IN TYPE DIP1U44 35 CRYSTAL 12MHz ( 18 ppm )SMD HARF 1Y1 36 CRYSTAL 25MHz ( 18 ppm )SMD HARF 1Y2 37 CRYSTAL 27MHz ( 18 ppm )SMD HARF 1Y3 380 ohm 1/16W 5% 0603 50V SMDRESISTOR SMD5L8 R8 R43 R84 R167 39 22 ohm 1/16W 5% 0603 50V SMDRESISTOR SMD1R82 40 33 ohm 1/16W 5% 0603 50V SMDRESISTOR SMD6 R112 R162 R163 R164 R165 41 39 ohm 1/16W 1% 0603 50V SMDRESISTOR SMD2R57 R58 42 47 ohm 1/16W 5% 0603 50V SMDRESISTOR SMD3R2 R22 R97 43 49.9 ohm 1/16W 1% 0603 50V SMDRESISTOR SMD5 R24 R25 R26 R27 R89 MG35 DIVX PLAYER PartList 일자 : 2005년 02월 02일 현재 44 75 ohm 1/16W 1% 0603 50V SMDRESISTOR SMD14 R1 R5 R11 R12 R13 R14 R15 R16 R17 R18 R65 R70 R71 R87 45 100 ohm 1/16W 1% 0603 50V SMDRESISTOR SMD1R86 46 120 ohm 1/16W 5% 0603 50V SMDRESISTOR SMD3R4 R61 R106 47 220 ohm 1/16W 5% 0603 50V SMDRESISTOR SMD3R3 R175 R176 48 390 ohm 1/16W 5% 0603 50V SMDRESISTOR SMD1R10 49 1K ohm 1/16W 5% 0603 50V SMDRESISTOR SMD18 R9 R19 R23 R46 R50 R51 R52 R53 R54 R55 R56 R62 R63 R72 R75 R109 R111 R149 50 1.5K ohm 1/16W 5% 0603 50V SMDRESISTOR SMD1R85 51 4.7K ohm 1/16W 5% 0603 50V SMDRESISTOR SMD2 R93 R146 52 4.99K ohm 1/16W 1% 0603 50V SMDRESISTOR SMD2R6 R60 53 6.8K ohm 1/16W 1% 0603 50V SMDRESISTOR SMD1R59 9.1K ohm 1/16W 1% 0603 50V SMDRESISTOR SMD2R172 R173 54 10K ohm 1/16W 5% 0603 50V SMDRESISTOR SMD60 R7 R20 R33 R34 R35 R36 R37 R39 R40 R42 R45 R48 R49 R64 R66 R67 R68 R69 R73 R78 R80 R81 R88 R94 R95 R96 R98 R99 R100 R101 R102 R103 R104 R105 R107 R108 R110 R113 R119 R120 R121 R122 R123 R124 R125 55 12.1K ohm 1/16W 5% 0603 50V SMDRESISTOR SMD1R77 47K ohm 1/16W 5% 0603 50V SMDRESISTOR SMD2R21 R159 56 1M ohm 1/16W 5% 0603 50V SMDRESISTOR SMD2R74 R114 57 33 ohm 1/16W 5% 0603 50V ARRAY ARRAY RESISTORSMD4AR5 AR6 AR7 AR8 58 18pF 1/16W 5% 0603 50V SMDELEC CAPACITORSMD6 C56 C57 C63 C64 C99 C100 59 22pF 1/16W 5% 0603 50V SMDELEC CAPACITORSMD12 C5 C6 C7 C8 C9 C10 C18 C30 C31 C39 C42 C43 60 47pF 1/16W 5% 0603 51V SMDELEC CAPACITORSMD5 C16 C38 C40 C41 C44 61 68pF 1/16W 5% 0603 50V SMDELEC CAPACITORSMD2C74 C76 62 330pF 1/16W 5% 0603 50V SMDELEC CAPACITORSMD1C20 63 390pF 1/16W 5% 0603 51V SMDELEC CAPACITORSMD2C226 C233 64 0.01uF 1/16W 5% 0603 49V SMDELEC CAPACITORSMD2C72 C73 65 0.1uF 1/16W 5% 0603 50V SMDELEC CAPACITORSMD85 C1 C2 C13 C14 C15 C23 C24 C25 C27 C33 C34 C35 C36 C45 C47 C49 C50 C51 C52 C54 C55 C58 C59 C60 C61 C67 C69 C71 C75 C79 C80 C82 C83 C85 C86 C87 C89 C90 C93 C97 C98 C102 C105 C106 C110 C115 C116 C122 C124 C125 C127 C128 C129 C130 C131 C132 C133 C136 C137 C141 C142 C143 C144 C145 C148 66 1uF 1/16W 5% 0603 50V SMDELEC CAPACITORSMD11 C29 C32 C62 C77 C78 C81 C91 C126 C135 C139 671000pF/2KV SERAMIC CAPACITORDIP1C11 6810uF/16V ALUMIUM CAPSMD (4mm)10 C37 C48 C95 C96 C101 C138 C225 C228 C231 69100uF/16VALUMIUM CAPSMD (6.3mm )11 C3 C4 C12 C22 C46 C68 C70 C88 C92 C94 C167 70100uF/25VALUMIUM CAPSMD (6.3mm )5 C17 C21 C53 C84 C134 720.47uH/100mACHIP INDUCTORSMD5 L15 L17 L18 L19 L20 731.8uH/100mACHIP INDUCTORSMD1L22 744.7uH/500mACHIP INDUCTORSMD1L28 7575 ohm 0804 ( 3A )DIP BEADDIP5L1 L2 L24 L29 L35 76600ohm 0805 SMDCHIP BEADSMD17 L3 L4 L5 L9 L10 L11 L12 L13 L14 L16 L25 L26 L27 L36 L41 L42 L43 77P.C.B ( 85mmX 170mm)1 보드 단가 FRONT KEY B/D 1MICOM ( 6MHz 20 Port )S3C945220SOP1U1 2SMD LED 3216 (BLUE) LANS TypeSMD4D2 D5 D6 D7 3SMD TACT S/W (160g, 3.1mm)SMD8 U4 U5 U6 U7 U8 U9 U10 U11 4 FPC connector ( 10 pin ) SMD(ANGLE) 1U2 5 FPC cable ( 10 pin ) 60mm 1 6CRYSTAL 6MHz (18 ppm)SMD HARF 1Y3 7 COMPLEMENTARY TRANSISTOR(NPN)CMPD3904SOT-223 1Q1 8 120 ohm 1/16W 5% 0603 50V SMDSMD4R1 R11 R12 R16 91K ohm 1/16W 5% 0603 50V SMDSMD10 R3 R10 R18 R22 R23 R24 R25 R26 R27 R28 10 10K ohm 1/16W 5% 0603 50V SMDSMD11 R2 R4 R5 R6 R7 R8 R9 R13 R14 R15 R17 11 18pF 0603 SMDSMD2C199 C200 12 1uF 0604 SMDSMD3C2 C4 C85 13100uF/16V (6.3mm)SMD2C1 C84 14P.C.B ( 320mmX40mm, 단면 )1 보드 단가 FRONT LED B/D 1LED DIP ROUND (2.5x2.5)TypeRED DIP1D1 2LED DIP ROUND (2.5x2.5)TypeEMBO(Yellow_Green) DIP1D4 3LED DIP ROUND (2.5x2.5)Type GREENDIP1D3 4REMOCON RECEVIERSRM-444HF DIP (ANGLE) 1 U13 5 120 ohm 1/16W 5% 0603 50V SMDSMD3 R2 R3 R6 6100uF/16V (6.3mm)SMD1 C27 7 FPC connector ( 10 pin ) SMD1J2 8 FPC cable ( 10 pin ) 60mmANGLE1 9P.C.B ( 20mmX30mm)FR-21 보드 단가 기구 부품 + 포장자재 + 임가공비 + 악세서리 1TOP COVER ( 기구보조물 포함 )1 2BOTTOM COVER1 3H.D.D BORAKET1 4FRONT PANNEL1 5방향 BOTTON1 6ENTER BOTTON1 7POWER BOTTON1 8IR WINDOW1 9HDD 고정 스폰지1 10본체 조립 SCREW 3 11각종 SCREW ( 3 X 8 )black으로15 12GIFT BOX ( 속지 포함 )1 13 P.E FORM (본체 비닐포함 )1 14CARTOON BOX0.2 15DRIVER CD1 16 5V+12V ad…

Text truncated - open the document above for the full version.

E E M M I I T T E E S S T T R R E E P P O O R R T T FCC EVALUATION REPORT FOR CERTIFICATION KOREA Standard Technology Test report No.: KST-FCC0503 Applicant’s Name : AL Tech, Inc. Applicant’s Address : 1F, Haesung Bldg., 747-2, Yoksam-Dong, Kangnam-Gu, Seoul, Korea, 153-080 Manufacturer’s Name : AL Tech, Inc. Manufacturer’s Address : 1F, Haesung Bldg., 747-2, Yoksam-Dong, Kangnam-Gu, Seoul, Korea, 153-080 EUT’s: FCC ID : PM8-MG35HDD0127 Product Name : MPEG4 Player Model Number(s) : MG-35 Product Options : N/A Category : FCC Part 15 subpart B Class B Computing Digital Device Supplementary Information The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with measurement procedures specified in ANSI C63.4-2001 . I attest to the accuracy of data and all measurements reported herein were performed by or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test Date : January 27, 2005 Issued Date : January 29 , 2005 Te s t e d b y : Approved by: Chung, Suck-JinLee, Weon-Woo E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 2of 20 Jan 29, 2005 Contents 1. Description of Device 2. Test Facility 3. MAP 4. Test system configuration 5. Description of E.U.T. 6. Summary of test results. 7. Test results. 8. Photographs. Appendix. Schematics Specifications. E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 3of 20 Jan 29, 2005 1. Description of Device 1) Kind of equipment: Portable MPEG4 Player 2) FCC ID: PM8-MG35HDD0127 3) Model Name: MG-35 4) Serial No.: None 5) Type of Sample Tested: Pre-production 6) High Frequency Used: 27.000 MHz / 25.000 MHz 12.000 MHz 7) Adapter Model name: UEA325D-0512 Manufacturer: XIMETA TECHNOLOGY Serial no: 411-0435995 8) Power Rating: 1phase AC100-240 V, 50/60 Hz 0.7 A Output: DC 12 V, 1.5 A, 9) Tested Power supply: 1phase AC120 V, 60 Hz 10) Date of Manufacture: December , 2005 11) Manufacture: AL Tech Inc. 12) Description of Operating: Scroll All “H” Character Resolution 1024*768 Vertical Frequency: 75Hz 13) Dates of Test: January 27, 2005 14) Place of Tests: Korea Standard Technology EMC site 15) Test Report No: KST-FCC0503 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 4of 20 Jan 29, 2005 2. Test Facility The open field test site and conducted measurement facility are used for these testing, where are located following address and drawing. This site was fully described in a report dated November 14, 2002, that was submitted to the FCC. Korea Standard Technology ( KOSTEC Co., Ltd) : Head office & Test Lab :180-254, Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Korea Telephone Number : 82-31-222-4251 Facsimile Number: 82-31-222-4252 MIC(Ministry of Information and Communication) Number: KR0042 FCC Filing Number. : 525762 VCCI Membership Number : 2005 VCCI Registration Number : R-1657 / C-1763 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 5of 20 Jan 29, 2005 3. Route Map of Measurement Facility Korea Hwasung-shi (open area test site) KOSTEC Co., Ltd E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 6of 20 Jan 29, 2005 4. Test System Configuration Operation Environment Ambient Temperature ( °C ) Humidity ( % ) Pressure ( hPa ) 10 m Open Area site 3.5 30 1022 Shielded room: 18.5 37 1022 Test site These testing were performed following locations ; Shielded room : Conducted Emission, 10 m Open Area Site: Radiated Emission Measurement Uncertainty All measurements involve certain levels of uncertainties, especially in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna frequency interpolation, measurement distance variation, site imperfection, mismatch, and system repeatability. Based on NIS 80,81, The measurement uncertainty level with a 95% confidence level were applied. sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows: FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30 dB, LISN Factor 1 dB, CL 1 dB The result (MR) is 30 + 1 + 1 = 32 dBuV E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 7of 20 Jan 29, 2005 5. Description of E.U.T. Product Description Manufactured By: AL Tech Inc. Address: 1F, Haesung Bldg., 747-2, Yoksam-Dong, Kangnam-Gu, Seoul, Korea, 153-080 Model: MG-35 Serial Number: None Configuration of EUT Description Manufacturer Model / Part # Serial Number HDD Western Digital WD800 WCAJ92208908 Main Board AL Tech Inc. None None LED Contro…

Text truncated - open the document above for the full version.

E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 8of 20 Jan 29, 2005 Peripherals No Description Manufacturer Model / Part # Serial Number 1 Personal Computer HP HP Pabilion T212kKRJ32101BH 2 MONITOR Samsung Electrinics PN17LT P225HVBT600318 3 AC/DC Adapter XIMETA TECHNOLOGY UEA325D-0512 411-0435995 4 MPEG4 Player AL Tech Inc. MG-35 None 5 Keyboard HP 5219 BN31719954 6 Mouse HP M042K0 30205141 7 Remote control AL Tech Inc. None None 8 Printer HP C2644A SG55M1BORN 9 AC/DC Adapter HP YK-30083K None E.U.T Test Configuration (example) 6. Summary of test results Modification to the E.U.T. - None Result : - PASS 83 2 7 6 4 1 5 9 E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 12of 20 Jan 29, 2005 8.PHOTOGRAPHS Conducted emission ( Front ) Conducted emission ( Rear ) E E M M I I T T E E S S T T R R E E P P O O R R T T Report reference No: KST-FCC0503 KOSTEC Co.,Ltd. 180-254,Annyung-Ri, Taean-Yup, Hwasung-shi, Kyunggi-do, Kore0 Tel : +82-31-222-4251 Fax: +82-31-222-4252 http://www.kosteclab.com Page : 13of 20 Jan 29, 2005 Radiated Emission ( Front ) Radiated Emission ( Rear )
