PN7MVS-500Digital Video Station

User’s Manual Model : MVS-500 Macro Image Technology,inc Safety Instructions Information on digital Television Digital Television Digital Broadcasting and Cable TV Receiving Digital Broadcasts Digital Picture Formats Digital Audio Information on the Set Top Box ProHD Digital Set Top Box Model MDR-500 DTV-Compatible Monitor/Receiver Compatibility Congratulations Important Notes STB Location Connecting Cables AC Power Supply Cord Antenna Installation and Orientation Antenna/Cable Connection Front and Rear View of MDR-500 Front Panel Rear Panel Features of the ProHD STB Channel and Program Tuning Channel Banner ATSC Display Formats Display Format Selection Aspect Ratio Selection Dolby Digital (AC-3) Audio Getting Started Step 1. Connect AC Power Cord Step 2. STB Connection to DTV-Compatible TV Table of Contents Macro Image Technology,inc Step 2a. STB Connection to Conventional TV Step 3. Antenna/Cable Connection Step 3a. Digital TV Reception with DTV-Compatible TV Step 3b. Digital TV Reception with Conventional TV Step 3c. Digital TV/Cable Reception with DTV-Compatible TV Step 3d. Digital TV/Cable Reception with Conventional TV Step 3e. Digital 8 VSB Cable/Analog Cable Reception with DTV-Compatible TV Step 3f. Digital 8 VSB Cable/Analog Cable Reception with Conventional TV Step 4. Turning STB On Step 5. Menu Guide Step 5a. ACTION/Navigation Button Step 6. TV/Cable Mode Step 7. Programming Available Channels Optional Connections STB Connection to Dolby Digital AC-3 Decoder Audio Set Up Guide Remote Control Guide Remote Controller Remote Controller Functional Key Chart Battery Installation and Precautions Menu Guide Roller Guide Feature Chart Special Features Macro Image Technology,inc 2 Safety Instructions For High Definition Television Decoder 1. Read and apply the operating instructions provided with your High Definition Television Decoder. 2. Read all of the instructions given here and retain them for later use. 3. Unplug this High Definition Television Decoder from the wall outlet before cleaning. Do not use liquid of aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use attachments not recommended by the High Definition Television Decoder manufacturer as they may cause hazards. 5. Do not use this High Definition Television Decoder near water. For example: Avoid placing it near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. 6. Do not place this High Definition Television on an unstable cart, stand, or table. The High Definition Television Decoder may fall, causing serious injury to a child or adult and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the High Definition Television Decoder. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturer. 6a. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the High Definition Television Decoder and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the High Definition Television Decoder on a bed, sofa, rug or other similar surface. This High Definition Television Decoder should never be placed near or over a radiator or heat register. This High Definition Television Decoder should not be placed-in installation such as a bookcase unless Safety Instructions Macro Image Technology,inc 3 proper ventilation is provided. 8. Operate only form the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home consult your television dealer or local power company. For High Definition Television Decoders designed to operate from battery power, refer to the operating instructions. 9. This High Definition Television Decoder is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safe purpose of the polarized plug. 10.Do not allow anything to rest on the power cord. Do not locate this High Definition Television Decoder where the cord will be abused by persons walking on it. 11.Follow all warnings and instructions marked on the High Definition Television Decoder. 12.Do not overload wall outlets and extension cords as this can result in fire or electric shock. 13.Never push objects of any kind in to this High Definition Television Decoder through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the High Definition Television Decoder. 14.If an outside antenna is connected to the decoder equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. In the U.S Section 810 of the National Electrical Code, ANSI/NFPA 70, and in Canada Part 1 of the Canadian Electrical code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure. 15.For added protection for this High Definition Television Decoder during a lightning storm, of when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent d…

Text truncated - open the document above for the full version.

Appendix F. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : PN7MVS-500 Report No:E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Appendix Certification Information FCC Part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation FCC Part 15.105 Note: This equipment has been tested and found to comply with the limit for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential Installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. If this equipment does cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. IF this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experience radio TV technician for help FCC Part 15.21 Change or modification not expressly approved by the party responsible for Compliance could void the user’s authority to operate the equipment

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : PN7MVS-500 Report No:E02.1217.FCC.859N Date of Test : December 17, 2002 WOOSIM SYSTEM Inc. Thermal Printer Model : PORTI-W25 Macro Image Technology, Inc. Digital Video Station Model : MVS-500

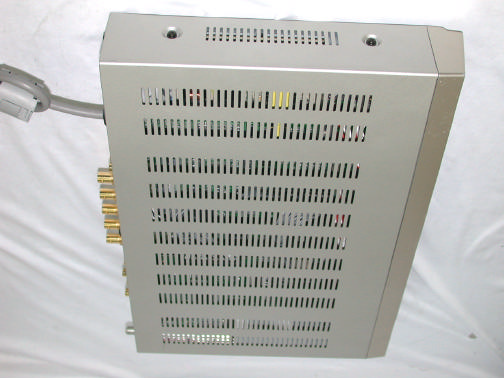

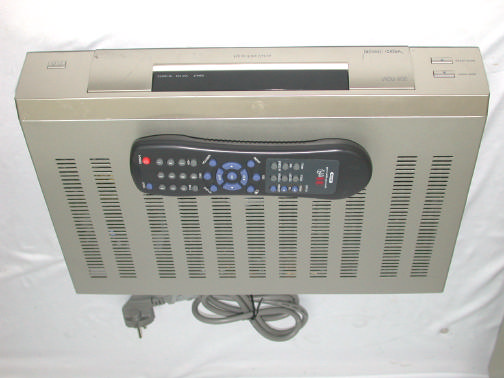

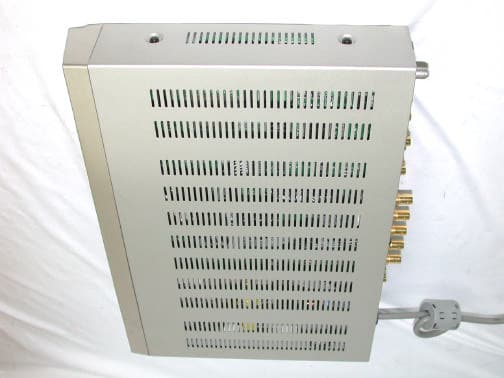

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 2 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Front side View of EUT Rear side View of EUT Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 2 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Left side View of EUT Right side View of EUT

Appendix A. FCC Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : PN7MVS-500 Report No:E02.1217.FCC.859N Date of Test : December 17, 2002 WOOSIM SYSTEM Inc. Thermal Printer Model : PORTI-W25 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 We Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC Identifier (FCC ID : PN7MVS-500) and compliance statement are marked in the product label. Product: Digital Video Station FCC ID : PN7MVS-500 Model NO : MVS-500 POWER : 100V~250V AC, 47Hz~63Hz Serial No : N/A This device complies with part 15 of the FCC Rules. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label Here

Appendix A. FCC Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : PN7MVS-500 Report No:E02.1217.FCC.859N Date of Test : December 17, 2002 WOOSIM SYSTEM Inc. Thermal Printer Model : PORTI-W25 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 We Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC Identifier (FCC ID : PN7MVS-500) and compliance statement are marked in the product label. Product: Digital Video Station FCC ID : PN7MVS-500 Model NO : MVS-500 POWER : 100V~250V AC, 47Hz~63Hz Serial No : N/A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received including inference that may cause undesired operation. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label Here

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 4 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Issue : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Inside View of EUT Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 4 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Issue : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Solder side View of Main board Component side View of Main board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 4 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Issue : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Solder side View of Power board Component side View of Power board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 4 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Issue : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Solder side View of Sub board Component side View of Sub board

ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 17 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 2.1 Equipment Description The Equipment Under Test(EUT) is the Macro Image Technology, Inc. M/N:MVS-500 Please refer to Users manual 2.2 General Specification l Antenna Input : Input Frequency : 54MHz ~ 860MHz (VSB) : Antenna Impedance : 75Ohms : ConnectornType : IEC 169-2, Female, F type (VSB) : Symbol Rate : 10.76 MS/s (VSB) l Demultiplexer : Stream Format : MPEG-2 Transport Stream : Data Rates : up to 40 Mbps : PID : Controls up to 32 PID l Video : Algorithm : HDTV : MPEG-2 Main Profile @ High Level SDTV : MPEG-2 Main Profile @ Main Level : Decoding Format : All of ATSC Digital TV Standards : Display Format : HD : 1920*1080P, 1920*1080i, 1280*720P etc. SD : 720*480P, 720*480i l Audio : Mode : Dolby AC-3, Dolby Pro Logic : Sampling Rate : 32, 44.1, and 48kHz : Frequency Response : 20Hz~20KHz, <+/-2 Db, 60Hz~18KHz, <+/-0.5 dB l A/V Input : Video Input Signal : Composite(480i), S-video(480i), Component(480i), VGA (up to 1024*768P 60Hz), Component(DTV : 480p, 720p, 1080i) : Video Connector : 1*RCA(composite), Mini-Din(S-video), 3*RCA (component: 480i), DSUB-15(VGA), 3*RCA(component: DTV) : Audio Input Signal : Analog 2 channels(L,R) 4 Input(composite/s-video, component(480i),DSUB-15, component(DTV) : Audio Connector : 2*RCA l A/V Output Video Output Signal : Analog : RGB(1 Vpp with 75 Ohms), YpbPr(2 Vpp with 75 Ohms) Digital : DVI-D(TMDS) ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 6 of 17 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Video Format : Analog : 480i, 480p, 720p, 768p, 1024p, 1080i, 1080p Digital : 480p, 720p, 768p, 1024p, 1080i, 1080p Video Connector : 5*BNC(Y/G,Pb/B,Pr/R,H,V), DSUB-15(RGBHV), DVI-D Video Sync : 5*BNC(Tri/Bi-level sync on Y separate H & V) Audio Output Signal : Analog : 2 channels (L,R) Digital : S/PDIF (5.1-Ch. Dolby AC-3 or 2-Ch. PCM) Audio Connector : Analog : 2*RCA, Digital : Optical : Optical and Coaxial(1*RCA) l Function Free-to Air : Yes, Multi-Lingual : Yes, Screen Size : 16:9 / 4:3 On Screen Display : Yes, Channel Memory : Max.1,024 Firmware Download : RS232-C Port lMemory Flash Memory : 4Mbytes, DRAM : 8Mbytes, EEPROM : 32Kbytes Frame Buffe Memory : 16Mbytes lPower Power : 100V~250V AC, 47Hz~63Hz Power Consumption : 34W Standby Power : <5W Consumption Protection : Separate internal fuse lEnvironmental Operating Temperature : 0 ~ +45 Condition Storage Temperature : -10 ~ +50 Operating Humidity : 10% ~ 85% RH Non condensed Storage Humidity : 5% ~ 90% RH Non condensed Weight : 3.6Kg Dimension : 380mm * 275mm * 65mm

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT Certification OF COMPLIANCE FCC Part 15 Certification Measurement This Digital Video Station, Model MVS-500 has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been show to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part 15, Computer peripheral Devices. I attest to the accuracy of data. All measurement herein are performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product / system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Yo Han, Park Title : Chief Engineer & Lab.Manager E-RAE Testing Laboratory Inc. #584 Sangwhal-ri, Kanam-myon, Youju-kun, 469-885 Kyounggi-do, Korea PRODUCT : Digital Video Station MODEL/TYPE NO : MVS-500 FCC ID : PN7MVS-500 APPLICANT : Macro Image Technology, Inc. East Bldg., 6 th Floor, IT Venture Tower, 78 Garakbon-Dong Songpa-Gu, Seoul, Korea 138-803 Attn. : Jae-Won, Lee / Engineer FCC CLASSIFICATION : FCC Part 15 Subpart B FCC RULE PART(S) : Part 15 Class B Computing Device Peripheral (JBP) FCC PROCEDURE : Certification TRADE NAME : Macro Image Technology, Inc. TEST REPORT No. : E02.1217.FCC.859N DATES OF TEST : December 13~16, 2002 DATES OF ISSUE : December 17, 2002 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myun, Youju-kun, 469-885 Kyounggi-do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 17 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Table of Contents ATTACHMENT A: COVER LETTER (S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Appendix G. Schematics ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 17 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission (FCC) General Information l EUT Type : Digital Video Station l Model Number : MVS-500 l FCC Identifier : PN7MVS-500 l S/N : NONE l Modulation : NONE l FCC Rule Part(s) : FCC Part 15 Subpart B l Test Procedure : ANSI C63.4-1992 l FCC Classification : Part 15 Class B Computing Device Peripheral (JBP) l Dates of Tests : December 17, 2002 l Place of Tests : ETL Inc l EMC Testing Lab (FCC Registration Number : 95422) l 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, 469-885 l Kyounggi-Do, Korea l Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E02.1217.FCC.859N Applicant Name : Macro Image Technology, Inc. Address : East Bldg., 6 th Floor, IT Venture Tower, 78 Garakbon-Dong, Songpa–Gu, Seoul, Korea 138-803 Attention : Jae-Won, Lee / Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 17 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 22. The ETL has site descriptions on file with the FCC for 3 and 10 meters site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission (Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the Model : MVS-500 ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 17 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Test : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 2.1 Equipment Description The Equipment Under Test(EUT) is the Macro Image Technology, Inc. M/N:MVS-500 Please refer to Users manual 2.2 General Specification l Antenna Input : Input Frequency : 54MHz ~ 860MHz (VSB) : Antenna Impedance : 75Ohms : ConnectornType : IEC 169-2, Female, F type (VSB) : Symbol Rate : 10.76 MS/s (VSB) l Demultiplexer : Stream Format : MPEG-2 Transport Stream : Data Rates : up to 40 Mbps : PID : Controls up to 32 PID l Video : Algorithm : HDTV : MPEG-2 Main Profile @ High Level SDTV : MPEG-2 Main Profile @ Main Level : Decoding Format : All of ATSC Digital…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 2 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Issue : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 2 FCC ID : PN7MVS-500 Report No: E02.1217.FCC.859N Date of Issue : December 17, 2002 Macro Image Technology, Inc. Digital Video Station Model : MVS-500 Conducted Emission Test Setup
