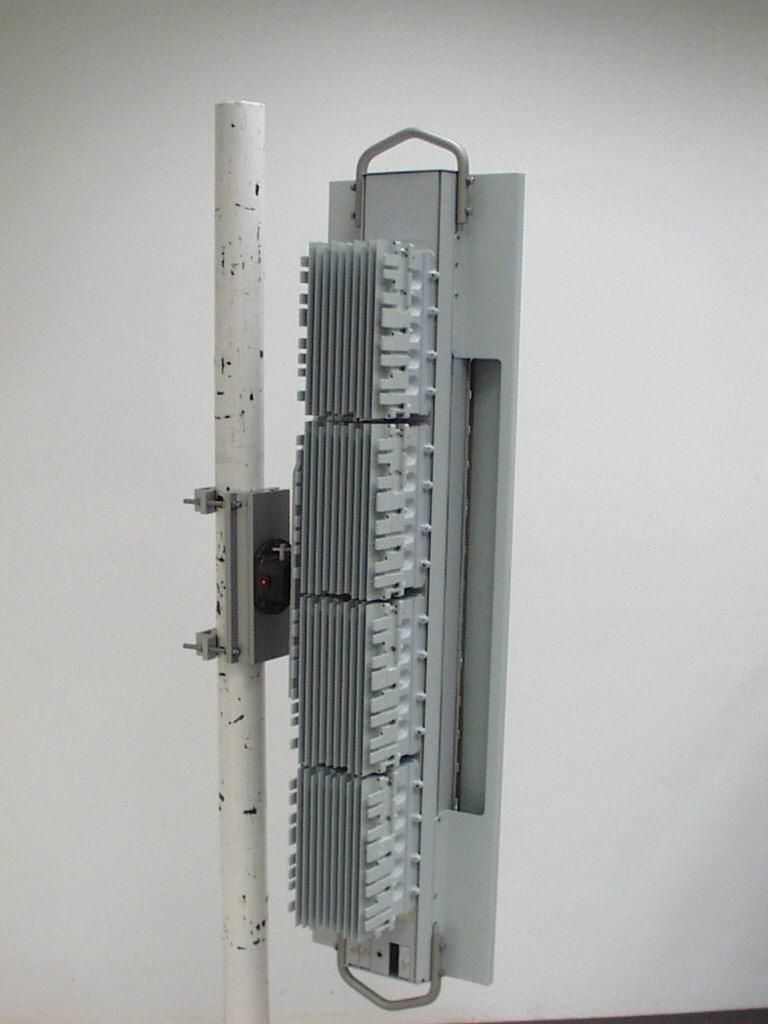

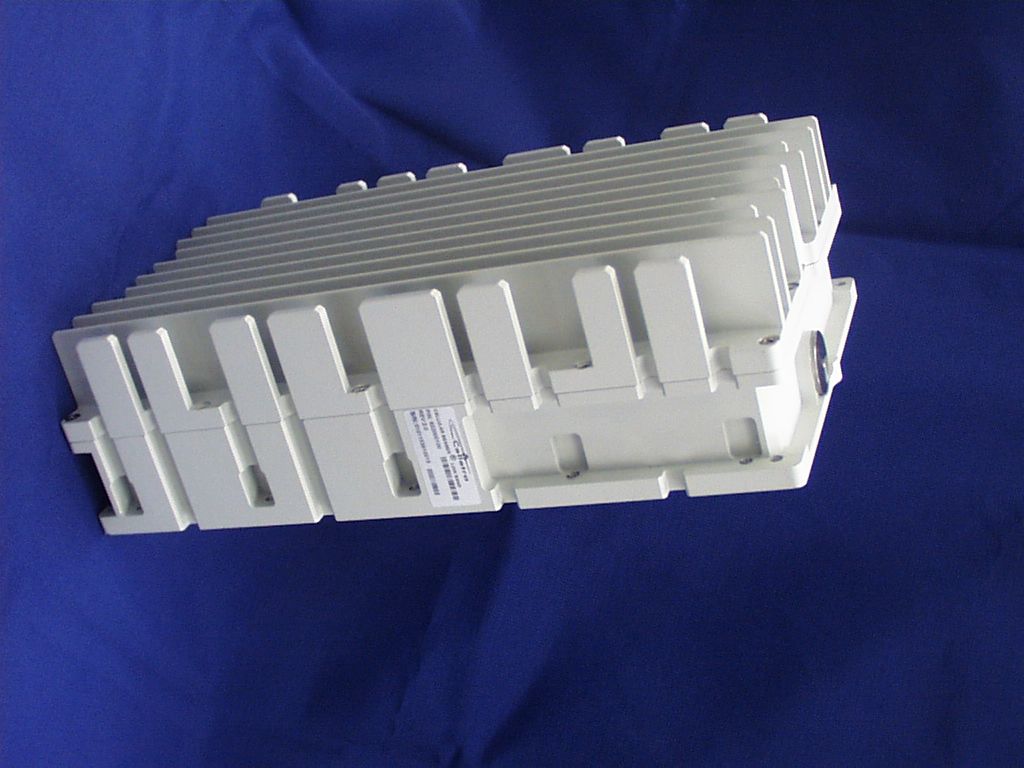

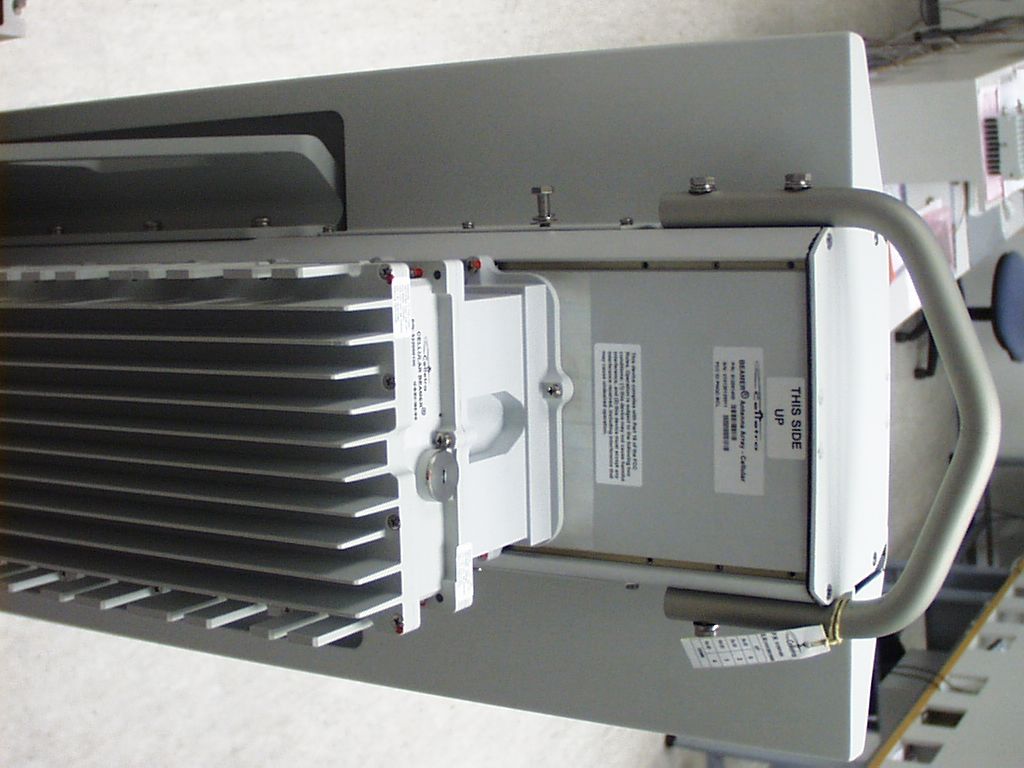

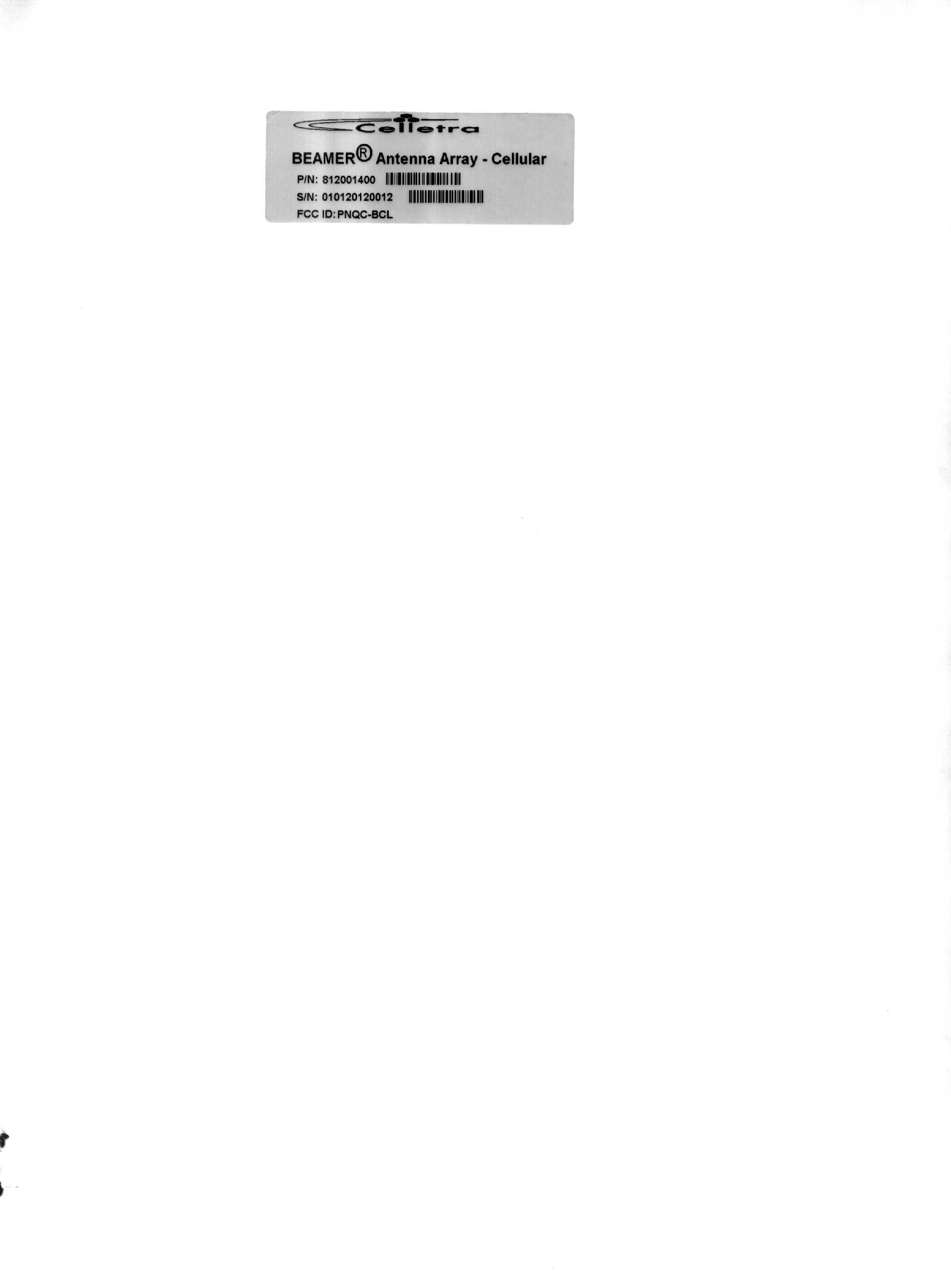

PNQC-BCLCellular Multi-Channel Amplifier Antenna

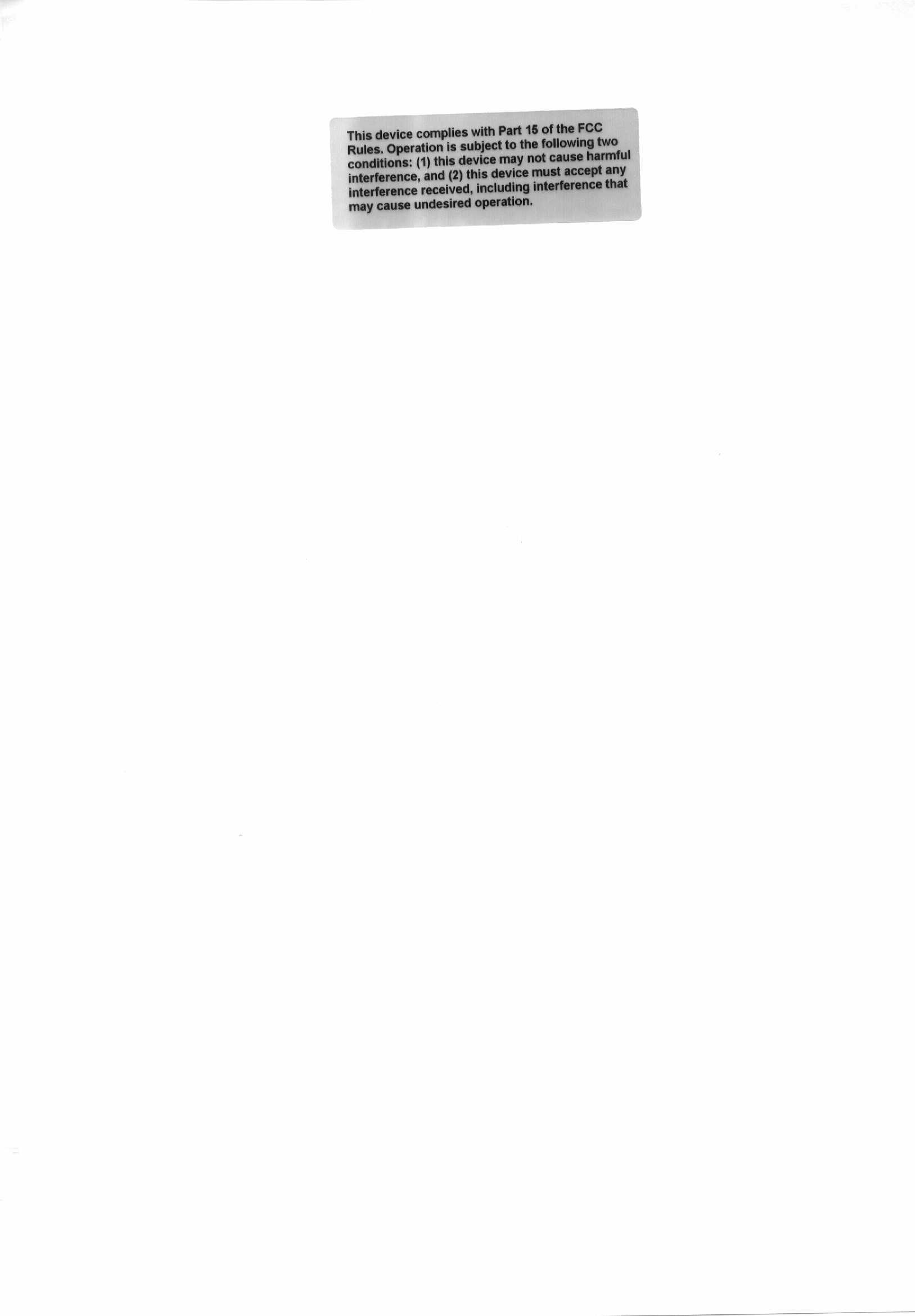

Cellular Transmission Solutions P.O. Box 106, Tavor building 1, Yoqne'am Ilit 20692, ISRAEL Tel. + 972 4 9592522 Fax. + 972 4 9592523 E-mail: [email protected] BEAMER ® SYSTEM Pol BEAMER ® Cellular (2.0) Array System including Interface and Control Unit (ICU) Assembly & Operation Manual No. 91300100 Rev.2.0 NameDateSignature Written By N. David24-10-01 Checked Y.Gazit25-10-01 Approved M. Shalom Cellular Transmission Solutions P.O. Box 106, Tavor building 1, Yoqne'am Ilit 20692, ISRAEL Tel. + 972 4 9592522 Fax. + 972 4 9592523 E-mail: [email protected] Confidential, Proprietary Information Title: PolBEAMER Cellular (2.0) Array System-Doc. No.:Rev.: 2.0 Page: 2 of 86 FCC Part 15A Compliance Statement This device complies with part 15 of the FCC rule. Operation is subject to the following two conditions: (1) this device may not cause harmful interference , and (2) this device must accept any interference received , including interference that may cause undesired operation Caution Changes or Modifications not expressly approved by Celletra Ltd. could void the user’s authority to operate the equipment” NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate Radio Frequency energy and, if not installed and used in accordance with the instructions manual, may cause harmful interference to radio communication. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Cellular Transmission Solutions P.O. Box 106, Tavor building 1, Yoqne'am Ilit 20692, ISRAEL Tel. + 972 4 9592522 Fax. + 972 4 9592523 E-mail: [email protected] Confidential, Proprietary Information Title: PolBEAMER Cellular (2.0) Array System-Doc. No.:Rev.: 2.0 Page: 3 of 86 PROPRIETARY NOTICE ALL DATA AND INFORMATION CONTAINED IN OR DISCLOSED BY THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY INFORMATION OF CELLETRA LTD AND ALL RIGHTS THEREIN ARE EXPRESSLY RESERVED. BY ACCEPTING THIS MATERIAL, THE RECIPIENT AGREES THAT THIS MATERIAL AND THE INFORMATION CONTAINED THEREIN IS HELD IN CONFIDENCE AND IN TRUST AND WILL NOT BE USED, COPIED, REPRODUCED IN WHOLE OR IN PART. NOR ITS CONTENTS REVEALED IN ANY MANNER TO OTHERS, WITHOUT THE EXPLICIT WRITTEN PERMISSION OF CELLETRA LTD. RevisionDescriptionDate 2.0ReleaseOct, 2001 Changes are periodically made to the information contained in this manual. These changes are published in the "software/hardware release notes", and will be incorporated into new editions. All rights are reserved. No parts of this manual may be reproduced in any form, without permission in writing from Celletra Ltd. Copyright © 1999, 2000 Celletra Ltd. BEAMER® is a trademark of Celletra Ltd. Celletra Ltd. reserves the right to change specifications without notice. Confidential, Proprietary Information Title: PolBEAMER Cellular (2.0) Array System- Doc. No.:Rev.: 2.0 Page: 4 of 86 CONTENTS FIGURES TABLES 1.INTRODUCTION ...................................................................................................................13 1.1.Acronyms and Abbreviations.................................................................................................13 1.2.BEAMER® Array System Overview......................................................................................14 1.2.1............................................................................BEAMER® Family Modular Concept 15 1.3.Overview of the Interface and Control Unit (ICU).................................................................16 1.3.1.....................................................................................Interface and Control Unit - ICU 16 1.3.2............................................................................................ICU Controller Description 17 1.3.3......................................................................................................RF Path Description 19 1.3.4...............................................................................................................Bias-T Types 20 1.4.Communication with BEAMER® and PC.............................................................................20 1.4.1.................................................................................Network Architecture and Capacity 20 1.5.Communication Procedure....................................................................................................20 1.5.1..............................................................................BEAMER® Monitoring and Control 20 1.6.DC Distribution ....................................................................................................................21 1.7.Maintainability Requirements................................................................................................22 Confidential, Proprietary Information Title: PolBEAMER Cellular (2.0) Array System- Doc. No.:Rev.: 2.0 Page: 5 of 86 2.INSTALLATION GUIDE......................................................................................................23 2.1.Applicable Documents..........................................................................................................23 2.2.Scope....................................................................................................................................23 2.3.Important Safety Precautions................................................................................................23 2.3.1..................................................................Handling and Moving the BEAMER® Array 23 2.3.2...................................................................System Measurement and Testing Conditions 24 …

Text truncated - open the document above for the full version.

Cellular Transmission Solutions P.O.Box 106, Tavor building 1 Yoqne’am Ilit 20692, ISRAEL Tel. + 972 4 9592522 Fax. + 972 4 9592523 E-mail: [email protected] 1 October 23 , 2001 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Type Acceptance – Celletra Ltd – Confidentiality Requested Model : Cellular Rev.2 1x4x4 Column Array Product Code: C-BCL FCC ID: PNQC- BCL Ladies and Gentlemen, Transmitted herewith on behalf of Celletra Ltd, is its request for confidentiality under FCC rule Section 0.459 of the Commission’s Rules, Celletra Ltd requests that certain specific technical information in the application be withheld from public inspection following grant of the application because the information contains confidential business information and/or trade secrets. These items, which are marked “CONFIDENTIAL” include: 1. Technical Description and Block Diagrams. (Exhibit 2) 2. Active circuit schematics and assembly drawings.(Exhibit 3) 3. Internal photographs of the unit. (Exhibit 6) Significant effort and resources in research, development, and product design innovation have been invested by Celletra Ltd and would be compromised if the materials for which confidentiality is requested were made available to competitors of Celletra Ltd as a result of this application. Celletra Ltd. has taken precaution measures to ensure that the customers or installers will not gain access to the Active modules internal parts. These include strict NDA agreements and Special Ceramic labels to detect any un-authorized module’s service. Accordingly, Celletra Ltd asks only that these specified items be held confidential after grant in order to maintain a fair and competitive marketplace.. If questions arise concerning this application, please contact Paul Lemson of Celletra Inc at 425-844-1210 or call me at +972-4-9593951 (e-mail: [email protected]) . Respectfully, Gideon Argaman CTO Celletra Ltd.

FCC ID: PNQC-BCL December 7, 2001 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention:Applications Examiner Applicant:Celletra Ltd. P.O. Box 106, Tavor building 1, Yoqne’am Ilit 20692, ISRAEL Equipment:CELLULAR Beamer® 1x4x4 Rev.2. Column Array FCC ID: PNQC-BCL Specification:47 CFR 22 Licensed Certification Dear Examiner: The following application for Grant of Equipment Authorization is presented on behalf of Cellular Transmission Solutions for the Licensed Certification of their Cellular Enhancer, Model: CELLULAR Beamer® 1x4x4 Rev.2. Column Array. Enclosed, please find a complete data and documentation package demonstrating that this device complies with the technical requirements of 47 CFR, Part 22, for a Cellular Enhancer. If you have any questions, please contact the undersigned, who is authorized to act as Agent. Sincerely, Chris Harvey Director, EMC Laboratory FCC ID: PNQC-BCL EMC11425- 2 -December 7, 2001 MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 ENGINEERING TEST REPORT in support of the Application for Grant of Equipment Authorization EQUIPMENT:CELLULAR Beamer® 1x4x4 Rev.2. Column Array FCC ID::PNQC-BCL Specification:47 CFR 22 On Behalf of the Applicant:Celletra Ltd. P.O. Box 106, Tavor building 1, Yoqne’am Ilit 20692, ISRAEL Manufacturer:Celletra Ltd. P.O. Box 106, Tavor building 1, Yoqne’am Ilit 20692, ISRAEL Manufacturer’s Mr. Paul Lemson Representative Test Date(s):9-16 Nov. 2001 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements. On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 22 of the FCC Rules under normal use and maintenance. _____________________________ Liming Xu Project Engineer, MET Laboratories FCC ID: PNQC-BCL EMC11425- 3 -December 7, 2001 Summary of Test Results These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 22 (H) of 47CFR. All tests were conducted using measurement procedure ANSI C63.4-1992. Type of Submission/Rule Part: Original Filing for Part 22(H) EUT:CELLULAR Beamer® 1x4x4 Rev.2. Column Array FCC ID:PNQC-BCL Type of Emissions:F9W (CDMA) Downlink power 40.5 dBm +/- 0.5dB ( 12.5 Watts max ) Frequency Range (MHz): 824-849 (conducted to BaseStation) and 869-894 (Transmit by antenna) Frequency Stability:N/A This is a multi-carrier CDMA amplifier/repeater. The Power Output listed on this Grant is the combined conducted power of the four amplifiers. For multi-channel operation, the power per channel decreases proportionally as the number of channels is increased. The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. Summary of Test Data Name of TestFCC Rule Part/SectionResults Radiated Emissions2.1053; 22.901(d); 22.917(e)Complies Occupied Bandwidth/Input vs. Output2.1049Complies RF Power Output2.1046; 22.913(a)Complies Spurious Emissions at Antenna Terminals (uplink&downlink) 2.1051; 22.917(e)Complies IMDSpur emissions 2-tone at high and low side of band (uplink & downlink) 2.1051Complies FCC ID: PNQC-BCL EMC11425- 4 -December 7, 2001 1.0INTRODUCTION The following data is presented on behalf of the Applicant, Celletra Ltd. as verification of the compliance of the Cellular Enhancer Unit, to the requirements of 47CFR 22. 2.0TEST SITE All testing was conducted at MET Laboratories, Inc., 914 West Patapsco Avenue, Baltimore, Maryland 21230-3493. Radiated emissions measurements were performed on a Semi-Anechoic Chamber. A complete site description is on file with the FCC Laboratory Division as 31040/SIT/MET. 3.0TEST EQUIPMENT USED ManufacturerEquipment Calibration DueCal. Interval Hewlett Packard8563A Spectrum Analyzer6/14/02annual EMCOBiconical Antenna 31043/21/02annual EMCOEMCO Log Periodic Antenna11/01/02annual EMCODouble Ridge Guided Horn6/3/02annual Hewlett Packard8546A Analyzer08/11/02annual Hewlett PackardE4331B Digital Signal Gen.9/29/02annal 4.0EQUIPMENT UNDER TEST CONFIGURATION The CELLULAR Beamer® 1x4x4 Rev.2. Column Array was configured with DC power supply modules, and a digital signal generator was used to simulate a CDMA type RF input signals to the EUT. The EUT with host external computer was configured for maximum signal gain and bandwidth. The EUT was operated in a manner representative of the typical usage of the equipment. During all testing, the EUT was configured for Single/Dual Channel operation which results in maximum possible output power. 5.0TEST TYPE(S) 5.1Radiated Emissions: 47CFR2.1053, 22.901(d)(2), 22.917(e) 5.2Occupied Bandwidth: 47CFR2.1049, Input vs. Output 5.3RF Power Output: 47CFR 2.1046, 22.913(a) 5.4Spurious Emission at Antenna Terminals:(uplink & downlink) 47CFR 2.1051, 22.917(e) 5.5IMDSpur Emissions 2-tone at high and low side of the band (UL and DL) 2.1051 FCC ID: PNQC-BCL EMC11425- 5 -December 7, 2001 Po&[43%10Log(Po)]'&13dBm 6.0TEST RESULTS 6.1TEST TYPE:Radiated Emissions 6.1.1TECHNICAL SPECIFICATION:2.1053, 22.901(d)(2), 22.917(e) 6.1.2TEST DATE(S):9 November 2001 6.1.3MEASUREMENT PROCEDURES: As required by 47 CFR 2.1053, measurements of the relative radiated power of spurious emissions were performed. Preliminary radiated emission measurements were performed inside a non-reflective area (not an OATS) at 3 meters. The frequency list from the preliminary measurements was used as a guide for making final measurements. The unit was scanned over the frequency range of 9 kHz to 9 GHz. The Power Limit of Radiated Spurious Emissions is calculated as follows: Based on the measu…
