MT0750 Bluetooth Single Chip RF Part Antenna Antenna MMIPower Supply Microphone/ Speaker Analog Part VCO Bluetooth Headset

From: Eva Kao [[email protected]] Sent: Friday, November 22, 2002 3:23 AM To: Mike Kuo Cc: Vincent Subject: Re: Horng Technical Enterprise Co., Ltd., FCC ID:PO9-HTC-2400EH, AN02T2412 Hi Mike, Please find the attached is revised the Radiated Emission above 1GHz test data plot. Best Regards, Eva ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "Eva Kao (E-mail)" <[email protected]> Cc: <[email protected]> Sent: Friday, November 22, 2002 4:03 AM Subject: FW: Horng Technical Enterprise Co., Ltd., FCC ID:PO9-HTC-2400EH, AN02T2412 > > > -----Original Message----- > From: CERTADM > Sent: Thursday, November 21, 2002 12:03 PM > To: '[email protected]' > Subject: Horng Technical Enterprise Co., Ltd., FCC ID:PO9-HTC-2400EH, > AN02T2412 > > > Notice_content > ------------- > Question #1: Please redo the radiated emission tests. The instrument > setting that you used for radiated emission is RBW=100kHz and VBW=300kHz > which is not acceptable. > > P.S. : there is no submission for PO9-HTC-2400ED. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

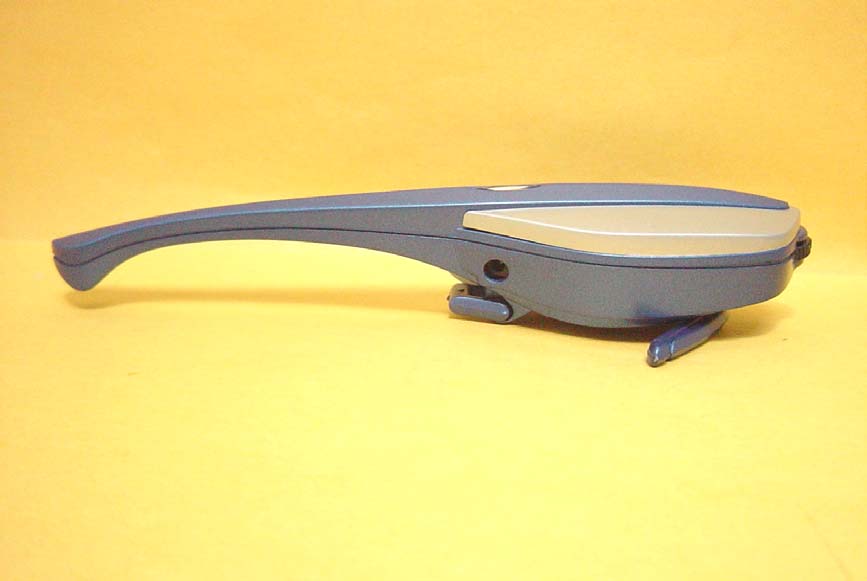

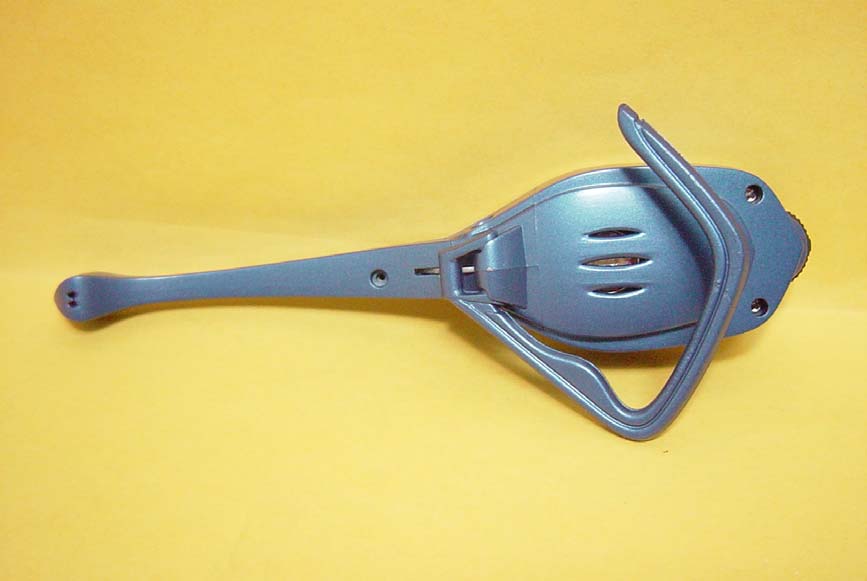

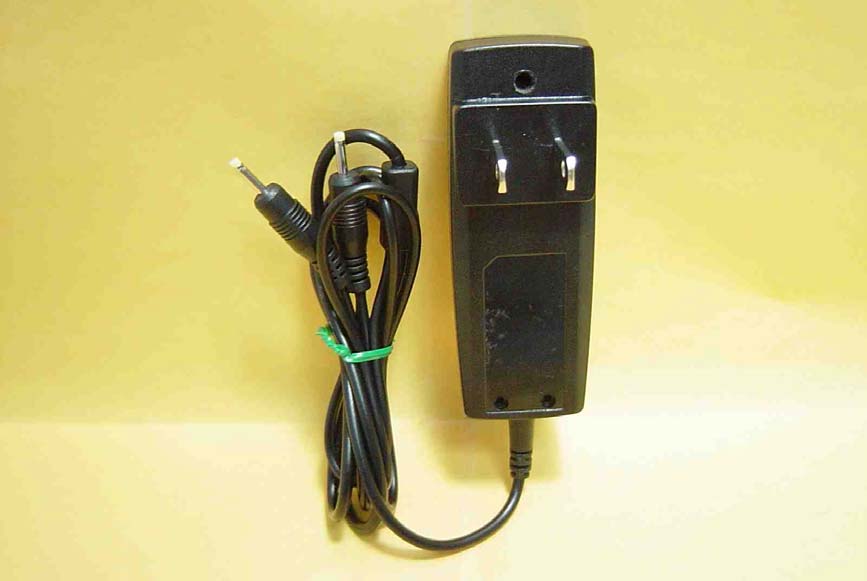

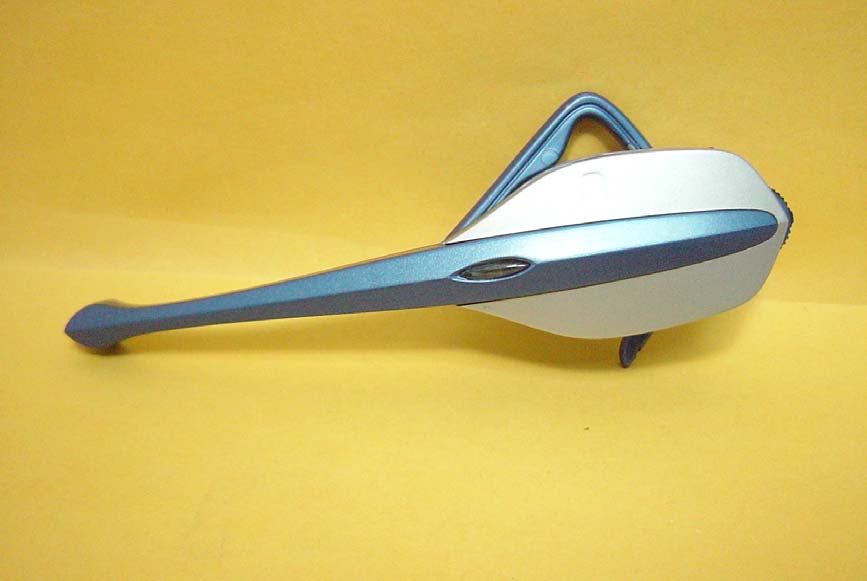

C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Front View of EUT Back View of EUT C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Top View of EUT Right View of EUT C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Top View of Power Adaptor Right View of Power Adaptor

FCC ID LABEL FORMAT AND LOCATION Applicant: Horng Technical Enterprise Co., Ltd. FCC ID: PO9-HTC-2400EH FCC ID: PO9-HTC-2400EH This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 70 Rev. 00 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 71 Rev. 00 Internal of EUT – Open Internal of EUT - Front C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 72 Rev. 00 Internal of EUT - Back

C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 1 of 63 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Bluetooth Headset MODEL No.: HTC-2400E BRAND NAME: HorngTech FCC ID: PO9-HTC-2400EH REPORT NO: 020071-RF-ID ISSUE DATE: Nov. 04, 2002 Prepared for Horng Technical Enterprise Co., Ltd. No. 1-5 Hsin-Pi, Chiu-Pi Li, Tai-Bao City, Chia-Yi Hsien, Taiwan, R.O.C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02) 8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: Horng Technical Enterprise Co., Ltd. No. 1-5 Hsin-Pi, Chiu-Pi Li, Tai-Bao City, Chia-Yi Hsien, Taiwan, R.O.C. Equipment Under Test: Bluetooth Headset BRAND NAME: HorngTech MODEL No.: HTC-2400E Serial Number: N/A File Number: 020071-RF-ID Date of test: Oct. 04 ~ Oct. 25, 2002 We hereby certify that: The above equipment was tested by C&C Laboratory Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15. The test results of this report relate only to the tested sample identified in this report. Approved By Vincent Su / RF Dept. Vice Manager C&C Laboratory Co., Ltd C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION .........................................................................................................5 1.1 Product Description ............................................................................................................................5 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................5 1.3 Test Methodology ...............................................................................................................................5 1.4 Test Facility.........................................................................................................................................5 1.5 Special Accessories .............................................................................................................................5 1.6 Equipment Modifications....................................................................................................................5 2. SYSTEM TEST CONFIGURATION ............................................................................................6 2.1 EUT Configuration .............................................................................................................................6 2.2 EUT Exercise ......................................................................................................................................6 2.3 Test Procedure.....................................................................................................................................6 2.4 Configuration of Tested System..........................................................................................................7 3. SUMMARY OF TEST RESULTS .................................................................................................9 4. DESCRIPTION OF TEST MODES ..............................................................................................9 5. CONDUCTED EMISSION TEST................................................................................................10 5.1 Standard Applicable ..........................................................................................................................10 5.2 EUT Setup.........................................................................................................................................10 5.3 Measurement Procedure....................................................................................................................10 5.4 Measurement Equipment Used: ........................................................................................................11 5.5 Measurement Result..........................................................................................................................11 6. PEAK OUTPUT POWER MEASUREMENT............................................................................14 6.1 Standard Applicable ..........................................................................................................................14 6.2 Measurement Procedure....................................................................................................................14 6.3 Measurement Result..........................................................................................................................14 6.4 Measurement Equipment Used: ........................................................................................................14 7. 20dB BAND WIDTH .....................................................................................................................16 7.1 Standard Applicable ..........................................................................................................................16 7.2 Measurement Procedure....................................................................................................................16 7.3 Measurement Result..........................................................................................................................16 7.4 Measurement Equipment Used: ..................................................................…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 37 Rev. 00 9.9 Radiated Spurious Emission Measurement Result (above 1GHz) Operation Mode: TX Mode Test Date : 10/15/2002 Fundamental Frequency: 2402MHz (CH Low) Test By: Jean Temperature : 25 °C Pol: Ver. / Hor. Humidity : 68 % Remark： (1) Measuring frequencies from 1GHz to the 10th harmonic of highest fundamental fre- quency。 (2) Datas of measurement within this frequency range shown “ - ” in the table above means the reading of emissions are attenuated more than 20dB below the permissi ble limits or the field strength is too small to be measured. (3) Radiated emissions measured in frequency above 1000MHz were made with an instru- ment using Peak detector mode and average detector mode of the emission shown in Ac- tual FS column。 (4) Spectrum Setting: 30MHz – 1000MHz , RBW= 100KHz, VBW=100KHz, Sweep time = 200 ms. 1GHz- 26GHz, RBW= 1MHz, VBW= 1MHz, Sweep time= 200 ms. (5) Analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz Peak AVActual Actual Peak LimiAV Limit Freq.Ant.PolReadingReadingCF Peak FSAV FS at 3mat 3m M argin (M H z)H /V (dBuV ) (dBuV ) (dB) (dBuV /m )(dBuV/m)(dBuV/m)(dBuV/m) (dB) 2116.0V39.97-7.1632.8174.00 54.00 -21.19 2260.0V41.47-6.6134.8674.00 54.00 -19.14 2452.0V41.48-5.9335.5574.00 54.00 -18.45 2116.0H47.69-7.1640.5374.00 54.00 -13.47 2260.0H48.94-6.6142.3374.00 54.00 -11.67 2372.0H49.26-6.2143.0574.00 54.00 -10.95 2452.0H46.78-5.9340.8574.00 54.00 -13.15 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 38 Rev. 00 Radiated Emission test data plot (CH Low V) C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 39 Rev. 00 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 40 Rev. 00 Radiated Emission test data plot (CH Low H) C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 41 Rev. 00 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 42 Rev. 00 Operation Mode: TX Mode Test Date : 10/15/2002 Fundamental Frequency: 2442MHz (CH Mid) Test By: Jean Temperature : 25 °C Pol: Ver. / Hor. Humidity : 68 % Remark： (1) Measuring frequencies from 1GHz to the 10th harmonic of highest fundamental fre- quency。 (2) Datas of measurement within this frequency range shown “ - ” in the table above means the reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too small to be measured. (3) Radiated emissions measured in frequency above 1000MHz were made with an instru- ment using Peak detector mode and average detector mode of the emission shown in Ac- tual FS column。 (4) Spectrum Setting : 30MHz – 1000MHz , RBW= 100KHz, VBW=100KHz, Sweep time = 200 ms. 1GHz- 26GHz, RBW= 1MHz, VBW= 1MHz, Sweep time= 200 ms. (5) Analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz Peak AVActual Actual Peak LimiAV Limit Freq.Ant.PolReadingReadingCF Peak FSAV FS at 3mat 3m M argin (M H z)H /V (dBuV ) (dBuV ) (dB) (dBuV /m )(dBuV/m)(dBuV/m)(dBuV/m) (dB) 2204.0V45.98-6.8339.1574.00 54.00 -14.85 2300.0V46.33-6.4539.8874.00 54.00 -14.12 2300.0H49.52-6.4543.0774.00 54.00 -10.93 2396.0H47.99-6.1341.8674.00 54.00 -12.14 2492.0H48.04-5.7842.2674.00 54.00 -11.74 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 43 Rev. 00 Radiated Emission test data plot (CH Mid V) C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 44 Rev. 00 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 45 Rev. 00 Radiated Emission test data plot (CH Mid H) C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 46 Rev. 00 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 47 Rev. 00 Operation Mode: TX Mode Test Date : 10/15/2002 Fundamental Frequency: 2480MHz (CH High) Test By: Jean Temperature : 25 °C Pol: Ver. / Hor. Humidity : 68 % Remark： (1) Measuring frequencies from 1GHz to the 10th harmonic of highest fundamental fre- quency。 (2) Datas of measurement within this frequency range shown “ - ” in the table above means the reading of emissions are attenuated more than 20dB below the permissi ble limits or the field strength is too small to be measured. (3) Radiated emissions measured in frequency above 1000MHz were made with an instru- ment using Peak detector mode and average detector mode of the emission shown in Ac- tual FS column。 (4) Spectrum Setting : 30MHz – 1000MHz , RBW= 100KHz, VBW=100KHz, Sweep time = 200 ms. 1GHz- 26GHz, RBW= 1MHz, VBW= 1MHz, Sweep time= 200 ms. (5) Analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz Peak AVActual Actual Peak LimiAV Limit Freq.Ant.PolReadingReadingCF Peak FSAV FS at 3mat 3m M argin (M H z)H /V (dBuV ) (dBuV ) (dB) (dBuV /m )(dBuV/m)(dBuV/m)(dBuV/m) (dB) 2240.0V46.78-6.6940.0974.00 54.00 -13.91 2336.0V47.37-6.3341.0474.00 54.00 -12.96 2436.0V47.65-5.9841.6774.00 54.00 -12.33 2532.0V46.40-5.6940.7174.00 54.00 -13.29 2240.0H48.19-6.6941.5074.00 54.00 -12.50 2336.0H49.11-6.3342.7874.00 54.00 -11.22 2436.0H47.83-5.9841.8574.00 54.00 -12.15 2532.0H47.11-5.6941.4274.00 54.00 -12.58 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 48 Rev. 00 Radiated Emission test data plot (CH High V) C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 49 Rev. 00 C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 50 Rev. 00 Radiated Emission test data plot (CH High H) C&C Laboratory Co. Ltd. REPORT NO: 020071-RF-ID FCC ID: PO9-HTC-2400EH DATE: 11/04/2002 Page 51 Rev. 00
