POQWCE-210Dual Mode CDMA Cellular Transceiver

WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 1 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 2 FCC RF EXPOSURE INFORMATION Read this information before using your phone Body-worn Operation 1.5 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 3 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 4 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 5 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 6 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 7 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 8 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 9 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 10 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 11 3456 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 12 3456 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 13 3456 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 14 Power On WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 15 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 16 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 17 → WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 18 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 19 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 20 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 21 - - WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 22 - WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 23 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 24 WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 25 - - - WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 26 R£ WCE-210 User’s Manual Rev 1.0 Withusit Confidential Proprietary PAGE 27

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • e-mail: [email protected] www.celltechlabs.com March 5, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 SUBJECT: Withus IT Co., Ltd. FCC ID: POQWCE-210 FCC Part 22 Certification Gentlemen: On behalf of Withus IT Co., Ltd. is an application for Part 22 Certification of WCE-210 Dual-Mode Cellular Handset (AMPS/CDMA) as follows: FCC ID: POQWCE-210 Model: WCE-210 Equipment Class: Licensed Non-Broadcast Transmitter Held to Ear (TNE) Equipment Type: Dual-Mode Cellular Handset (AMPS/CDMA) Tx Freq. Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Max. RF Conducted Power: 26.1 dBm (AMPS) 25.1 dBm (CDMA) Max. RF Output Power: 0.333 Watts ERP (AMPS) 0.265 Watts ERP (CDMA) Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W Attached is the Authorization Letter, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, Part 22 measurement report test data and photographs, RF exposure SAR measurement report test data and photographs, FCC ID label and location, internal and external photographs, block diagrams (confidential), circuit diagrams (confidential), circuit description (confidential), parts list (confidential), tune-up procedure (confidential), antenna specifications (confidential), operational description (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Withus IT Co., Ltd.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • e-mail: [email protected] www.celltechlabs.com April 9, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Martin Perrine SUBJECT: Withus IT Co., Ltd. FCC ID: POQWCE-210 Dear Martin: On behalf of Withus IT Co., Ltd., we hereby submit our response to the set-aside letter dated April 08, 2002 from Mr. Kenneth Nichols of the Commission, requesting additional information for the subject application. EMC: 1. Attached are the remeasured band edge plots showing compliance with the band edge requirements for CDMA mode. 2. Using a spectrum analyzer with video and resolution bandwidths of 3MHz to measure a CDMA signal gives inaccurate conducted RF power level measurements. The conducted RF power level of the CDMA signal was measured with an RF power meter operating in Modulated Average Power (MAP) mode. The conducted RF power level was set to 25.1dBm. Attached is a plot of the CDMA signal, set to 25.1dBm using MAPs mode, and displayed on a spectrum analyzer using a 3MHz resolution. The spectrum analyzer shows the conducted RF power level to be approximately 2.5dB greater than the actual. Also attached are revised CDMA bandwidth plots using only 30kHz video and resolution bandwidths. SAR: 1. The 835MHz probe conversion factors used for the SAR evaluation were 6.91 for head and 6.70 for body. The manufacturer’s specified probe conversion factors for 900MHz are 6.83 for head and 6.61 for body. An evaluation of the highest SAR values for the EUT using 900MHz probe conversion factors increased the overall SAR by approximately 3.4% for the head and approximately 1.5% for the body, which is less than the uncertainty of the probe conversion factors and considerably less then the overall uncertainty of the entire system. If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Withus IT Co., Ltd. American TCB

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • e-mail: [email protected] www.celltechlabs.com April 9, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Martin Perrine SUBJECT: Withus IT Co., Ltd. FCC ID: POQWCE-210 Dear Martin: On behalf of Withus IT Co., Ltd., we hereby submit our response to the set-aside letter dated April 08, 2002 from Mr. Kenneth Nichols of the Commission, requesting additional information for the subject application. EMC: 1. Attached are the remeasured band edge plots showing compliance with the band edge requirements for CDMA mode. 2. Using a spectrum analyzer with video and resolution bandwidths of 3MHz to measure a CDMA signal gives inaccurate conducted RF power level measurements. The conducted RF power level of the CDMA signal was measured with an RF power meter operating in Modulated Average Power (MAP) mode. The conducted RF power level was set to 25.1dBm. Attached is a plot of the CDMA signal, set to 25.1dBm using MAPs mode, and displayed on a spectrum analyzer using a 3MHz resolution. The spectrum analyzer shows the conducted RF power level to be approximately 2.5dB greater than the actual. Also attached are revised CDMA bandwidth plots using only 30kHz video and resolution bandwidths. SAR: 1. The 835MHz probe conversion factors used for the SAR evaluation were 6.91 for head and 6.70 for body. The manufacturer’s specified probe conversion factors for 900MHz are 6.83 for head and 6.61 for body. An evaluation of the highest SAR values for the EUT using 900MHz probe conversion factors increased the overall SAR by approximately 3.4% for the head and approximately 1.5% for the body, which is less than the uncertainty of the probe conversion factors and considerably less then the overall uncertainty of the entire system. If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Withus IT Co., Ltd. American TCB

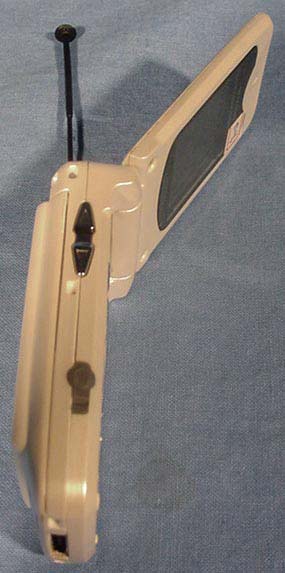

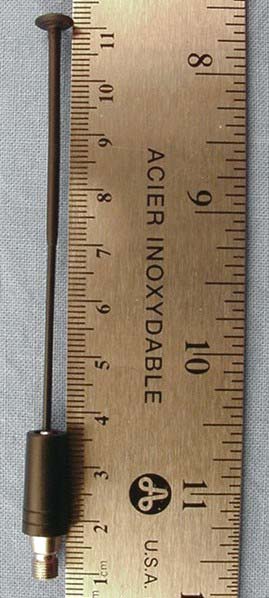

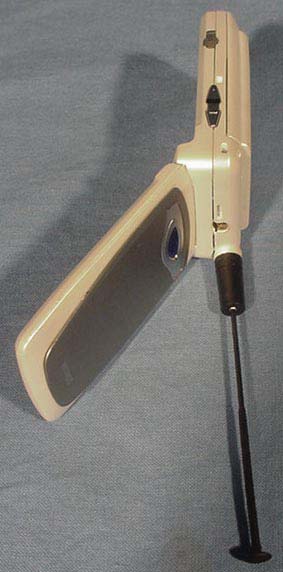

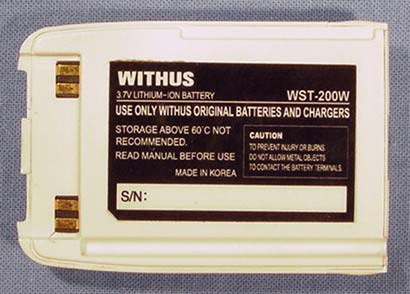

CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) EXTERNAL EUT PHOTOGRAPHS Standard Battery Extended Battery

CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. WITHUS WCE-210 FCC ID: POQWCE-210- 220 WITHUS Information & Telecommunications Co., Ltd. MADE IN KOREA

CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) INTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 010302-214POQ 1955 Moss Court, KelownaTest Dates: January 16-18, 2002 B.C. Canada V1Y 9L3 FCC SAR Evaluation _________________________________________________________________________________________________________ © 2002 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in OET Bulletin 65, Supplement C, Edition 01-01 (General Population / Uncontrolled Exposure), and was tested in accordance with the appropriate measurement standards, guidelines, and recommended practices specified in American National Standards Institute C95.1-1992. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celtechlabs.com Applicant Information: WITHUS IT CO., LTD. 2F. DongNam Bldg. 448-16 Shingil-5Dong, YongDungPo-Ku, Seoul, Korea FCC ID: POQWCE-210 Model(s): WCE-210 Equipment Type: Dual-Mode AMPS/CDMA Cellular Phone Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) Tx Frequency Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Frequency Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Rated RF Conducted Power: 26.1 dBm (AMPS) 25.1 dBm (CDMA) FCC Rule Part(s): 2.1093; ET Docket 96.326 CELLTECH RESEARCH INC. Test Report S/N: 010302-214POQ 1955 Moss Court, KelownaTest Dates: January 16-18, 2002 B.C. Canada V1Y 9L3 FCC SAR Evaluation _________________________________________________________________________________________________________ © 2002 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION ........................................................................................... 1 2.0 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ................................ 1 3.0 SAR MEASUREMENT SYSTEM................................................................... 2 4.0 MEASUREMENT SUMMARY ....................................................................... 3 5.0 DETAILS OF SAR EVALUATION................................................................. 9 6.0 EVALUATION PROCEDURES ................................................................... 11 7.0 SAR SAFETY LIMITS ................................................................................. 13 8.0 SIMULATED TISSUES................................................................................ 13 9.0 TISSUE PARAMETERS ............................................................................... 14 10.0 SYSTEM VALIDATION ............................................................................. 14 11.0 ROBOT SYSTEM SPECIFICATIONS ....................................................... 15 12.0 SAM PHANTOM V4.0C ............................................................................. 16 13.0 DEVICE HOLDER ..................................................................................... 16 14.0 Probe Specification (ET3DV6)................................................................. 16 15.0 TEST EQUIPMENT LIST........................................................................... 17 16.0 MEASUREMENT UNCERTAINTIES ......................................................... 18 17.0 REFERENCES .......................................................................................... 19 APPENDIX A - SAR MEASUREMENT DATA ................................................... 20 APPENDIX B - DIPOLE VALIDATION............................................................... 21 APPENDIX C - DIPOLE CALIBRATION ............................................................ 22 APPENDIX D - PROBE CALIBRATION ............................................................ 23 APPENDIX E - MEASURED TISSUE DIELECTRIC PARAMETERS ................ 24 APPENDIX F - CERTIFICATE OF CONFORMANCE: SAM PHANTOM ........... 25 APPENDIX G - SAR TEST SETUP PHOTOGRAPHS ....................................... 26 CELLTECH RESEARCH INC. Test Report S/N: 010302-214POQ 1955 Moss Court, KelownaTest Dates: January 16-18, 2002 B.C. Canada V1Y 9L3 FCC SAR Evaluation _________________________________________________________________________________________________________ © 2002 Celltech Research Inc. Withus IT Co., Ltd. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) 1 1.0 INTRODUCTION This measurement report shows that the WITHUS IT CO., LTD. Model: WCE-210 Dual-Mode AMPS/CDMA Cellular Phone FCC ID: POQWCE-210 complies with FCC Part 2.1093, ET Docket 96- 326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (see reference [1]), and FCC OET Bulletin 65, Supplement C, Edition 01- 01 (see reference [2]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) EUT Type Dual-Mode AMPS/CDMA Cellular Phone FCC ID POQWCE-210 Equipment Class Licensed Non-Broadcast Transmitter Held to Ear (TNE) Model No.(s) WCE-210 FCC Rule Part(s) § 2.1093, Docket 96-326 Applica…

Text truncated - open the document above for the full version.

CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) RADIATED TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) RADIATED TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) RADIATED TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) RADIATED TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) RADIATED TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 010302-213POQ 1955 Moss Court, Kelowna Test Dates: January 14-18, 2002 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2002 Celltech Research Inc. WITHUS IT CO., LTD. FCC ID: POQWCE-210 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) RADIATED TEST SETUP PHOTOGRAPHS
