POSEF-6208Low Power FM Stereo Transmitter

FCC ID: POSEF-6208 Instruction Manual Product Description It is an ideal accessory for iPod. Now you can use your portable audio device to enjoy your favorite music through any FM stereo receiver. Our wireless FM stereo transmitter allows you to play your Digital music through your car or home stereo. Just simply plug the FM stereo transmitter into the headphone jack of any portable audio source including CD, MD players or MP3; or PDA. Tune the frequency of the car or home stereo to FM 88.1, 88.3, 88.5, 88.7 MHz. You will hear the music playing in the stereo. Sit back and enjoy your favorite music with full sound and convenience. Usage: Remove the battery cap and insert 2 AAA batteries. Please make sure the batteries are inserted correctly and the battery cap is put back into position securely. Push the power button tot he "ON" position. Choose one channel from the following frequencies: 88.1, 88.3, 88.5, 88.7 MHz and connect the product to audio sources. Turn on both the audio source and the car radio system; tune your car radio to the same frequency as the product. The music from the audio source will then be heard via your car radio system. Power Source Voltage: 2 AAA size DC 1.5 batteries. FCC Warning Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. o Consult the dealer or an experienced radio/TV technician for help.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 11, 2004 RE: Procare International Co. FCC ID: POSEF-6208 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The FCC ID label appears to be placed on the battery cover. Note that this is not considered a permanent part of the EUT as defined in 2.925(d)(1). Please correct and submit new labeling for this device. 2) The 731 form appears to state 881 MHz instead of 88.1 MHz. Please correct. 3) It can not be determined from the test report if the device was rotated about all 3 axis to determine worse case positioning. Since the device is expected to be used in a variety of applications/positions, this should have been tested in all 3 axis. Where scans or prescans performed to evaluate all 3 axis Please confirm this was done or evaluate as necessary. 4) The 4 th harmonic results are higher than the fundamental. This is in violation of Section 15.209(c) & 15.215(b) of the Commission's Rules. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Thmothy Thanks for your kindly advise. We have modified the label, report and 731 form as your review comments , we already upload the new label, report and 731 form to ATCB website as file name "label-revised", "report-revised" and "731-revised" for you review. If you have further question, please feel free to let me know. Thank you & Good Luck for you! Best Regards Sunny Liu From: "Sunny Liu Labtest-EMC" <[email protected]> To: <[email protected]> Cc: "Julia" <[email protected]> Subject: FW: Review of Procare International Co., FCC ID: POSEF-6208 Page 1 of 1 4/12/2004file://C:\DOCUME~1\TIMJOH~1\LOCALS~1\Temp\eud6C.htm

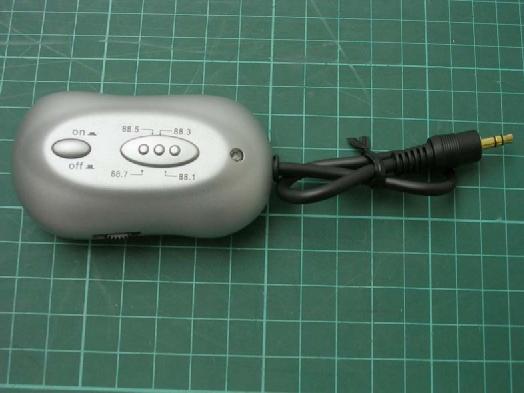

Photo 1: External photo of EUT EF-6208 Photo 2: External photo of EUT EF-6208

Remark: The label is printed on the rim of the device. FCC ID: POSEF-6208 FCC ID Label Location

Photo 1: Internal photo of EUT EF-6208 Photo 2: Internal photo of EUT EF-6208 Photo 3: Internal photo of EUT EF-6208

FCC ID. : POSEF-6208 Report No.: EME-040278 Page 1 of 13 EMC TEST REPORT Report No.: EME-040278 Model No.: EF-6208 Issued Date: Apr. 12, 2004 Applicant: Procare International Co. 11F. –6, 410, Chung Hsiao E. Rd., Sec. 5, Taipei, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 13 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Clay Chen Project Engineer Reviewed By Elton Chen FCC ID. : POSEF-6208 Report No.: EME-040278 Page 2 of 13 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 1.4 Peripherals equipment........................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard......................................................................................................6 2.2 Operation mode..................................................................................................6 2.3 Test equipment...................................................................................................7 3. Radiated emission test FCC 15.239 (b)/(c)................................................................8 3.1 Operating environment.......................................................................................8 3.2 Test setup & procedure.......................................................................................8 3.3 Emission limit....................................................................................................9 3.3.1 Fundamental and harmonics emission limits....................................................9 3.3.2 General radiated emission limits....................................................................10 3.4 Radiated emission test data...............................................................................11 3.4.1 Fundamental Radiated Emission Data............................................................11 3.4.2 Harmonic Radiated Emission Data................................................................12 4. Bandwidth of fundamental frequency FCC 15.239(a)..............................................13 FCC ID. : POSEF-6208 Report No.: EME-040278 Page 3 of 13 Summary of Tests FM Stereo -Model: EF-6208 FCC ID: POSEF-6208 Test Reference Results Bandwidth of fundamental frequency 15.239(a) Complies Field strength of fundamental frequency 15.239(b) Complies Radiated emission 15.239(c), 15.209 Complies FCC ID. : POSEF-6208 Report No.: EME-040278 Page 4 of 13 1. General information 1.1 Identification of the EUT Applicant: Procare International Co. Product: FM Stereo Model No.: EF-6208 FCC ID.: POSEF-6208 Frequency Range: 88.1 MHz ~ 88.7MHz Channel Number: 4 channels Frequency of Each Channel: 88.1MHz, 88.3MHz, 88.5MHz, 88.7MHz Type of Modulation: FM Power Supply: 3Vdc Power Cord: N/A Sample Received: Mar. 26, 2004 Test Date(s): Apr. 5, 2004 ~ Apr. 6, 2004 A DoC report has been generated for the client. 1.2 Additional information about the EUT It is an ideal accessory for iPod. Now user can use user’s portable audio device to enjoy user’s favorite music through any FM stereo receiver. The wireless FM stereo transmitter allows user to play user’s Digital music through user’s car or home stereo. Just simply plug the FM stereo transmitter into the headphone jack of any portable audio source including CD, MD players or MP3; or PDA. Tune the frequency of the car or home stereo to FM 88.1, 88.3, 88.5, 88.7 MHz. User will hear the music playing in the stereo. Sit back and enjoy your favorite music with full sound and convenience. We verified that DX-AC101 is identical to EF-6208 (EUT), and the difference model for difference brand serve as marketing strategy. For more detail features, please refer to User ' s manual as file name “Installation guide.pdf” FCC ID. : POSEF-6208 Report No.: EME-040278 Page 5 of 13 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0dBi Antenna Type: PCB Printed Connector Type: N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. FCC ID USB flash disk VION S320 N/A FCC DoC Approved FCC ID. : POSEF-6208 Report No.: EME-040278 Page 6 of 13 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.239. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode During all of the tests, the EUT was operated in the status of transmitting continuously. FCC ID. : POSEF-6208 Report No.: EME-040278 Page 7 of 13 2.3 Test equipment Equipment Brand Frequency range Model No. Series No. Last Cal.Date EMI Test Receiver Rohde & Schwarz 9kHz~2.75GHz ESCS 30 825788/014 June 6, 2003 EMI Test Receiver Rohde & Schwarz 20Hz~26.5GHz ESMI 825428/005 June 24, 2003 Spectrum Analyzer Rohde & Schwarz 9kHz~30GHz FSP 30 100137 July 19, 2003 Horn Antenna EMCO 1GHz~18GHz 3115 9906-5890 Oct. 15, 2…

Text truncated - open the document above for the full version.

Photo 1: Radiated Emission Test Set-up photo Photo 2: Radiated Emission Test Set-up photo
