POSEF-6217USB FM Transmitter

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the u ser authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesire d operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modi fications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This eq uipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmf ul interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause har mful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to co rrect the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. † Consult the dealer or an experienced radio/TV technician for help.

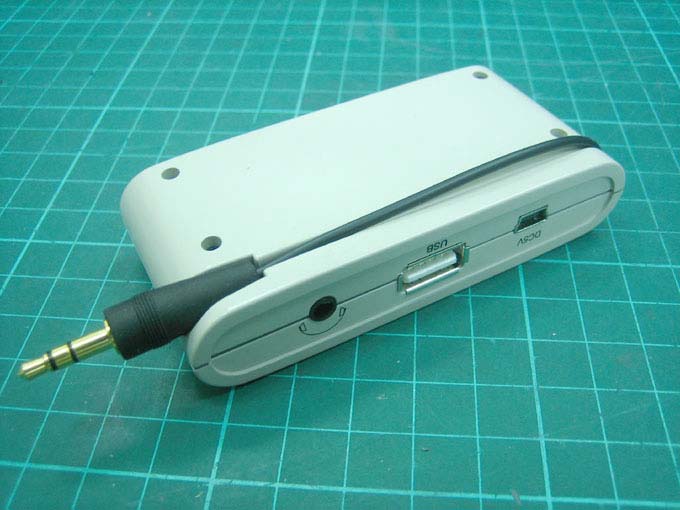

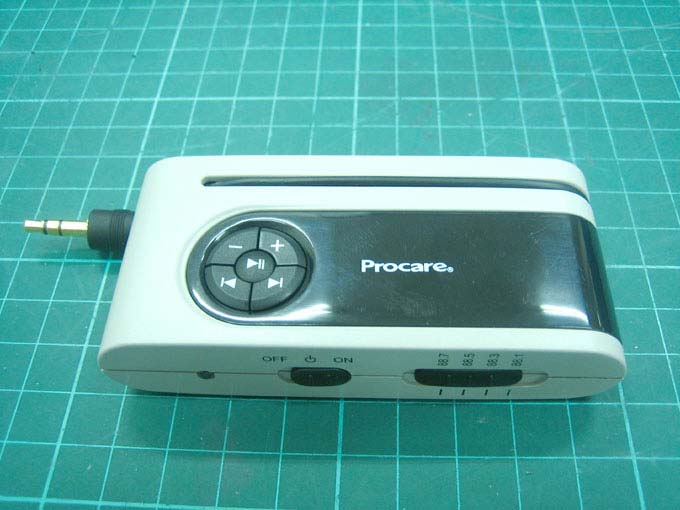

Photo 1: External photo of EUT EF6217 Photo 2: External photo of EUT EF6217 Photo 3: External photo of EUT EF6217 Photo 4: External photo of EUT EF6217

eMana Model No: EF-6217 FCC ID: POSEF-6217 M ade in China 20mm 10mm FCC ID Label Location

Photo 1: Internal photo of EUT EF6217 Photo 2: Internal photo of EUT EF6217 Photo 3: Internal photo of EUT EF6217 Photo 4: Internal photo of EUT EF6217 Photo 5: Internal photo of EUT EF6217 Photo 6: Internal photo of EUT EF6217

FCC ID: POSEF-6217 Operational Description The transmitter of EUT is powered by USB device powered or vehicle. The antenna is printed on PCB. This device is a USB FM Transmitter operates in 88MHz band. The other instruction, please have a look at the users manual.

FCC ID. : POSEF-6217 Report No.: EME-060096 Page 1 of 18 EMC TEST REPORT Report No.: EME-060096 Model No.: EF-6217 Issued Date: Feb. 22, 2006 Applicant: Procare International Co. 11F. –6, 410, Chung Hsiao E. Rd., Sec. 5, Taipei, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 18 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : POSEF-6217 Report No.: EME-060096 Page 2 of 18 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT ....................................................................................... 4 1.2 Additional information about the EUT .................................................................. 4 1.3 Antenna description ............................................................................................... 5 1.4 Peripherals equipment............................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard .......................................................................................................... 6 2.2 Operation mode...................................................................................................... 6 2.3 Test equipment ....................................................................................................... 7 3. Radiated emission test FCC 15.239 (b)/(c) .................................................................. 8 3.1 Operating environment .......................................................................................... 8 3.2 Test setup & procedure .......................................................................................... 8 3.3 Emission limit ........................................................................................................ 9 3.3.1 Fundamental and harmonics emission limits...................................................... 9 3.3.2 General radiated emission limits......................................................................... 9 3.4 Radiated emission test data.................................................................................. 10 3.4.1 Fundamental Radiated Emission Data .............................................................. 10 4. Bandwidth of fundamental frequency FCC 15.239(a) ............................................... 11 5.Power Line Conducted Emission test §FCC 15.207 ................................................... 13 5.1 Operating environment ........................................................................................ 13 5.2 Test setup & procedure ........................................................................................ 13 5.3 Emission limit ...................................................................................................... 14 5.4 Uncertainty of Conducted Emission .................................................................... 14 5.5 Power Line Conducted Emission test data .......................................................... 15 FCC ID. : POSEF-6217 Report No.: EME-060096 Page 3 of 18 Summary of Tests USB FM Transmitter -Model: EF-6217 FCC ID: POSEF-6217 Test Reference Results Bandwidth of fundamental frequency 15.239(a) Complies Field strength of fundamental frequency 15.239(b) Complies Radiated emission 15.239(c), 15.209 Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : POSEF-6217 Report No.: EME-060096 Page 4 of 18 1. General information 1.1 Identification of the EUT Applicant: Procare International Co. Product: USB FM Transmitter Model No.: EF-6217 FCC ID.: POSEF-6217 Frequency Range: 88.1MHz to 88.7MHz Channel Number: 4 channels Frequency of Each Channel: 88.1 + 0.2k MHz, k=0-3 Type of Modulation: FM Power Supply: 1. DC 12V from Car adapter 2. DC 5V from PC USB port Power Cord: N/A Sample Received: Jan. 23, 2006 Test Date(s): Jan. 26, 2006 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is a USB FM Transmitter, and was defined as information technology equipment. For more detail features, please refer to Users manual as file name “Installation guide.pdf” FCC ID. : POSEF-6217 Report No.: EME-060096 Page 5 of 18 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0dBi Antenna Type: PCB Printed Connector Type: N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. Notebook PC IBM 1860 L3BTAG6 Notebook PC HP HSTNN-I04C CNU5240X14 Speaker JS NA 99-I-576489-C MP 3 Player N/A N/A N/A FCC ID. : POSEF-6217 Report No.: EME-060096 Page 6 of 18 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section 15.23915.207 and ANSI C63.4/2001. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was operated in continuously transmitting status during all the tests. FCC ID. : POSEF-6217 Report No.: EME-060096 Page 7 of 18 2.3 Test equipment Equipment Brand Frequency rangeModel No. Intertek ID No. Next Cal. Date EMI Test Receiver Rohde & Schwarz9kHz~2.75GHzESCS 30 EC303 04/13/2006 EMI T…

Text truncated - open the document above for the full version.

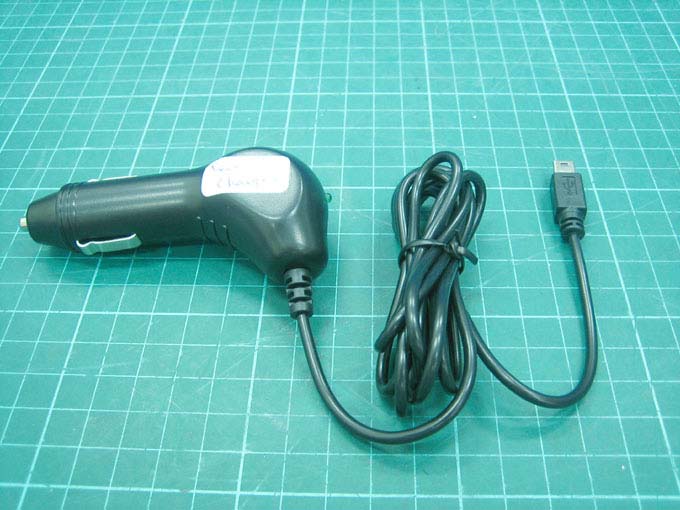

Photo 1: Conducted Emission Test Set-up 12Vdc from vehicle charger EF62167 Photo 2: Conducted Emission Test Set-up 12Vdc from vehicle charger EF6217 Photo 3: Conducted Emission Test Set-up 5Vdc from Notebook PC EF6217 Photo 4: Conducted Emission Test Set-up 5Vdc from Notebook PC EF6217

Photo 1: Spurious Emission Test Set-up photo EF6217 Photo 2: Spurious Emission Test Set-up photo EF6217
