POSEF6216Low Power FM Broadcast Band Transmitter

一 Accessory 1、 USB memory 2、 Car charge(DC 5V) 3、 USB cable——connect computer（select） 二 Operation Instruction 1、Connect product USB Mini5 connector to DC 5V converter; 2、Connect product USB A terminal to USB memory 3、Select frequency from 88.1 88.3 88.5 88.7 MHz 4、Press power button. LED light flash for reading MP3 information on USB memory. 5、Turn your car radio on and match the frequency of the product achieve desired music. 三 Button and connector 1、USB Mini5 connector: Power input(connect DC 5V converter or computer USB A terminal through USB cable) 2、USB A terminal: connect USB memory 3、Headphone 3.5mm jack 4、Connection wire: connect IPOD MP3 CD MD audio source 5、LED light: flash for reading USB memory 6、Frequency select:4 fixed frequency ranges 88.1 88.3 88.5 88.7 MHz 7、 Play/pause button: Press for play/pause function. Press and hold for about three seconds for far speed up function 8、 Next button: Press for skip one function 9、 Previous button: Press for previous one function 10、 Volume High button: Press for higher volume .Press and hold for three seconds volume progressive automatically. 11、 Volume Low: button: Press for lower volume. Press and hold for three seconds volume degressive automatically. ━ △ ▽ ━ ▽ ═ PL AY/ PAUSE NE XT PREVI OUS VOL HI GH POWER ON/ OFF VOL LOWER 3. 5mm JACK FOR AUDIO INPUT LED LI NGT PROCAR E P R O C A R E 3. 5mm JACK FOR HE ADP HONE S US B- A US B EF-6216 Manual △ ▽ (15.21) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 15.19 (a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 29, 2005 RE: Procare International FCC ID: POSEF6216 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The FCC ID on the Labeling is incorrect. Please review. If you have difficulties with the proper label format, we will be happy to assist. 2.) This device transmits analog FM music to a common FM broadcast receiver. Therefore, both the amplitude of the audio and the frequency of the applied audio will directly affect the bandwidth of the signal. I am not satisfied that this device has shown compliance with the 200KHz bandwidth requirements of 15.239(a). Please provide details on the modulation used during testing to 15.239(a) William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

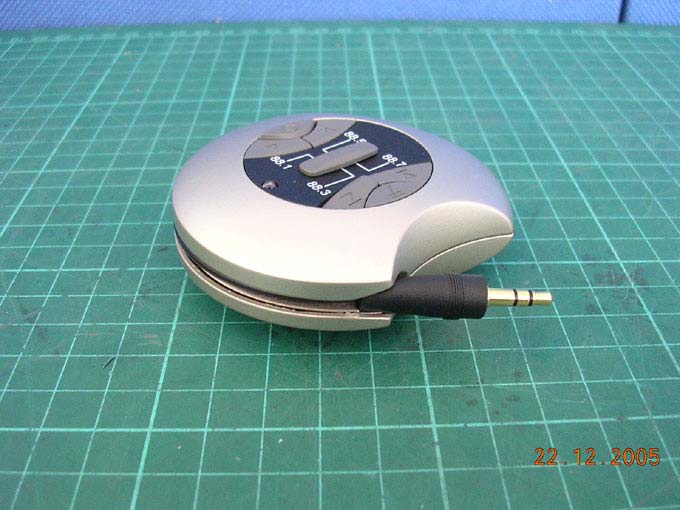

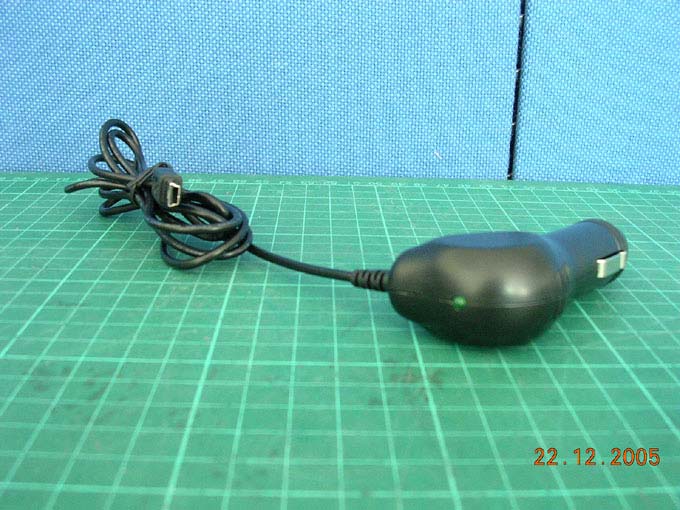

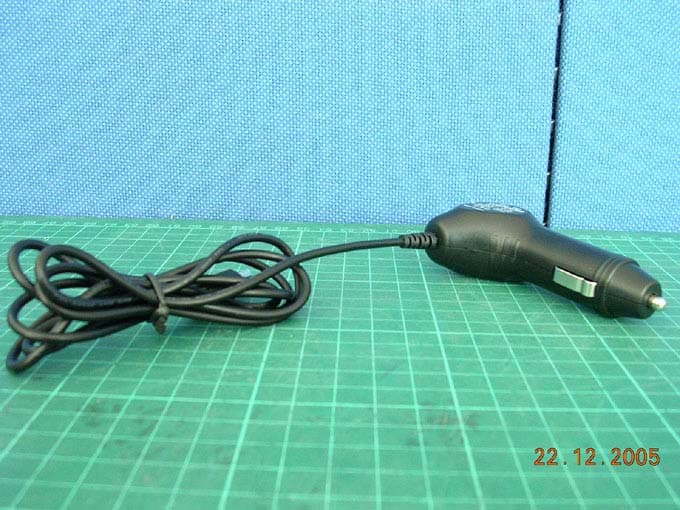

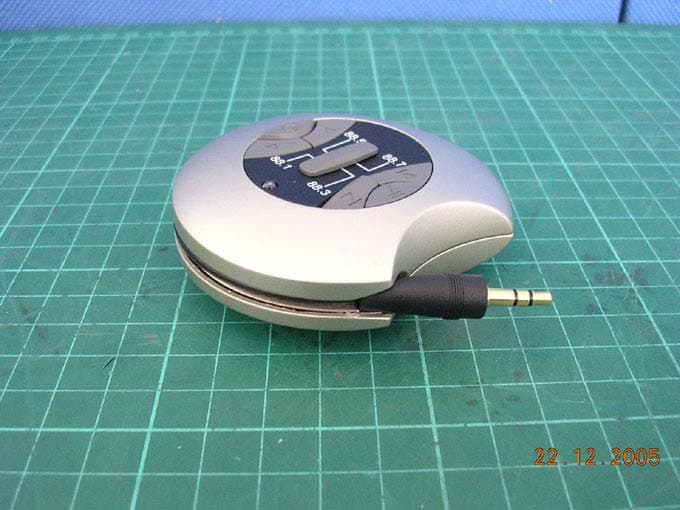

Photo 1: External photo of EUT EF6216 Photo 2: External photo of EUT EF6216 Photo 3: External photo of vehicle charger EF6216 Photo 4: External photo of vehicle charger EF6216 Photo 5: External photo of vehicle charger EF6216

eMana Model No: EF6216 FCC ID: POSEF6216 Made in China 20mm 10mm FCC ID Label Location

Photo 1: Internal photo of EUT EF6216 Photo 2: Internal photo of EUT EF6216 Photo 3: Internal photo of EUT EF6216 Photo 4: Internal photo of EUT EF6216 Photo 5: Internal photo of vehicle charger EF6216 Photo 6: Internal photo of vehicle charger EF6216 Photo 7: Internal photo of vehicle charger EF6216 Photo 8: Internal photo of vehicle charger EF6216

FCC ID. : POSEF6216 Report No.: EME-051209 Page 1 of 19 EMC TEST REPORT Report No.: EME-051209 Model No.: EF6216 Issued Date: Dec. 22, 2005 Applicant: Procare International Co. 11F. –6, 410, Chung Hsiao E. Rd., Sec. 5, Taipei, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 19 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : POSEF6216 Report No.: EME-051209 Page 2 of 19 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT ....................................................................................... 4 1.2 Additional information about the EUT .................................................................. 4 1.3 Antenna description ............................................................................................... 5 1.4 Peripherals equipment............................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard .......................................................................................................... 6 2.2 Operation mode...................................................................................................... 6 2.3 Test equipment ....................................................................................................... 6 3. Radiated emission test FCC 15.239 (b)/(c) .................................................................. 7 3.1 Operating environment .......................................................................................... 7 3.2 Test setup & procedure .......................................................................................... 7 3.3 Emission limit ........................................................................................................ 8 3.3.1 Fundamental and harmonics emission limits...................................................... 8 3.3.2 General radiated emission limits......................................................................... 9 3.4 Radiated emission test data.................................................................................. 10 3.4.1 Fundamental Radiated Emission Data .............................................................. 10 3.4.2 Radiated Emission Data.................................................................................... 11 4. Bandwidth of fundamental frequency FCC 15.239(a) ............................................... 13 5.Power Line Conducted Emission test §FCC 15.207 ................................................... 14 5.1 Operating environment ........................................................................................ 14 5.2 Test setup & procedure ........................................................................................ 14 5.3 Emission limit ...................................................................................................... 15 5.4 Uncertainty of Conducted Emission .................................................................... 15 5.5 Power Line Conducted Emission test data .......................................................... 16 FCC ID. : POSEF6216 Report No.: EME-051209 Page 3 of 19 Summary of Tests USB FM Transmitter -Model: EF6216 FCC ID: POSEF6216 Test Reference Results Bandwidth of fundamental frequency 15.239(a) Complies Field strength of fundamental frequency 15.239(b) Complies Radiated emission 15.239(c), 15.209 Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : POSEF6216 Report No.: EME-051209 Page 4 of 19 1. General information 1.1 Identification of the EUT Applicant: Procare International Co. Product: USB FM Transmitter Model No.: EF6216 FCC ID.: POSEF6216 Frequency Range: 88.1MHz to 88.7MHz Channel Number: 4 channels Frequency of Each Channel: 88.1 + 0.2k MHz, k=0-3 Type of Modulation: FM Power Supply: 1. 12Vdc from vehicle charger 2. 5Vdc from Notebook PC Power Cord: N/A Data Cable: Mini USB cable 1meter × 1 Sample Received: Oct. 28, 2005 Test Date(s): Nov. 2, 2005 ~ Dec. 22, 2005 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is a USB FM Transmitter, and was defined as information technology equipment. For more detail features, please refer to User's manual as file name “User Manual.pdf” FCC ID. : POSEF6216 Report No.: EME-051209 Page 5 of 19 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0dBi Antenna Type: Integral Connector Type: N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. FCC ID Notebook PC IBM 1860 L3BTAG6 FCC DoC Approved PRINTER HP DeskJet 400 TH86I1K30S FCC DoC Approved EAR PHONE N/A N/A N/A FCC DoC Approved MP3 Player N/A N/A N/A FCC DoC Approved FCC ID. : POSEF6216 Report No.: EME-051209 Page 6 of 19 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section §15.239、§15.207 and ANSI C63.4/2001. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was supplied with 12Vdc from vehicle charger or 5Vdc from Notebook PC. In r…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up 12Vdc from vehicle charger EF6216 Photo 2: Conducted Emission Test Set-up 12Vdc from vehicle charger EF6216 Photo 3: Conducted Emission Test Set-up 5Vdc from Notebook PC EF6216 Photo 4: Conducted Emission Test Set-up 5Vdc from Notebook PC EF6216 Photo 5: Conducted Emission Test Set-up 5Vdc from Notebook PC EF6216

Photo 1: Spurious Emission Test Set-up photo EF6216 Photo 2: Spurious Emission Test Set-up photo EF6216 Photo 3: Spurious Emission Test Set-up photo EF6216 Photo 4: Spurious Emission Test Set-up photo EF6216
