POSPC-7207Low Power FM Broadcast Transmitter

FCC ID: POSPC-7207 Instruction Manual Product Description It is an ideal accessory for iPod. Now you can use your portable audio device to enjoy your favorite music through any FM stereo receiver. Our wireless FM stereo transmitter allows you to play your Digital music through your car or home stereo. Just simply plug the FM stereo transmitter into the headphone jack of any portable audio source including CD, MD players or MP3; or PDA. Tune the frequency of the car or home stereo to FM 88.1, 88.3, 88.5, 88.7 MHz. You will hear the music playing in the stereo. Sit back and enjoy your favorite music with full sound and convenience. Usage: Remove the battery cap and insert 2 AAA batteries. Please make sure the batteries are inserted correctly and the battery cap is put back into position securely. Push the power button tot he "ON" position. Choose one channel from the following frequencies: 88.1, 88.3, 88.5, 88.7 MHz and connect the product to audio sources. Turn on both the audio source and the car radio system; tune your car radio to the same frequency as the product. The music from the audio source will then be heard via your car radio system. Power Source Voltage: 2 AAA size DC 1.5 batteries. FCC Warning Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. o Consult the dealer or an experienced radio/TV technician for help. PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

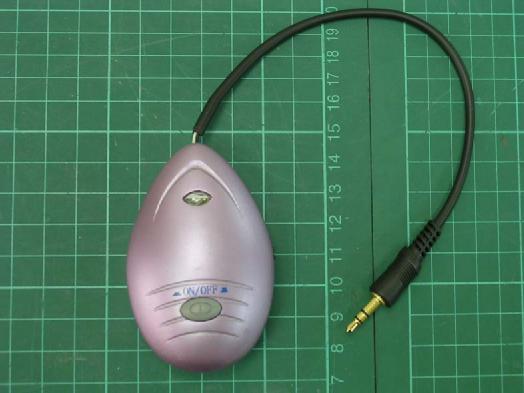

Photo 1: Exterior photo PC-7207 PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com Photo 2: Exterior photo PC-7207 PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

Label marking Location: bottom of PC-7207 Model: PC-7207 FCC ID: POSPC-7207 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label size: 46.5 mm x 18.5 mm 46.5mm 18.5mm FCC ID Label Location PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

Photo 1: Interior photo PC-7207 PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com Photo 2: Interior photo PC-7207 PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com

The EUT (PC-7207) has 4 FM channels. It can't transmit simultaneously on 4 FM channels. The user only can select one FM channel by frequency selector at a time. (please see the photo as attachment for details).

FCC ID. : POSPC-7207 Report No.: EME-031372 Page 1 of 12 EMC TEST REPORT Report No.: EME-031372 Model No.: PC-7207 Issued Date: Jan. 16, 2004 Applicant: Procare International Co. 11F. –6, 410, Chung Hsiao E. Rd., Sec. 5, Taipei, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 12 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Clay Chen Project Engineer Reviewed By Elton Chen PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com FCC ID. : POSPC-7207 Report No.: EME-031372 Page 2 of 12 Table of Content Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description.............................................................................................5 1.4 Peripherals equipment.........................................................................................5 2. Test specifications....................................................................................................6 2.1 Test standard.......................................................................................................6 2.2 Operation mode...................................................................................................6 2.3 Test equipment....................................................................................................7 3. Radiated emission test FCC 15.239 (b)/(c)................................................................8 3.1 Operating environment........................................................................................8 3.2 Test setup & procedure........................................................................................8 3.3 Emission limit.....................................................................................................9 3.3.1 Fundamental and harmonics emission limits.....................................................9 3.3.2 General radiated emission limits.......................................................................9 3.4 Radiated emission test data...............................................................................10 3.4.1 Fundamental Radiated Emission Data............................................................10 3.4.2 Harmonic Radiated Emission Data.................................................................11 4. Bandwidth of fundamental frequency FCC 15.239(a)..............................................12 PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com FCC ID. : POSPC-7207 Report No.: EME-031372 Page 3 of 12 Summary of Tests FM Stereo Transmitter -Model: PC-7207 FCC ID: POSPC-7207 Test Reference Results Bandwidth of fundamental frequency 15.239(a) Complies Field strength of fundamental frequency 15.239(b) Complies Radiated emission 15.239(c), 15.209 Complies PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com FCC ID. : POSPC-7207 Report No.: EME-031372 Page 4 of 12 1. General information 1.1 Identification of the EUT Applicant: Procare International Co. Product: FM Stereo Transmitter Model No.: PC-7207 FCC ID.: POSPC-7207 Frequency Range: 88.1 to 88.7MHz Channel Number: 4 channels Frequency of Each Channel: 88.1, 88.3, 88.5, 88.7MHz Type of Modulation: FM Power Supply: 3Vdc Power Cord: N/A Sample Received: Dec. 18, 2003 Test Date(s): Dec. 25, 2003 1.2 Additional information about the EUT It is an ideal accessory for iPod. User can use user’s portable audio device to enjoy favorite music through any FM stereo receiver. Plug the FM stereo transmitter into the headphone jack of portable audio source including CD, MD players or MP3; or PDA. Tune the frequency of the car or home stereo to FM 88.1, 88.3, 88.5, 88.7 MHz. User will hear the music playing in the stereo. We verified that DX-AC101 and EF-6208 are identical to PC-7207 (EUT), and the difference model for difference brand serve as marketing strategy. For more detail features, please refer to User ' s manual as file name “Installation guide.pdf” PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com FCC ID. : POSPC-7207 Report No.: EME-031372 Page 5 of 12 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0dBi Antenna Type: PCB Printed Connector Type: N/A 1.4 Peripherals equipment Peripherals Manufacturer Product No. Serial No. FCC ID USB flash disk VION S320 N/A FCC DoC PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com FCC ID. : POSPC-7207 Report No.: EME-031372 Page 6 of 12 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.239. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was continuously transmit during the test. PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com FCC ID. : POSPC-7207 Report No.: EME-031372 Page 7 of 12 2.3 Test equipment Equipment Brand Frequency range Model No. Series No. Last Cal.Date EMI Test Receiver Rohde & Schwarz 9kHz~2.75GHz ESCS 30 825788/014 June 6, 20…

Text truncated - open the document above for the full version.

Photo 1: Radiated Spurious Set-up photo PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com
