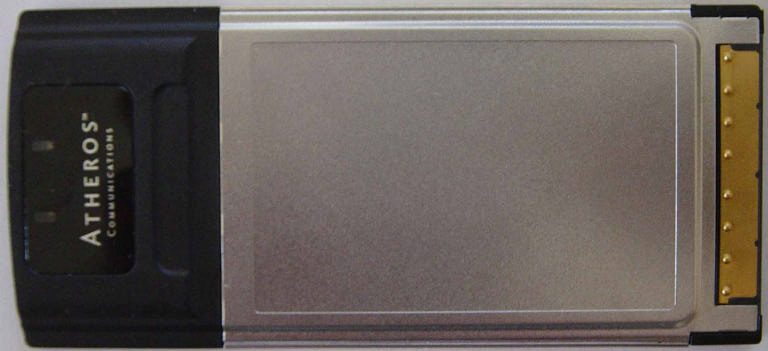

PPD-AR5BCB-00043802.11 b/g Cardbus Card

Atheros Communications, Inc. 529 Almanor Avenue Sunnyvale CA 94085 t 408 773 5200 f 408 773 9940 www.atheros.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 9/16/03 Dear Examiner: I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. The accompanying Form 731 is being filed with the commission on our behalf by Compliance Engineering Services, Inc., a consulting and testing laboratory. Included as exhibits with the enclosed application are block diagrams, schematics, antenna spec. and a detailed description of the theory of operation of the device. We ask that these portions (block diagrams, schematics, antenna spec and theory of operation) of our application be withheld from public inspection as provided under FCC section 0.459. These documents contain details of the proprietary operation of the product. These details are not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. We request that these documents and this letter be segregated from the body of our evaluation report and withheld from public inspection. Sincerely, Michael Green Manager of Global Product Compliance

1 Mike Kuo From:Claire Hoque Sent:September262003Friday 3:52 PM To:Mike Kuo Cc:Michael Heckrotte; Sunny Shih Subject:FW: Atheros Communications FCC ID:PPD-AR5BCB-00043, AN03T3295 Hi Mike, Here are the answers from Mike and Sunny. EMC portion: Question #1: Since the device is Cardbus card which will be used with notebook computer where the separation distance is less than 20 cm and is classified as portable device per section 2.1093 of FCC rules, section 7.4 of EMC test report contains MPE estimate calculation will not be applicable to justify RF exposure compliance for portable device. Please remove section 7.4 from EMC test report. Answer: Pls see the revised FCC report as attached. 03U2247-1 FCC Report(revised).... SAR portion: Question #2: The FCC ID number listed in SAR test report does not agree with TCB application form and FCC ID label format. Please make necessary correction. Answer: Pls see the attached revised SAR report. 03U2247-5 SAR Report(revised).... Question #3: The conducted output power reported in the SAR test report is it Average or peak ? What is the manufacturer name and model number of instrument used in making RF conducted power measurement ? Answer: The conducted output power is average. We'll updated report. Measurement instruments as listed below: Power Meter: Giga-tronic, model 8561A, serial number 8651404 Power Sensor: Giga-tronic, model 8561A, serial number 1834688 Question #4: Based upon preliminary test results, at 802.11b modulation, antenna B with 2Mbps @ middle channel(6/2437MHz) is the worst case with IBM notebook computer. However, during the final measurement, Antenna A port with 2Mbps is used. Please explain the selection process. Answer: Actually, The worst case is at antenna A with 2Mbps @ middle channel and NOT at antenna B with @ middle channel (6/2437MHz). Here're the measurement results at Antenna A & B. 0.263mW/g at antenna A with 2Mbps @ middle channel 0.0293mW/g at antenna B with 2Mbps @ middle channel 2 Question #5: In the final SAR evaluation for Compaq and Dell Notebook computer, SAR measurement only performed at Low and Middle channel. The highest reported SAR value for middle channel is higher than 0.8mW/g which is the threshold to minimize the additional channels. Since the highest reported SAR value at low and middle channel are highest 0.8mW/k, high channel evaluation is required. Please provide additional SAR data for high channels tested with Compaq and Dell computers under the following operating conditions: 1. Compaq computer: Test configuration #2 with 802.11 OFDM modulation with 9Mbps data rate, three highest channel ( 2472MHz) 2. Compaq computer: Test configuration #2 with 802.11 DSSS modulation with 2Mbps data rate, three highest channel ( 2472MHz) 3. Dell computer:Test configuration #2 with 802.11 OFDM modulation with 9Mbps data rate, three highest channel ( 2472MHz) 4. Dell computer:Test configuration #2 with 802.11 DSSS modulation with 2Mbps data rate, three highest channel ( 2472MHz) Answer: We have performed preliminary & full measurements with IBM notebook computer and found the worse case depend on the output power. We have chosen low channel which power lower than middle channel to ensured our judgment and found the SAR value lower than middle channel, therefore, we skipped high channel measurement. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION ATHEROS COMMUNICATIONS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PPD-AR5BCB-00043 FCC ID LABEL LOCATION

REPORT NO: 03U2247-5 DATE: September 18, 2003 FCC ID: PPD-AR5BCB-00043 COMPLIANCE CERTIFICATION SERVICES Page: 1 of 28 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 802.11b/g Cardbus Adaptor Installed Into Laptop Computers Model: AR5BCB-00043 FCC ID: PPD-AR5BCB-00043 September 18, 2003 REPORT NO: 03U2247-5 Prepared for Atheros Communications, Inc. 529 Almanor Ave Sunnyvale, CA 94085 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03U2247-5 DATE: September 18, 2003 FCC ID: PPD-AR5BCB-00043 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 28 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Tests: September 16, 17 and 18, 2003 APPLICANT: Atheros Communications, Inc. 529 Almanor Ave Sunnyvale, CA 94085, USA MODEL: AR5BCB-00043 FCC ID: PPD-AR5BCB-00043 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum (DSSS) 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Operating mode: Maximum continuous output Tx Frequency: 2412 MHz to 2472 MHz Max. O/P Power: (Conducted/Average) 802.11b: 20.05 dBm 802.11g: 19.50 dBm Max. SAR (1g): SAR (mW/g) Host devices 0.99 IBM 1.1 Compaq 0.972 DELL Application Type: Certification FCC Rule Part(s): §15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03U2247-5 DATE: September 18, 2003 FCC ID: PPD-AR5BCB-00043 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 28 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EUT DESCRIPTION...............................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.........................5 3. DOSIMETRIC ASSESSMENT SYSTEM.......................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM.........................................................................6 3.2. SYSTEM COMPONENTS..........................................................................................7 DASY4 MEASUREMENT SERVER...........................................................................7 DATA ACQUISITION ELECTRONICS (DAE)...............................................................7 ET3DV6 ISOTROPIC E-FIELD PROBE FOR DOSIMETRIC MEASUREMENTS.................7 SAM PHANTOM (V4.0).........................................................................................8 DEVICE HOLDER FOR SAM TWIN PHANTOM...........................................................8 SYSTEM VALIDATION KITS.....................................................................................8 4. EVALUATION PROCEDURES...................................................................................9 5. MEASUREMENT UNCERTAINTY.............................................................................12 6. EXPOSURE LIMIT.................................................................................................13 7. MEASUREMENT RESULTS....................................................................................14 7.1. SYSTEM PERFORMANCE CHECK..........................................................................14 7.2. MEASUREMENT THE DIELECTRIC PARAMETERS OF SIMULATING LIQUIDS................16 7.3. EUT TUNE-UP PROCEDURES...............................................................................18 7.4. EUT SETUP PHOTOS..........................................................................................19 7.5. PRE-EVALUATION RESULTS.................................................................................22 7.6. SAR MEASUREMENTS RESULTS..........................................................................23 8. EUT PHOTOS.....................................................................................................25 9. EQUIPMENT LIST & CALIBRATION STATUS............................................................26 10. REFERENCES.....................................................................................................27 11. ATTACHMENTS...................................................................................................28 REPORT NO: 03U2247-5 DATE: September 18, 2003 FCC ID: PPD-AR5BCB-00043 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 28 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the docume…

Text truncated - open the document above for the full version.

Date/Time: 09/16/03 10:05:34 Test Laboratory: Compliance Certification Services File Name: D2450V2SN706_Probe 1577_091603.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program: System Performance Check at 2450 MHz Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: Head 2450 MHz (σ = 1.8891 mho/m, ε r = 39.674, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 92.4 V/m Power Drift = 0.03 dB Maximum value of SAR = 14.2 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 27.2 W/kg SAR(1 g) = 13.1 mW/g; SAR(10 g) = 5.98 mW/g Reference Value = 92.4 V/m Power Drift = 0.03 dB Maximum value of SAR = 14.5 mW/g 0 dB = 14.5mW/g Date/Time: 09/16/03 10:05:34 Test Laboratory: Compliance Certification Services File Name: D2450V2SN706_Probe 1577_091603.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program: System Performance Check at 2450 MHz Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: Head 2450 MHz (σ = 1.8891 mho/m, ε r = 39.674, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 92.4 V/m Power Drift = 0.03 dB Maximum value of SAR = 16.9 mW/g Date/Time: 09/17/03 09:48:16 Test Laboratory: Compliance Certification Services File Name: D2450V2SN706_Probe 1577_091703.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program: System Performance Check at 2450 MHz Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: Head 2450 MHz (σ = 1.8864 mho/m, ε r = 39.3214, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 93.1 V/m Power Drift = -0.02 dB Maximum value of SAR = 14.2 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 27.3 W/kg SAR(1 g) = 13.1 mW/g; SAR(10 g) = 5.93 mW/g Reference Value = 93.1 V/m Power Drift = -0.02 dB Maximum value of SAR = 14.6 mW/g 0 dB = 14.6mW/g Date/Time: 09/17/03 09:48:16 Test Laboratory: Compliance Certification Services File Name: D2450V2SN706_Probe 1577_091703.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program: System Performance Check at 2450 MHz Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: Head 2450 MHz (σ = 1.8864 mho/m, ε r = 39.3214, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 93.1 V/m Power Drift = -0.03 dB Maximum value of SAR = 16.5 mW/g Date/Time: 09/18/03 09:41:40 Test Laboratory: Compliance Certification Services File Name: D2450V2SN706_Probe 1577_091803.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program: System Performance Check at 2450 MHz Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: Head 2450 MHz (σ = 1.8843 mho/m, ε r = 39.2752, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; Serial: 1185 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 92.5 V/m Power Drift = -0.02 dB Maximum value of SAR = 14.2 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 26.4 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.93 mW/g Reference Value = 92.5 V/m Power Drift = -0.02 dB Maximum value of SAR = 14.2 mW/g 0 dB = 14.2mW/g Date/Time: 09/18/03 09:41:40 Test Laboratory: Compliance Certification Services File Name: D2450V2SN706_Probe 1577_091803.da4 DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Program: System Performance Check at 2450 MHz Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: Head 2450 MHz (σ = 1.8843 mho/m, ε r = 39.2752, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 1; Type: SAM 1; …

Text truncated - open the document above for the full version.

Date/Time: 09/17/03 12:02:14 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: IBM) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9643 mho/m, ε r = 52.641, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2412_Rate: 2/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 10.9 V/m Power Drift = 0.06 dB Maximum value of SAR = 0.238 mW/g 2412_Rate: 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.444 W/kg SAR(1 g) = 0.221 mW/g; SAR(10 g) = 0.122 mW/g Reference Value = 10.9 V/m Power Drift = 0.06 dB Maximum value of SAR = 0.23 mW/g Date/Time: 09/16/03 19:12:34 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: IBM) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9658 mho/m, ε r = 52.621, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2437_Rate: 2/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.7 V/m Power Drift = 0.13 dB Maximum value of SAR = 0.28 mW/g 2437_Rate: 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.534 W/kg SAR(1 g) = 0.263 mW/g; SAR(10 g) = 0.145 mW/g Reference Value = 11.7 V/m Power Drift = 0.13 dB Maximum value of SAR = 0.273 mW/g Date/Time: 09/16/03 19:17:04 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: IBM) Communication System: Athreos; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9658 mho/m, ε r = 52.621, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2437_Rate: 2/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Reference Value = 11.7 V/m Power Drift = 0.14 dB Maximum value of SAR = 0.172 mW/g Date/Time: 09/17/03 12:21:50 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: IBM) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9643 mho/m, ε r = 52.641, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2462_Rate: 2/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 10.7 V/m Power Drift = 0.12 dB Maximum value of SAR = 0.223 mW/g 2462_Rate: 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.427 W/kg SAR(1 g) = 0.209 mW/g; SAR(10 g) = 0.115 mW/g Reference Value = 10.7 V/m Power Drift = 0.12 dB Maximum value of SAR = 0.217 mW/g Date/Time: 09/17/03 12:39:14 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: IBM) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2467 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9643 mho/m, ε r = 52.641, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2467_Rate: 2/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.84 V/m Power Drift = 0.07 dB Maximum value of SAR = 0.122 mW/g 2467_Rate: 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.232 W/kg SAR(1 g) = 0.114 mW/g; SAR(10 g) = 0.0626 mW/g Reference Value = 7.84 V/m Power Drift = 0.07 dB Maximum value of SAR = 0.12 mW/g Date/Time: 09/17/03 12:56:26 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: IBM) …

Text truncated - open the document above for the full version.

Date/Time: 09/18/03 11:06:44 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: Compaq) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9669 mho/m, ε r = 52.4521, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2412_Rate: 2/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.7 V/m Power Drift = -0.07 dB Maximum value of SAR = 0.248 mW/g 2412_Rate: 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.476 W/kg SAR(1 g) = 0.237 mW/g; SAR(10 g) = 0.131 mW/g Reference Value = 11.7 V/m Power Drift = -0.07 dB Maximum value of SAR = 0.245 mW/g Date/Time: 09/18/03 11:25:54 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: Compaq) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9669 mho/m, ε r = 52.4521, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2437_Rate: 2/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13.2 V/m Power Drift = 0.0001 dB Maximum value of SAR = 0.31 mW/g 2437_Rate: 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.617 W/kg SAR(1 g) = 0.302 mW/g; SAR(10 g) = 0.165 mW/g Reference Value = 13.2 V/m Power Drift = 0.0001 dB Maximum value of SAR = 0.313 mW/g Date/Time: 09/18/03 11:25:54 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: Compaq) Communication System: Athreos; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9669 mho/m, ε r = 52.4521, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2437_Rate: 2/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Reference Value = 13.2 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.273 mW/g Date/Time: 09/18/03 11:50:34 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11g_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11g_Antenna A (Host device: Compaq) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9669 mho/m, ε r = 52.4521, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2412_Rate: 2/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 10.3 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.193 mW/g 2412_Rate: 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.396 W/kg SAR(1 g) = 0.194 mW/g; SAR(10 g) = 0.106 mW/g Reference Value = 10.3 V/m Power Drift = 0.1 dB Maximum value of SAR = 0.2 mW/g Date/Time: 09/18/03 12:07:20 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11g_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11g_Antenna A (Host device: Compaq) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9669 mho/m, ε r = 52.4521, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2437_Rate: 2/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 12 V/m Power Drift = -0.05 dB Maximum value of SAR = 0.236 mW/g 2437_Rate: 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SAR (extrapolated) = 0.508 W/kg SAR(1 g) = 0.246 mW/g; SAR(10 g) = 0.135 mW/g Reference Value = 12 V/m Power Drift = -0.05 dB Maximum value of SAR = 0.25 mW/g Date/Time: 09/18/03 16:46:20 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 2_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 2_802.11b_Antenna …

Text truncated - open the document above for the full version.

Date/Time: 09/18/03 12:39:06 Test Laboratory: Compliance Certification Services File Name: EUT Setup Conf 1_802.11b_Antenna A.da4 DUT: Atheros Communications, Inc.; Type: AR5BCB-00043; Serial: N/A Program: EUT Setup Conf 1_802.11b_Antenna A (Host device: DELL) Ambient Temperature: 24.5 deg C; Liquid Temperature: 23.0 deg C Communication System: Athreos; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: Muscle 2450 MHz (σ = 1.9669 mho/m, ε r = 52.4521, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn427; Calibrated: 2/4/2003 z Phantom: SAM 2; Type: SAM 2; Serial: 1050 z Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 2412/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.5 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.258 mW/g 2412/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Peak SA…
