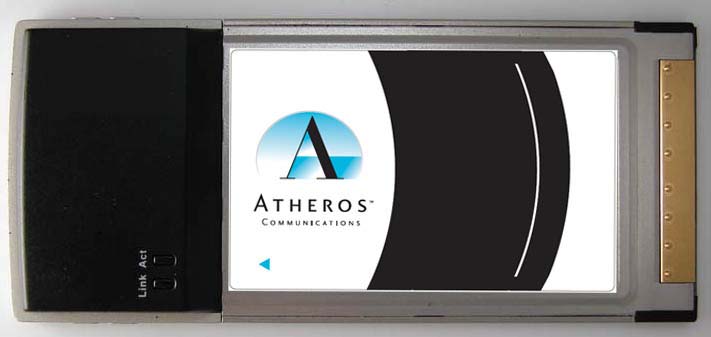

PPD-AR5BCB-000712.4GHz 802.11n Cardbus

Atheros Cardbus Adapter Model AR5BCB-00071 802.11n Cardbus Adapter Feb 2006 © 2000–2006 by Atheros Communications, Inc. All rights reserved. ATHEROS , the Atheros logo, 5-UP , Driving the Wireless Future , Atheros Driven , Atheros Turbo Mode , and the Air is Cleaner at 5-GHz are trademarks of Atheros Communications, Inc. All other trademarks are the property of their respective holders. Notice The information in this document has been carefully reviewed and is believed to be accurate. Nonetheless, this document is subject to change without notice, and Atheros Communications, Inc. (Atheros) assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the contained information, or to notify a person or organization of any updates. Atheros reserves the right to make changes, at any time, in order to improve reliability, function or design and to attempt to supply the best product possible. Atheros does not represent that products described herein are free from patent infringement or from any other third party right. No part of this document may be reproduced, adapted or transmitted in any form or by any means, electronic or mechanical, for any purpose, except as expressly set forth in a written agreement signed by Atheros. Atheros or its affiliates may have patents or pending patent applications, trademarks, copyrights, maskwork rights or other intellectual property rights that apply to the ideas, material and information expressed herein. No license to such rights is provided except as expressly set forth in a written agreement signed by Atheros. ATHEROS MAKES NO WARRANTIES OF ANY KIND WITH REGARD TO THE CONTENT OF THIS DOCUMENT. IN NO EVENT SHALL ATHEROS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL SPECULATORY OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. IN PARTICULAR, ATHEROS SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA TRANSMITTED OR OTHERWISE USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE OR DATA. ATHEROS SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE AS THEY MIGHT OTHERWISE APPLY TO THIS DOCUMENT AND TO THE IDEAS, MATERIAL AND INFORMATION EXPRESSED HEREIN. Document Conventions Text Conventions bold Bold type within paragraph text indicates commands, file names, directory names, paths, output, or returned values. Example: The DK_Client package will not function unless you use the wdreg_install batch file. italic Within commands, italics indicate a variable that the user must specify. Example: mem_alloc size_in_bytes Titles of manuals or other published documents are also set in italics. Courier The Courier font indicates output or display. Example: Error:Unable to allocate memory for transfer! Menu The Menu character tag is used for menu items. Example: Choose Edit > Copy. [ ] Within commands, items enclosed in square brackets are optional parameters or values that the user can choose to specify or omit. { } Within commands, items enclosed in braces are options from which the user must choose. | Within commands, the vertical bar separates options. ... An ellipsis indicates a repetition of the preceding parameter. > The right angle bracket separates successive menu selections. Example: Start > Programs > DK > wdreg_install. Notices NOTE: This message denotes neutral or positive information that calls out important points to the text. A note provides information that may apply only in special cases. Atheros Communications, Inc. • iii COMPANY CONFIDENTIAL March 2006 Revision History Revision Description of Changes Feb 2006 Initial Release iv • Atheros Communications, Inc. Feb 2006 COMPANY CONFIDENTIAL Contents Introduction ............................................................................................................... 7 System Requirements ........................................................................................ 7 Profile Management ................................................................................................. 7 Create or Modify a Configuration Profile....................................................... 7 Remove a Configuration Profile....................................................................... 8 Auto Profile Selection Management....................................................................... 8 Switching to a Different Configuration Profile..................................................... 9 Import and Export Profiles ...................................................................................... 9 Importing a Profile.................................................................................................... 9 Exporting a Profile .................................................................................................... 9 TCP/IP Configuration.............................................................................................. 9 Configuring the TCP/IP Address for the network device:................................. 9 General Tab.............................................................................................................. 10 Advanced Tab.......................................................................................................... 10 Security Tab ............................................................................................................. 11 Using EAP-TLS Security ................................................................................. 12 Using EAP-TTLS Security ............................................................................... 12 Using PEAP (EAP-GTC) Security .................................................................. 13 Using PEAP-MSCHAP V2 Security.............................…

Text truncated - open the document above for the full version.

Atheros Communications, Inc. 5480 Great America Parkway Santa Clara CA 95054 t 408 773 5200 f 408-773-9940 www.atheros.com Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 October 11, 2005 To Whom It May Concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a ) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Atheros Communications, Inc. 5480 Great America Parkway Santa Clara CA 95054 t 408 773 5200 f 408-773-9940 www.atheros.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Michael Green / Manager, Global Product Compliance Atheros Communications Inc.

Mike Kuo From: David Garcia Sent: Friday, March 31, 2006 3:26 PM To: Mike Kuo; Claire Hoque Cc: Thu Chan; Michael Heckrotte Subject: RE: ATHEROS COMMUNICATIONS, INC., FCC ID: PPD-AR5BCB-00071 , Assessment NO.: AN06T5614, Notice#1  4/3/2006 See my responses below in blue. //dg -----Original Message----- From: Mike Kuo Sent: Thursday, March 30, 2006 6:16 PM To: Claire Hoque Cc: Thu Chan; Michael Heckrotte; David Garcia Subject: FW: ATHEROS COMMUNICATIONS, INC., FCC ID: PPD-AR5BCB-00071 , Assessment NO.: AN06T5614, Notice#1 -----Original Message----- From: Mike Kuo Sent: Thursday, March 30, 2006 6:15 PM To: Mike Kuo Subject: ATHEROS COMMUNICATIONS, INC., FCC ID: PPD-AR5BCB-00071 , Assessment NO.: AN06T5614, Notice#1 Question #1 : Based upon theory of operation, this device is capable of various modulation ( BPSK, QPSK, 16-QAM, 64-QAM), data rate ( 1 Mbps - 300 Mbps), Spatial Stream (1 or 2 ) . Section 5.5 of EMC test report indicated that during preliminary investigation, various data rate in each mode has been investigated with peak output power and average output power. How about various modulation and spatial stream ? Have PSD test been performed during the preliminary investigation ? Preliminary testing was done on the various modulations and spatial streams. The report has been updated to show this. Question #2: Section 5.5 of test report indicated the worse mode of operation based upon preliminary test result, please clearly indicate the type of modulation, data rate, spatial stream and channel bandwidth for each mode. Please submit revised test report. The report has been updated to show worst case modulation, data rate, spatial stream and channel bandwidth for each mode. Question #3: Section 7.1.3, please list the formula used to calculate the total output power . The formula has been added to the test report. Question #4: PSD measurement: The method used for PSD measurement does not comply with DTS measurement procedure published on May 09, 2005. Please redo the PSD measurement . The requirement for PSD measurement is stated below: Since output power is measured with output power option 2, then you have to measure PSD with PSD option 2. Section 15.247(d) ¡V Power spectral density (PSD). The same method of determining the conducted output power shall be used to determine the power spectral density. If a peak output power is measured, then a peak power spectral density measurement is required. If an average output power is measured, then an average power spectral density measurement should be used. Use PSD Option 1 if Power output Option 1 was used. Use PSD Option 2 if power output Option 2 was used. PSD was retested using option 2 and the data inserted into the test report. Question #5: Section 7.2.2 radiated spurious emission tests: what was the test conditions ? Single chain or dual chain transmitting ? The radiated spurious was tested in dual chain test condition during testing. This statement was added to the test report. Question #6: SAR : In the SAR test report included EUT photos with titled alternate housing. Please explain the purpose for this photo and how the alternate housing is different than the EUT tested during the final compliance tests. Please provide internal photos of this alternate housing and provide information on the size and the type of material of this alternate housing. SAR and EMC tests were performed again on the alternate housing. SAR and EMC test reports have been revised and submitted. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.  4/3/2006

REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 27 of 33 This report shall not be reproduced except in full, without the written approval of CCS. 12 EUT PHOTOS 2.4GHz 802.11n Cardbus REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 28 of 33 This report shall not be reproduced except in full, without the written approval of CCS. 2.4GHz 802.11n Cardbus REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 29 of 33 This report shall not be reproduced except in full, without the written approval of CCS. 2.4GHz 802.11n Cardbus with Alternate Housing REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 30 of 33 This report shall not be reproduced except in full, without the written approval of CCS. Host 1 Dell Inspiron 6000 REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 31 of 33 This report shall not be reproduced except in full, without the written approval of CCS. Host 2 Compaq Presario V2000 REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 32 of 33 This report shall not be reproduced except in full, without the written approval of CCS. Host 3 HP Pavilion V6000 REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 33 of 33 This report shall not be reproduced except in full, without the written approval of CCS. 13 ATTACHMENTS No. Contents No. Of Pages 1 System Performance Check Plots 6 2-1 SAR Test Plots-Host 1 Dell Inspiron 6000 15 2-2 SAR Test Plots-Host 2 Compaq Presario V2000 9 2-3 SAR Test Plots-Host 3 HP Pavilion ZV6000 9 2-4 SAR Test Plots-Host 1 Dell Inspiron 6000-Alternate Housing 9 3 Certificate of E-Field Probe - EX3DV3SN3531 10 4 Certificate of System Validation Dipole - D2450V2 SN:748 9 End of Report

This device complies with Part 15 of the FCC Rules and Canadian standard RSS-210. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canada ICES-003. ©Atheros Communications, Inc. 2004-2005 FCC ID: PPD-AR5BCB-00071 Model AR5BCB-00071 Canada IC: 4104A-AR5BCB71 FCCID: PPD-AR5BCB-00071 FCC ID LABEL LOCATION

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC REPORT AND ORDER: ET DOCKET 93-62, AND OET BULLETIN 65 SUPPLEMENT C AND RSS-102 ISSUE 1 (PROVISIONAL) SEPTEMBER 25, 1999 FOR 2.4GHz 802.11n CARDBUS MODEL: AR5BCB-00071 FCC ID: PPD-AR5BCB-00071 REPORT NUMBER: 06U10183-5B ISSUE DATE: APRIL 1, 2006 Prepared for ATHEROS COMMUNICATIONS, INC 5480 GREAT AMERICA PARKWAY SANTA CLARA, CA 95054, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 33 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- March 30, 2006 Initial issue HS B April 1, 2006 Additional SAR Tests for alternate housing. New materials are: 1- Simulating liquid parameter check results 2- System performance check results 3- SAR measurement results for 2.4GHz 802.11n cardbus with alternate housing 4- Photos 5- Attachments ND REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 33 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: March 27, 28, 29, and April 1, 2006 APPLICANT: ADDRESS: ATHEROS COMMUNICATIONS, INC 5480 GREAT AMERICA PARKWAY, SANTA CLARA, CA 95054, USA FCC ID: MODEL: PPD-AR5BCB-00071 AR5BCB-00071 DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure 2.4GHz 802.11n Cardbus is installed in three host laptops. 2.4GHz 802.11n Cardbus has an alternate housing. Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) for 802.11b Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g Orthogonal Frequency Division Multiplexing (OFDM) for 802.11n HT20 Orthogonal Frequency Division Multiplexing (OFDM) for 802.11n HT40 Host Laptops Host 1: Dell Inspiron 6000 Host 2: Compaq Presario V2000 Host 3: HP Pavilion ZV6000 Antenna(s) EUT utilizes two Inverted-F antennas for transmit and receive and one PCB Integrated monopole antenna for receiving only. Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] FCC 15.247 RSS102 2412 - 2462 Host 1: 0.865 Host 2: 0.820 Host 3: 0.846 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01). Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Ninous Davoudi Senior Engineer EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 06U10183-5B DATE: April 1, 2006 FCC ID: PPD-AR5BCB-00071 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 33 This report shall not be reproduced except in full, without the written approval of CCS. Table Of Contents 1 EQUIOMENT UNDER TEST (EUT) DESCRIPTION.......................................................................... 5 2 FACILITIES AND ACCREDITATION ................................................................................................. 5 3 SYSTEM DESCRIPTION................................................................................................................... 6 3.1 COMPOSITION OF INGREDIANTS FOR TISSUE SIMULATIG LIQUIDS ................................ 7 4 SIMULATING LIQUID PARAMETERS CHECK ................................................................................. 8 4.1 SIMULATING LIQUID PARAMETER CHECK RESULT ............................................................ 9 5 SYSTEM PERFORMANCE CHECK ................................................................................................ 12 5.1 SYSTEM PERFORMANCE CHECK RESULTS ...................................................................... 13 6 SAR MEASURMENT PROCEDURE ............................................................................................... 14 6.1 DASY4 SAR MEASURMENT PROCEDURE .......................................................................... 15 7 PROCEDURE USED TO ESTABLISH TEST SIGNAL..................................................................... 16 8 SAR RESULTS FOR 2.4GHZ 802.11N CARDBUS ......................................................................... 17 8.1 LAPTOP # 1-DELL INSPIRON 6000 ....................................................................................... 17 8.2 LAPTOP # 2-COMPAQ PRESARIO V2000............................................................................. 19 8.3 LAPTOP # 3-HP PAVALION ZV6000 ...................................................................................... 21 9 SAR RESULTS FOR 2.4GHZ 802.11N CARDBUS WITH ALTERNATE HOUSING........................ 23 9.1 LAPTOP # 1-DELL INSPIRON 6000 ....................................................................................... 23 10 MEASURMENT UNCERTAINTY ..................................................................................................... 25 10.1 MEASURMENT UNCERTAINTY FOR 300 MHZ – 3000 MHZ ................................................ 25 11 EQUIPMENT LIST AND CALIBRATION............................................................…

Text truncated - open the document above for the full version.

Date/Time: 3/28/2006 9:27:38 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.4 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 84.6 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 26.0 W/kg SAR(1 g) = 12.4 mW/g; SAR(10 g) = 5.67 mW/g Maximum value of SAR (measured) = 14.0 mW/g 0 dB = 14.0mW/g Date/Time: 3/28/2006 9:38:18 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 7.04 mW/g Date/Time: 3/29/2006 9:59:11 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.8 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 85.7 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 27.2 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.85 mW/g Maximum value of SAR (measured) = 14.4 mW/g 0 dB = 14.4mW/g Date/Time: 3/29/2006 10:09:46 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 7.16 mW/g Date/Time: 4/1/2006 8:39:58 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 50.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.7 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.1 V/m; Power Drift = 0.024 dB Peak SAR (extrapolated) = 26.5 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.89 mW/g Maximum value of SAR (measured) = 14.6 mW/g 0 dB = 14.6mW/g Date/Time: 4/1/2006 8:50:28 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 7.43 mW/g

Date/Time: 3/28/2006 11:47:39 AM Test Laboratory: Compliance Certification Services Host 1 Dell Inspiron 6000 DUT: 802.11bg MIMO CardBus; Type: N/A; Serial: N/A Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.96 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 b mode L-ch/Area Scan (8x8x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.261 mW/g b mode L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.6 V/m; Power Drift = 0.093 dB Peak SAR (extrapolated) = 0.458 W/kg SAR(1 g) = 0.266 mW/g; SAR(10 g) = 0.155 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.288 mW/g Date/Time: 3/28/2006 11:31:51 AM Test Laboratory: Compliance Certification Services Host 1 Dell Inspiron 6000 DUT: 802.11bg MIMO CardBus; Type: N/A; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 2 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(8.29, 8.29, 8.29); Calibrated: 7/21/2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 b mode M-ch/Area Scan (8x8x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.879 mW/g b mode M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 21.8 V/m; Power Drift = -0.040 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 0.857 mW/g; SAR(10 g) = 0.476 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.940 mW/g Date/Time: 3/28/2006 11:43:55 AM Test Laboratory: Compliance Certification Services Host 1 Dell Inspiron 6000 DUT: 802.11bg MIMO CardBus; Type: N/A; Serial: N/A Communication System: 802.11bg; Frequency: 2437 MHz;Duty Cycle: 1:1 b mode M-ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.533 mW/g Date/Time: 3/28/2006 11:15:34 AM Test Laboratory: Compliance Certification Services Host 1 Dell Inspiron 6000 DUT: 802.11bg MIMO CardBus; Type: N/A; Serial: N/A Communication System: 802.11bg; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 2.03 mho/m; ε r = 52.4; ρ = 10…
